2022 SPECIFICATIONS Pioneer 700

Pioneer 700

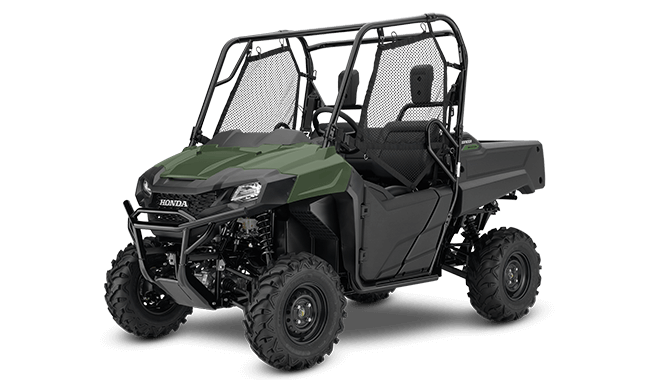

Pioneer 700

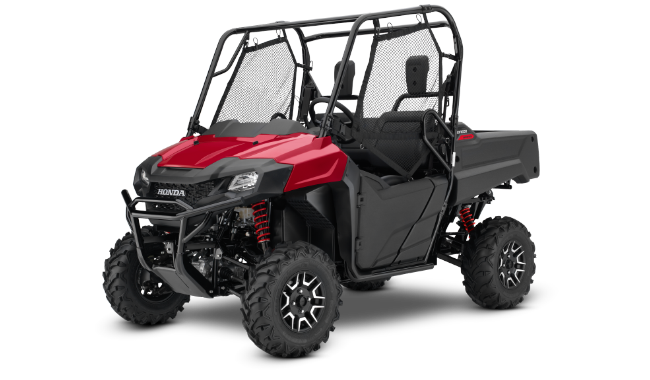

Pioneer 700 Deluxe

Pioneer 700

Engine Type

675cc liquid-cooled OHV single-cylinder four-stroke
Bore And Stroke

102.0mm x 82.6mm
Compression Ratio

9.2:1
Induction

Fuel Injection (PGM-FI), 40mm throttle body
Ignition

Full-transistorized with electronic advance

Clutch

Automatic
Transmission

Automotive-style automatic transmission with hydraulic torque converter, three forward gears and Reverse. Three drive modes include 2WD, 4WD and 4WD with Differential lock. AT/MT modes with paddle shifting on the deluxe models.
Driveline

Direct front and rear driveshafts

Front Suspension

Independent double-wishbone; 7.9 inches of travel
Rear Suspension

Independent double-wishbone; 9.1 inches of travel
Front Brake

Dual 200mm hydraulic discs
Rear Brake

170mm hydraulic disc
Front Tires

25 x 8-12
Rear Tires

25 x 10-12

Length

114.7 inches
Width

59.7 inches
Height

77.6 inches
Wheelbase

76.8 inches
Bed Capacity

1000 pounds
Towing Capacity

1500 pounds
Ground Clearance

10.7 inches
Turning Radius

14.8 feet
Curb Weight

1268 pounds - Includes all standard equipment, required fluids and full tank of fuel.
Fuel Capacity

7.9 gallons, including 1.2-gallon reserve

Safety

Recommended for Drivers 16 years of age and older.
Available Colors

Olive
Model ID

SXS700M2

One Year Included

Transferable, limited warranty
Optional Extended

Extended coverage available with a HondaCare Protection Plan®

Engine Type

675cc liquid-cooled OHV single-cylinder four-stroke
Bore And Stroke

102.0mm x 82.6mm
Compression Ratio

9.2:1
Induction

Fuel Injection (PGM-FI), 40mm throttle body
Ignition

Full-transistorized with electronic advance

Clutch

Automatic
Transmission

Automotive-style automatic transmission with hydraulic torque converter, three forward gears and Reverse. Three drive modes include 2WD, 4WD and 4WD with Differential lock. AT/MT modes with paddle shifting on the Deluxe models.
Driveline

Direct front and rear driveshafts

Front Suspension

Independent double-wishbone; 7.9 inches of travel
Rear Suspension

Independent double-wishbone; 9.1 inches of travel
Front Brake

Dual 200mm hydraulic discs
Rear Brake

170mm hydraulic disc
Front Tires

25 x 8-12
Rear Tires

25 x 10-12

Length

114.7 inches
Width

59.7 inches
Height

78.5 inches
Wheelbase

76.8 inches
Bed Capacity

1000 pounds
Towing Capacity

1500 pounds
Ground Clearance

10.7 inches
Turning Radius

14.8 feet
Curb Weight

1283 pounds - Includes all standard equipment, required fluids and full tank of fuel.
Fuel Capacity

7.9 gallons, including 1.2-gallon reserve

Safety

Recommended for Drivers 16 years of age and older.
Available Colors

Pearl Red, Honda Phantom Camo®
Model ID

SXS700M2D

One Year Included

Transferable, limited warranty
Optional Extended

Extended coverage available with a HondaCare Protection Plan®
