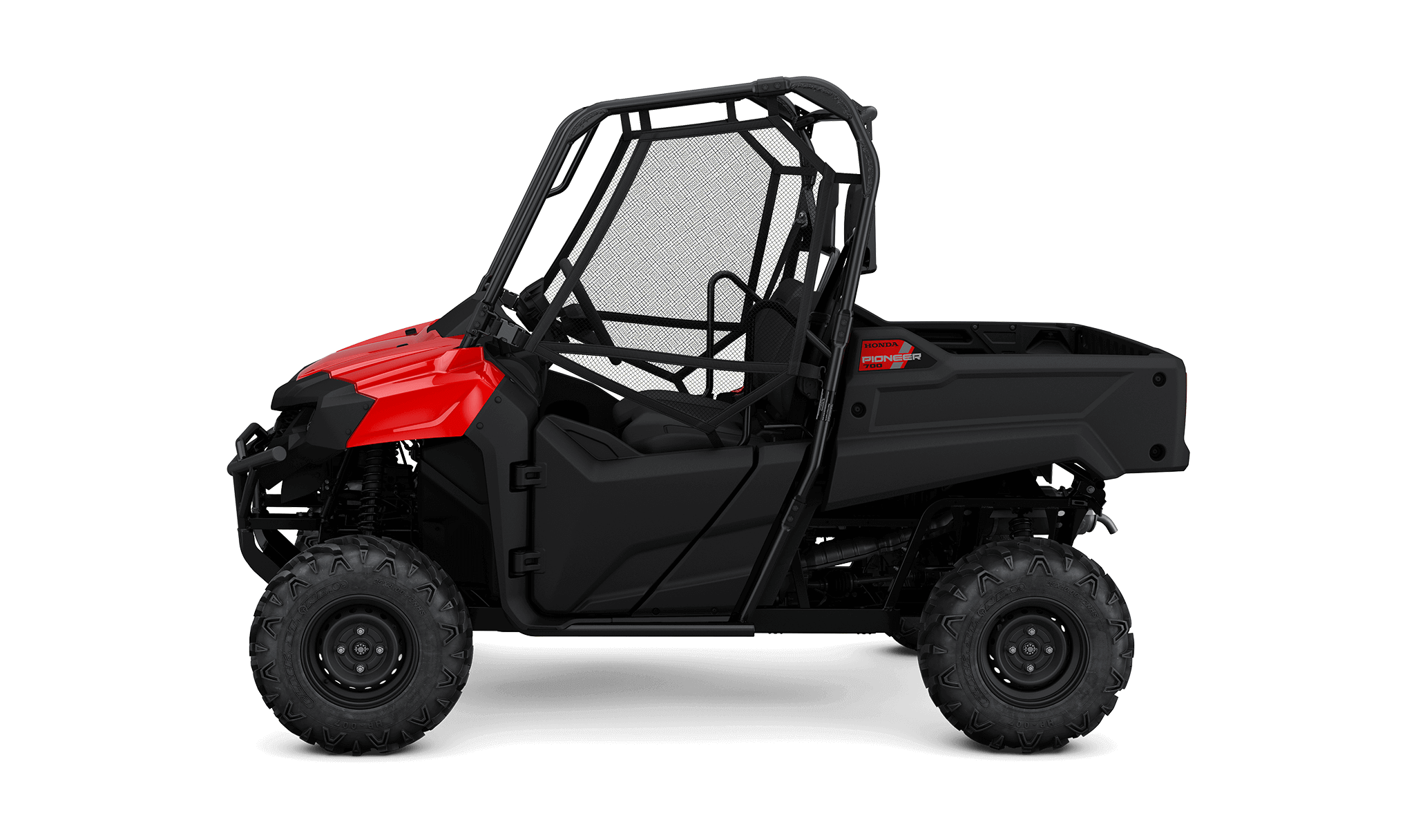

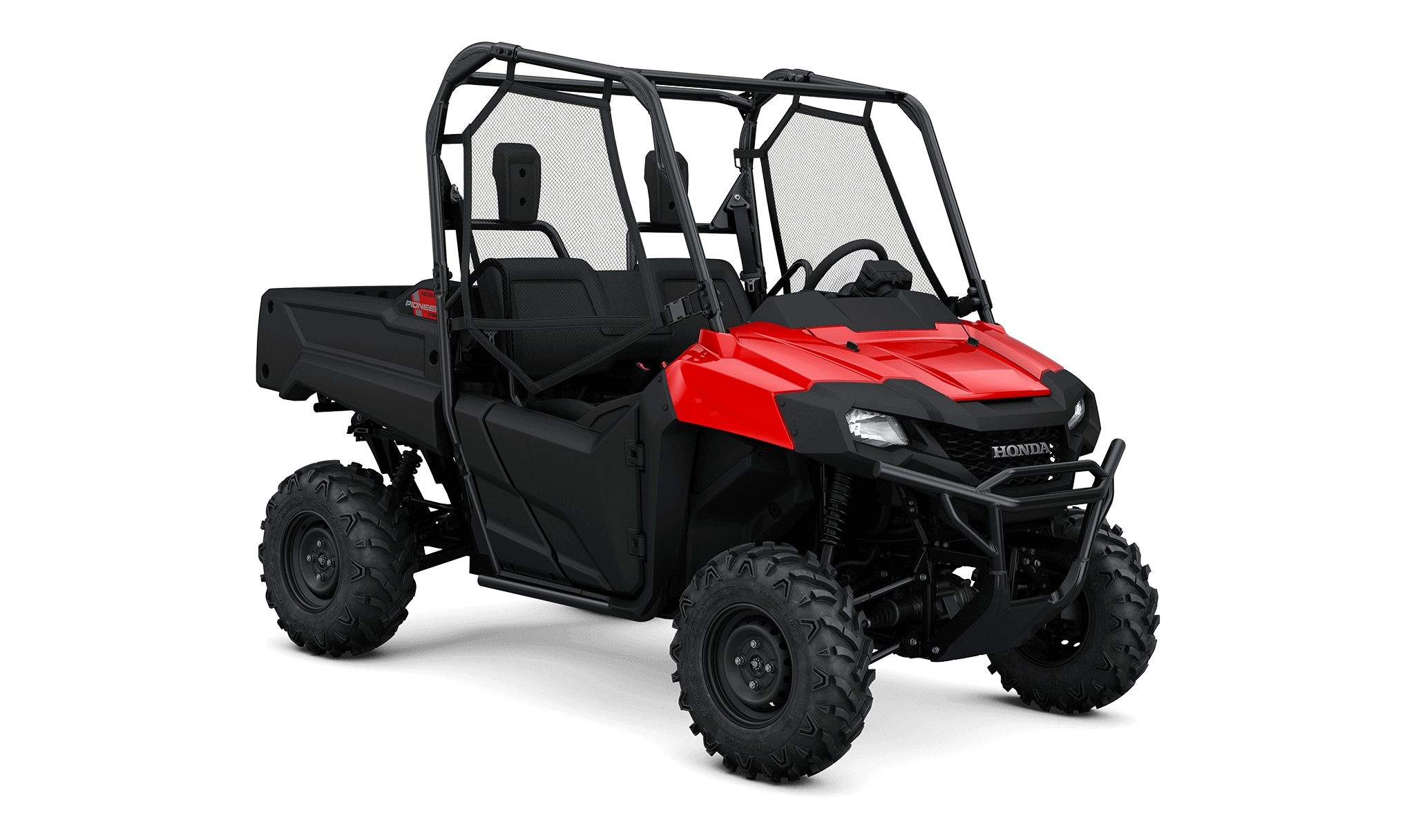

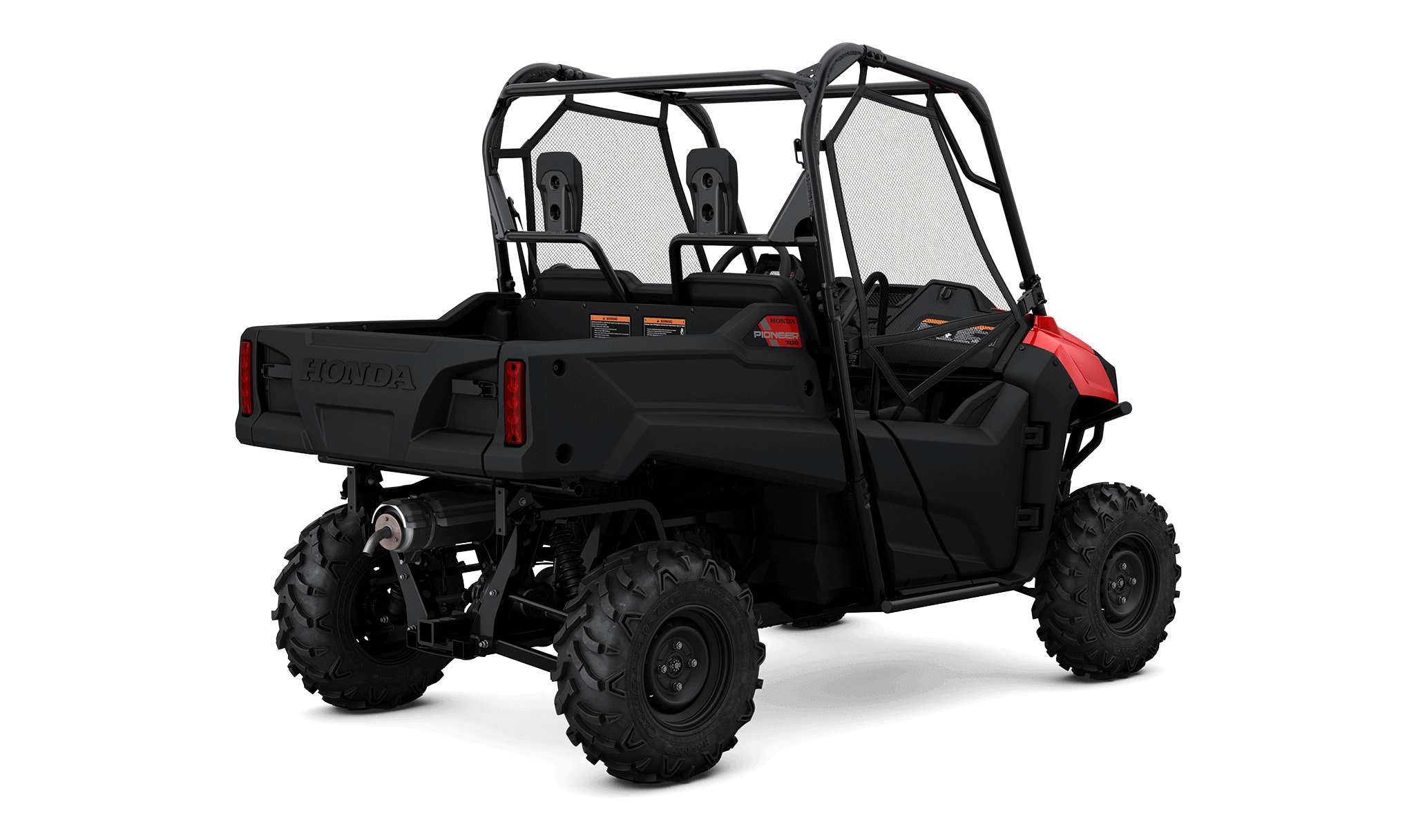

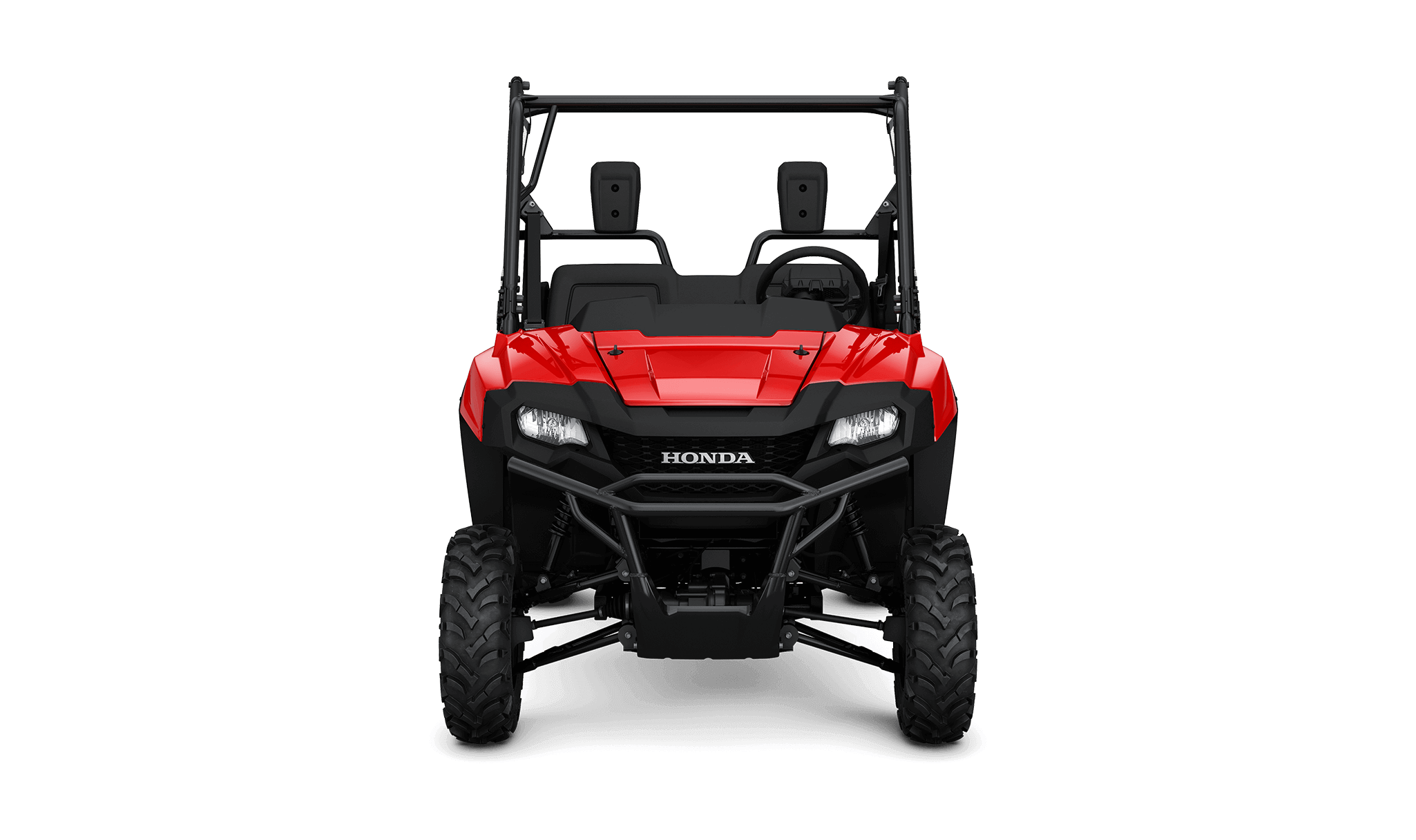

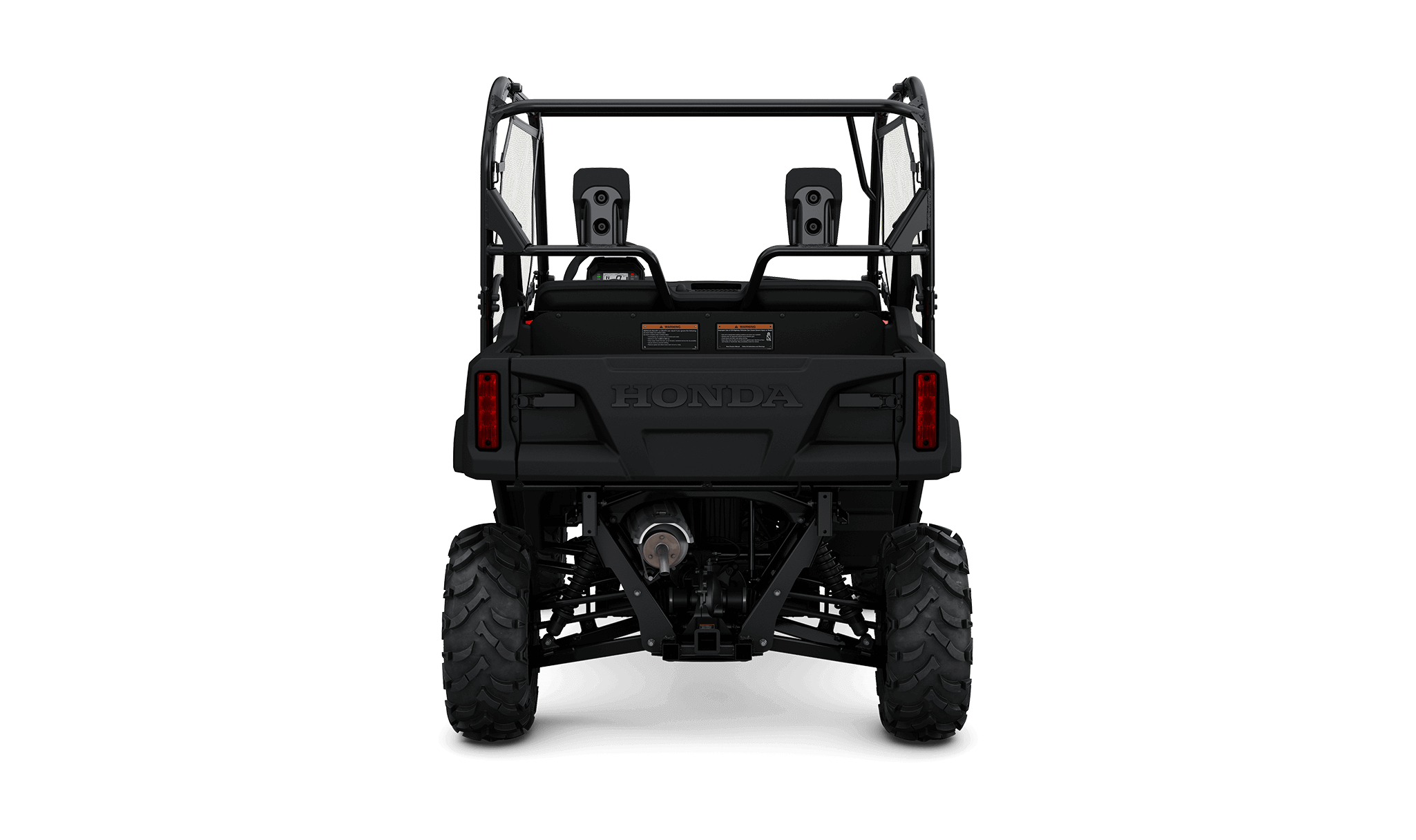

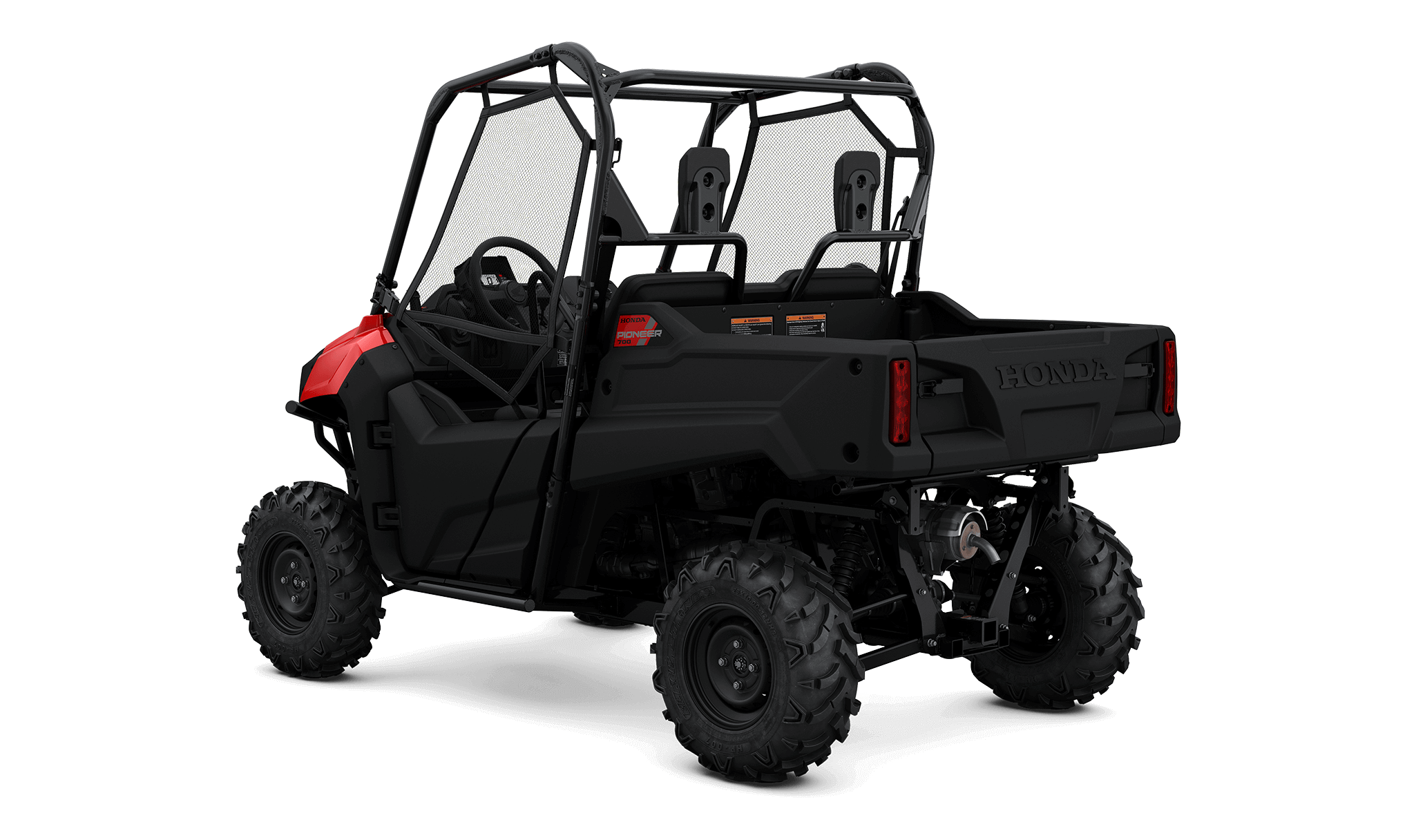

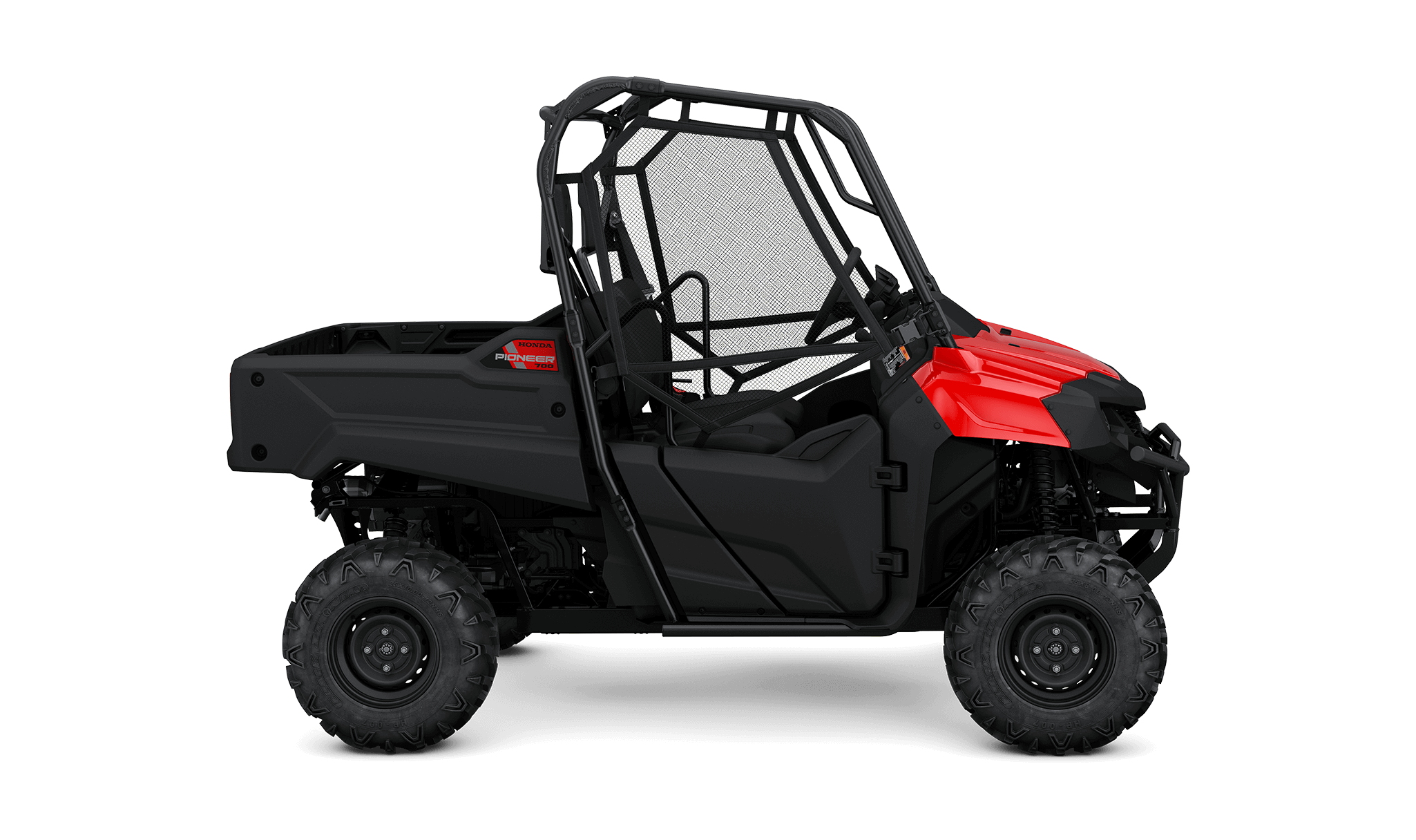

Pioneer 700
675cc liquid-cooled single-cylinder four-stroke
Automotive-style automatic transmission with hydraulic torque converter
Independent double-wishbone; 7.9-inch travel
Independent double-wishbone; 9.1-inch travel
76.8 inches
Transferable, limited warranty. One year included.
Engine
| Engine Type | 675cc liquid-cooled single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 102.0mm x 82.6mm |
| Compression Ratio | 9.2:1 |
| Induction | Programmed Fuel-Injection system (PGM-FI); 40mm throttle body |
| Valve Train | OHV; four valves per cylinder |
Drivetrain
| Clutch | Automatic |
|---|---|
| Transmission | Automotive-style automatic transmission with hydraulic torque converter |
| Driveline | Direct front and rear driveshafts |
Chassis Suspension Brakes
| Front Suspension | Independent double-wishbone; 7.9-inch travel |
|---|---|
| Rear Suspension | Independent double-wishbone; 9.1-inch travel |
| Front Brakes | Dual 200mm discs |
| Rear Brake | Single 170mm disc |
| Front Tires | 25 x 8-12 |
| Rear Tires | 25 x 10-12 |
Dimensions
| Length | 114.8 inches |
|---|---|
| Width | 59.9 inches |
| Height | 77.6 inches |
| Wheelbase | 76.8 inches |
| Bed Capacity | 1000.0 pounds |
| Towing Capacity | 1500.0 pounds |
| Ground Clearance | 10.8 inches |
| Turning Radius | 14.8 feet |
| Curb Weight | 1296 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 8.1 gallons |
Other
| Safety | Recommended for Drivers 16 years of age and older. |
|---|---|
| Available Colors | Hero Red |
| Model ID | SXS700M2 |
| Seating Capacity | 2 |
Factory Warranty Information
| Duration | Transferable, one year included, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Built to fit your life
Work smarter

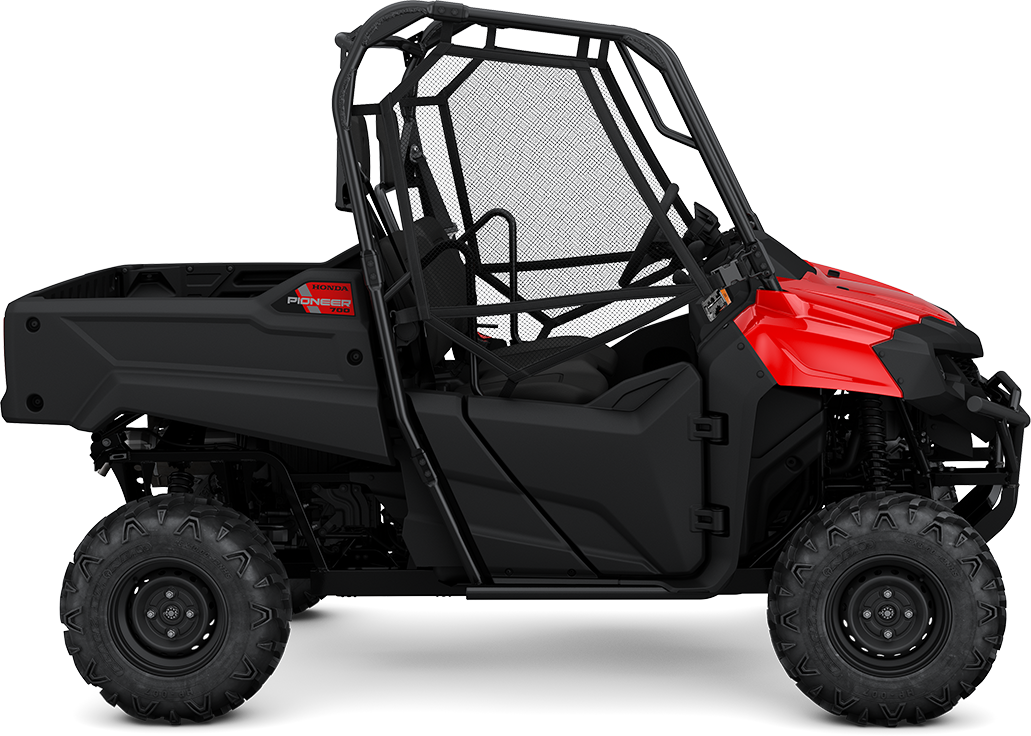

Rugged 675cc liquid-cooled engine
Experience the power and reliability of the 675cc four-stroke single. It's rubber-mounted to reduce cabin vibration, fuel-injected for reliable starts and performance in any weather, and proven to provide endless thrills.
Dual underbed containers
To further enhance the storage capacity of our two-person Pioneer 700s, we’ve added dual, sealed 15-liter compartments under the bed. These provide additional waterproof storage for personal belongings without compromising cabin space, and even feature a lockable tab.
New Kenda tires
To enhance ride comfort and off-road performance, all three trims come equipped with Kenda Mastodon AT tires for 2026. Known for their quality and feel, they also feature a more aggressive tread pattern.
Increased storage
All trims receive new under-dash cargo nets featuring a high-quality, injection-molded design with improved hooks for enhanced retention. Additionally, their storage capacity has increased from 3.9 liters to 10 liters—the largest in our Pioneer lineup.
Explore further
Additional charging power
New this year, all models feature both a center cabin-mounted 12-volt DC socket and a USB-C port located inside the glovebox. Now you can easily charge and run your phone and other personal electronics while out on the trail.
Redesigned brush guards
Larger front brush guards increase the side-by-side’s frontal protection, designed to slide smoothly over obstacles in rough conditions while providing added safety.
Automatic transmission
The automatic transmission’s heavy-duty torque converter, three hydraulic clutches, and two-stage shift map achieve smooth shifting, steady power, and optimized torque delivery, which also enhance performance at higher RPM ranges.
1500-pound towing capacity
Sometimes, heavy objects need to be towed. That's why we equipped this SxS with a robust three-quarter-ton towing capacity, strong enough to handle most jobs that typically require a tractor.
Adjustable preload rear shocks
Our preload rear shocks provide excellent handling, even when hauling heavy loads. The fully independent rear suspension has a dual-rate spring and 9.1 inches of travel, ensuring predictable handling performance even when the vehicle is loaded to its maximum capacity.
Disc brakes
Our triple-disc brakes with a patented scraper system enable you to handle any terrain confidently. The 200mm front and 170mm rear discs deliver exceptional stopping power, ensuring safety.
450-watt power capacity
The 450-watt alternator is engineered to perform at its best, providing ample power for daily use and additional accessories like light bars and winches.

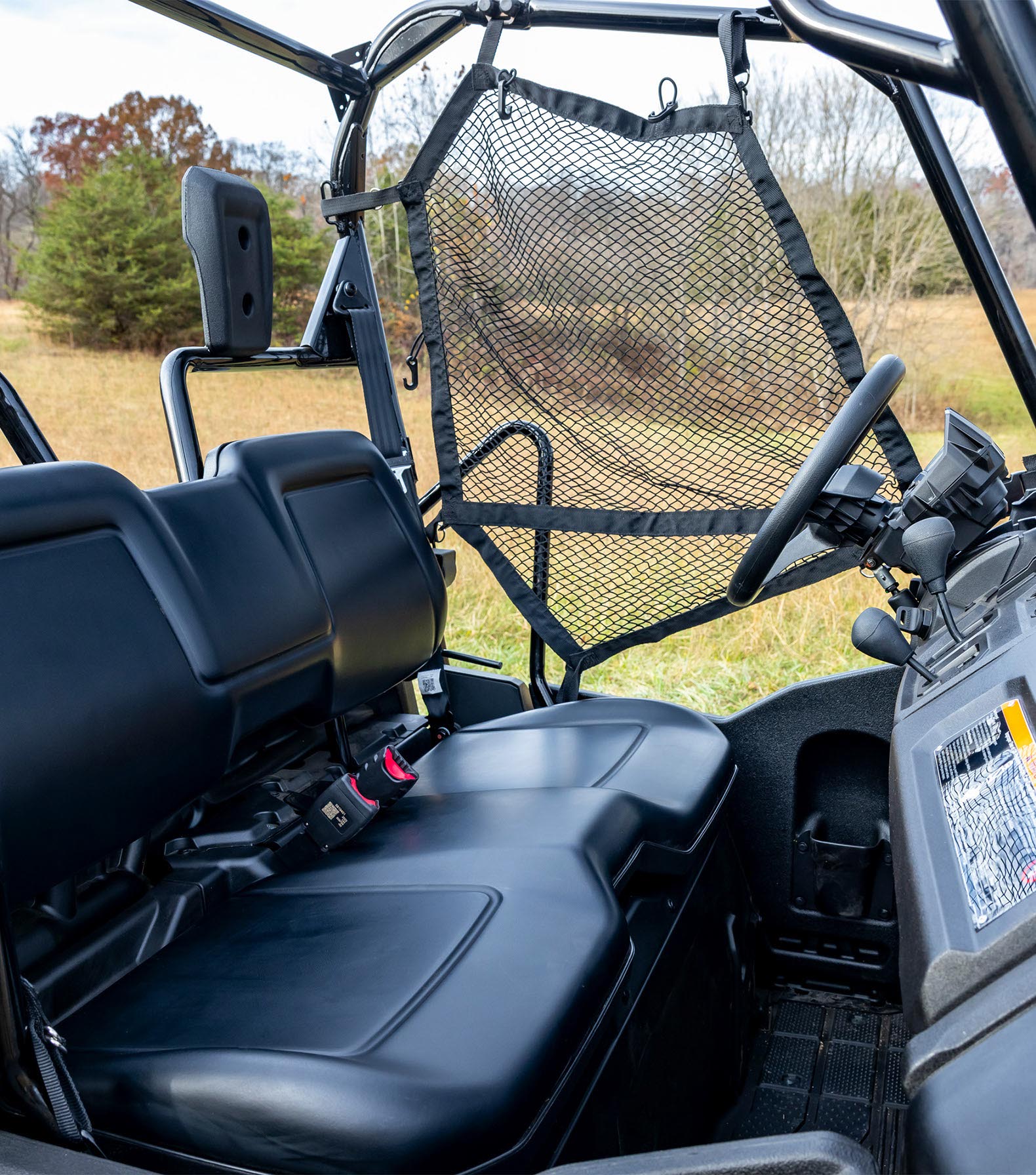

Driver/passenger protection
Safety performance is paramount, which is why our Occupant Protection Structure uses large-diameter tubing and ISO rollover protection. Passenger security is further enhanced with handrails, recessed top tubes, and three-point seatbelts.
More accessories
Outfit your Pioneer 700 with one or more of the 18 new and upgraded Honda accessories, including our Honda winch, all-new tip-out windshield and wiper kit, portable speakers and more—many featuring our Pro-Connect™ system for quick installation and seamless integration.

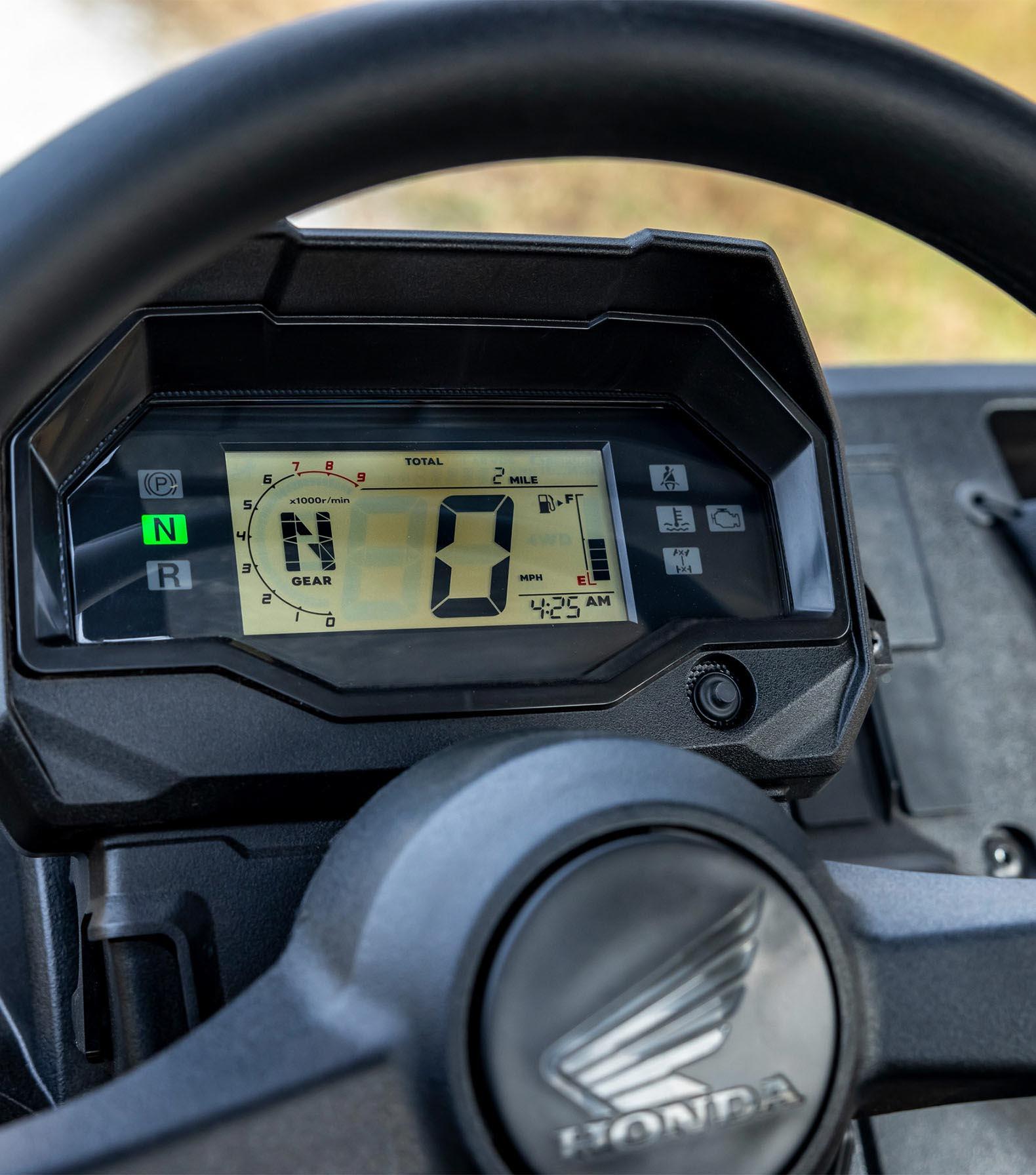

LCD instrument display
The display has a large LCD screen, multiple trip functions, battery-voltage readout, a tachometer array, and more. It tilts with the wheel for easier reading.
