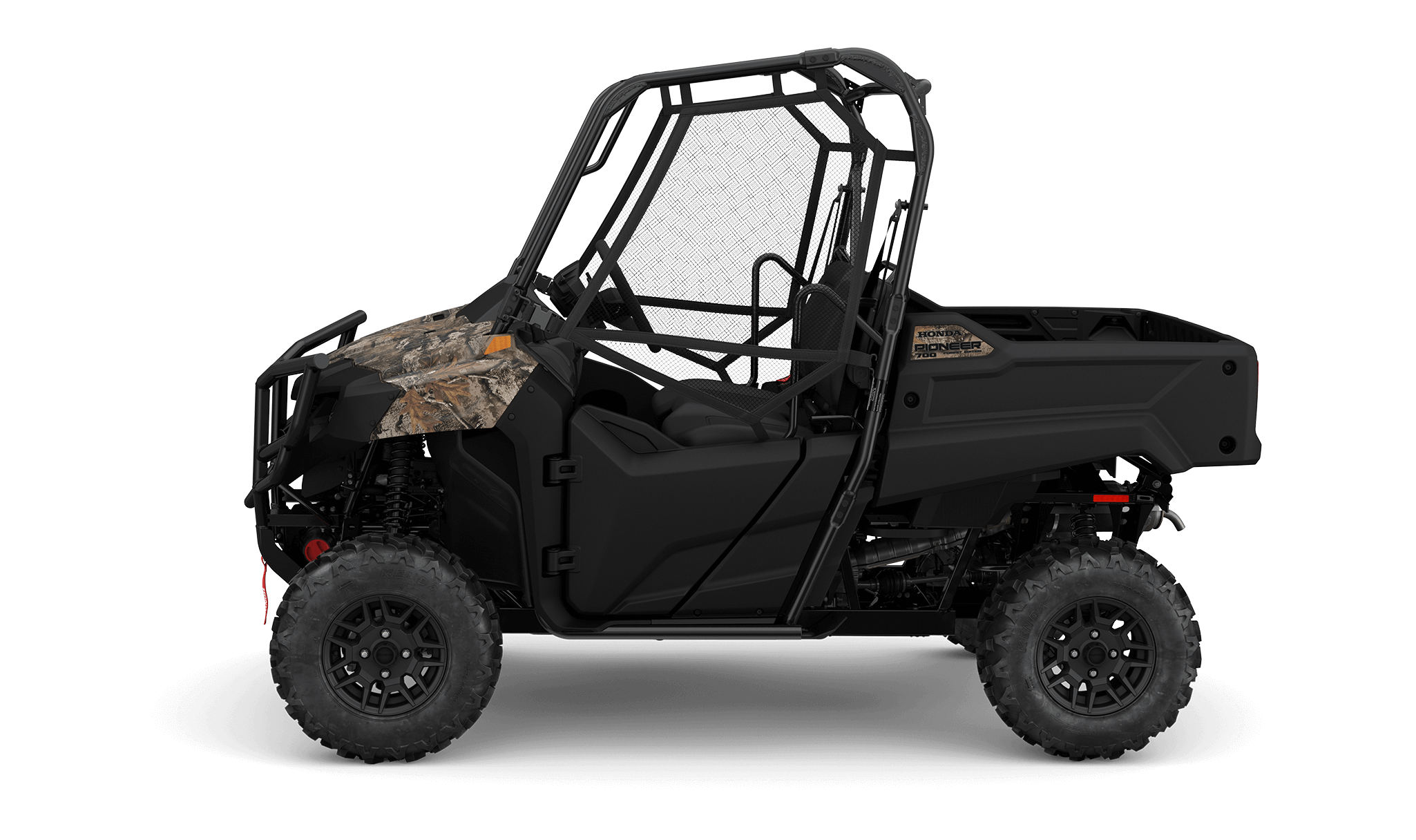

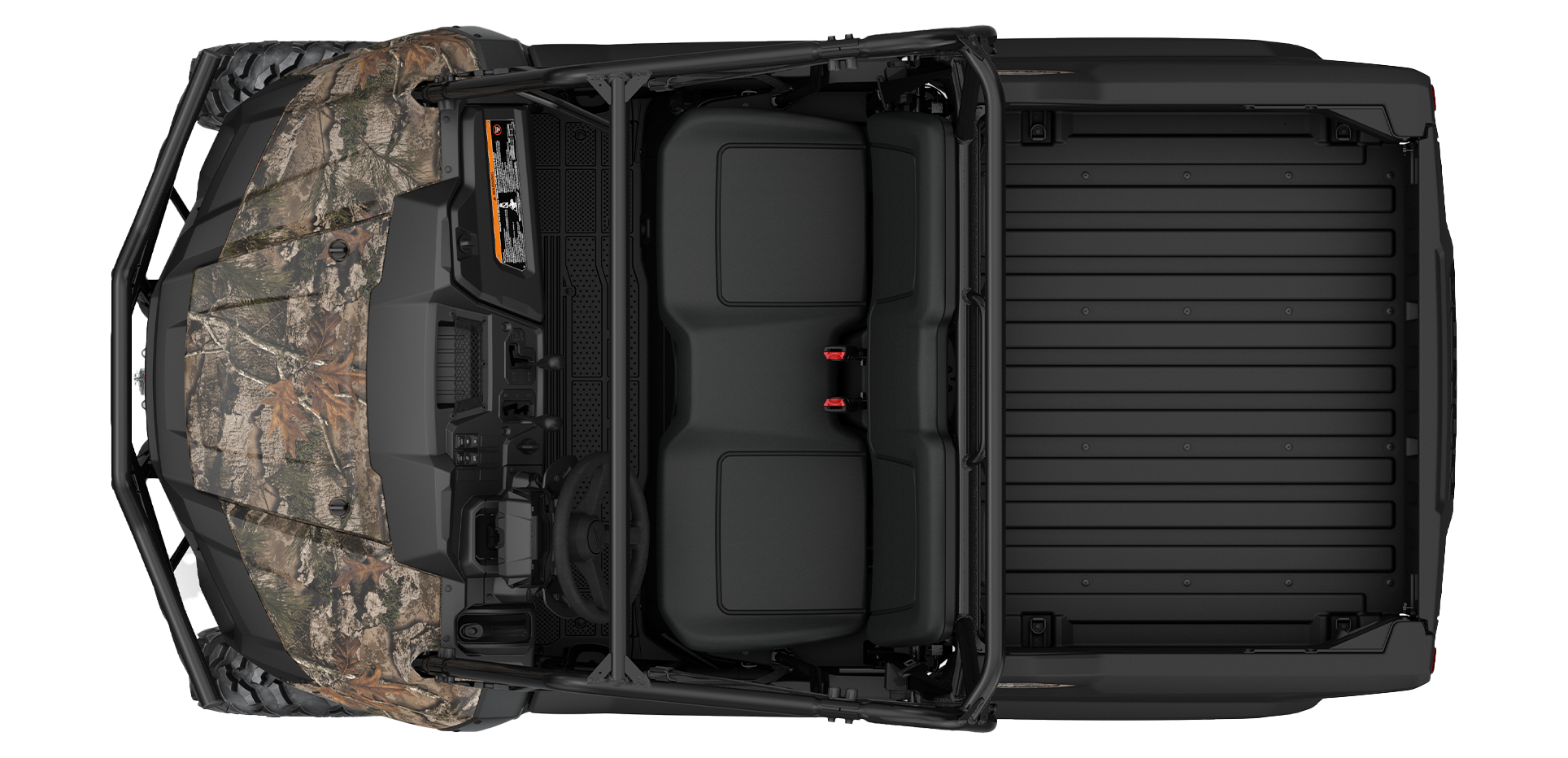

Pioneer 700 Forest
675cc liquid-cooled OHV single-cylinder four-stroke
Automotive-style automatic transmission with hydraulic torque converter
Independent double-wishbone; 7.9-inch travel
Independent double-wishbone; 9.1-inch travel
76.8 inches
Engine
| Engine Type | 675cc liquid-cooled OHV single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 102.0mm x 82.6mm |
| Compression Ratio | 9.2:1 |
| Induction | Fuel Injection (PGM-FI), 40mm throttle body |
| Valve Train | OHV; four valves per cylinder |
Drive Train
| Clutch | Automatic |
|---|---|
| Transmission | Automotive-style automatic transmission with hydraulic torque converter |
| Driveline | Direct front and rear driveshafts |
Chassis Suspension Brakes
| Front Suspension | Independent double-wishbone; 7.9-inch travel |
|---|---|
| Rear Suspension | Independent double-wishbone; 9.1-inch travel |
| Front Brake | Dual 200mm hydraulic discs |
| Rear Brake | Single 170mm hydraulic disc |
| Front Tires | 25 x 8-12 |
| Rear Tires | 25 x 10-12 |
Dimensions
| Length | 115.2 inches |
|---|---|
| Width | 60 inches |
| Height | 77.4 inches |
| Wheelbase | 76.8 inches |
| Bed Capacity | 1000 pounds |
| Towing Capacity | 1500 pounds |
| Ground Clearance | 10.4 inches |
| Turning Radius | 14.8 feet |
| Curb Weight | 1,358 pounds - Includes all standard equipment, required fluids and full tank of fuel. |
| Fuel Capacity | 8.1 gallons, including 1.5-gallon reserve |
Other
| Safety | Recommended for Drivers 16 years of age and older. |
|---|---|
| Available Colors | TrueTimber® Atera Camo |
| Model ID | SXS700M2F |
Factory Warranty Information
| One Year Included | Transferable, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Keep exploring
Rugged 675cc liquid-cooled engine
Experience the power and reliability of the 675cc four-stroke single. It's rubber-mounted to reduce cabin vibration, fuel-injected for reliable starts and performance in any weather, and proven to provide endless thrills.
Automatic transmission
The automatic transmission’s heavy-duty torque converter, three hydraulic clutches, and two-stage shift map achieve smooth shifting, steady power, and optimized torque delivery, which also enhances performance at higher RPM ranges.
Driver/passenger protection
Safety is paramount, which is why our Occupant Protection Structure uses large-diameter tubing and ISO rollover protection. Passengers are kept further secure with handrails, recessed top tubes, and three-point seatbelts.
LCD Instrument display
The display has a large LCD screen, multiple trip functions, battery-voltage readout, a tachometer array, and more. It tilts with the wheel for easier reading.
Weekend workhorse
Warn VRX45 Winch
This pre-installed Warn winch is standard equipment on our Forest models and is one of our most popular accessories. It's sure to be even more popular after you use it to pull your buddy's stuck side-by-side out of a mudhole!
Variety of color choices
Some hunters and outdoorsmen are going to go straight for the Forest edition in TrueTimber® Atera Camo. The Deluxe model comes in Hero Red and Black Forest Green, while the standard is also available in Hero Red.
Electric Power Steering (EPS)
Available on the Deluxe and Forest models, our Electric Power Steering has always been a groundbreaking innovation, especially with its next-generation brushless motor and return-to-center function.
AT/MT mode and paddle shifters
On the Deluxe and Forest trims, you have the option to either let the automatic transmission shift for you or take charge and choose which gear you want for yourself using the steering column-mounted paddle shifters. You can even shift from auto to manual on the fly.
Bed lights and 12-volt outlet
The Deluxe and Forest trims come with cargo bed lights and a 12-volt outlet. These features allow you to work or have fun at any time, and you can use accessories like an air compressor, inverter, or work light.
Double-wishbone front suspension
Our independent double-wishbone front suspension features dual-rate springs for a smooth ride and superior handling. With 7.9 inches of travel, you can tackle any rocky or uneven terrain.
Adjustable preload rear shocks
Our preload rear shocks provide excellent handling, even when hauling heavy loads. The fully independent rear suspension has a dual-rate spring and 9.1 inches of travel, ensuring predictable handling performance even when the vehicle is loaded to its maximum capacity.
Disc brakes
Our triple-disc brakes with a patented scraper system enable you to handle any terrain confidently. The 200mm front and 170mm rear discs deliver exceptional stopping power, ensuring safety.
Driver/passenger protection
Safety is paramount, which is why our Occupant Protection Structure uses large-diameter tubing and ISO rollover protection. Passengers are kept further secure with handrails, recessed top tubes, and three-point seatbelts.
Tilting steering wheel
A tilt feature on the steering wheel, standard on all models, makes getting in and out much easier. The instrument pod also tilts with the wheel.
Contoured bench seat
Our bench seat has a durable cover that can withstand frequent entry and exit and harsh weather conditions.
