Pioneer 700 Forest
675cc liquid-cooled single-cylinder four-stroke
Automotive-style automatic transmission with hydraulic torque converter
Independent double-wishbone; 7.9-inch travel
Independent double-wishbone; 9.1-inch travel
76.8 inches
Transferable, limited warranty. One year included.
Engine
| Engine Type | 675cc liquid-cooled single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 102.0mm x 82.6mm |
| Compression Ratio | 9.2:1 |
| Induction | Programmed Fuel-Injection system (PGM-FI); 40mm throttle body |
| Valve Train | OHV; four valves per cylinder |
Drivetrain
| Clutch | Automatic |
|---|---|
| Transmission | Automotive-style automatic transmission with hydraulic torque converter |
| Driveline | Direct front and rear driveshafts |
Chassis Suspension Brakes
| Front Suspension | Independent double-wishbone; 7.9-inch travel |
|---|---|
| Rear Suspension | Independent double-wishbone; 9.1-inch travel |
| Front Brakes | Dual 200mm discs |
| Rear Brake | Single 170mm disc |
| Front Tires | 25 x 8-12 |
| Rear Tires | 25 x 10-12 |
Dimensions
| Length | 115.2 inches |
|---|---|
| Width | 59.9 inches |
| Height | 77.8 inches |
| Wheelbase | 76.8 inches |
| Bed Size (L x W x H) | 36.3 x 45.4 x 11.1 inches |
| Bed Capacity | 1000 pounds |
| Towing Capacity | 1500 pounds |
| Ground Clearance | 10.6 inches |
| Turning Radius | 14.8 feet |
| Curb Weight | 1377 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 8.1 gallons |
Other
| Safety | Recommended for Drivers 16 years of age and older. |
|---|---|
| Available Colors | TrueTimber® Atera Camo |
| Model ID | SXS700M2F |
| Seating Capacity | 2 |
Factory Warranty Information
| Duration | Transferable, one year included, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
.png)
Equipped for deeper country
Exclusive Forest edition
The Forest model receives all the updates of the Deluxe edition, plus it is pre-customized by the factory with a Honda-designed and engineered heavy-duty winch and a larger front bumper. It also features the TrueTimber® Atera Camo color scheme, making it ideal for outdoor activities such as hunting, fishing, or camping.
Bed lighting
The Deluxe and Forest editions come with a factory-installed cargo bed light, allowing you to work or have fun anytime.
Electric Power Steering (EPS)
Available on the Deluxe and Forest models, our Electric Power Steering has always been a groundbreaking innovation, especially with its next-generation brushless motor and return-to-center function.
AT/MT mode and paddle shifters
On the Deluxe and Forest trims, you have the option to either let the automatic transmission shift for you or take charge and select the gear you want using the steering column-mounted paddle shifters. You can even shift from auto to manual on the fly.
Adventure, fully outfitted

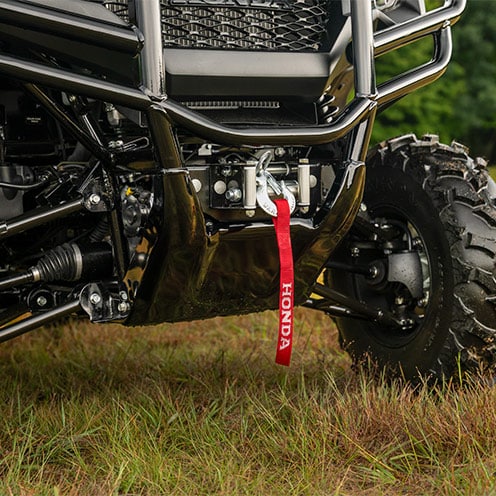

Honda winch
Our Honda-designed and engineered 4500-pound winch is standard equipment on the Forest model and is one of our most popular accessories. It's sure to be even more popular after you use it to pull your buddy's stuck side-by-side out of a mudhole!
Large brush guards
Large front brush guards increase the side-by-side’s frontal protection, designed to slide smoothly over obstacles in rough conditions while providing added safety.
Charging power
A center cabin-mounted 12-volt DC socket and a USB-C port inside the glovebox allow you to easily charge and power your phone and other personal electronics while out on the trail.
Rugged 675cc liquid-cooled engine
Experience the power and reliability of the 675cc four-stroke single. It's rubber-mounted to reduce cabin vibration, fuel-injected for reliable starts and performance in any weather, and proven to provide endless thrills.
1500-pound towing capacity
Sometimes, heavy objects need to be towed. That's why we equipped this SxS with a robust three-quarter-ton towing capacity, strong enough to handle most jobs that typically require a tractor.
Disc brakes
Our triple-disc brakes with a patented scraper system enable you to handle any terrain confidently. The 200mm front and 170mm rear discs deliver exceptional stopping power, ensuring safety.

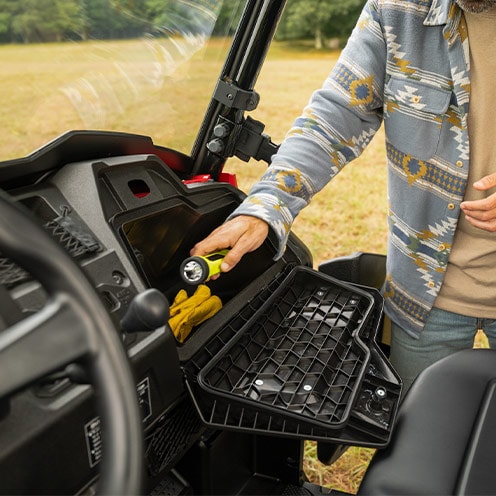

Glovebox
All models feature generous dash storage. A 9.6-liter glovebox with a water-resistant door keeps essentials dry, and the in-dash design provides storage without compromising legroom.
Tilting steering wheel
A standard tilt feature on the steering wheel simplifies entry and exit, and the instrument pod tilts along with the wheel.
LCD instrument display
The display has a large LCD screen, multiple trip functions, battery-voltage readout, a tachometer array, and more. It tilts with the wheel for easier reading.
Accessories
Outfit your Pioneer 700 with one or more of the 55 Honda accessories, including our Honda winch, tip-out windshield and wiper kit, portable speakers and more—many featuring our Honda Pro-Connect and Mini Pro-Connect systems for quick installation and seamless integration.
