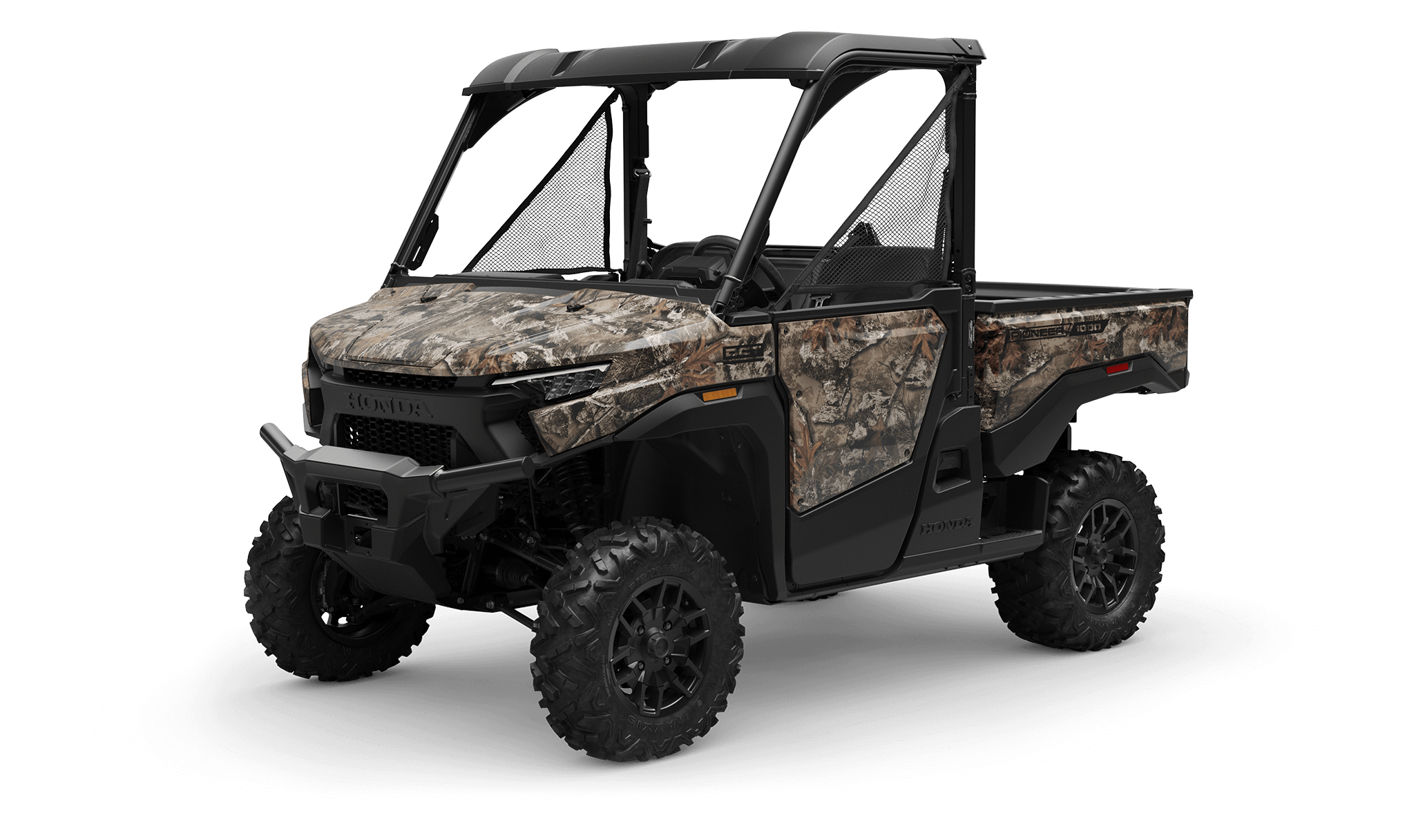

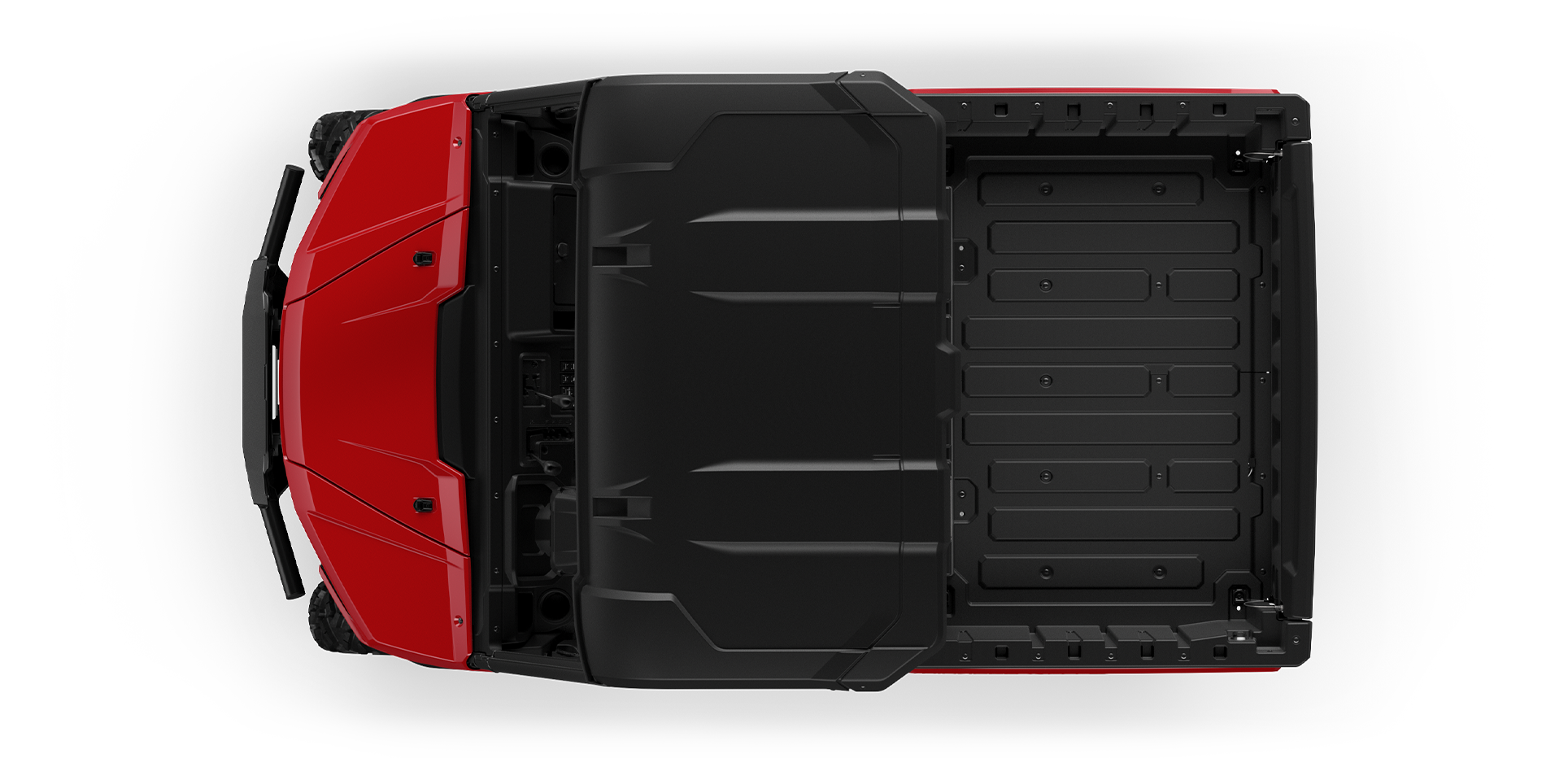

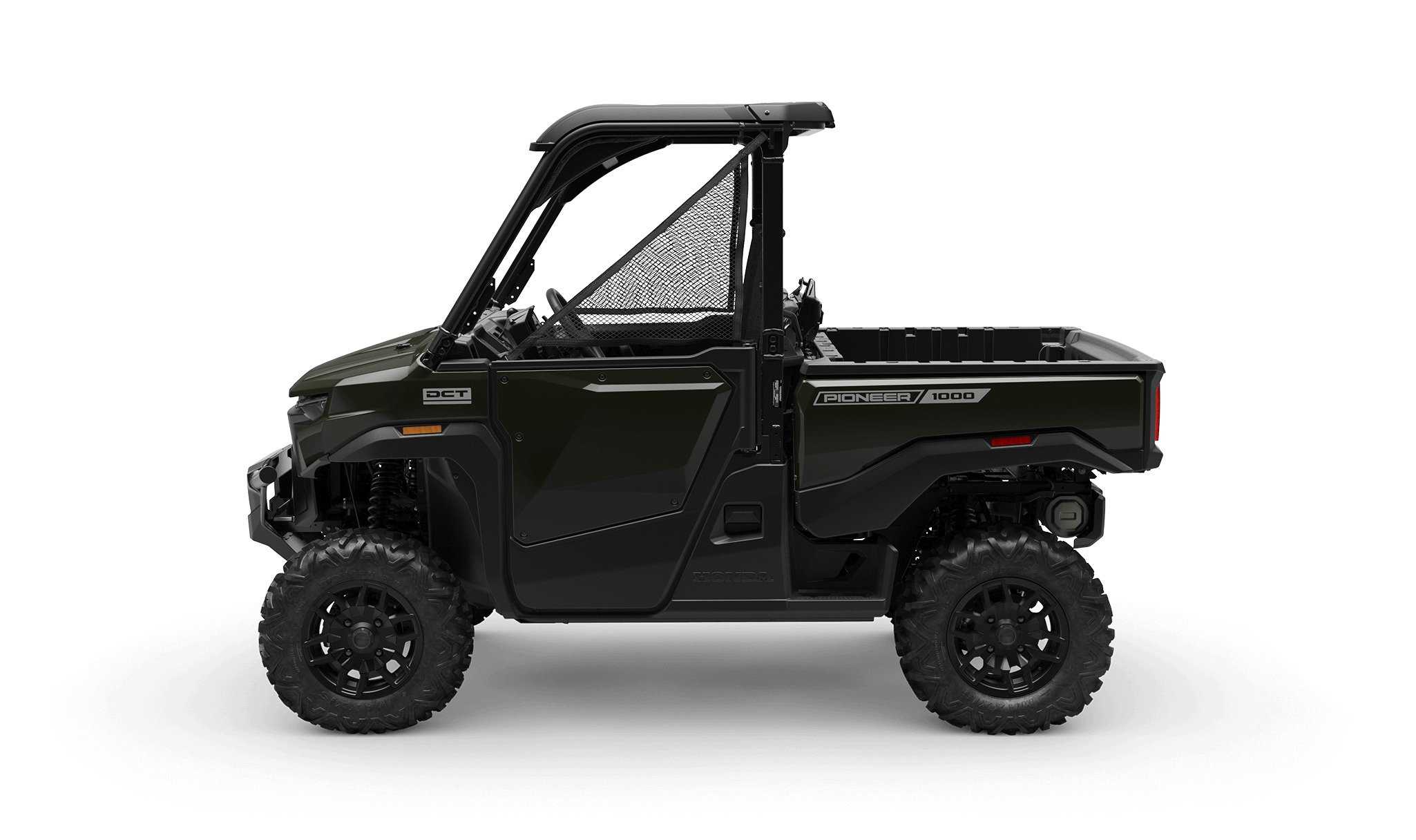

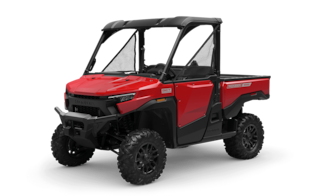

Pioneer 1000 Deluxe
999cc liquid-cooled longitudinally mounted parallel-twin four-stroke
Six-speed automatic Dual-Clutch Transmission (DCT)
Independent double-wishbone; 10.6-inch travel
Independent double-wishbone; 10.0-inch travel
80.2 inches
Transferable, limited warranty. One year included.
Engine
| Engine Type | 999cc liquid-cooled longitudinally mounted parallel-twin four-stroke |
|---|---|
| Bore And Stroke | 92.0mm x 75.1mm |
| Compression Ratio | 10.0:1 |
| Valve Train | Unicam® SOHC; four valves per cylinder |
| Induction | Programmed Fuel injection system (PGM-FI); 46mm throttle body |
Drivetrain
| Transmission | Six-speed automatic Dual-Clutch Transmission (DCT) |
|---|---|
| Driveline | Direct front and rear driveshafts |
Chassis Suspension Brakes
| Front Suspension | Independent double-wishbone; 10.6-inch travel |
|---|---|
| Rear Suspension | Independent double-wishbone; 10.0-inch travel |
| Front Brakes | Dual 230mm hydraulic discs |
| Rear Brakes | Dual 230mm hydraulic discs |
| Front Tires | Maxxis Big Horn 2.0, 27 x 9-14 |
| Rear Tires | Maxxis Big Horn 2.0, 27 x 11-14 |
Dimensions
| Length | 119.1 inches |
|---|---|
| Width | 64.0 inches |
| Height | 80.0 inches |
| Wheelbase | 80.2 inches |
| Bed Capacity | 1000 pounds (49-state models); 600 pounds (CA model) |
| Towing Capacity | 2500 pounds |
| Ground Clearance | 13.8 inches |
| Turning Radius | 15.4 feet |
| Curb Weight | 1781 pounds - Includes all standard equipment, required fluids and full tank of fuel. |
| Fuel Capacity | 8.1 gallons |
Other
| Safety | Recommended for drivers 16 years of age and older. |
|---|---|

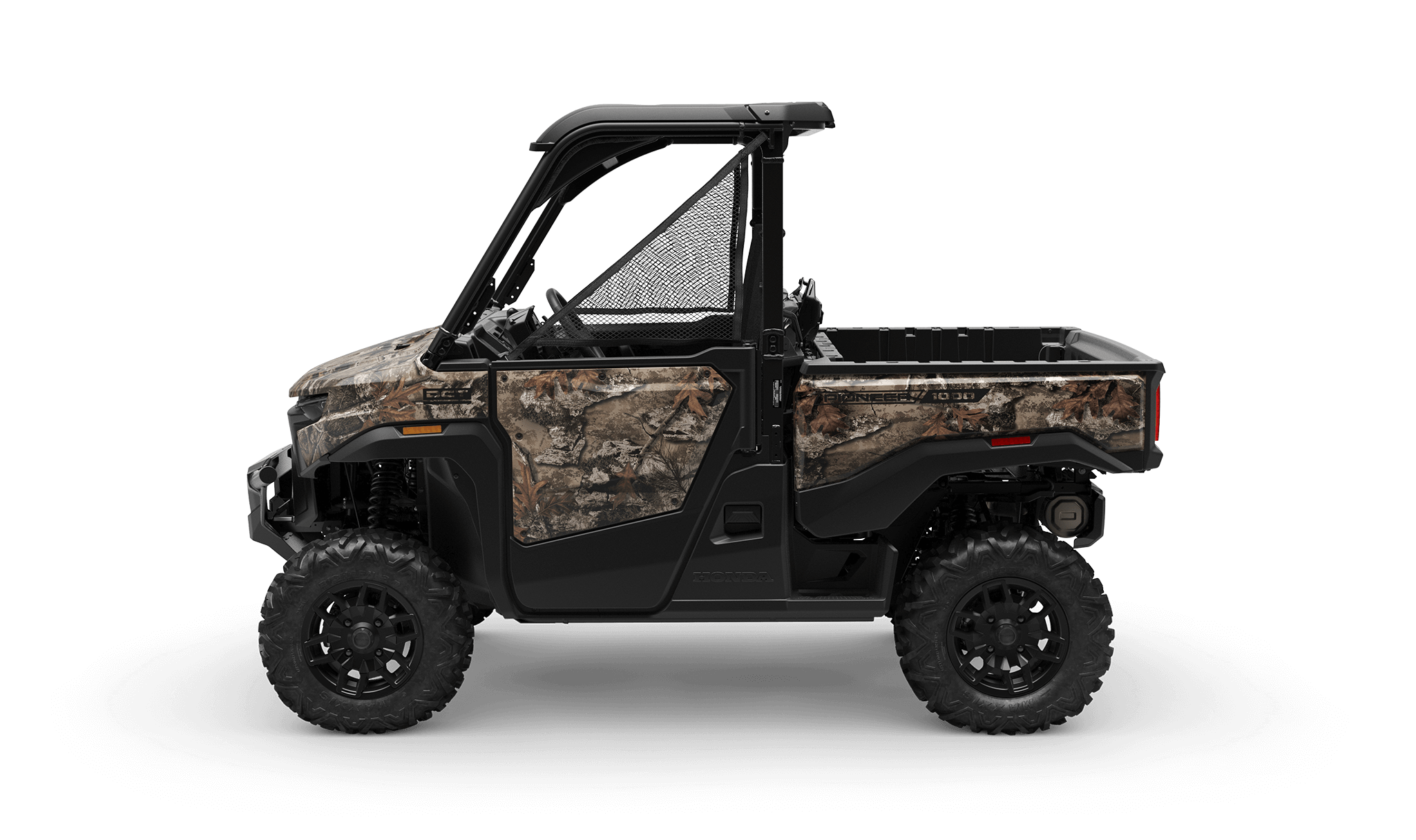

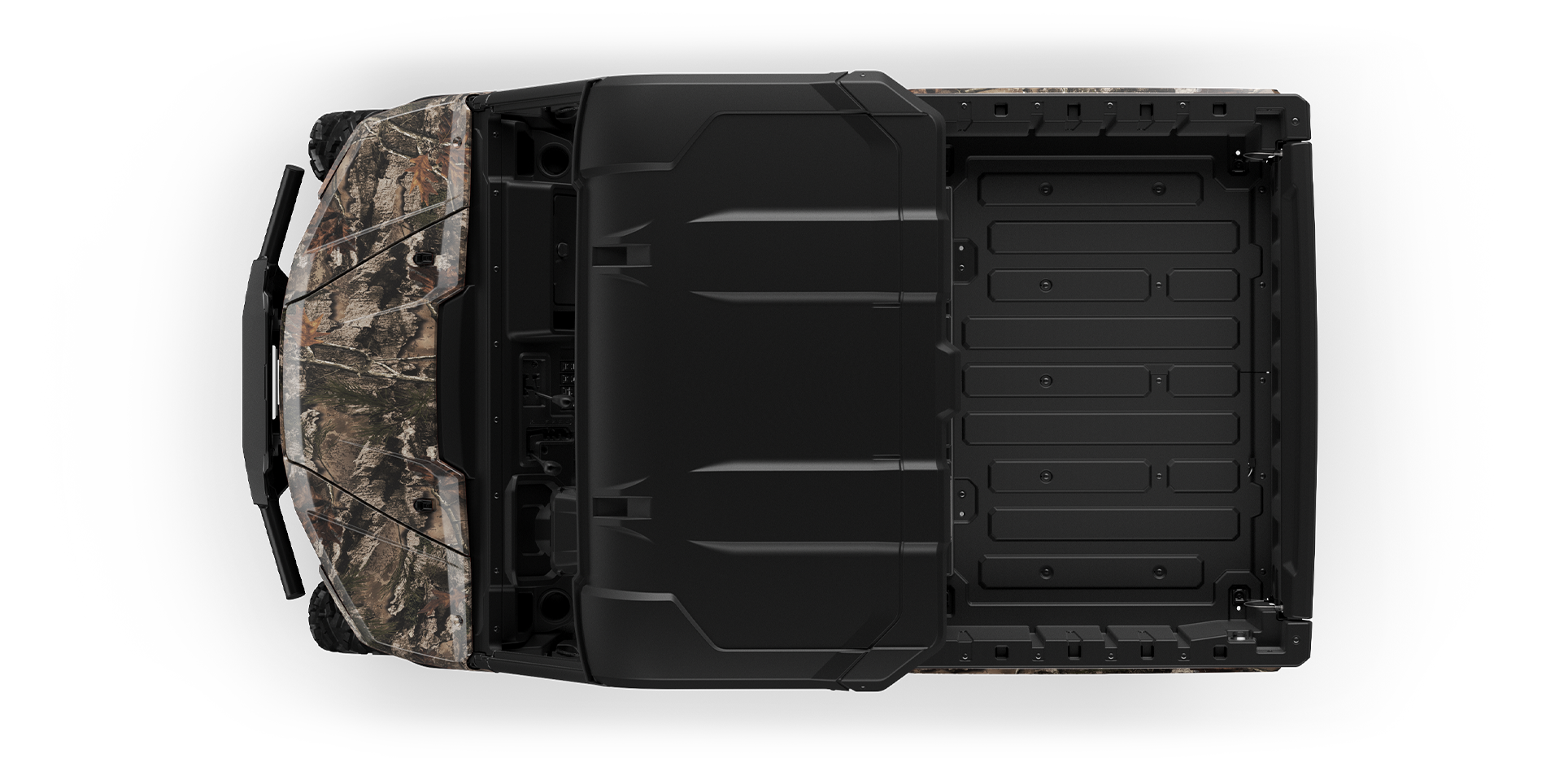

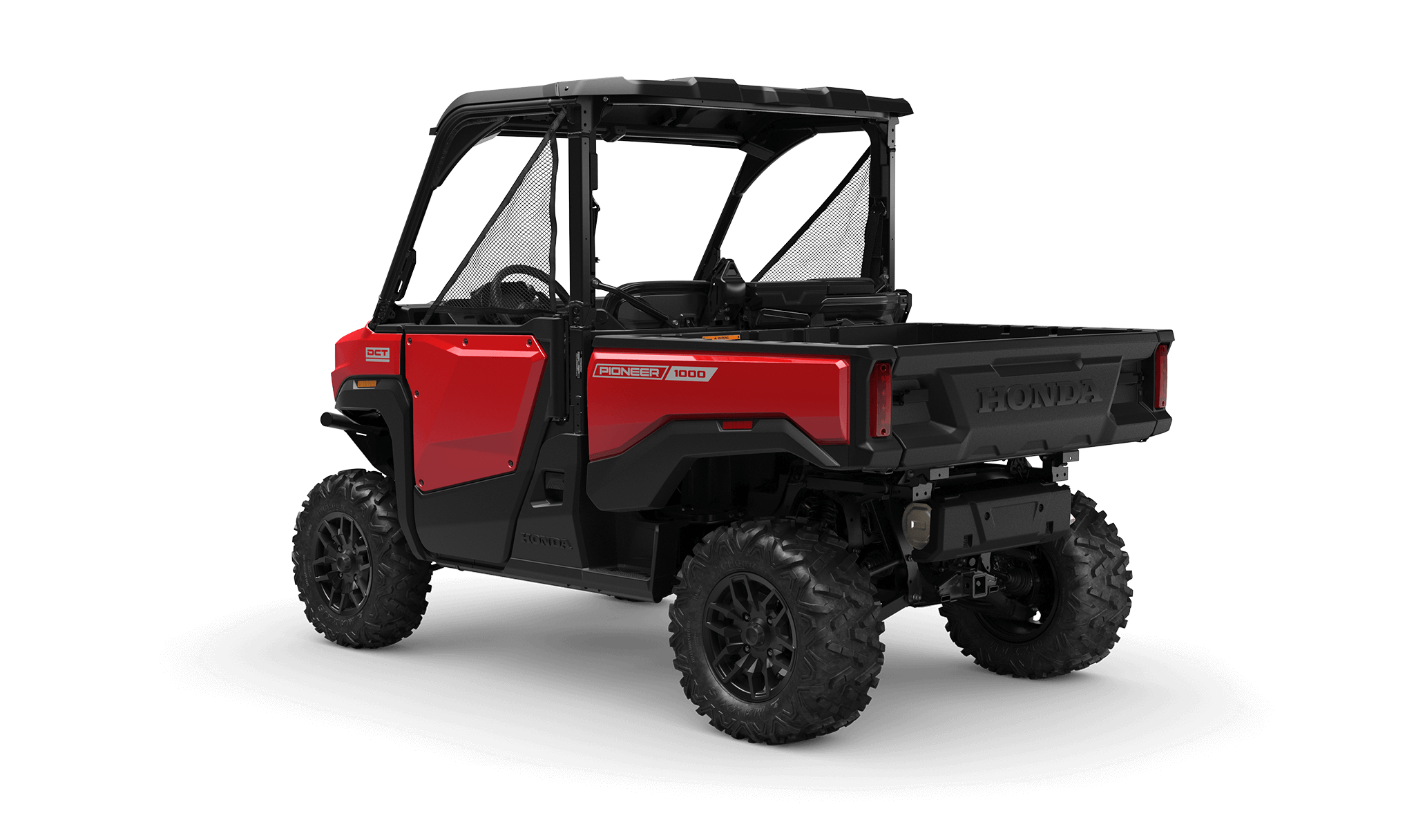

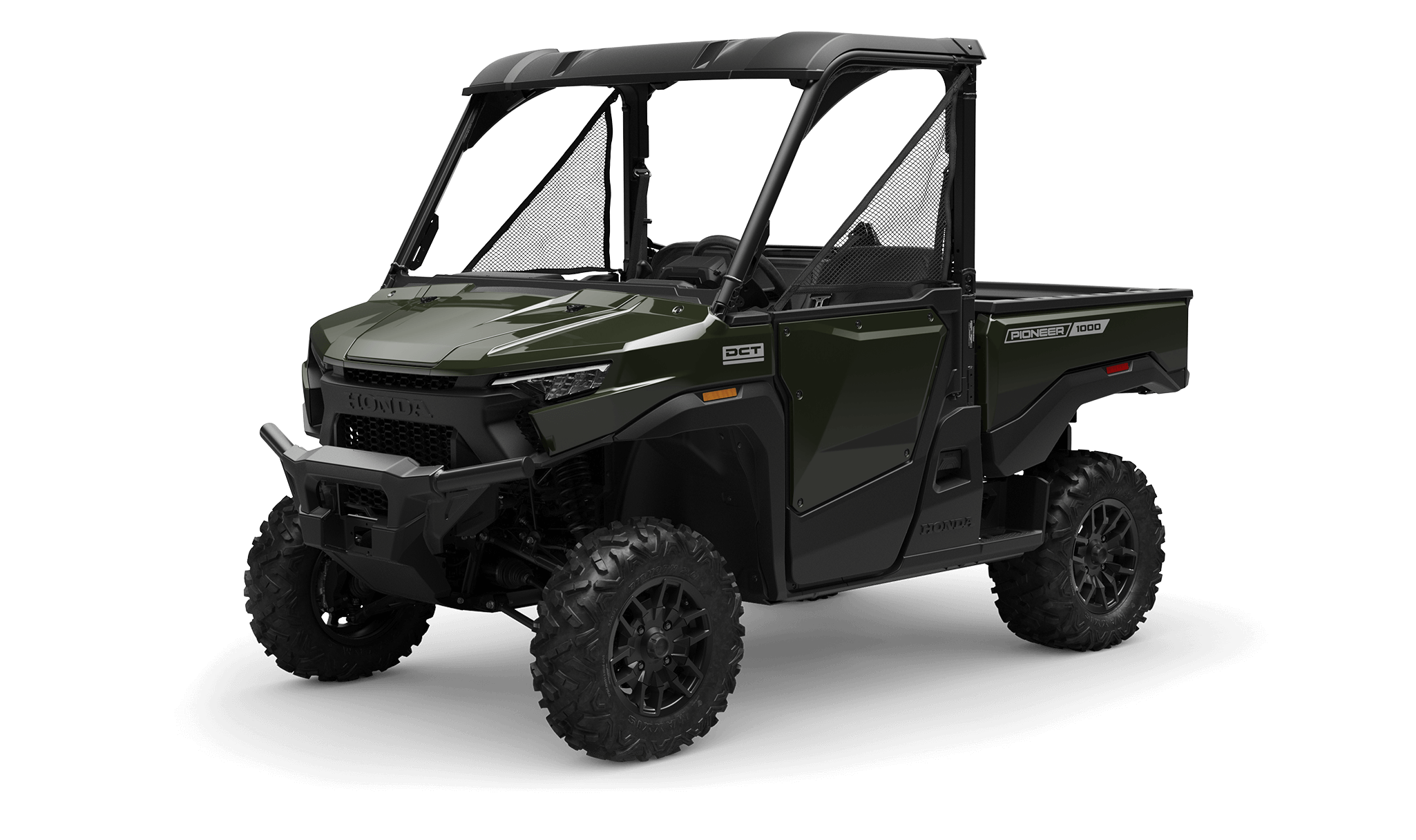

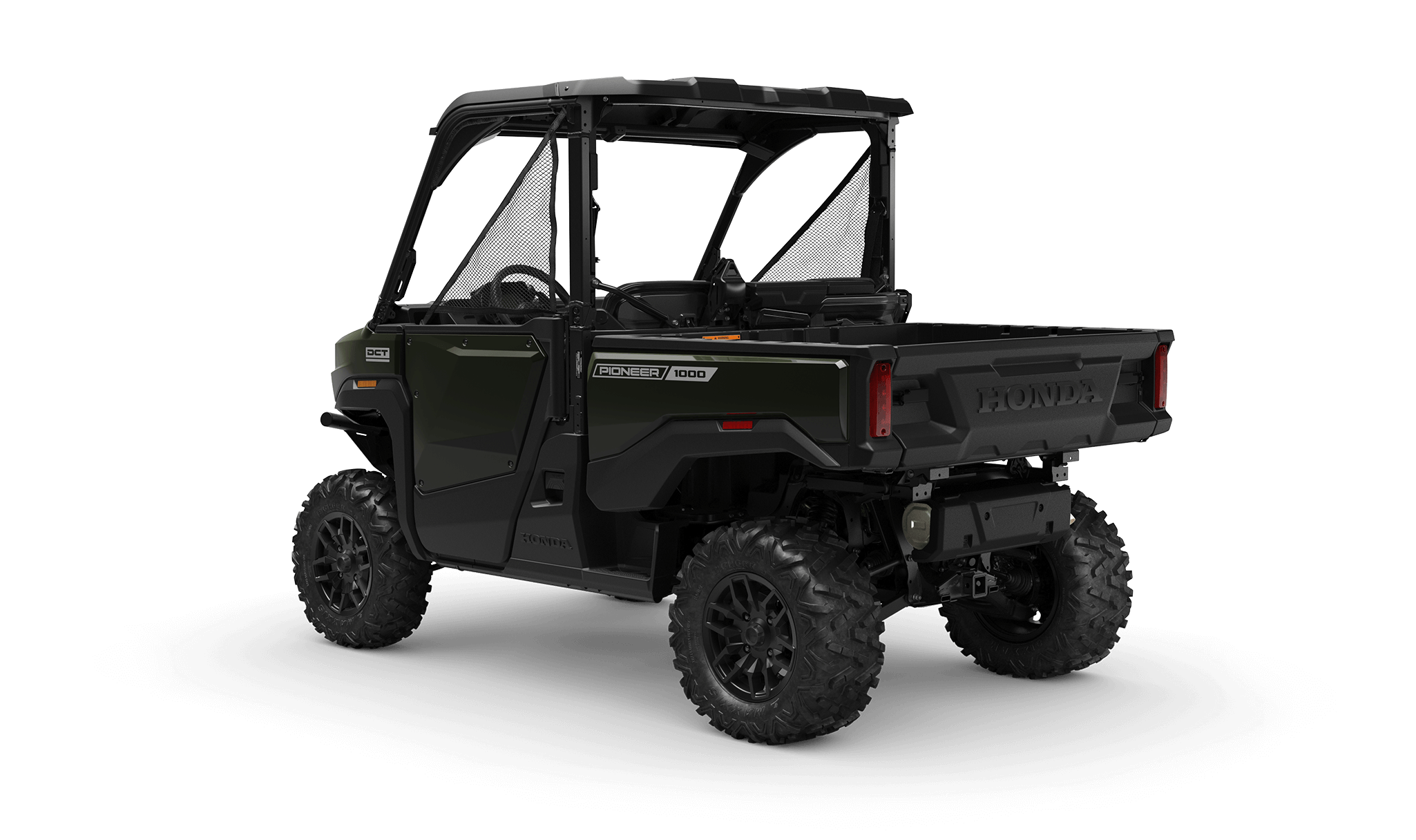

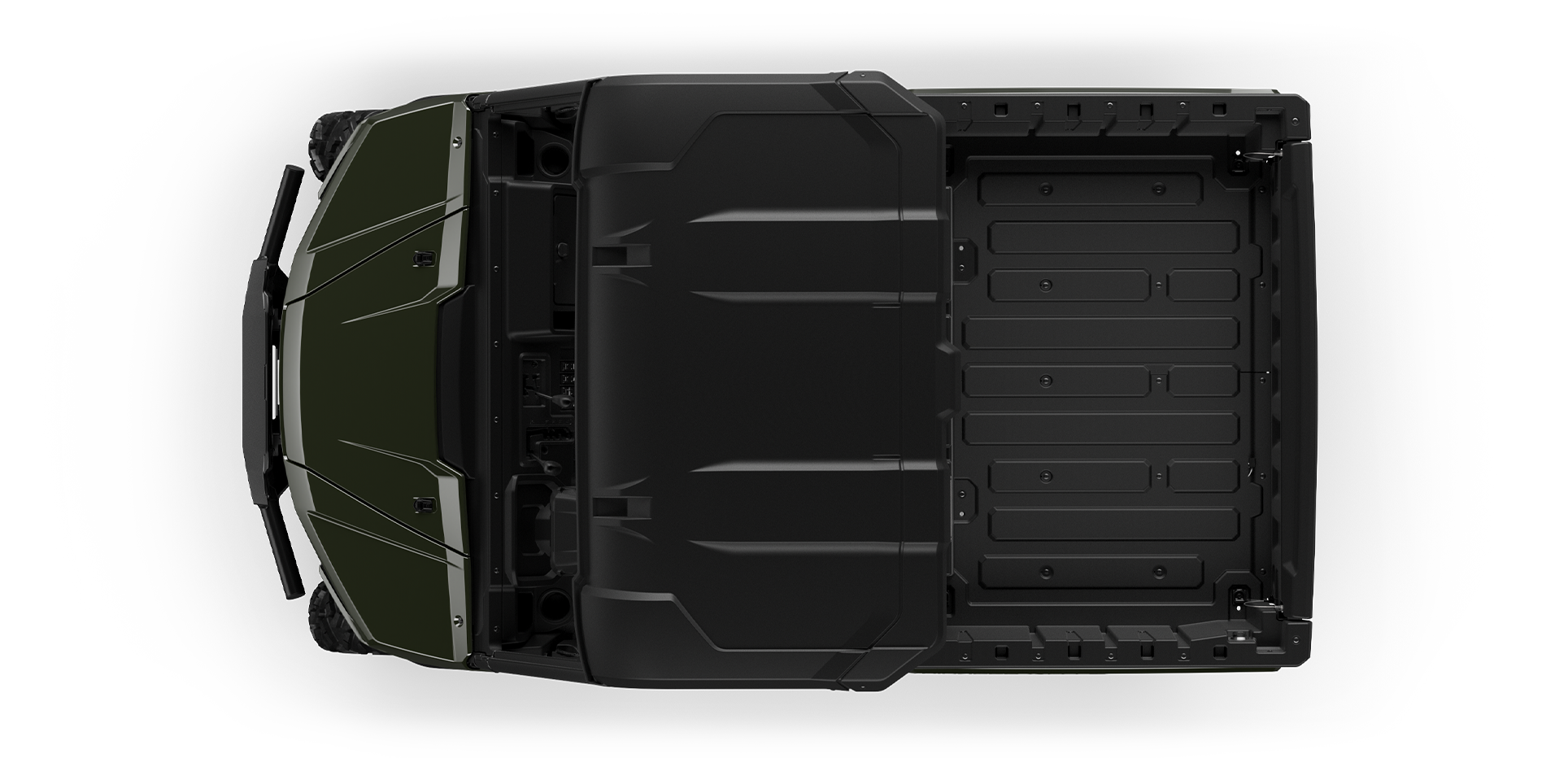

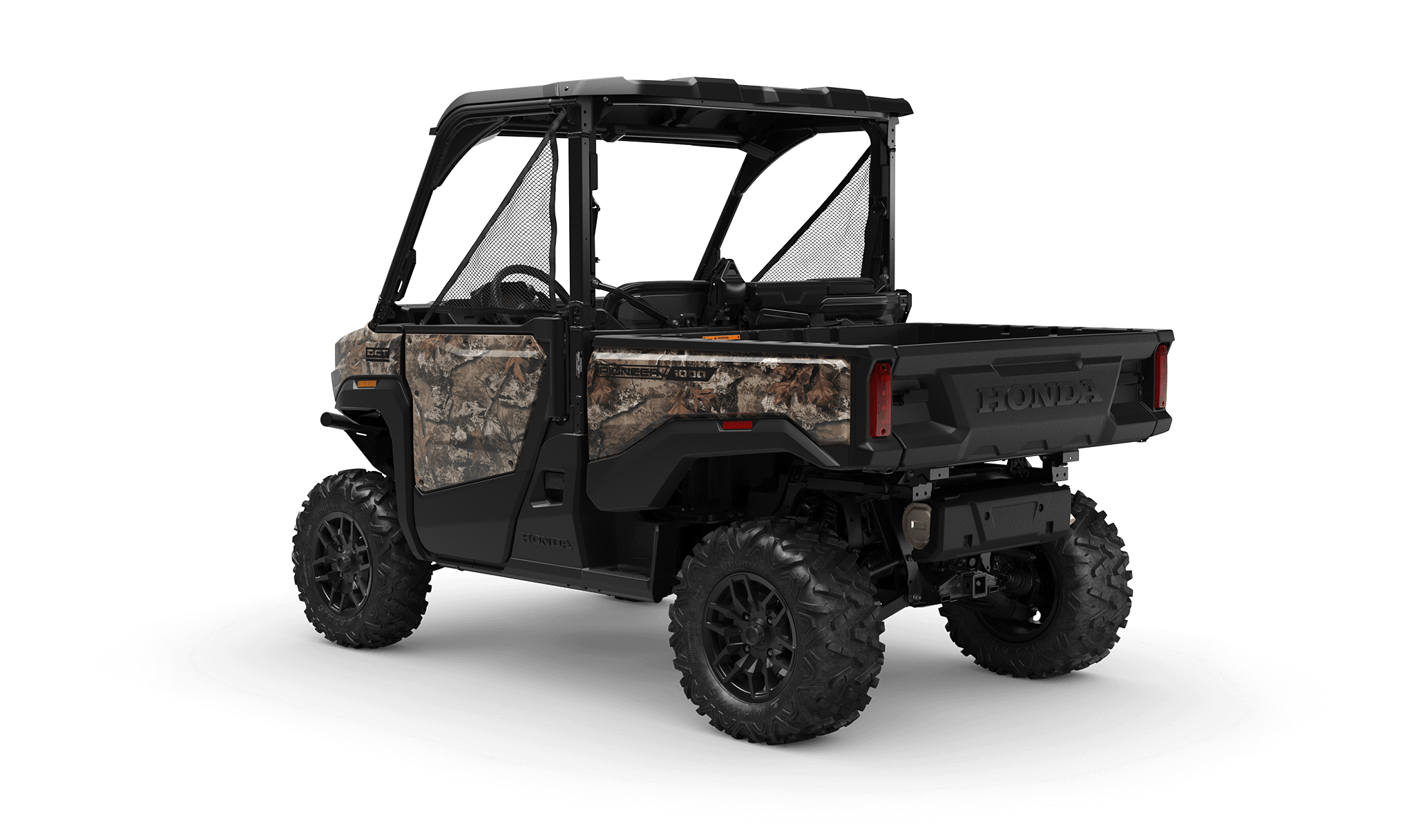

| Available Colors | Hero Red, Black Forest Green, TrueTimber Atera Camo |
| Model ID | SXS10M3D |
| Seating Capacity | 3 |
Factory Warranty Information
| Duration | Transferable, one year included, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Anything else is second best
No job or trail too tough
Powerful 999cc twin-cylinder engine
With plenty of power—especially in the midrange and top end—you'll experience quick acceleration and exceptional overall performance.

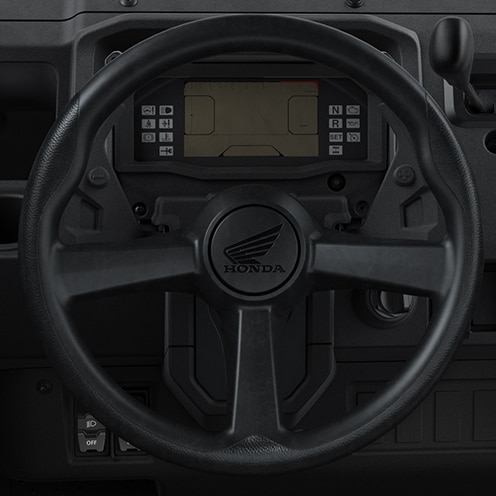

Automatic six-speed DCT
With our Honda six-speed Dual-Clutch Transmission (DCT), you can choose between manual mode or fully automatic. There’s even an easy-to-use tow/haul mode, along with 2WD, 4WD, Differential Lock, and Turf selections.

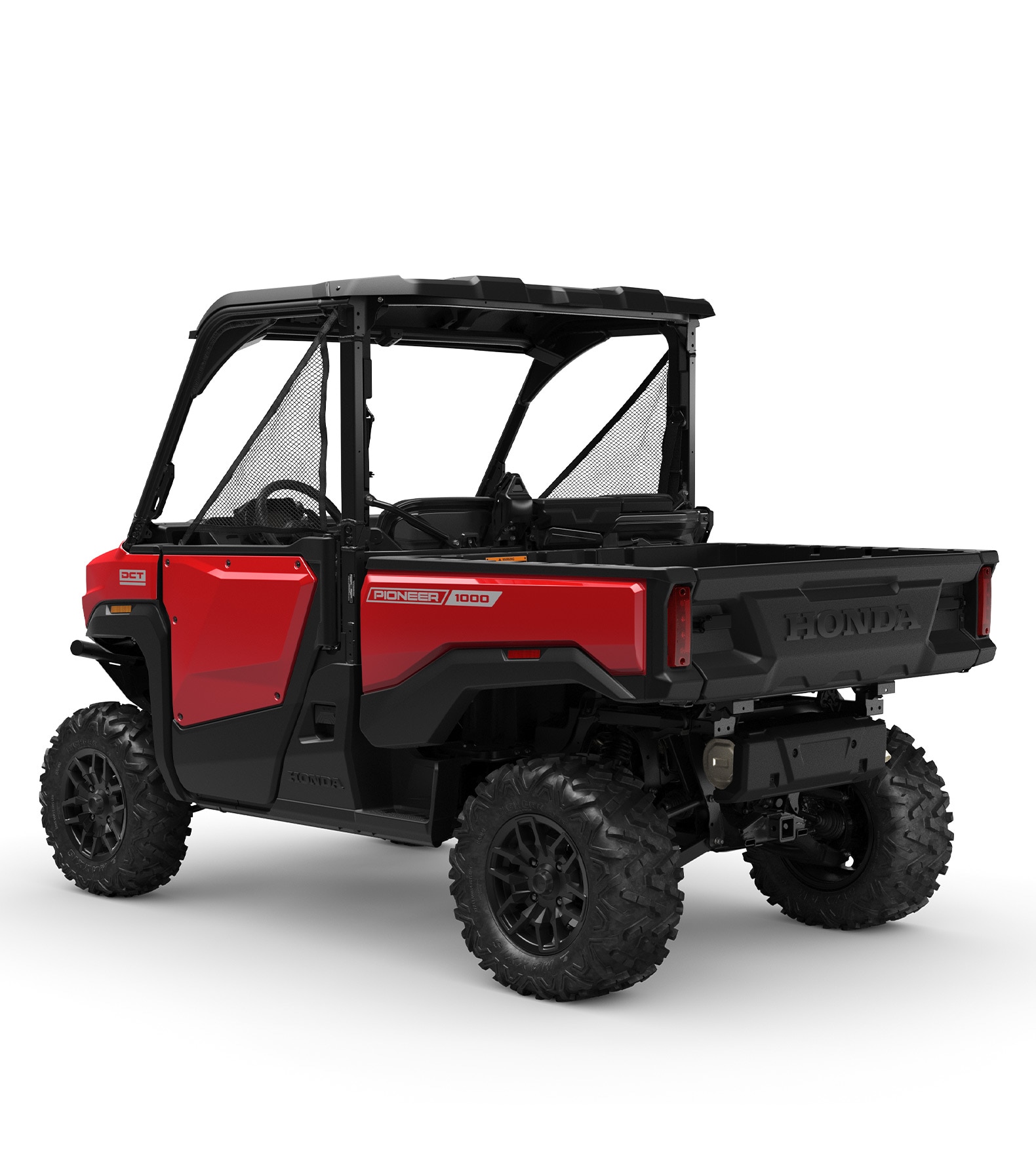

2500-pound towing capacity
The 1000 lineup can tow up to 2500 pounds, making it possible to complete bigger jobs without having to use a tractor or a truck.
Turf/2WD/4WD/diff lock
When the terrain gets challenging and you need maximum traction, switch to 4WD. And if you need the most power from all four wheels, lock the front and rear differentials. When it’s time to protect more sensitive surfaces, select Turf Mode. The best part? You can easily do all this with a single lever.
Dream it. Do it.

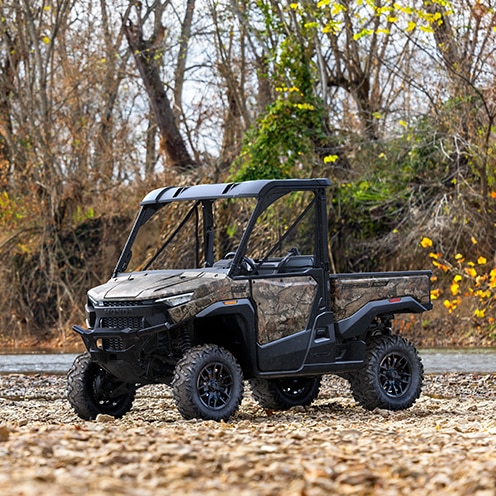

Chassis and suspension
Beefy tires, long-travel independent front and rear suspension, and our sophisticated driveline provide excellent handling and comfort.
1000-pound-capacity bed*
One of the most impressive features of this vehicle is its half-ton hauling capacity. Additionally, we've made it easier to dump with a hydraulic assist tilt bed lever.
*600-pound bed capacity for CA models
Made in the U.S.A
Planned by Honda in our Georgia headquarters, developed and engineered in our Ohio design facility, and produced in our Timmonsville, South Carolina factory, the Pioneer 1000 family is purpose-built for the North American customer base, using domestic and globally sourced parts.
Cool cabin
Engineered to manage cabin heat as effectively as possible, you’ll ride cooler and be more comfortable in warm-weather conditions.
Improved Electric Power Steering
Our Electric Power Steering (EPS) motor has 50-percent more torque now, and is tuned to improve driver comfort, especially when you’re loaded with passengers and cargo. You also get a more consistent steering effort when operating over rocky terrain or deep mud.
Related trims and models

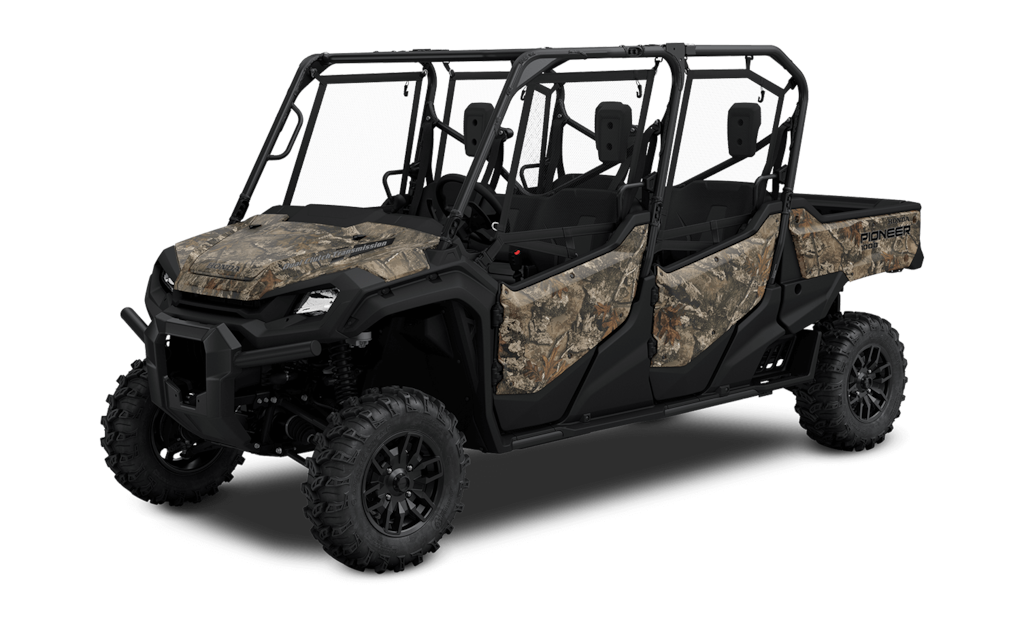

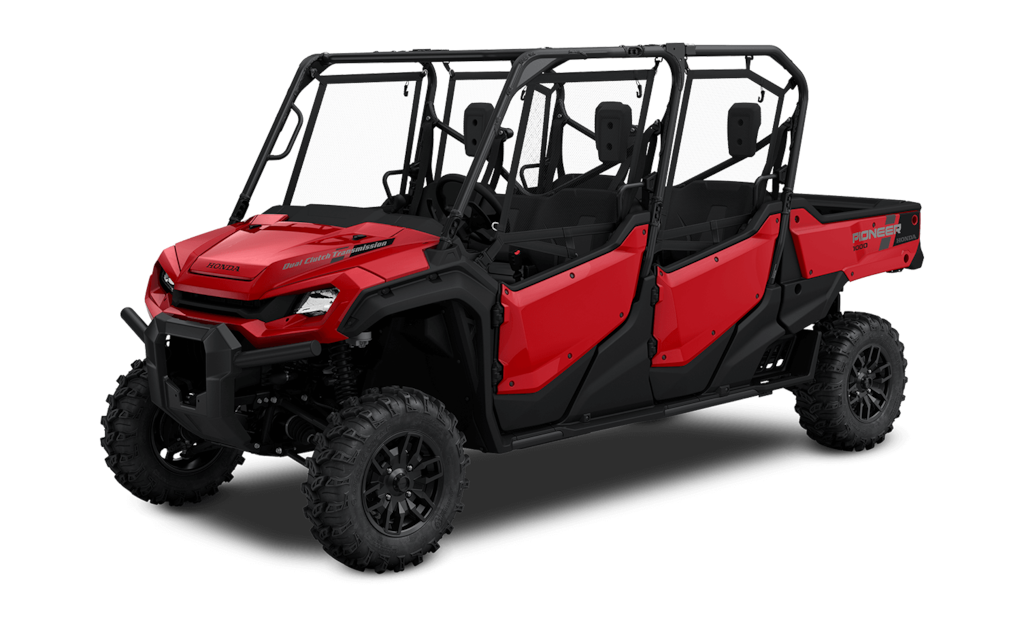

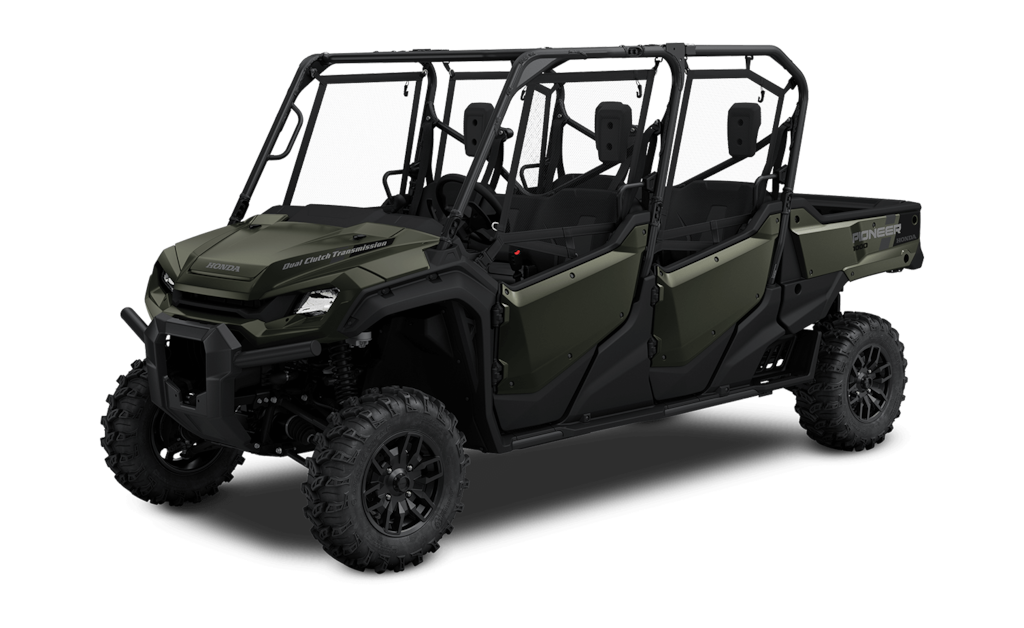

Pioneer 1000-6 Deluxe Crew
Base MSRP $22,199* Destination Charge: $1,395.00
- Seating for six
- Available TrueTimber® Atera Camo
- Electric Power Steering
- Front interior light
- Black aluminum wheels
Pioneer 1000-5 Deluxe
Base MSRP $22,399* Destination Charge: $1,295.00
- 999cc engine
- Cruise control
- QuickFlip® Seating
- Automatic DCT transmission
- Electric Power Steering

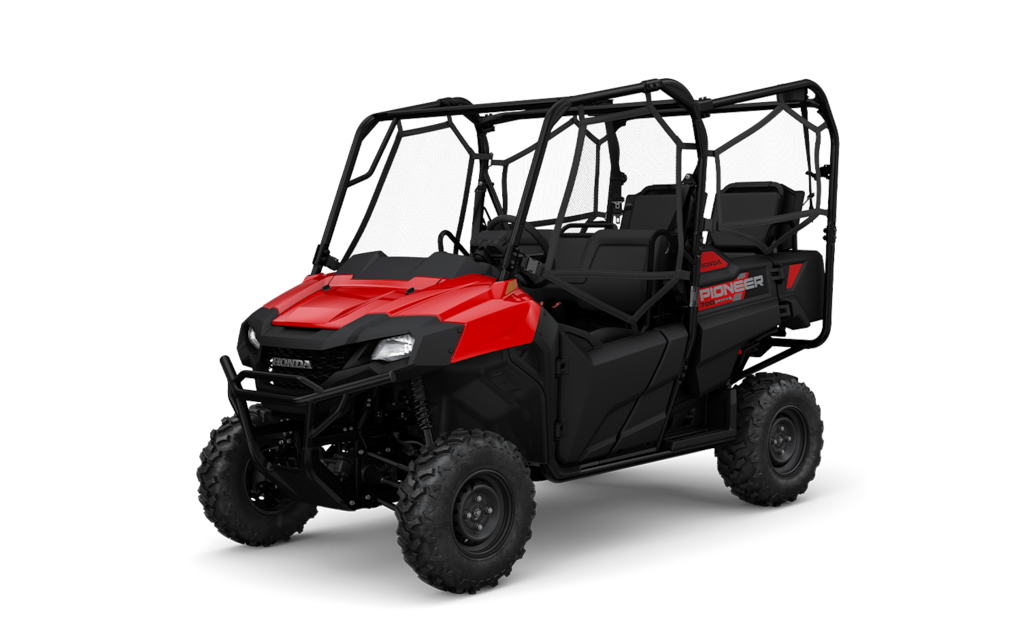

Pioneer 700-4
Base MSRP $14,399* Destination Charge: $1,185.00
- 675cc liquid-cooled single-cylinder engine
- Fuel Injection
- Automatic transmission
- Adjustable preload rear shocks
- Disc brakes
Pioneer 700-4 Deluxe
Base MSRP $15,999* Destination Charge: $1,185.00
- Electric Power Steering
- Black aluminum wheels
- Factory bed light
- 675 liquid-cooled single-cylinder engine
- Disc brakes

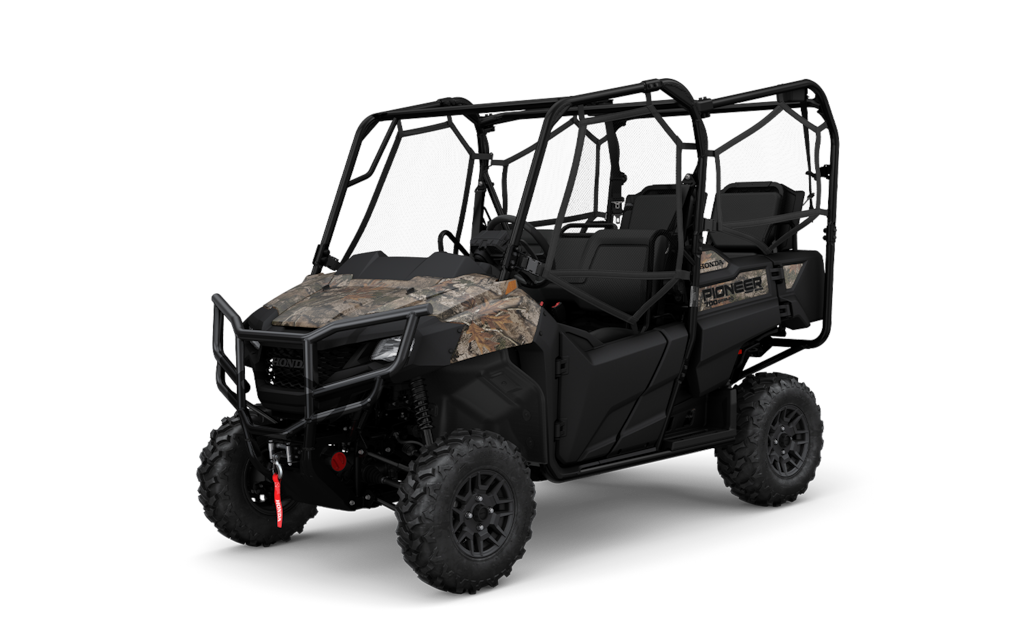

Pioneer 700-4 Forest
Base MSRP $17,999* Destination Charge: $1,185.00
- Honda winch
- Larger front bumper
- TrueTimber® Atera Camo
- Electric Power Steering
- 675 liquid-cooled single-cylinder engine
Pioneer 700
Base MSRP $12,899* Destination Charge: $1,185.00
- 675cc liquid-cooled single-cylinder engine
- Fuel Injection
- Automatic transmission
- Adjustable preload rear shocks
- Disc brakes

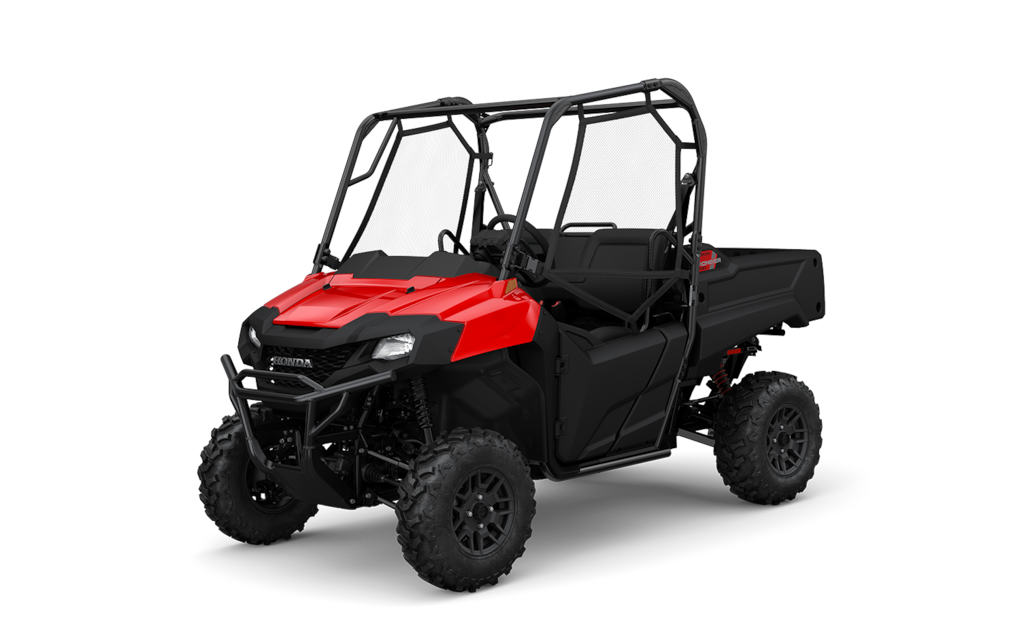

Pioneer 700 Deluxe
Base MSRP $14,499* Destination Charge: $1,185.00
- Electric Power Steering
- Black aluminum wheels
- Factory bed light
- 675cc liquid-cooled single-cylinder engine
- Disc brakes

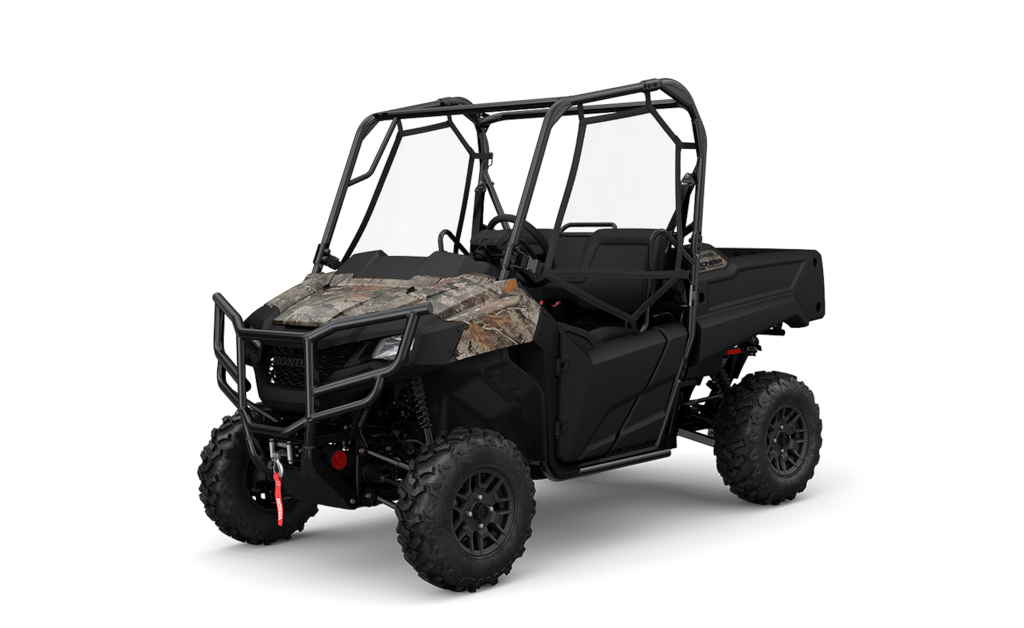

Pioneer 700 Forest
Base MSRP $16,499* Destination Charge: $1,185.00
- Honda winch
- Larger front bumper
- TrueTimber Atera Camo
- Electric Power Steering
- 675cc liquid-cooled single-cylinder engine

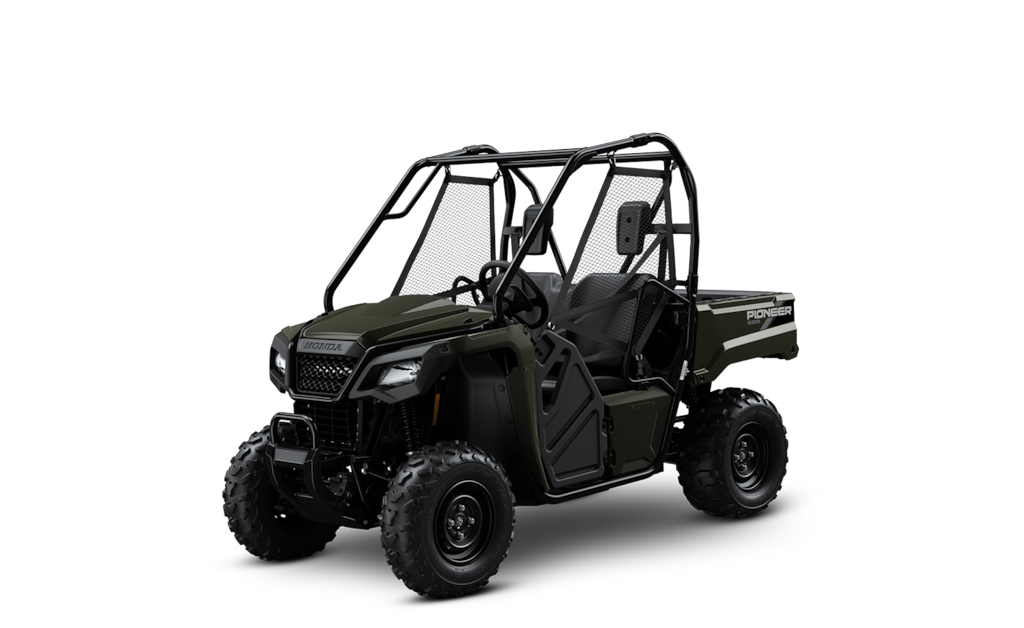

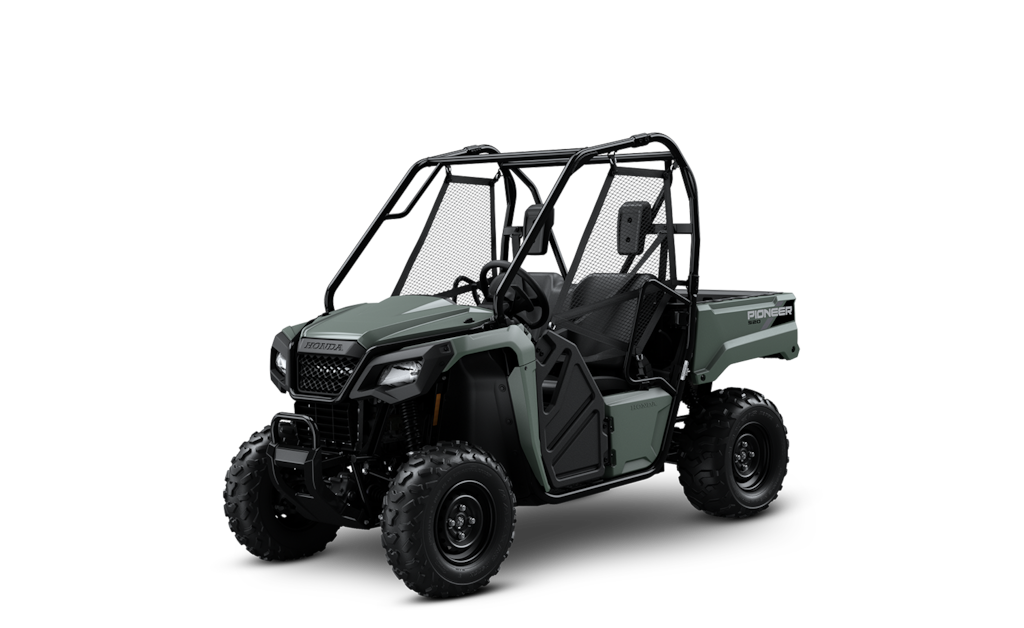

Pioneer 520
