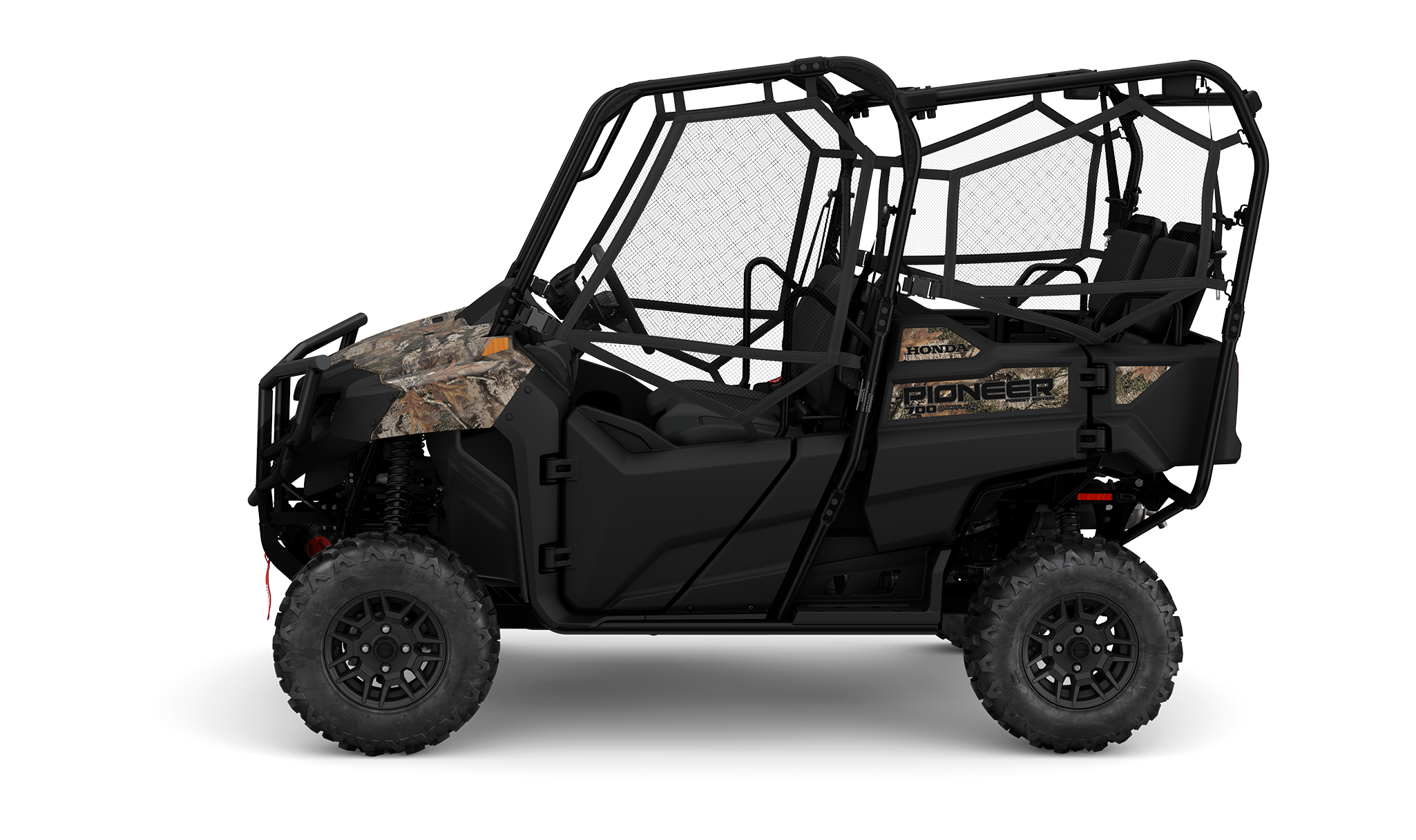

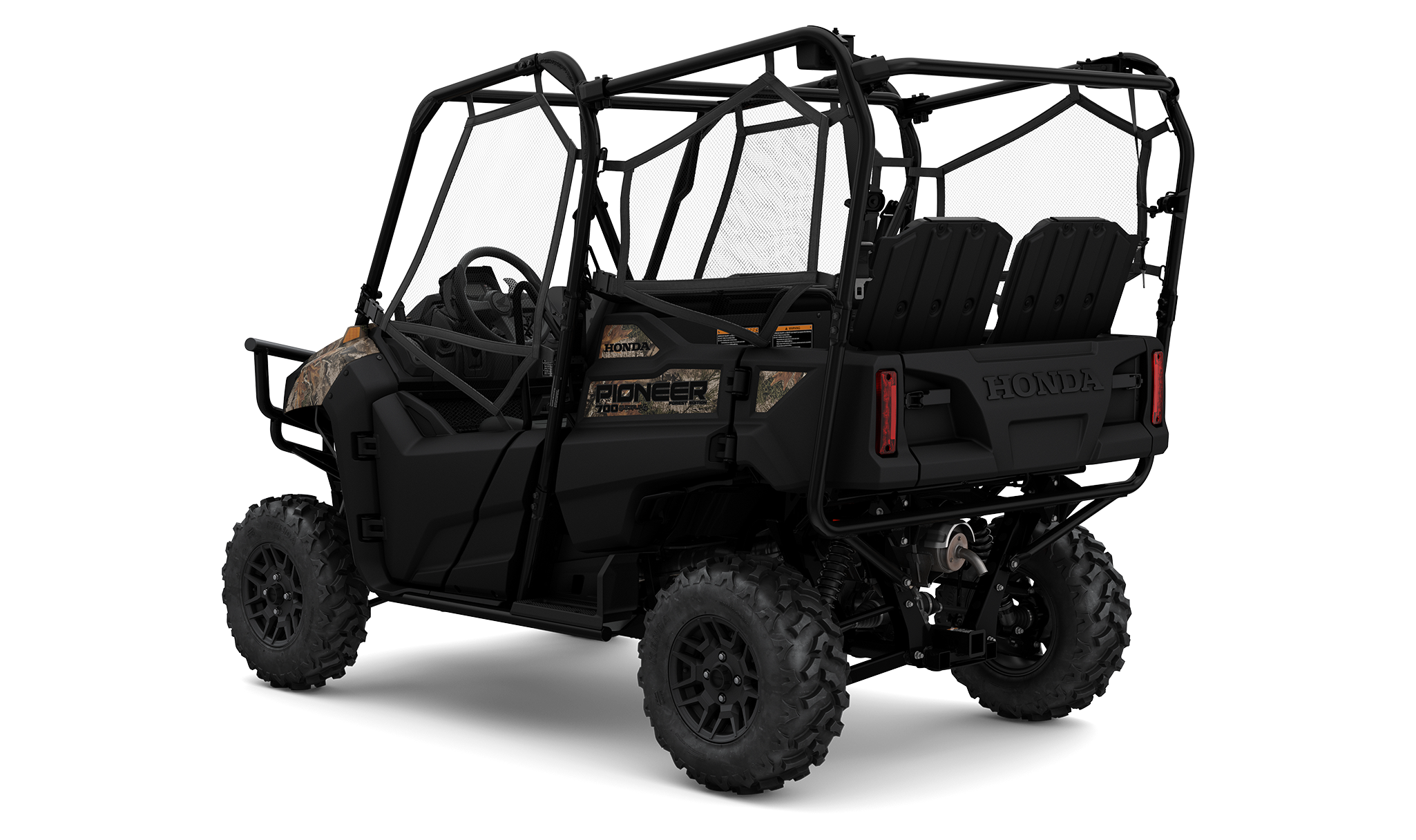

Pioneer 700-4 Forest
675cc liquid-cooled single-cylinder four-stroke
Automotive-style automatic transmission with hydraulic torque converter
Independent double-wishbone; 7.9-inch travel
Independent double-wishbone; 9.1-inch travel
76.9 inches
Transferable, limited warranty. One year included.
Engine
| Engine Type | 675cc liquid-cooled single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 102.0mm x 82.6mm |
| Compression Ratio | 9.2:1 |
| Induction | Programmed Fuel-Injection system (PGM-FI); 40mm throttle body |
| Valve Train | OHV; four valves per cylinder |
Drivetrain
| Clutch | Automatic |
|---|---|
| Transmission | Automotive-style automatic transmission with hydraulic torque converter |
| Driveline | Direct front and rear driveshafts |
Chassis Suspension Brakes
| Front Suspension | Independent double-wishbone; 7.9-inch travel |
|---|---|
| Rear Suspension | Independent double-wishbone; 9.1-inch travel |
| Front Brakes | Dual 200mm discs |
| Rear Brake | Single 170mm disc |
| Front Tires | 25 x 8-12 |
| Rear Tires | 25 x 10-12 |
Dimensions
| Length | 114.7 inches |
|---|---|
| Width | 59.9 inches |
| Height | 78.4 inches |
| Wheelbase | 76.9 inches |
| Bed Size (L x W x H) | 36.3 x 45.4 x 11.1 inches |
| Bed Capacity | 1000 pounds |
| Towing Capacity | 1500 pounds |
| Ground Clearance | 10.6 inches |
| Turning Radius | 14.8 feet |
| Curb Weight | 1506 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 8.1 gallons |
Other
| Safety | Recommended for Drivers 16 years of age and older. |
|---|---|
| Available Colors | TrueTimber® Atera Camo |
| Model ID | SXS700M4F |
| Seating Capacity | 4 |
Factory Warranty Information
| Duration | Transferable, one year included, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
The outdoorsman's choice
Ready for rough country
Exclusive Forest edition
The Forest model receives all the upgrades of the Deluxe edition, as well as the addition of a Honda-designed and engineered winch system and a larger, heavy-duty front bumper. It also features the TrueTimber Atera Camo color scheme, making it ideal for outdoor activities such as hunting, fishing, or camping.
Electric Power Steering (EPS)
Available on the Deluxe and Forest models, our Electric Power Steering has always been a groundbreaking innovation, especially with its next-generation brushless motor and return-to-center function.
Bed lighting
The Deluxe and Forest editions come with a factory-installed cargo bed light, allowing you to work or have fun anytime.
AT/MT mode and paddle shifters
On the Deluxe and Forest trims, you have the option to either let the automatic transmission shift for you or take charge and select the gear you want using the steering column-mounted paddle shifters. You can even shift from auto to manual on the fly.
Built to earn its camo
Honda winch
Our Honda-designed and engineered 4500-pound winch is standard equipment on the Forest model and is one of our most popular accessories. It's sure to be even more popular after you use it to pull your buddy's stuck side-by-side out of a mudhole!
Large brush guards
Large front brush guards increase the side-by-side’s frontal protection, designed to slide smoothly over obstacles in rough conditions while providing added safety.

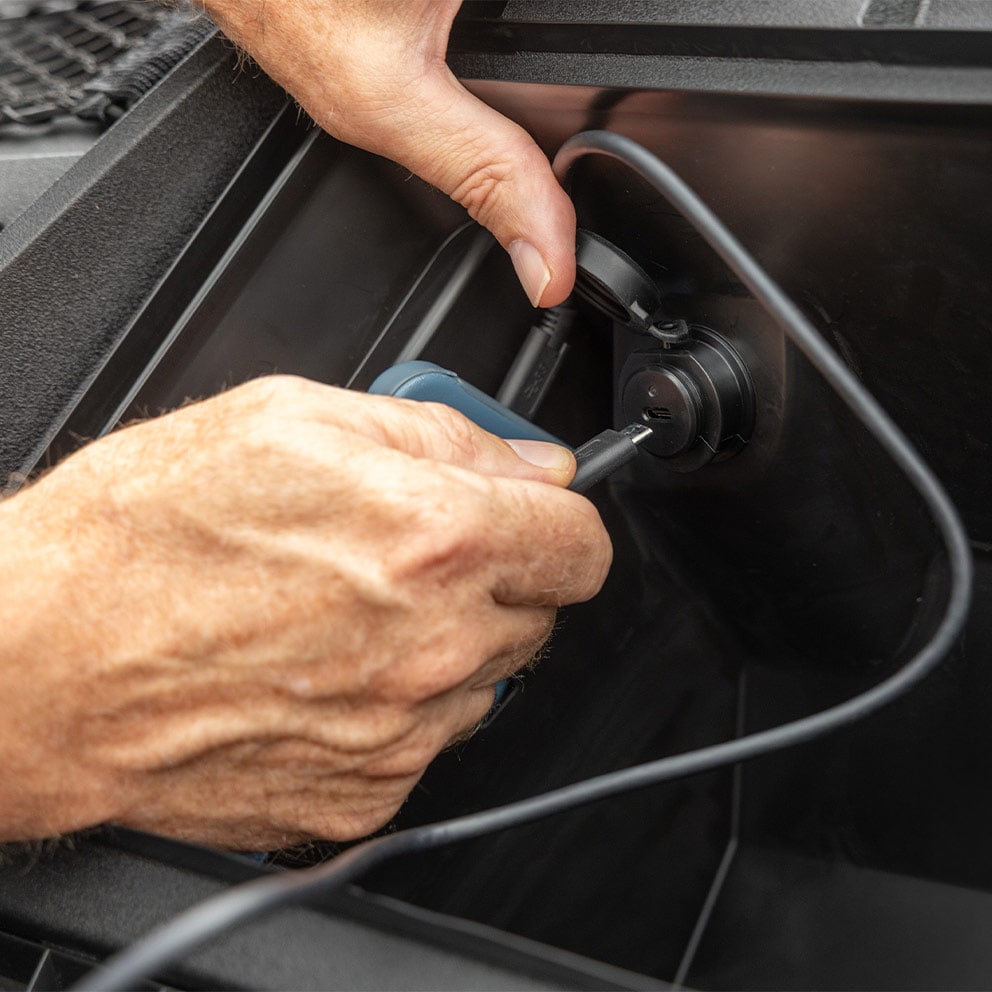

Charging power
A center cabin-mounted 12-volt DC socket and a USB-C port inside the glovebox allow you to easily charge and power your phone and other personal electronics while out on the trail.
1500-pound towing capacity
Sometimes, heavy objects need to be towed. That's why we equipped this SxS with a robust three-quarter-ton towing capacity, strong enough to handle most jobs that typically require a tractor.
Disc brakes
Our triple-disc brakes feature a patented scraper system that enables you to handle the toughest terrain confidently. The 200mm front and 170mm rear discs deliver exceptional stopping power.

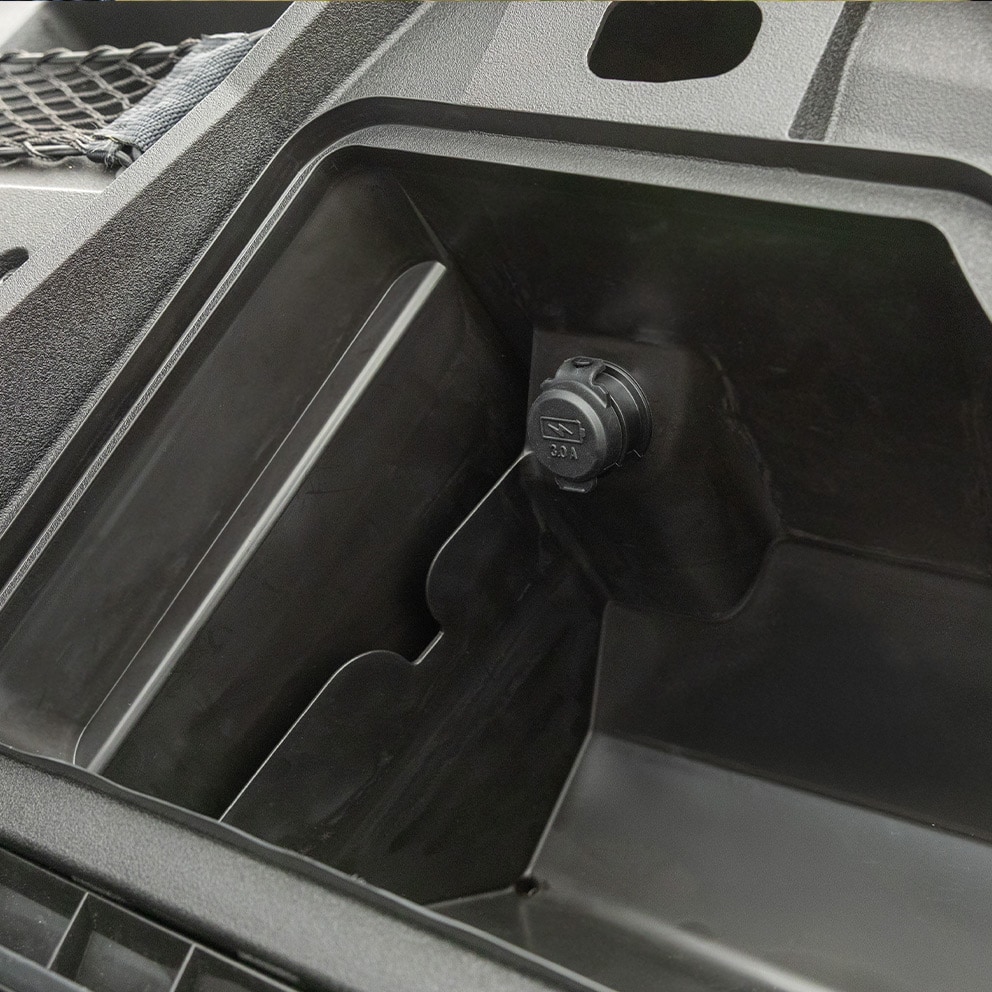

Glovebox
All models feature generous dash storage. A 9.6-liter glovebox with a water-resistant door keeps essentials dry, and the in-dash design provides storage without compromising legroom.

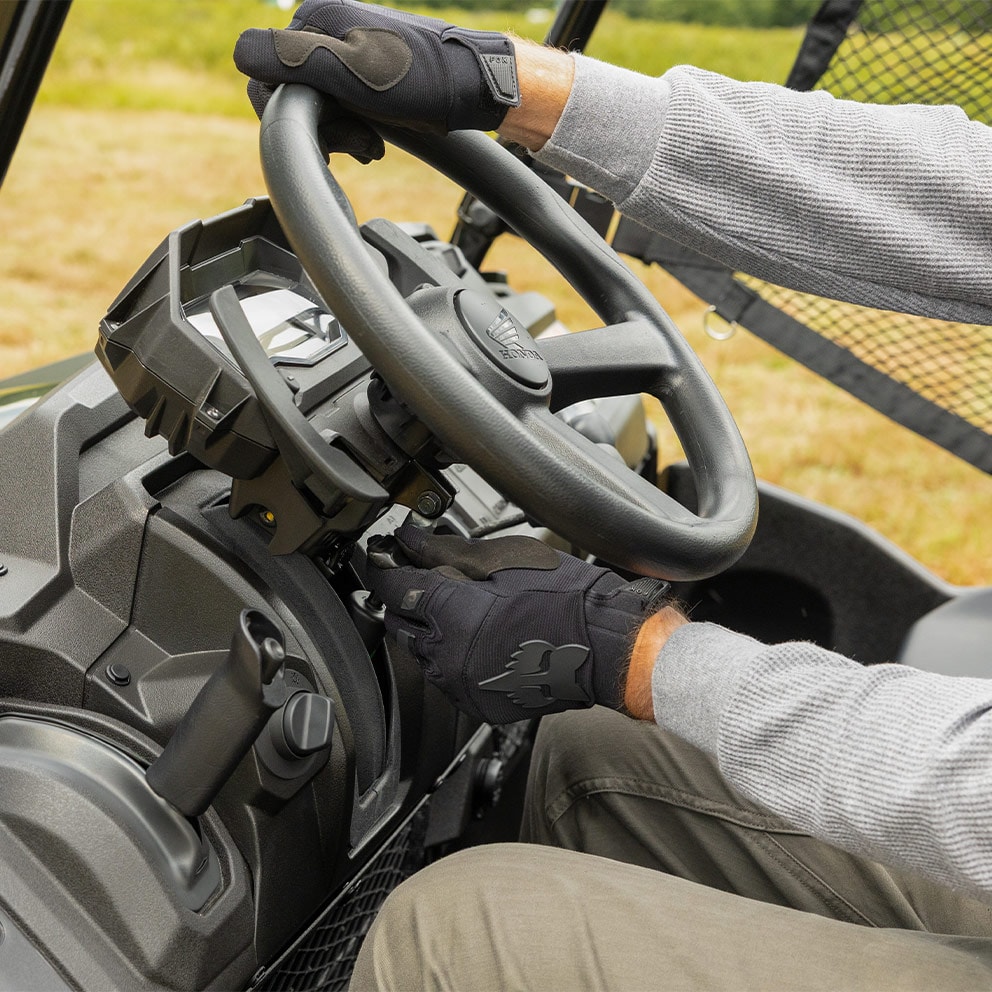

Tilting steering wheel
A tilt feature on the steering wheel makes getting in and out much easier. The instrument pod also tilts with the wheel.
LCD instrument display
The display features a large LCD screen, multiple trip functions, battery-voltage readout, a tachometer array, and more. It tilts with the wheel for easier reading.
Accessories
Outfit your Pioneer 700-4 with one or more of the 55 Honda accessories, including our Honda winch, tip-out windshield and wiper kit, portable speakers and more—many featuring our Honda Pro-Connect and Mini Pro-Connect systems for quick installation and seamless integration.
Related trims and models

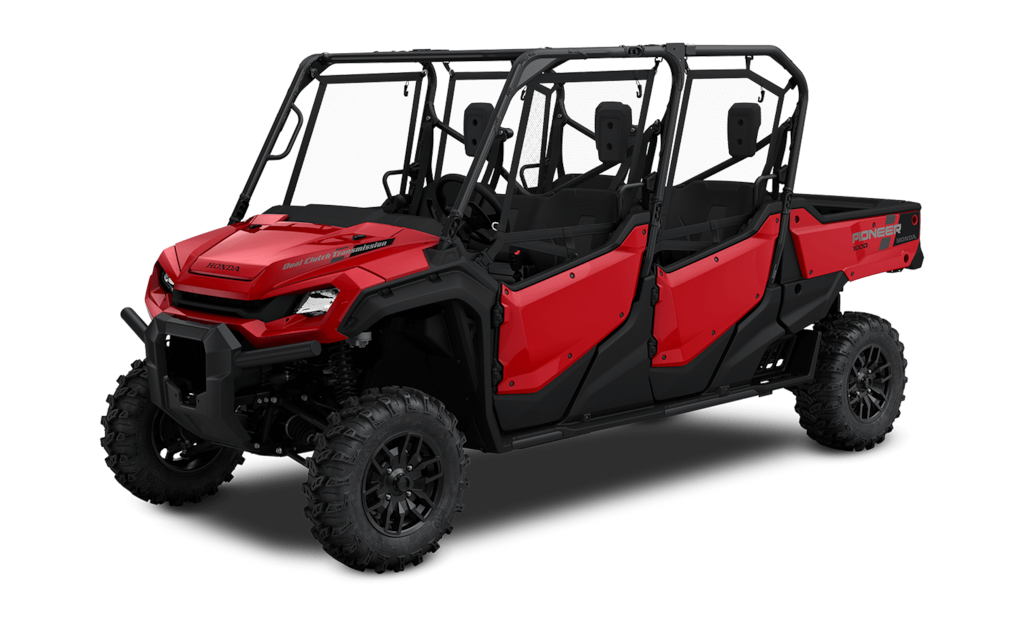

Pioneer 1000-6 Deluxe Crew
Base MSRP $22,199* Destination Charge: $1,395.00
- Seating for six
- Available TrueTimber® Atera Camo
- Electric Power Steering
- Front interior light
- Black aluminum wheels

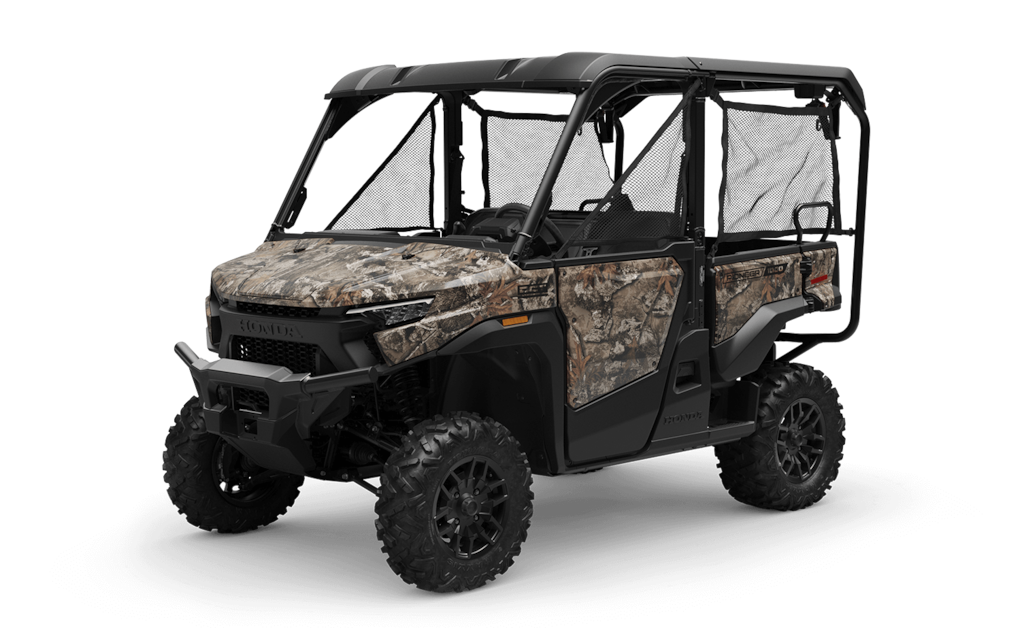

Pioneer 1000-5 Deluxe
Base MSRP $22,399* Destination Charge: $1,295.00
- 999cc engine
- Cruise control
- QuickFlip® Seating
- Automatic DCT transmission
- Electric Power Steering

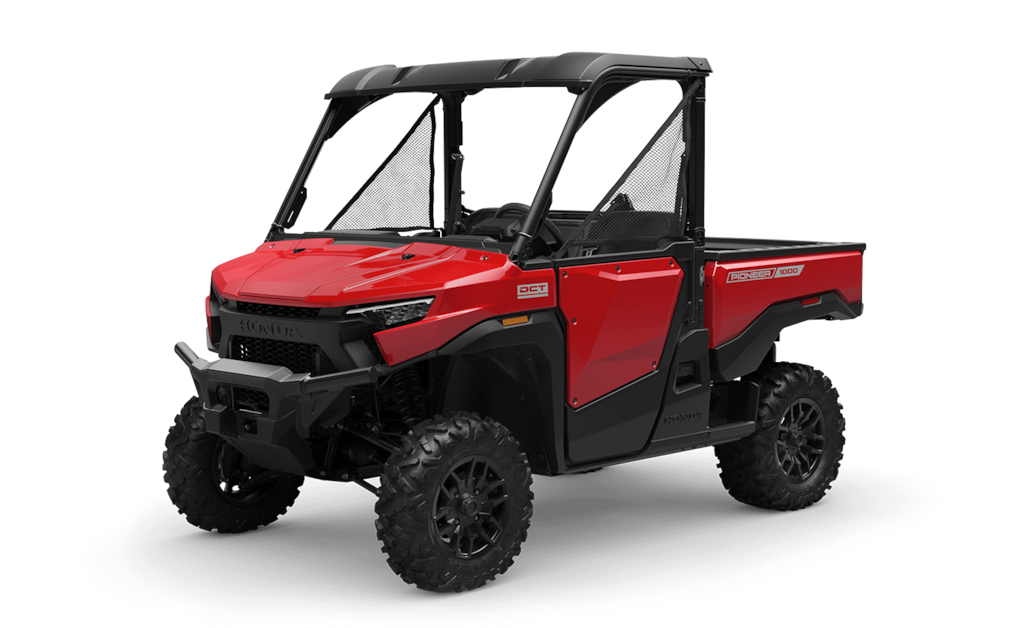

Pioneer 1000 Deluxe
Base MSRP $20,999* Destination Charge: $1,295.00
- 999cc engine
- 12-volt accessory socket
- Accessory switch panel
- Tilt bed
- 2500-pound towing capacity

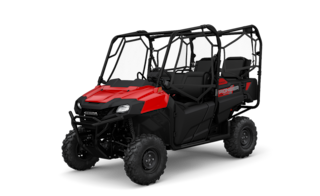

Pioneer 700-4
Base MSRP $14,399* Destination Charge: $1,185.00
- 675cc liquid-cooled single-cylinder engine
- Fuel Injection
- Automatic transmission
- Adjustable preload rear shocks
- Disc brakes

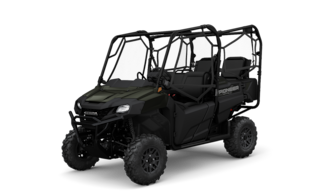

Pioneer 700-4 Deluxe
Base MSRP $15,999* Destination Charge: $1,185.00
- Electric Power Steering
- Black aluminum wheels
- Factory bed light
- 675cc liquid-cooled single-cylinder engine
- Disc brakes

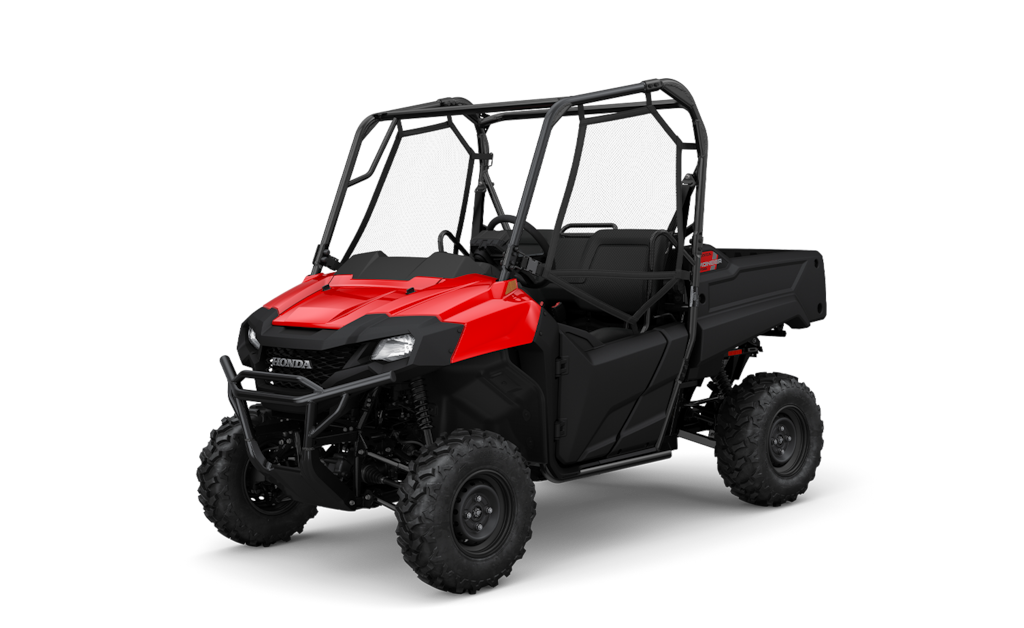

Pioneer 700
Base MSRP $12,899* Destination Charge: $1,185.00
- 675cc liquid-cooled single-cylinder engine
- Fuel Injection
- Automatic transmission
- Adjustable preload rear shocks
- Disc brakes

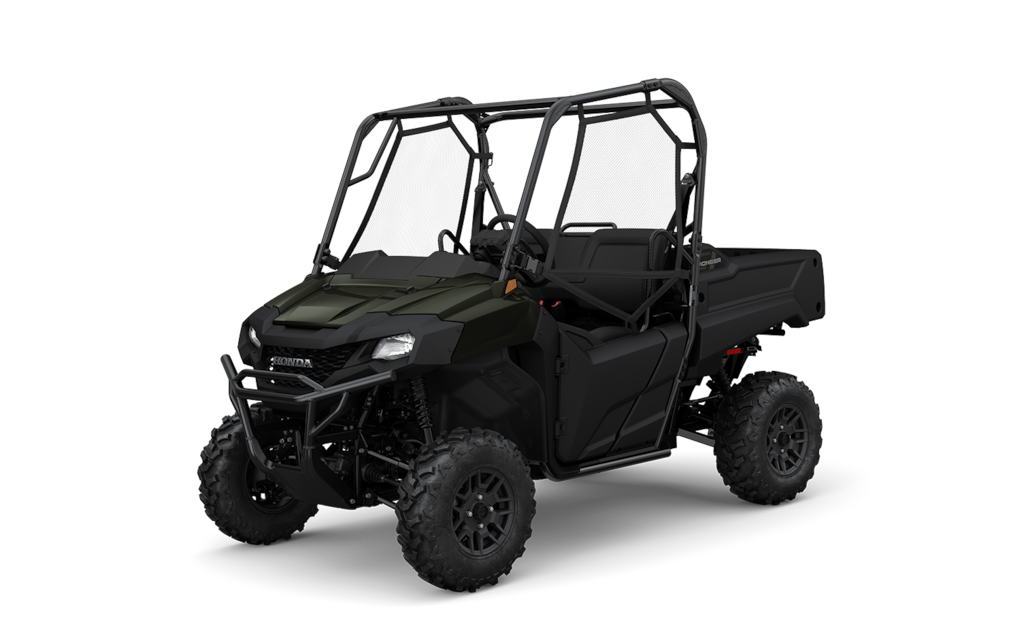

Pioneer 700 Deluxe
Base MSRP $14,499* Destination Charge: $1,185.00
- Electric Power Steering
- Black aluminum wheels
- Factory bed light
- 675cc liquid-cooled single-cylinder engine
- Disc brakes
Pioneer 700 Forest
Base MSRP $16,499* Destination Charge: $1,185.00
- Honda winch
- Larger front bumper
- TrueTimber® Atera Camo
- Electric Power Steering
- 675cc liquid-cooled single-cylinder engine

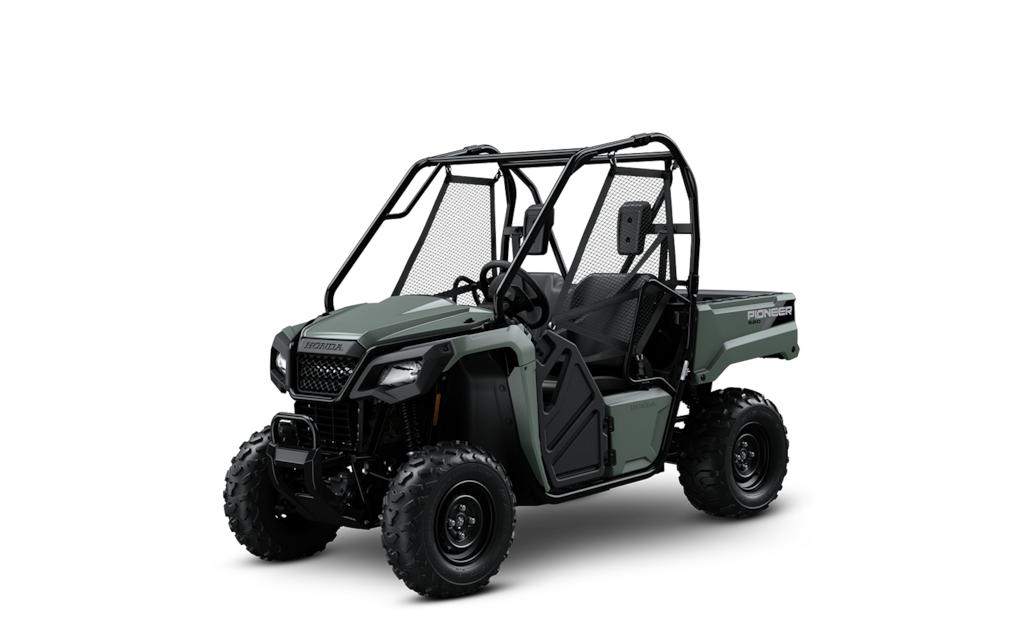

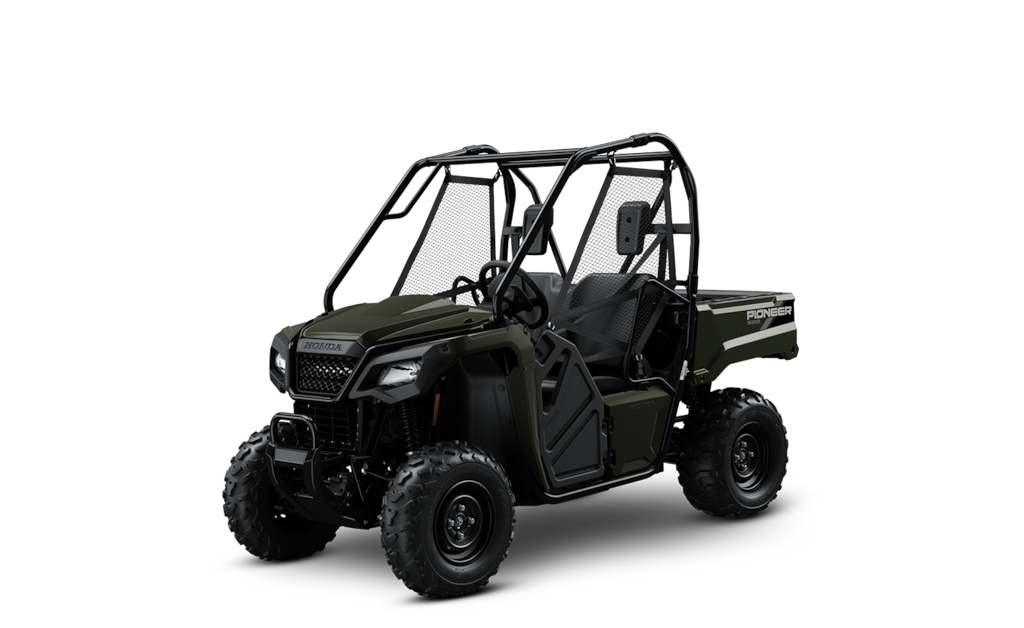

Pioneer 520
