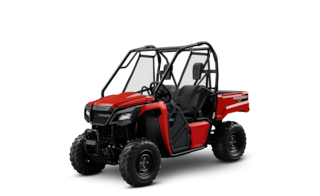

Pioneer 520
518cc liquid-cooled single-cylinder four-stroke
Five-speed automatic transmission with AT/MT modes
Independent double-wishbone; 5.8-inch travel
Independent double-wishbone; 5.9-inch travel
73.1 inches
Transferable, limited warranty. One year included.
Engine
| Engine Type | 518cc liquid-cooled single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 96.0mm x 71.5mm |
| Compression Ratio | 9.5:1 |
| Valve Train | OHV; two valves per cylinder |
| Induction | Programmed Fuel-Injection system (PGM-FI); 36mm throttle body |
Drivetrain
| Clutch | Automatic |
|---|---|
| Transmission | Five-speed automatic transmission with AT/MT modes |
| Driveline | Direct front and rear driveshafts |
Chassis Suspension Brakes
| Front Suspension | Independent double-wishbone; 5.8-inch travel |
|---|---|
| Rear Suspension | Independent double-wishbone; 5.9-inch travel |
| Front Brakes | Dual 200mm discs |
| Rear Brake | Single 170mm disc |
| Front Tires | 24 x 8-12 |
| Rear Tires | 24 x 10-12 |
Dimensions
| Length | 105.0 inches |
|---|---|
| Width | 50.0 inches |
| Height | 71.3 inches |
| Wheelbase | 73.1 inches |
| Bed Size (L x W x H) | 25.9 x 38.7 x 9.8 inches |
| Bed Capacity | 450 pounds |
| Towing Capacity | 1000 pounds |
| Ground Clearance | 8.7 inches |
| Turning Radius | 12.8 feet |
| Curb Weight | 1067 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 4.1 gallons |
Other
| Safety | Recommended for Drivers 16 years of age and older. |
|---|---|
| Available Colors | Hero Red, Black Forest Green, Cactus Green |
| Model ID | SXS520M2 |
| Seating Capacity | 2 |
Factory Warranty Information
| Duration | Transferable, one year included, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |

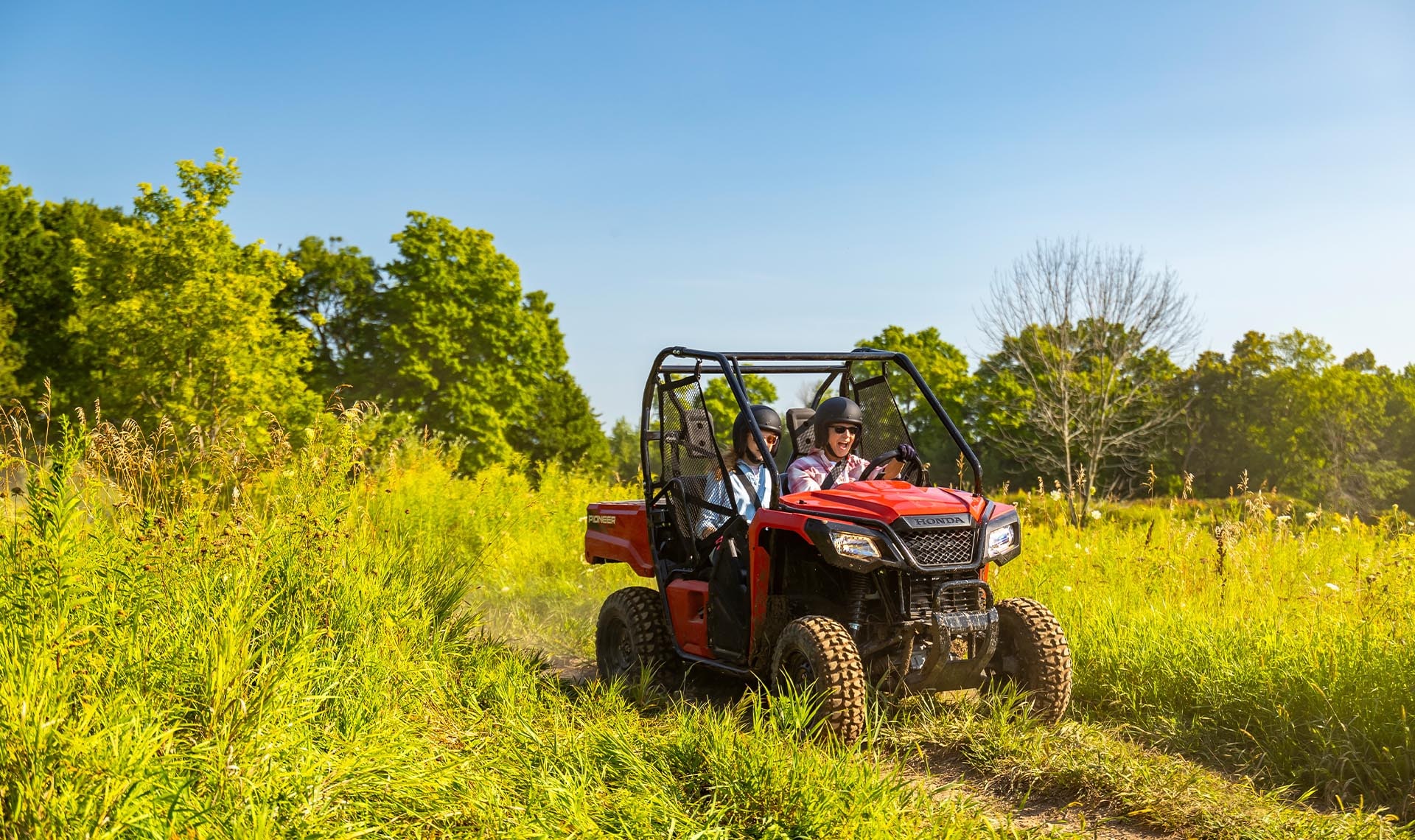

Compact. Capable. Honda.
Where bigger can’t go
Powerful 518cc engine
This 518cc engine is optimized for low-rpm torque and features electronic fuel injection, providing improved performance in cold weather and at high altitudes. The five-speed automatic transmission provides ample pulling power.
Automatic transmission with AT/MT mode
You can let the automatic transmission shift for you or control it yourself with its paddles. You can even shift from auto to manual (AT to MT) on the fly!

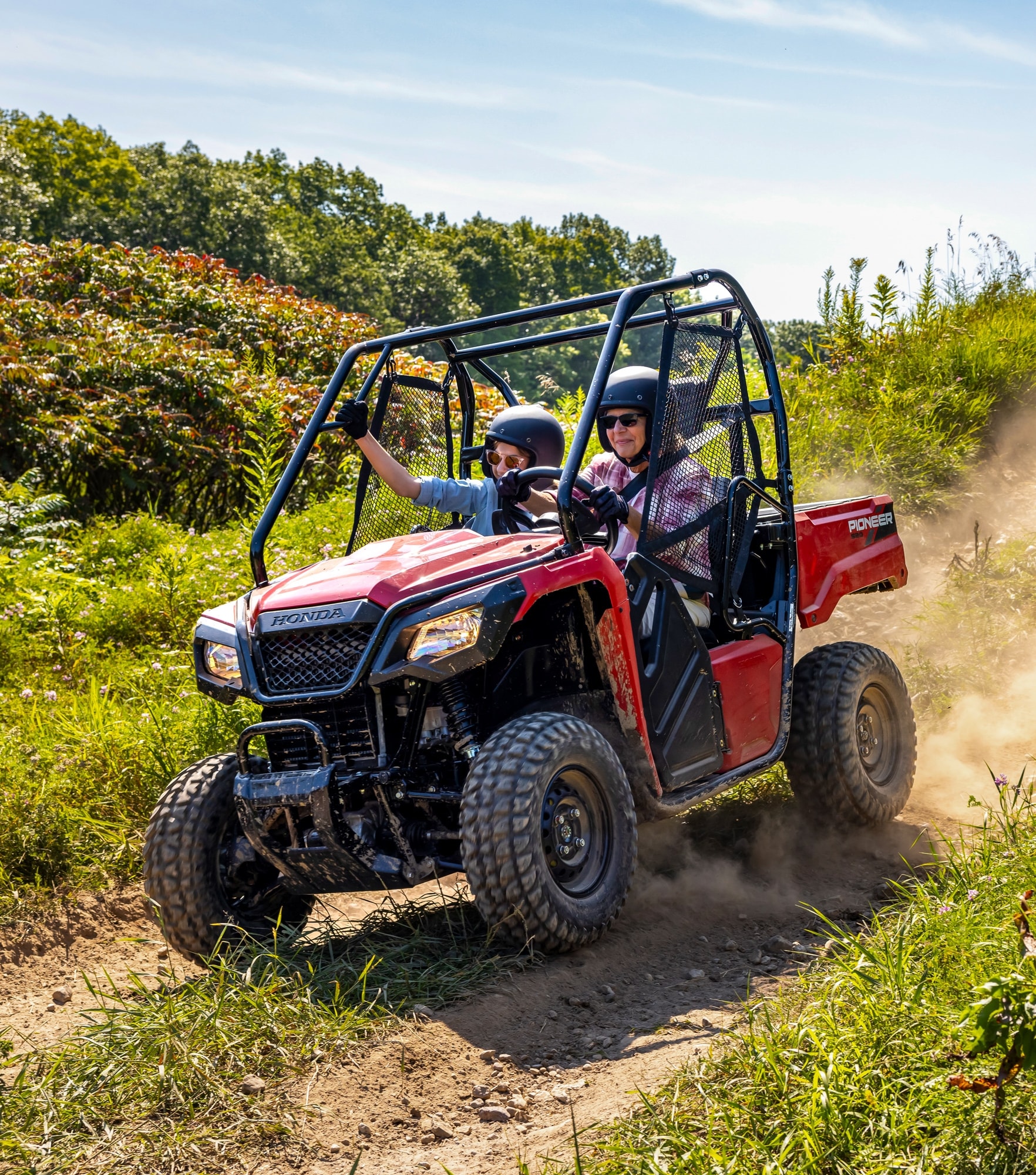

Reduced cabin heat
The cabin’s interior is designed to reduce heat, creating a cooler, more comfortable environment. Now, those hot days—whether you’re working or out on the trail—will be far more bearable.
Tilt/dump bed
The tilt/dump bed measures 38.7" x 25.9" x 9.8" and can carry up to 450 pounds. The assist strut makes dumping easy, and the bed accommodates a range of Pro-Connect® system accessories.
Built for chores and trails
Dual-rate springs
Dual-rate springs offer a smoother ride over small bumps, better resistance to bottoming on big bumps, and a more confident steering feel.

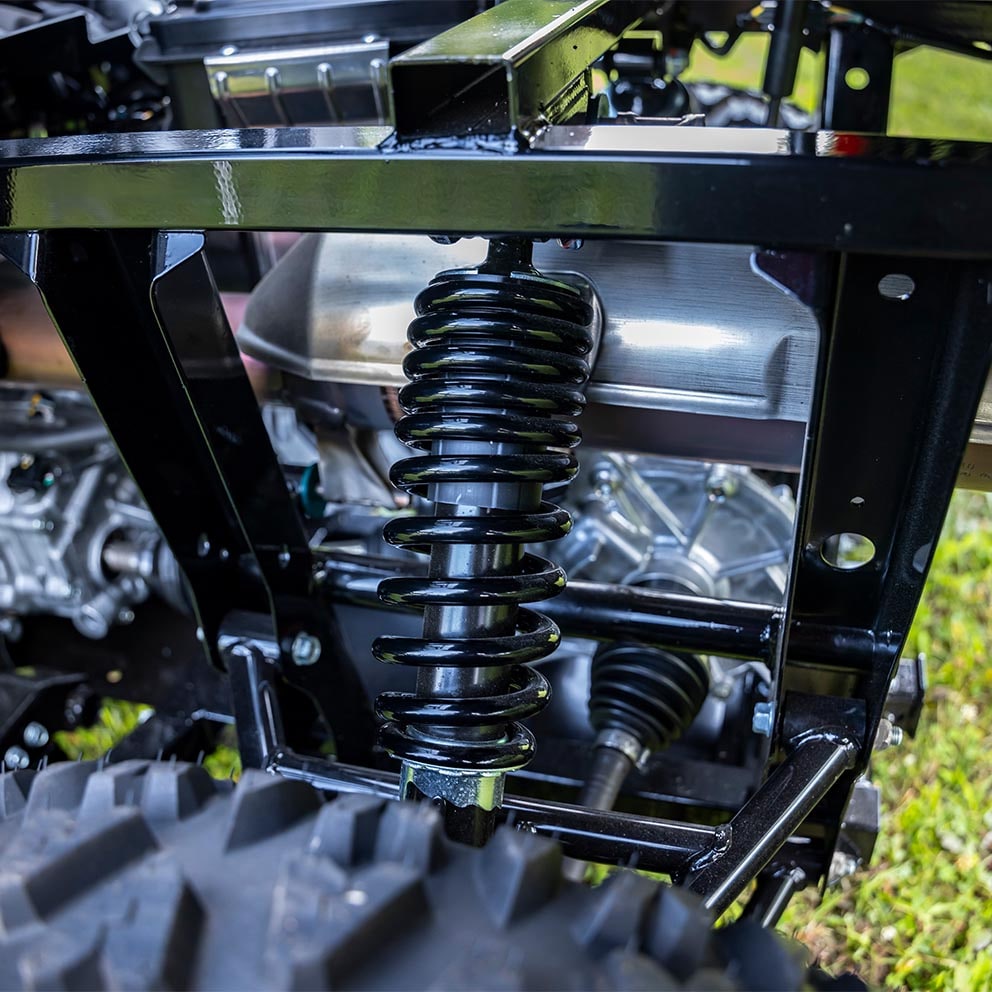

Independent Rear Suspension (IRS)
Fully independent rear suspension means a smooth ride, especially over rough terrain.

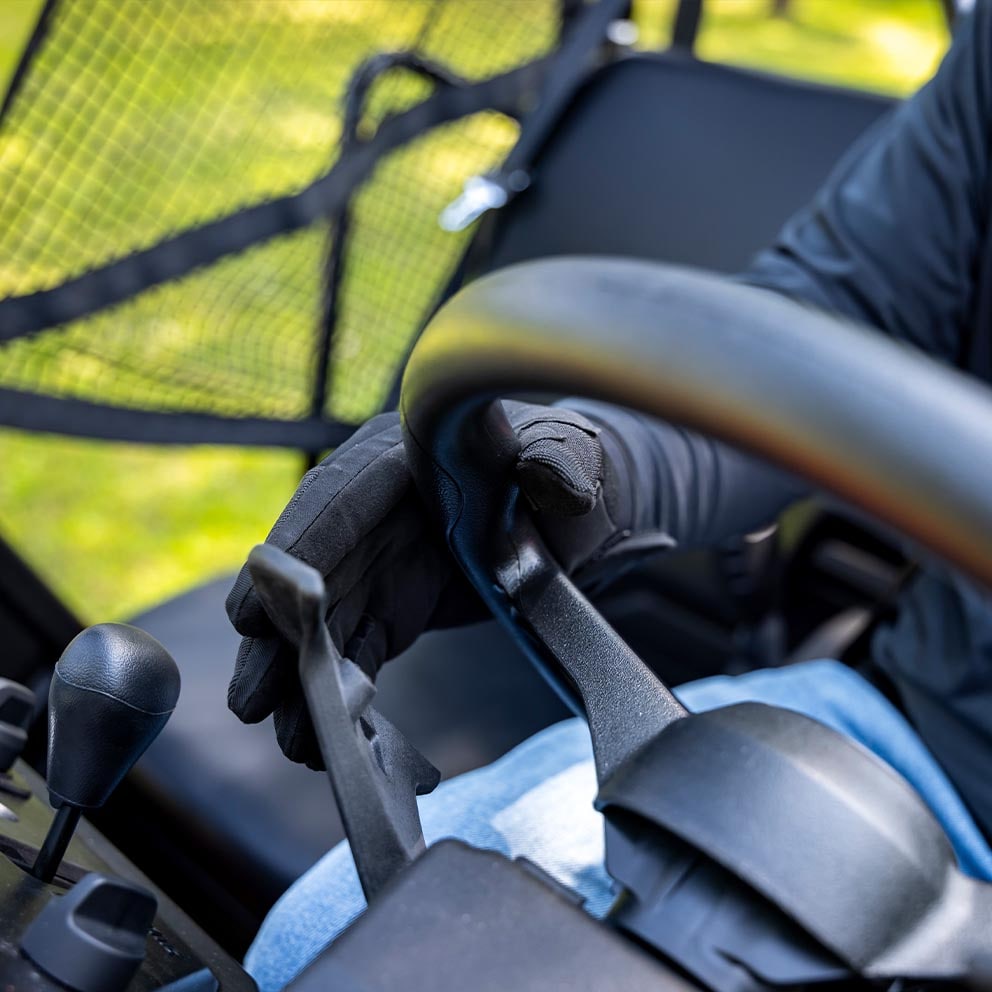

Smoother shifting
Our purpose-built engine is paired with specially calibrated transmission shift mapping, designed to ensure smooth gear changes and seamless torque for an enhanced overall riding experience.

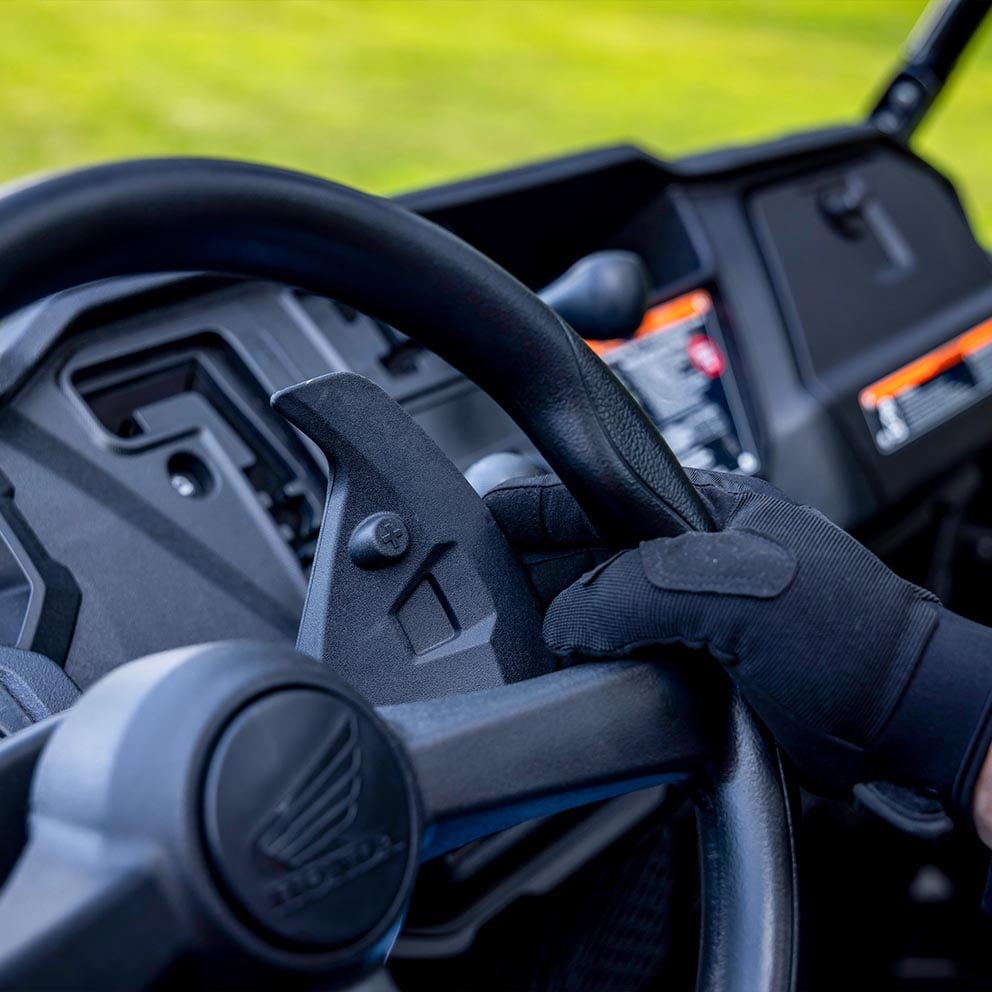

Paddle shifters
If you want to shift manually, you can upshift and downshift without ever taking your hands off the wheel. You can choose the exact gear you want, and it’s engineered for precise, smooth shifts.
Semi-dry-sump engine
The overhead-valve, semi-dry-sump design creates a compact and lighter engine that boosts handling capabilities with a low center of gravity and favorable ground clearance.

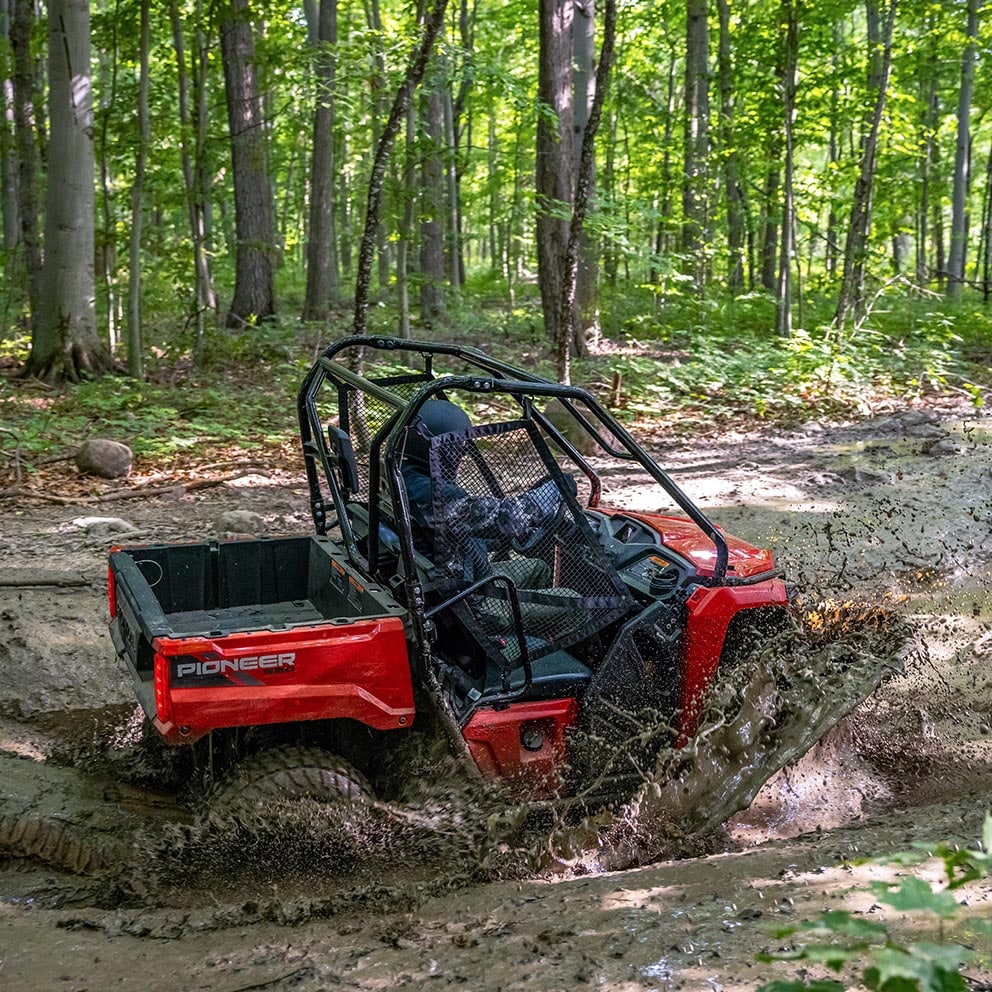

Driver/passenger protection
This vehicle prioritizes safety performance with its Occupant Protection Structure, which meets the applicable ISO rollover protection standard, integrated handholds, recessed top tubes, and hard doors with side nets to help keep the cabin secure. Automotive-style three-point seat belts help keep everyone safe.

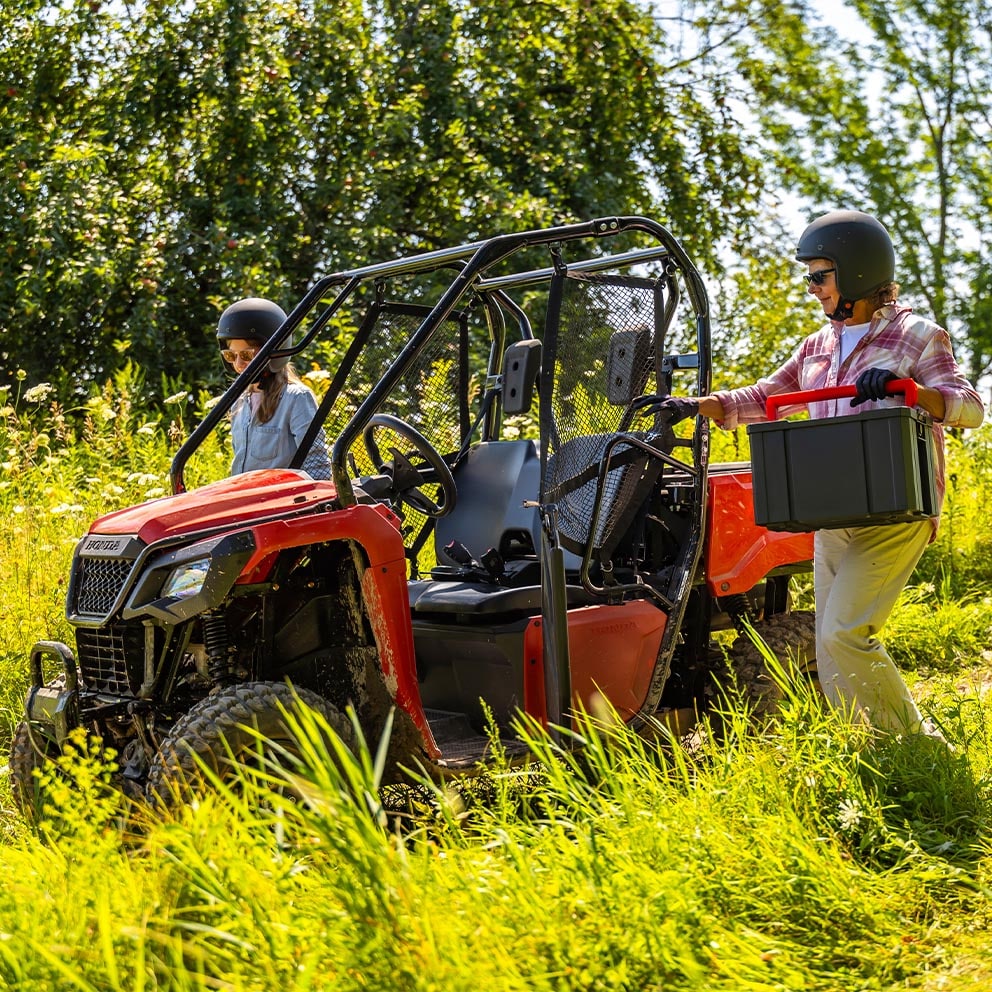

Single-function door/net
Doors come standard and feature an occupant net that is directly attached. Unlock the door, and the net swings aside for easier entry and exit.
Side-by-side seating
A spacious bench-style seat with individual backrests and seatbelts for both the driver and passenger enhances comfort, safety, and maneuverability.
Towing and hauling
This side-by-side is versatile and highly capable. It features a bed capacity of 450 pounds, a towing capacity of 1000 pounds, and a front locking differential for both 2WD and 4WD.
Accessories
Related trims and models

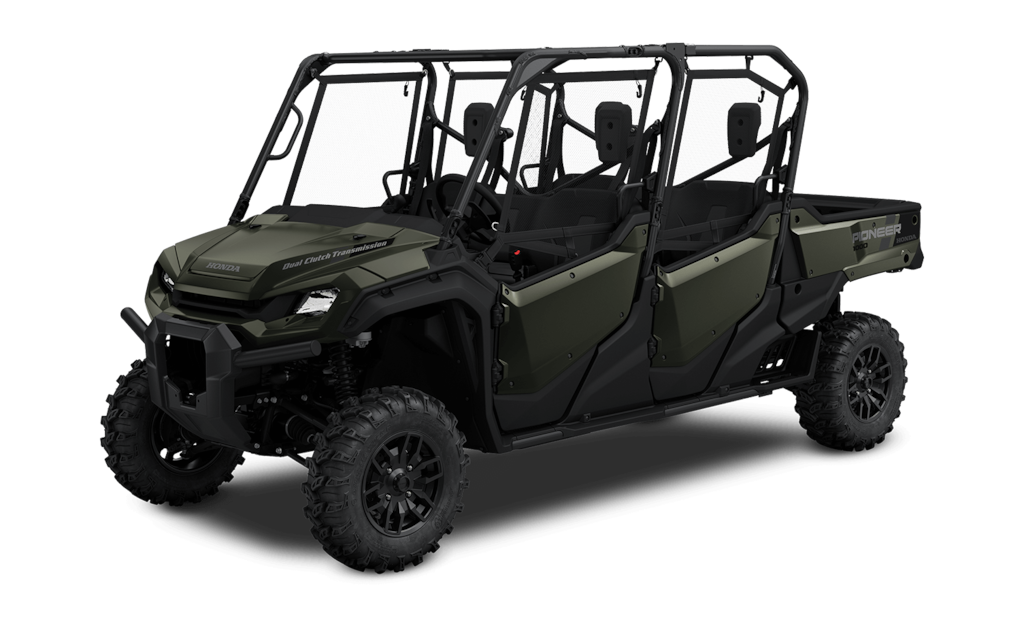

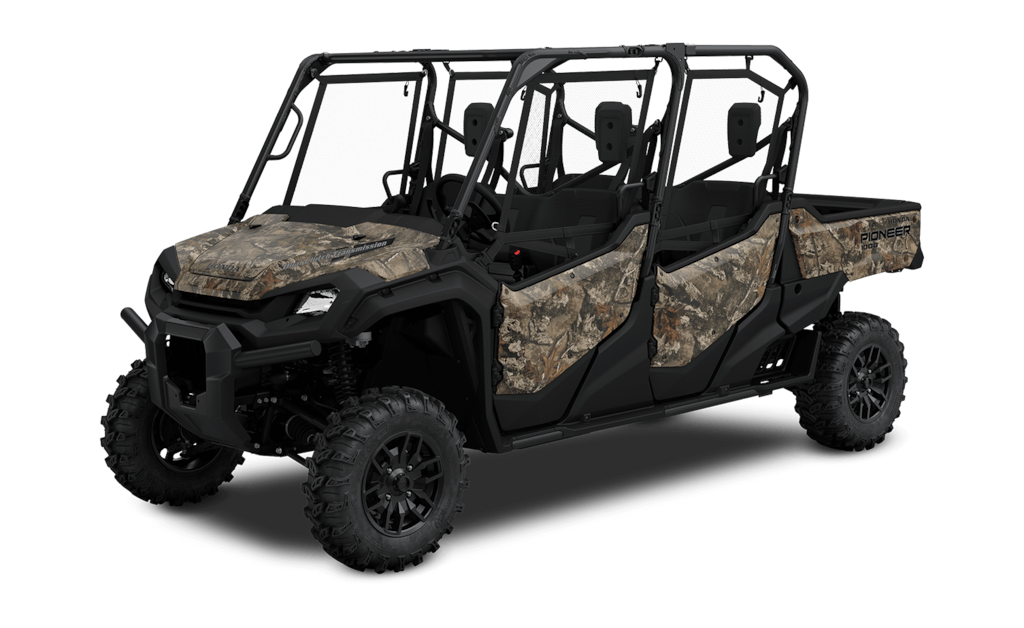

Pioneer 1000-6 Deluxe Crew
Base MSRP $22,199* Destination Charge: $1,395.00
Total MSRP $23,594*
- Seating for six
- Available TrueTimber® Atera Camo
- Electric Power Steering
- Front interior light
- Black aluminum wheels

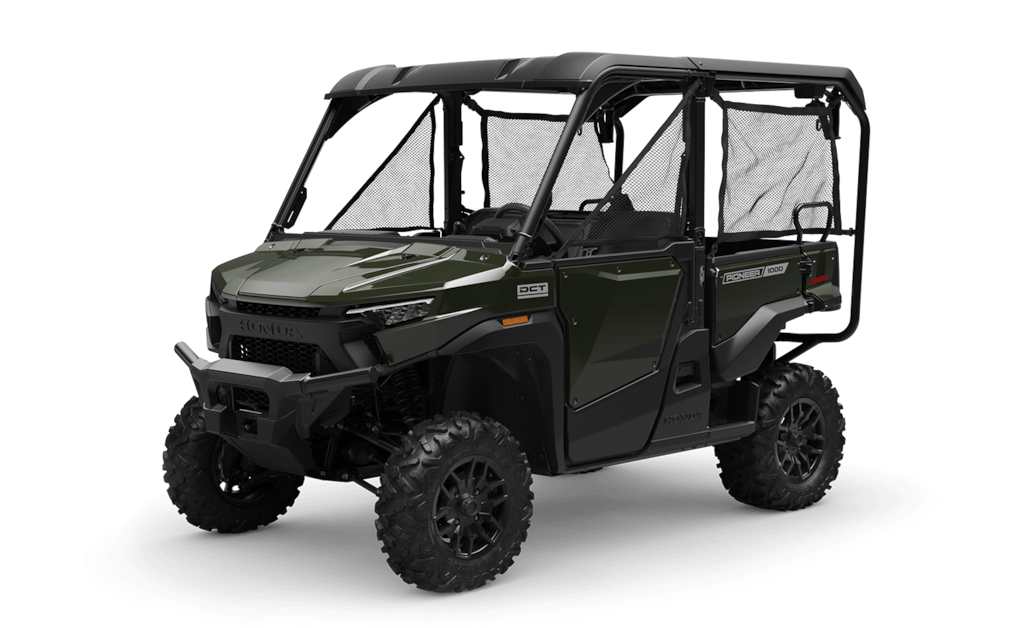

Pioneer 1000-5 Deluxe
Base MSRP $22,399* Destination Charge: $1,295.00
Total MSRP $23,694*
- 999cc engine
- Cruise control
- QuickFlip® Seating
- Automatic DCT transmission
- Electric Power Steering
Pioneer 1000 Deluxe
Base MSRP $20,999* Destination Charge: $1,295.00
Total MSRP $22,294*
- 999cc engine
- 12-volt accessory socket
- Accessory switch panel
- Tilt bed
- 2500-pound towing capacity
Pioneer 700-4
Base MSRP $14,399* Destination Charge: $1,185.00
Total MSRP $15,584*
- 675cc liquid-cooled single-cylinder engine
- Fuel Injection
- Automatic transmission
- Adjustable preload rear shocks
- Disc brakes

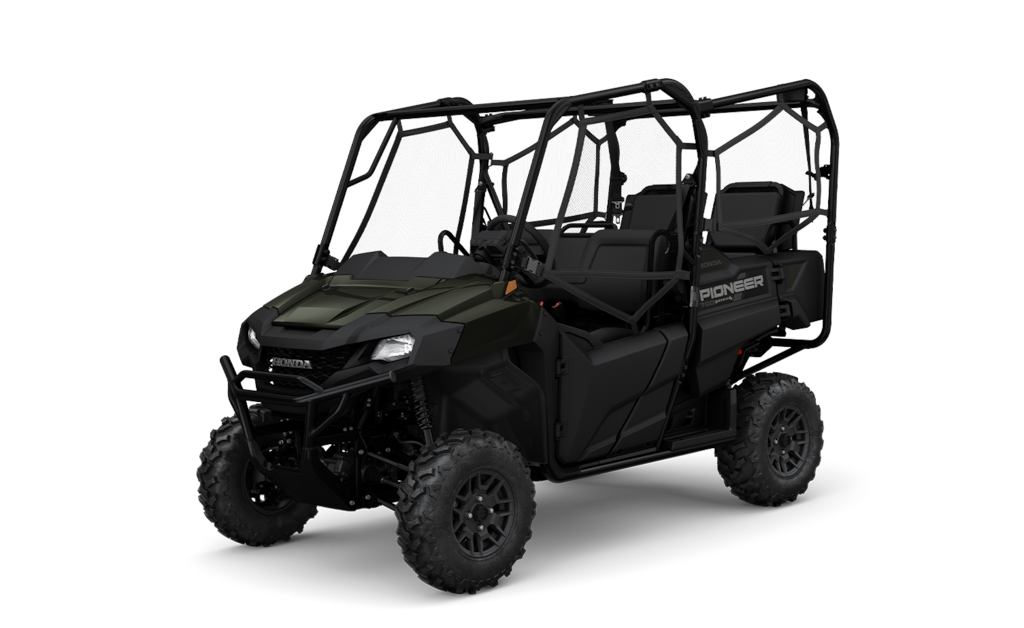

Pioneer 700-4 Deluxe
Base MSRP $15,999* Destination Charge: $1,185.00
Total MSRP $17,184*
- Electric Power Steering
- Black aluminum wheels
- Factory bed light
- 675cc liquid-cooled single-cylinder engine
- Disc brakes

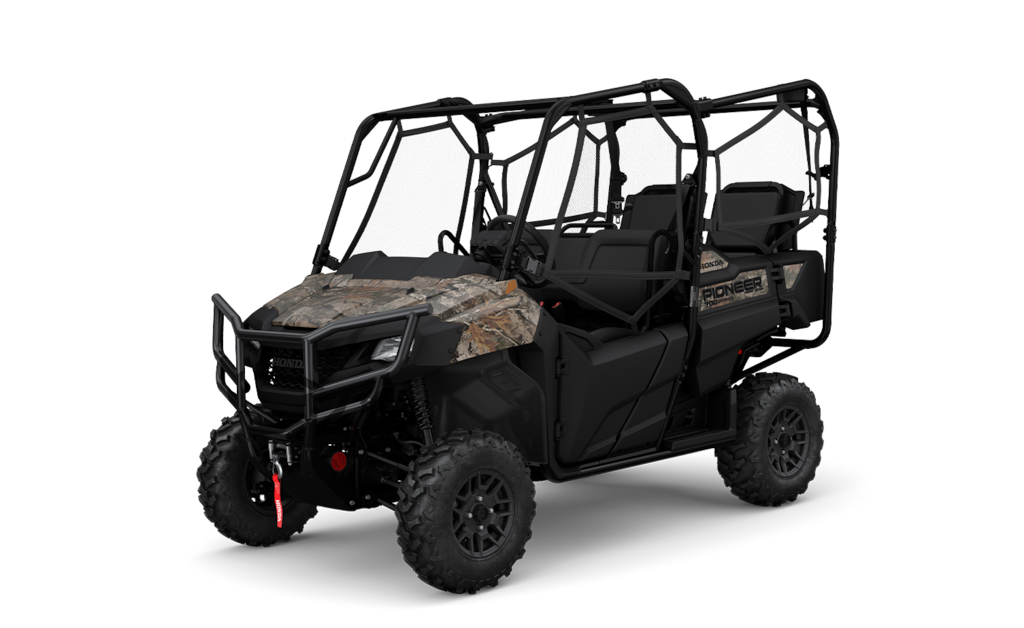

Pioneer 700-4 Forest
Base MSRP $17,999* Destination Charge: $1,185.00
Total MSRP $19,184*
- Honda winch
- Larger front bumper
- TrueTimber® Atera Camo
- Electric Power Steering
- 675cc liquid-cooled single-cylinder engine
Pioneer 700
Base MSRP $12,899* Destination Charge: $1,185.00
Total MSRP $14,084*
- 675cc liquid-cooled single-cylinder engine
- Fuel Injection
- Automatic transmission
- Adjustable preload rear shocks
- Disc brakes

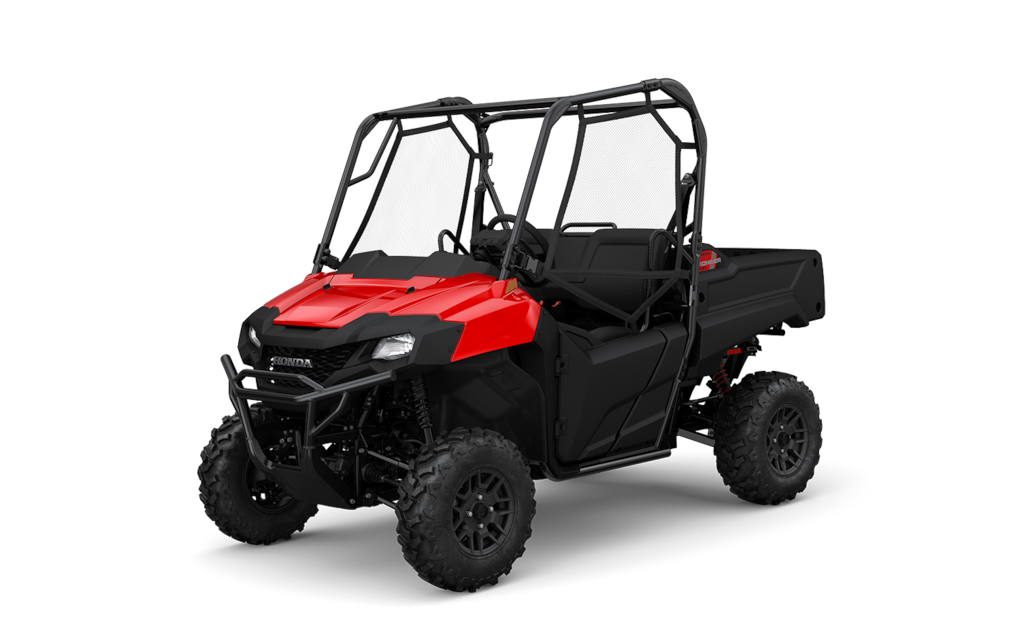

Pioneer 700 Deluxe
Base MSRP $14,499* Destination Charge: $1,185.00
Total MSRP $15,684*
- Electric Power Steering
- Black aluminum wheels
- Factory bed light
- 675cc liquid-cooled single-cylinder engine
- Disc brakes

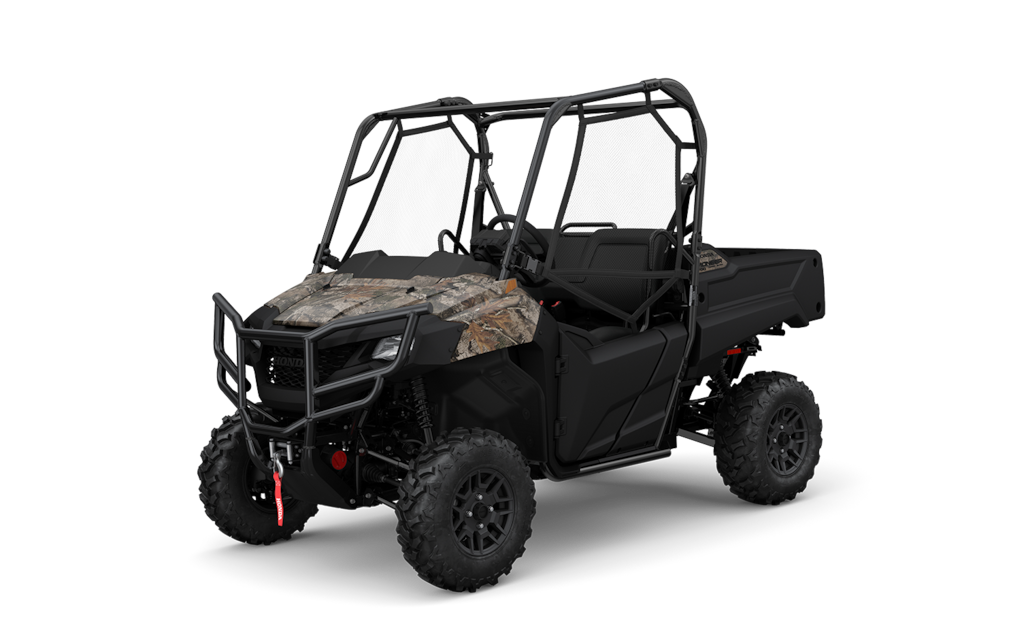

Pioneer 700 Forest
