Pioneer 1000-5 Deluxe
999cc liquid-cooled longitudinally mounted parallel-twin four-stroke
Six-speed automatic Dual-Clutch Transmission (DCT)
Independent double-wishbone; 10.6-inch travel
Independent double-wishbone; 10.0-inch travel
80.2 inches
Transferable, limited warranty. One year included.
Engine
| Engine Type | 999cc liquid-cooled longitudinally mounted parallel-twin four-stroke |
|---|---|
| Bore And Stroke | 92.0mm x 75.1mm |
| Compression Ratio | 10.0:1 |
| Valve Train | Unicam® SOHC; four valves per cylinder |
| Induction | Programmed Fuel Injection System (PGM-FI); 46mm throttle body |
Drivetrain
| Transmission | Six-speed automatic Dual-Clutch Transmission (DCT) |
|---|---|
| Driveline | Direct front and rear driveshafts |
Chassis Suspension Brakes
| Front Suspension | Independent double-wishbone; 10.6-inch travel |
|---|---|
| Rear Suspension | Independent double-wishbone; 10.0-inch travel |
| Front Brakes | Dual 230 mm hydraulic discs |
| Rear Brakes | Dual 230 mm hydraulic discs |
| Front Tires | Maxxis Big Horn 2.0, 27 x 9-14 |
| Rear Tires | Maxxis Big Horn 2.0, 27 x 11-14 |
Dimensions
| Length | 119.0 inches |
|---|---|
| Width | 64.0 inches |
| Height | 79.4 inches |
| Wheelbase | 80.2 inches |
| Bed Size (L x W x H) | 36.0 x 45.0 x 10.2 inches |
| Bed Capacity | 1000 pounds for 49-state models; 600 pounds for CA model |
| Towing Capacity | 2500 pounds |
| Ground Clearance | 13.0 inches |
| Turning Radius | 15.4 feet |
| Curb Weight | 1920 pounds - Includes all standard equipment, required fluids and full tank of fuel |
| Fuel Capacity | 8.1 gallons |
Other
| Safety | Recommended for drivers 16 years of age and older. |
|---|---|
| Available Colors | Hero Red, Black Forest Green, TrueTimber Atera Camo |
| Model ID | SXS10M5D |
| Seating Capacity | 5 |
Factory Warranty Information
| Duration | Transferable, one year included, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Inside the new Pioneer 1000-5
Adventure like you mean it
Powerful 999cc twin-cylinder engine
With plenty of power—especially in the midrange and top end—you'll experience quick acceleration and exceptional overall performance.
Chassis and suspension
Beefy tires, long-travel independent front and rear suspension, and our sophisticated driveline provide excellent handling and comfort.
Fully automatic six-speed DCT
With our Honda six-speed Dual-Clutch Transmission (DCT), you can choose between manual mode or fully automatic. There’s even an easy-to-use tow/haul mode, along with 2WD, 4WD, Differential Lock, and Turf selections.
Throttle by wire
The Pioneer 1000-5’s new throttle-by-wire (TBW) system enables a whole host of improvements. What you’ll notice first, though, is how smooth the shifts are now.Rugged sophistication
Independent front and rear suspension
Dual A-arm suspension provides 10.6 inches of front travel and 10 inches in the rear. Along with ample ground clearance, you get maximum traction and comfort.
Maxxis Big Horn 2.0 tires
All models come with rugged, versatile Maxxis Big Horn 2.0 tires, providing exceptional off-road traction and long-lasting durability.
Premium wheels
Our Pioneer 1000-5 Deluxe has 14-inch aluminum wheels with an all-black finish.
Paddle shifting
Steering-column-mounted paddle shifters add a dose of performance to every drive. In Manual mode, they let you shift without ever taking your hands off the wheel, and in Automatic mode, they let you override the current gear with a quick up or downshift.
12-volt accessory socket
The Deluxe features a standard 12-volt power socket in the bed perfect for powering a spotlight, air compressor, and more.
LCD instrument display
The LCD instrument display is easy to read and has bright graphics. It includes indicators for speed, fuel level, rpm, transmission mode, water temperature, trip information, and more.
Formed ROPS
Our new formed ROPS (Roll Over Protection Structure) helps create a better sealing surface for accessories, especially items like doors and windshields. Accessories for the new model will be available soon.
3-person contoured bench seat
Contoured for three passengers, the front seat features a center positioned up and forward to maximize space and comfort and a tough covering designed to resist the elements and heavy use.
Accessory switch panel
Standard equipment on the Deluxe: the switch panel has room for seven switches, letting you control things like a winch, accessory lights, and more. A fully integrated design, it sits in the center of the dashboard. Accessories for the new model will be available soon.
Under-dash storage
This practical under-dash shelf is standard on the Deluxe. It keeps frequently used items right up front in the cab.
Related trims and models
Pioneer 1000-6 Deluxe Crew
Base MSRP $22,199* Destination Charge: $1,395.00
Total MSRP $23,594*
- Seating for six
- Available TrueTimber® Atera Camo
- Electric Power Steering
- Front interior light
- Black aluminum wheels
Pioneer 1000 Deluxe
Base MSRP $20,999* Destination Charge: $1,295.00
Total MSRP $22,294*
- 999cc engine
- 12-volt accessory socket
- Accessory switch panel
- Tilt bed
- 2500-pound towing capacity
Pioneer 700-4
Base MSRP $14,399* Destination Charge: $1,185.00
Total MSRP $15,584*
- 675cc liquid-cooled single-cylinder engine
- Fuel Injection
- Automatic transmission
- Adjustable preload rear shocks
- Disc brakes

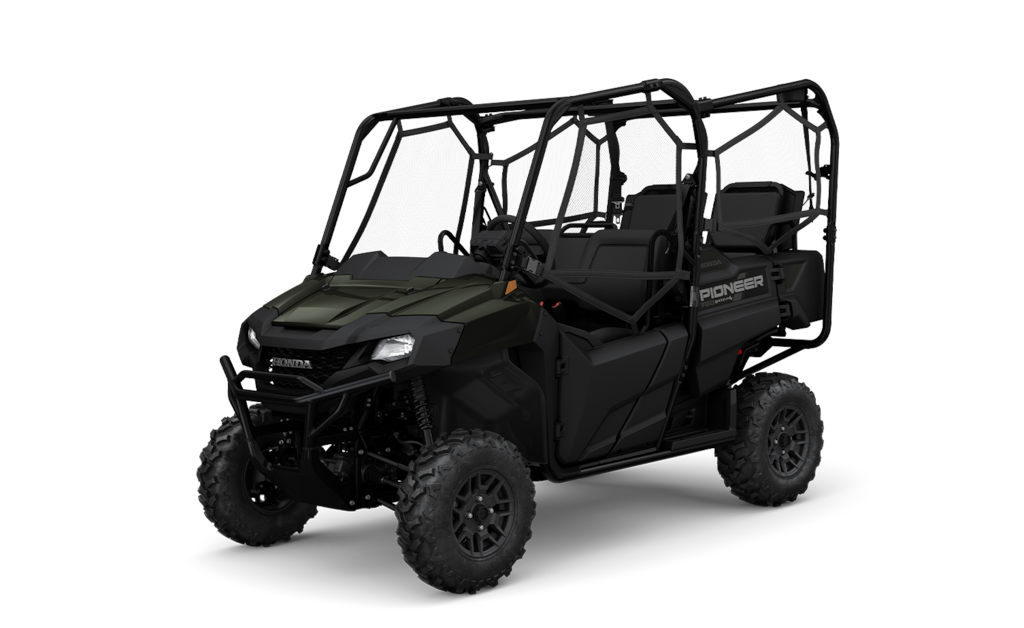

Pioneer 700-4 Deluxe
Base MSRP $15,999* Destination Charge: $1,185.00
Total MSRP $17,184*
- Electric Power Steering
- Black aluminum wheels
- Factory bed light
- 675cc liquid-cooled single-cylinder engine
- Disc brakes
Pioneer 700-4 Forest
Base MSRP $17,999* Destination Charge: $1,185.00
Total MSRP $19,184*
- Honda winch
- Larger front bumper
- TrueTimber® Atera Camo
- Electric Power Steering
- 675cc liquid-cooled single-cylinder engine
Pioneer 700
Base MSRP $12,899* Destination Charge: $1,185.00
Total MSRP $14,084*
- 675cc liquid-cooled single-cylinder engine
- Fuel Injection
- Automatic transmission
- Adjustable preload rear shocks
- Disc brakes

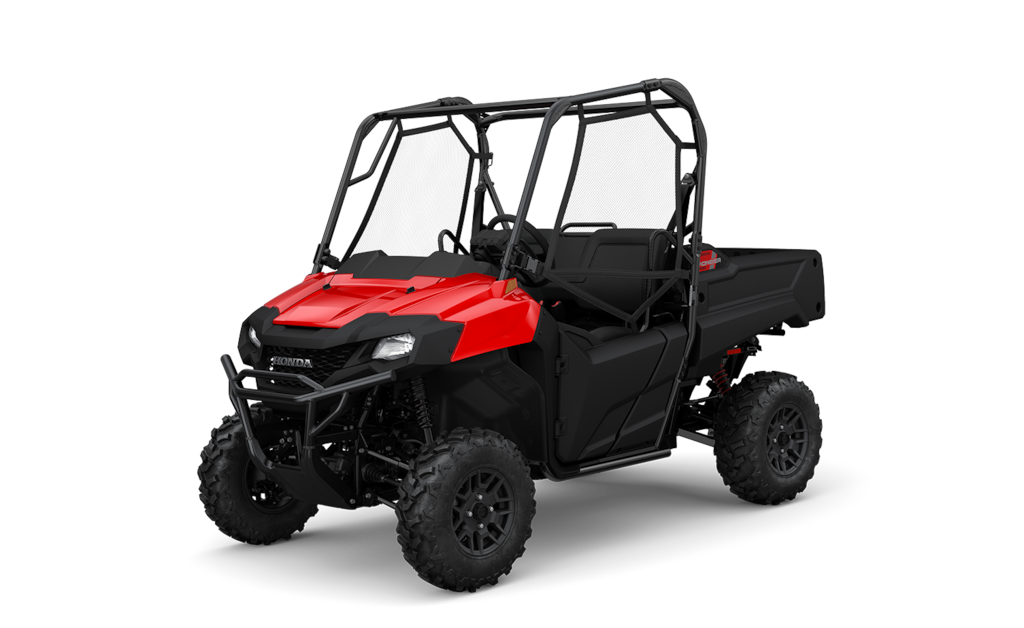

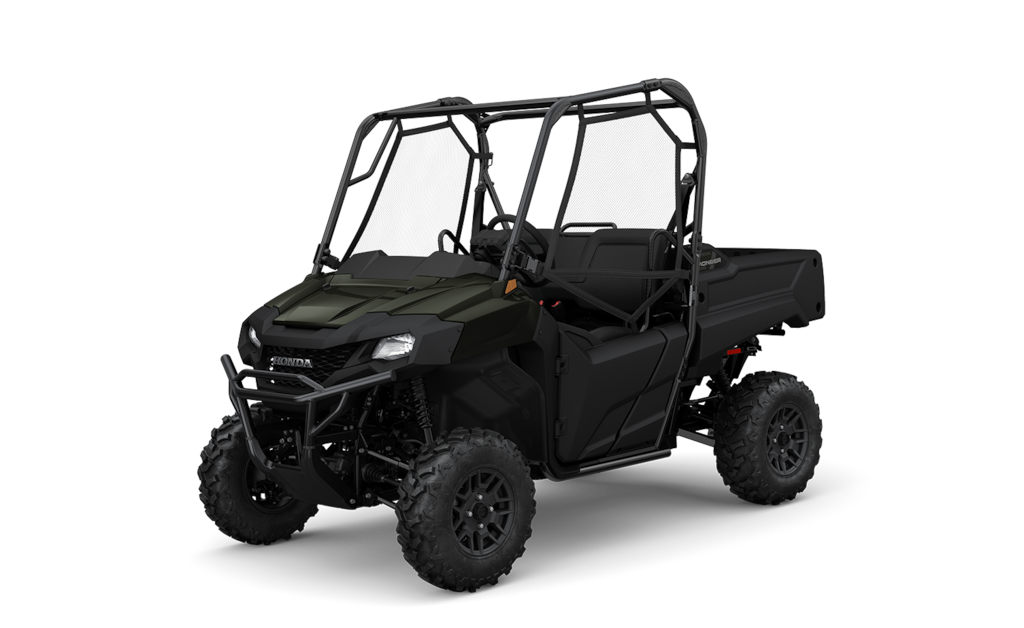

Pioneer 700 Deluxe
Base MSRP $14,499* Destination Charge: $1,185.00
Total MSRP $15,684*
- Electric Power Steering
- Black aluminum wheels
- Factory bed light
- 675cc liquid-cooled single-cylinder engine
- Disc brakes

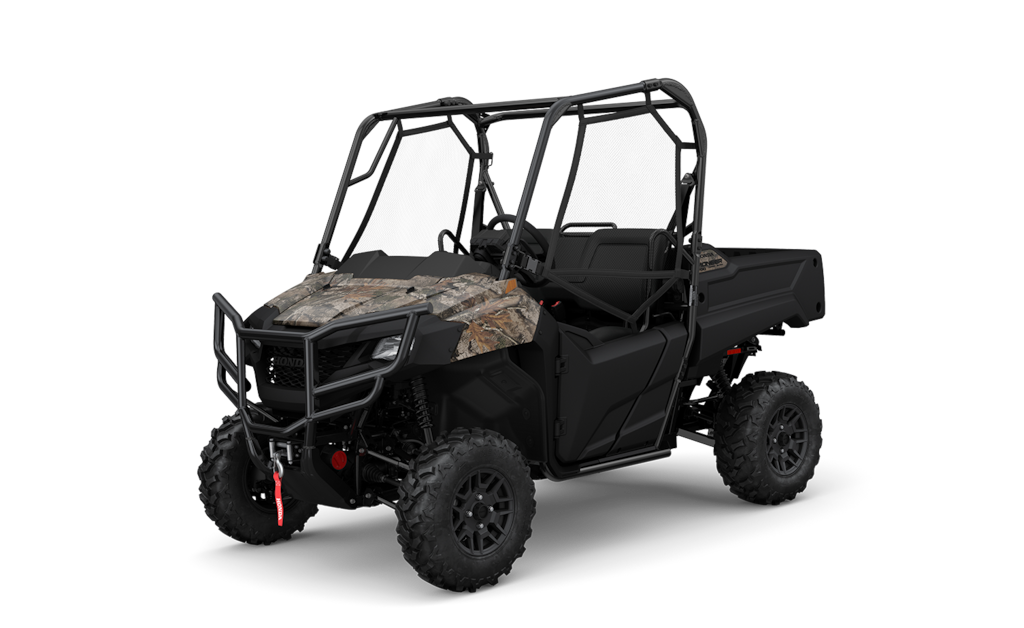

Pioneer 700 Forest
Base MSRP $16,499* Destination Charge: $1,185.00
Total MSRP $17,684*
- Honda winch
- Larger front bumper
- TrueTimber® Atera Camo
- Electric Power Steering
- 675cc liquid-cooled single-cylinder engine

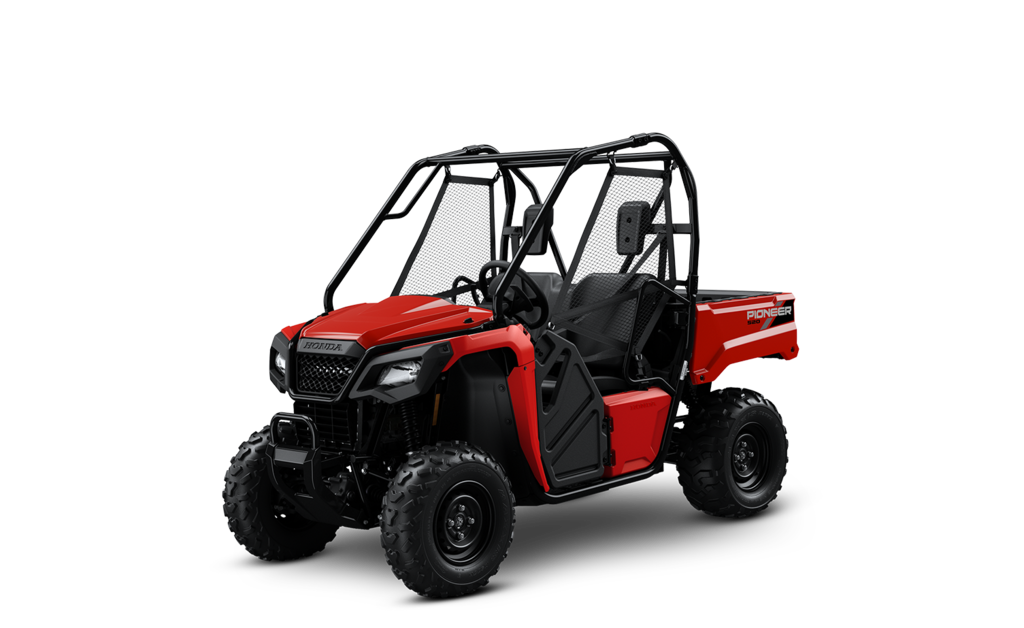

Pioneer 520
