Engine Type

675cc liquid-cooled single-cylinder four-stroke

Transmission

Automotive-style automatic transmission with hydraulic torque converter

Front Suspension

Independent double-wishbone; 7.9-inch travel

Rear Suspension

Independent double-wishbone; 9.1-inch travel

Wheelbase

76.9 inches

Warranty

Transferable, limited warranty. One year included.

HondaCare® Protection Plan Available

Engine

Engine Type	675cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	102.0mm x 82.6mm
Compression Ratio	9.2:1
Induction	Programmed Fuel-Injection system (PGM-FI); 40mm throttle body
Valve Train	OHV; four valves per cylinder

Drivetrain

Clutch	Automatic
Transmission	Automotive-style automatic transmission with hydraulic torque converter
Driveline	Direct front and rear driveshafts

Chassis Suspension Brakes

Front Suspension	Independent double-wishbone; 7.9-inch travel
Rear Suspension	Independent double-wishbone; 9.1-inch travel
Front Brakes	Dual 200mm discs
Rear Brake	Single 170mm disc
Front Tires	25 x 8-12
Rear Tires	25 x 10-12

Dimensions

Length	114.7 inches
Width	59.9 inches
Height	78.3 inches
Wheelbase	76.9 inches
Bed Size (L x W x H)	36.3 x 45.4 x 11.1 inches
Bed Capacity	1000 pounds
Towing Capacity	1500 pounds
Ground Clearance	11.0 inches
Turning Radius	14.8 feet
Curb Weight	1453 pounds (includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity	8.1 gallons

Other

Safety	Recommended for Drivers 16 years of age and older.
Available Colors	Black Forest Green
Model ID	SxS700M4D
Seating Capacity	4

Factory Warranty Information

Duration	Transferable, one year included, limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

Level-up your adventure

Bring the crew in comfort

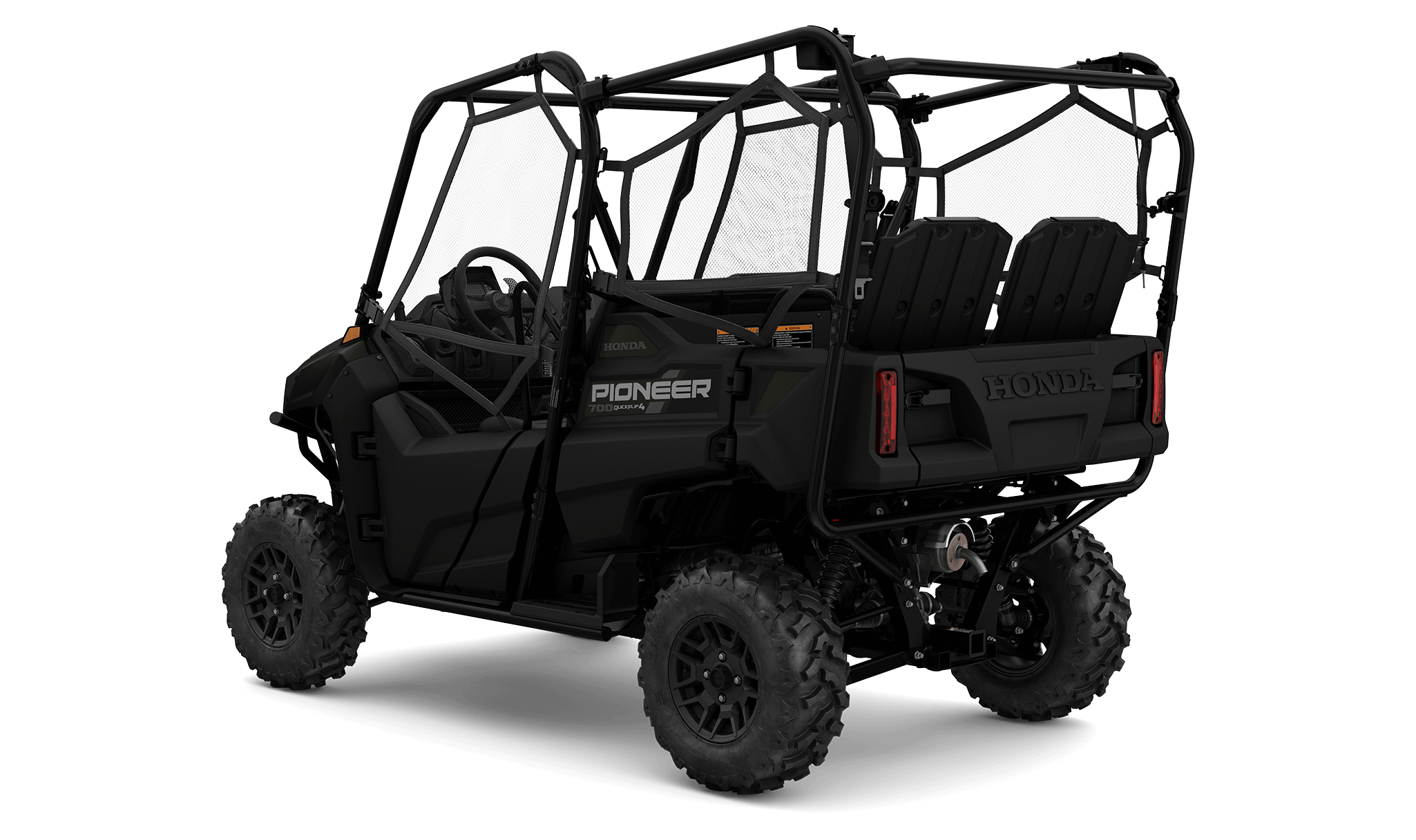

Deluxe model

The Deluxe edition comes with Electric Power Steering (EPS) and black aluminum wheels, as well as a factory-installed 12-volt outlet and lighting in the bed, making outdoor adventures even more accessible day and night.

Bring the crew in comfort

AT/MT mode and paddle shifters

On the Deluxe and Forest trims, you have the option to either let the automatic transmission shift for you or take charge and select the gear you want using the steering column-mounted paddle shifters. You can even shift from auto to manual on the fly.

Bring the crew in comfort

Bed lighting

The Deluxe and Forest editions come with a factory-installed cargo bed light, allowing you to work or have fun anytime.

Bring the crew in comfort

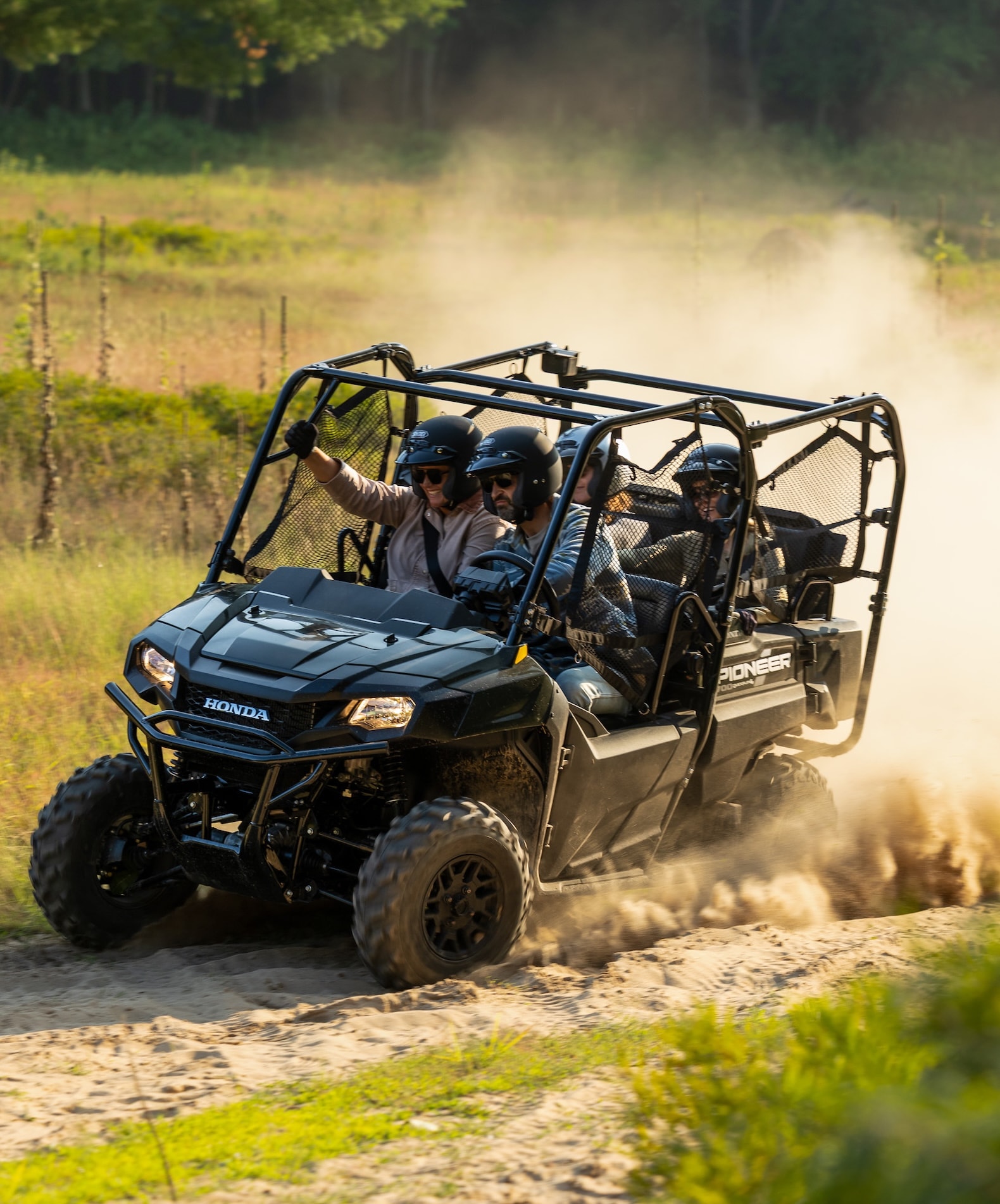

Electric Power Steering (EPS)

Available on the Deluxe and Forest models, our Electric Power Steering has always been a groundbreaking innovation, especially with its next-generation brushless motor and return-to-center function.

The upgrade for every outing

View all Features

Charging power

A center cabin-mounted 12-volt DC socket and a USB-C port inside the glovebox allow you to easily charge and power your phone and other personal electronics while out on the trail.

Large brush guards

Large front brush guards increase the side-by-side’s frontal protection, designed to slide smoothly over obstacles in rough conditions while providing added safety.

Bed lighting

The Deluxe and Forest editions come with a factory-installed cargo bed light, allowing you to work or have fun anytime.

1500-pound towing capacity

Sometimes, heavy objects need to be towed. That's why we equipped this SxS with a robust three-quarter-ton towing capacity, strong enough to handle most jobs that typically require a tractor.

Double-wishbone front suspension

Our independent double-wishbone front suspension features dual-rate springs for a smooth ride and superior handling. With 7.9 inches of travel, you can easily tackle rocky and uneven terrain.

Adjustable preload rear shocks

Our preload-adjustable rear shocks provide excellent handling, even when hauling heavy loads. The fully independent rear suspension has a dual-rate spring and 9.1 inches of travel, ensuring predictable steering even when the vehicle is loaded to its maximum capacity.

Disc brakes

Our triple-disc brakes feature a patented scraper system that enables you to handle the toughest terrain confidently. The 200mm front and 170mm rear discs deliver exceptional stopping power.

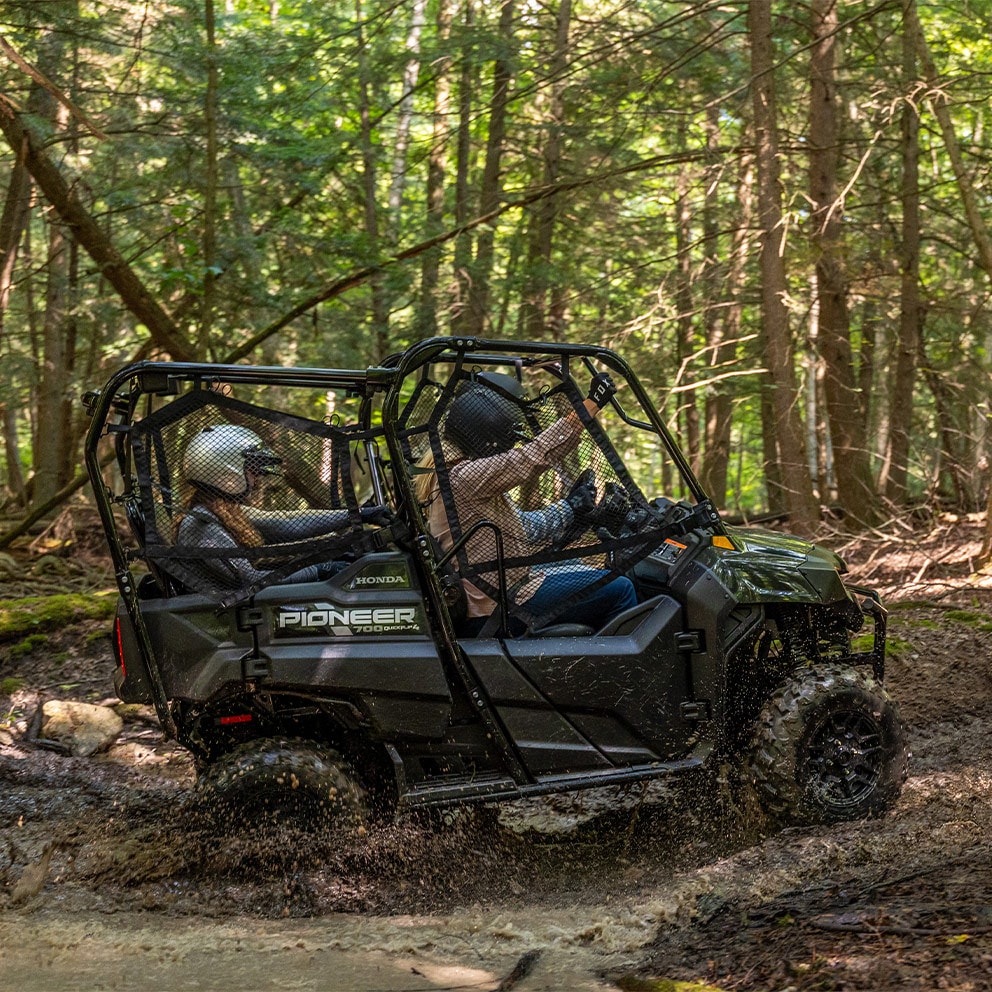

Driver/passenger protection

Safety performance is paramount, which is why our Rollover Occupant Protection Structure uses large-diameter tubing and ISO rollover protection. Passenger security is further enhanced with handrails, recessed top tubes, and three-point seatbelts.

Accessories

Outfit your Pioneer 700-4 with one or more of the 55 Honda accessories, including our Honda winch, tip-out windshield and wiper kit, portable speakers and more—many featuring our Honda Pro-Connect and Mini Pro-Connect systems for quick installation and seamless integration.

LCD instrument display

The display features a large LCD screen, multiple trip functions, battery-voltage readout, a tachometer array, and more. It tilts with the wheel for easier reading.
