Pioneer 1000-5

Pioneer 1000-5

Pioneer 1000-5 Deluxe

Pioneer 1000-5 Limited Edition

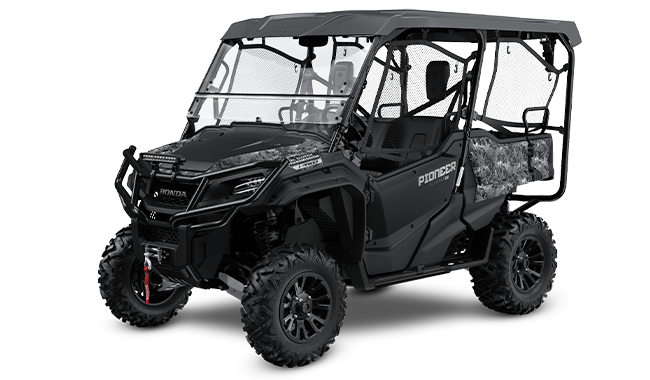

Pioneer 1000-5 Special Edition

Pioneer 1000-5

Engine Type

999cc liquid-cooled twin-cylinder Unicam® four-stroke
Bore And Stroke

92.0mm x 75.15mm
Compression Ratio

10:1
Induction

Fuel Injection (PGM-FI), 44mm throttle body
Ignition

Full-transistorized with electronic advance

Transmission

Fully Automatic Dual Clutch Transmission (DCT) with six forward gears and Reverse. Four drive modes include 2WD, 4WD, Turf and Differential lock. Paddle Shifters with three shift modes (standard, sport, and manual)
Driveline

Direct front and rear driveshafts

Front Suspension

Independent double-wishbone; 10.6 of inches travel
Rear Suspension

Independent double-wishbone; 10 inches of travel
Front Brake

Dual 210mm hydraulic discs
Rear Brake

Dual 210mm hydraulic discs
Front Tires

27 x 9-12
Rear Tires

27 x 11-12

Length

116.8 inches
Width

63.0 inches
Height

76.3 inches
Wheelbase

80.2 inches
Bed Capacity

1000 pounds for 49 states
Bed Capacity

600 pounds for CA model
Towing Capacity

2000 pounds
Seat Height

33.1 inches
Ground Clearance

12.4 inches
Turning Radius

13.8 feet
Curb Weight

1689 pounds - Includes all standard equipment, required fluids and full tank of fuel.
Fuel Capacity

7.9 gallons, including 1.7-gallon reserve

Safety

Recommended for drivers 16 years of age and older.
Available Colors

Red, Olive
Model ID

SXS10M5P

One Year Included

Transferable, limited warranty
Optional Extended

Extended coverage available with a HondaCare Protection Plan®

Engine Type

999cc liquid-cooled twin-cylinder Unicam® four-stroke
Bore And Stroke

92.0mm x 75.15mm
Compression Ratio

10:1
Induction

Fuel Injection (PGM-FI), 44mm throttle body
Ignition

Full-transistorized with electronic advance

Transmission

Fully Automatic Dual Clutch Transmission (DCT) with six forward gears and Reverse. Four drive modes include 2WD, 4WD, Turf and Differential lock. Paddle Shifters with three shift modes (standard, sport, and manual)
Driveline

Direct front and rear driveshafts

Front Suspension

Independent double-wishbone; 10.6 inches of travel
Rear Suspension

Independent double-wishbone; 10 inches of travel
Front Brake

Dual 210mm hydraulic discs
Rear Brake

Dual 210mm hydraulic discs
Front Tires

27 x 9-14
Rear Tires

27 x 11-14

Length

116.6 inches
Width

63.0 inches
Height

76.4 inches
Wheelbase

80.2 inches
Bed Capacity

1000 pounds for 49 states
Bed Capacity

600 pounds for CA model
Towing Capacity

2000 pounds
Seat Height

33.3 inches
Ground Clearance

12.4 inches
Turning Radius

13.8 feet
Curb Weight

1709 pounds – Includes all standard equipment, required fluids and full tank of fuel.
Fuel Capacity

7.9 gallons, including 1.7-gallon reserve

Safety

Recommended for drivers 16 years of age and older.
Available Colors

Red, Vapor White, Honda Phantom Camo®
Model ID

SXS10M5D

One Year Included

Transferable, limited warranty
Optional Extended

Extended coverage available with a HondaCare Protection Plan®

Engine Type

999cc liquid-cooled twin-cylinder Unicam® four-stroke
Bore And Stroke

92.0mm x 75.15mm
Compression Ratio

10:1
Induction

Fuel Injection (PGM-FI), 44mm throttle body
Ignition

Full-transistorized with electronic advance

Transmission

Fully Automatic Dual Clutch Transmission (DCT) with six forward gears and Reverse. Four drive modes include 2WD, 4WD, Turf and Differential lock. Paddle Shifters with three shift modes (standard, sport, and manual)
Driveline

Direct front and rear driveshafts

Front Suspension

Independent double-wishbone; 10.6 inches of travel
Rear Suspension

Independent double-wishbone; 10 inches of travel
Front Brake

Dual 210mm hydraulic discs
Rear Brake

Dual 210mm hydraulic discs
Front Tires

27 x 9-14
Rear Tires

27 x 11-14

Length

116.8 inches
Width

63.0 inches
Height

76.4 inches
Wheelbase

80.2 inches
Bed Capacity

1000 pounds for 49 states
Bed Capacity

600 pounds for CA model
Towing Capacity

2000 pounds
Seat Height

33.1 inches
Ground Clearance

12.2 inches
Turning Radius

13.8 feet
Curb Weight

1773 pounds – Includes all standard equipment, required fluids and full tank of fuel.
Fuel Capacity

7.9 gallons, including 1.7-gallon reserve

Safety

Recommended for drivers 16 years of age and older.
Available Colors

Matte Molasses Brown
Model ID

SXS10M5LE

One Year Included

Transferable, limited warranty
Optional Extended

Extended coverage available with a HondaCare Protection Plan®

Engine Type

999cc liquid-cooled twin-cylinder Unicam® four-stroke
Bore And Stroke

92.0mm x 75.15mm
Compression Ratio

10:1
Induction

Fuel Injection (PGM-FI), 44mm throttle body
Ignition

Full-transistorized with electronic advance

Transmission

Fully Automatic Dual Clutch Transmission (DCT) with six forward gears and Reverse. Four drive modes include 2WD, 4WD, Turf and Differential lock. Paddle Shifters with three shift modes (standard, sport, and manual)
Driveline

Direct front and rear driveshafts

Front Suspension

Independent double-wishbone; 10.6 of inches travel
Rear Suspension

Independent double-wishbone; 10 inches of travel
Front Brake

Dual 210mm hydraulic discs
Rear Brake

Dual 210mm hydraulic discs
Front Tires

27 x 9-14
Rear Tires

27 x 11-14

Length

116.8 inches
Width

63.0 inches
Height

76.3 inches
Wheelbase

80.2 inches
Bed Capacity

1000 pounds for 49 states
Bed Capacity

600 pounds for CA model
Towing Capacity

2000 pounds
Seat Height

33.1 inches
Ground Clearance

12.4 inches
Turning Radius

13.8 feet
Curb Weight

1689 pounds - Includes all standard equipment, required fluids and full tank of fuel.
Fuel Capacity

7.9 gallons, including 1.7-gallon reserve

Safety

Recommended for drivers 16 years of age and older.
Available Colors

Viper Urban Camo
Model ID

SXS10M5LS

One Year Included

Transferable, limited warranty
Optional Extended

Extended coverage available with a HondaCare Protection Plan® excludes accessories
