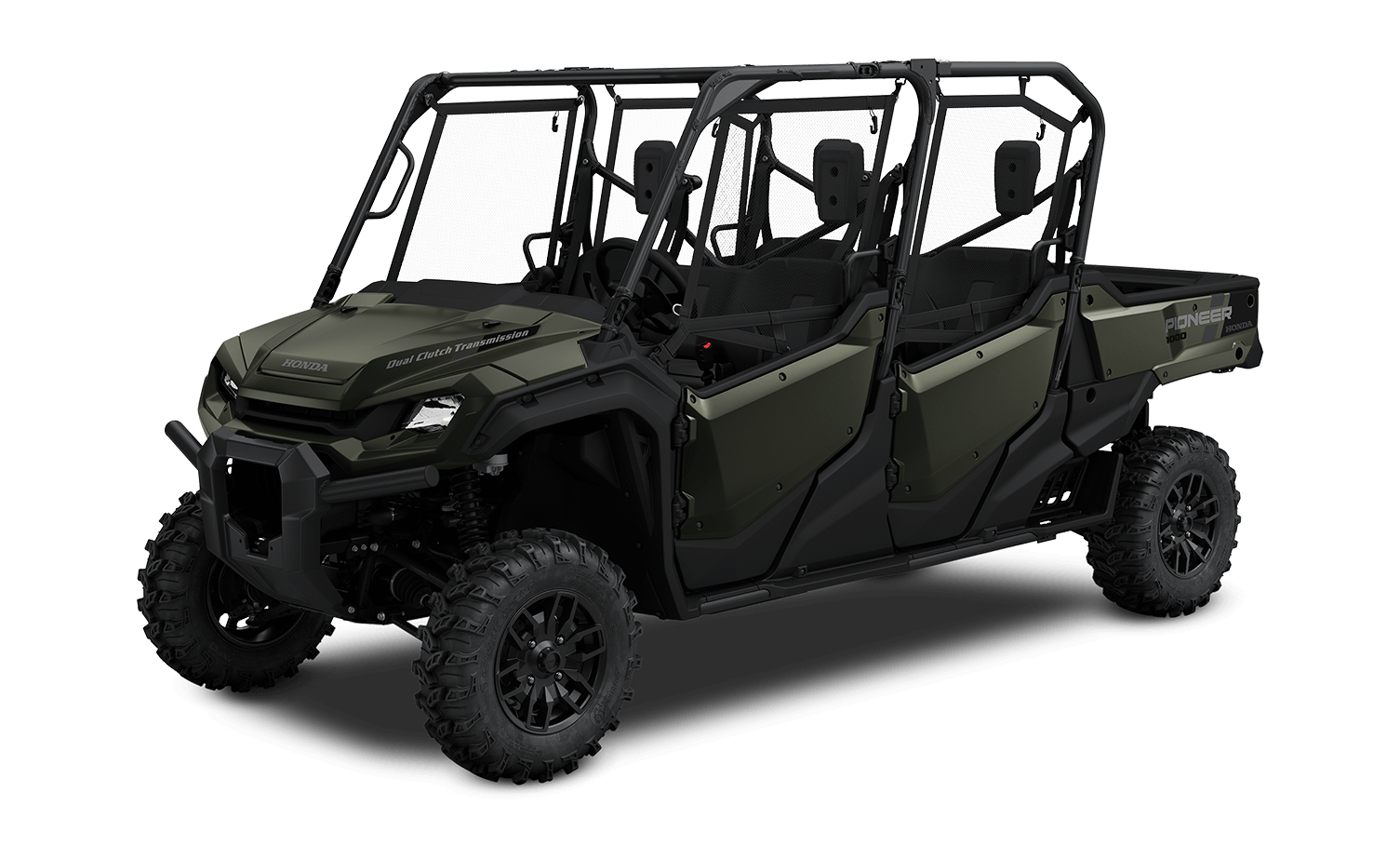

Olive

Engine Type

999cc liquid-cooled longitudinally mounted parallel-twin four-stroke

Transmission

Fully automatic Dual-Clutch Transmission (DCT)

Front Suspension

Independent double-wishbone; 10.5-inch travel

Rear Suspension

Independent double-wishbone; 10.0-inch travel

Wheelbase

115.2 inches

Warranty

Transferable, limited warranty. One year included.

Extended Warranty

Engine

Engine Type	999cc liquid-cooled longitudinally mounted parallel-twin four-stroke
Bore And Stroke	92.0mm x 75.2mm
Valve Train	Unicam® SOHC; four valves per cylinder
Compression Ratio	10:1
Induction	Programmed Fuel Injection (PGM-FI); 44mm throttle body

Drive Train

Transmission	Fully automatic Dual-Clutch Transmission (DCT)
Driveline	Direct front and rear driveshafts

Chassis Suspension Brakes

Front Suspension	Independent double-wishbone; 10.5-inch travel
Rear Suspension	Independent double-wishbone; 10.0-inch travel
Front Brake	Dual 210mm discs
Rear Brake	Dual 210mm discs
Front Tires	27 x 9-14
Rear Tires	27 x 11-14

Dimensions

Length	152.2 inches
Width	63.0 inches
Height	76.1 inches
Wheelbase	115.2 inches
Bed Capacity	1000 pounds (49 states); 600 pounds (CA model)
Towing Capacity	2500 pounds
Ground Clearance	12.6 inches
Turning Radius	18.7 feet
Curb Weight	1936 pounds - Includes all standard equipment, required fluids and full tank of fuel.
Fuel Capacity	7.9 gallons, including 1.7-gallon reserve

Other

Safety	Recommended for Drivers 16 years of age and older.

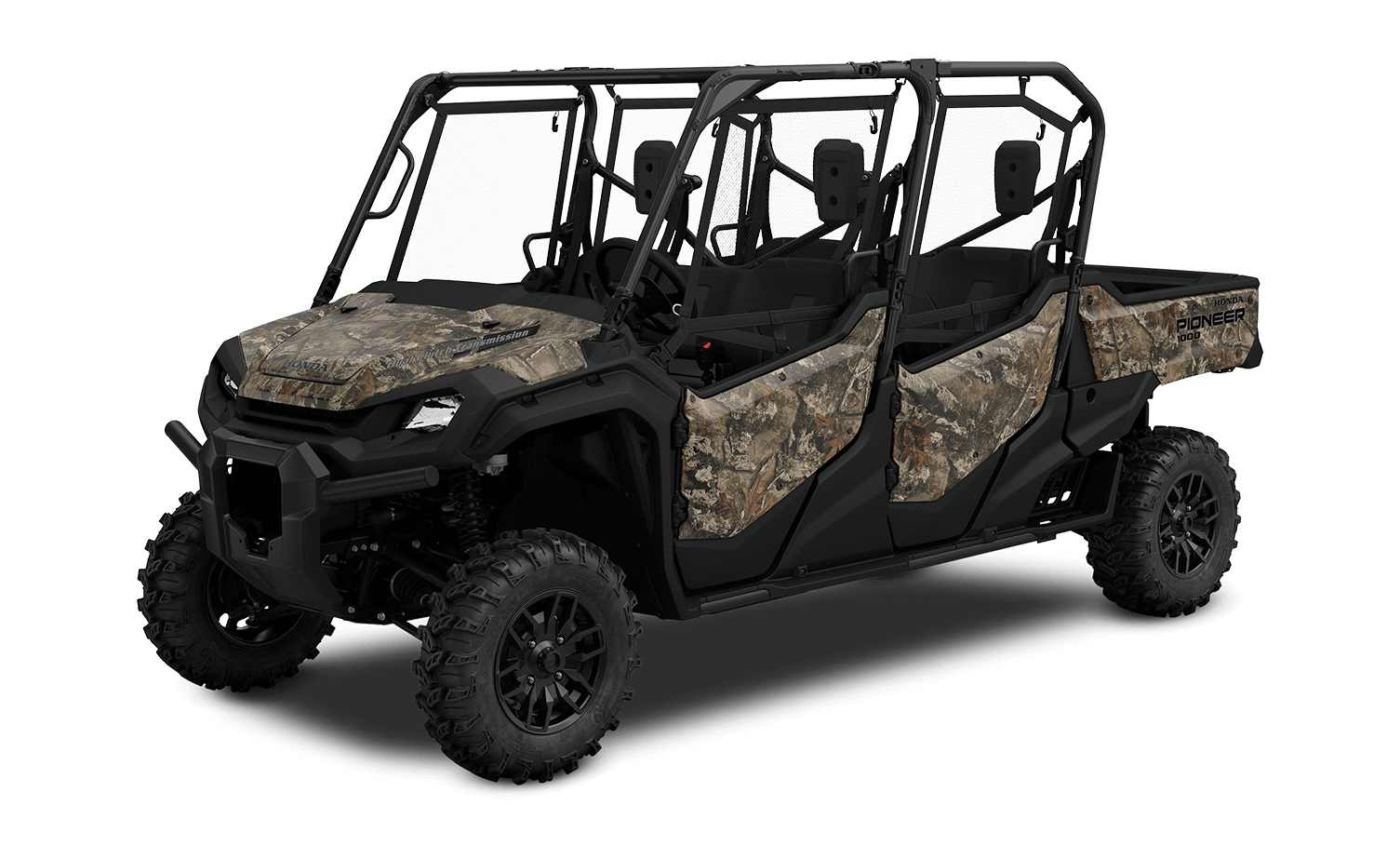

Available Colors	Red, Olive, Honda Phantom Camo®
Model ID	SXS10M6D

Factory Warranty Information

One Year Included	Transferable, limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

Luxury, space, and power unleashed

Where work meets play

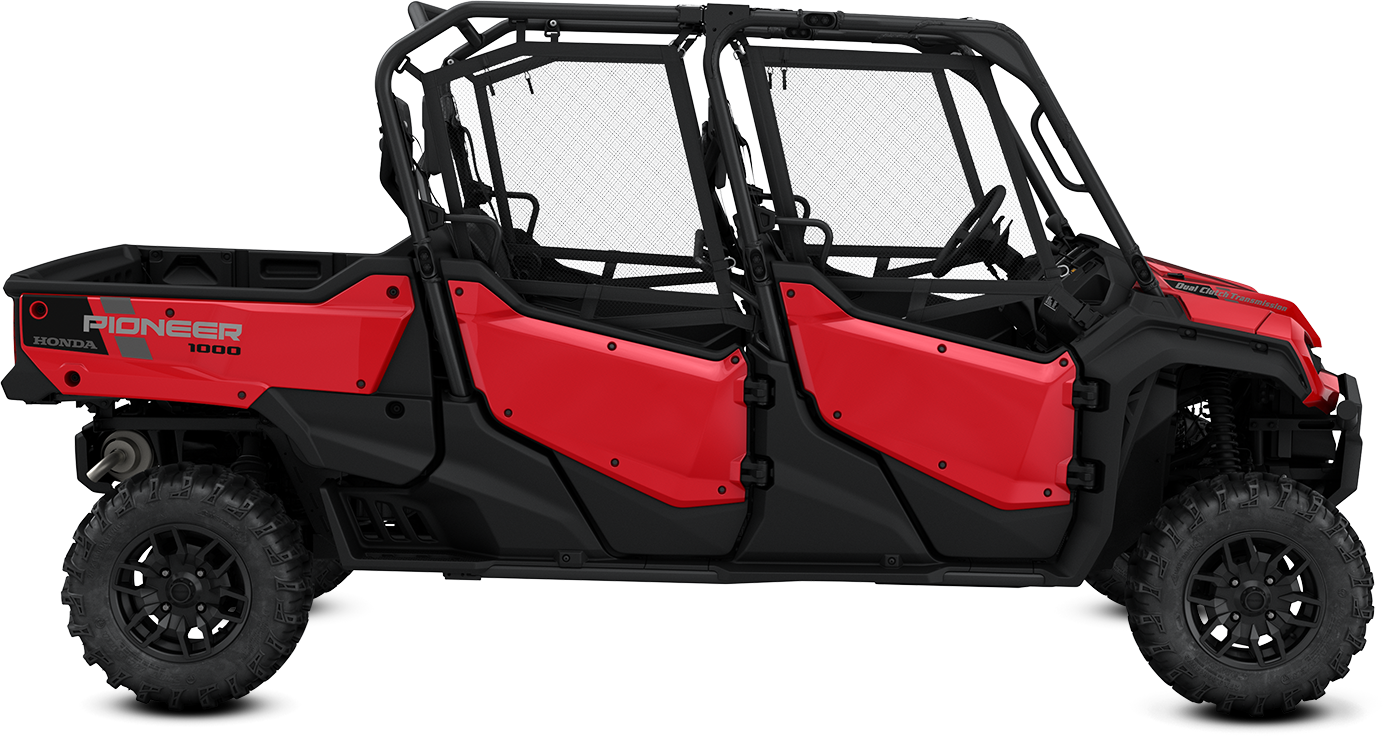

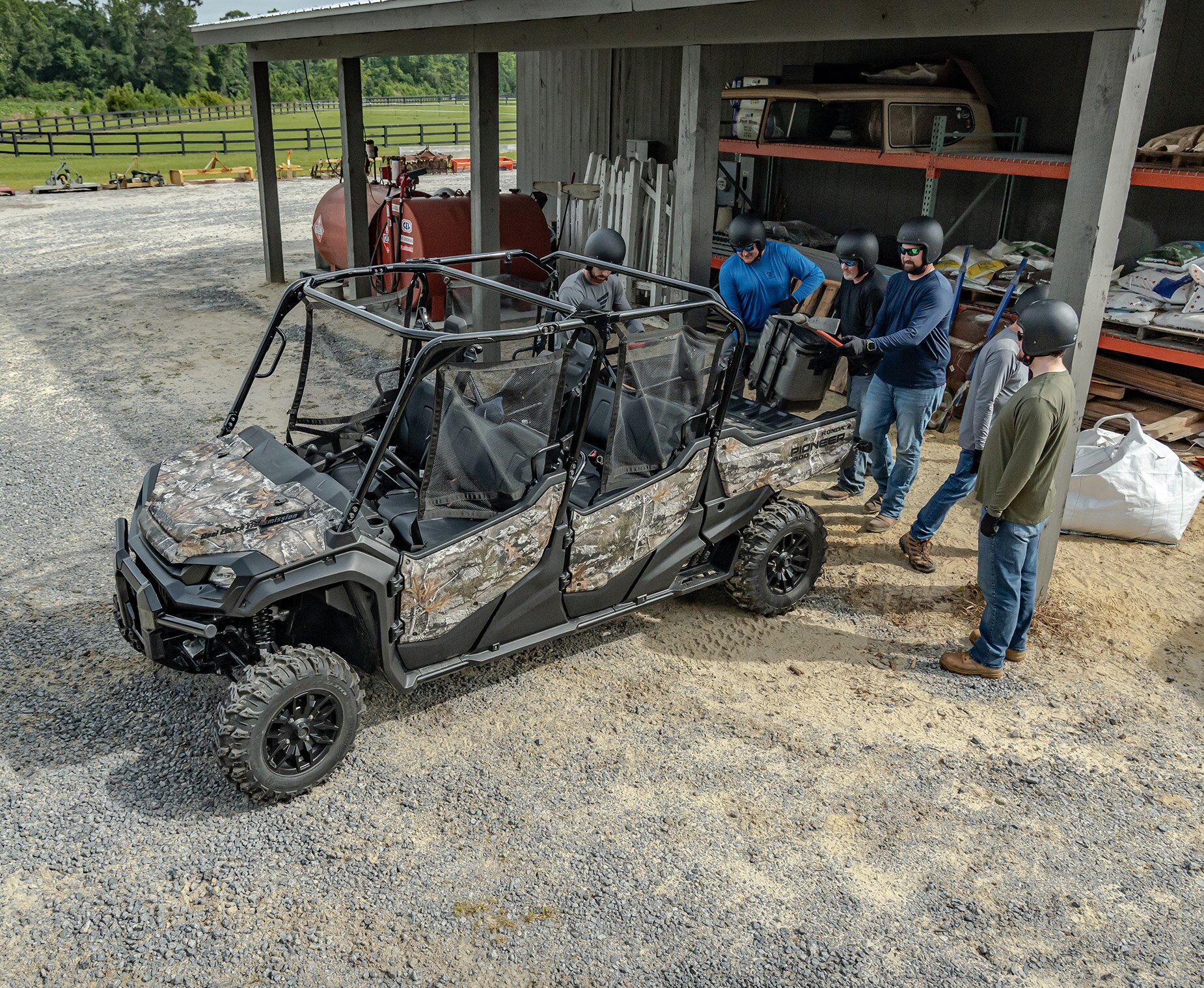

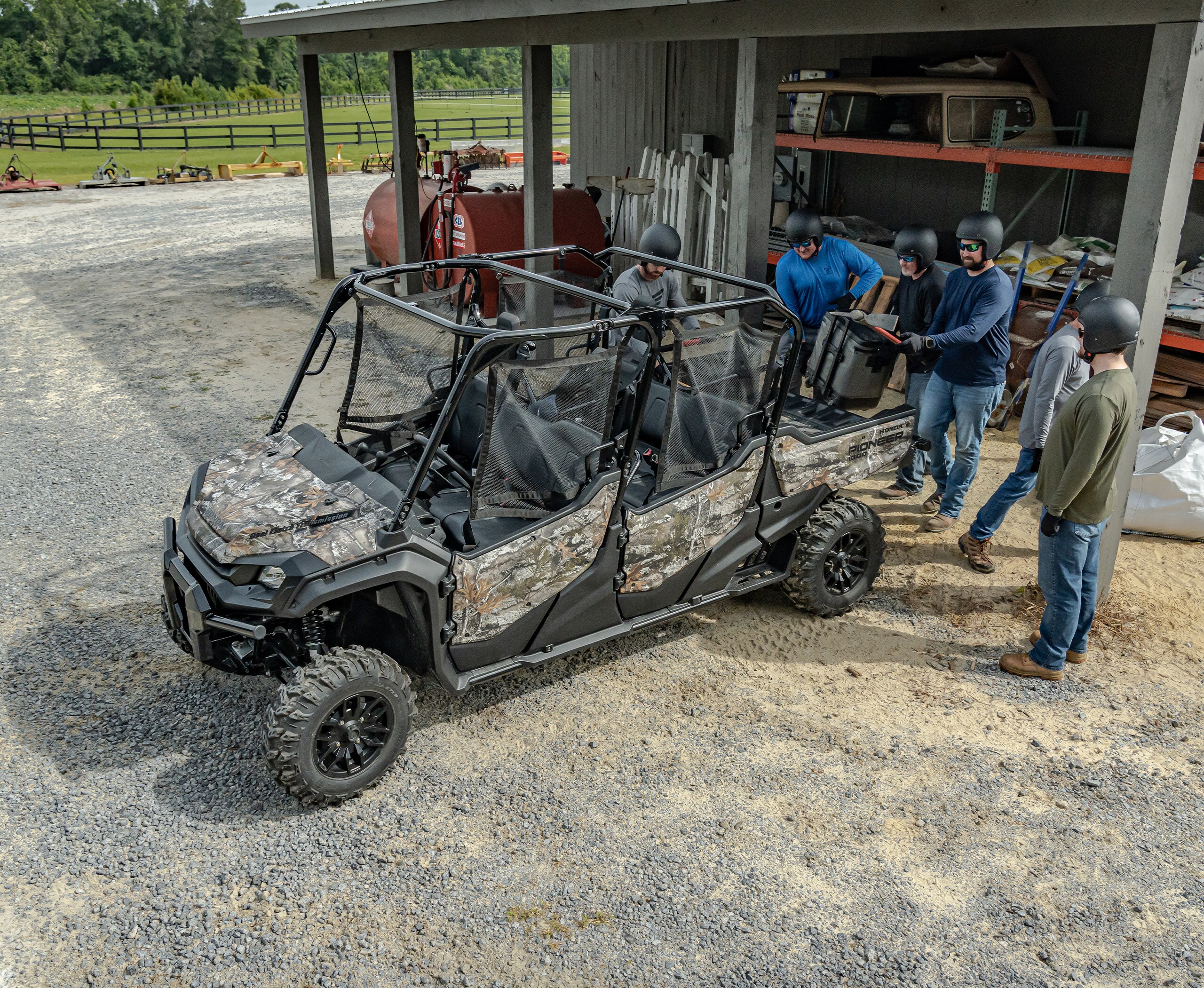

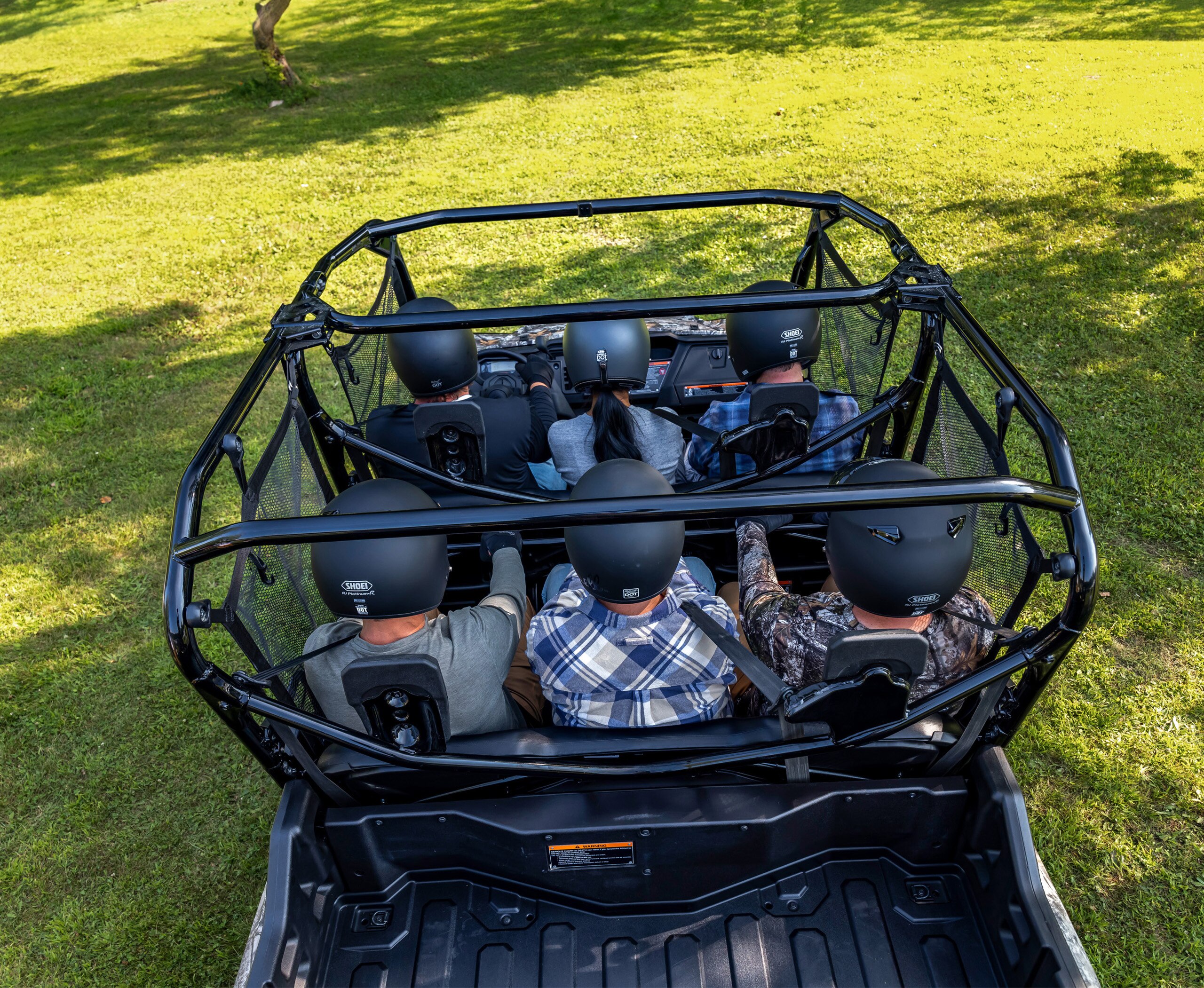

Seating capacity for six

This side-by-side has a full-sized crew-cab-style back seat with massive leg and foot room for rear passengers. The center seat in the rear is positioned forward to avoid bumping shoulders with other passengers.

Where work meets play

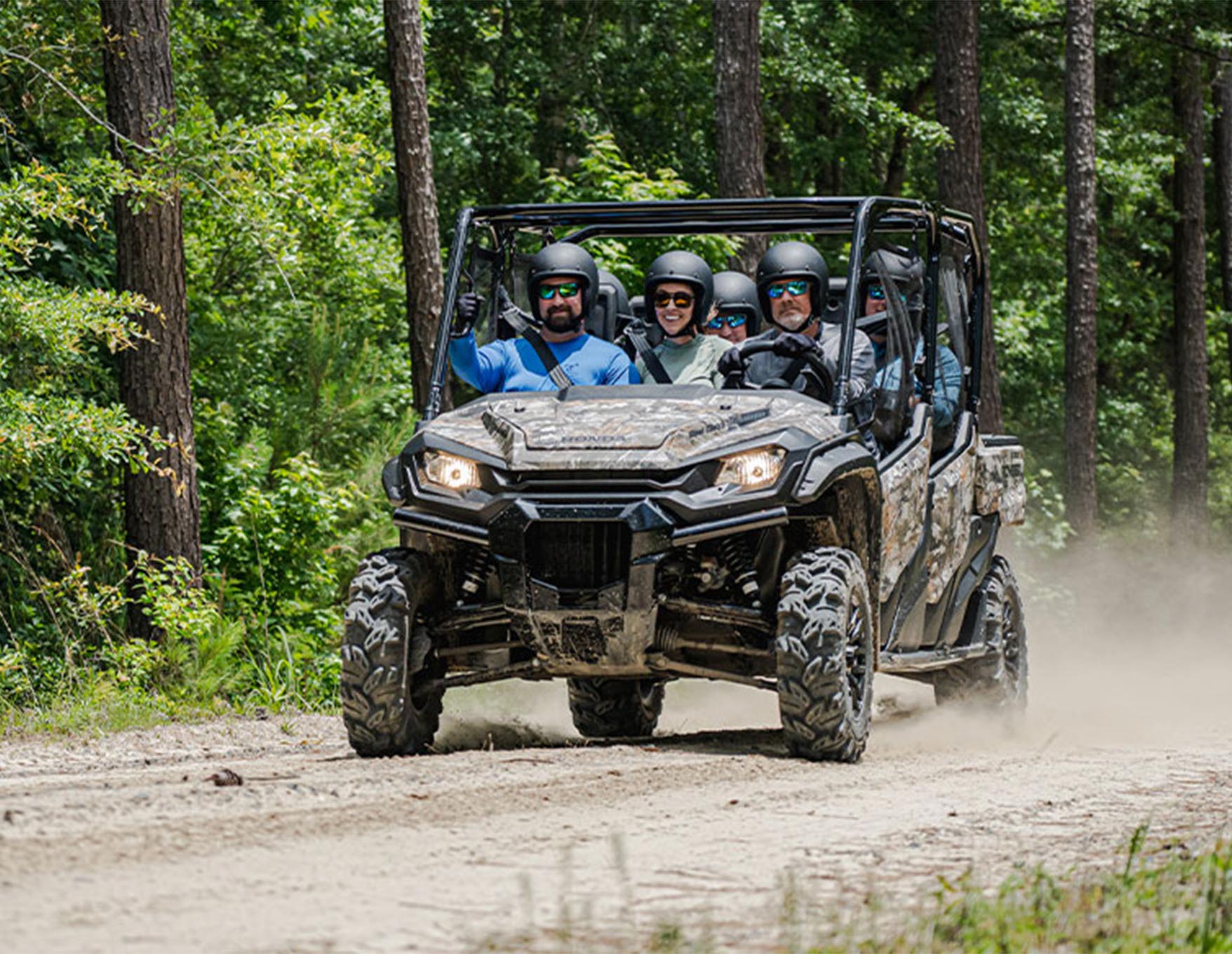

Powerful 999cc twin-cylinder engine

Our 999cc liquid-cooled inline twin uses the Unicam^®cylinder head design from our motocross and adventure bikes, delivering flagship-level horsepower and torque in a compact package.

Where work meets play

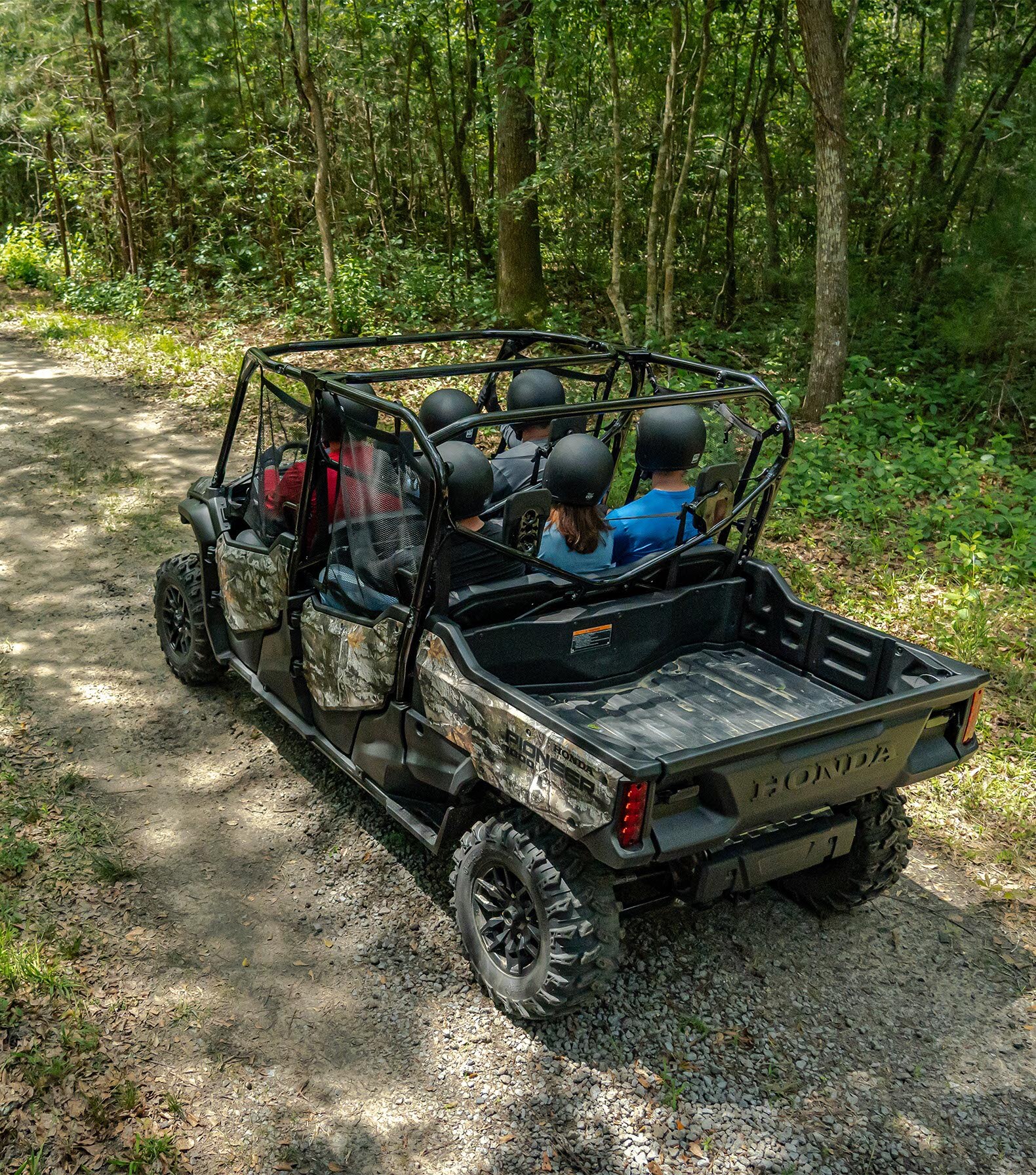

1000-pound-capacity tilt bed

This SxS features a half-ton of hauling capacity.* And when it comes to dumping, we’ve made it easier than ever with a hydraulic assist tilt bed lever.

*600-pound bed capacity for California models

Where work meets play

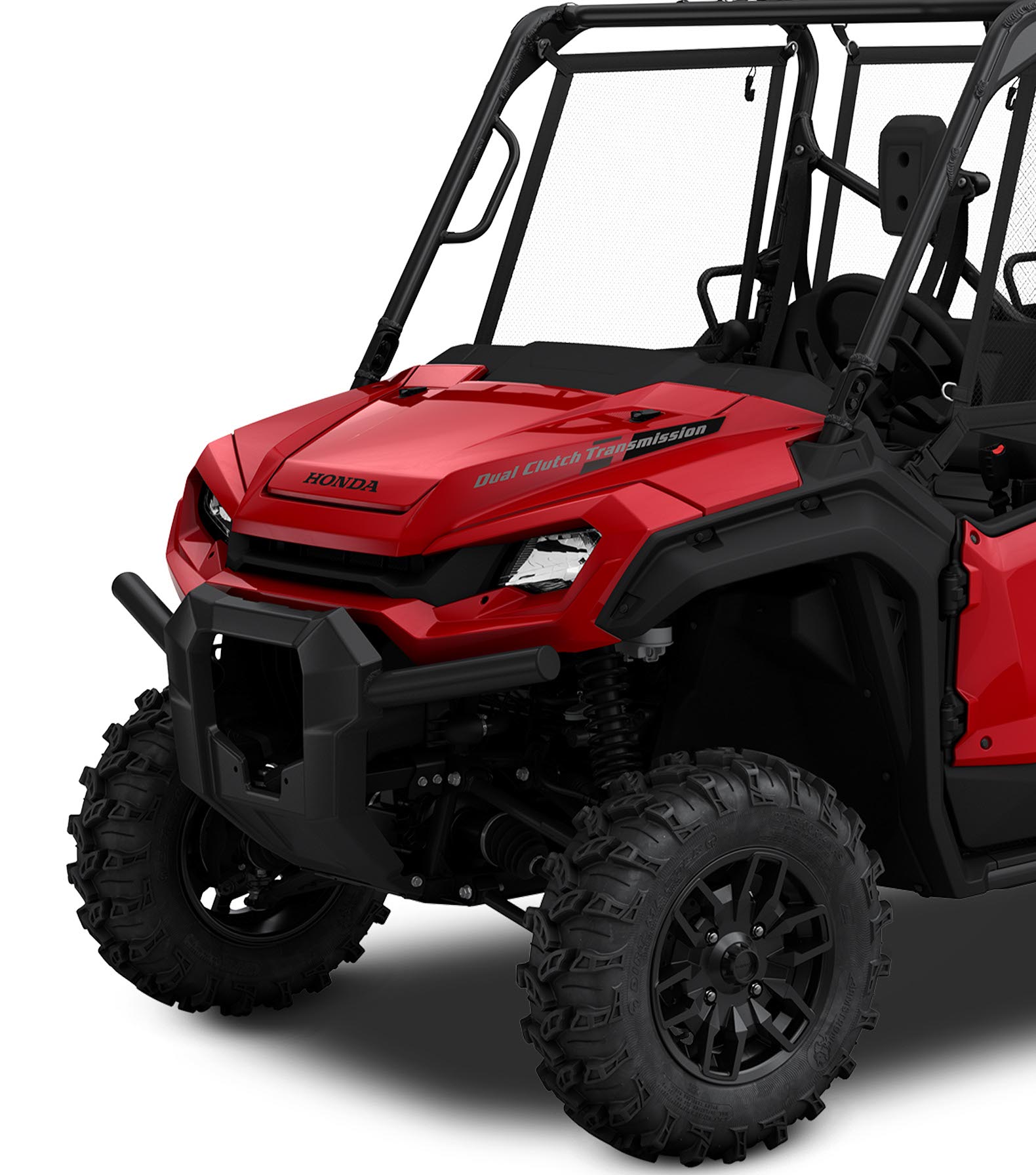

Fully automatic six-speed DCT

Drive the way you want with the industry’s first six-speed Dual-Clutch Transmission (DCT). Choose between manual mode or fully automatic. There’s even an easy-to-use tow/haul mode, along with 2WD, 4WD, Differential Lock, and Turf selections.

Explore with room for more

View all Features

Unicam® cylinder head

Our flagship model boasts a 999cc liquid-cooled inline twin engine using the same compact Unicam^® cylinder head design as your motocross bikes, delivering impressive horsepower and torque.

Independent front and rear suspension

Dual A-arm suspension provides 10.5 inches of front travel and 10 inches in the rear. When paired with ample ground clearance, this maximizes traction and comfort.

Wheels

Light, tough 14-inch aluminum wheels feature an all-black finish, a perfect match for all three color schemes.

Four-wheel disc brakes

Our reliable, four-wheel disc brakes are built to the same standard as our autos. They minimize debris buildup and provide consistent, confident performance on the trail.

Advanced Transmission Logic

The DCT's Advanced Transmission Logic system senses your driving and adapts. Relaxed drivers get earlier shifts for a quieter ride. Sportier drivers get each gear held longer for higher RPM shifts. And you get real engine braking when going downhill.

High/low subtransmission

With a 42% gear reduction between High and Low, you get the necessary torque in all six gears, which comes in handy when navigating difficult terrain, climbing steep hills, or towing heavy loads.

Tow/haul mode

The tow/haul mode is ideal when carrying heavy loads. It has a dedicated switch on the dashboard and holds each gear position longer. This mode is perfect for four-wheel-drive and low-range vehicles over steep trails or large obstacles.

Double-latch doors

Built with safety in mind, our standard hard doors have a double-latching system. Combined with roll-up side nets, they keep elements out and secure inside.

Driver/passenger protection

Safety is a top priority at work or play. The SxS has an Occupant Protection Structure that uses large tubing and meets ISO standards. The cabin features handrails, top tubes, and seatbelts with emergency locking retractors to keep passengers secure.

Tilt wheel

A tilt-steering wheel is designed to make getting in and out easier than ever to ensure an even more comfortable driving experience. We’ve given it a wide range of adjustments and a spring-loaded damper that makes tilting it a snap.

Large instrument display

The LCD instrument display is easy to read and has big, bright graphics. It includes indicators for speed, fuel level, RPM, transmission mode, water temperature, trip information, and more.

Accessory switch panel

Standard equipment on this SxS is the switch panel, which has room for seven switches, letting you control things like a winch, accessory lights, and more. A fully integrated design, it sits in the center of the dashboard.
