999cc liquid-cooled longitudinally mounted parallel-twin four-stroke
Six-speed automatic DCT
Independent double-wishbone with Showa® shocks; 14.6-inch travel
3-link trailing arm with Showa® shocks; 15.1-inch travel
87.6 inches
Transferable, limited warranty. One year included.
Engine

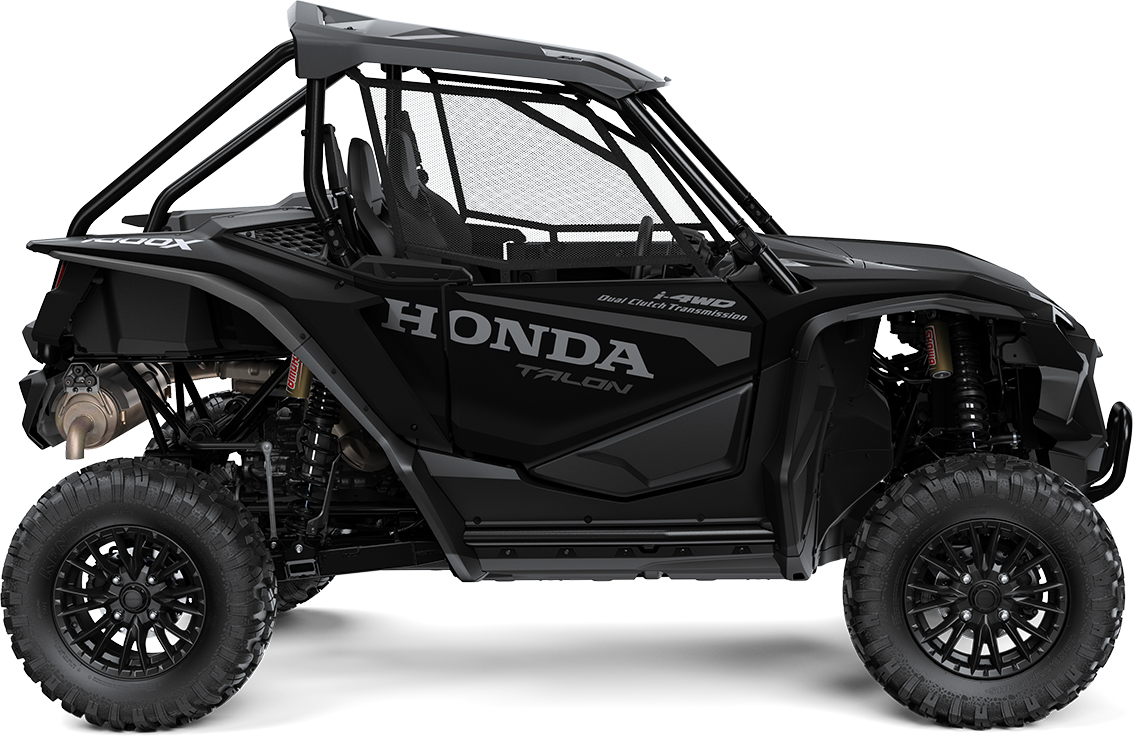

Engine Type | 999cc liquid-cooled longitudinally mounted parallel-twin four-stroke |
---|---|
Bore And Stroke | 92.0 mm x 75.1 mm |
Compression Ratio | 10.0:1 |
Valve Train | Unicam® SOHC; four valves per cylinder |
Induction | Fuel Injection (PGM-FI), 46.0 mm throttle body |
Drivetrain
Transmission | Six-speed automatic DCT |
---|---|
Driveline | Direct front and rear driveshafts |
Chassis Suspension Brakes
Front Suspension | Independent double-wishbone with Showa® shocks; 14.6-inch travel |
---|---|
Rear Suspension | 3-link trailing arm with Showa® shocks; 15.1-inch travel |
Front Brakes | Dual 250.0 mm hydraulic discs |
Rear Brakes | Dual 250.0 mm hydraulic discs |
Front Tires | 28 x 9-15 |
Rear Tires | 28 x 11-15 |

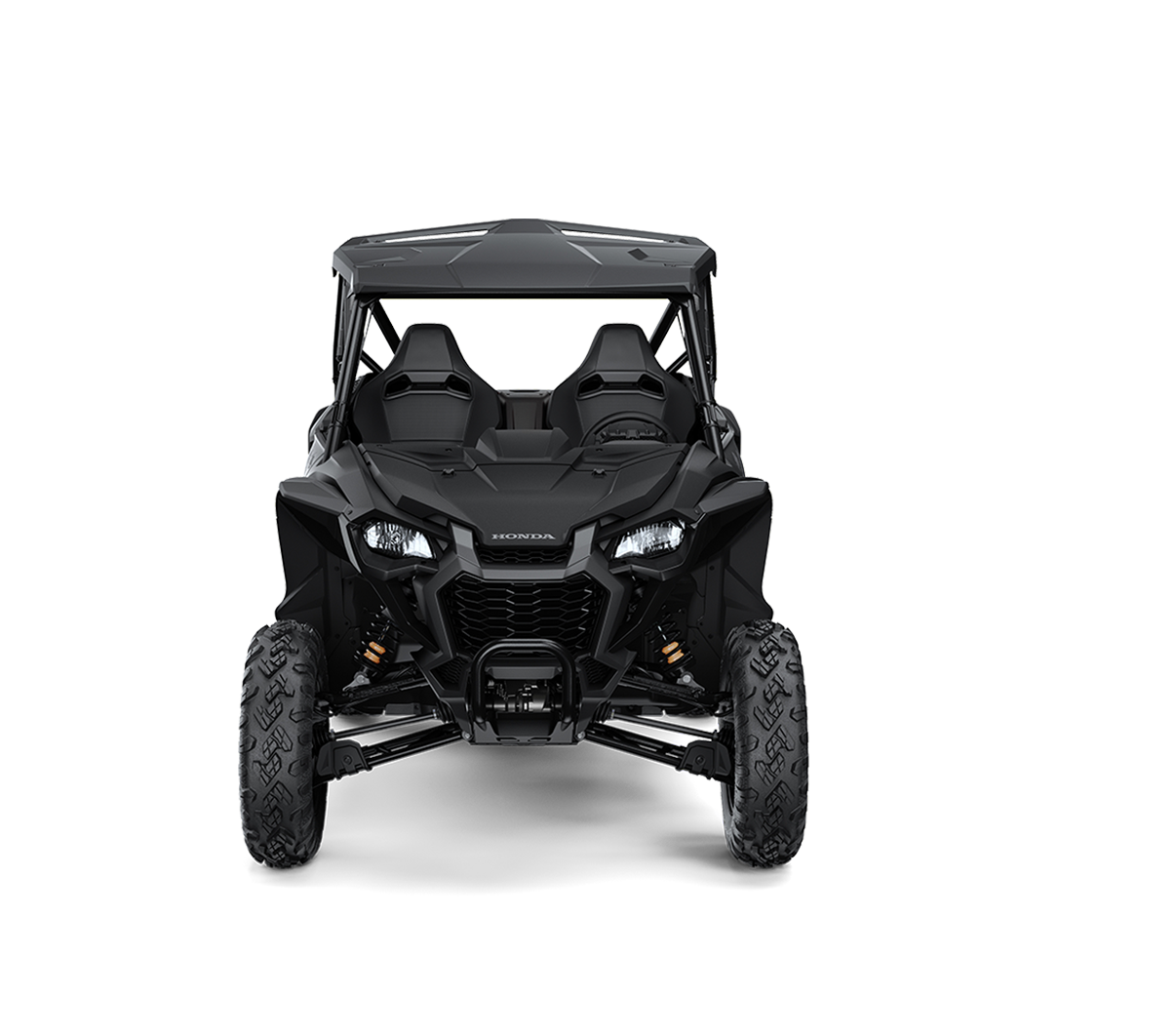

Dimensions
Length | 123.7 inches |
---|---|
Width | 64.0 inches |
Height | 75.6 inches |
Wheelbase | 87.6 inches |

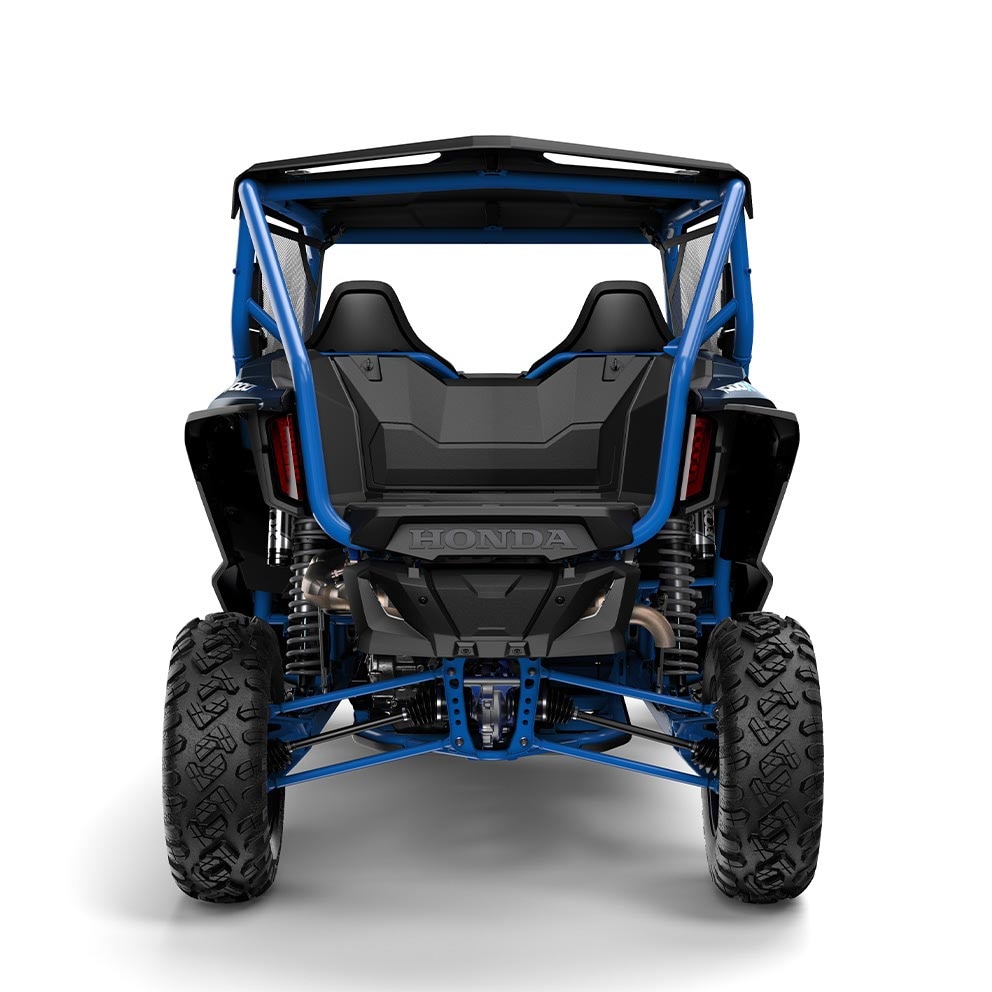

Bed Capacity | 299.0 pounds |
Ground Clearance | 12.8 inches |
Turning Radius | 17.7 feet |
Curb Weight | 1552 pounds for 49 states - Includes all standard equipment, required fluids and full tank of fuel. |
Fuel Capacity | 7.3 gallons, including 1.1-gallon reserve |
Other
Safety | Recommended for drivers 16 years of age and older. |
---|---|

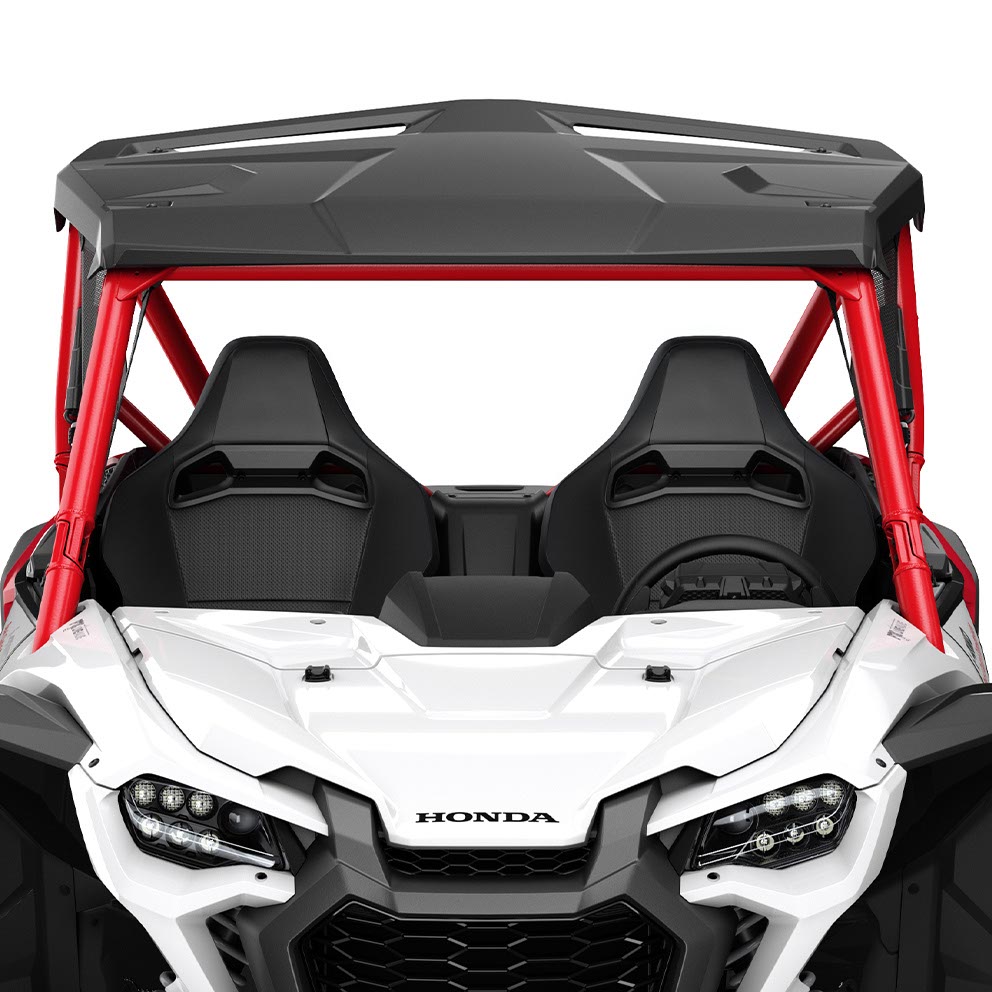

Seating Capacity | 2 |
Available Colors | Matte Abyss Black |
Model ID | SXS10S2X |
Emissions | Meets current California Air Resources Board (CARB) and EPA standards. |
Factory Warranty Information
Duration | One Year Included |
---|---|
Optional Extended | Transferable limited warranty; extended coverage available with a HondaCare® Protection Plan |
