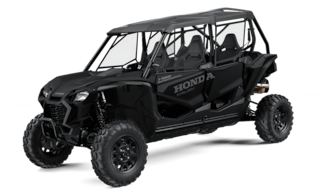

Talon 1000XS-4
Talon 1000XS-4
-
Talon 1000XS-4
Talon 1000XS-4
-

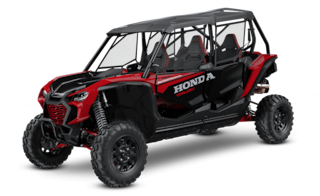

Talon 1000XS-4 FOX Live Valve
Talon 1000XS-4 FOX Live Valve
999cc liquid-cooled longitudinally mounted parallel-twin four-stroke
Six-speed automatic DCT
Independent double-wishbone; 14.6-inch travel
3-link trailing arm; 15.0-inch travel
116.4 inches
Engine
Engine Type | 999cc liquid-cooled longitudinally mounted parallel-twin four-stroke |
---|---|
Bore And Stroke | 92mm x 75.1mm |
Compression Ratio | 10:1 |
Induction | Fuel Injection (PGM-FI), 46mm throttle body |
Ignition | Full-transistorized with electronic advance |
Drive Train
Transmission | Six-speed automatic DCT |
---|---|
Driveline | Direct front and rear driveshafts |
Chassis Suspension Brakes
Front Suspension | Independent double-wishbone; 14.6-inch travel |
---|---|
Rear Suspension | 3-link trailing arm; 15.0-inch travel |
Front Brake | Dual 250mm hydraulic discs |
Rear Brake | Dual 250mm hydraulic discs |
Front Tires | 28 x 9-15 |
Rear Tires | 28 x 11-15 |
Dimensions
Length | 152.5 inches |
---|---|
Width | 64.0 inches |
Height | 78.5 inches |
Wheelbase | 116.4 inches |
Bed Capacity | 299 pounds |
Seat Height | 28.0 inches |
Ground Clearance | 12.8 inches |
Turning Radius | 21.3 feet |
Curb Weight | 1735 pounds for 49 states - Includes all standard equipment, required fluids and full tank of fuel. |
Curb Weight | 1739 pounds for CA models - Includes all standard equipment, required fluids and full tank of fuel. |
Fuel Capacity | 7.7 gallons, including 0.9-gallon reserve |
Other
Safety | Recommended for drivers 16 years of age and older. |
---|---|
Available Colors | Matte Abyss Black Some models and colors not available in California, contact your dealer for details |
Model ID | SXS10S4 |
Emissions | Meets current California Air Resources Board (CARB) and EPA standards. |
Factory Warranty Information
Duration | One Year Included |
---|---|
Description | Transferable limited warranty; extended coverage available with a HondaCare® Protection Plan |
Adventure together, save together
Woods wizard
Powerful 999cc twin-cylinder engine
Unleash ample power with the 999cc liquid-cooled inline twin engine. It produces big torque, high horsepower, and responsiveness across the rpm range, the result of unmatched refinement and reliability.
Automatic six-speed DCT
Our automatic Dual-Clutch Transmission (DCT) boasts a class-leading gear-driven setup, giving you manual or automatic control. It has efficient power delivery, true engine braking, and superior performance to belt-driven CVTs.
Launch mode
These are the only side-by-sides offering an automatic gear-driven transmission and launch mode. You won’t believe how fast you’ll come off the line–and neither will the other riders.
Stadium seating
Welcome to the best seats in the house! The rear "Stadium Seating" sits nearly three inches higher and two inches closer to each other than the fronts, providing a better view for passengers.
Value-packed performance
FOX QS3 Shocks
The standard Talon 1000XS-4 features FOX Podium 2.0 shocks in front and 2.5s in the rear, with QS3 quick adjustors. The adjustors are intuitive, with three distinct settings that make tuning your suspension to the terrain or your driving style easy.
Independent front suspension
The Dual A-arm suspension gives you 14.6 inches (14.4 inches –FOX Live Valve) of front travel. Pair that with the stellar ground clearance, and you understand why they handle rough terrain so well.
3-link rear suspension
On the standard model, a 3-link trailing-arm rear suspension is one of the secrets to its superior handling, while a generous 15 inches of rear-wheel travel helps give you a smooth ride and superior control.
High-performance disc brakes
The front and rear brakes feature high-performance 250mm discs, with 34mm twin-piston calipers in the front and 34mm single-piston calipers in the rear. Electronic Brakeforce Distribution (EBD) optimizes braking power on both ends.
Long wheelbase
The 116.4-inch wheelbase contributes to this sport side-by-side’s tracking, giving you a super-smooth ride and excellent control in whoops and rough terrain
Unicam® cylinder head design
Our engine's compact design, based on the proven Unicam® cylinder head from our championship-winning CRF450R motocrosser, allows us to position it for optimal weight distribution and ground clearance.
Rubber-mounted engine and exhaust
In addition to the suspension, we rubber-mounted the engine and exhaust system to insulate the cabin against excessive vibration. We also gave the engine four mounts to add strength under high loads.
Paddle shifting
Steering column-mounted paddle shifters add performance and fun. In Manual mode, they let you shift without taking your hands off the steering wheel; in Automatic mode, they let you override the current gear.
Electric power steering
EPS helps reduce bump steer through rocky and rutted terrain while providing the right feedback for sport driving.
Comfortable seats
Our industry-leading seats feature a wide seatback and an even wider seat bottom. They are designed to be the most comfortable while providing tons of lateral support. Additionally, they are compatible with four-point harnesses.
Large cargo bed
The cargo bed is raised for safety and accessibility and has a 299-pound capacity with six tie-down points. It can easily accommodate a large 45-quart cooler with room to spare.
Accessory charging sockets
We provided two dedicated 12-volt charging ports: one in the front and one for rear-seat passengers.
Related trims and models

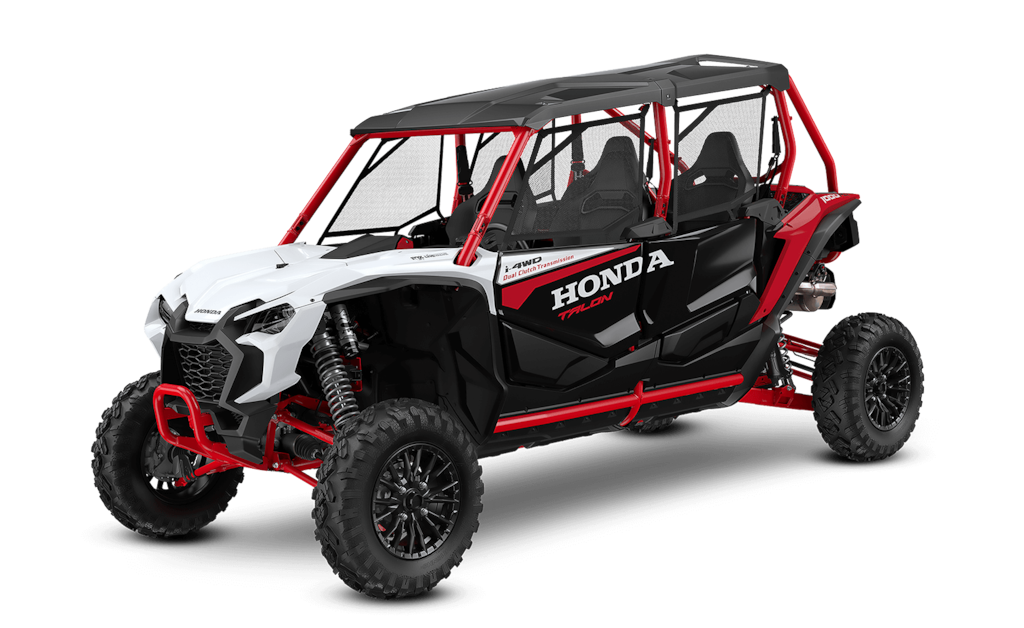

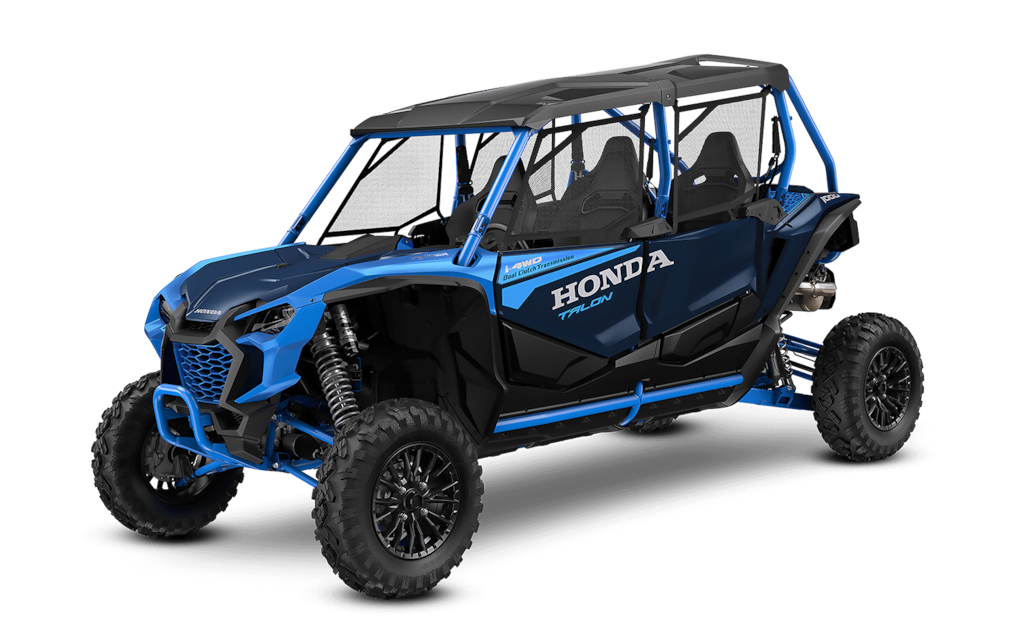

Talon 1000R-4 FOX Live Valve
Base MSRP $25,899*
- 999cc liquid-cooled Unicam® parallel-twin engine
- High-flow fuel injectors
- 118.7-inch wheelbase
- Painted body
- Stadium seating

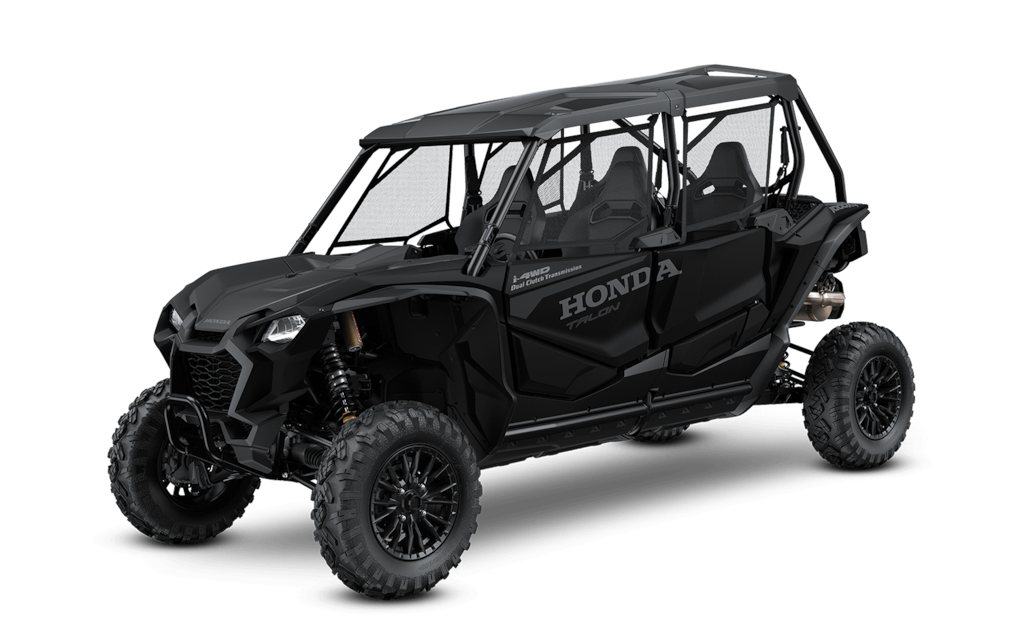

Talon 1000X-4
Base MSRP $22,899*
- 999cc liquid-cooled Unicam® parallel-twin engine
- High-flow fuel injectors
- 116.4-inch wheelbase
- Painted body
- Stadium seating

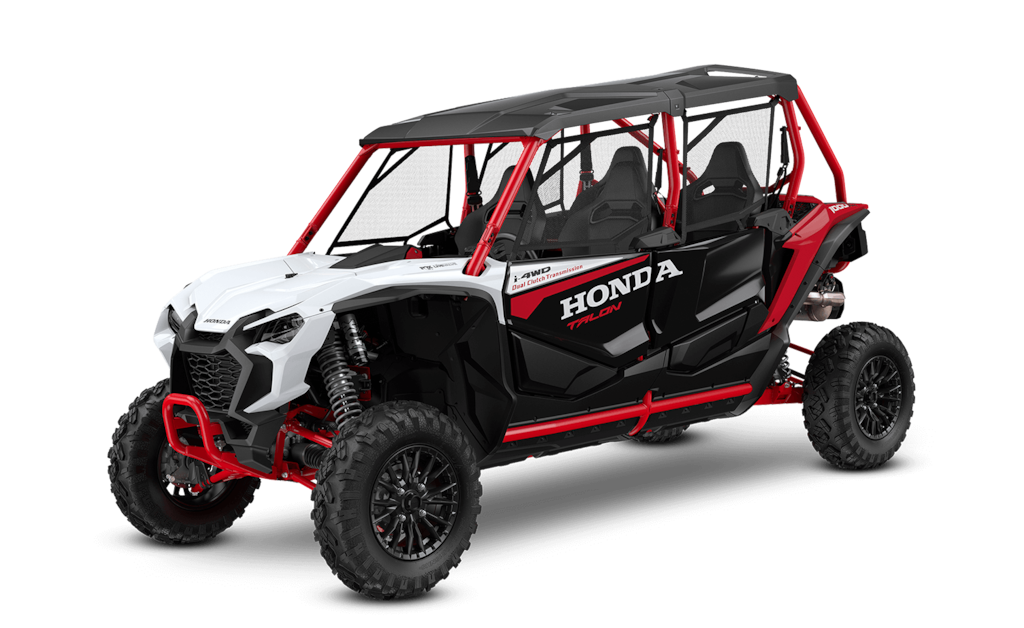

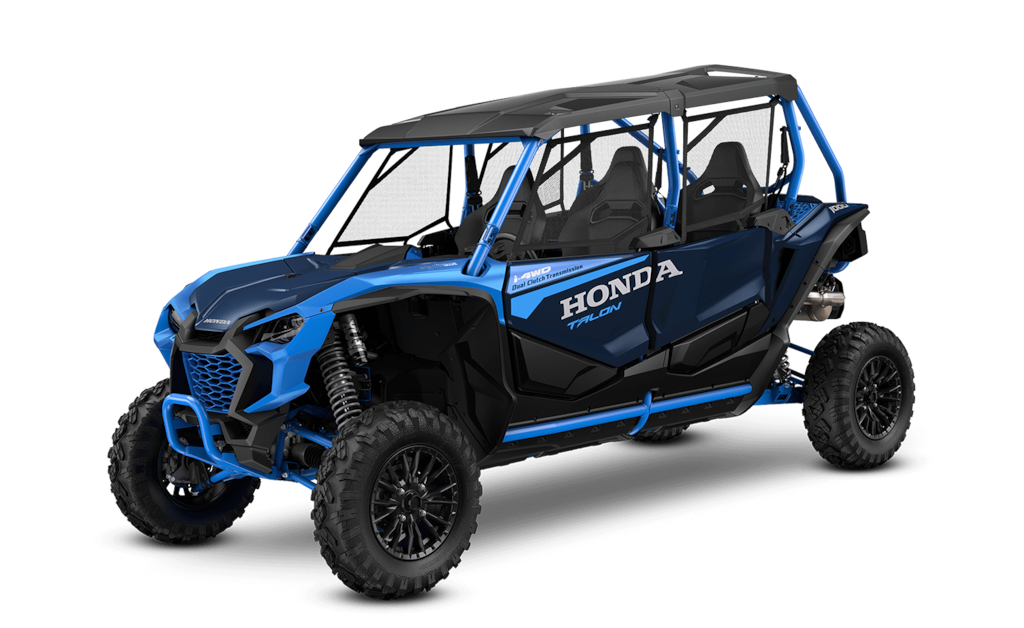

Talon 1000X-4 FOX Live Valve
Base MSRP $24,899*
- 999cc liquid-cooled Unicam® parallel-twin engine
- High-flow fuel injectors
- 116.4-inch wheelbase
- Painted body
- Passenger "T" grab handle

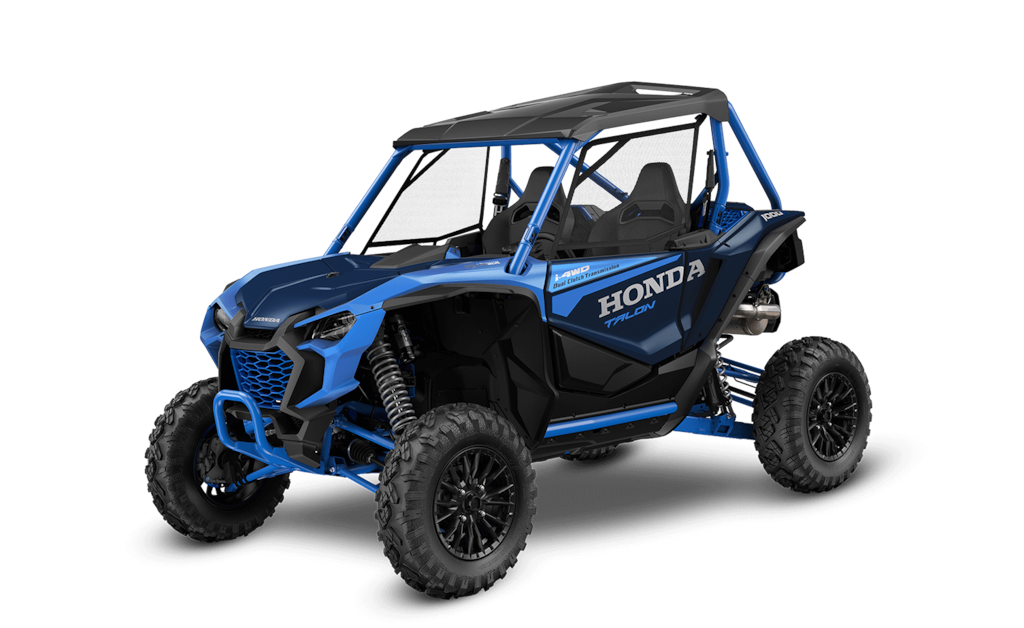

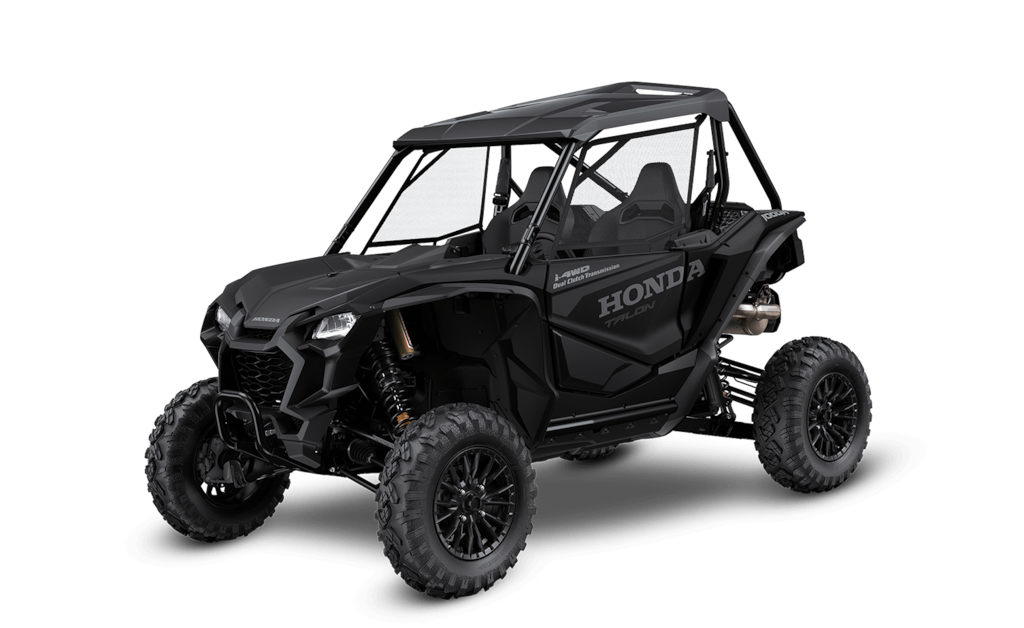

Talon 1000R
Base MSRP $21,399*
- 999cc liquid-cooled Unicam® parallel-twin engine
- High-flow fuel injectors
- Independent double-wishbone front suspension
- Painted body
- Standard-equipment hard doors

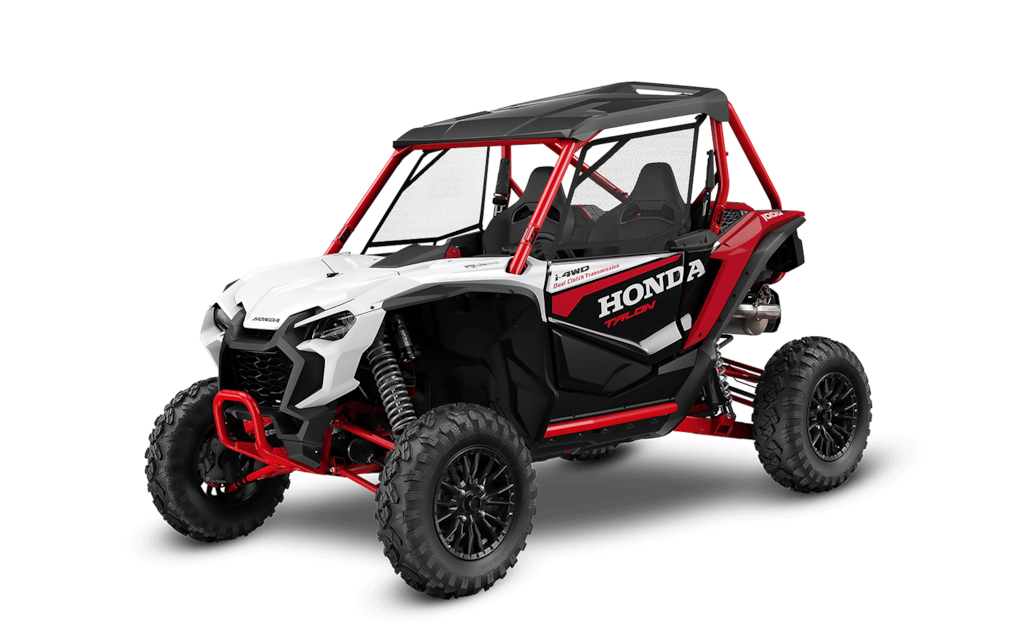

Talon 1000R FOX Live Valve
Base MSRP $23,599*
- 999cc liquid-cooled Unicam® parallel-twin engine
- High-flow fuel injectors
- 90.0-inch wheelbase
- Painted body
- Adjustable driver’s seat
Talon 1000X
Base MSRP $20,399*
- 999cc liquid-cooled Unicam® parallel-twin engine
- High-flow fuel injectors
- 87.6-inch wheelbase
- Painted body
- Standard-equipment hard doors

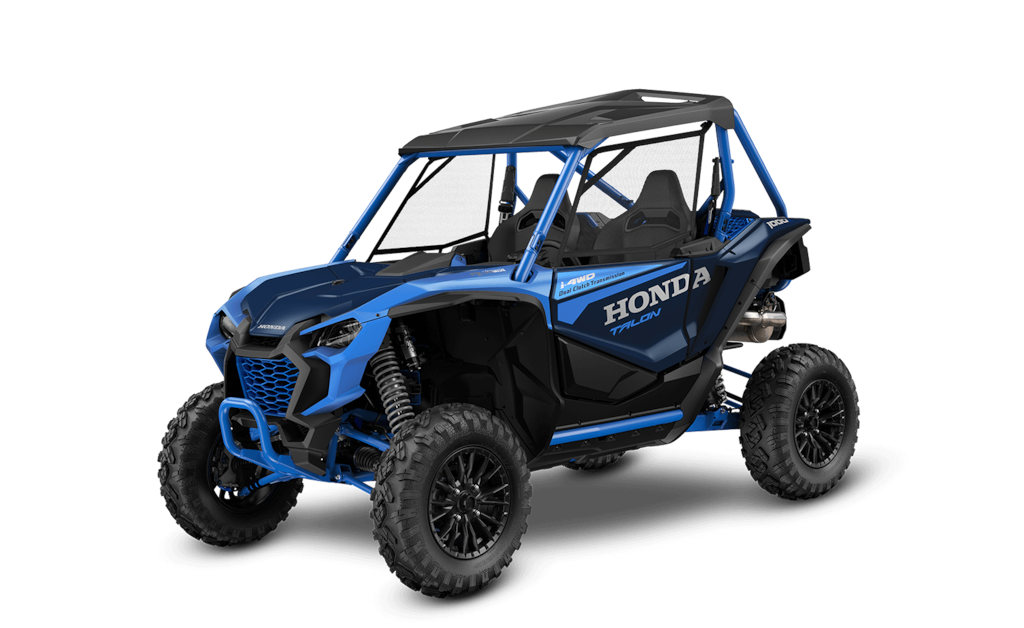

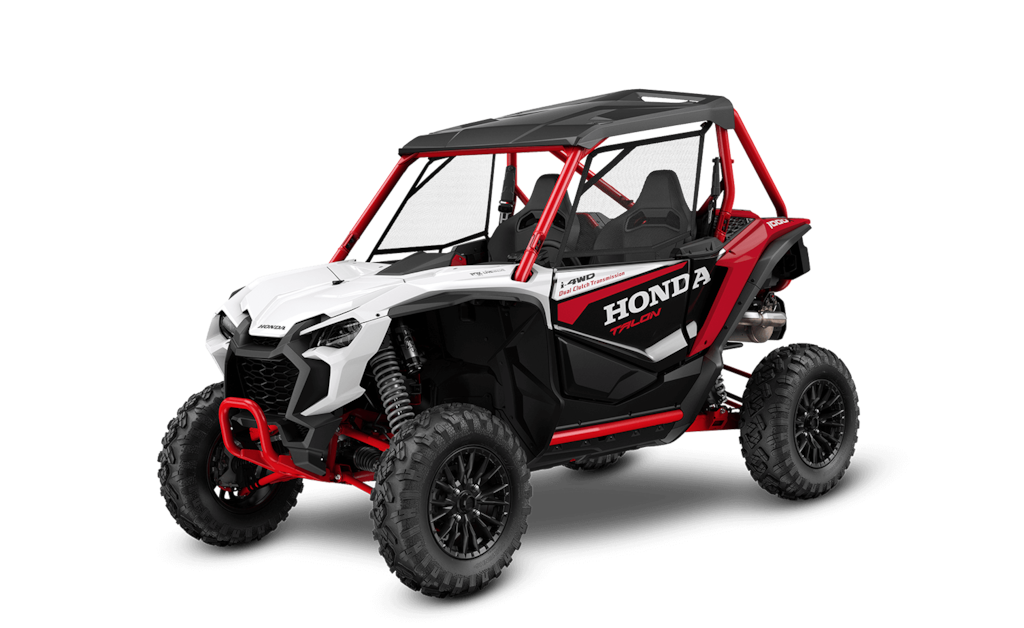

Talon 1000X FOX Live Valve
Base MSRP $22,599*
- 999cc liquid-cooled Unicam® parallel-twin engine
- High-flow fuel injectors
- 87.6-inch wheelbase
- Painted body
- Adjustable driver’s seat
Talon 1000XS
Base MSRP $20,099*
- 999cc liquid-cooled Unicam® parallel-twin engine
- High-flow fuel injectors
- 87.6-inch wheelbase
- Painted body
- Adjustable driver’s seat

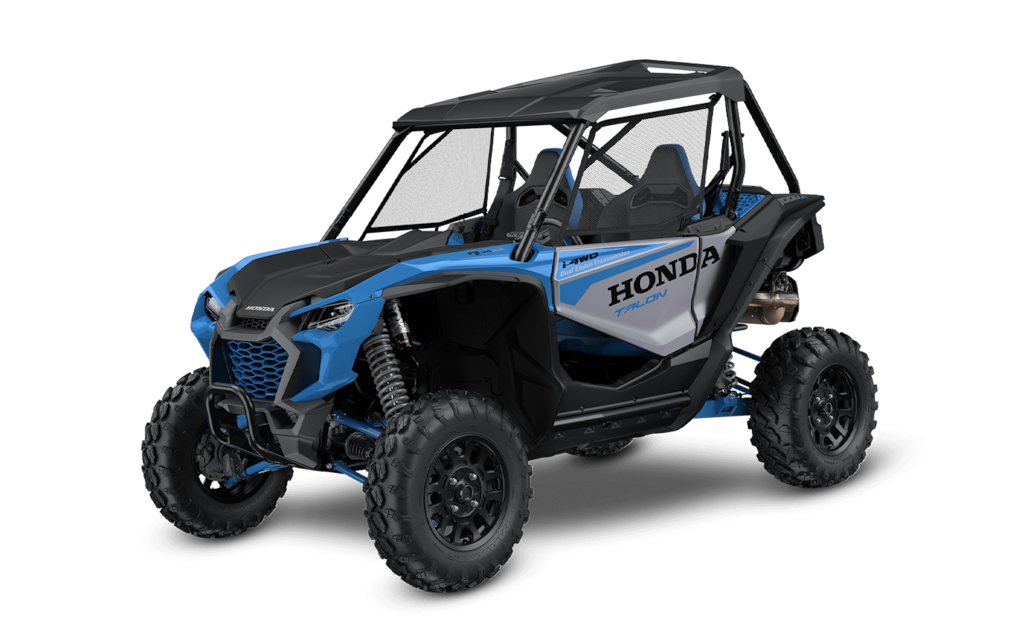

Talon 1000XS FOX Live Valve
Base MSRP $22,299*
- 999cc liquid-cooled Unicam® parallel-twin engine
- High-flow fuel injectors
- 87.6-inch wheelbase
- Painted body
- Adjustable driver’s seat

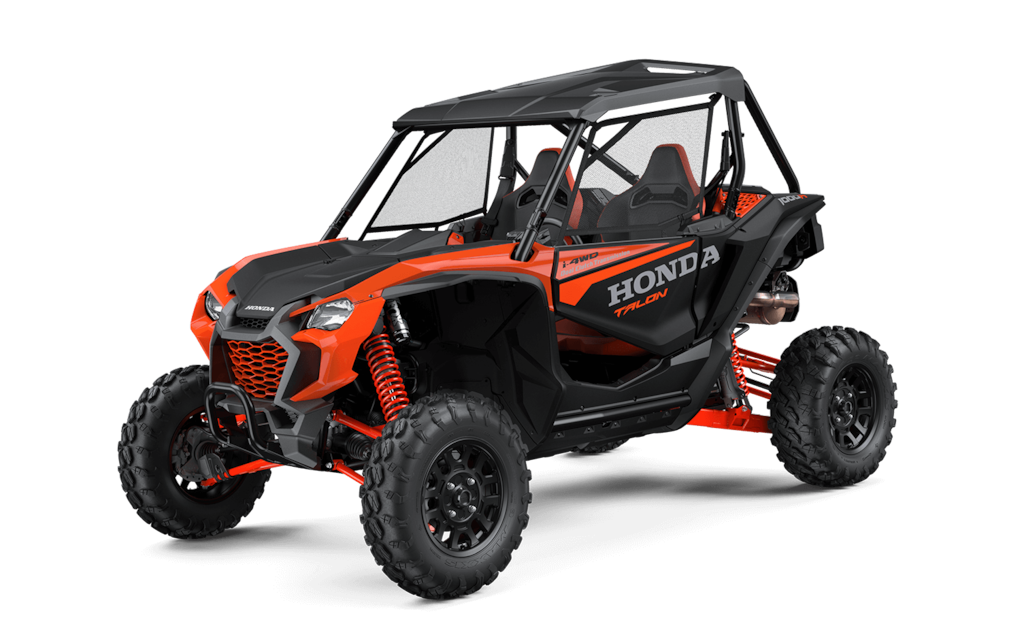

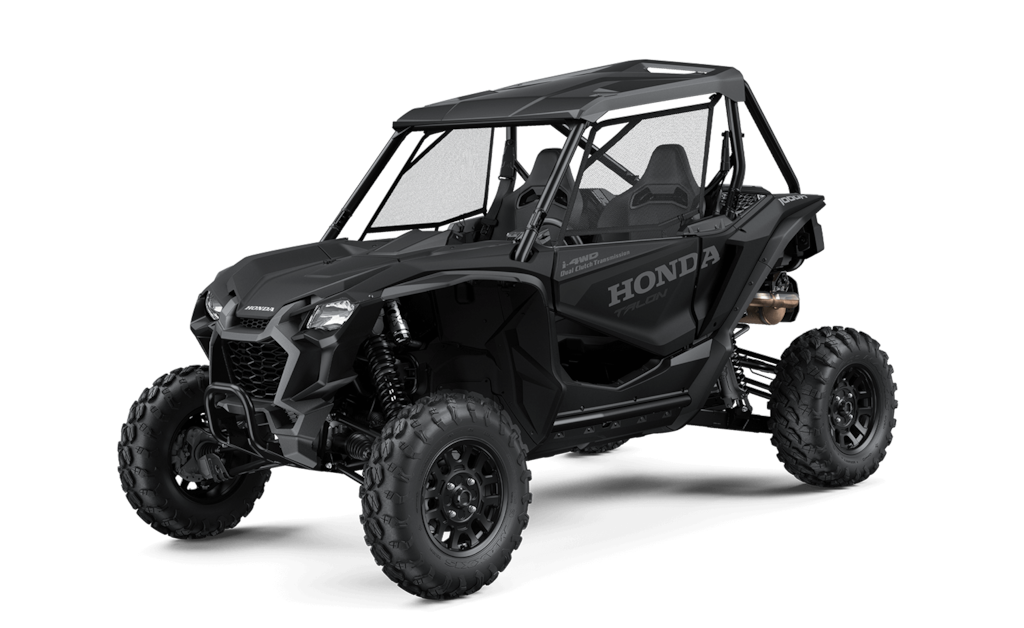

Talon 1000RS
Base MSRP $21,099*
- 999cc Liquid-cooled Unicam® parallel-twin
- Six-speed automatic Dual-Clutch Transmission (DCT) with high/low subtransmission
- i-4WD
- Independent double-wishbone front suspension with 17.7 inches of travel
- 4+ Link trailing arm rear suspension with 20.1 inches of travel

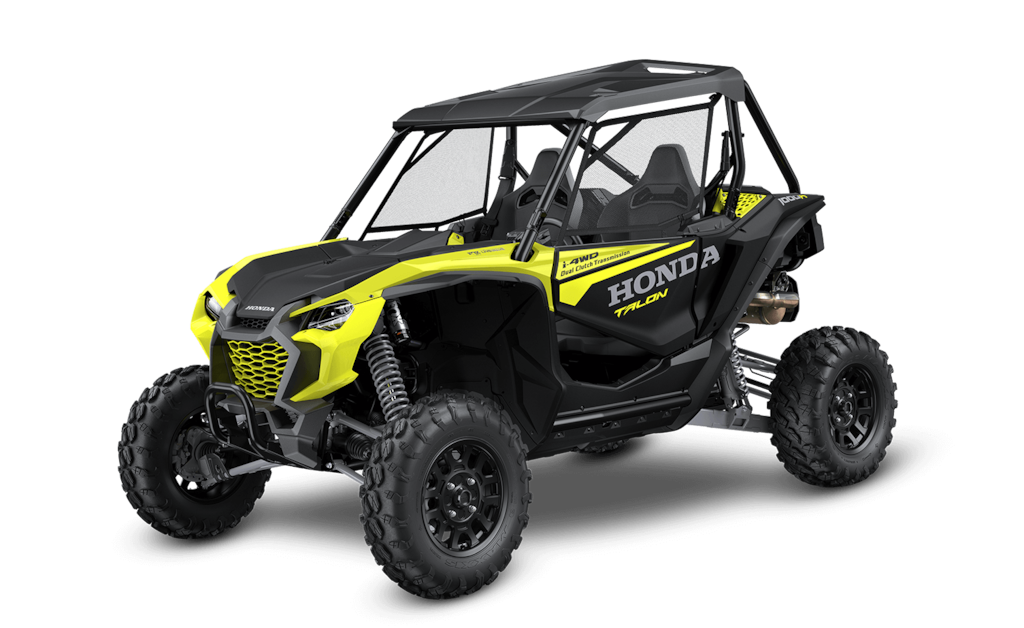

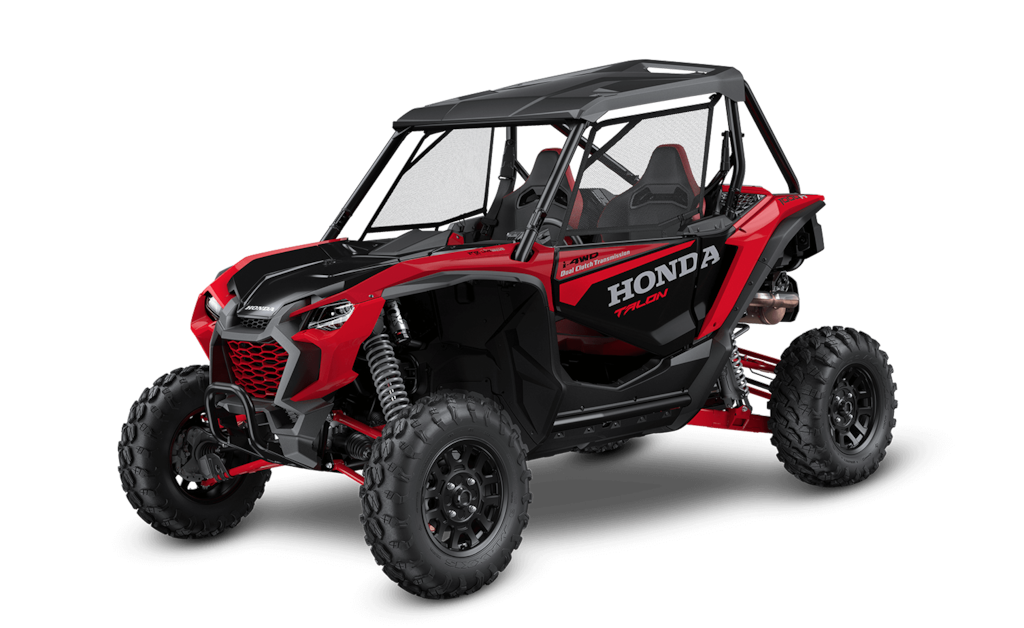

Talon 1000RS FOX Live Valve
Base MSRP $23,299*
- FOX Live Valve suspension
- 999cc Liquid-cooled Unicam® parallel-twin
- Six-speed automatic Dual-Clutch Transmission (DCT) with high/low subtransmission
- i-4WD
- Independent double-wishbone front suspension with 17.7 inches of travel

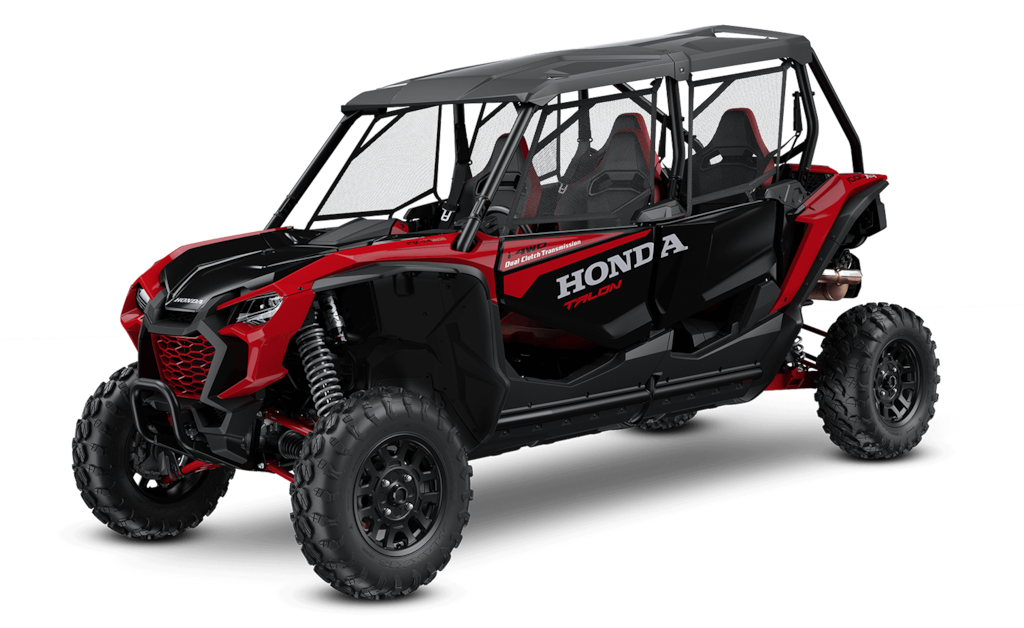

Talon 1000XS-4 FOX Live Valve
