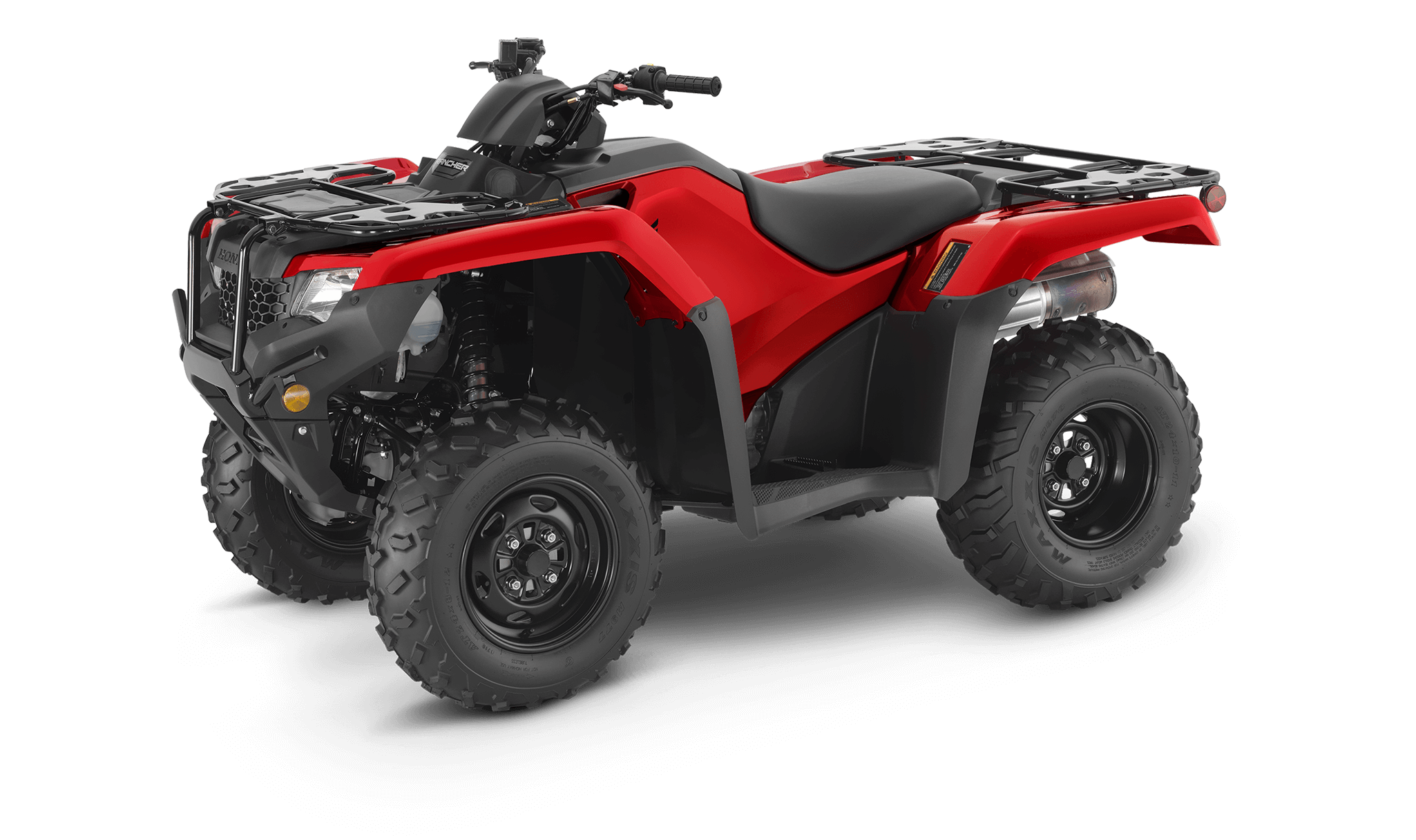

Hero Red

Get my Quote

Build Your Own Get my Quote

Engine Type

420cc longitudinally mounted liquid-cooled single-cylinder four-stroke

Transmission

Five-speed manual with reverse

Front Suspension

Independent double-wishbone; 6.7-inch travel

Rear Suspension

Swingarm with single shock; 6.7-inch travel

Seat Height

33.7 inches

Warranty

Transferable, limited warranty. One year included.

Extended Warranty

Engine

Engine Type	420cc longitudinally mounted liquid-cooled single-cylinder four-stroke
Bore And Stroke	86.5mm x 71.5mm
Compression Ratio	9.9:1
Valve Train	OHV; two valves per cylinder
Induction	Programmed Fuel Injection (PGM-FI); 34mm throttle body
Starter	Electric with optional auxiliary recoil

Drive Train

Clutch	Automatic
Transmission	Five-speed manual with reverse
Driveline	Direct rear driveshaft; two-wheel drive

Chassis Suspension Brakes

Front Suspension	Independent double-wishbone; 6.7-inch travel
Rear Suspension	Swingarm with single shock; 6.7-inch travel
Front Brakes	Dual 190mm discs
Rear Brake	160mm sealed mechanical drum
Front Tires	24 x 8-12
Rear Tires	24 x 10-11

Dimensions

Length	82.8 inches
Width	47.4 inches
Height	46.2 inches
Wheelbase	50.0 inches
Seat Height	33.7 inches
Ground Clearance	7.1 inches
Curb Weight	580 pounds (includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity	3.9 gallons, including 1.3-gallon reserve
Turning Radius	9.2 feet
Front Rack Capacity	66 pounds
Rear Rack Capacity	133 pounds

Other

Model ID	TRX420TM1
Emissions	Meets current EPA and CARB (California) off-road emissions standards.
Available Colors	Hero Red, Black Forest Green
Important Safety Information	Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

Factory Warranty Information

Duration	One-year transferable limited warranty
Optional Extended	Extended coverage available with a HondaCare®  Protection Plan

Download Specs

Work hard, player harder

Accessorized Model Shown

Reliability you can count on

Programmed fuel injection

With a 34mm throttle body, 12-hole injector, and an oxygen sensor, the Programmed Fuel Injection (PGM-FI) promptly adjusts fuel mapping to ensure smooth operation, lower emissions, and enhanced fuel efficiency.

Reliability you can count on

Dashboard indicator lights

This ATV features various indicators to keep you updated on important information while you ride, including lights for neutral, reverse, engine temperature, and fuel.

Reliability you can count on

Shaft drive

The shaft drive is clean, low-maintenance, and efficient, making it the perfect choice for high-mileage riders. It eliminates the need for lubrication or adjustment while on the trail.

Accessorized Model Shown

Reliability you can count on

TraxLok®

Available on the 4x4 trims, unlock superior traction optimization with our TraxLok® system, which offers three modes: 2WD, 4WD, and 4WD with a locking front differential and Speed Override. This system is designed to enhance speed in challenging conditions such as mud and snow.

Adventure that you’ll love

View all Features

Accessorized Model Shown

Semi-dry-sump engine design

The overhead-valve, semi-dry-sump design creates a compact and lightweight engine that improves handling by lowering the center of gravity and increasing ground clearance.

Swingarm rear suspension

Select models feature a rear swingarm-style suspension with a solid axle, providing superior capabilities for towing and hauling. Its long suspension stroke and plush seat allow you to tackle your favorite trail or the toughest chores in comfort all day long.

In-tank fuel pump

An in-tank design helps maintain a cool operating temperature, which extends the lifespan of the fuel pump.

Wide front driveshaft guards

The driveshaft guards provide additional coverage for the front axles and outboard CV joints, illustrating another example of how Honda engineers focus on even the smallest details to create one of the best ATVs available.

Honda quality

Along with all the features listed in the spec chart, this ATV provides something unmatched: our well-earned reputation for quality, exceptional engineering, and long-term reliability. It’s integral to everything we do.

Accessorized Model Shown

Make it yours

We provide more than 20 genuine Honda accessories to customize your new Rancher. These include upgrades for protection, comfort, and convenience. Additionally, we offer several items from our Honda Pro-Connect™ line of cargo accessories, which can be easily attached or detached without the need for tools.

Accessorized Model Shown

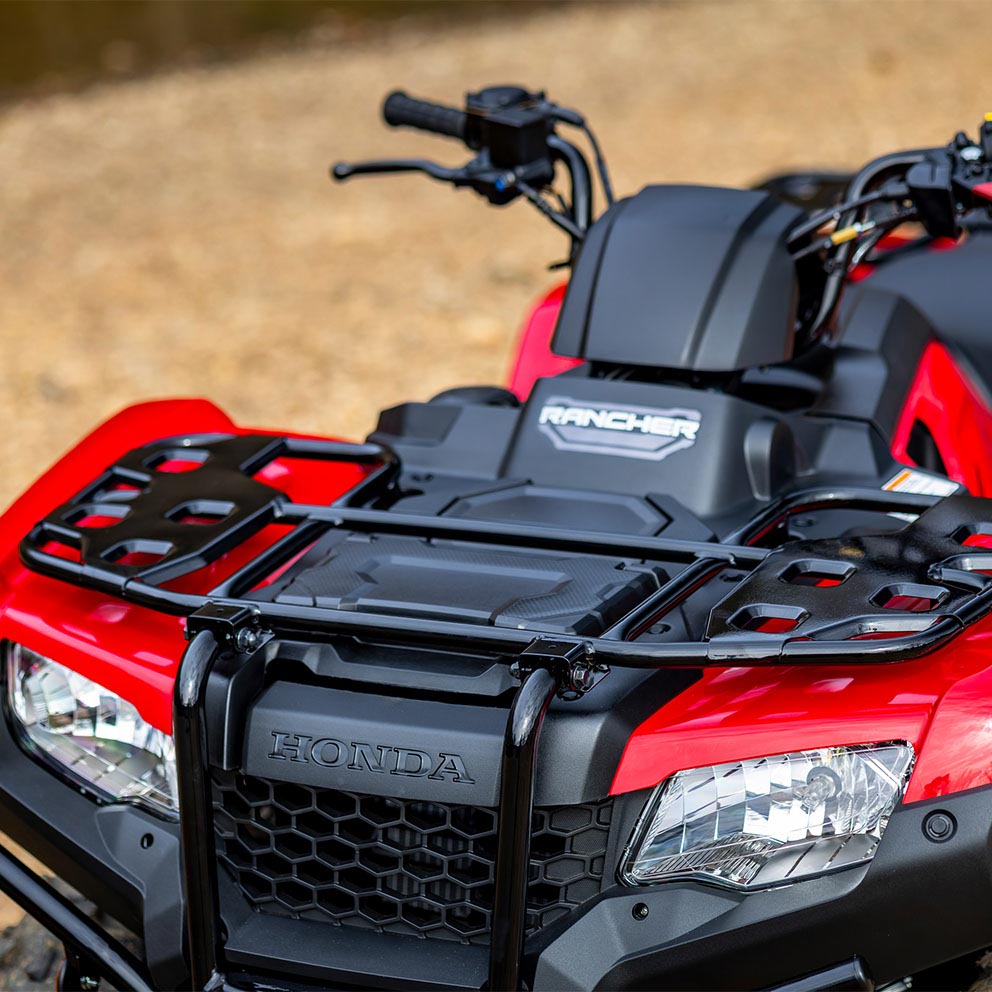

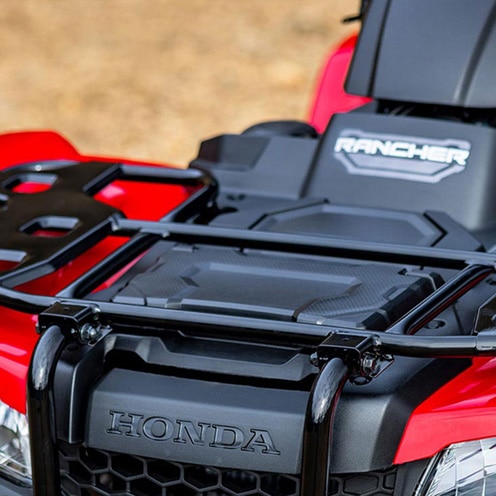

Front/rear cargo racks

Discover unmatched versatility with our durable steel racks. Equipped with our Pro-Connect system, they enable easy attachment and removal of cargo boxes and accessories, enhancing functionality.
