420cc longitudinally mounted liquid-cooled wet-sump single-cylinder four-stroke
Five-speed automatic Dual-Clutch Transmission (DCT) with reverse
Independent double-wishbone; 7.3-inch travel
Independent dual-arm; 8.5-inch travel
35.4 inches
Engine
Engine Type | 420cc longitudinally mounted liquid-cooled wet-sump single-cylinder four-stroke |
---|---|
Bore And Stroke | 86.5mm x 71.5mm |
Compression Ratio | 9.9:1 |
Valve Train | OHV; two valves per cylinder |
Induction | Programmed Fuel Injection (PGM-FI); 34mm throttle body |
Starter | Electric with optional auxiliary recoil |
Drive Train
Clutch | Automatic |
---|---|
Transmission | Five-speed automatic Dual-Clutch Transmission (DCT) with reverse |
Driveline | Direct front and rear driveshafts with TraxLok® and torque-sensitive front differential |
Chassis Suspension Brakes
Front Suspension | Independent double-wishbone; 7.3-inch travel |
---|---|
Rear Suspension | Independent dual-arm; 8.5-inch travel |
Front Brake | Dual 193mm discs |
Rear Brake | Dual 170mm discs |
Front Tires | 24 x 8-12 |
Rear Tires | 24 x 10-12 |
Dimensions
Length | 84.5 inches |
---|---|
Width | 47.4 inches |
Height | 47.2 inches |
Wheelbase | 51.0 inches |
Seat Height | 35.4 inches |
Ground Clearance | 9.6 inches |
Curb Weight | 686 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
Fuel Capacity | 3.9 gallons, including 1.3-gallon reserve |
Turning Radius | 11.5 feet |
Front Rack Capacity | 66 pounds |
Rear Rack Capacity | 133 pounds |
Other
Model ID | TRX420FA6 |
---|---|
Emissions | Meets current EPA and CARB (California) off-road emissions standards. |
Available Colors | Hero Red, Blue, TrueTimber® Atera Camo |
Important Safety Information | Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly. |
Factory Warranty Information
One Year Included | Transferable, limited warranty |
---|---|
Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Effortless shifting, premium ride
Precision handling, superior comfort
Programmed fuel injection
Programmed Fuel Injection (PGM-FI) allows the ATV to start in any condition and provide reliable performance. It utilizes a 34mm throttle body, 12-hole injector, and oxygen sensor for instant fuel mapping adjustment. This ensures trouble-free operation, reduces emissions and improves fuel efficiency.

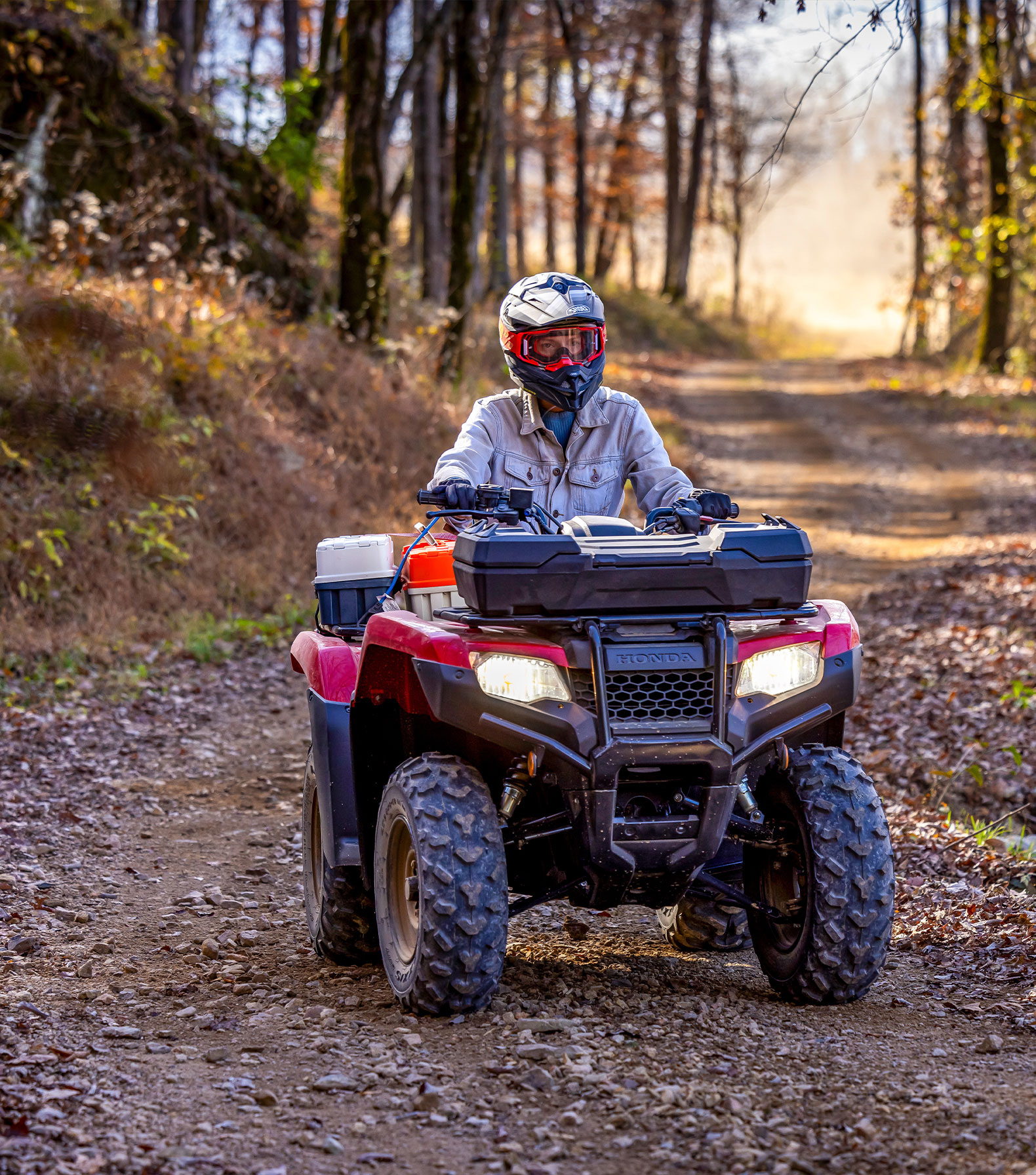

TraxLok®
Experience the ultimate in traction optimization with our TraxLok® system. Three modes, 2WD, 4WD, and 4WD, with locking front differential and Speed Override, enable increased speed in extreme conditions like mud or snow.

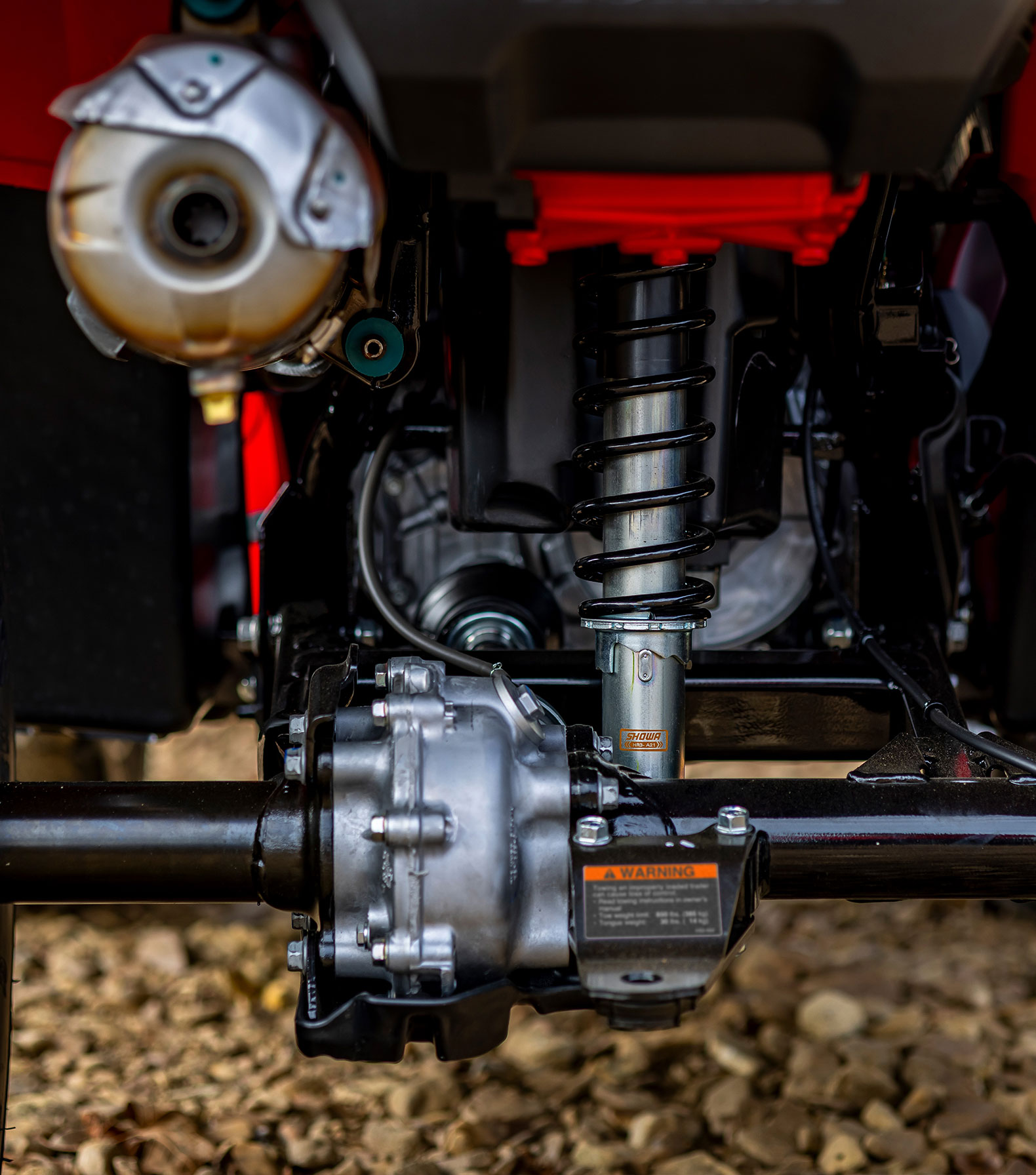

Shaft drive
Clean, low-maintenance, and efficient - shaft drive is the perfect choice for high-mileage riders. It eliminates the need for lubrication or adjustment on the trail.

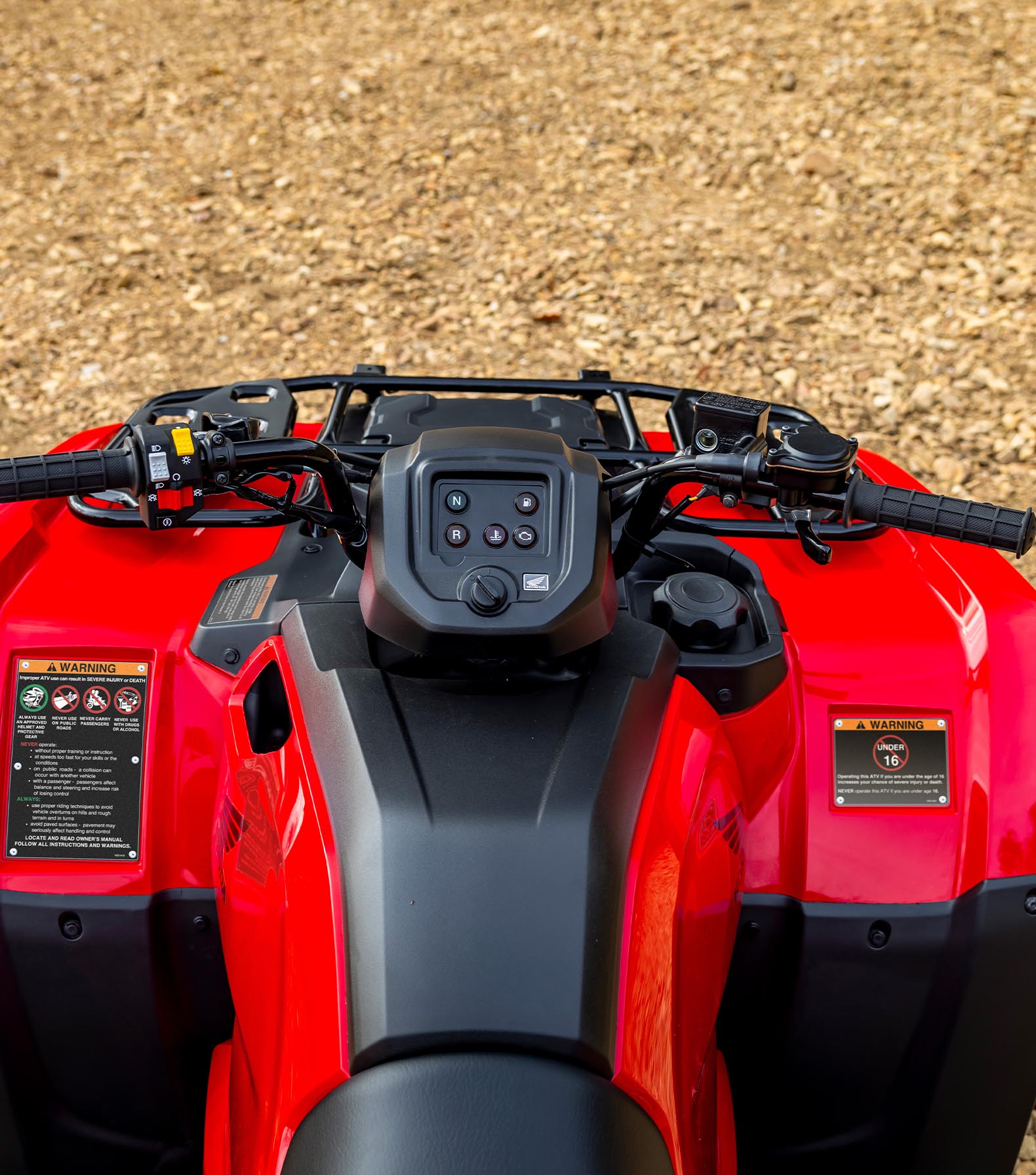

Digital instruments
This ATV offers a range of features to keep you informed on important information while you ride. It includes a gear position indicator, speedometer, odometer, trip meter, hour meter, and much more.
Advanced suspension, seamless power

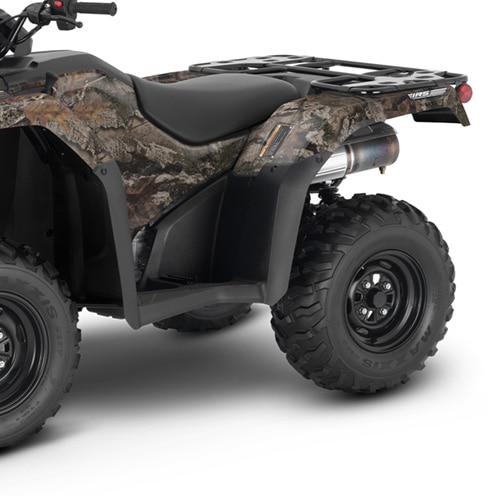

Independent Rear Suspension (IRS)
The IRS models have over 8 inches of suspension travel and 9 inches of ground clearance. This provides constant tire contact for better traction and a smooth ride over rough terrain.

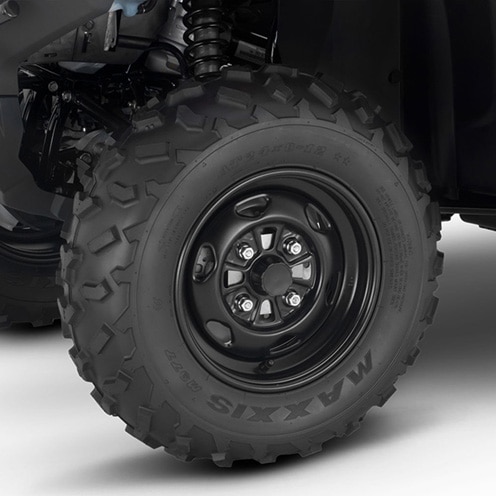

Disc brakes
Both Rancher IRS models offer disc brakes on all four corners for excellent stopping performance in all conditions.
Automatic DCT
Available on the Automatic DCT models, the Dual-Clutch Transmission offers strong internals, fast shifts, excellent control, true compression-braking capability, and an automatic program that upshifts and downshifts while you concentrate on riding.

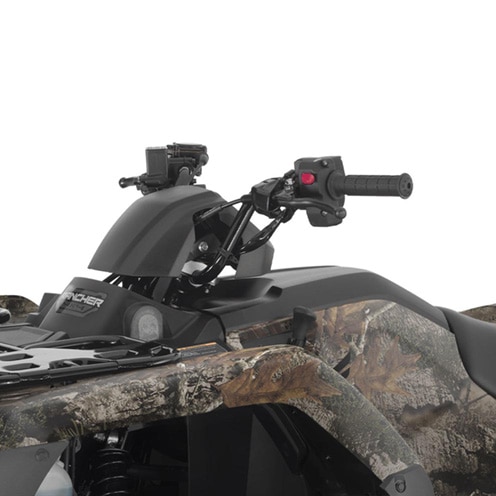

Electric Power Steering (EPS)
Available on the EPS models, our Electric Power Steering (EPS) is both speed—and torque-sensitive and excels at reducing steering effort and kickback through the handlebar. This is a big help when riding in rugged terrain like ruts, rocks, and other challenging environments.

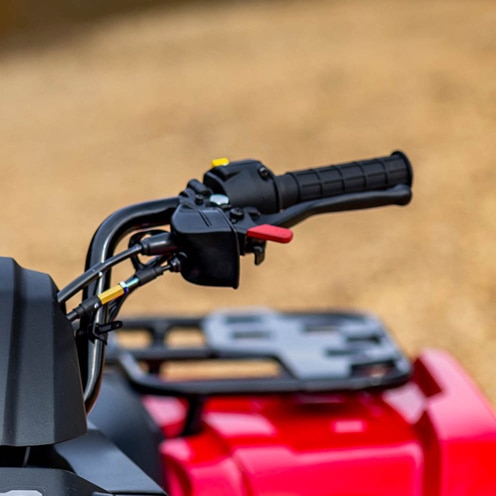

Electronic reverse
Available on the Automatic DCT models, this user-friendly single lever is exceptionally handy for seamless forward-to-reverse transitions—perfect for tasks like snow plowing that demand repetitive shifts.
Semi-dry-sump engine design
The overhead-valve, semi-dry-sump design creates a compact and lightweight engine that improves handling by lowering the center of gravity and increasing ground clearance.

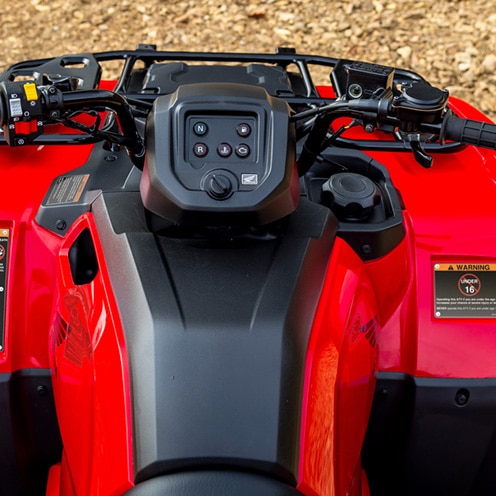

In-tank fuel pump
An in-tank design promotes cool operation and prolongs the fuel pump's life.
Wide front driveshaft guards
The driveshaft guards, designed to add even more coverage to the front axles and outboard CV joints, are another example of how Honda engineers sweat the small details to give you one of the best ATVs on the planet.

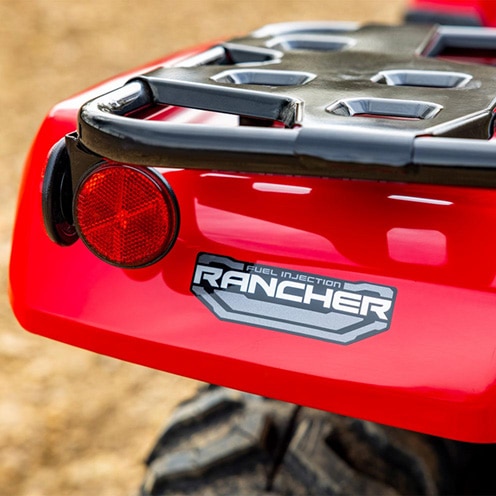

Honda quality
In addition to all the features on a spec chart, this ATV offers something nobody else can match: our well-deserved reputation for quality, superior engineering, and long-term reliability. It’s part of everything we do.

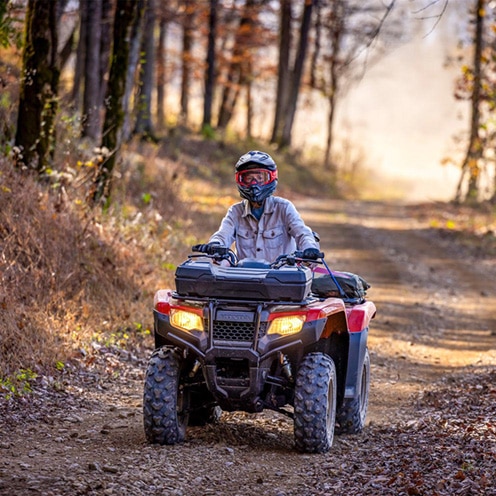

Make it yours
Our Honda accessories line is perfect for your new Rancher; it includes winches, heated grips, vehicle protection, and more. Use our Honda Pro-Connect™ line to attach or detach accessories quickly and without tools.

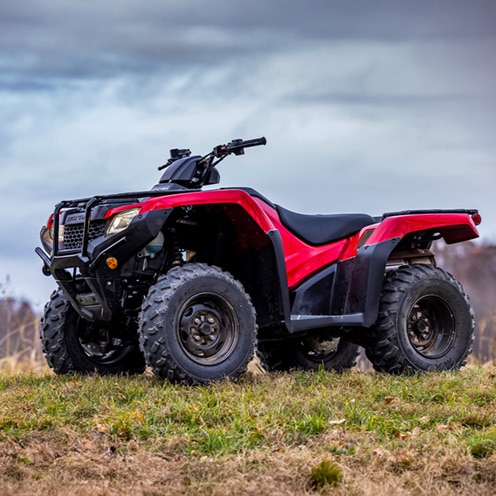

Comfortable seat
This ATV offers a plush seat, an open rider triangle, and superior ergonomics. The thick, soft foam makes it supremely comfortable.
