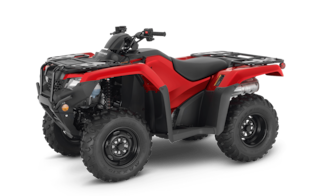

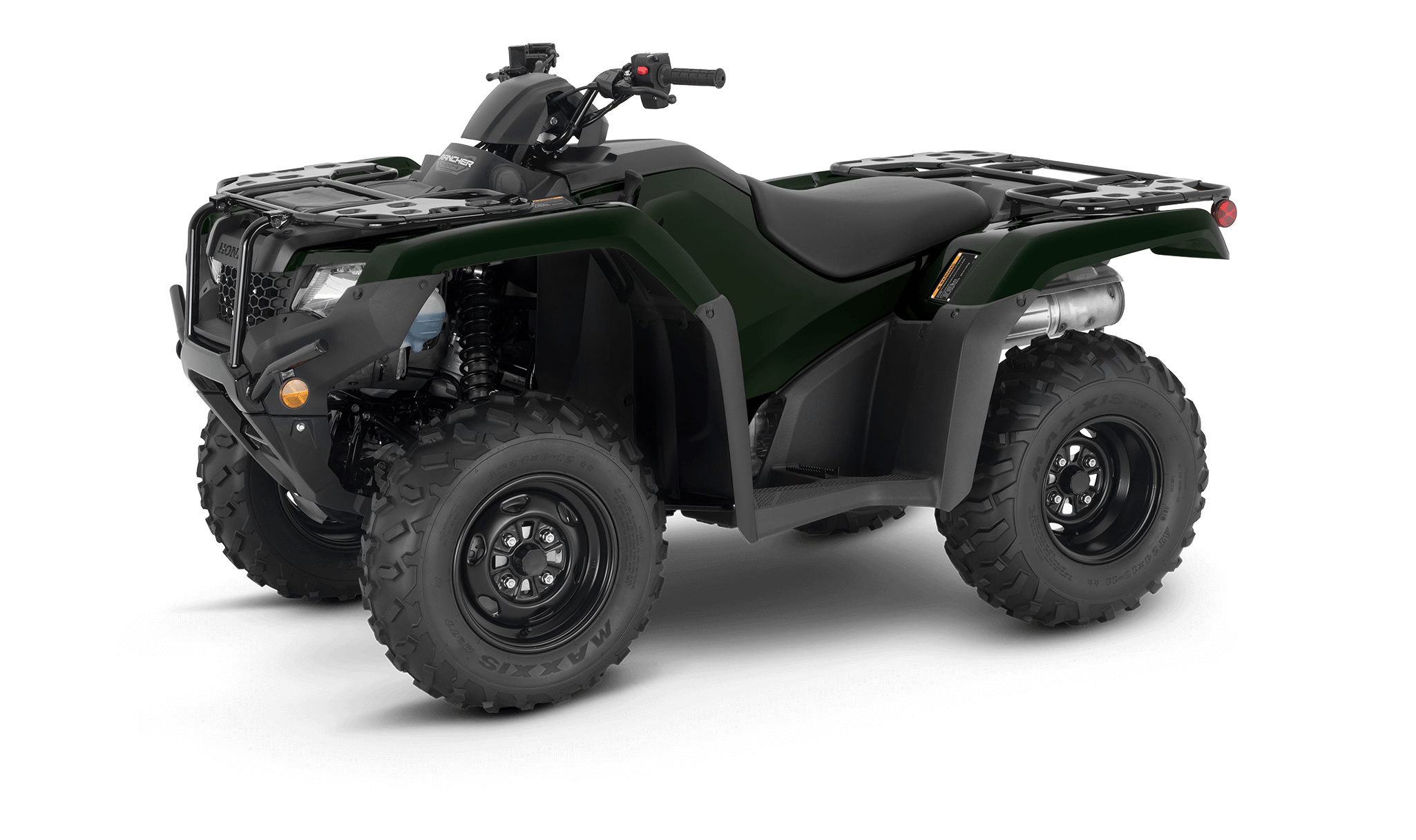

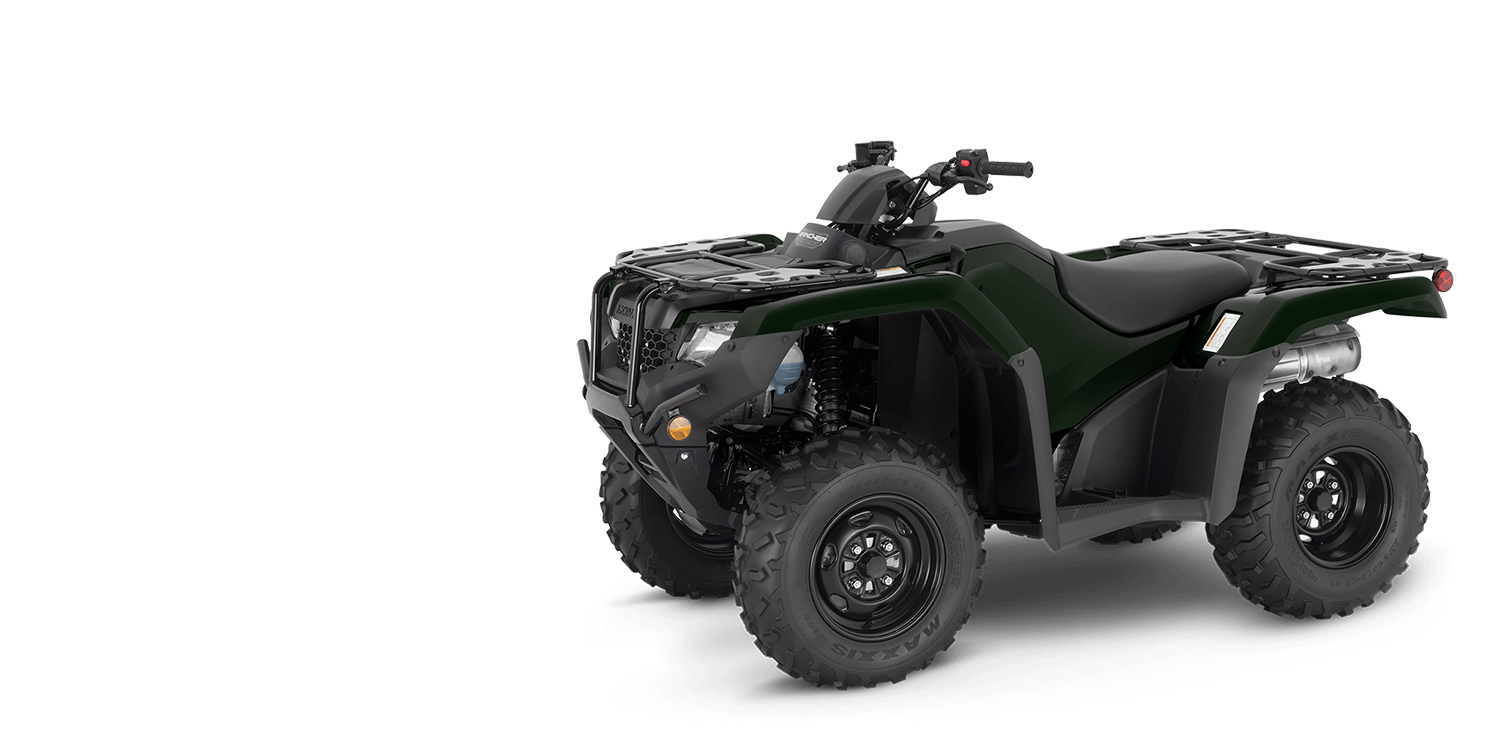

FourTrax Rancher 4x4 Automatic DCT EPS
420cc liquid-cooled longitudinally mounted single-cylinder four-stroke
Five-speed automatic Dual-Clutch Transmission (DCT) with reverse
Independent double-wishbone; 6.7-inch travel
Swingarm with single shock; 6.7-inch travel
33.6 inches
Transferable, limited warranty. One year included.
Engine
| Engine Type | 420cc liquid-cooled longitudinally mounted single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 86.5mm x 71.5mm |
| Compression Ratio | 9.9:1 |
| Valve Train | OHV; two valves per cylinder |
| Induction | Programmed Fuel Injection system (PGM-FI); 34mm throttle body |
| Starter | Electric with optional auxiliary recoil |
Drivetrain
| Transmission | Five-speed automatic Dual-Clutch Transmission (DCT) with reverse |
|---|---|
| Driveline | Direct front and rear driveshafts with torque-sensitive locking front differential |
Chassis Suspension Brakes
| Front Suspension | Independent double-wishbone; 6.7-inch travel |
|---|---|
| Rear Suspension | Swingarm with single shock; 6.7-inch travel |
| Front Brakes | Dual 190mm discs |
| Rear Brake | 160mm drum |
| Front Tires | 24 x 8-12 |
| Rear Tires | 24 x 10-11 |
Dimensions
| Length | 82.8 inches |
|---|---|
| Width | 47.4 inches |
| Height | 46.2 inches |
| Wheelbase | 50.0 inches |
| Seat Height | 33.6 inches |
| Ground Clearance | 7.1 inches |
| Curb Weight | 642 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 3.9 gallons |
| Turning Radius | 9.2 feet |
| Towing Capacity | 848 pounds |
| Front Rack Capacity | 66.0 pounds |
| Rear Rack Capacity | 133.0 pounds |
Other
| Model ID | TRX420FA2 |
|---|---|
| Emissions | Meets current EPA and CARB (California) off-road emissions standards. |
| Available Colors | Hero Red, Black Forest Green, Sandstone Beige |
| Important Safety Information | Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly. |
Factory Warranty Information
| Duration | Transferable, one year included, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
The automatic advantage
Work smarter
Programmed fuel injection
With a 34mm throttle body, 12-hole injector, and an oxygen sensor, the Programmed Fuel Injection (PGM-FI) promptly adjusts fuel mapping to ensure smooth operation, lower emissions, and enhanced fuel efficiency.
Automatic DCT
Our Dual-Clutch Transmission, available on the Automatic DCT trims, offers robust internals, rapid shifts, and excellent control. The system automatically upshifts and downshifts for you, allowing you to focus on the ride.
Shaft drive
The shaft drive is clean, low-maintenance, and efficient, making it the perfect choice for high-mileage riders. It eliminates the need for lubrication or adjustment while on the trail.
Electric Power Steering
Available on both EPS models, our Electric Power Steering (EPS) is both speed- and torque-sensitive, reducing steering effort and kickback through the handlebars. This is a big help when riding on rugged terrain, such as ruts, rocks, and other challenging conditions.
Play smoother
Dashboard indicator lights
Wide front driveshaft guards
The driveshaft guards provide additional coverage for the front axles and outboard CV joints, illustrating another example of how Honda engineers focus on even the smallest details to create one of the best ATVs available.
Easy to use reverse
Available on the Automatic DCT models, this user-friendly single lever is exceptionally handy for seamless forward-to-reverse transitions—perfect for tasks like snow plowing that require repetitive actions.
Semi-dry-sump engine design
The overhead-valve, semi-dry-sump design creates a compact and lightweight engine that improves handling by lowering the center of gravity and increasing ground clearance.
Swingarm rear suspension
Select models feature rear swingarm-style suspension with a solid axle for superior towing and hauling capabilities. Their long suspension stroke and plush seat allow you to tackle your favorite trail or the toughest chores in comfort all day long.
In-tank fuel pump
An in-tank design helps maintain a cool operating temperature, thereby extending the fuel pump's lifespan.
Honda quality
Along with all the features listed in the spec chart, this ATV provides something unmatched: our well-earned reputation for quality, exceptional engineering, and long-term reliability. It’s integral to everything we do.
Make it yours
We provide more than 20 genuine Honda accessories to customize your new Rancher. These include upgrades for protection, comfort, and convenience. Additionally, we offer several items from our Honda Pro-Connect® line of cargo accessories that can be easily attached or detached without tools.

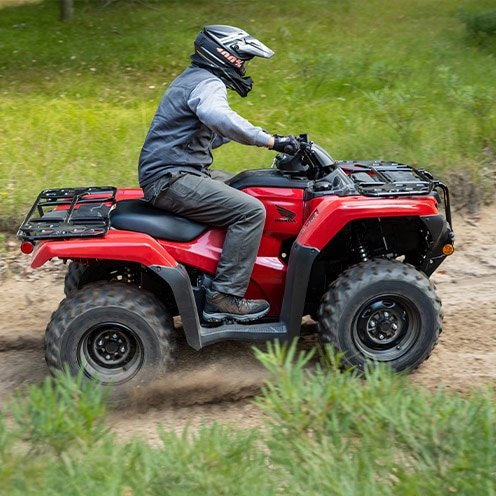

Comfortable seat
A plush seat with thick, soft foam and an open rider triangle creates a supremely comfortable machine.
Related trims and models
FourTrax Rubicon 700 4x4 Automatic
Base MSRP TBD* Destination Charge: $620.00
- 675cc liquid-cooled single-cylinder engine
- Programmed Fuel Injection (PGM-FI)
- 26-inch tires
- Tough front bumper
- Integrated storage

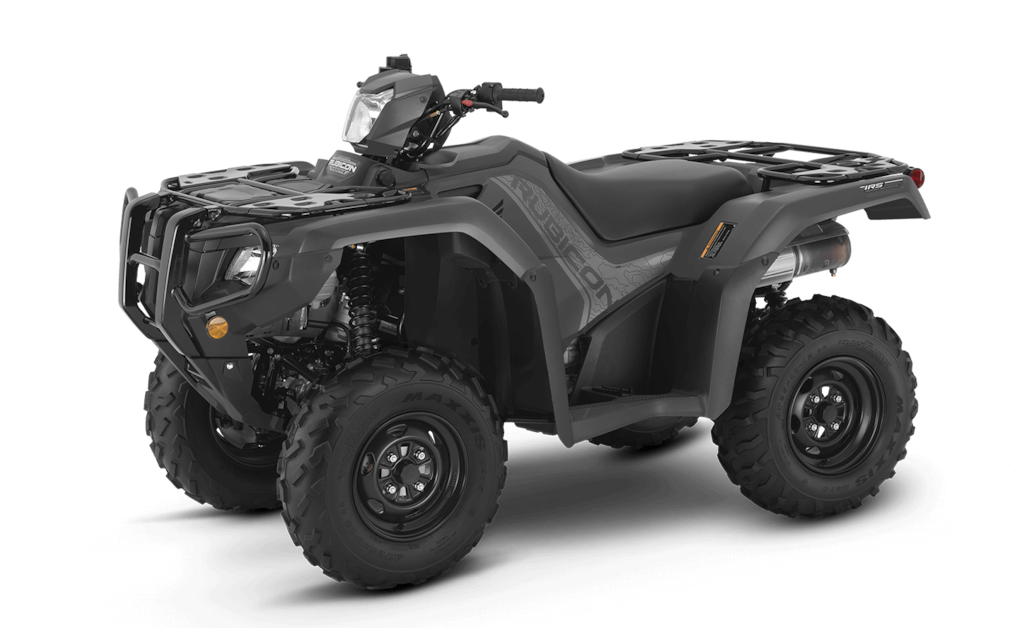

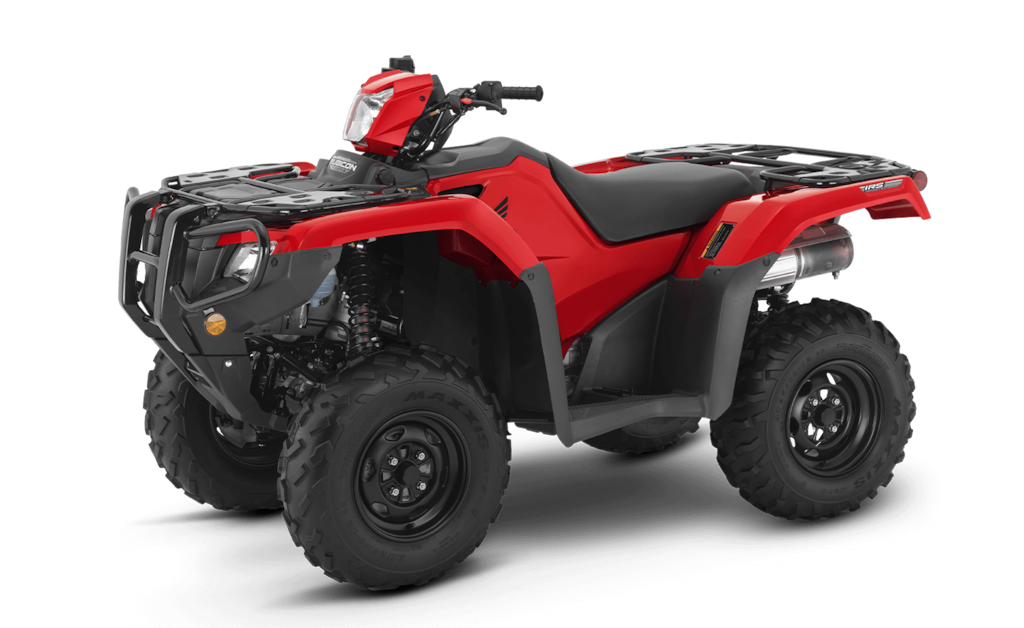

FourTrax Foreman Rubicon 4x4 EPS
Base MSRP $9,799* Destination Charge: $620.00
- 518cc liquid-cooled single-cylinder four-stroke engine
- Electric Power Steering
- Front and rear preload-adjustable suspension
- 1322-pound towing capacity
- Ultra comfortable seat

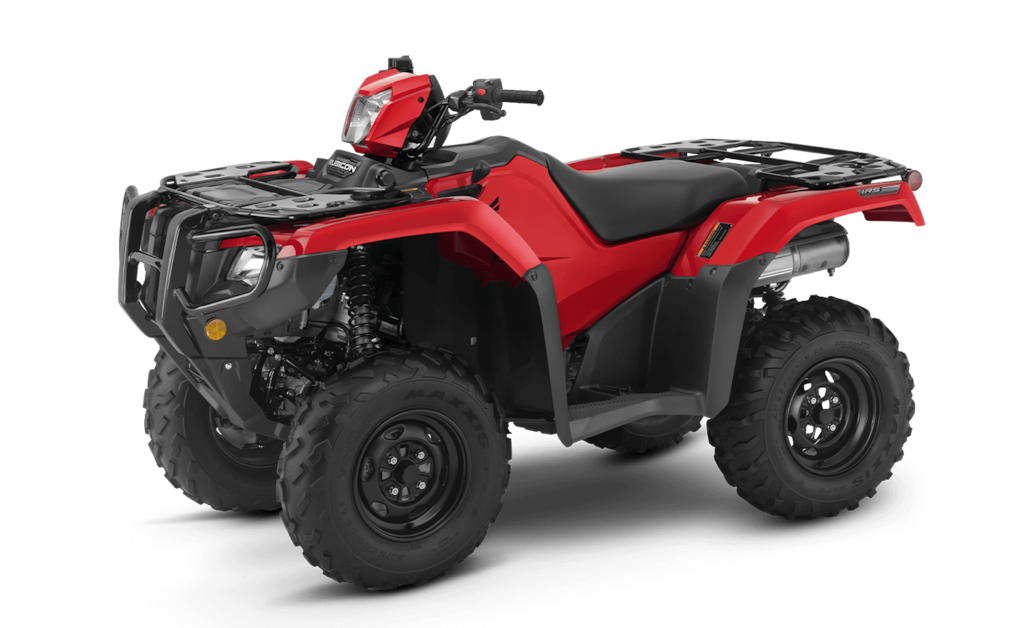

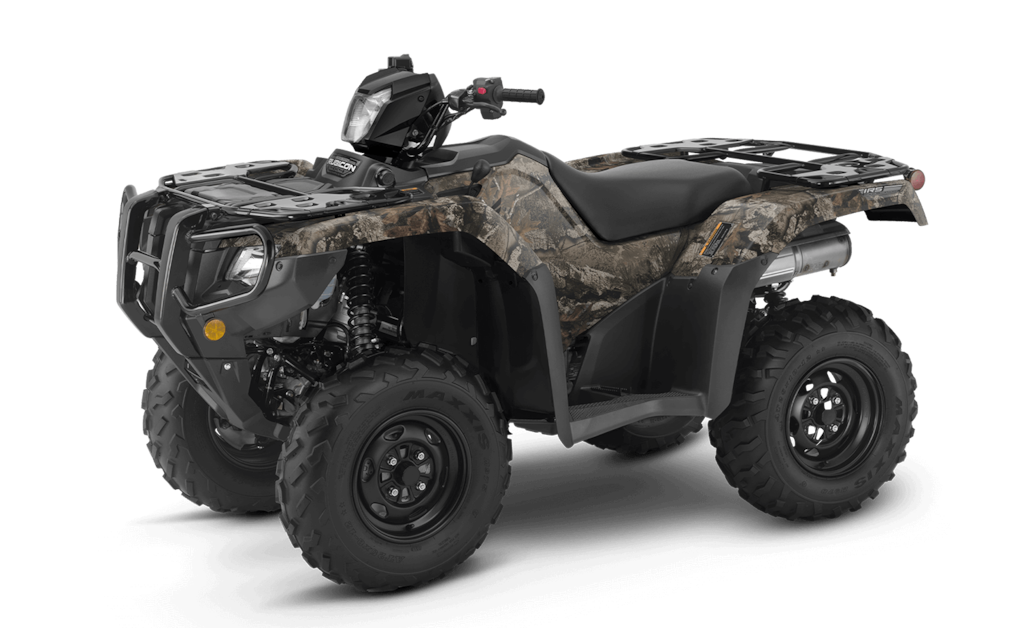

FourTrax Foreman Rubicon 4x4 Automatic DCT EPS
Base MSRP $10,499* Destination Charge: $620.00
- 518cc liquid-cooled single-cylinder four-stroke engine
- Automatic Dual Clutch Transmission (DCT)
- Electric Power Steering
- 1322-pound towing capacity
- Ultra comfortable seat

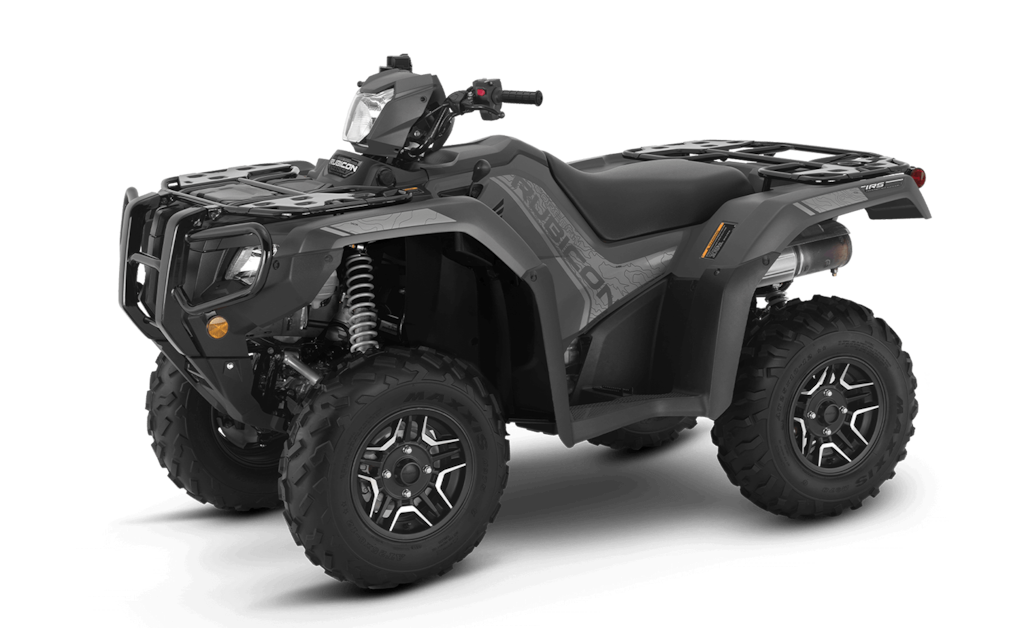

FourTrax Foreman Rubicon 4x4 Automatic DCT EPS Deluxe
Base MSRP $10,999* Destination Charge: $620.00
- 518cc liquid-cooled single-cylinder four-stroke engine
- Automatic Dual Clutch Transmission (DCT)
- Electric Power Steering
- Ultra comfortable seat
- Contrast-cut aluminum wheels
FourTrax Foreman 4x4
Base MSRP $8,249* Destination Charge: $620.00
- 518cc liquid-cooled single-cylinder engine
- Programmed Fuel Injection (PGM-FI)
- Swingarm rear suspension
- Torque-biasing front differential
- Superior cargo capacity

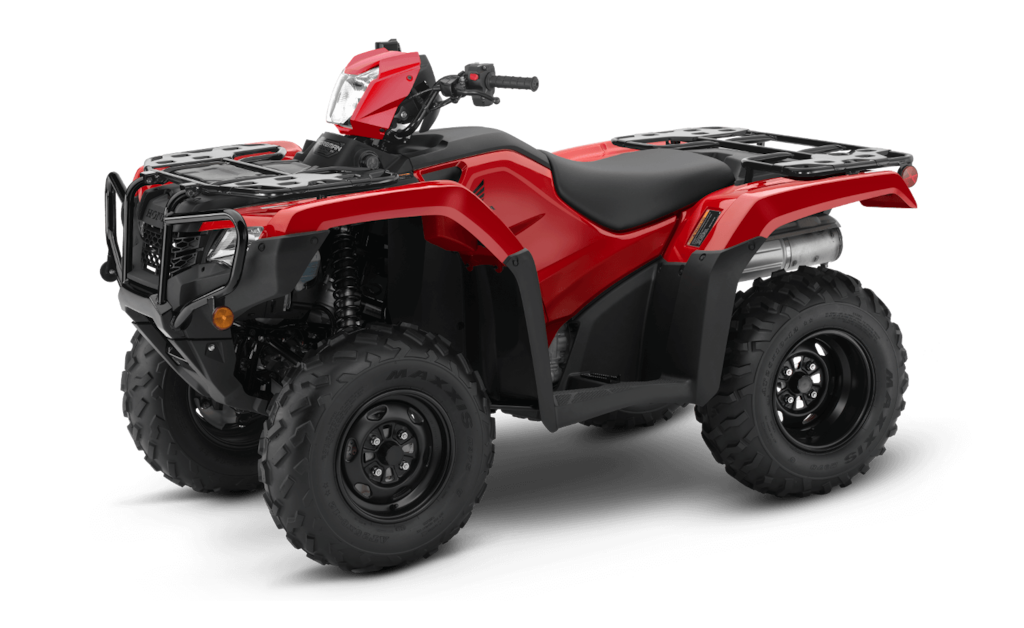

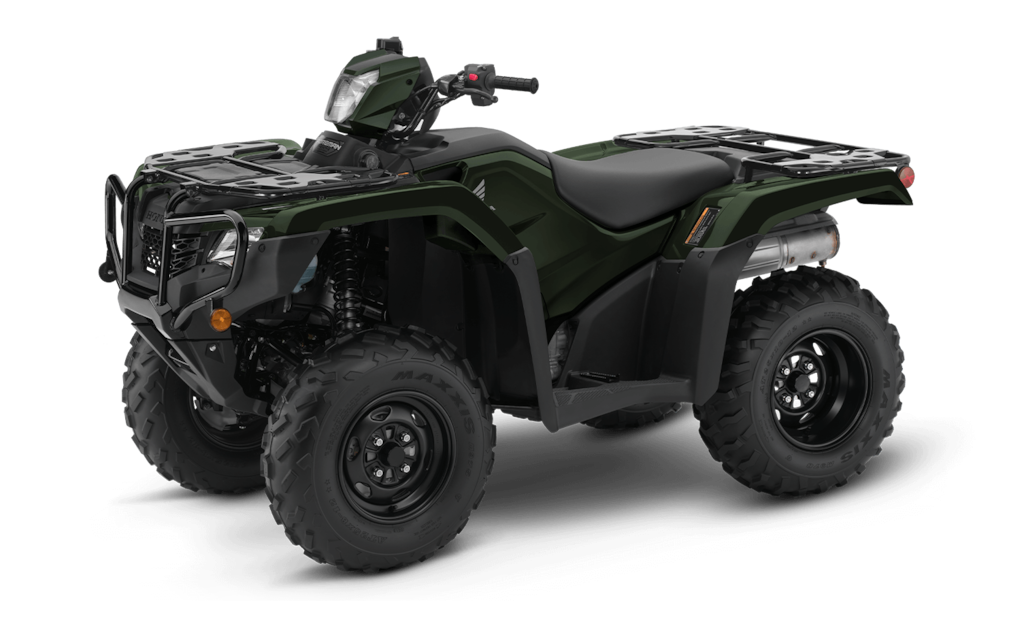

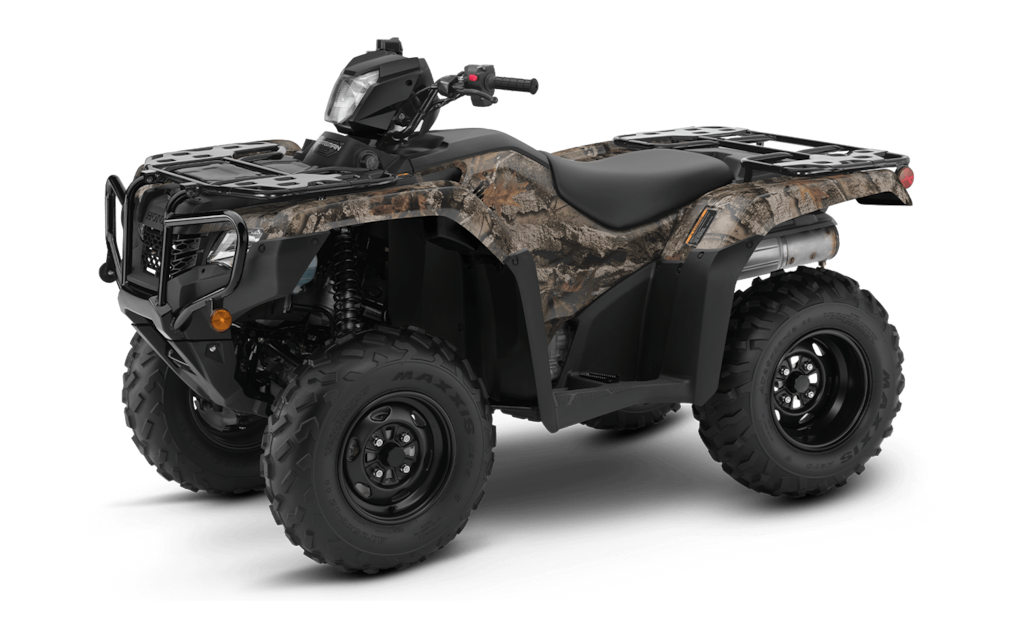

FourTrax Foreman 4x4 EPS
Base MSRP $9,099* Destination Charge: $620.00
- Electric Power Steering (EPS)
- 518cc liquid-cooled single-cylinder engine
- Programmed Fuel Injection (PGM-FI)
- Swingarm rear suspension
- Ample cargo capacity
FourTrax Rancher
Base MSRP $6,299* Destination Charge: $620.00
- 420cc liquid-cooled OHV single-cylinder engine
- Programmed Fuel Injection (PGM-FI)
- Swingarm rear suspension
- Variety of color choices
- Comfortable seat

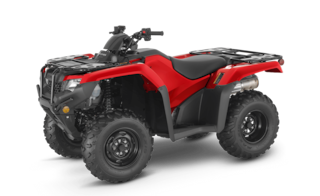

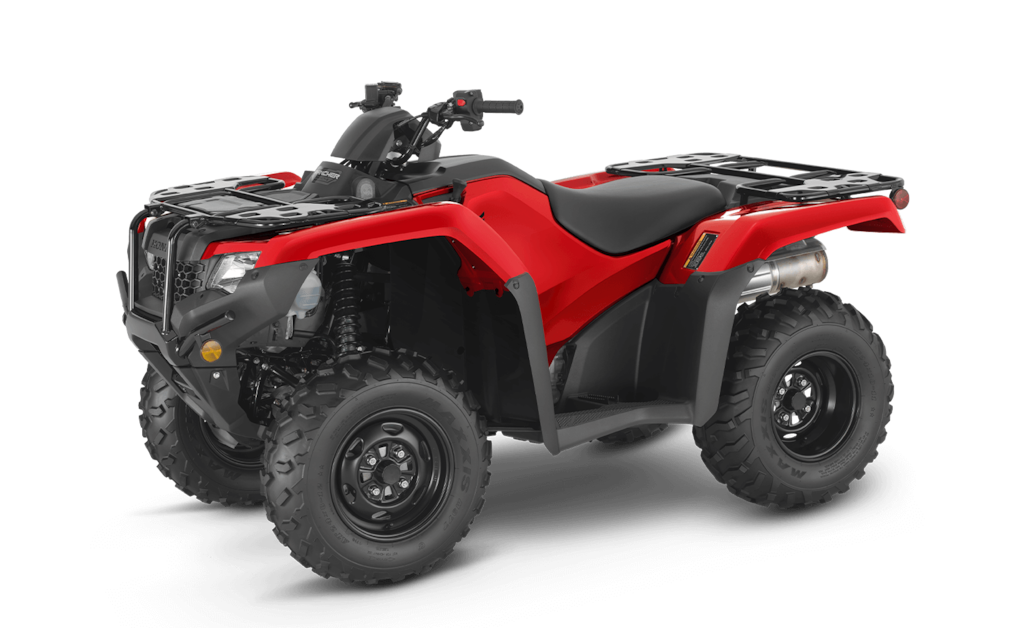

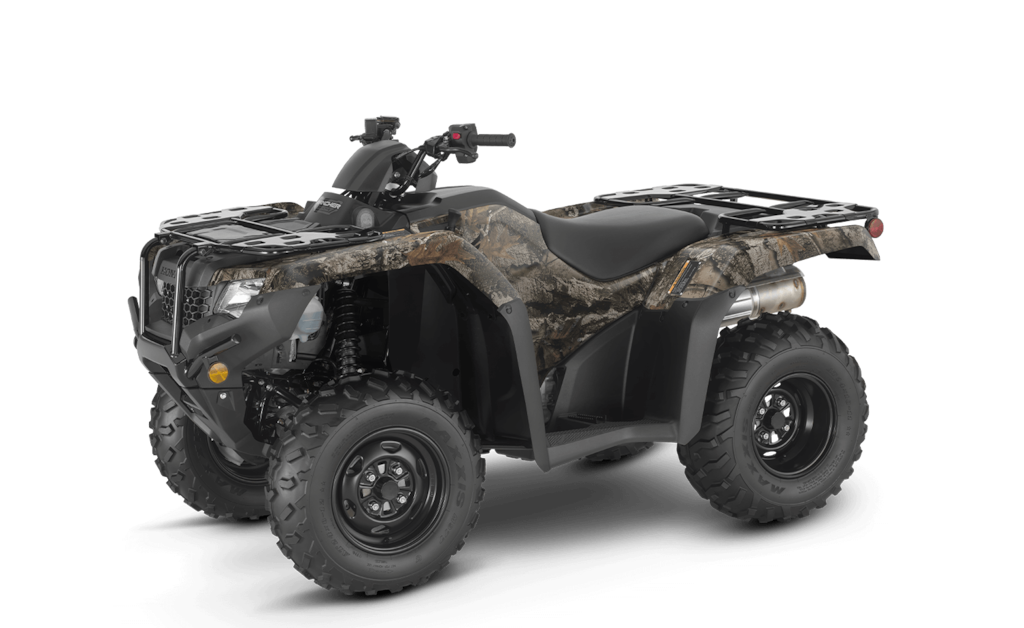

FourTrax Rancher 4x4
Base MSRP $7,399* Destination Charge: $620.00
- 420cc liquid-cooled OHV single-cylinder engine
- Programmed Fuel Injection (PGM-FI)
- Selectable four-wheel drive
- Swingarm rear suspension
- Comfortable seat

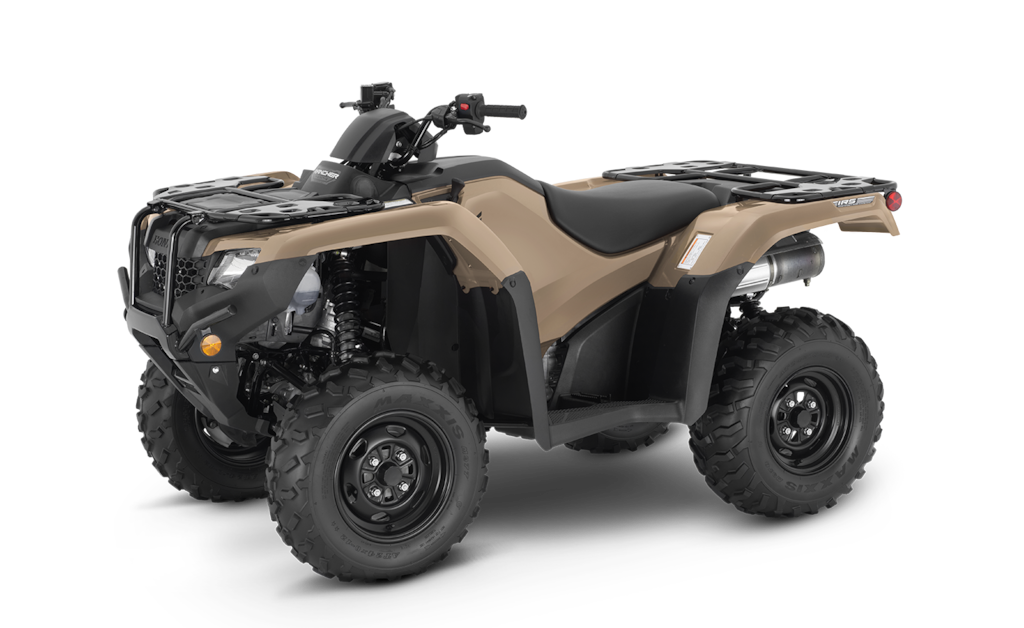

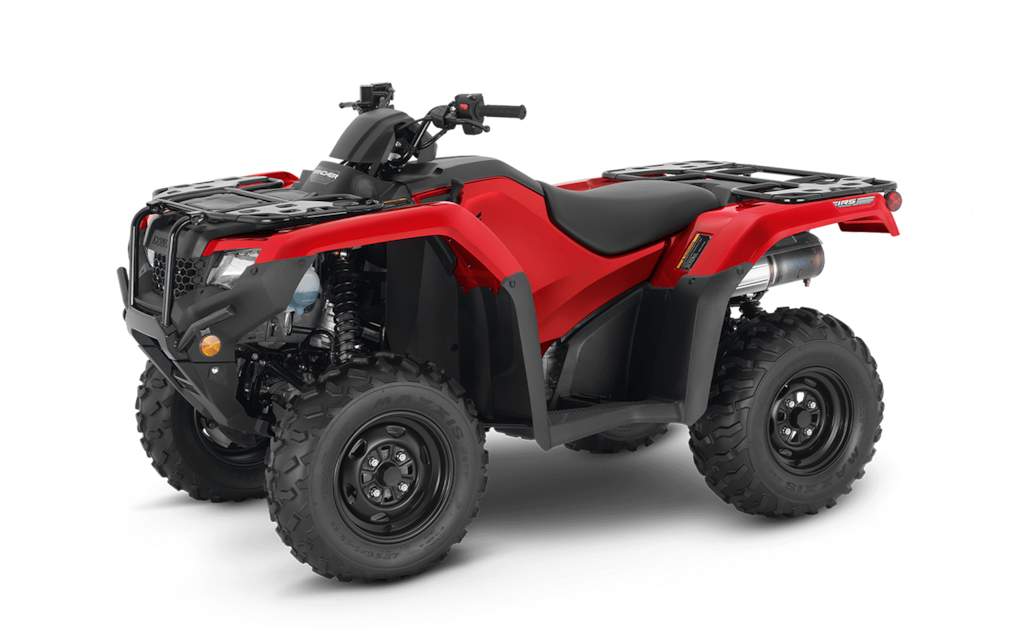

FourTrax Rancher 4x4 Automatic DCT IRS EPS
Base MSRP $9,149* Destination Charge: $620.00
- 420cc liquid-cooled OHV single-cylinder engine
- Programmed Fuel Injection (PGM-FI)
- Automatic Dual-Clutch Transmission
- Independent Rear Suspension
- Electric Power Steering

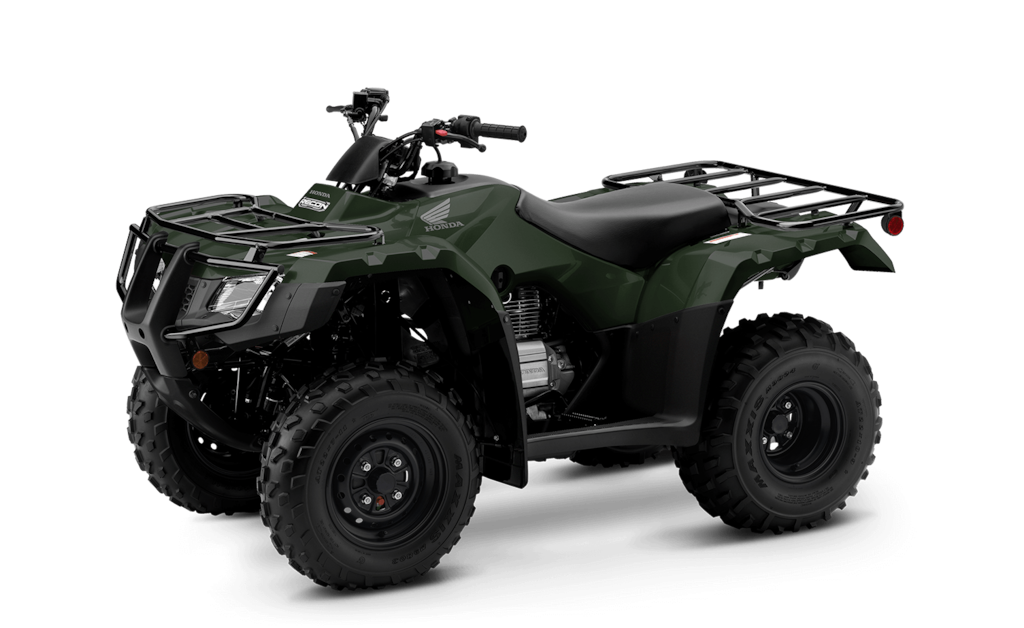

FourTrax Recon
Base MSRP TBD* Destination Charge: $620.00
- 229cc air-cooled single-cylinder engine
- Semi-dry-sump engine design
- Longitudinal engine layout
- Integrated floorboard design with steel cleats
- Rugged steel front and rear racks

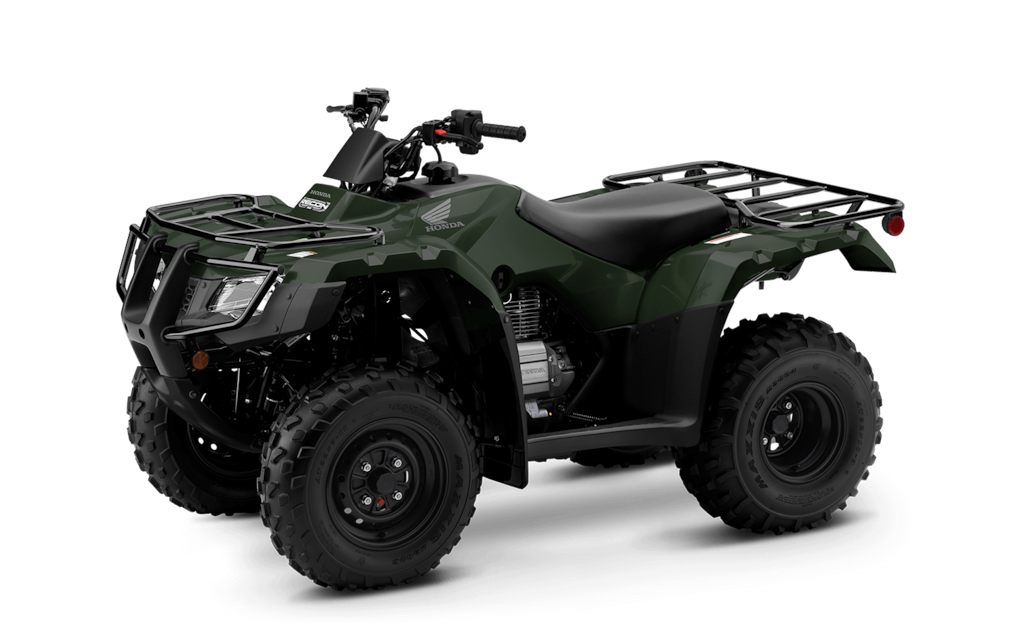

FourTrax Recon ES
