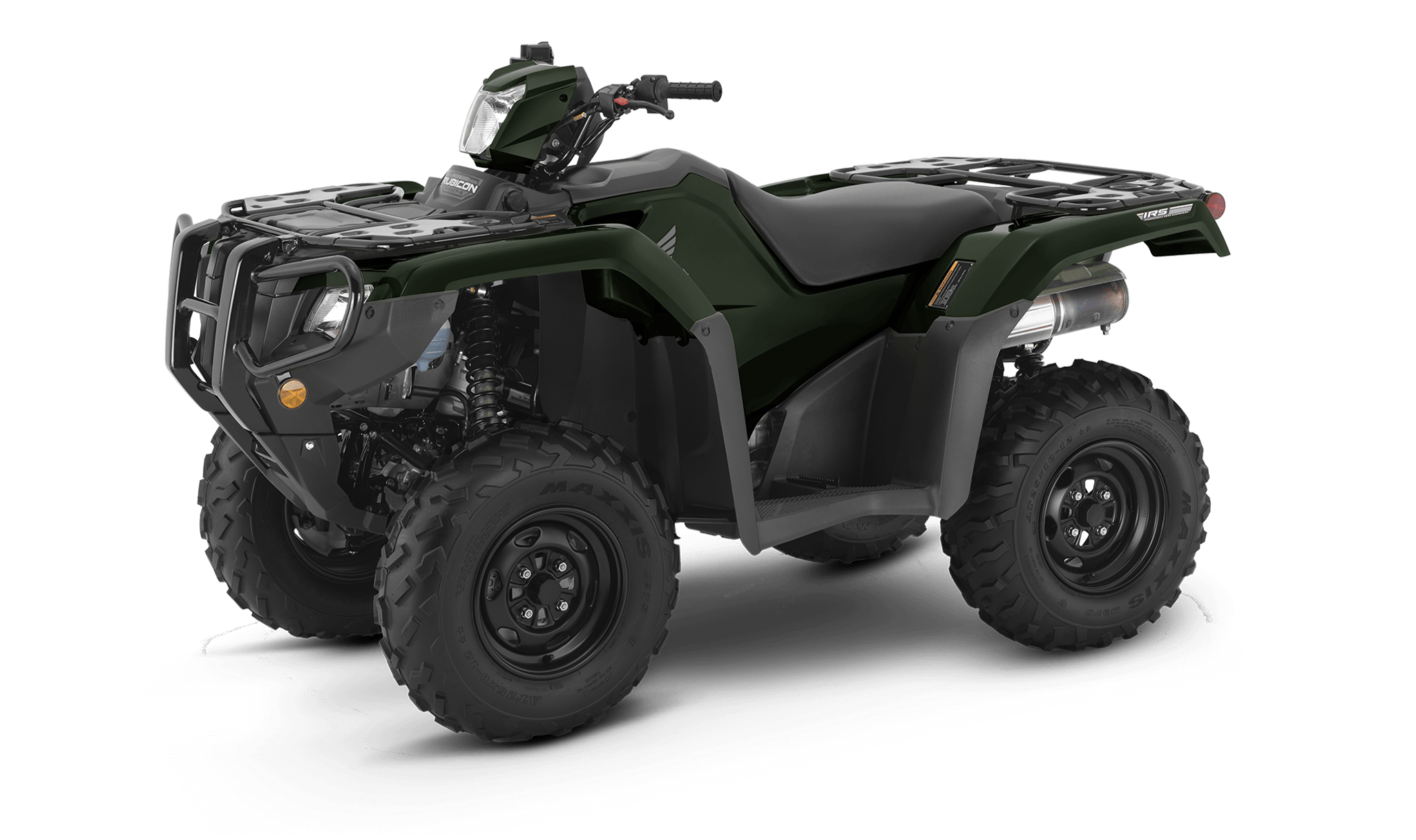

Black Forest Green

View Search Inventory

Build Your Own View Search Inventory

Engine Type

518cc longitudinally mounted liquid-cooled single-cylinder four-stroke

Transmission

Five-speed manual with reverse

Front Suspension

Independent double-wishbone; 7.3-inch travel

Rear Suspension

Independent dual-arm; 8.5-inch travel

Seat Height

36.3 inches

Warranty

Transferable, limited warranty. One year included.

Extended Warranty

Engine

Engine Type	518cc longitudinally mounted liquid-cooled single-cylinder four-stroke
Bore And Stroke	96.0mm x 71.5mm
Compression Ratio	9.5:1
Valve Train	OHV; two valves per cylinder
Induction	Programmed Fuel Injection (PGM-FI); 36mm throttle body
Starter	Electric with optional auxiliary recoil

Drive Train

Clutch	Automatic
Transmission	Five-speed manual with reverse
Driveline	Direct front and rear driveshafts with TraxLok® and locking front differential

Chassis Suspension Brakes

Front Suspension	Independent double-wishbone; 7.3-inch travel
Rear Suspension	Independent dual-arm; 8.5-inch travel
Front Brakes	Dual 190mm discs
Rear Brakes	Dual 170mm discs
Front Tires	25 x 8-12
Rear Tires	25 x 10-12

Dimensions

Length	86.0 inches
Width	47.4 inches
Height	48.7 inches
Wheelbase	50.9 inches
Seat Height	36.3 inches
Ground Clearance	9.7 inches
Turning Radius	11.5 feet
Curb Weight	697 pounds (includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity	3.9 gallons, including 1.3-gallon reserve
Towing Capacity	1322 pounds
Front Rack Capacity	99 pounds
Rear Rack Capacity	187 pounds

Other

Model ID	TRX520FM6
Emissions	Meets current EPA and CARB (California) off-road emissions standards.

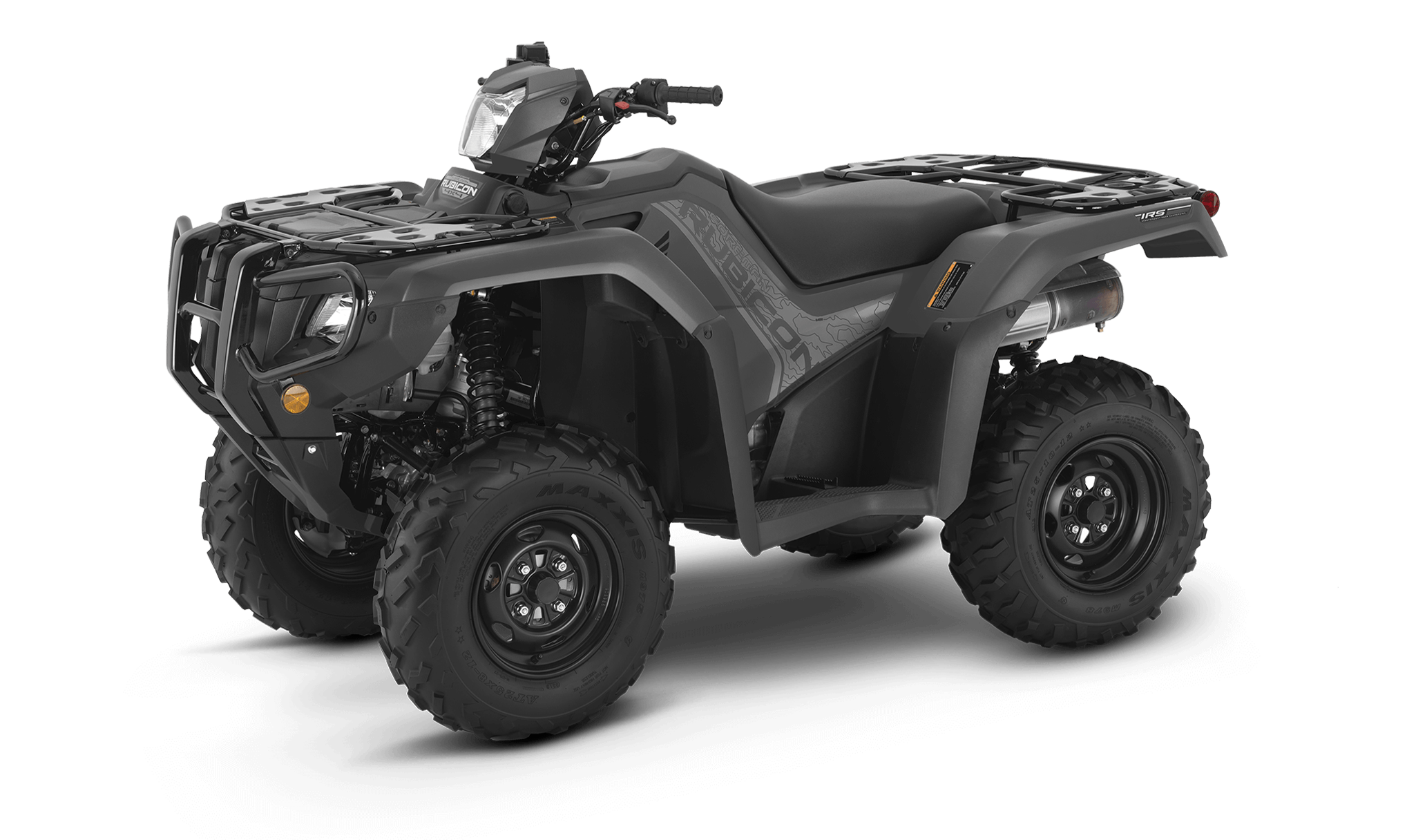

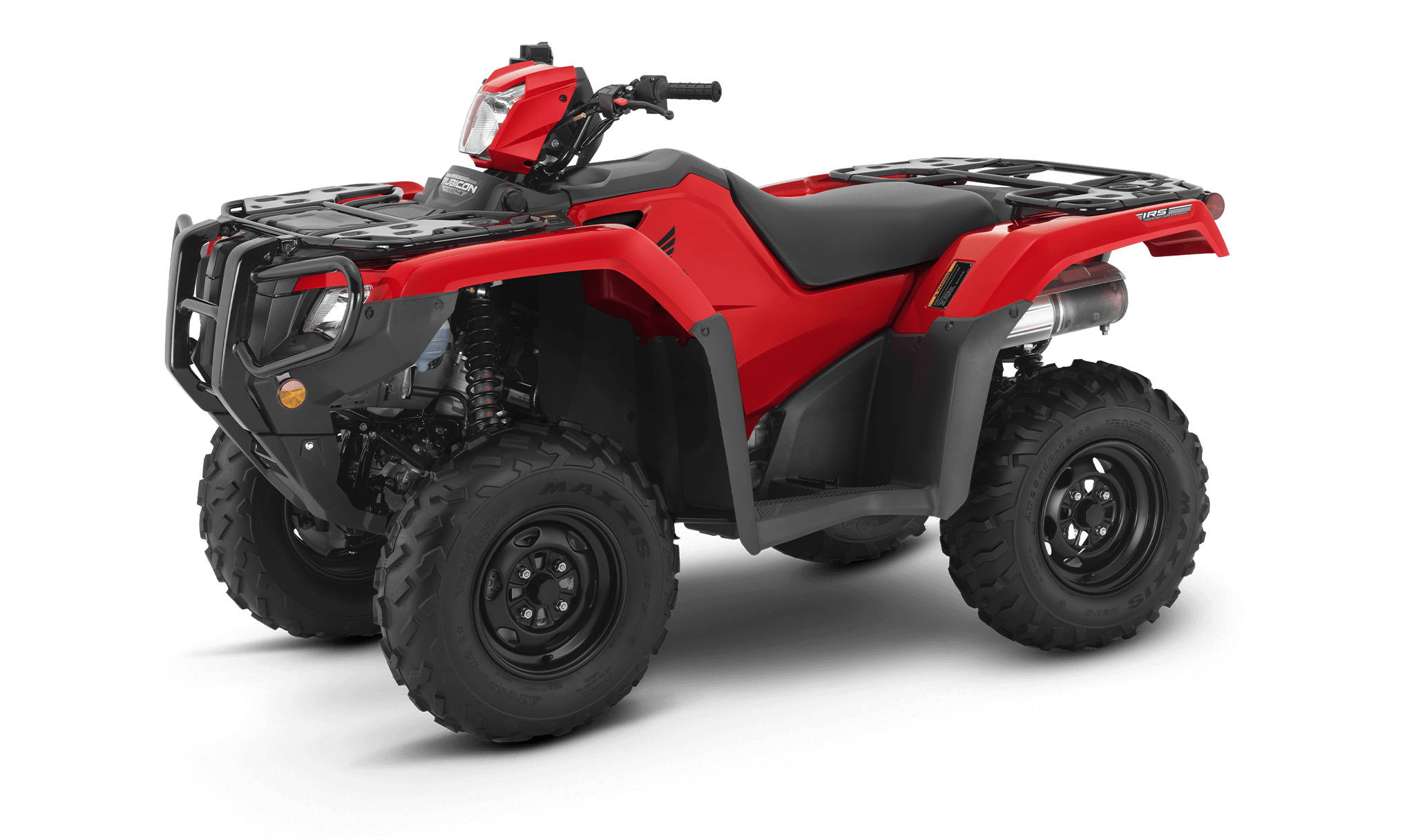

Available Colors	Hero Red, Black Forest Green, Matte Gray Metallic
Important Safety Information	Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

Factory Warranty Information

One Year Included	Transferable, limited warranty
Optional Extended	Extended coverage available with a HondaCare®  Protection Plan

Download Specs

Power plus precision

Prior Model Year Shown

Advanced control, all-terrain

Powerful 518cc engine

Experience unwavering performance with the robust 518cc engine, delivering the power needed on the trails and the job.

Advanced control, all-terrain

Electric reverse

Available exclusively on our automatic DCT models, this user-friendly single lever is exceptionally handy for seamless forward-to-reverse transitions—perfect for tasks like snow plowing that demand repetitive shifts.

Advanced control, all-terrain

Independent rear suspension

Independent rear suspension gives superior traction via consistent tire contact and a smoother ride over rough terrain, saving you from unnecessary trail beatings.

Advanced control, all-terrain

TraxLok®

Experience the ultimate in traction optimization with our TraxLok^® system. Three modes, 2WD, 4WD, and 4WD, with locking front differential and Speed Override, enable increased speed in extreme conditions like mud or snow.

Luxurious off-road power

View all Features

Prior Model Year Shown

Electric Power Steering (EPS)

Our Electric Power Steering (EPS) is both speed—and torque-sensitive and excels at reducing steering effort and kickback through the handlebar. This is a big help when riding in rugged terrain like ruts, rocks, and other challenging environments.

Prior Model Year Shown

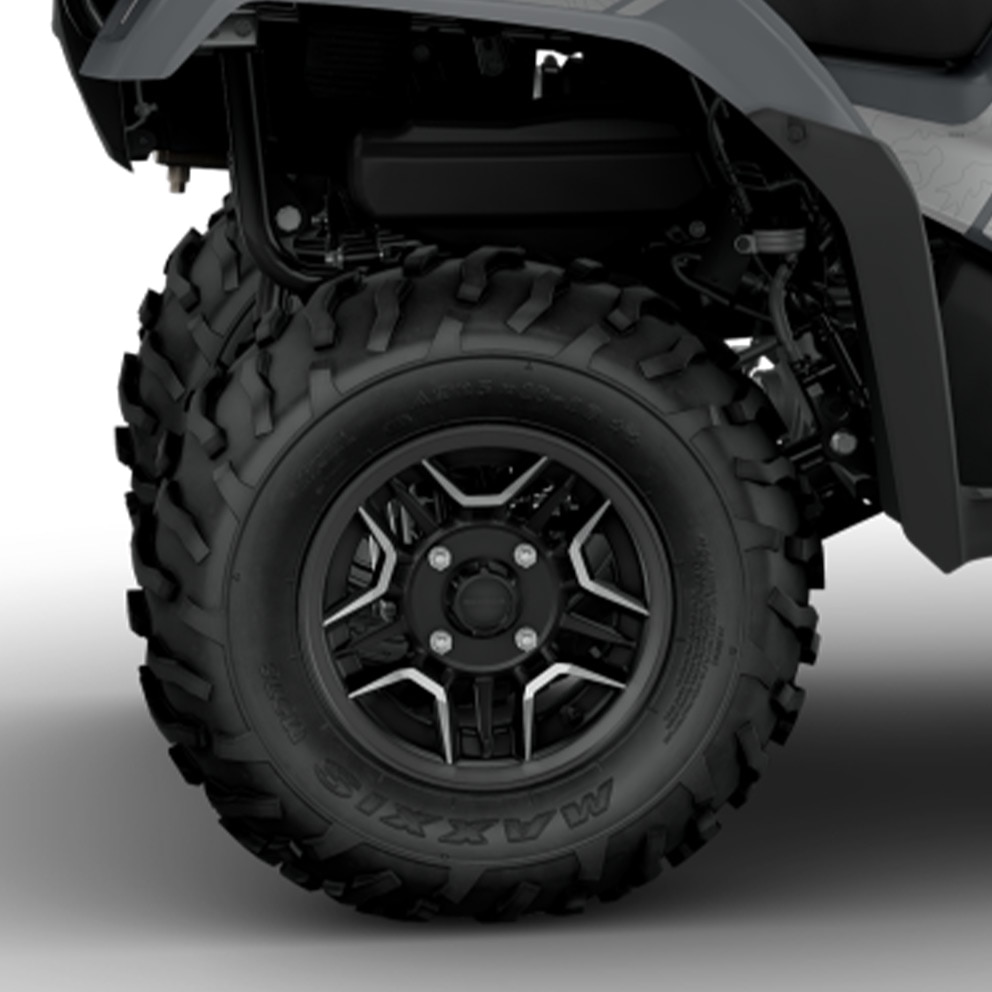

Maxxis tires

Designed to work perfectly with the Independent Rear Suspension, the Maxxis tires feature an aggressive tread pattern for excellent traction in mud, sand, and rocky terrain.

Longitudinal engine layout

By orienting the crankshaft front to back in the chassis, we route the power flow straight to the wheels without any unnecessary right-angle detours, reducing powertrain friction and putting more grunt to the ground.

Prior Model Year Shown

Alternator output

Thanks to the stator design, the powerful alternator produces sufficient electricity to run more Honda Accessories.

Prior Model Year Shown

Honda quality

In addition to all the features on a spec chart, this ATV offers something nobody else can match: our well-deserved reputation for quality, superior engineering, and long-term reliability. It’s part of everything we do.

Styling

The bodywork still gives these ATVs a tough look designed to last, shrugging off the scrapes and dings of the job or the woods. Crisp lines, powerful graphics, and great color choices ensure this ATV makes a bold statement.

Prior Model Year Shown

Ultra comfortable seat

For all-day ride comfort, the seat features thick foam and a seat cover with a grippier texture. It’s one of the best seats we’ve ever engineered for an ATV.

Prior Model Year Shown

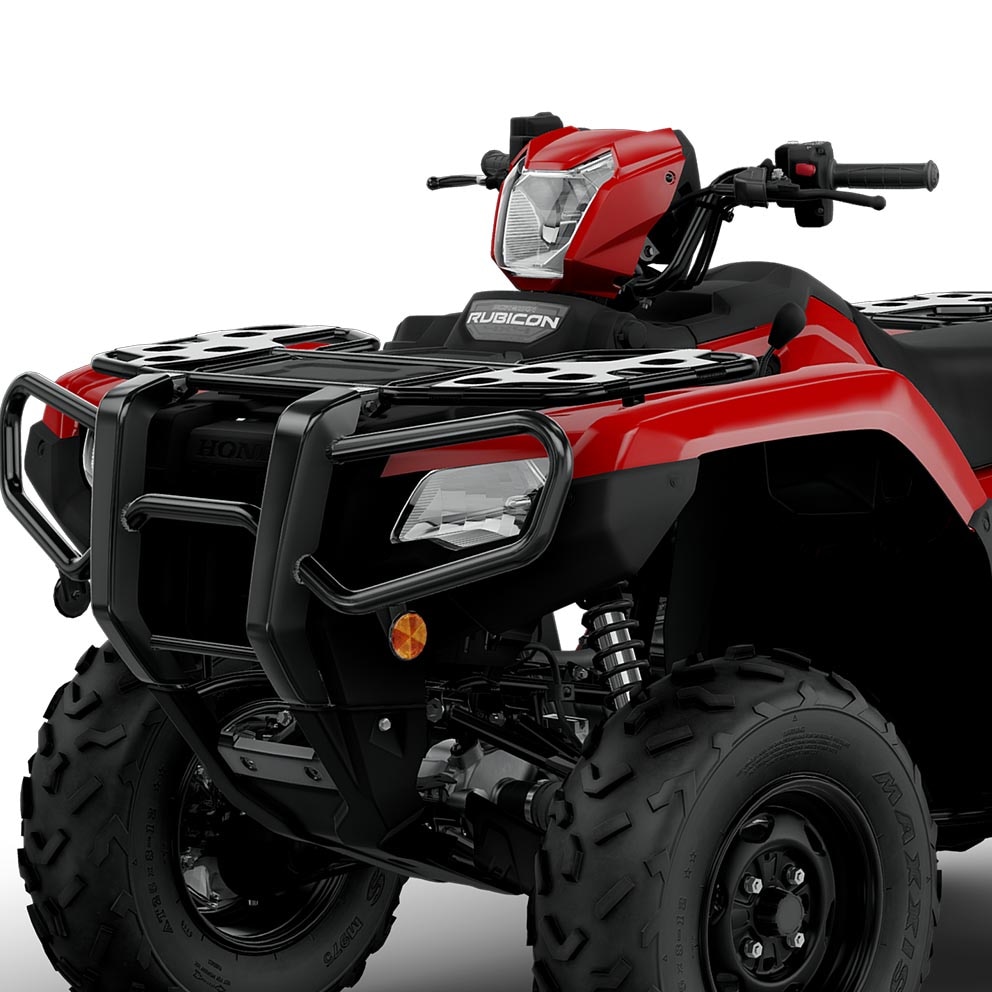

Rack capacity

This ATV has sporty, strong steel racks: The front rack can hold 99 pounds, and the rear rack can hold a whopping 187 pounds. Multiple tie-down points also make it easier than ever to secure your loads.
