FourTrax Foreman Rubicon 4x4 Automatic DCT EPS

1 / 1

Hero Red

Engine Type

518cc longitudinally mounted liquid-cooled single-cylinder four-stroke

Transmission

Five-speed automatic Dual-Clutch Transmission with reverse

Front Suspension

Independent double-wishbone; 7.3-inch travel

Rear Suspension

Independent dual-arm; 8.5-inch travel

Seat Height

36.3 inches

Warranty

Transferable, limited warranty. One year included.

Extended Warranty

Engine

Engine Type	518cc longitudinally mounted liquid-cooled single-cylinder four-stroke
Bore And Stroke	96.0mm x 71.5mm
Compression Ratio	9.5:1
Valve Train	OHV; two valves per cylinder
Induction	Programmed Fuel Injection (PGM-FI); 36mm throttle body
Starter	Electric with optional auxiliary recoil

Drive Train

Clutch	Automatic
Transmission	Five-speed automatic Dual-Clutch Transmission with reverse
Driveline	Direct front and rear driveshafts with TraxLok® and locking front differential
Drive System	4WD

Chassis Suspension Brakes

Front Suspension	Independent double-wishbone; 7.3-inch travel
Rear Suspension	Independent dual-arm; 8.5-inch travel
Front Brakes	Dual 190mm discs
Rear Brake	170mm disc
Front Tires	25 x 8-12
Rear Tires	25 x 10-12

Dimensions

Length	86.0 inches
Width	47.4 inches
Height	48.7 inches
Wheelbase	50.9 inches
Seat Height	36.3 inches
Ground Clearance	9.7 inches
Turning Radius	11.5 feet
Curb Weight	725 pounds (includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity	3.9 gallons, including 1.3-gallon reserve
Towing Capacity	1322 pounds
Front Rack Capacity	99 pounds
Rear Rack Capacity	187 pounds

Other

Model ID	TRX520FA6
Emissions	Meets current EPA and CARB (California) off-road emissions standards.
Available Colors	Hero Red, TrueTimber® Atera Camo
Important Safety Information	Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

Factory Warranty Information

One Year Included	Transferable, limited warranty
Optional Extended	Extended coverage available with a HondaCare®  Protection Plan

Download Specs

Premium performance, precision handling

Prior Model Year Shown

Power meets luxury

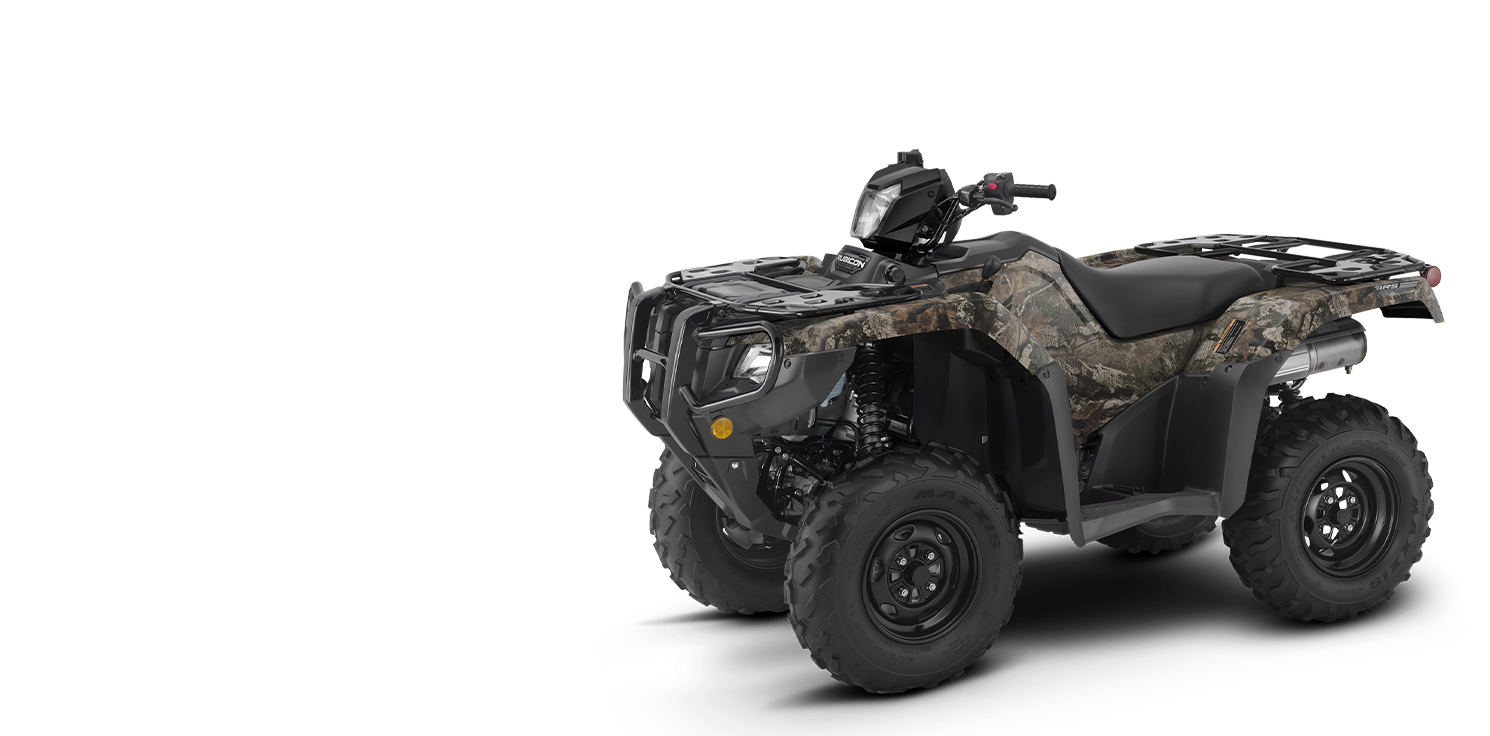

Powerful 518cc engine

Experience unwavering performance with the robust 518cc engine, delivering the power needed on the trails and the job.

Power meets luxury

Easy to use reverse

Available exclusively on our automatic DCT models, this user-friendly single lever is exceptionally handy for seamless forward-to-reverse transitions—perfect for tasks like snow plowing that demand repetitive shifts.

Power meets luxury

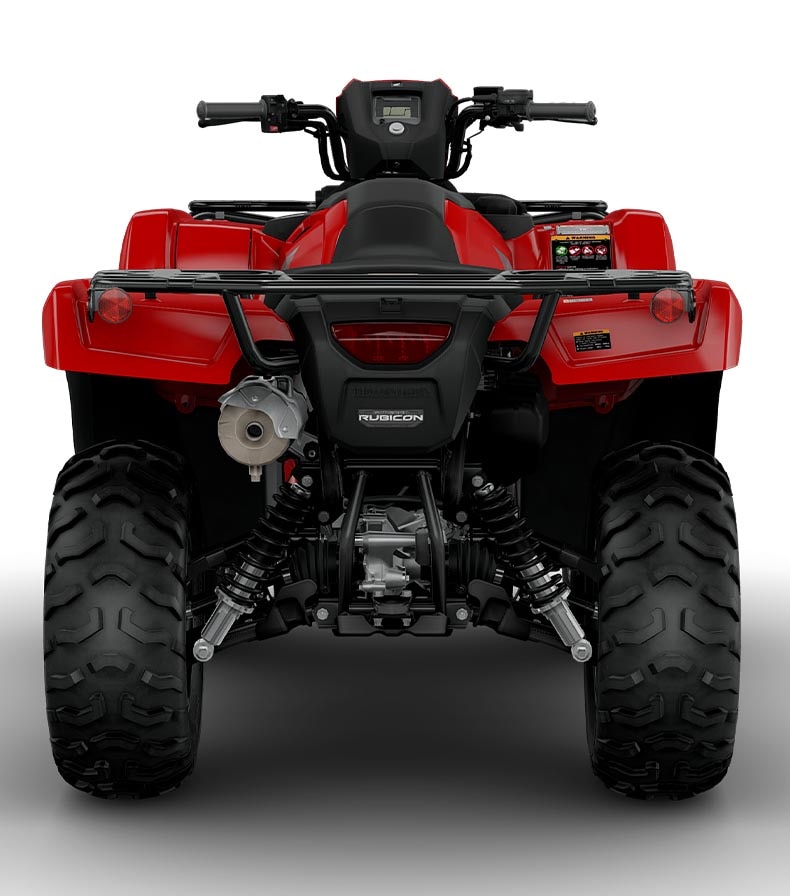

Independent rear suspension

Independent rear suspension gives superior traction via consistent tire contact and a smoother ride over rough terrain, saving you from unnecessary trail beatings.

Power meets luxury

TraxLok®

Experience the ultimate in traction optimization with our TraxLok® system. Three modes, 2WD, 4WD, and 4WD, with locking front differential and Speed Override, enable increased speed in extreme conditions like mud or snow.

Automatic ease, rugged strength

View all Features

Prior Model Year Shown

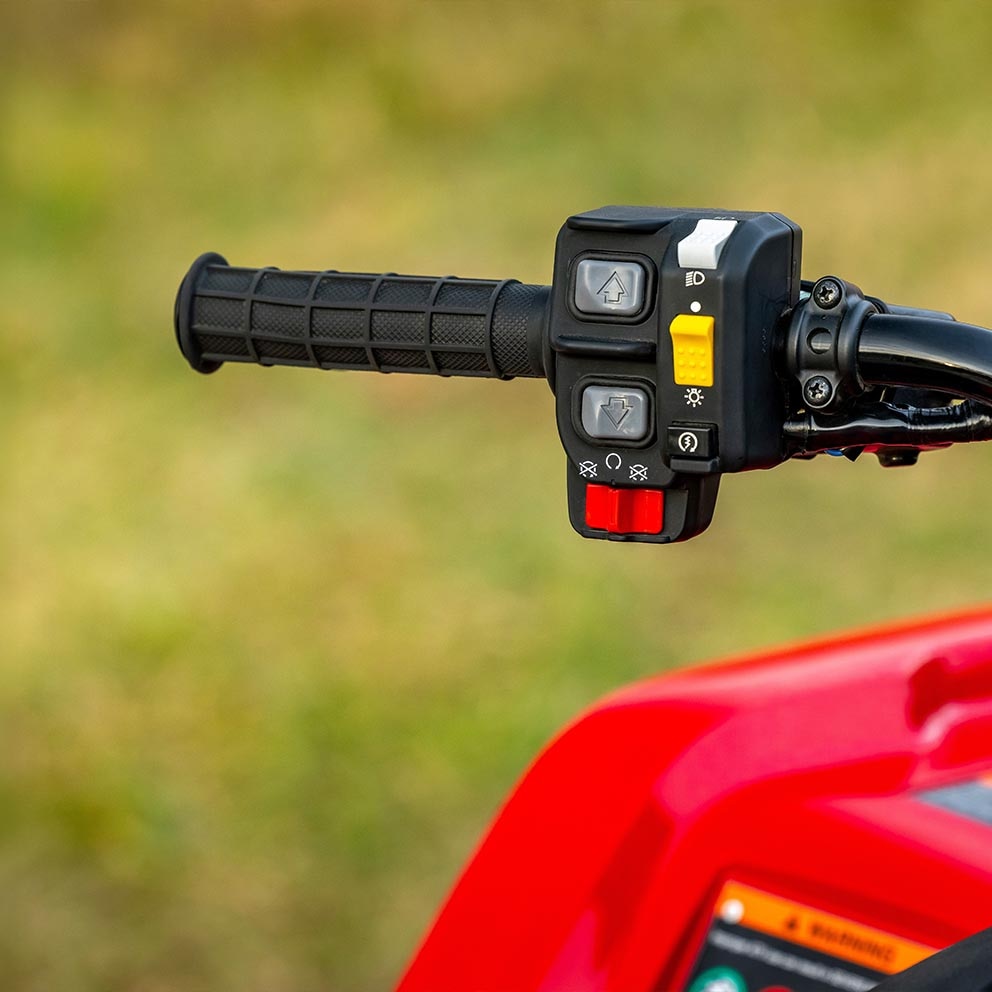

Automatic DCT available

Our automatic Dual-Clutch Transmission (DCT) excels with strong internals, smooth shift mapping, terrain braking, automatic upshifting, low-range subtransmission (Honda exclusive in IRS), and manual-style foot-shift options.

Prior Model Year Shown

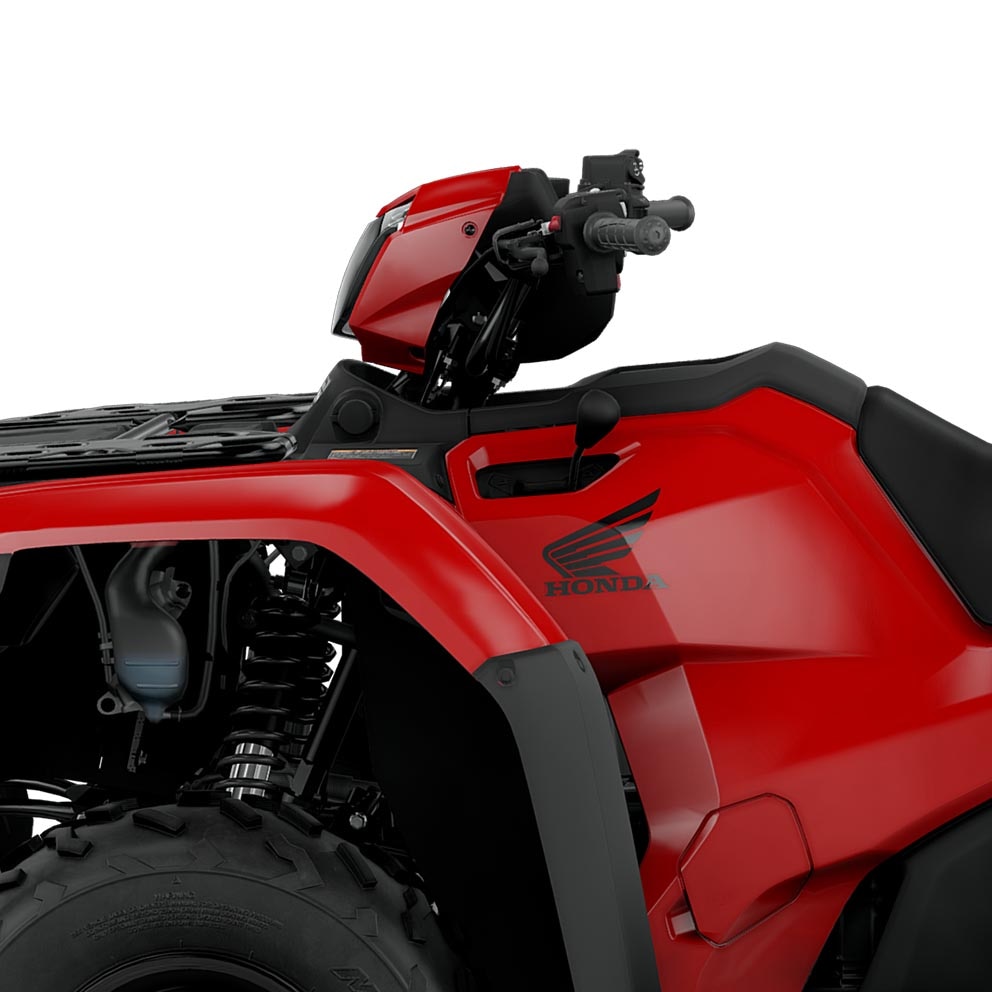

Dual-range drive/low shifter

The DCT models feature a drive/low range in their gearbox, so you can choose the perfect gear for crawling over technical terrain, pulling heavy loads, or cruising on smoother trails.

Prior Model Year Shown

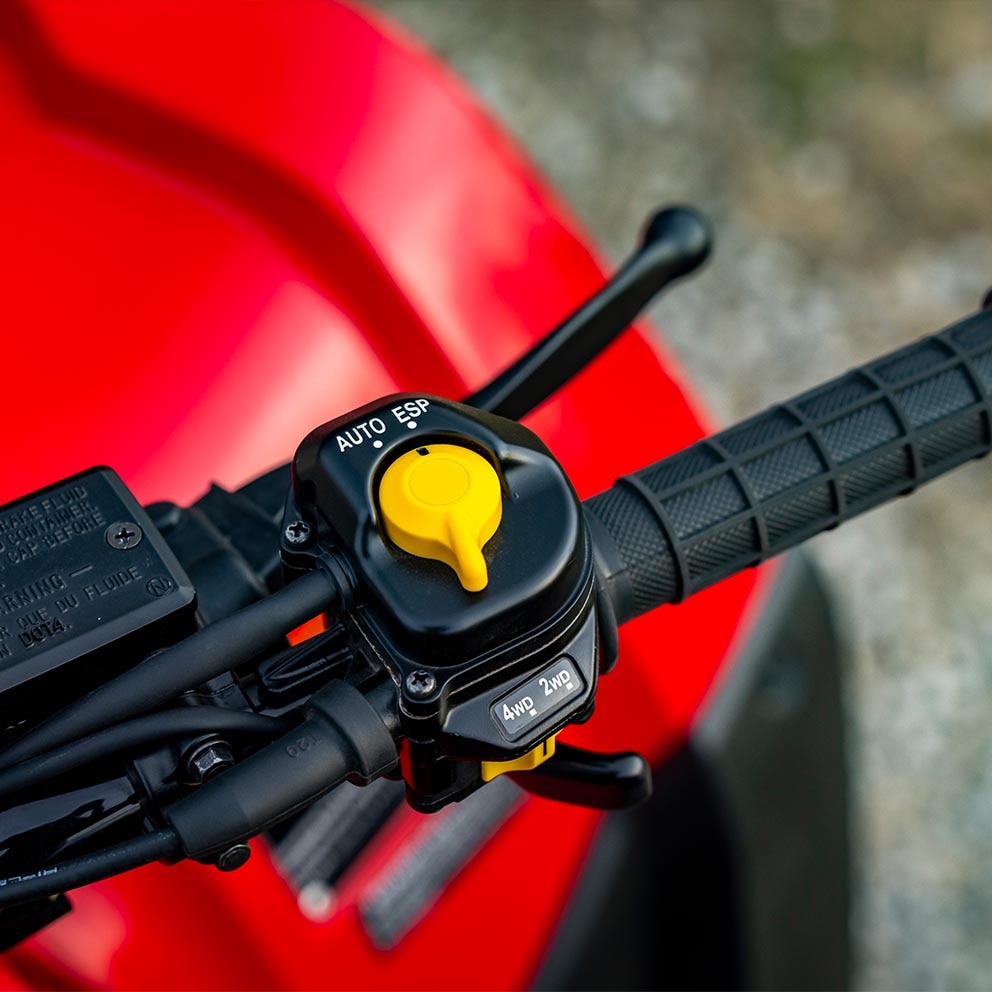

Electric Power Steering (EPS)

Our Electric Power Steering (EPS) is both speed—and torque-sensitive and excels at reducing steering effort and kickback through the handlebar. This is a big help when riding in rugged terrain like ruts, rocks, and other challenging environments.

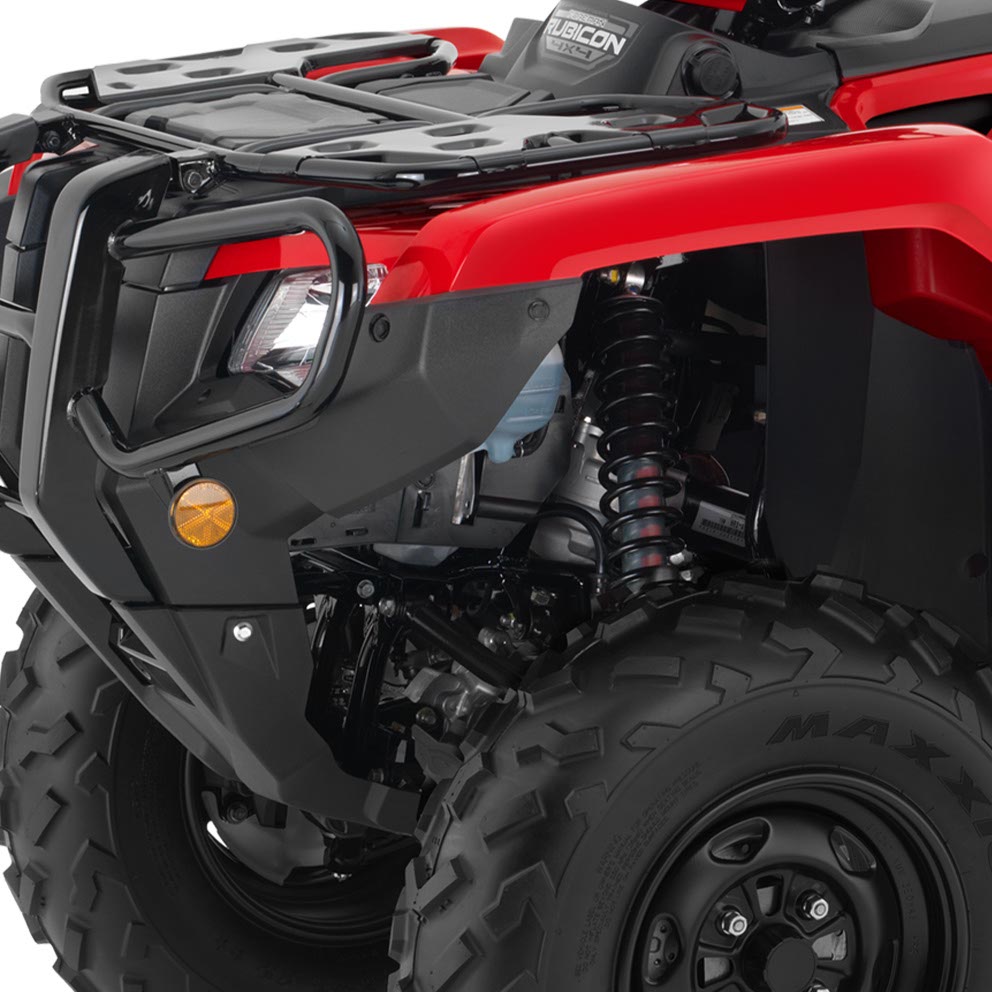

Longitudinal engine layout

By orienting the crankshaft front to back in the chassis, we route the power flow straight to the wheels without any unnecessary right-angle detours, reducing powertrain friction and putting more grunt to the ground.

Prior Model Year Shown

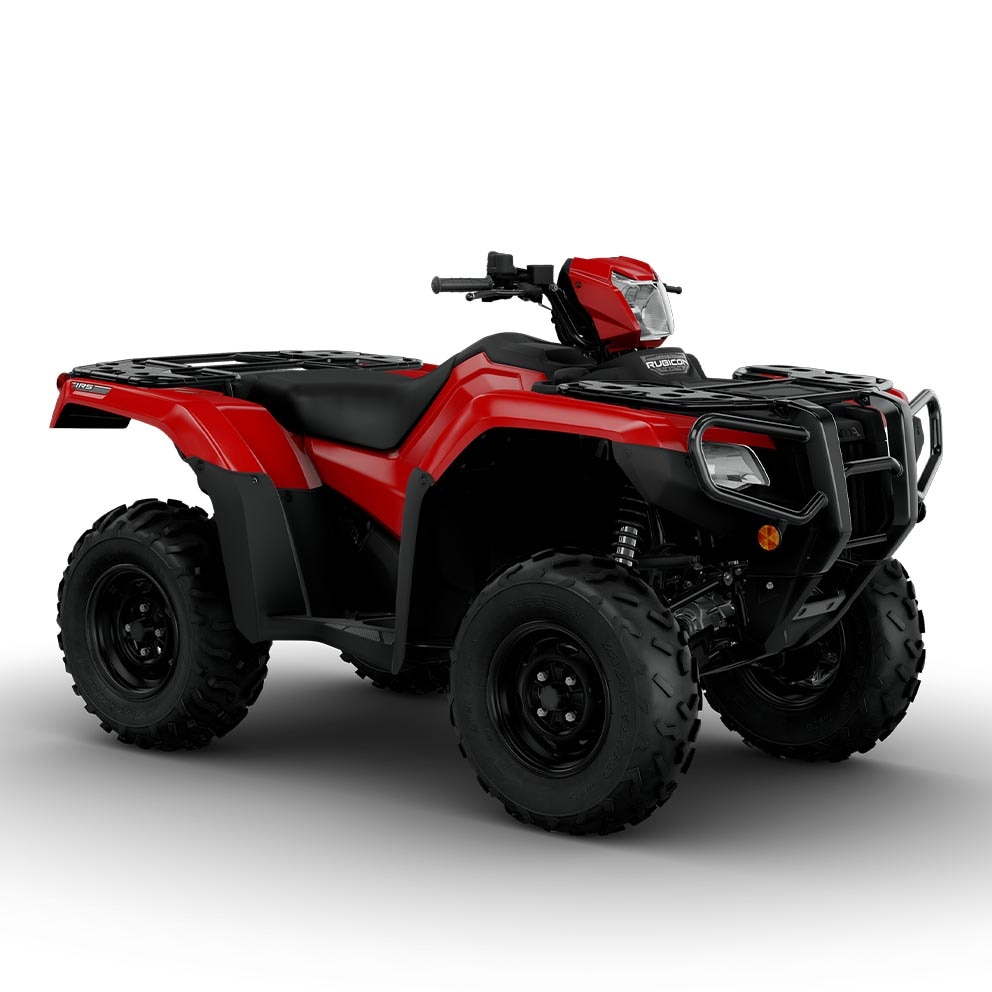

Alternator output

Thanks to the stator design, the powerful alternator produces sufficient electricity to run more Honda Accessories.

Prior Model Year Shown

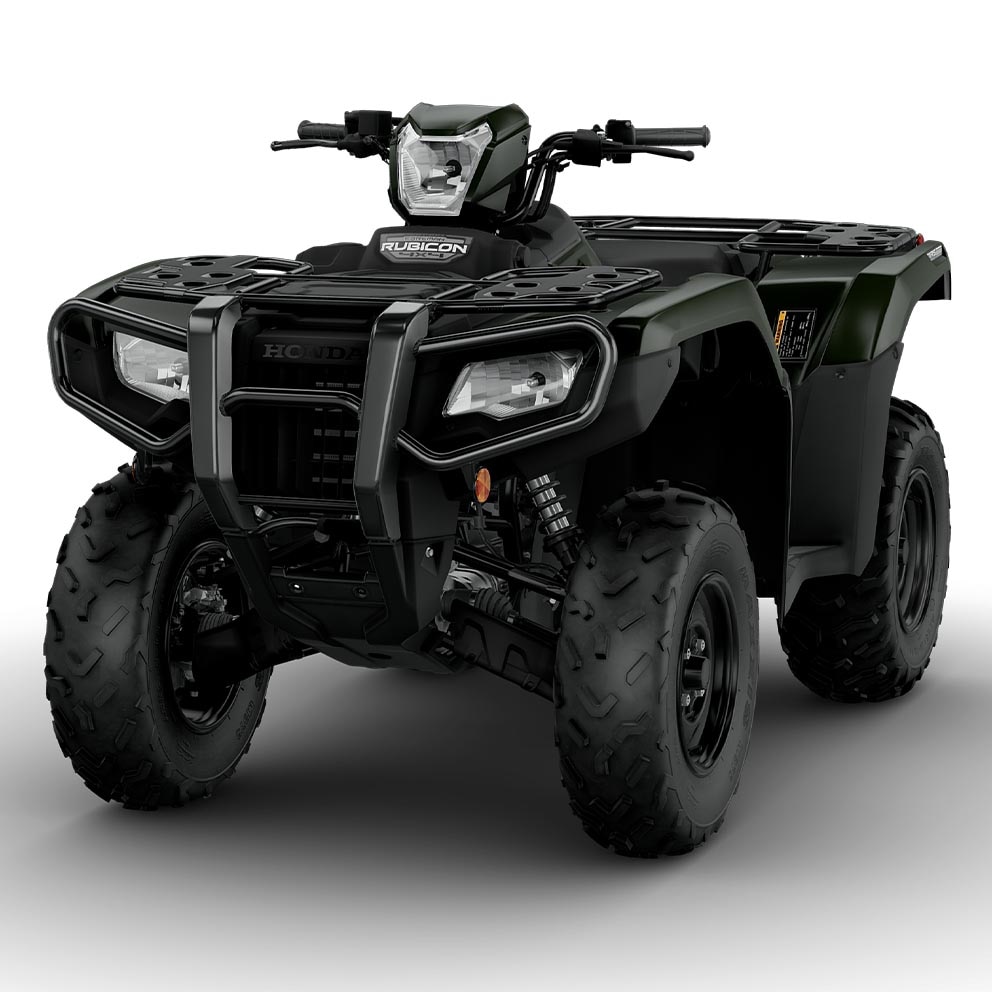

Honda quality

In addition to all the features on a spec chart, this ATV offers something nobody else can match: our well-deserved reputation for quality, superior engineering, and long-term reliability. It’s part of everything we do.

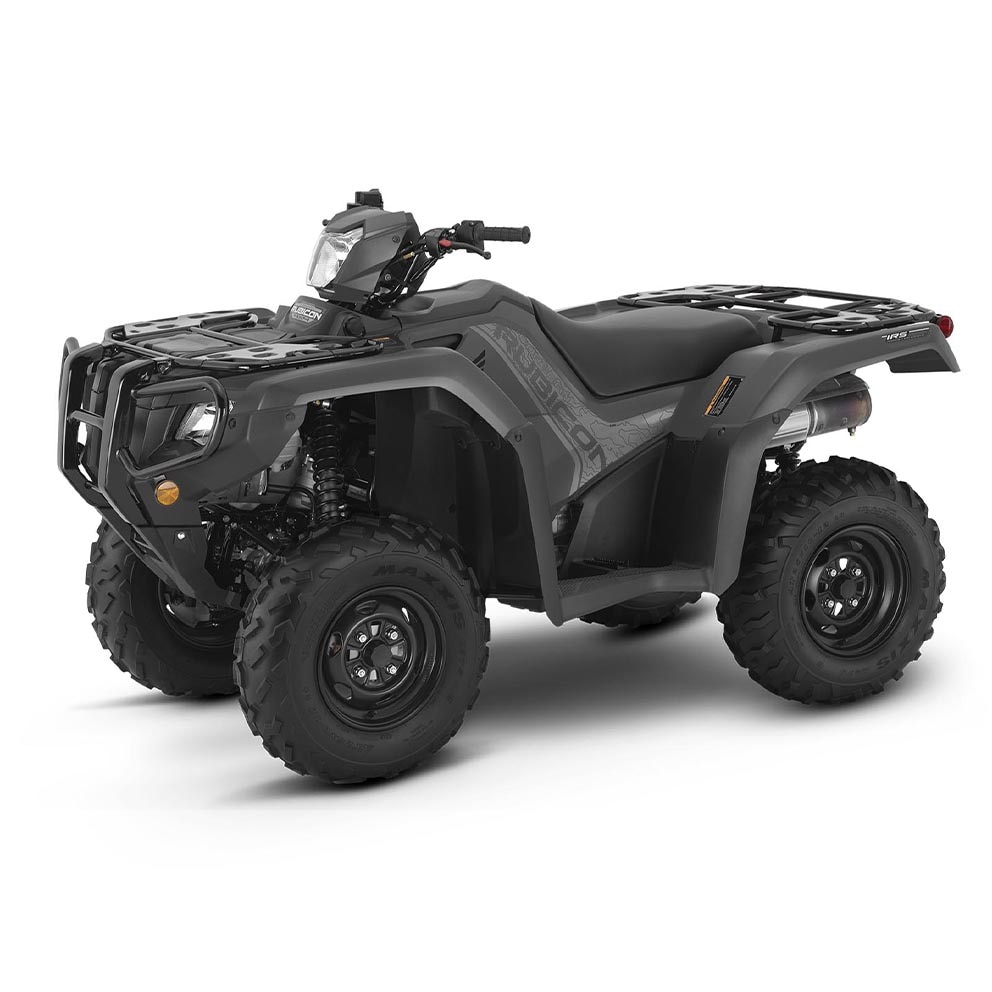

Styling

The bodywork still gives these ATVs a tough look designed to last, shrugging off the scrapes and dings of the job or the woods. Crisp lines, powerful graphics, and great color choices ensure this ATV makes a bold statement.

Prior Model Year Shown

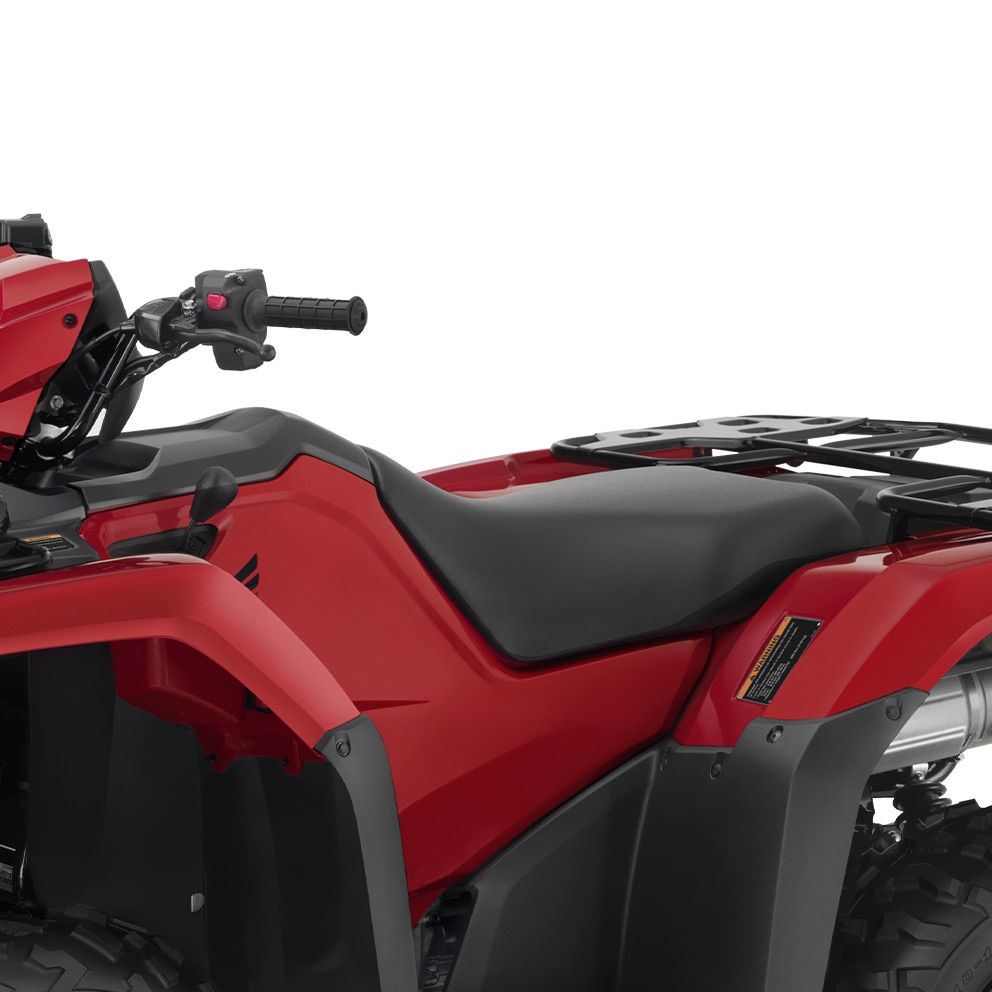

Ultra comfortable seat

For all-day ride comfort, the seat features thick foam and a seat cover with a grippier texture. It’s one of the best seats we’ve ever engineered for an ATV.

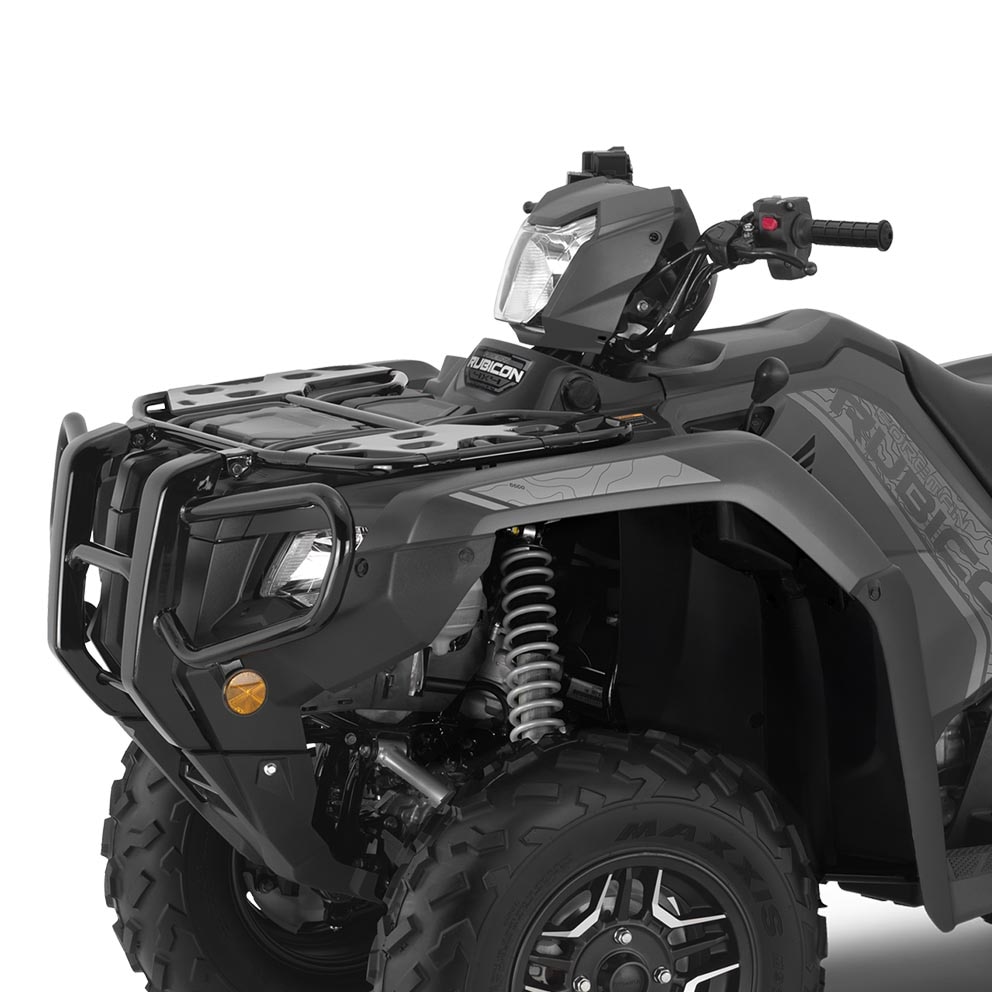

Front/rear cargo racks

Unlock limitless versatility with our rugged steel racks. They're designed for easy attachment and removal of Honda Pro-Connect cargo boxes and accessories, adding functionality.
