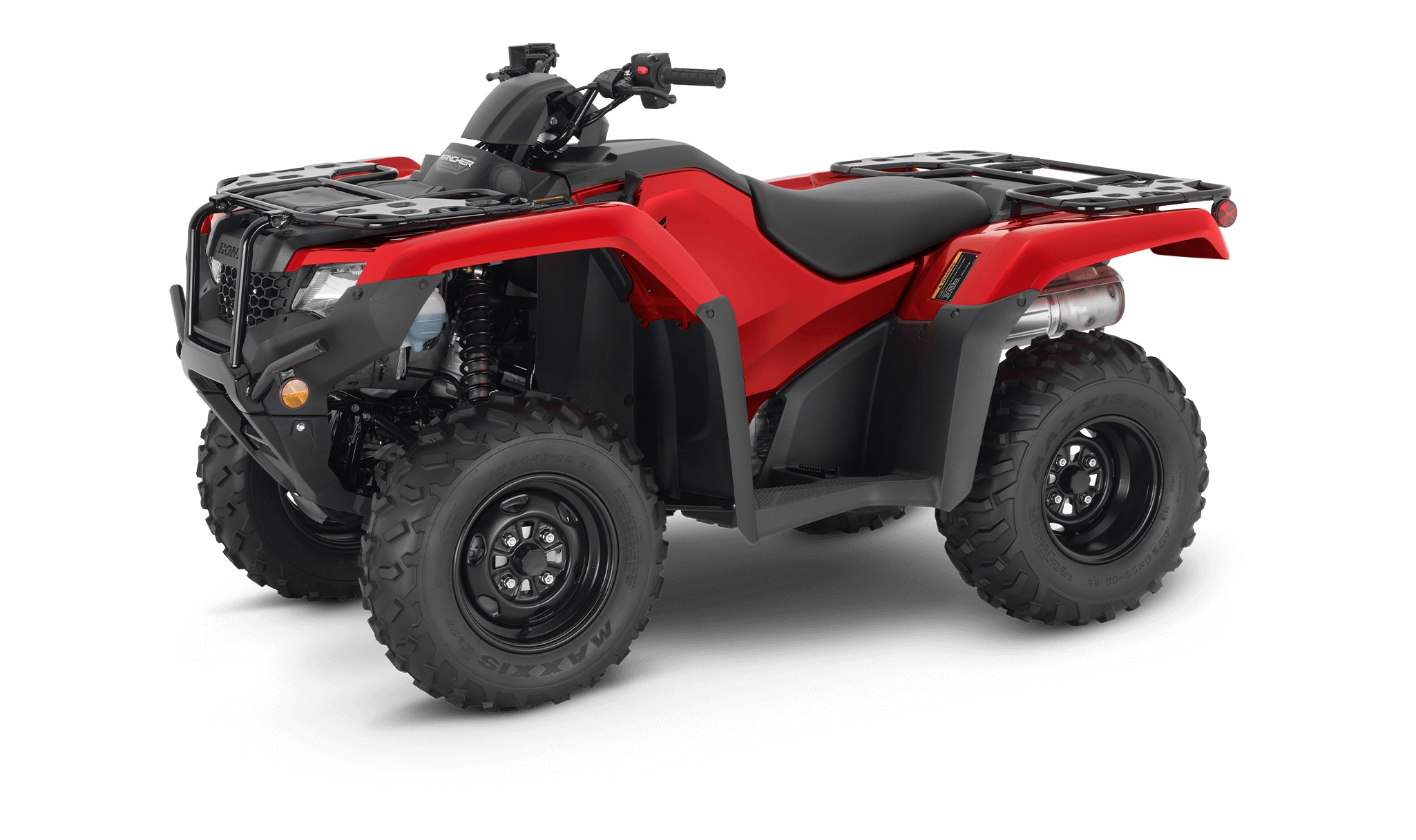

FourTrax Rancher 4x4 Automatic DCT EPS
FourTrax Rancher 4x4 Automatic DCT EPS
Hero Red
Engine Type

420cc longitudinally mounted liquid-cooled single-cylinder four-stroke

Transmission

Five-speed automatic Dual-Clutch Transmission (DCT) with reverse

Front Suspension

Independent double-wishbone; 6.7-inch travel

Rear Suspension

Swingarm with single shock; 6.7-inch travel

Seat Height

33.6 inches

Warranty

Transferable, limited warranty. One year included.

Engine

Engine Type 420cc longitudinally mounted liquid-cooled single-cylinder four-stroke
Bore And Stroke 86.5mm x 71.5mm
Compression Ratio 9.9:1
Valve Train OHV; two valves per cylinder
Induction Programmed Fuel Injection (PGM-FI); 34mm throttle body
Starter Electric with optional auxiliary recoil

Drive Train

Clutch Automatic
Transmission Five-speed automatic Dual-Clutch Transmission (DCT) with reverse
Driveline Direct front and rear driveshafts with TraxLok® and torque-sensitive front differential

Chassis Suspension Brakes

Front Suspension Independent double-wishbone; 6.7-inch travel
Rear Suspension Swingarm with single shock; 6.7-inch travel
Front Brakes Dual 190mm discs
Rear Brake 160mm sealed mechanical drum
Front Tires 24 x 8-12
Rear Tires 24 x 10-11

Dimensions

Length 82.8 inches
Width 47.4 inches
Height 46.2 inches
Wheelbase 50.0 inches
Seat Height 33.6 inches
Ground Clearance 7.1 inches
Curb Weight 642 pounds (includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity 3.9 gallons, including 1.3-gallon reserve
Turning Radius 9.2 feet
Front Rack Capacity 66 pounds
Rear Rack Capacity 133 pounds

Other

Model ID TRX420FA2
Emissions Meets current EPA and CARB (California) off-road emissions standards.

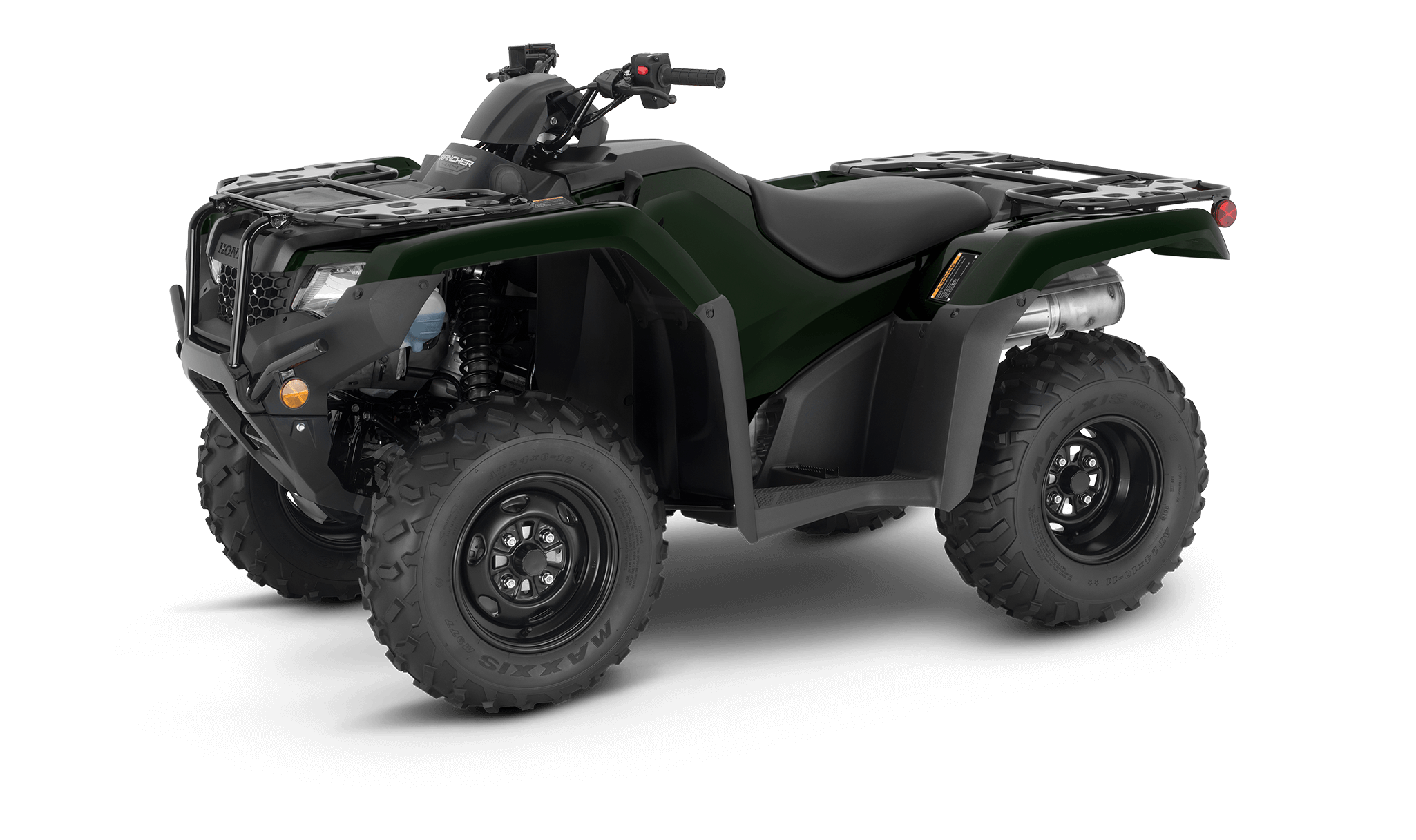

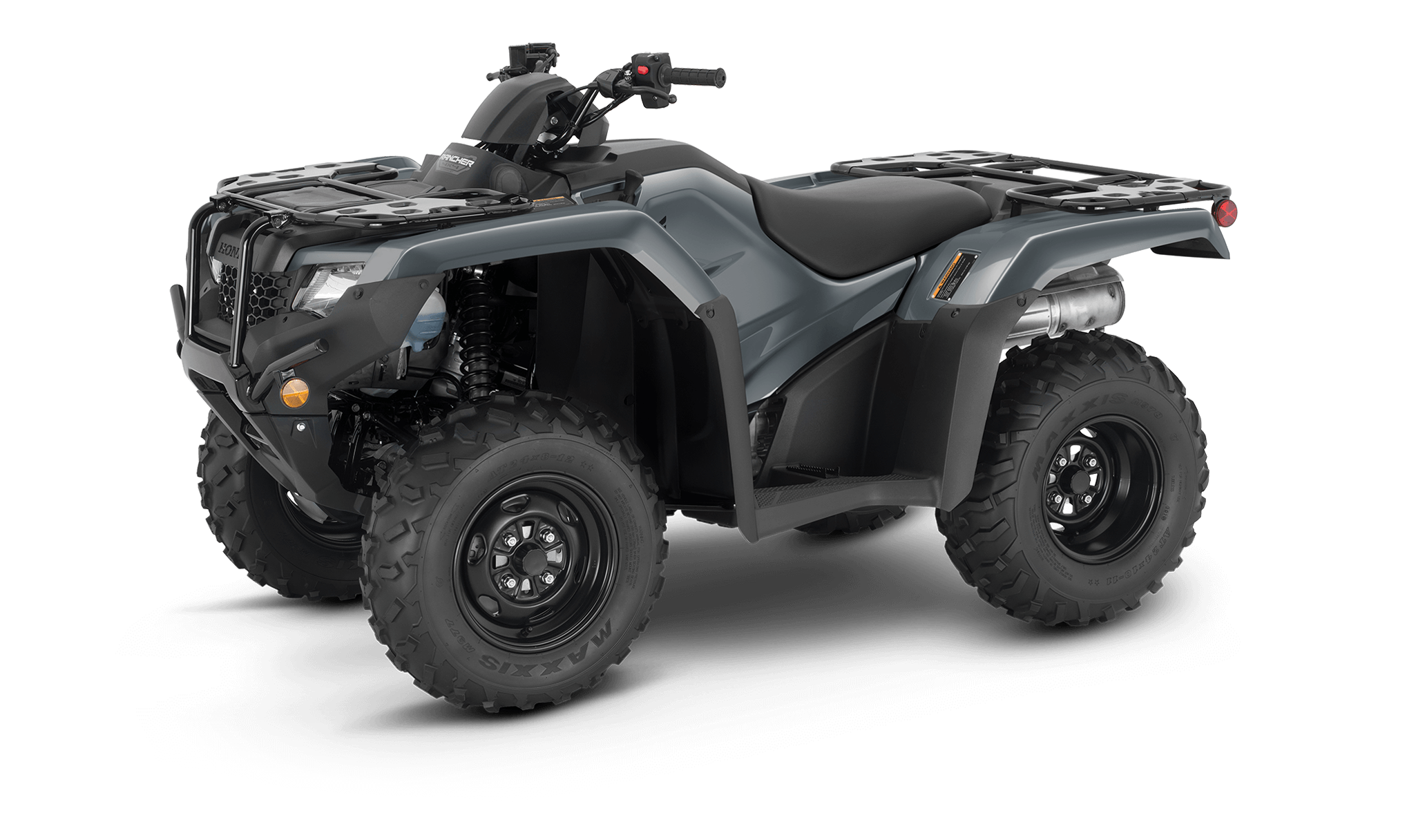

Available Colors Hero Red, Black Forest Green, Slate Gray
Important Safety Information Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

Factory Warranty Information

Duration One-year transferable limited warranty
Optional Extended Extended coverage available with a HondaCare® Protection Plan

Built to perform

Accessorized Model Shown

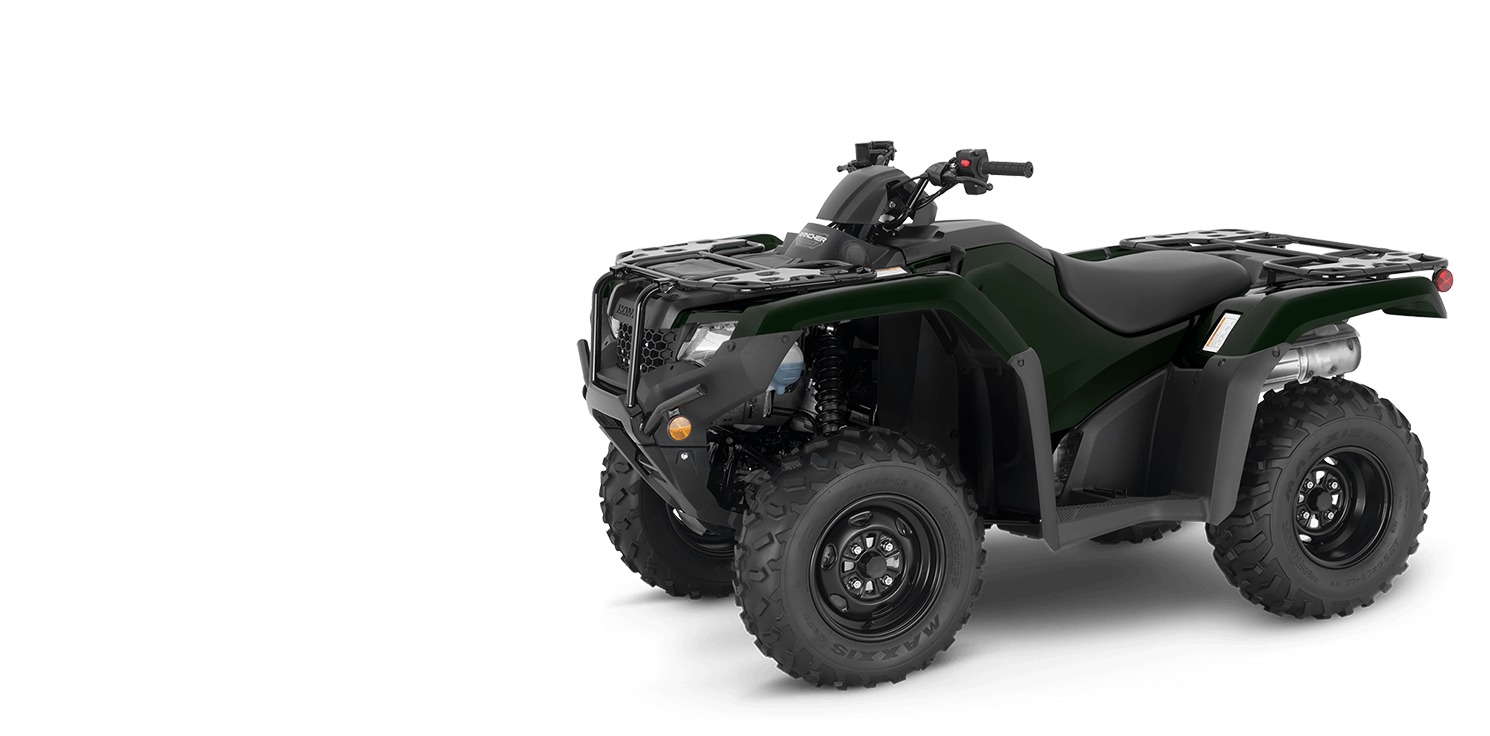

2026-fourtrax-rancher-4x4-automatic-dct-eps-black_forest_green-1490x736

Advanced engineering

Programmed fuel injection

With a 34mm throttle body, 12-hole injector, and an oxygen sensor, the Programmed Fuel Injection (PGM-FI) promptly adjusts fuel mapping to ensure smooth operation, lower emissions, and enhanced fuel efficiency.

2026-FourTrax-Rancher-Dash-indicators
Advanced engineering

Dashboard indicator lights

This ATV features various indicators to keep you updated on important information while you ride, including lights for neutral, reverse, engine temperature, and fuel.

2026-FourTrax-Rancher-Shaft-drive
Advanced engineering

Shaft drive

The shaft drive is clean, low-maintenance, and efficient, making it the perfect choice for high-mileage riders. It eliminates the need for lubrication or adjustment while on the trail.

2026-FourTrax-Rancher-TraxLok
Accessorized Model Shown
Advanced engineering

TraxLok®

Available on the 4x4 trims, unlock superior traction optimization with our TraxLok® system, which offers three modes: 2WD, 4WD, and 4WD with a locking front differential and Speed Override. This system is designed to enhance speed in challenging conditions such as mud and snow.

Ultimate control

Automatic DCT
Accessorized Model Shown

Automatic DCT

Our Dual-Clutch Transmission, available on the Automatic DCT trims, offers robust internals, rapid shifts, and excellent control. The system automatically upshifts and downshifts for you, allowing you to focus on the ride.

Electric Power Steering (EPS)

Electric Power Steering (EPS)

Available on both EPS models, our Electric Power Steering (EPS) is both speed- and torque-sensitive, reducing steering effort and kickback through the handlebar. This is a big help when riding through rugged terrain like ruts, rocks, and other challenging environments.

Easy to use reverse

Easy to use reverse

Available on the Automatic DCT models, this user-friendly single lever is exceptionally handy for seamless forward-to-reverse transitions—perfect for tasks like snow plowing that require repetitive actions.

Semi-dry-sump engine design
Accessorized Model Shown

Semi-dry-sump engine design

The overhead-valve, semi-dry-sump design creates a compact and lightweight engine that improves handling by lowering the center of gravity and increasing ground clearance.

Swingarm rear suspension

Swingarm rear suspension

Select models feature a rear swingarm-style suspension with a solid axle, providing superior capabilities for towing and hauling. Its long suspension stroke and plush seat allow you to tackle your favorite trail or the toughest chores in comfort all day long.

In-tank fuel pump

In-tank fuel pump

An in-tank design helps maintain a cool operating temperature, which extends the lifespan of the fuel pump.

Wide front driveshaft guards

Wide front driveshaft guards

The driveshaft guards provide additional coverage for the front axles and outboard CV joints, illustrating another example of how Honda engineers focus on even the smallest details to create one of the best ATVs available.

Honda quality

Honda quality

Along with all the features listed in the spec chart, this ATV provides something unmatched: our well-earned reputation for quality, exceptional engineering, and long-term reliability. It’s integral to everything we do.

Make it yours
Accessorized Model Shown

Make it yours

We provide more than 20 genuine Honda accessories to customize your new Rancher. These include upgrades for protection, comfort, and convenience. Additionally, we offer several items from our Honda Pro-Connect™ line of cargo accessories, which can be easily attached or detached without the need for tools.

Comfortable seat

Comfortable seat

A plush seat with thick, soft foam and an open rider triangle creates a supremely comfortable machine.
