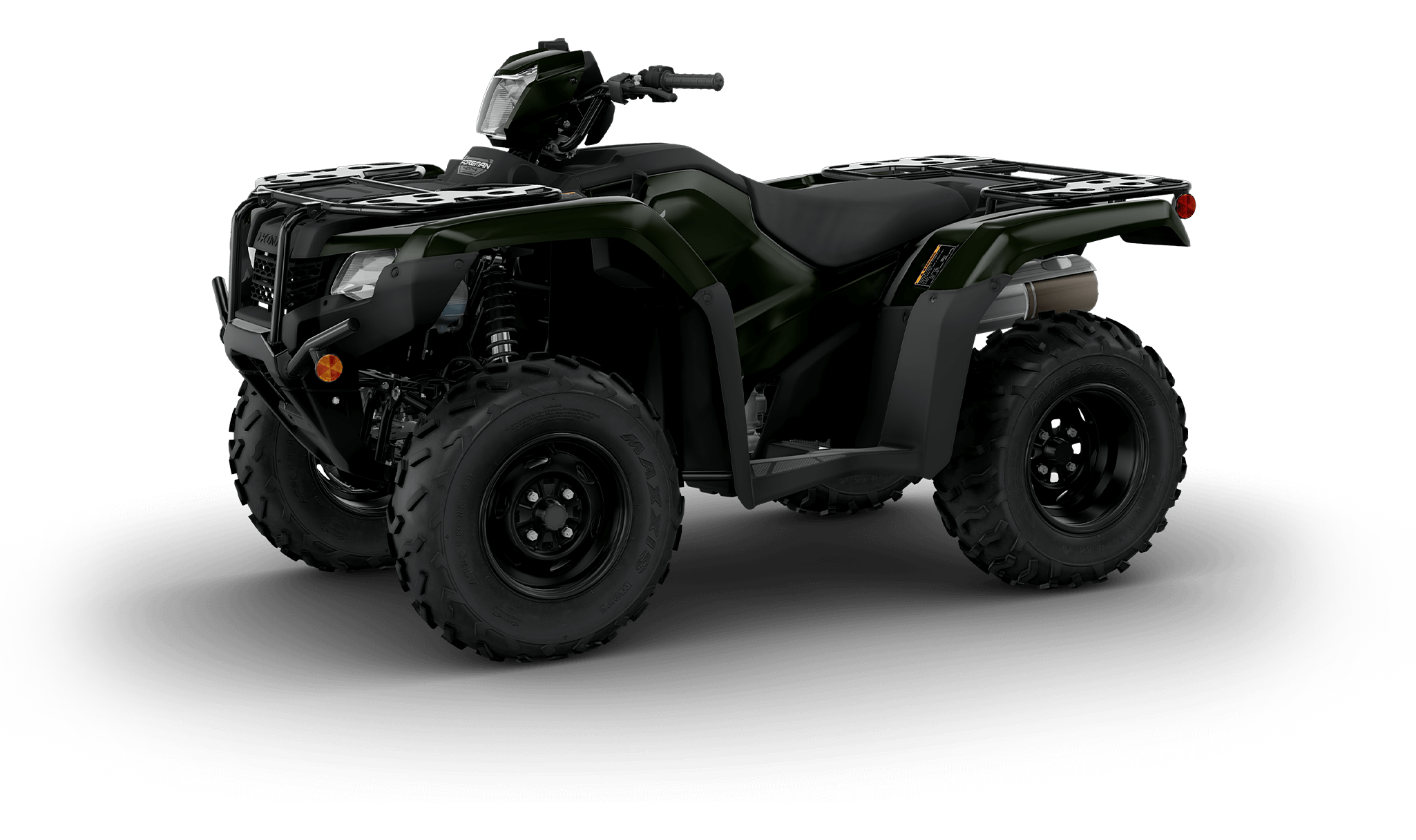

Black Forest Green

View Search Inventory

Build Your Own View Search Inventory

Engine Type

518cc longitudinally mounted liquid-cooled single-cylinder four-stroke

Transmission

Five-speed with reverse

Front Suspension

Independent double-wishbone; 7.3-inch travel

Rear Suspension

Swingarm with single shock; 7.3-inch travel

Seat Height

34.5 inches

Warranty

Transferable, limited warranty. One year included.

Extended Warranty

Engine

Engine Type	518cc longitudinally mounted liquid-cooled single-cylinder four-stroke
Bore And Stroke	96.0mm x 71.5mm
Compression Ratio	9.5:1
Valve Train	OHV; two valves per cylinder
Induction	Programmed Fuel Injection (PGM-FI); 36mm throttle body
Starter	Electric with optional auxiliary recoil

Drive Train

Clutch	Automatic
Transmission	Five-speed with reverse
Driveline	Direct front and rear driveshafts with TraxLok® and front differential lock

Chassis Suspension Brakes

Front Suspension	Independent double-wishbone; 7.3-inch travel
Rear Suspension	Swingarm with single shock; 7.3-inch travel
Front Brakes	Dual 190mm discs
Rear Brakes	160mm sealed mechanical drum
Front Tires	25 x 8-12
Rear Tires	25 x 10-12

Dimensions

Length	82.9 inches
Width	47.4 inches
Height	47.8 inches
Wheelbase	50.0 inches
Seat Height	34.5 inches
Ground Clearance	7.5 inches
Curb Weight	648 pounds (includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity	3.9 gallons, including 1.3-gallon reserve
Turning Radius	10.5 feet
Towing Capacity	848 pounds
Front Rack Capacity	88 pounds
Rear Rack Capacity	176 pounds

Other

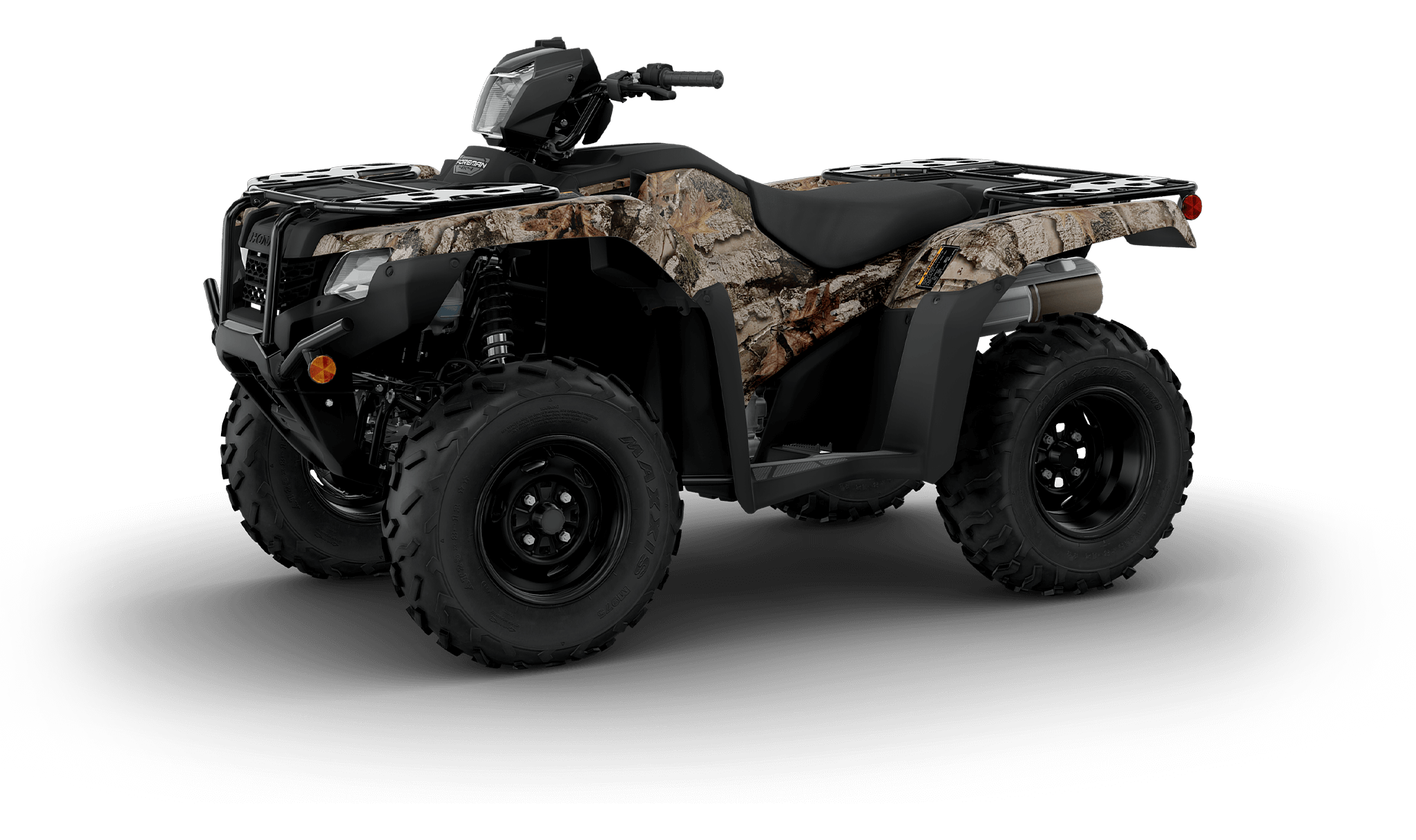

Available Colors	Hero Red, Black Forest Green, TrueTimber® Atera Camo
Model ID	TRX520FM2
Emissions	Meets current EPA CARB (California) off-road emissions standards.
Important Safety Information	Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

Factory Warranty Information

One Year Included	Transferable, limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

Easy steering, rugged performance

Enhanced comfort, superior strength

Powerful 518cc engine

Experience unwavering performance with the robust 518cc engine, delivering the power needed on the trails and the job.

Enhanced comfort, superior strength

TraxLok®

Experience the ultimate in traction optimization with our TraxLok^® system. Three modes, 2WD, 4WD, and 4WD, with locking front differential and Speed Override, enable increased speed in extreme conditions like mud or snow.

Enhanced comfort, superior strength

Swingarm suspension

The rear swingarm, with its solid axle, provides superior capability for towing and hauling. Its long suspension stroke and plush seat let you tackle your favorite trail or the toughest chores in comfort all day.

Enhanced comfort, superior strength

Front/rear cargo racks

Unlock limitless versatility with our rugged steel racks. They're designed for easy attachment and removal of Honda Pro-Connect cargo boxes and accessories, giving you added functionality.

Reliable, responsive, rugged

View all Features

Electric Power Steering (EPS)

Available on the EPS model, our Electric Power Steering (EPS) is both speed—and torque-sensitive and excels at reducing steering effort and kickback through the handlebar. This is a big help when riding in rugged terrain like ruts, rocks, and other challenging environments.

Electric reverse

Available exclusively on the EPS model, this user-friendly single lever is exceptionally handy for seamless forward-to-reverse transitions—perfect for tasks like snow plowing that demand repetitive shifts.

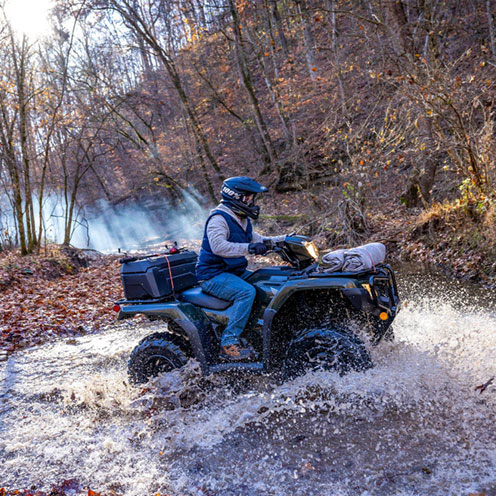

Semi-dry-sump engine design

The overhead-valve, semi-dry-sump design creates a compact and lightweight engine that improves handling by lowering the center of gravity and increasing ground clearance.

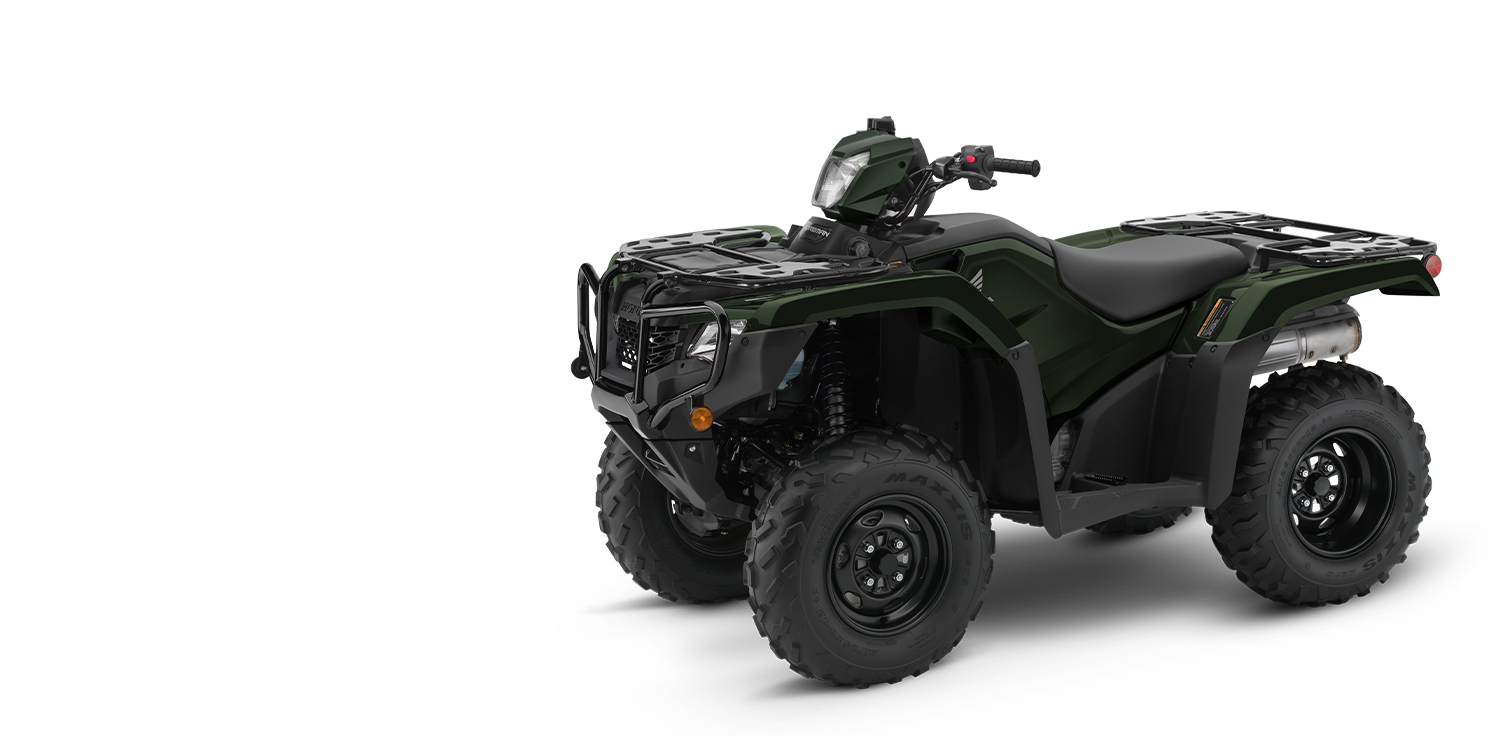

Fuel injection

The ATV's oxygen sensor and Electronic Control Unit (ECU) instantly adjust the fuel injection mapping to match the riding conditions, delivering better fuel efficiency and lower emissions. This means more time on the trail and more money saved.

Liquid cooling

Our time-tested Honda engine is liquid-cooled to provide more consistent operating temperatures and more power than a comparable air-cooled engine. This adds up to better performance and longer engine life.

Electronic differential lock

When driving in 4WD mode and you require power delivery to both front wheels, simply flip the switch on the electronic differential lock to optimize available traction. The vehicle display will indicate when the differential lock is fully engaged.

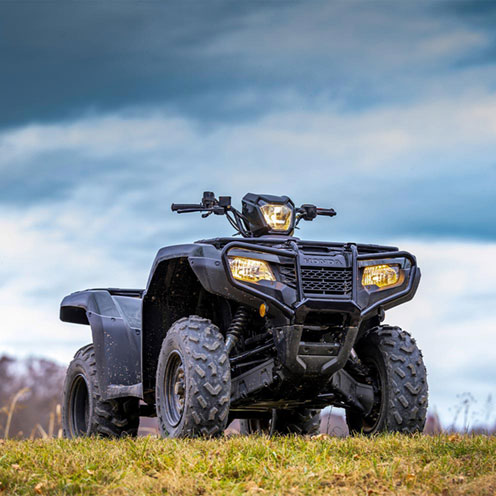

Wide front driveshaft guards

The driveshaft guards, designed to add even more coverage to the front axles and outboard CV joints, are another example of how Honda engineers sweat the small details to give you one of the best ATVs on the planet.

Styling

These ATVs have tough bodywork designed to last and withstand scrapes and dings. The design features crisp lines, powerful graphics, and great color choices that make a bold statement.

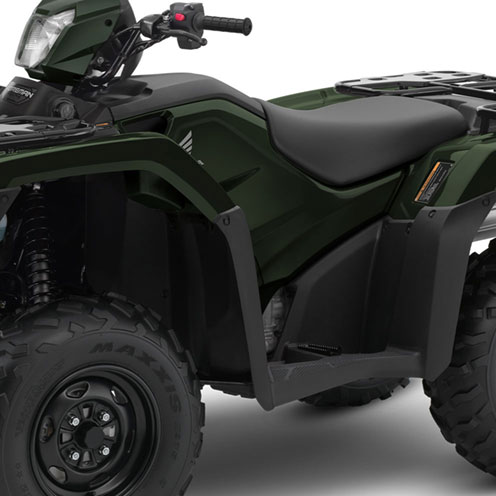

Easy service access

The aggressive body styling is also functional. The tank and side covers come off in one piece without tools, providing quick and easy access to the engine.
