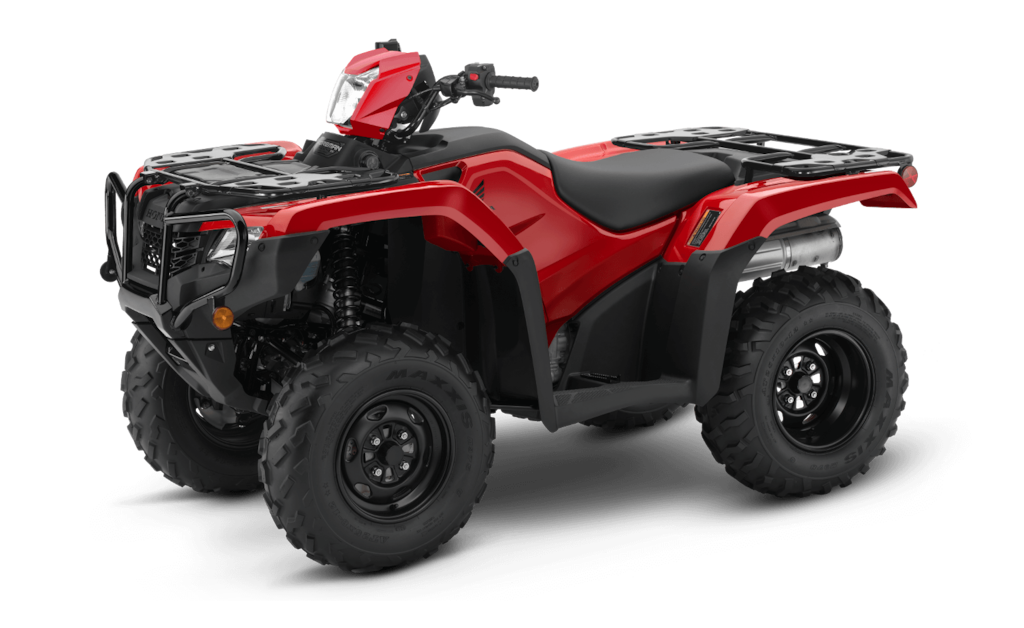

2026 FourTrax Foreman 4x4 EPS
518cc liquid-cooled longitudinally mounted single-cylinder four-stroke
Five-speed with reverse
Independent double-wishbone; 7.3-inch travel
Swingarm with single shock; 7.3-inch travel
34.5 inches
Transferable, limited warranty. One year included.
Engine
| Engine Type | 518cc liquid-cooled longitudinally mounted single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 96.0mm x 71.5mm |
| Compression Ratio | 9.5:1 |
| Valve Train | OHV; two valves per cylinder |
| Induction | Programmed Fuel Injection system (PGM-FI); 36mm throttle body |
| Starter | Electric with optional auxiliary recoil |
Drivetrain
| Transmission | Five-speed with reverse |
|---|---|
| Driveline | Direct front and rear driveshafts with torque-sensitive locking front differential |
Chassis Suspension Brakes
| Front Suspension | Independent double-wishbone; 7.3-inch travel |
|---|---|
| Rear Suspension | Swingarm with single shock; 7.3-inch travel |
| Front Brakes | Dual 190mm discs |
| Rear Brake | 160mm drum |
| Front Tires | 25 x 8-12 |
| Rear Tires | 25 x 10-12 |
Dimensions
| Length | 82.9 inches |
|---|---|
| Width | 47.4 inches |
| Height | 47.8 inches |
| Wheelbase | 50.0 inches |
| Seat Height | 34.5 inches |
| Ground Clearance | 7.5 inches |
| Curb Weight | 648 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 3.9 gallons, including 1.3-gallon reserve |
| Turning Radius | 10.5 feet |
| Towing Capacity | 848.0 pounds |
| Front Rack Capacity | 88.0 pounds |
| Rear Rack Capacity | 176.0 pounds |
Other
| Available Colors | Hero Red, Black Forest Green, TrueTimber® Atera Camo |
|---|---|
| Model ID | TRX520FM2 |
| Emissions | Meets current EPA and CARB (California) off-road emissions standards. |
| Important Safety Information | Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly. |
Factory Warranty Information
| Duration | Transferable, one year included, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Effortless control
Conquer the job
Powerful 518cc engine
Experience unwavering performance with our robust, liquid-cooled 518cc engine, which delivers the power you need off-road and on the job.
Front/rear cargo racks
Discover unmatched versatility with our durable steel racks. Equipped with our Pro-Connect system, they enable easy attachment and removal of cargo boxes and accessories, enhancing functionality.
Swingarm suspension
The rear swingarm features a solid axle that enhances towing and hauling capabilities. Its long suspension stroke and comfortable seat allow you to tackle your favorite trails and the most demanding jobs with ease all day long.
Torque-biasing/locking front differential
With the Foreman’s front differential, you can choose between two-wheel drive, four-wheel drive, and four-wheel drive with a locking front differential.
Command the trail
Electric Power Steering (EPS)
Available on the EPS model, our Electric Power Steering (EPS) is both speed- and torque-sensitive, reducing steering effort and kickback through the handlebar. This is a big help when riding through rugged terrain like ruts, rocks, and other challenging environments.
Semi-dry-sump engine design
The overhead-valve, semi-dry-sump design creates a compact and lightweight engine that improves handling by lowering the center of gravity and increasing ground clearance.
Fuel injection
The ATV's oxygen sensor and Electronic Control Unit (ECU) quickly adjust the fuel injection mapping to suit the riding conditions, enhancing fuel efficiency and reducing emissions. This means more time on the trail and more money in your pocket.
Electronic differential lock
When driving in 4WD, simply flip the switch, and the electronic differential lock directs power to both front wheels, optimizing available traction. The vehicle display will indicate when the differential lock is fully engaged.
Wide front driveshaft guards
The driveshaft guards provide additional coverage for the front axles and outboard CV joints, illustrating another example of how Honda engineers focus on even the smallest details to create one of the best ATVs on the planet.
Styling
These ATVs feature durable bodywork designed to resist scrapes and dings. The design showcases sharp lines, striking graphics, and vibrant color choices that make a strong statement.
Easy service access
The bold body design is not only striking but also practical. The tank and side covers can be removed in one piece, without tools, allowing for quick and easy access to the engine.
Powerful alternator output
An alternator with higher output means this ATV is capable of handling more of your accessory power needs.
Assist headlight
We're talking about the third headlight that turns with the handlebar. With 50 watts of power, it will reliably light your way wherever you go.
Comfortable seat
A plush seat with thick, soft foam and an open rider triangle creates a machine that is supremely comfortable.
Related trims and models

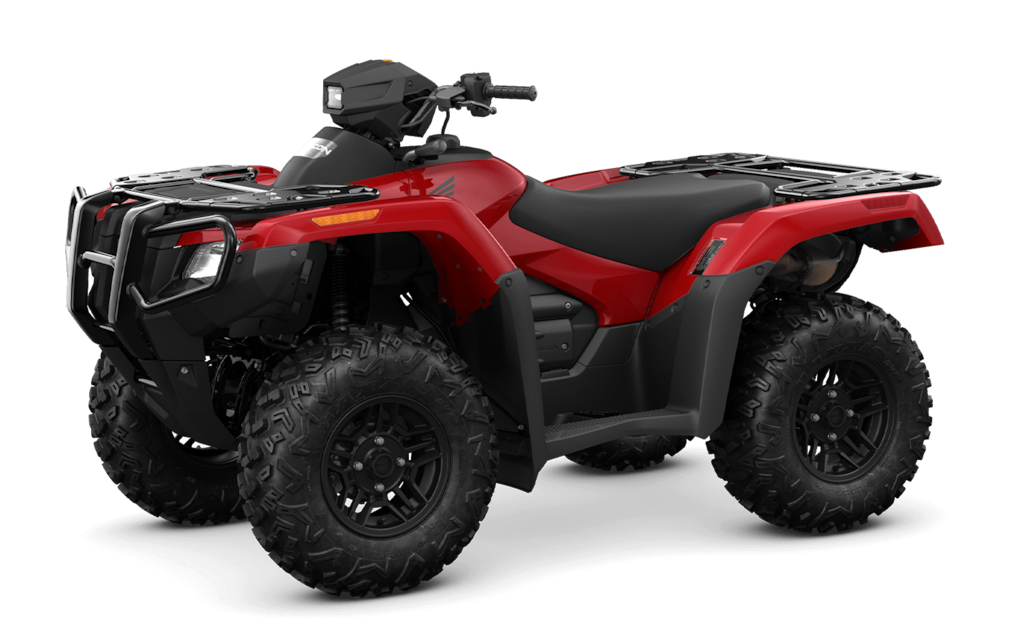

FourTrax Rubicon 700 4x4 Automatic
Base MSRP TBD* Destination Charge: $620.00
- 675cc liquid-cooled single-cylinder engine
- Programmed Fuel Injection (PGM-FI)
- 26-inch tires
- Tough front bumper
- Integrated storage

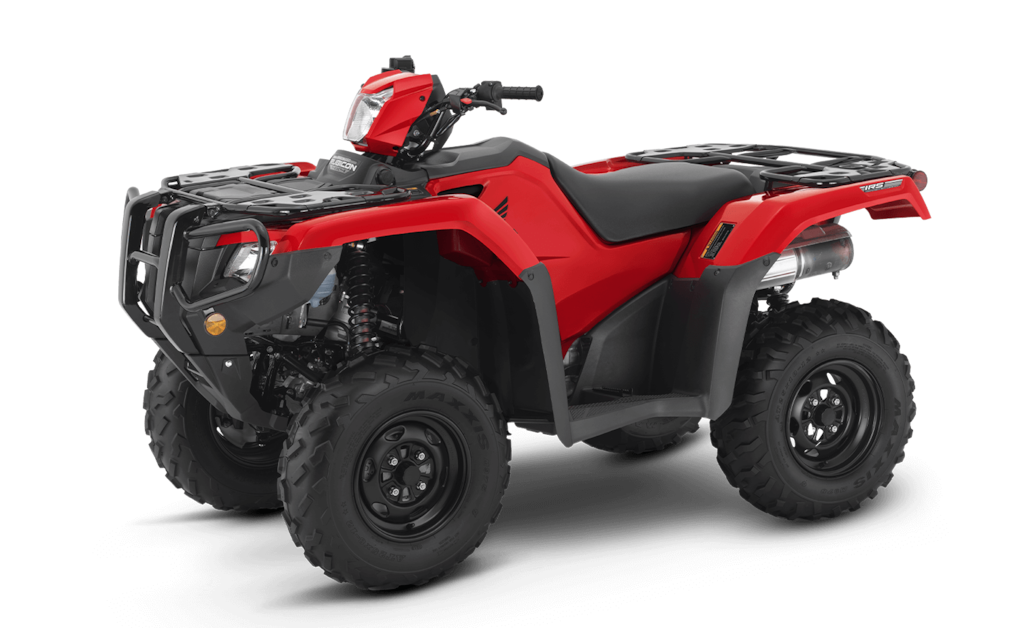

FourTrax Foreman Rubicon 4x4 EPS
