Engine Type
755cc liquid-cooled parallel-twin four-stroke
Transmission
Six-speed manual
Front Suspension
43mm Showa® SFF-CA inverted fork; 7.9-inch travel
Rear Suspension
Pro-Link® Showa® single shock; 7.5-inch travel
Seat Height
33.7 inches (optional 32.6-inch accessory seat available)
Warranty
Transferable, unlimited-mileage limited warranty. One year included

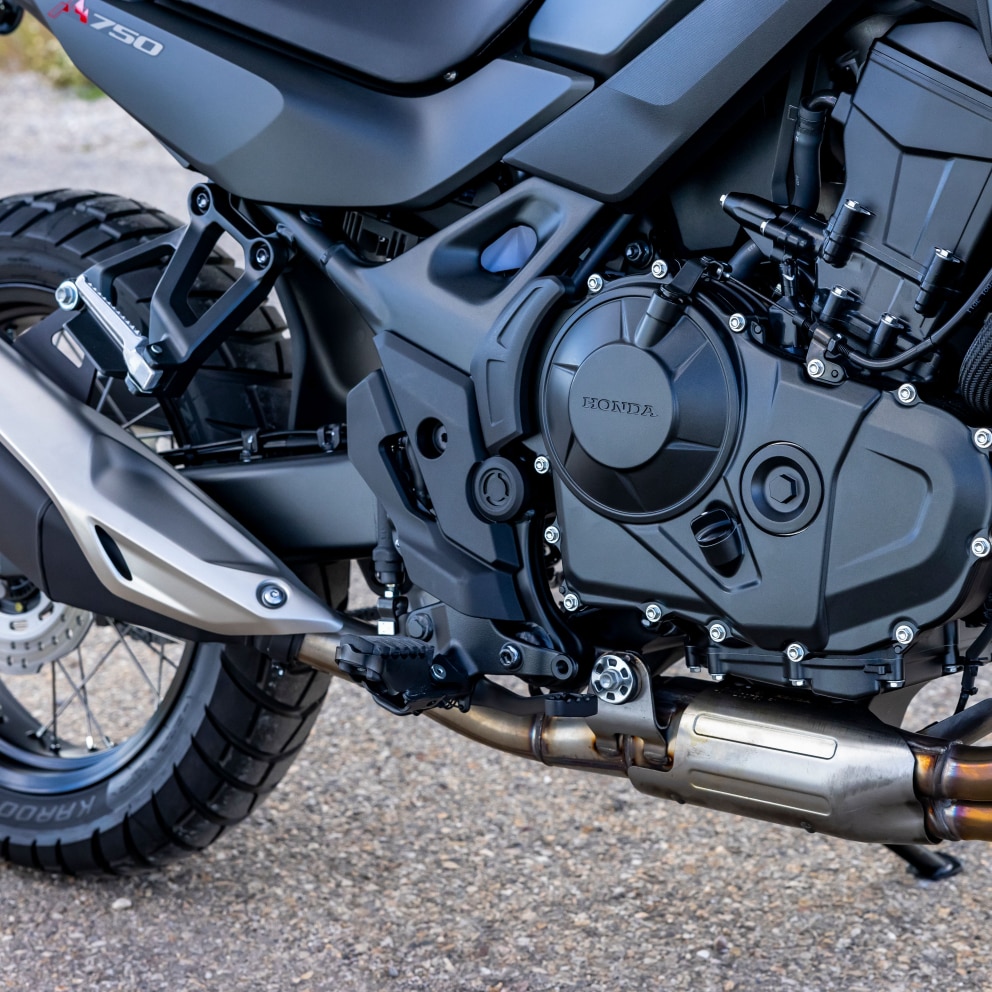

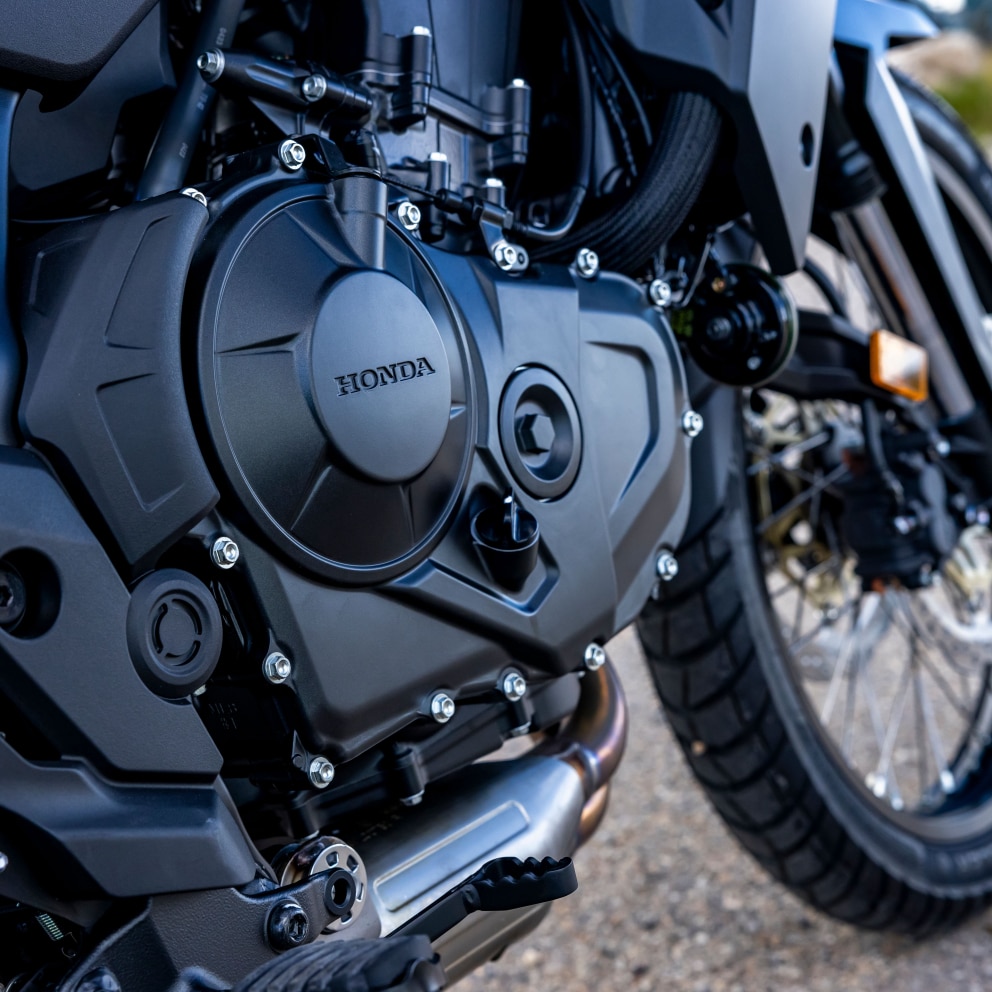

Engine
| Engine Type | 755cc liquid-cooled parallel-twin four-stroke |
|---|---|
| Bore and Stroke | 87.0mm x 63.5mm |
| Compression Ratio | 11.0:1 |
| Valve Train | Unicam® SOHC; four valves per cylinder |
| Induction | Programmed Fuel injection system (PGM-FI); 46mm throttle body |
Drivetrain
| Transmission | Six-speed manual |
|---|---|
| Final Drive | #520 Chain; 16T/45T |
Chassis Suspension Brakes

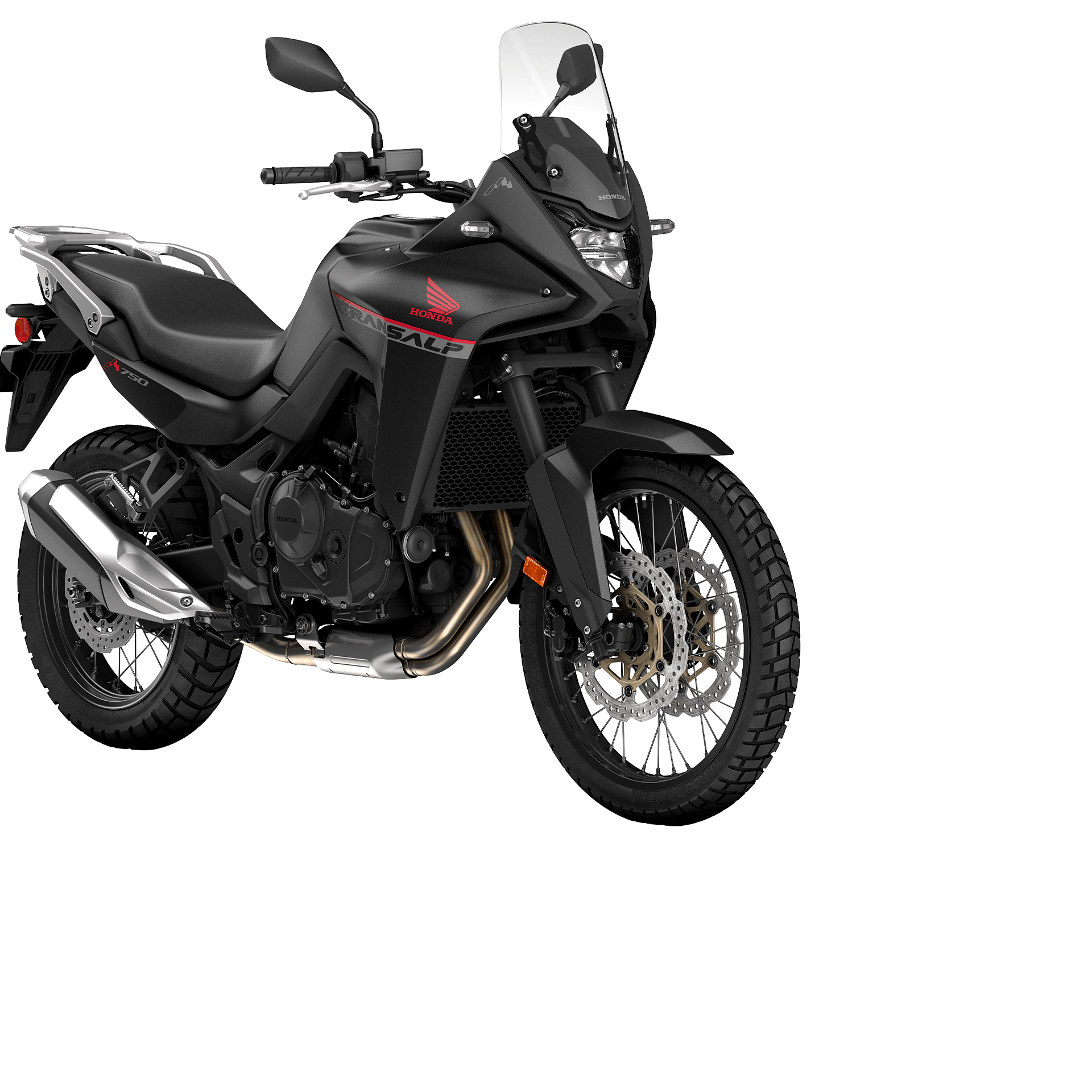

| Front Suspension | 43mm Showa® SFF-CA inverted fork; 7.9-inch travel |
|---|---|
| Rear Suspension | Pro-Link® Showa® single shock; 7.5-inch travel |
| Front Brake | Dual 310mm discs; ABS |
| Rear Brake | Single 296mm disc; ABS |
| Front Tire | 90/90-21 |
| Rear Tire | 150/70-18 |
Dimensions
| Rake | 27.0° |
|---|---|
| Trail | 4.4 inches |
| Wheelbase | 61.5 inches |
| Seat Height | 33.7 inches (optional 32.6-inch accessory seat available) |
| Fuel Capacity | 4.5 gallons |
| Curb Weight | 459 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
Other
| Model ID | XL750 |
|---|---|
| Emissions | Meets current EPA and California Air Resources Board (CARB) standards. |

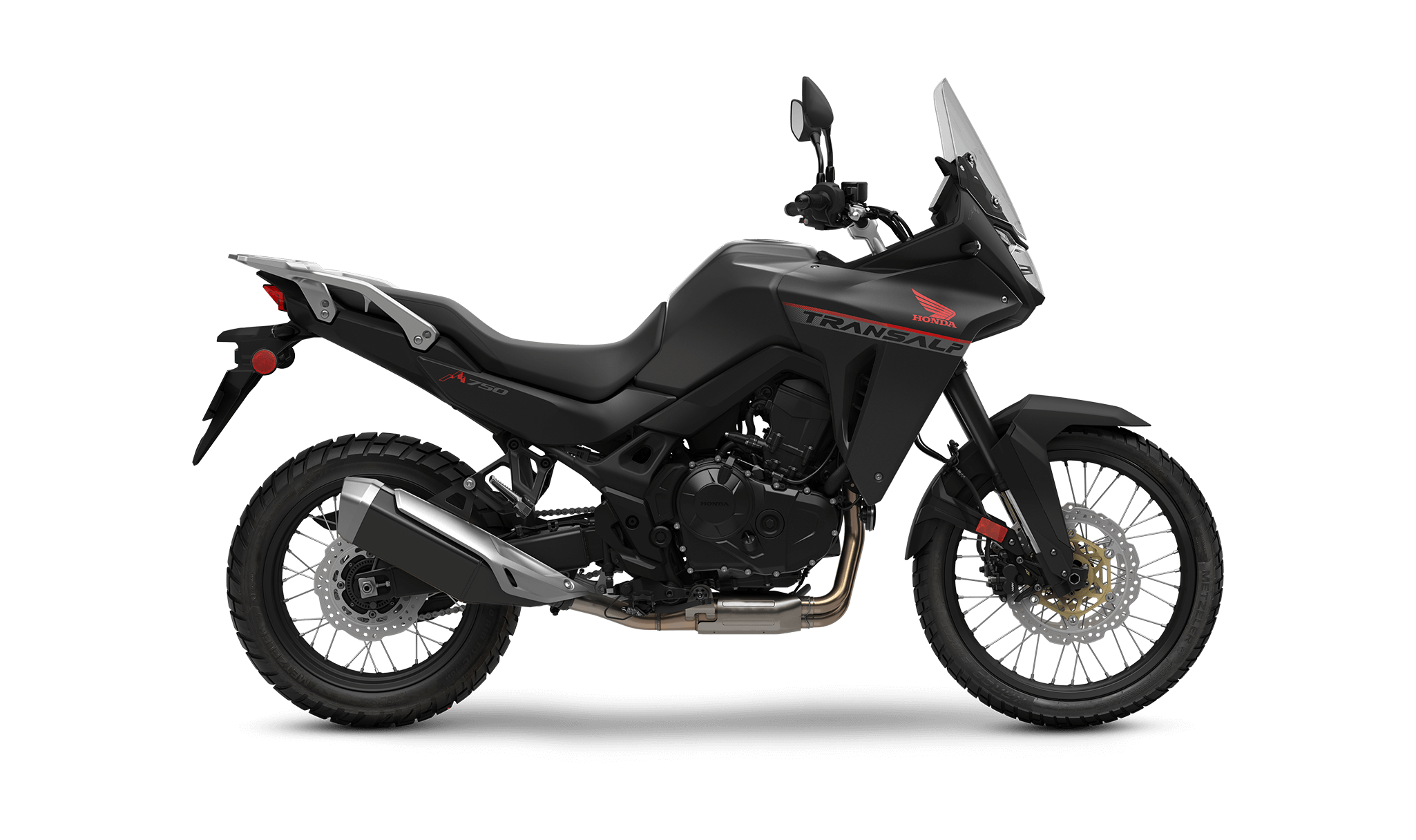

| Available Colors | Matte Black Metallic |
Factory Warranty Information
| Duration | Transferable, one year included, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
