Matte Black Metallic

Engine Type

1083cc liquid-cooled Unicam® four-stroke 22.5º parallel-twin

Transmission

6-speed manual

Front Suspension

45mm inverted telescopic fork; 9.0 inches of travel

Rear Suspension

Pro-Link® system w/ single shock; 8.7 inches of travel

Seat Height

Standard position 34.3 inches/Low position 33.5 inches

Warranty

Transferable, unlimited-mileage limited warranty. One year included

Extended Warranty

Engine

Engine Type	1083cc liquid-cooled Unicam® four-stroke 22.5º parallel-twin
Bore And Stroke	92.0mm x 81.5mm
Compression Ratio	10.5:1
Valve Train	Unicam SOHC; four valves per cylinder
Induction	PGM-FI electronic fuel injection (Throttle by Wire); 46mm throttle body

Drive Train

Transmission	6-speed manual
Final Drive	#525 Chain; 16T/42T

Chassis Suspension Brakes

Front Suspension	45mm inverted telescopic fork; 9.0 inches of travel
Rear Suspension	Pro-Link® system w/ single shock; 8.7 inches of travel
Front Brakes	Dual 310mm discs with four-piston calipers; ABS
Rear Brake	Single 256mm disc with single-piston caliper; ABS
Front Tire	90/90-21
Rear Tire	150/70R-18

Dimensions

Rake	27º
Trail	4.5 inches
Wheelbase	62.0 inches
Seat Height	Standard position 34.3 inches/Low position 33.5 inches
Curb Weight	510 lbs—Includes all standard equipment, required fluids and full tank of fuel
Fuel Capacity	5.0 gallons

Other

Model ID	CRF1100L
Emissions	Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.
Available Colors	Matte Black Metallic

Factory Warranty Information

One Year Included	Transferable, unlimited-mileage limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

The ultimate passport to exploration

1083cc twin-cylinder engine

A narrow 1083cc parallel-twin engine delivers torque smoothly throughout the RPM range, making them great for everything from off-road riding to highway cruising.

Prior Model Year Shown

The ultimate passport to exploration

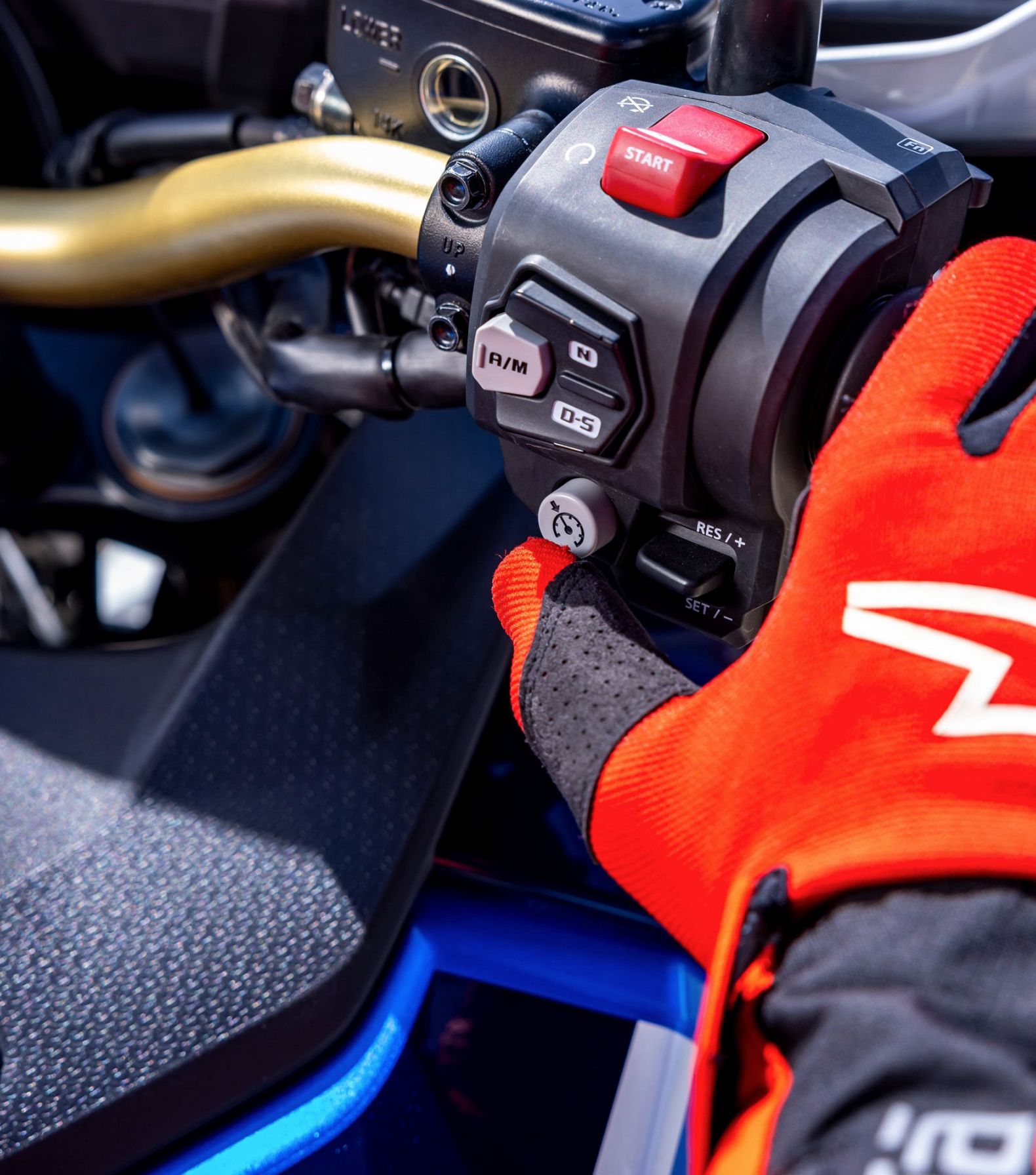

Cruise control

All Africa Twin models come factory-equipped with cruise control for touring, and you’ll thank us after those high-mileage rides.

Prior European Model Year Shown

The ultimate passport to exploration

Low center of gravity

By placing heavy components like the battery near the bike's center of gravity and using a compact engine, we've created a platform for excellent handling.

Prior Model Year Shown

The ultimate passport to exploration

TFT touchscreen display

A 6.5-inch Thin Film Transistor (TFT) instrument touch panel features three displays and can show a multitude of information, depending on your needs.

Epic journeys ahead

View all Features

Six-speed manual transmission

For those purists, a conventional six-speed manual gearbox with a traditional handlebar-mounted clutch lever is available on the standard Africa Twin and Africa Twin Adventure Sports ES models. This gearbox features Honda’s proven durability and is also slightly lighter than the DCT option.

Unicam® engine design

Honda's Unicam® engine design, with its compact cylinder-head layout, allows for optimal engine placement and superior performance in terms of both handling-related weight distribution and airflow-related horsepower. Talk about a win-win.

Dry-sump engine

A dry-sump engine design is really the only viable option for a big adventure bike. The more compact sump increases ground clearance, eliminating the main vulnerability of a conventional wet sump powerplant.

Long-travel front suspension

The standard model's inverted 45mm Showa® fork is fully adjustable and has 8 inches of travel – the most in the 1000cc ADV class. The Adventure Sports ES models have 7.3 inches of front travel to match the more street-focused 19-inch front wheel.

Prior European Model Year Shown

Low center of gravity

By placing heavy components like the battery near the bike's center of gravity and using a compact engine, we've created a platform for excellent handling.

Four-piston calipers

Twin, four-piston brake calipers up front provide powerful braking performance, while the radial-mount design also stiffens them, increasing feel and control.

Cornering ABS

The integrated 6-axis IMU is a standard feature of the Anti-lock Braking System (ABS) and is designed to add the correct amount of ABS based on the degree the rider is leaned over.

Prior Model Year Shown

Riding modes

Both models offer six selectable riding modes: Tour, Urban, Gravel, Off-Road, User 1, and User 2. The last two allow you to customize them to your individual preferences.

Honda Selectable Torque Control (HSTC)

Honda Selectable Torque Control (HSTC) lets you customize the bike’s power delivery to match conditions or rider skill level. It has seven different settings for various terrains and allows the bike to progress as you do.

Rally-type fairing

Good fairings are key, especially when the miles pile up. We spent hours perfecting both AT models, with the Adventure Sports ES cowl shape designed to reduce high-speed highway buffeting and the standard Africa Twin made for off-road agility.

Narrow seat

We took extra care to ensure the standard Africa Twin models' seat was as narrow as possible while still being comfortable. This makes maneuvering the bike at low speeds and placing a foot on the ground when stopping much easier.

Prior European Model Year Shown

Athletic riding position

Adventure riding requires nimble maneuvering on a slim bike. The peg-bar-seat triangle offers the perfect position for agile handling on challenging trails.
