Engine Type
755cc liquid-cooled 24.5º parallel-twin four-stroke
Transmission
Six-speed manual
Front Suspension
43mm Showa SFF-CA inverted telescopic fork; 7.9-inch travel
Rear Suspension
Pro-Link® single Showa shock; 7.5-inch travel
Seat Height
33.7 inches (optional 32.6-inch accessory seat available)
Warranty
Transferable, unlimited-mileage limited warranty. One year included

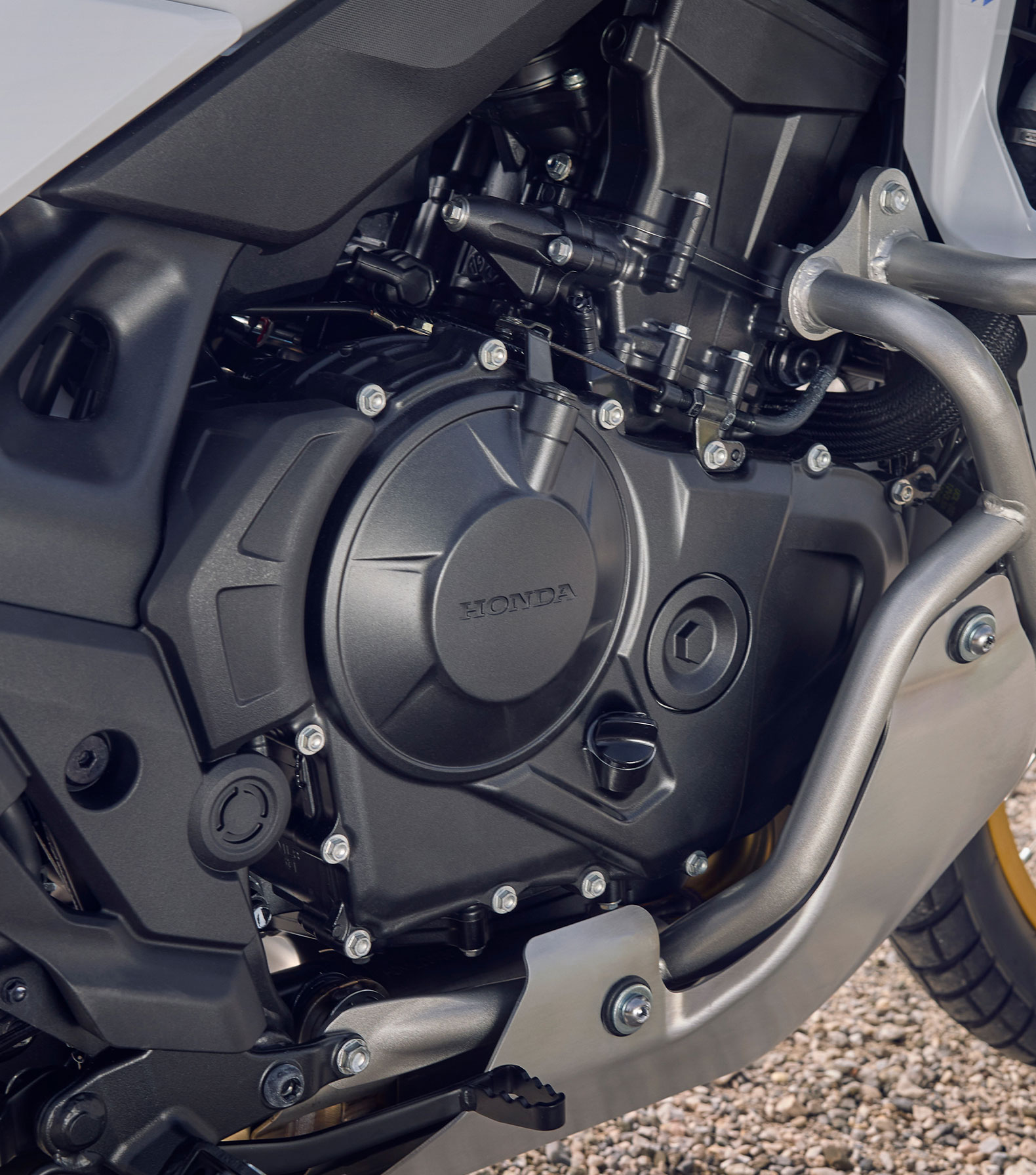

Engine

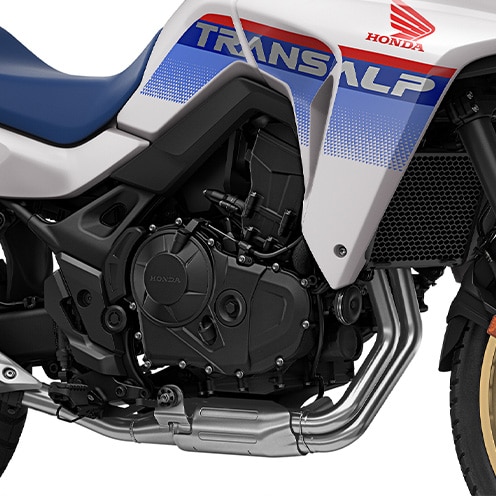

Engine Type | 755cc liquid-cooled 24.5º parallel-twin four-stroke |
---|---|
Bore And Stroke | 87.0mm x 63.5mm |
Compression Ratio | 11.0:1 |
Valve Train | Unicam SOHC; four valves per cylinder |
Induction | Programmed Fuel injection (PGM-FI); 46mm throttle body |
Drive Train
Transmission | Six-speed manual |
---|---|
Final Drive | #520 Chain; 16T/45T |
Chassis Suspension Brakes
Front Suspension | 43mm Showa SFF-CA inverted telescopic fork; 7.9-inch travel |
---|---|

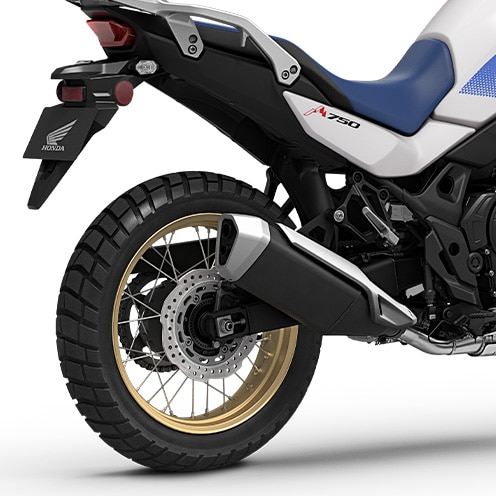

Rear Suspension | Pro-Link® single Showa shock; 7.5-inch travel |

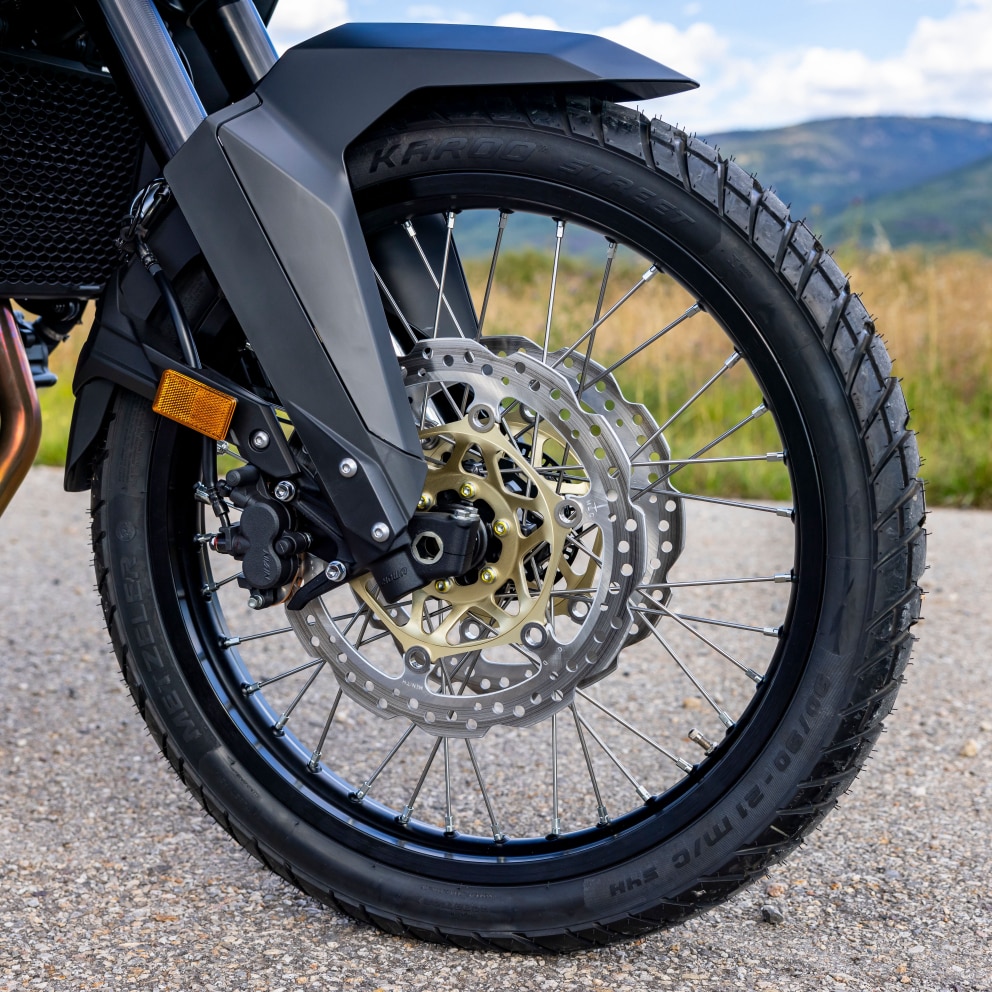

Front Brake | Dual 310mm discs; 2-channel ABS |
Rear Brake | Single 256mm disc; 2-channel ABS |
Front Tire | 90/90-21 |
Rear Tire | 150/70-18 |
Dimensions
Rake | 27.0° |
---|---|
Trail | 4.4 inches |
Wheelbase | 61.5 inches |
Seat Height | 33.7 inches (optional 32.6-inch accessory seat available) |
Fuel Capacity | 4.5 gallons |
Curb Weight | 459 pounds (Includes all standard equipment, required fluids and full tank of fuel—ready to ride) |
Other
Model ID | XL750 |
---|---|
Emissions | Meets current EPA and California Air Resources Board (CARB) standards. |
Available Colors | Matte Black Metallic |
Factory Warranty Information
One Year Included | Transferable, unlimited-mileage limited warranty |
---|---|
Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
