2024 CBR500R
471cc liquid-cooled parallel-twin four-stroke
Six-speed
41.0 mm Showa® SFF-BP fork; 4.7-inch travel
Pro-Link® single shock; 4.7-inch travel
31.1 inches
Transferable, unlimited-mileage limited warranty. One year included.
Engine
| Engine Type | 471cc liquid-cooled parallel-twin four-stroke |
|---|---|
| Bore And Stroke | 67.0 mm x 66.8 mm |
| Compression Ratio | 10.7:1 |
| Valve Train | DOHC; four valves per cylinder |
| Induction | PGM-FI with 34.0 mm throttle bodies |
Drivetrain
| Transmission | Six-speed |
|---|---|
| Final Drive | O-ring-sealed chain; 15T/41T |
Chassis Suspension Brakes
| Front Suspension | 41.0 mm Showa® SFF-BP fork; 4.7-inch travel |
|---|---|
| Rear Suspension | Pro-Link® single shock; 4.7-inch travel |
| Front Brake | Dual 296.0 mm discs with four-piston calipers; ABS |
| Rear Brake | Single 240.0 mm disc, ABS |
| Front Tire | 120/70R-17 |
| Rear Tire | 160/60-17 |
Dimensions
| Rake | 25.5° |
|---|---|
| Trail | 4.0 inches |
| Wheelbase | 55.5 inches |
| Seat Height | 31.1 inches |
| Curb Weight | 421 pounds (Includes all standard equipment, required fluids and full tank of fuel) |
| Fuel Capacity | 4.5 gallons |
| Miles Per Gallon | 72 MPG - Honda fuel economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors. |
Other
| Model ID | CBR500RA |
|---|---|
| Emissions | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. |
| Available Colors | Grand Prix Red, Matte Black Metallic |
Factory Warranty Information
| Duration | Transferable, one year included, unlimited-mileage limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
CBR500R
With a mix of power that fits your budget, discover the perfect combination of performance and affordability with the CBR500R.
Elevate your ride
DOHC twin-cylinder engine
The parallel-twin engine delivers accessible performance across the rpm range, with robust low-end torque and high-rpm horsepower.
Supersport styling
The assertive, aerodynamic design ensures superior air management, optimizing rider comfort, efficiency, and cooling prowess.
Anti-Lock Braking System (ABS)
ABS comes standard, instilling confidence and enabling assured stops even in the most challenging conditions.
Steel-tube frame
The diamond-shaped steel-tube mainframe connects to the engine through four mounts, providing a rock-solid foundation for a seamless ride and exceptional handling.
Supersport for the street

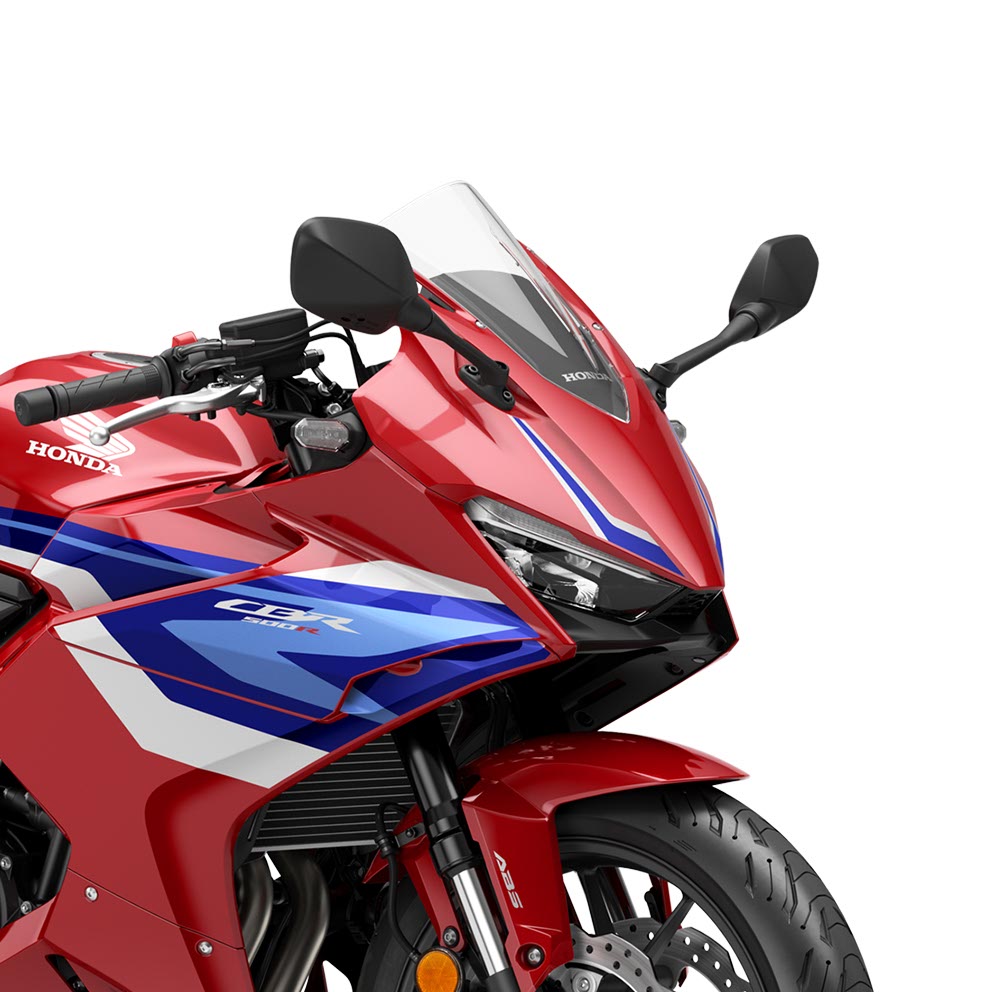

Updated fairing
The 2024 full-coverage fairing update includes new aerodynamic upgrades meant to optimize rider comfort and engine cooling, and it looks straight off the racetrack.
Stainless steel exhaust
In a case of functional aesthetics, the polished stainless-steel exhaust seamlessly integrates with the rear footpeg mount, optimizing mass centralization and elevating handling prowess.

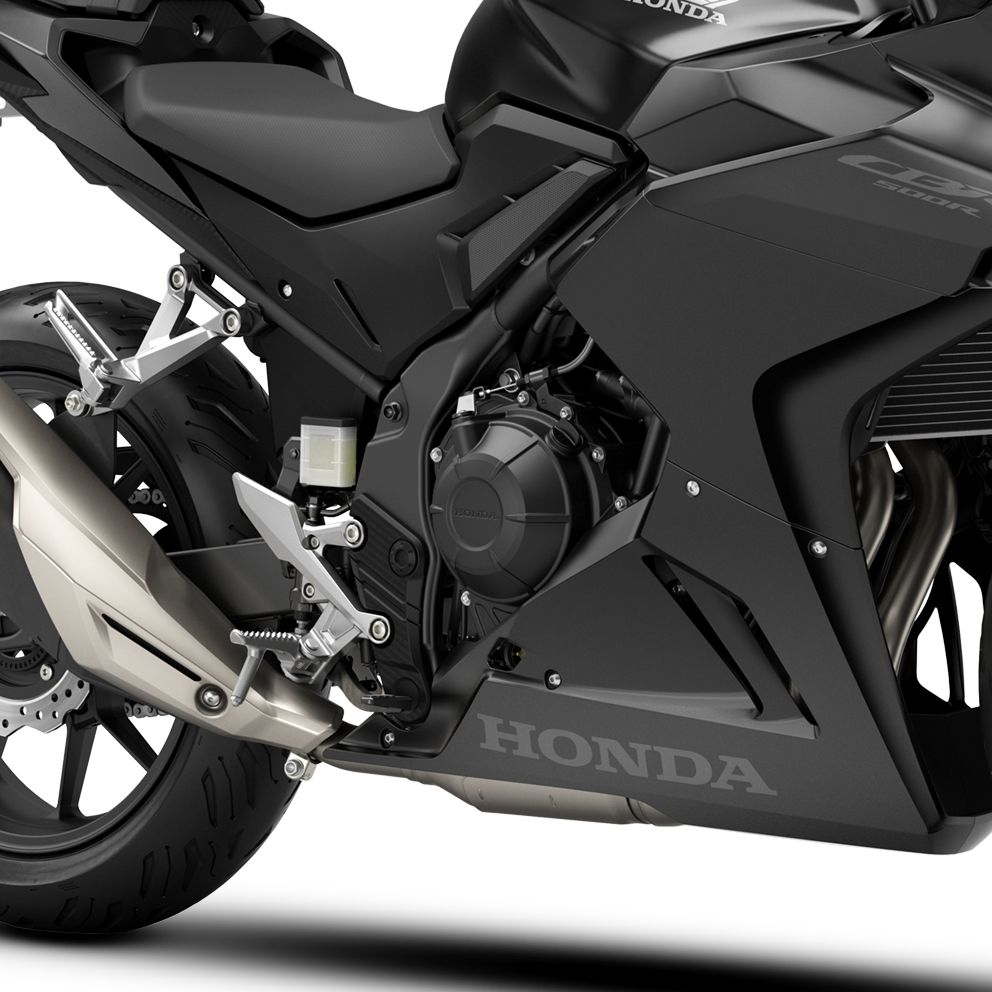

Programmed fuel injection
PGM-FI precisely adjusts fuel based on riding conditions, amplifying midrange power and torque throughout the rpm range and guaranteeing swift throttle response in all scenarios.

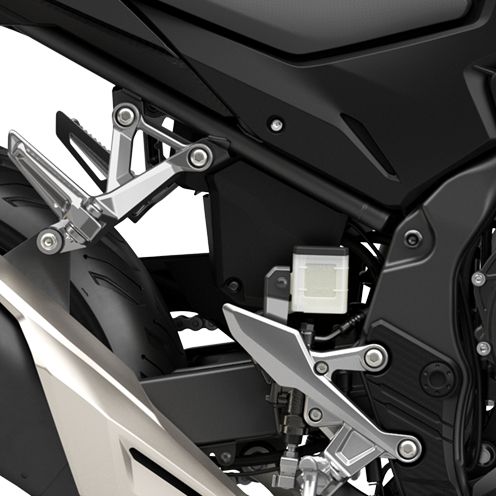

Pro-Link® rear suspension
The Pro-Link® rear suspension features a nine-stage adjustable preload shock and 4.7 inches of travel for increased comfort and handling.

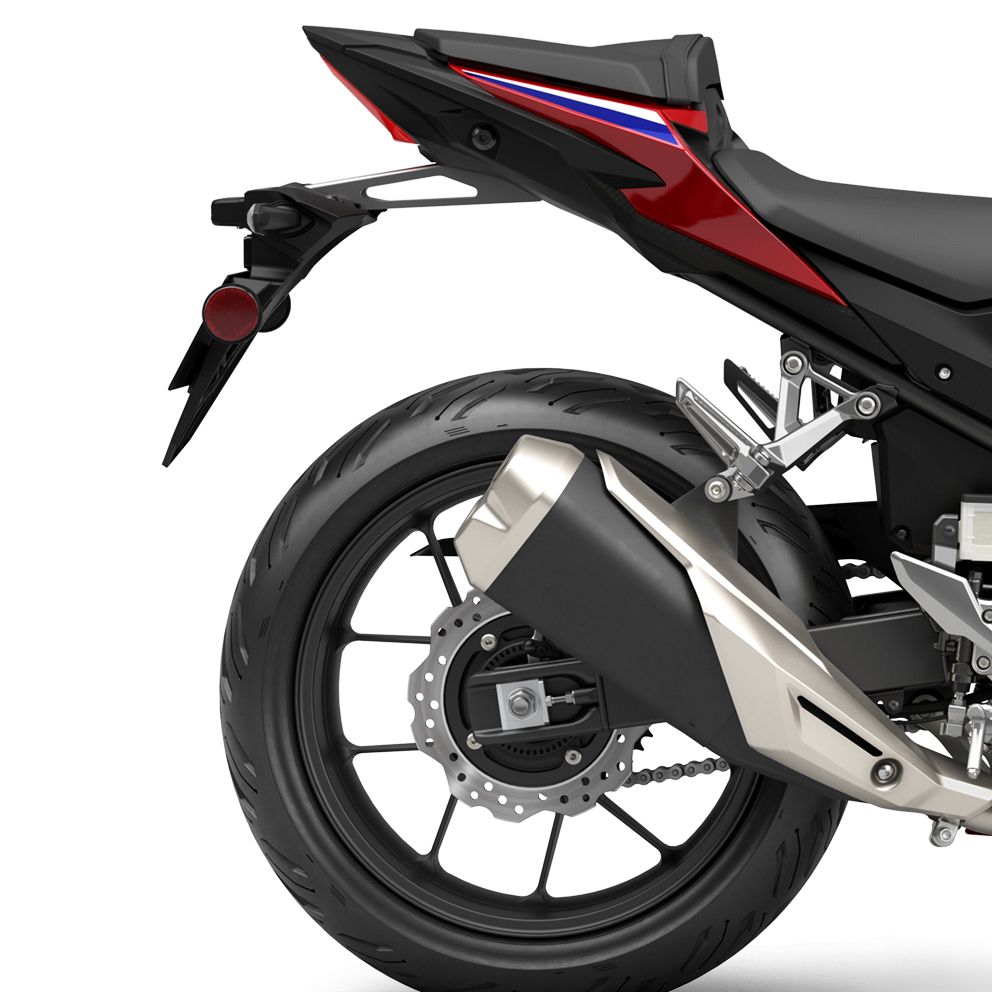

Light swingarm construction
The swingarm design is over two pounds lighter than the previous version yet equally strong, contributing to the bike's excellent handling.
Slipper clutch
Born from Honda's racing pedigree, the perfected slipper clutch delivers a feather-light pull, reduced by nearly 45 percent, and a steadfast lockout to ensure all the power meets the road.
