CBR300R ABS
286cc liquid-cooled single-cylinder engine
Six-speed manual
37mm fork; 4.6-inch travel
Pro-Link® single shock; 4.1-inch travel
30.7 inches
Transferable, unlimited-mileage limited warranty. One year included.
Engine
| Engine Type | 286cc liquid-cooled single-cylinder engine |
|---|---|
| Bore And Stroke | 76mm x 63mm |
| Induction | PGM-FI, 38mm throttle body |
| Ignition | Computer-controlled digital transistorized with electronic advance |
| Compression Ratio | 10.7:1 |
| Valve Train | DOHC; four valves per cylinder |
Drive Train
| Transmission | Six-speed manual |
|---|---|
| Final Drive | #520 Chain; 14T/36T |
Chassis Suspension Brakes
| Front Suspension | 37mm fork; 4.6-inch travel |
|---|---|
| Rear Suspension | Pro-Link® single shock; 4.1-inch travel |
| Front Brake | Single 296mm disc; ABS |
| Rear Brake | Single 220mm disc; ABS |
| Front Tire | 110/70-17 |
| Rear Tire | 140/70-17 |
Dimensions
| Rake | 25.3° |
|---|---|
| Trail | 3.9 inches |
| Seat Height | 30.7 inches |
| Fuel Capacity | 3.4 gallons |
| Wheelbase | 54.3 inches |
| Curb Weight | 364 pounds - Includes all standard equipment, required fluids and full tank of fuel—ready to ride. |
Other
| Model ID | CBR300RA |
|---|---|

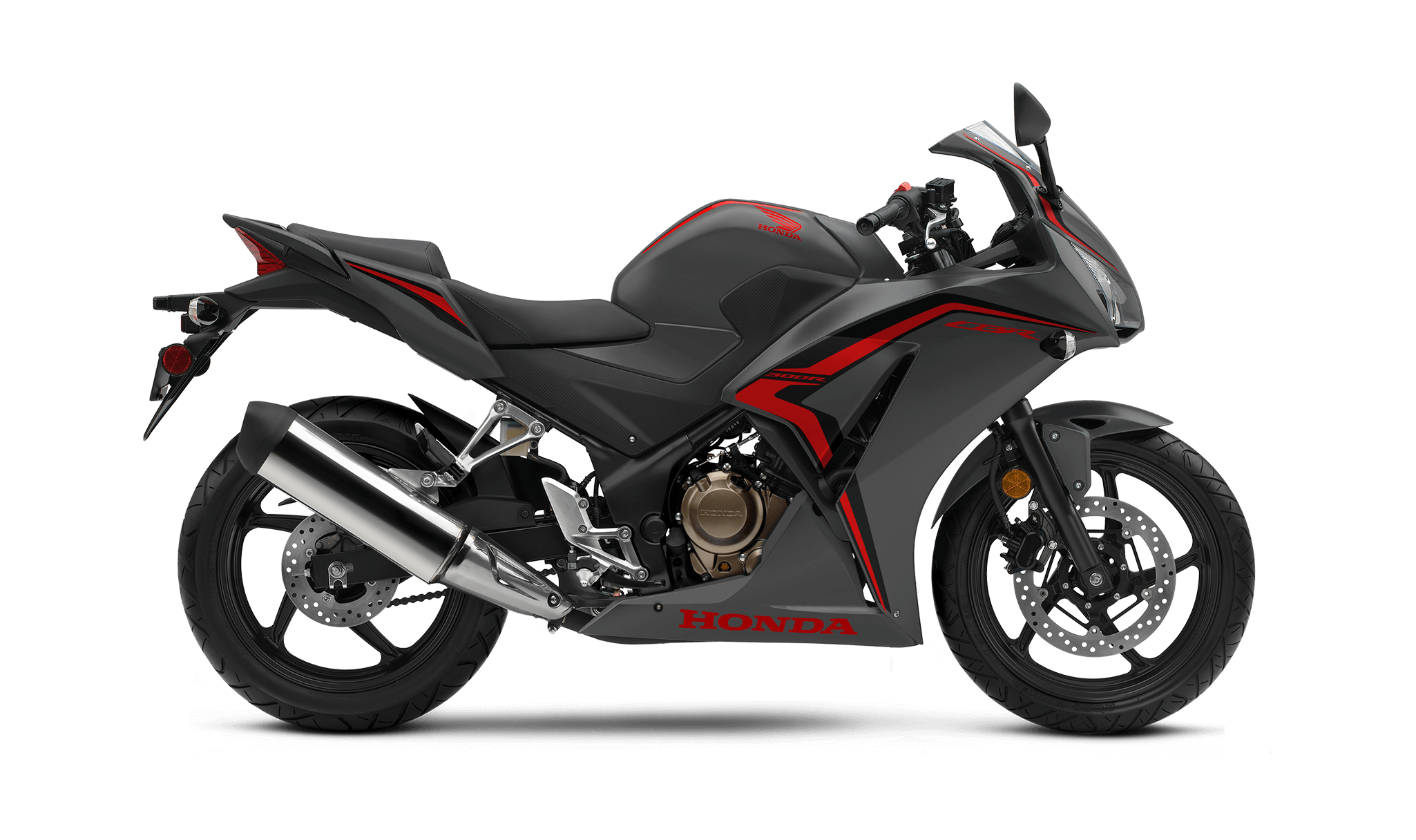

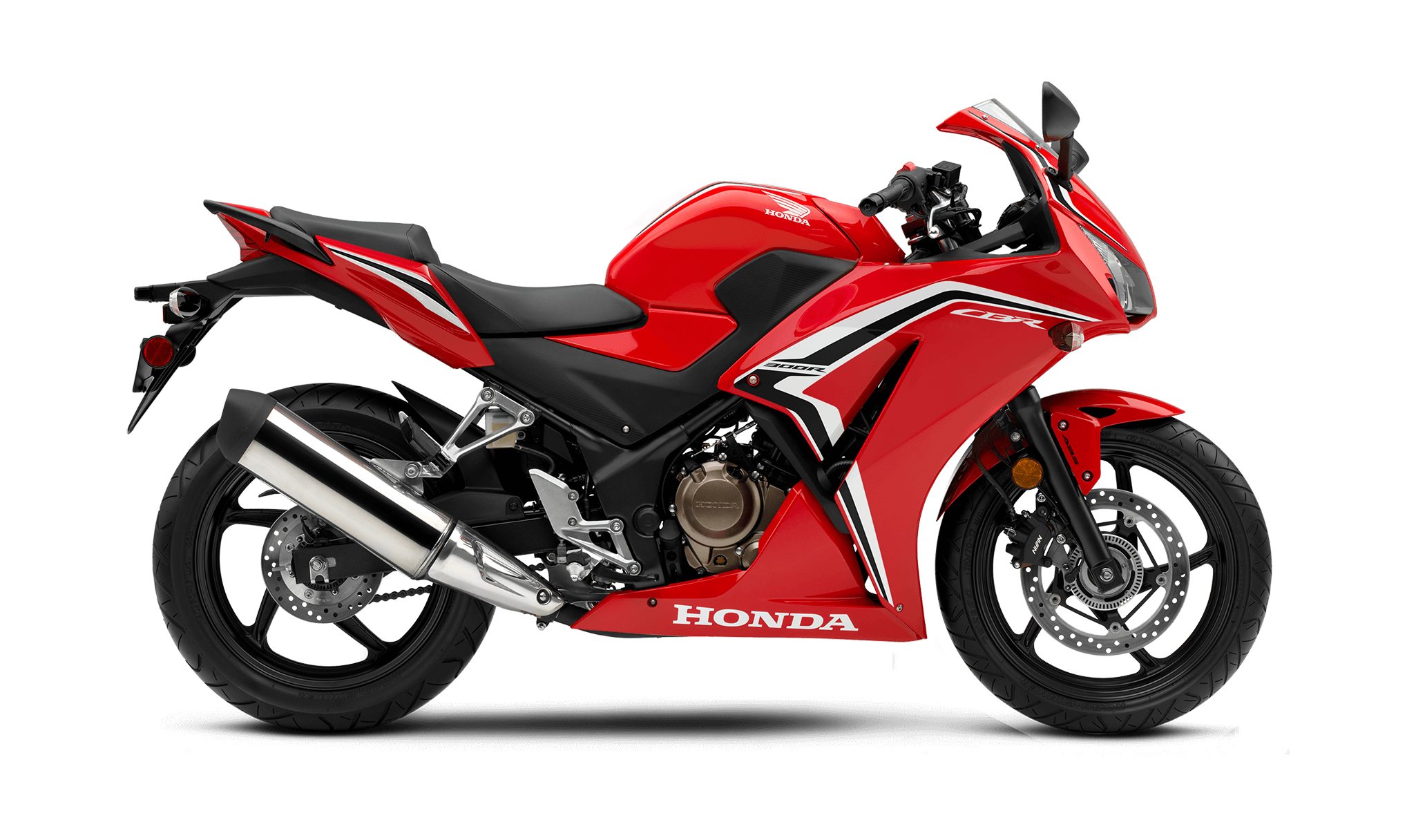

| Available Colors | Grand Prix Red, Matte Gray Metallic |
| Emissions | Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment. |
Factory Warranty Information
| One Year Included | Transferable, unlimited-mileage limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare Protection Plan® |
Sport riding with safety first
Single-cylinder engine
The single-cylinder powerplant is lightweight, efficient, and endowed with a wide range of power and ample low-end torque –ideal for a first motorcycle yet primed for highway ease.

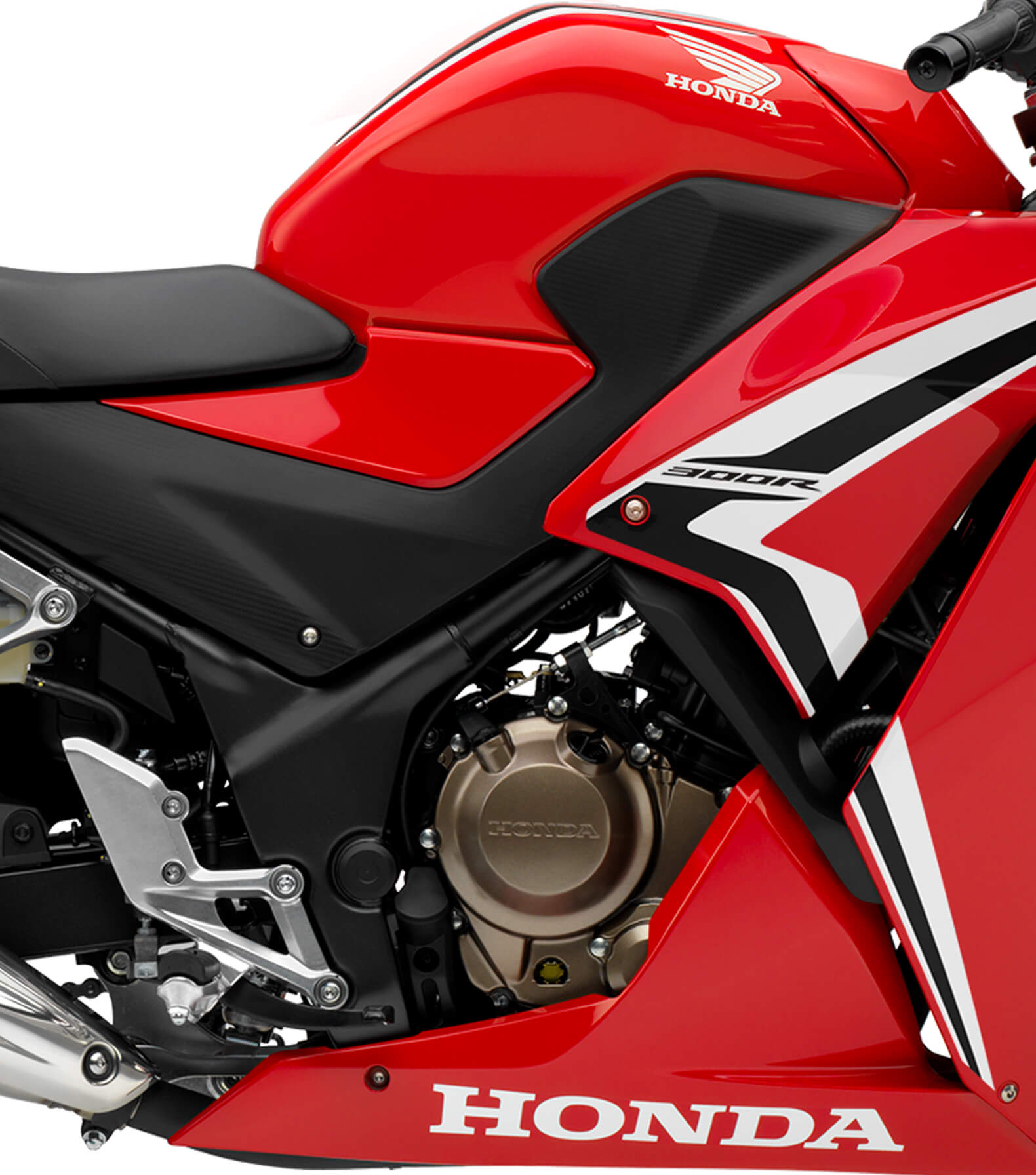

PGM-FI
Unlike its carbureted counterparts, programmable fuel injection reduces emissions, enhances performance, and refines fuel efficiency, elevating your riding experience in multiple dimensions.
Low seat height
Standing at 30.7 inches, the low seat height ensures rider inclusivity and boosts confidence at stops and lots—a key to easily mastering the road.

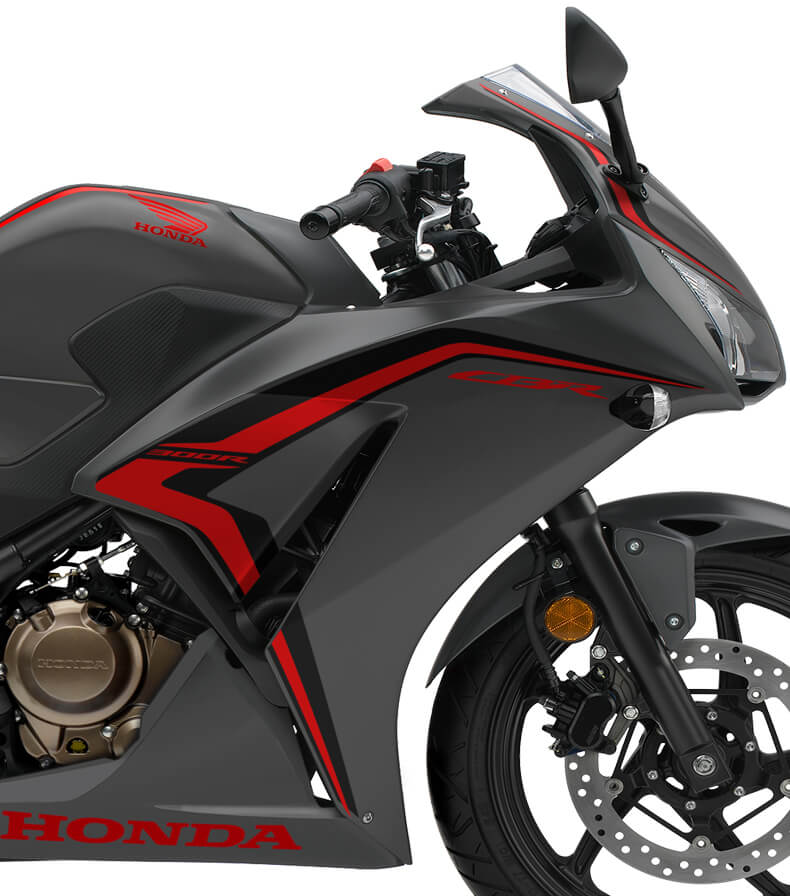

Supersport styling
A full Supersport-style fairing with twin headlights amplifies aerodynamic prowess while providing that sleek racing look. Echoing the CBR-RR series, it's a fusion of elegance and efficiency.
Precision handling. Perfected control.

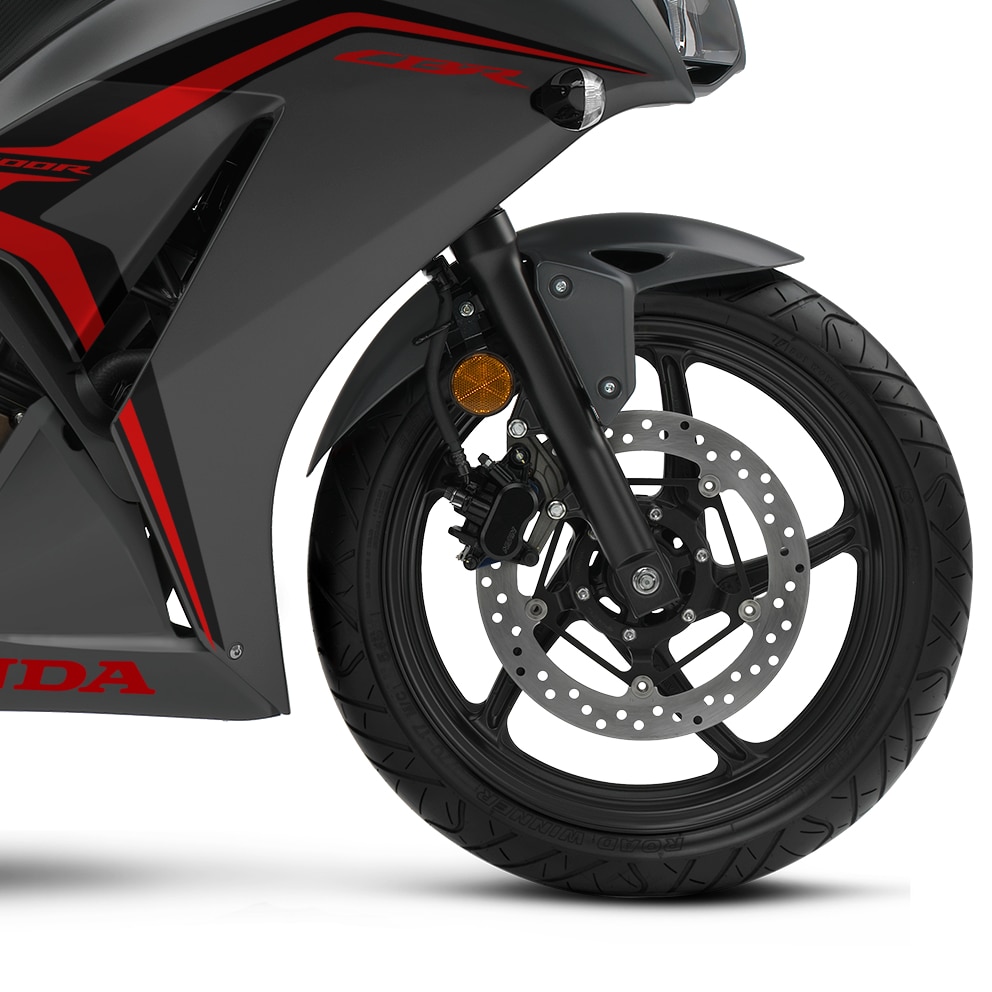

Anti-Lock Braking System
Available on the CBR300R ABS model, our Anti-Lock Braking system ensures controlled stops in challenging conditions like wet surfaces or debris-laden roads.
Digital/analog gauge cluster
The digital gauges, coupled with an analog tachometer, present essential data in a sophisticated, hi-tech display comprised of a digital speedometer, fuel gauge, coolant temperature, trip meter, and clock.
Pro-Link rear suspension
These bikes employ a single-shock, preload-adjustable Pro-Link® rear suspension. It improves comfort and refines handling for a balance of agility and smoothness, similar to our larger sport models.
Disc brakes
With a 296mm front and 220mm rear hydraulic disc, the bike delivers exceptional braking power and a responsive feel for greater control on the road.
Passenger ready
With its individual passenger seat, incorporated grab rails and standard passenger footpegs, you always have the option to bring someone along for the ride.
Underseat storage
Remove the rear passenger seat to reveal a lockable storage compartment large enough to secure essentials like your wallet, gloves, or extra shades.
