Engine Type

471cc liquid-cooled parallel-twin four-stroke

Transmission

Six-speed

Front Suspension

41.0mm Showa® SFF-BP fork; 4.7-inch travel

Rear Suspension

Pro-Link® single shock; 4.7-inch travel

Seat Height

31.1 inches

Warranty

Transferable, unlimited-mileage limited warranty. One year included.

HondaCare® Protection Plan Available

Engine

Engine Type	471cc liquid-cooled parallel-twin four-stroke
Bore And Stroke	67.0mm x 66.8mm
Compression Ratio	10.7:1
Valve Train	DOHC; four valves per cylinder
Induction	Programmed Fuel-Injection system (PGM-FI); 34.0mm throttle body

Drivetrain

Transmission	Six-speed
Final Drive	O-ring-sealed chain; 15T/41T

Chassis Suspension Brakes

Front Suspension	41.0mm Showa® SFF-BP fork; 4.7-inch travel
Rear Suspension	Pro-Link® single shock; 4.7-inch travel
Front Brake	Dual 296.0mm discs with four-piston calipers; ABS
Rear Brake	Single 240.0mm disc, ABS
Front Tire	120/70R-17
Rear Tire	160/60-17

Dimensions

Rake	25.5°
Trail	4.0 inches
Wheelbase	55.5 inches
Seat Height	31.1 inches
Curb Weight	421 pounds (Includes all standard equipment, required fluids and full tank of fuel)
Fuel Capacity	4.5 gallons

Other

Model ID	CBR500RA
Emissions	Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment.
Available Colors	Grand Prix Red

Factory Warranty Information

Duration	Transferable, one year included, unlimited-mileage limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

Fuel your soul with performance

Prior Model Year Shown

Speed meets style

DOHC twin-cylinder engine

The 471cc parallel-twin engine has a dual overhead cam design that provides accessible performance across the RPM range, with strong low-end torque and high-rpm horsepower.

Accessorized European Model Shown

Speed meets style

Supersport styling

The stylish design of the fairing does far more than just look good – it ensures superior air management to optimize rider comfort, cooling, and aerodynamic efficiency.

2025-CBR500R-Anti-Lock-Braking-System-ABS-790x896

Accessorized European Model Shown

Speed meets style

Anti-Lock Braking System (ABS)

Our Anti-Lock Braking System comes standard, providing assured stopping power and added confidence in challenging conditions, such as wet roads or loose gravel.

Speed meets style

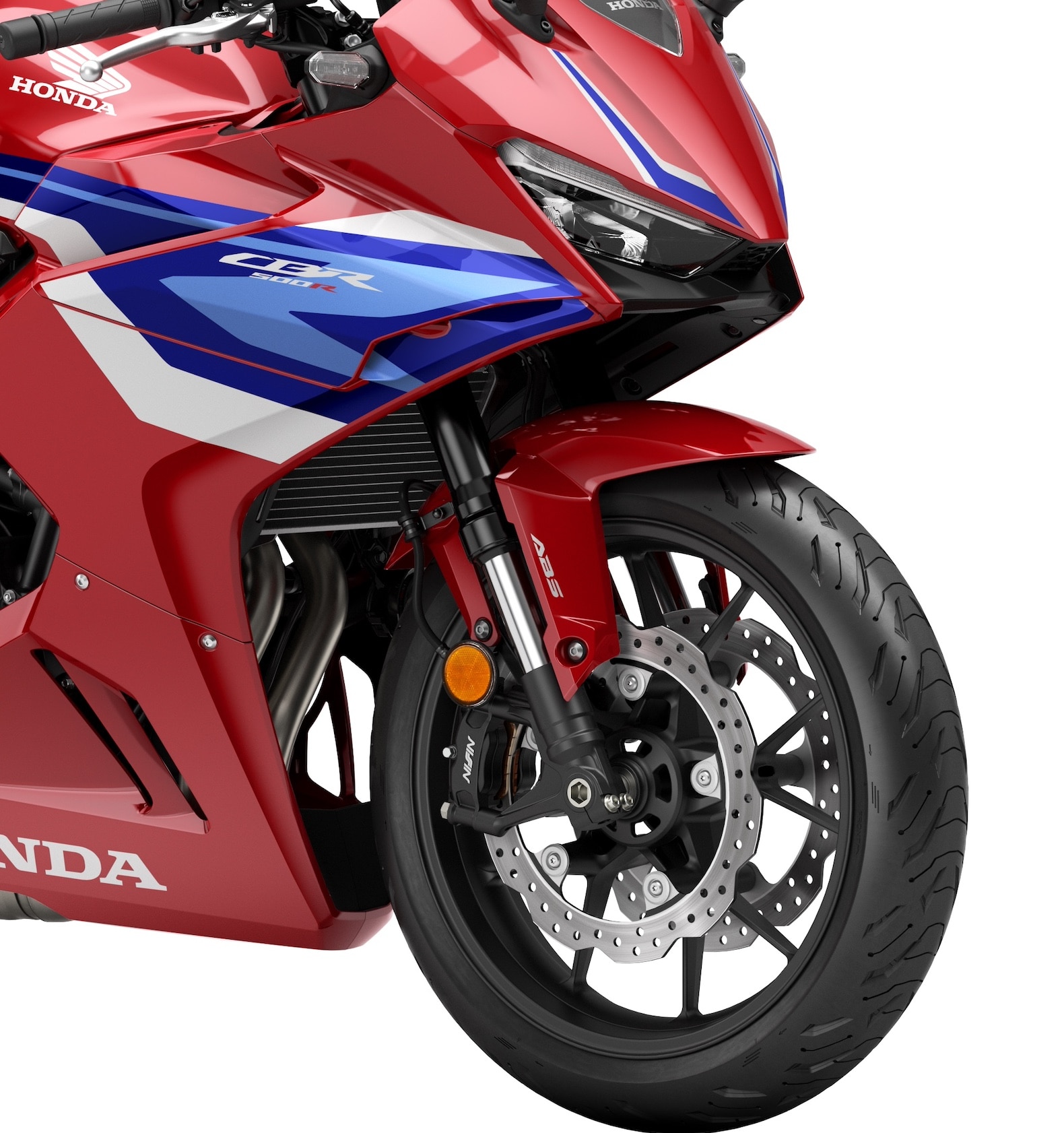

Showa® SFF-BP fork

The 41mm inverted Showa^® Separate Function Fork—Big Piston (SFF-BP) front end enhances the bike's rigidity and provides more precise steering input and feedback.

Supersport spirit, everyday rideability

View all Features

Programmed fuel injection

The PGM-FI system adjusts fuel levels based on parameters like temperature, elevation, throttle position, and riding style to increase power and torque across the RPM range and improve throttle response.

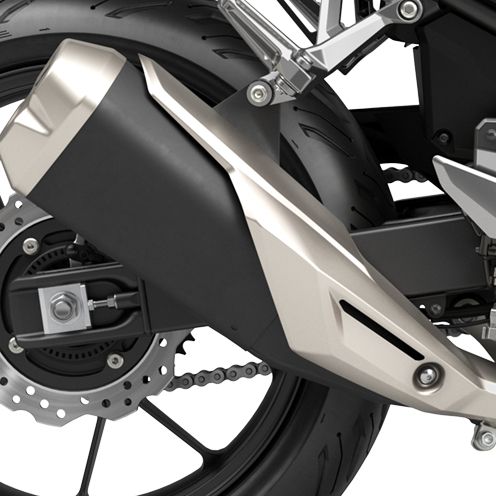

Stainless steel exhaust

The polished stainless-steel exhaust seamlessly integrates with the rear footpeg mount, optimizing mass centralization and elevating handling prowess. This is what we call functional aesthetics.

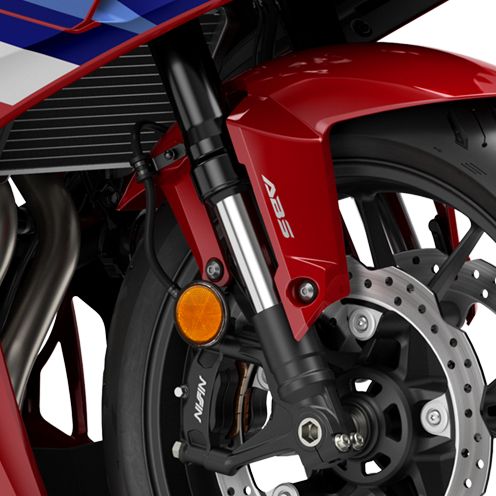

Showa Big Piston fork

The 41mm inverted Showa^® Separate Function Fork—Big Piston (SFF-BP) front end enhances the bike's rigidity and provides more precise steering input and feedback.

Steel-tube frame

The diamond-shaped steel-tube mainframe is seamlessly connected to the engine through four mounts and provides a rock-solid foundation for an unrivaled ride and handling experience.

Lightweight swingarm

The swingarm, utilized across the entire Honda 500 lineup, is nearly two pounds lighter and stronger than the previous version. This is one reason for the exceptional handling.

Cast wheels

The lightweight, multi-spoke, cast aluminum wheels are designed to improve handling and fit various sticky street tires. Plus, they are easy to clean and just plain look good.

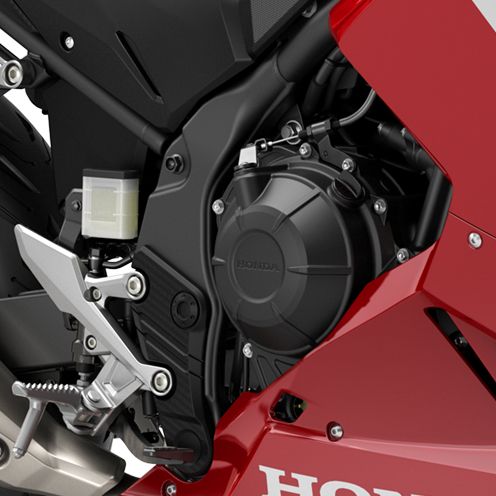

Slipper clutch

Born from Honda's racing pedigree, the slipper/assist clutch reduces clutch lever effort by 45 percent compared to previous systems and automatically locks up tight upon release, reducing rear-wheel hop under hard deceleration.

Accessorized European Model Shown

Smooth transmission

Our engineers profiled the transmission shift dogs to help you change gears with reduced effort every time. While you’ll likely never see these parts, you’ll undoubtedly feel their effects.

Accessorized European Model Shown

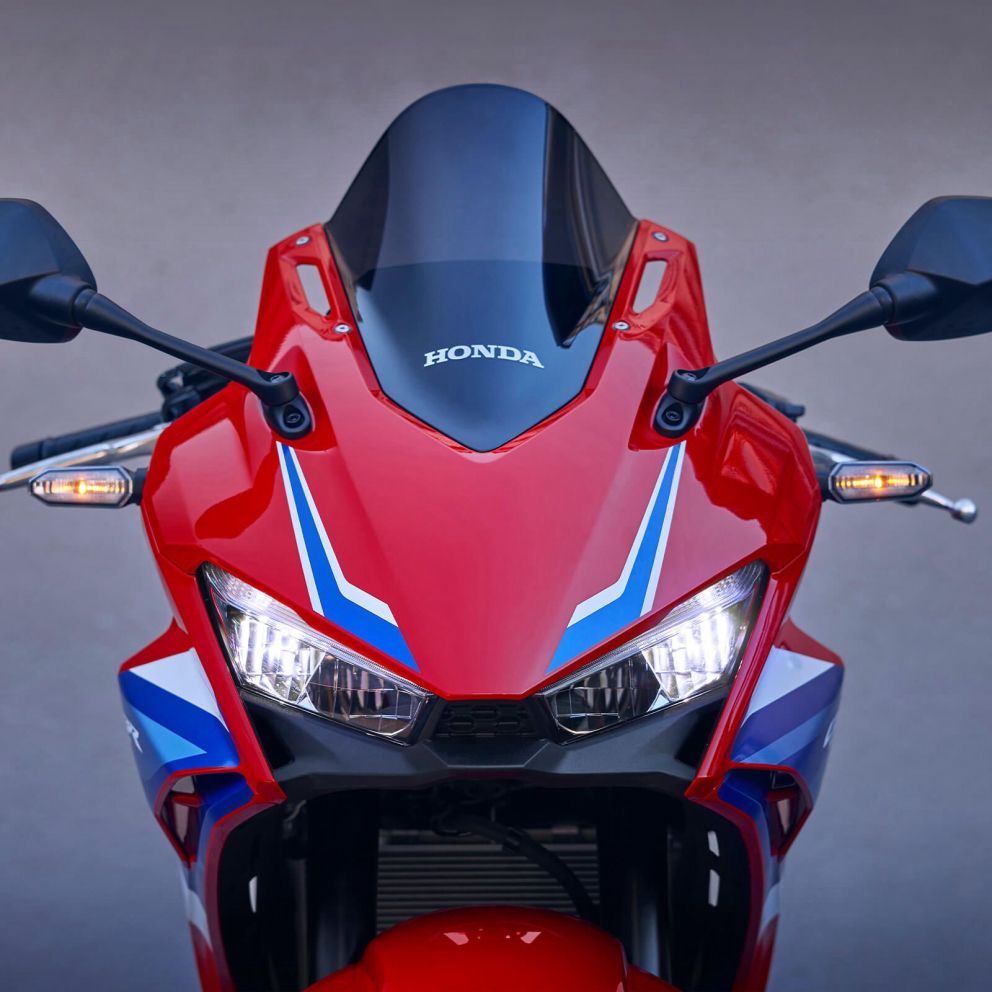

LED headlights

A pair of small and stylish LED headlights allow for the ideal placement of the engine intakes, resulting in increased airflow and additional horsepower without sacrificing illumination.
