450cc liquid-cooled single-cylinder
Five-speed close-ratio
49.0 mm inverted Showa® fork; 12.2-inch travel
Pro-Link® Showa® single shock; 12.4-inch travel
37.8 inches
247 pounds (w/all fluids and fuel)
Engine

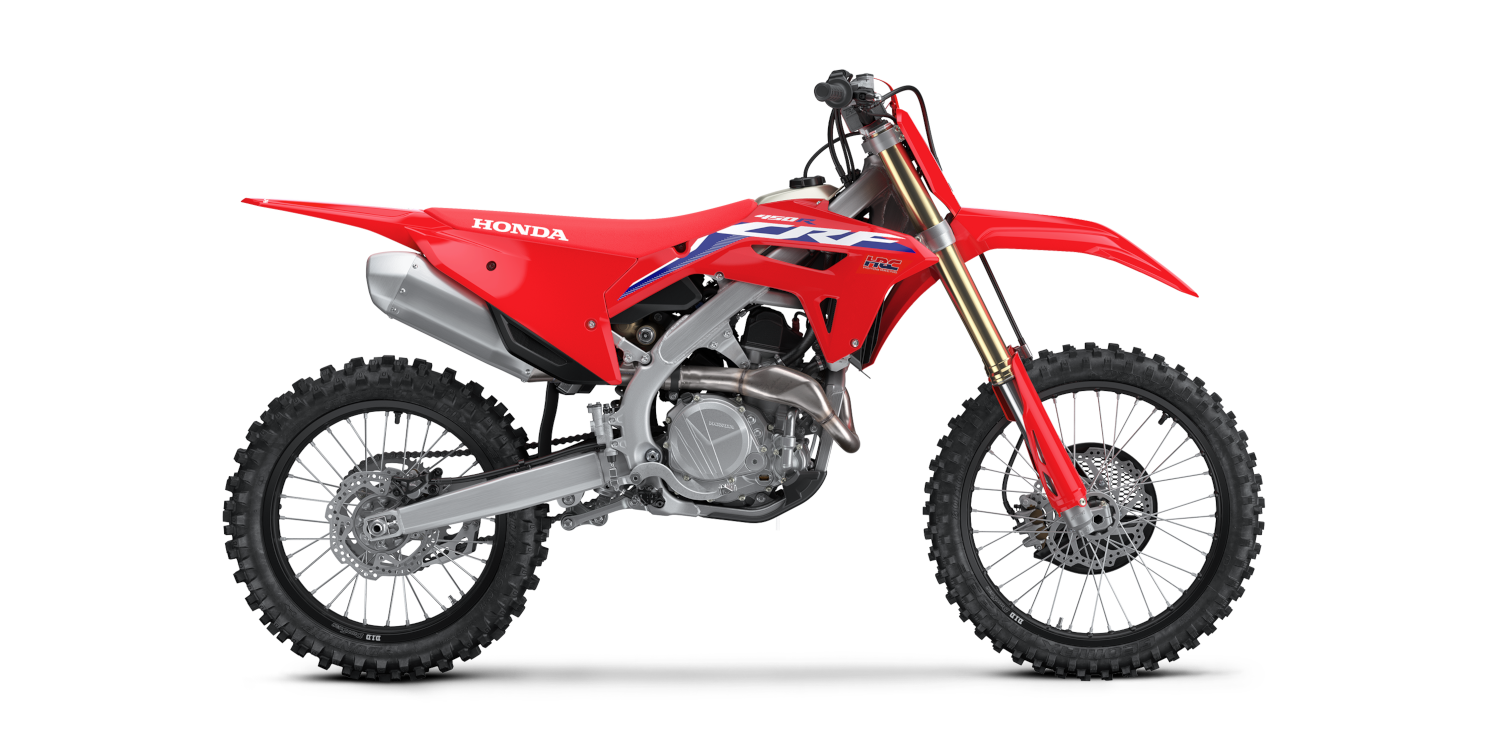

Engine Type | 450cc liquid-cooled single-cylinder |
---|---|
Bore And Stroke | 96.0 mm x 62.1 mm |
Compression Ratio | 13.5:1 |
Valve Train | Unicam® SOHC; four valves per cylinder |

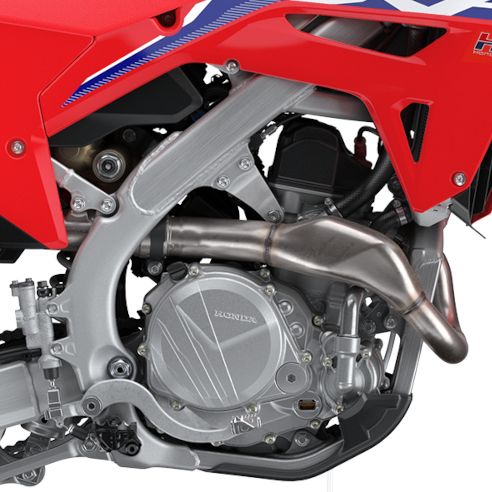

Induction | Programmed Fuel Injection (PGM-FI), 46.0 mm downdraft throttle body |
Drivetrain
Transmission | Five-speed close-ratio |
---|---|
Final Drive | #520 Chain; 13T/49T |

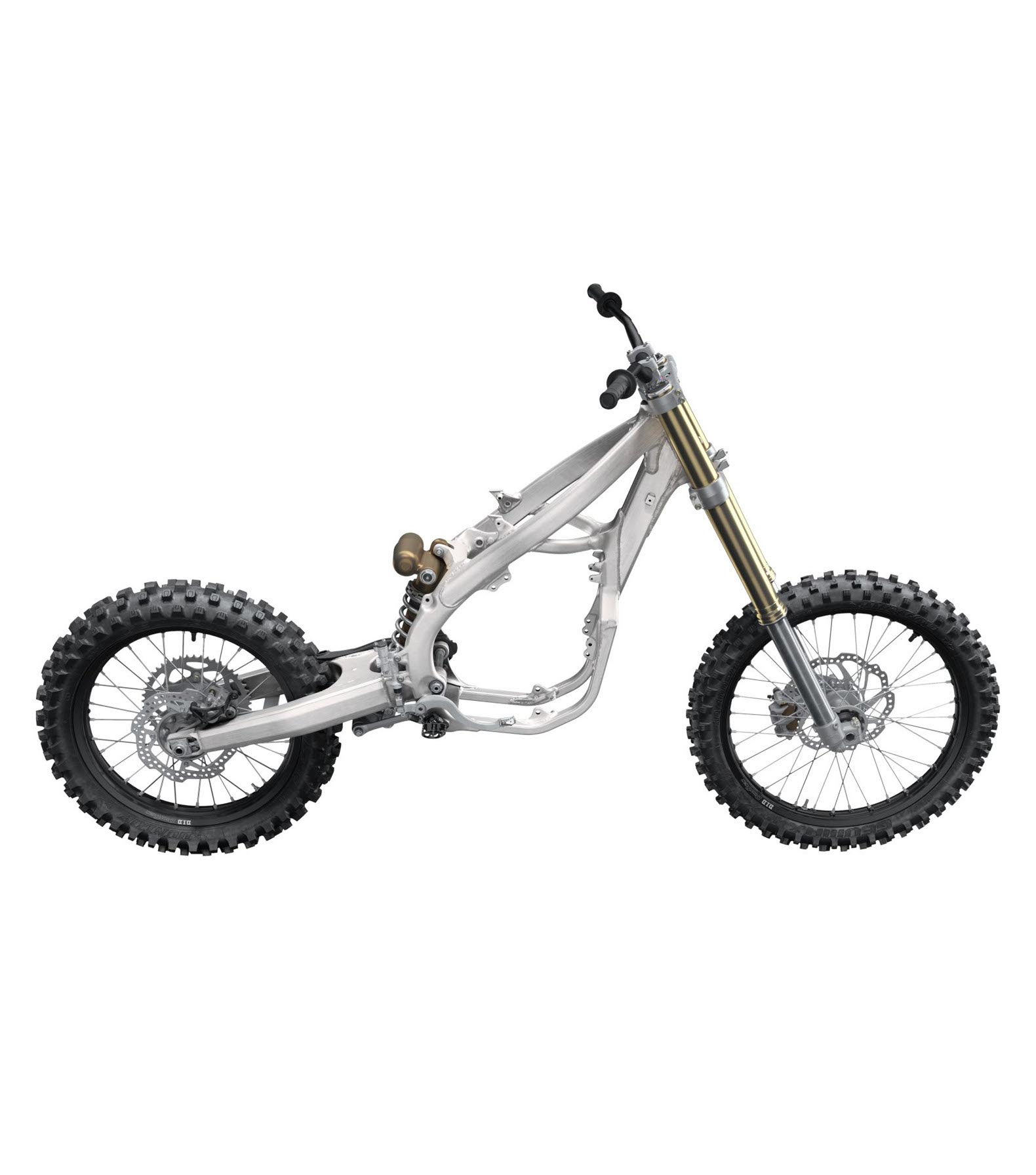

Chassis Suspension Brakes

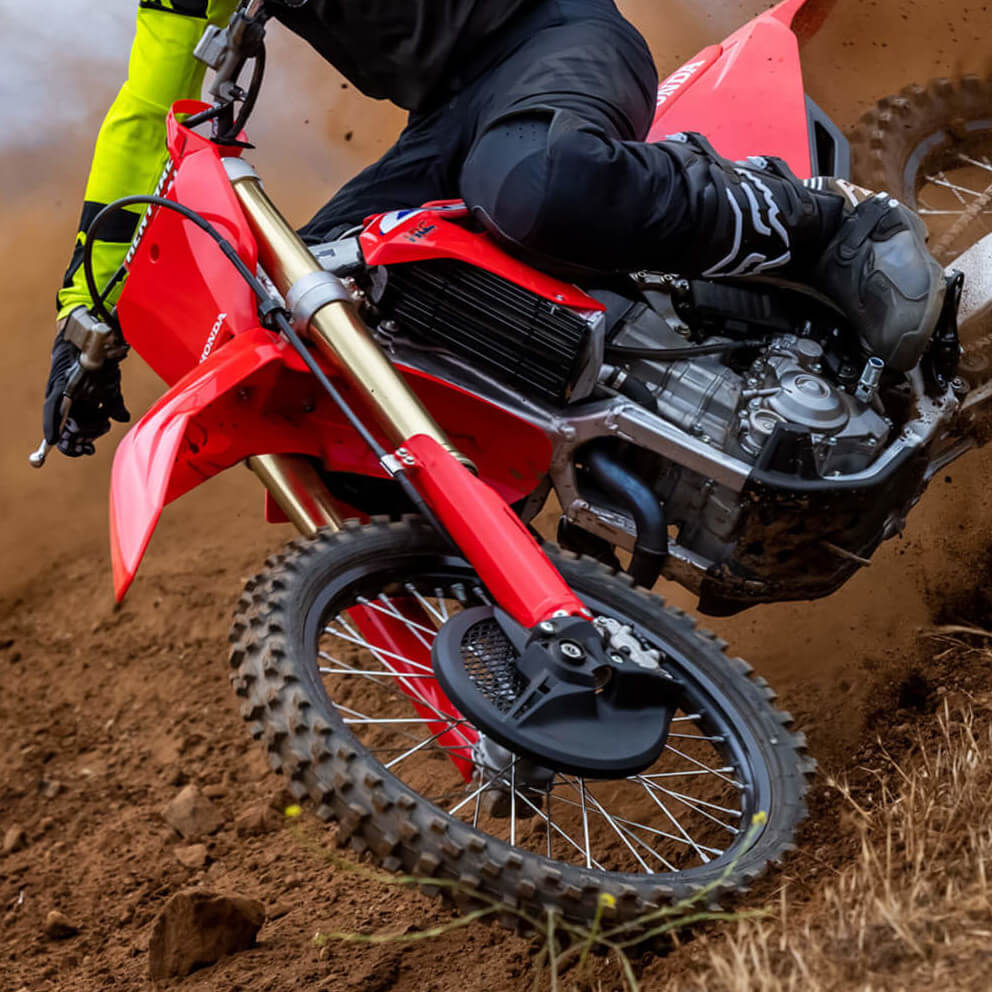

Front Suspension | 49.0 mm inverted Showa® fork; 12.2-inch travel |
---|---|
Rear Suspension | Pro-Link® Showa® single shock; 12.4-inch travel |
Front Brake | Single 260.0 mm disc with twin-piston caliper |
Rear Brake | Single 240.0 mm disc |

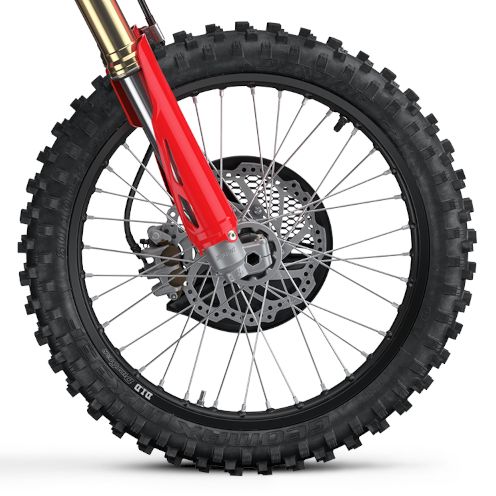

Front Tire | Dunlop MX33; 80/100-21 |
Rear Tire | Dunlop MX33; 120/80-19 |
Dimensions
Wheelbase | 58.3 inches |
---|---|
Rake | 27.1° |
Trail | 4.5 inches |
Seat Height | 37.8 inches |
Ground Clearance | 13.2 inches |
Fuel Capacity | 1.7 gallons |
Curb Weight | 247 pounds (w/all fluids and fuel) |
Other
Available Colors | Red |
---|---|
Model ID | CRF450RS |
