249cc liquid-cooled single-cylinder four-stroke
Five-speed
49.0 mm inverted Showa® fork with titanium-oxide-coated lower legs; 12.2-inch travel
Pro-Link® Showa® single shock; 12.1-inch travel
37.9 inches
236 pounds (w/all fluids and fuel)
Engine

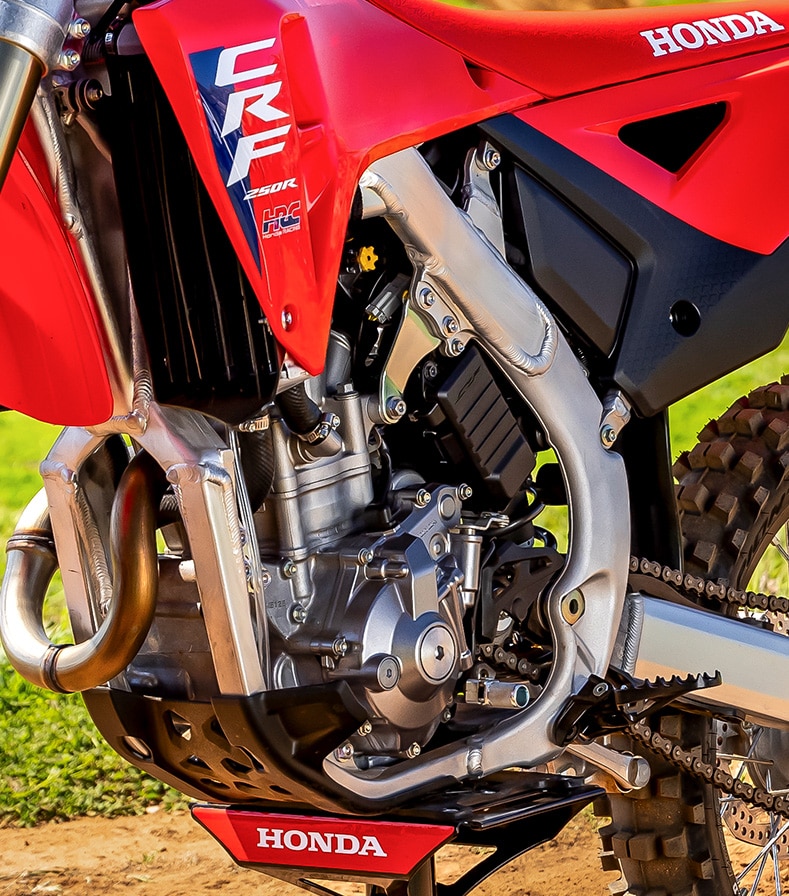

Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
---|---|
Bore and Stroke | 79.0 mm x 50.9 mm |
Compression Ratio | 13.9:1 |
Valve Train | DOHC; four valves per cylinder |
Induction | Programmed Fuel Injection (PGM-FI), 44.0 mm downdraft throttle body |
Drivetrain
Transmission | Five-speed |
---|---|
Final Drive | #520 Chain; 13T/50T |
Chassis Suspension Brakes

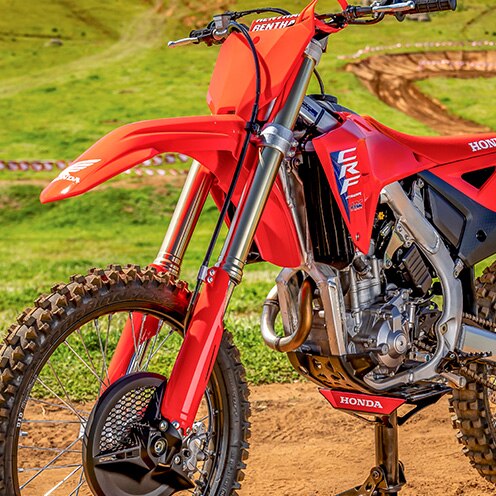

Front Suspension | 49.0 mm inverted Showa® fork with titanium-oxide-coated lower legs; 12.2-inch travel |
---|---|
Rear Suspension | Pro-Link® Showa® single shock; 12.1-inch travel |
Front Brake | Single 260.0 mm disc |
Rear Brake | Single 240.0 mm disc |
Front Tire | Dunlop Geomax MX33; 80/100-21 |
Rear Tire | Dunlop Geomax MX33; 110/90-19 |
Dimensions
Rake | 27.2° |
---|---|
Trail | 4.5 inches |
Wheelbase | 58.4 inches |
Seat Height | 37.9 inches |
Curb Weight | 236 pounds (w/all fluids and fuel) |
Fuel Capacity | 1.7 gallons |
Ground Clearance | 13.1 inches |
Other
Available Colors | Red |
---|---|
Model ID | CRF250RWE |
