450cc liquid-cooled single-cylinder four-stroke
Close-ratio five-speed
49mm inverted Showa® fork; 12.2-inch travel
Pro-Link Showa® single shock; 12.2-inch travel
37.8 inches
249 pounds (ready to ride)
Engine
Engine Type | 450cc liquid-cooled single-cylinder four-stroke |
---|---|
Bore And Stroke | 96.0mm x 62.1mm |
Compression Ratio | 13.5:1 |
Valve Train | Unicam SOHC; four valves per cylinder |
Induction | Programmed Fuel Injection (PGM-FI), 44mm downdraft throttle body |
Drive Train
Transmission | Close-ratio five-speed |
---|---|
Final Drive | #520 Chain; 13T/49T |
Chassis Suspension Brakes
Front Suspension | 49mm inverted Showa® fork; 12.2-inch travel |
---|---|
Rear Suspension | Pro-Link Showa® single shock; 12.2-inch travel |
Front Brake | Single 260mm disc with twin-piston caliper |
Rear Brake | Single 240mm disc |
Front Tire | Dunlop MX33 80/100-21 |
Rear Tire | Dunlop MX33 120/80-19 |
Dimensions
Wheelbase | 58.3 inches |
---|---|
Rake | 27.3° |
Trail | 4.5 inches |
Seat Height | 37.8 inches |
Ground Clearance | 13.1 inches |
Fuel Capacity | 1.7 gallons |
Curb Weight | 249 pounds (ready to ride) |
Other
Available Colors | Red |
---|---|

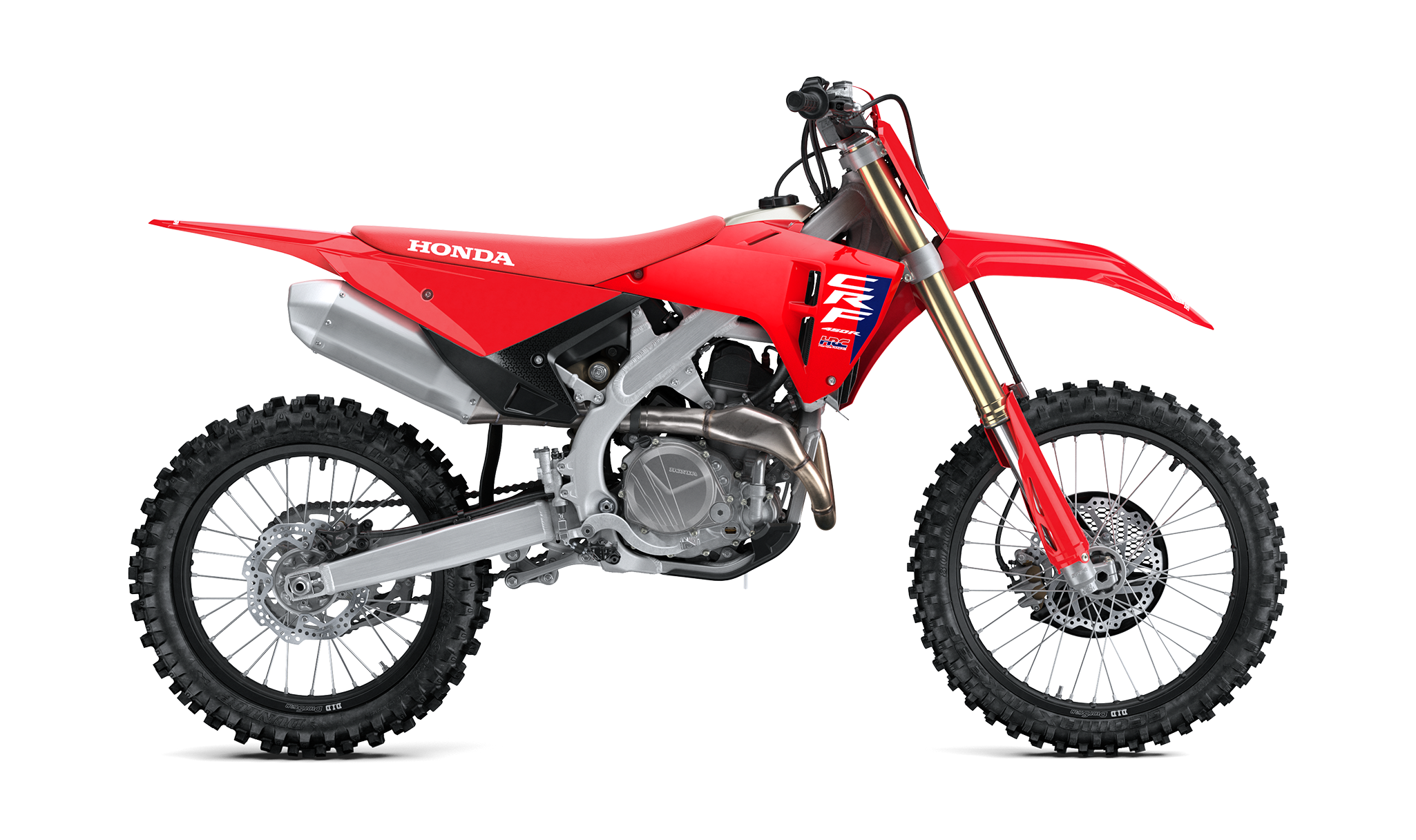

Model ID | CRF450R |
