CRF250R
249cc liquid-cooled single-cylinder four-stroke
Five-speed
49mm leading-axle inverted Showa® fork; 12.2-inch travel
Pro-Link Showa single shock; 12.1-inch travel
37.6 inches
234 pounds (w/all fluids and fuel)
Engine
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
|---|---|
| Bore and Stroke | 79.0mm x 50.9mm |
| Compression Ratio | 13.9:1 |
| Valve Train | DOHC, four valves per cylinder |
| Induction | Programmed Fuel Injection (PGM-FI), 44mm downdraft throttle body |
Drive Train
| Transmission | Five-speed |
|---|---|
| Final Drive | #520 Chain; 13T/50T |
Chassis Suspension Brakes
| Front Suspension | 49mm leading-axle inverted Showa® fork; 12.2-inch travel |
|---|---|
| Rear Suspension | Pro-Link Showa single shock; 12.1-inch travel |
| Front Brake | Single 260mm disc |
| Rear Brake | Single 240mm disc |
| Front Tire | Pirelli Scorpion MX32; 80/100-21 |
| Rear Tire | Pirelli Scorpion MX32; 100/90-19 |
Dimensions
| Rake | 27.5° |
|---|---|
| Trail | 4.6 inches |
| Wheelbase | 58.4 inches |
| Seat Height | 37.6 inches |
| Curb Weight | 234 pounds (w/all fluids and fuel) |
| Fuel Capacity | 1.7 gallons |
| Ground Clearance | 13.0 inches |
Other
| Available Colors | Red |
|---|---|
| Model ID | CRF250R |
Cash in when you win
Honda knows winning like no other. When you Ride Red, your podium chances soar. And with the Honda Red Rider Rewards Contingency Program, you win twice—on the track and at the bank. From Supercross to side-by-sides, we offer opportunities to cash in for them all. Join us, bring your A-game, and let's dominate the winner's circle together.
249cc of race-winning performance

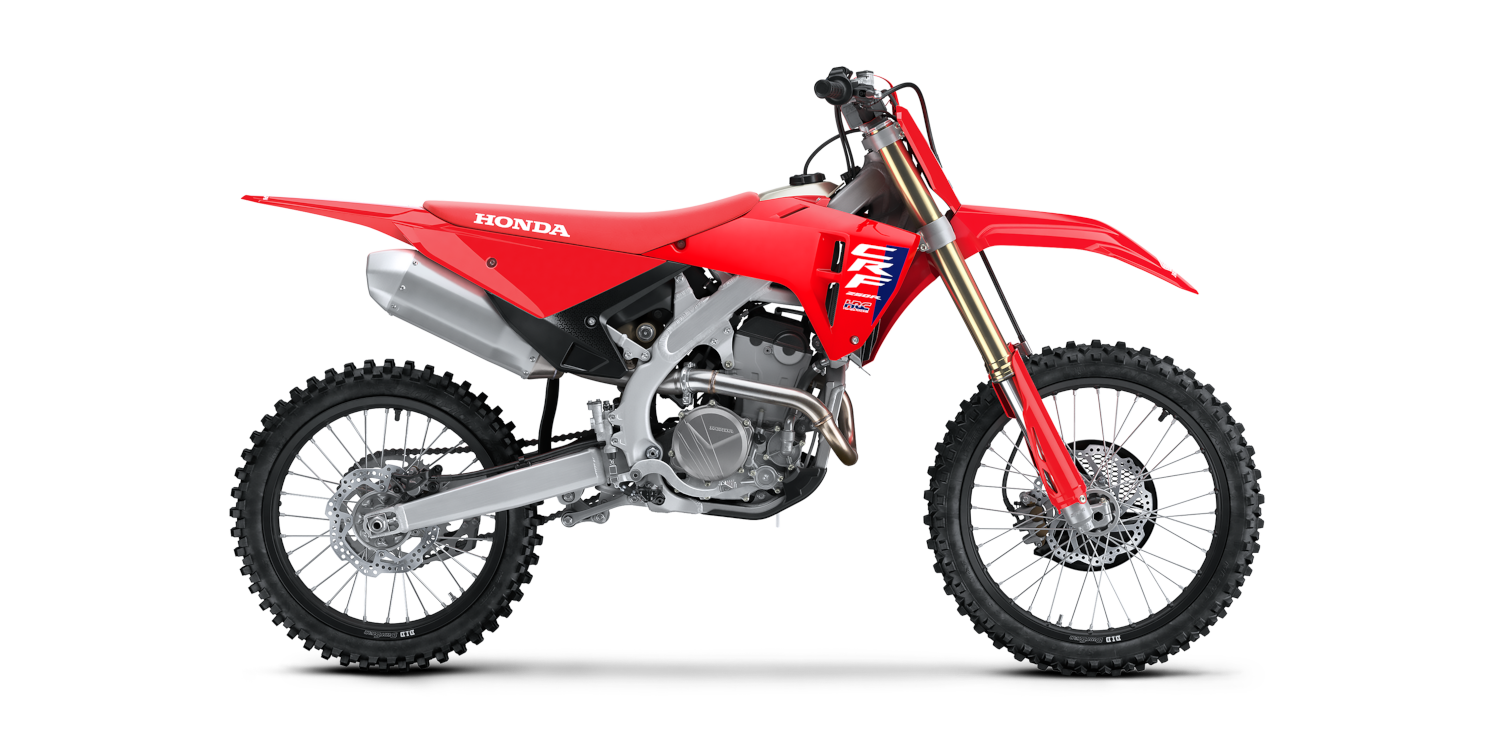

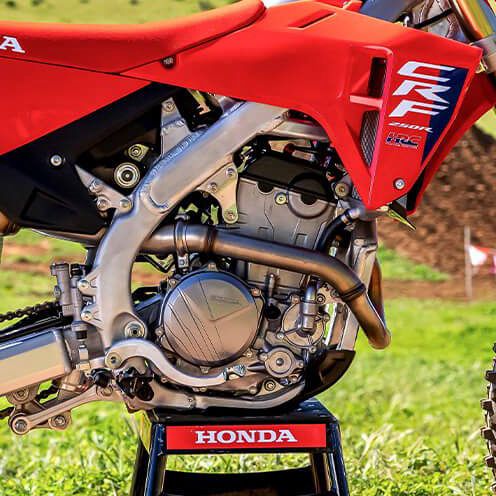

DOHC engine layout
With a unique finger-follower rocker design, the DOHC engine maximizes power and raises the redline, resulting in superior performance.

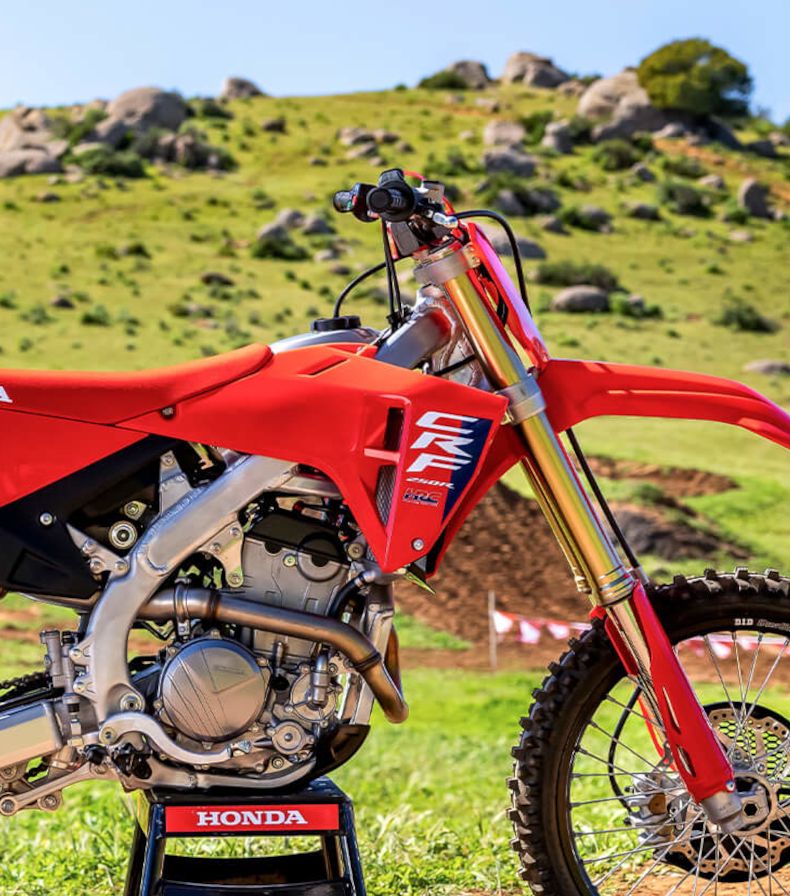

Higher-capacity radiator
A six-percent larger radiator compared to the previous generation provides the cooling capacity needed to sustain the engine's high power output.

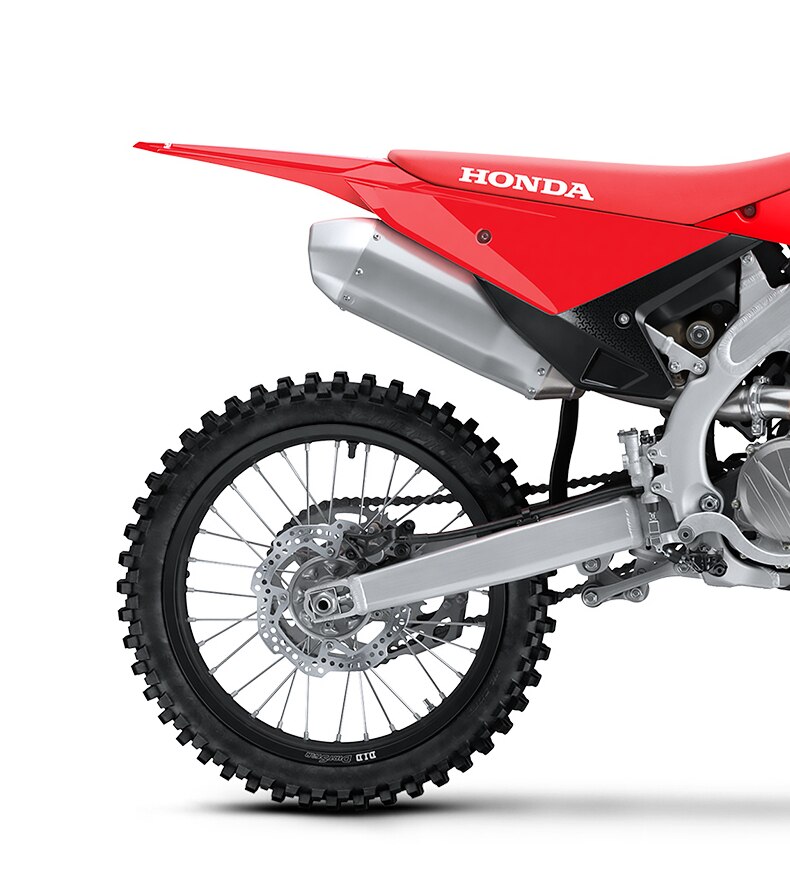

High-volume airbox and air cleaner
Compared to the previous generation, the air-cleaner element features a larger surface area and volume, and the airbox features a more direct flow to the engine, resulting in improved power.

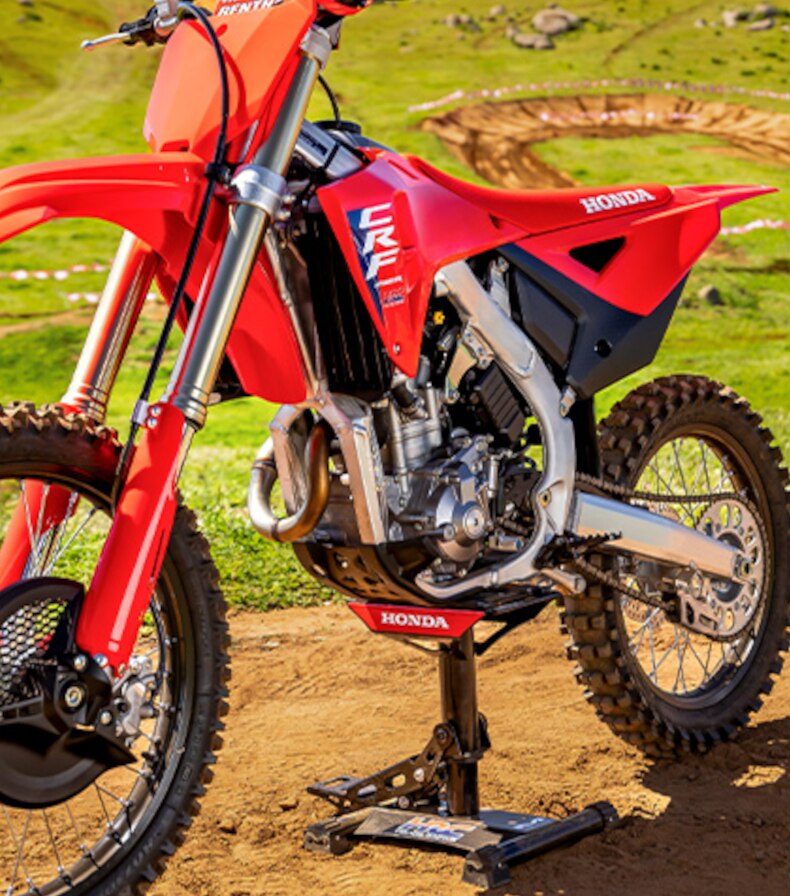

Gear-position engine mapping
The smart ECU delivers tailored engine mapping for each gear, giving riders the edge with optimal power in every gear choice.
HRC influence. Your advantage.

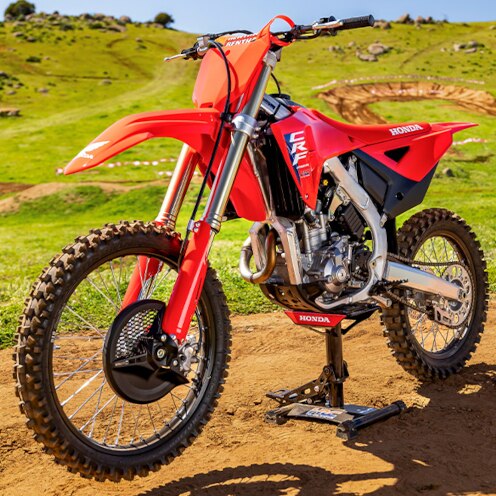

Responsive frame
A superior frame is crucial for excellent handling, and the chassis delivers. It's lightweight and responsive, with narrow main spars, and was designed with direct input from Team Honda HRC riders.

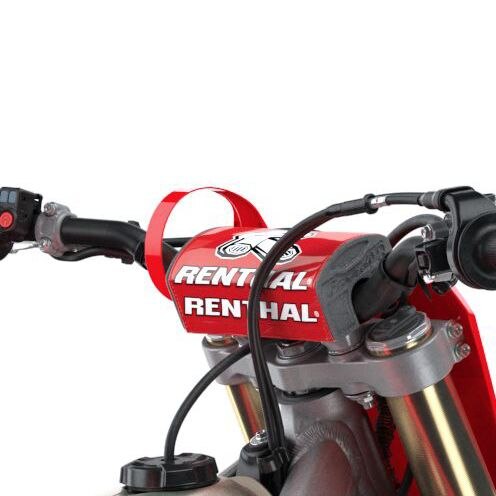

Tripleclamps, axle, and steering stem
Compared to the previous generation, we revised the tripleclamps, frame, fork, and steering stem for improved chassis rigidity and responsiveness to give the bike a better cornering feel.

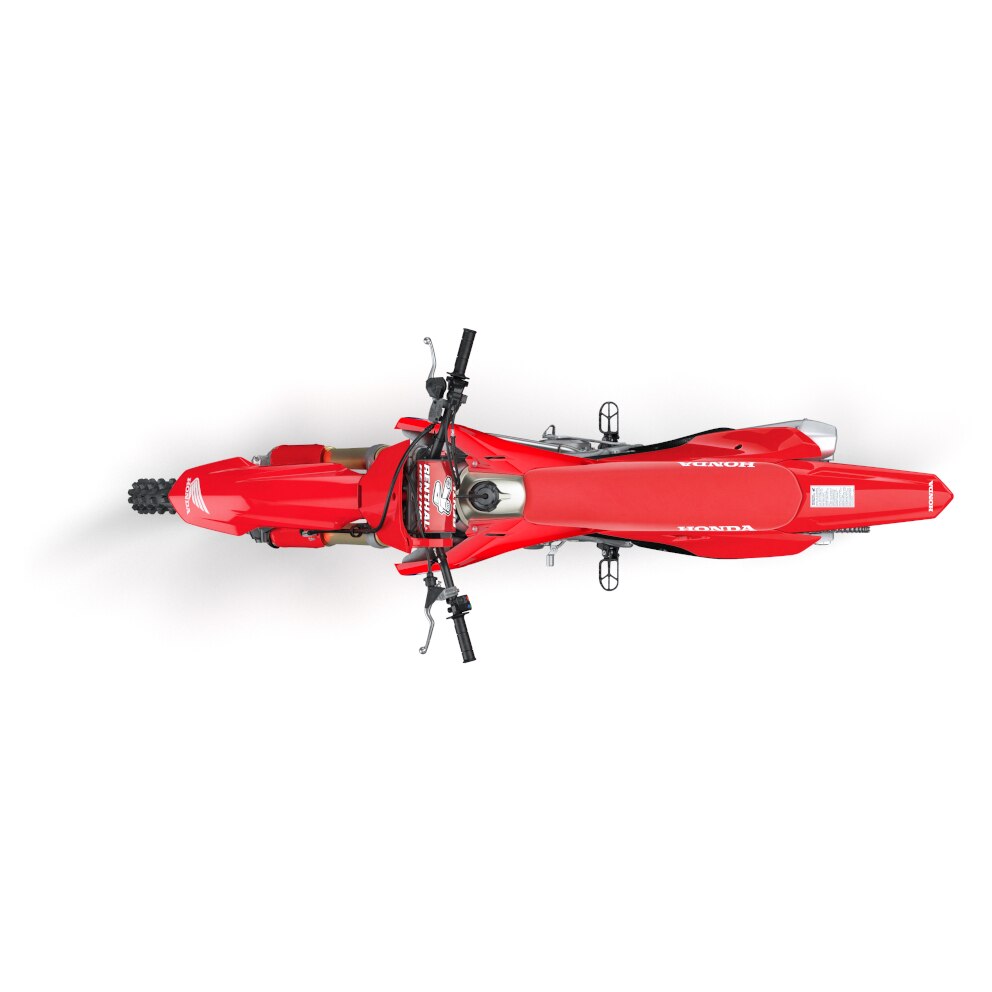

Lower seat/narrower body
We fine-tuned the seat height and bodywork width to make moving around on the bike easy and enhance overall rider comfort.
"Stacked" CRF logo
Like our factory racebikes, our CRF competition lineup features the vertically stacked CRF logos that look fast even sitting still.

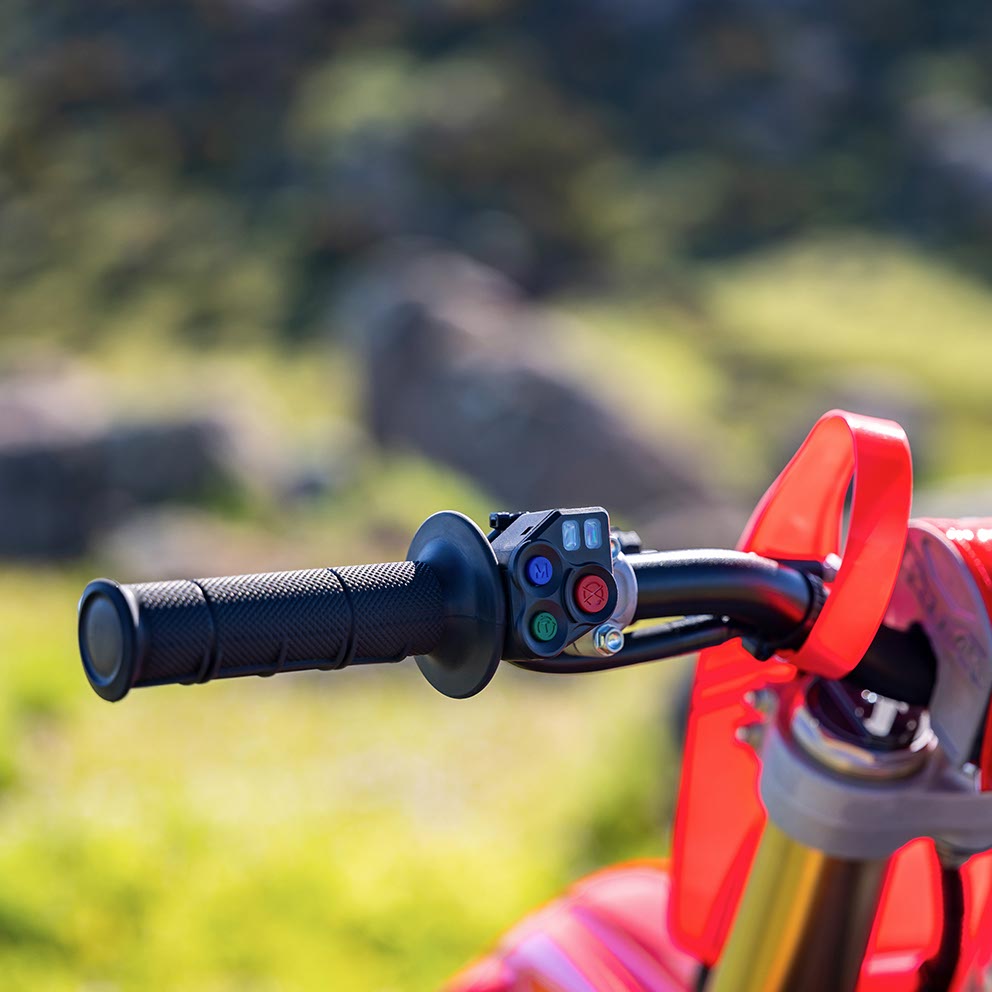

Engine mode select button
Customize your engine's power delivery on the fly with the convenient left-side, handlebar-mounted blue button. It allows you to effortlessly switch between Standard, Smooth, and Aggressive modes to suit varying track conditions or rider preference.
Showa® spring fork
The 49mm Showa fork uses a conventional spring design with a 39mm piston and a 25mm rod to give the rider a supple feel while still having the holdup to resist bottoming under heavy loads like big jumps, bumps, or ruts.
Titanium fuel tank
Every gram counts, so the bike has a titanium fuel tank. Light and strong, it’s also thinner than our previous plastic unit, freeing up more space and helping to centralize the fuel’s mass.
Black rims
The DID DirtStar rims are lightweight and strong, while the black color looks good and is easy to clean.
HRC launch control
The ECU’s special launch control program lets you select the mode, hold the throttle open, and release the clutch. Your bike then takes control and regulates the power to the rear wheel based on available traction, turning it into a holeshot-seeking machine!
Superior frame rigidity
Great handling starts with a superior frame. First, it’s light. By making the frame’s main spars narrow, we save weight, but more importantly we make the chassis more responsive by fine-tuning the lateral rigidity. The result is a bike that gets into, around, and out of corners faster.
