CRF150R
150cc liquid-cooled single cylinder
Close-ratio five-speed
37mm leading-axle inverted Showa® fork; 10.8-inch travel
Pro-Link® Showa® single shock; 10.7-inch travel
32.8 inches
185 pounds (w/all fluids and fuel)
Engine
| Engine Type | 150cc liquid-cooled single cylinder |
|---|---|
| Bore and Stroke | 66.0mm x 43.8mm |
| Compression Ratio | 11.7:1 |
| Valve Train | Unicam SOHC; four valves per cylinder |
| Induction | 32mm Keihin flat-slide carburetor with Throttle Position Sensor (TPS) |
Drive Train
| Transmission | Close-ratio five-speed |
|---|---|
| Final Drive | #420 chain; 15T/50T |
Chassis Suspension Brakes
| Front Suspension | 37mm leading-axle inverted Showa® fork; 10.8-inch travel |
|---|---|
| Rear Suspension | Pro-Link® Showa® single shock; 10.7-inch travel |
| Front Brake | Single 220mm disc |
| Rear Brake | Single 190mm disc |
| Front Tire | Dunlop MX51;70/100-17 |
| Rear Tire | Dunlop MX51; 90/100-14 |
Dimensions
| Rake | 27.0° |
|---|---|
| Trail | 3.1 inches |
| Wheelbase | 49.6 inches |
| Seat Height | 32.8 inches |
| Ground Clearance | 11.9 inches |
| Curb Weight | 185 pounds (w/all fluids and fuel) |
| Fuel Capacity | 1.1 gallons |
Other
| Available Colors | Red |
|---|---|
| Model ID | CRF150R |
Race ready
Double your victory
Honda knows winning like no other. When you Ride Red, your podium chances soar. And with the Honda Red Riders Reward Program, you win twice—on the track and at the bank. From Supercross to side-by-sides to road racing, we offer opportunities to cash in for them all. Join us, bring your A-game, and let's dominate the winner's circle together.
Racing glory starts here

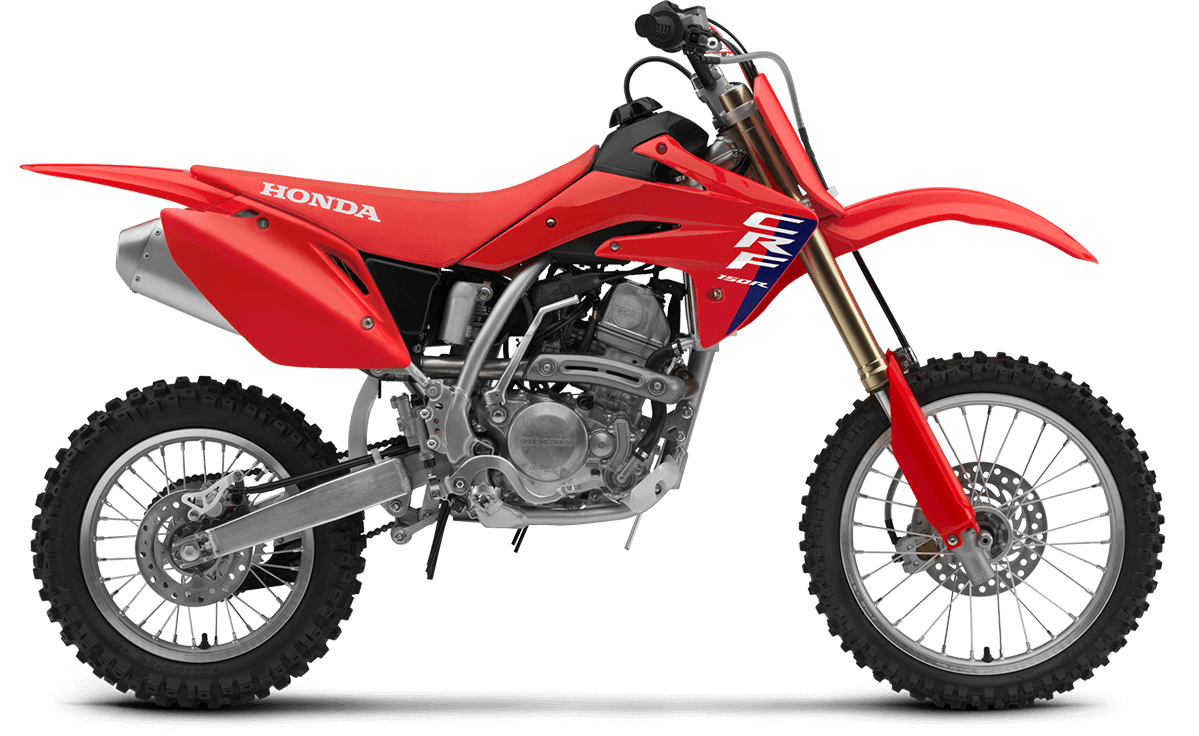

Unicam® engine
The Unicam® engine is based on the championship-winning CRF450R. It is designed to provide excellent rideability and increased power and torque throughout the rev range.

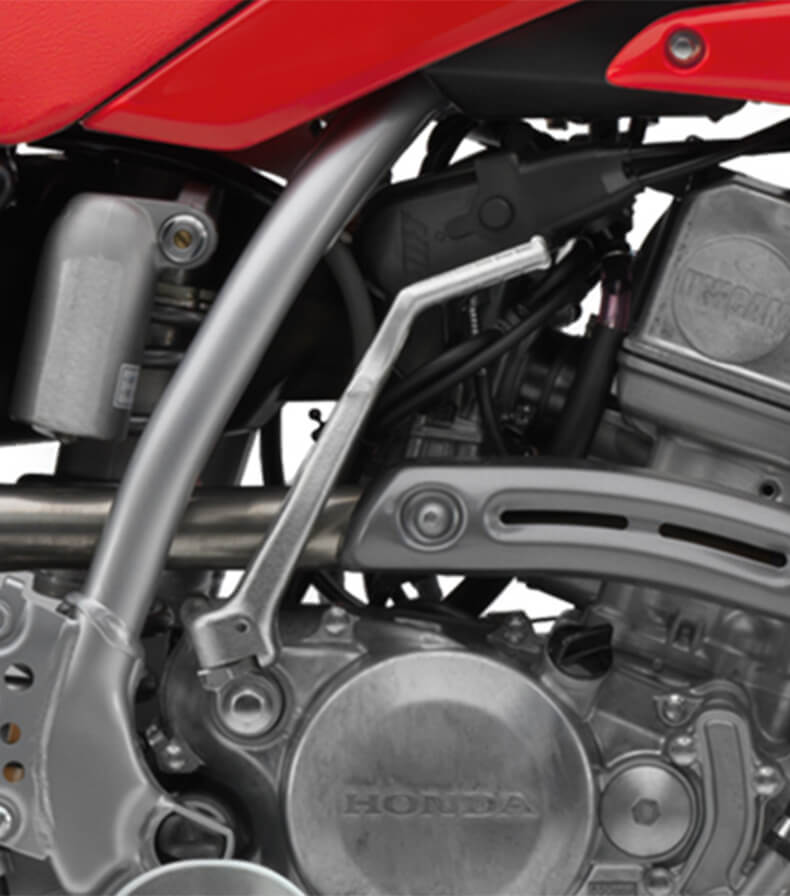

Accelerator pump
A “direct push” accelerator pump carburetor provides better, more immediate throttle response.

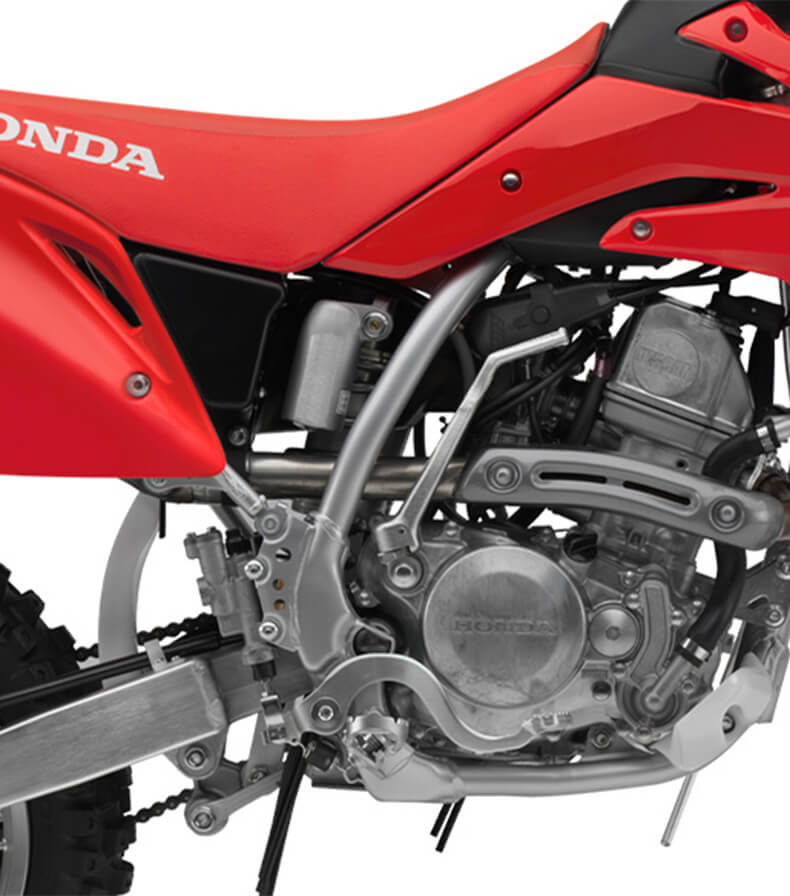

Track-designed chassis
A lightweight, high-tensile steel frame with large-diameter frame tubing and crossmember delivers excellent turning performance and straight-line tracking.
Front and rear disc brakes
Front and rear disc brakes provide powerful, precise stopping power.
Junior moto, major thrills

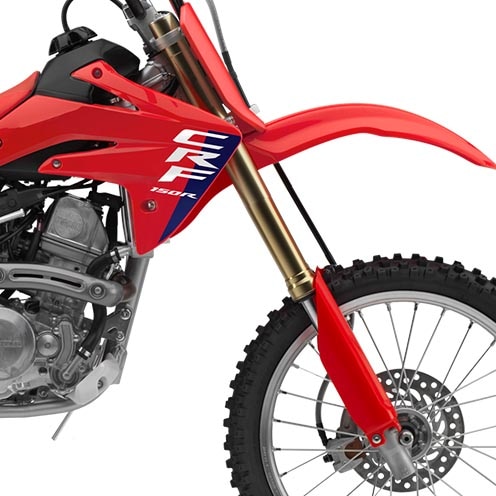

Showa® front suspension
An adjustable 37mm leading-axle inverted Showa® cartridge fork features specially tuned valving for small bumps and a friction-reducing design to improve compression and rebound control.
Pro-Link® rear suspension
The Pro-Link® rear-suspension system features a fully adjustable Showa® shock for superb bump absorption and wheel control.
Lightweight wheels
Strong, lightweight wheels are durable and minimize unsprung weight.
Big-bike MX graphics
Clean, bold, and bright graphics are just like those on our CRF450R. Look like a pro, ride like a pro.
