Red

Engine Type

150cc liquid-cooled single cylinder

Transmission

Close-ratio five-speed

Front Suspension

37.0 mm leading-axle inverted Showa® fork; 10.8-inch travel

Rear Suspension

Pro-Link® Showa® single shock; 10.7-inch travel

Seat Height

32.8 inches

Curb Weight

185 pounds (w/all fluids and fuel)

Engine

Engine Type	150cc liquid-cooled single cylinder
Bore and Stroke	66.0 mm x 43.8 mm
Compression Ratio	11.7:1
Valve Train	Unicam® SOHC; four valves per cylinder
Induction	32.0 mm Keihin flat-slide carburetor with Throttle Position Sensor (TPS)

Drivetrain

Transmission	Close-ratio five-speed
Final Drive	#420 chain; 15T/50T

Chassis Suspension Brakes

Front Suspension	37.0 mm leading-axle inverted Showa® fork; 10.8-inch travel
Rear Suspension	Pro-Link® Showa® single shock; 10.7-inch travel
Front Brake	Single 220.0 mm disc
Rear Brake	Single 190.0 mm disc
Front Tire	Dunlop MX51;70/100-17
Rear Tire	Dunlop MX51; 90/100-14

Dimensions

Rake	27.0°
Trail	3.1 inches
Wheelbase	49.6 inches
Seat Height	32.8 inches
Ground Clearance	11.9 inches
Curb Weight	185 pounds (w/all fluids and fuel)
Fuel Capacity	1.1 gallons

Other

Available Colors	Red
Model ID	CRF150R

Download Specs

Race ready

Double your victory

Honda knows winning like no other. When you Ride Red, your podium chances soar. And with the Honda Red Rider Rewards Contingency Program, you win twice—on the track and at the bank. From Supercross to side-by-sides to road racing, we offer opportunities to cash in for them all. Join us, bring your A-game, and let's dominate the winner's circle together.

R3 contingency program

19 AMA 450 Pro Supercross Championships

15 AMA 450 Pro Motocross Championships

20 AMA 250 Pro Supercross Championships

17 AMA 250 Pro Motocross Championships

Racing glory starts here

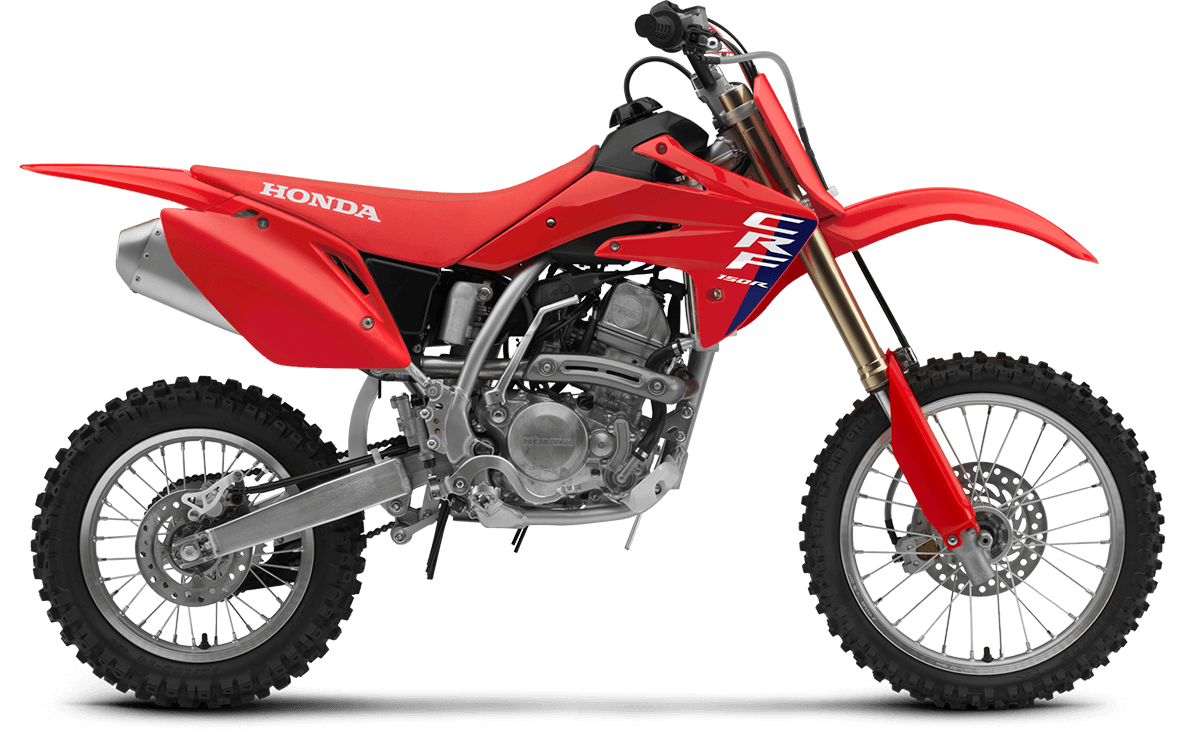

Unicam® engine

The Unicam^® engine is based on the championship-winning CRF450R. It is designed to provide excellent rideability and increased power and torque throughout the rev range.

Racing glory starts here

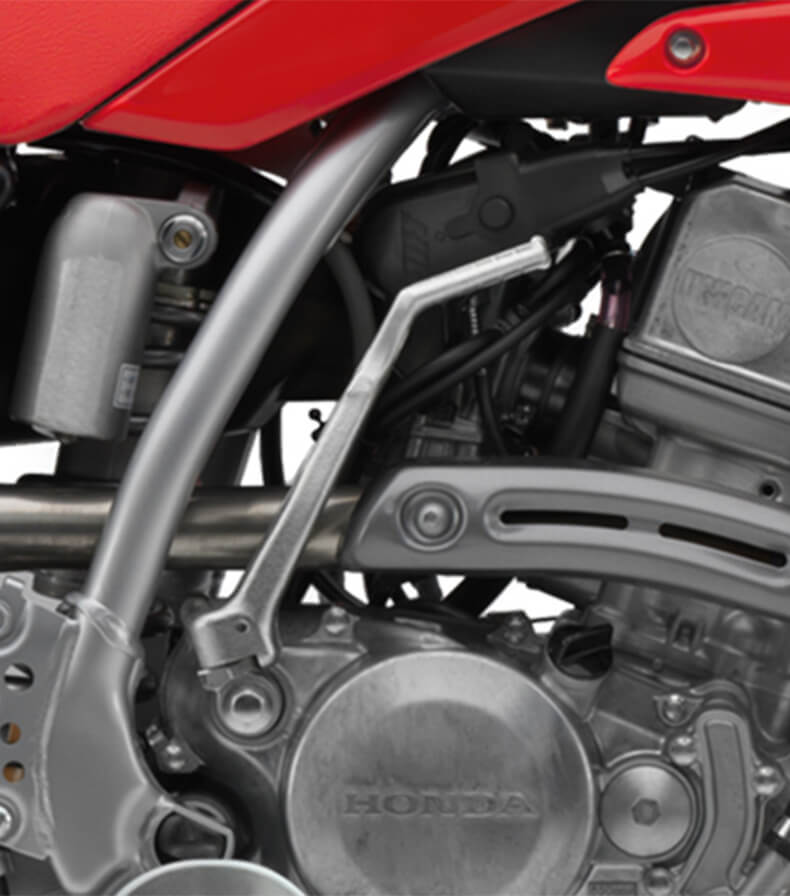

Accelerator pump

A “direct push” accelerator pump carburetor provides better, more immediate throttle response.

Racing glory starts here

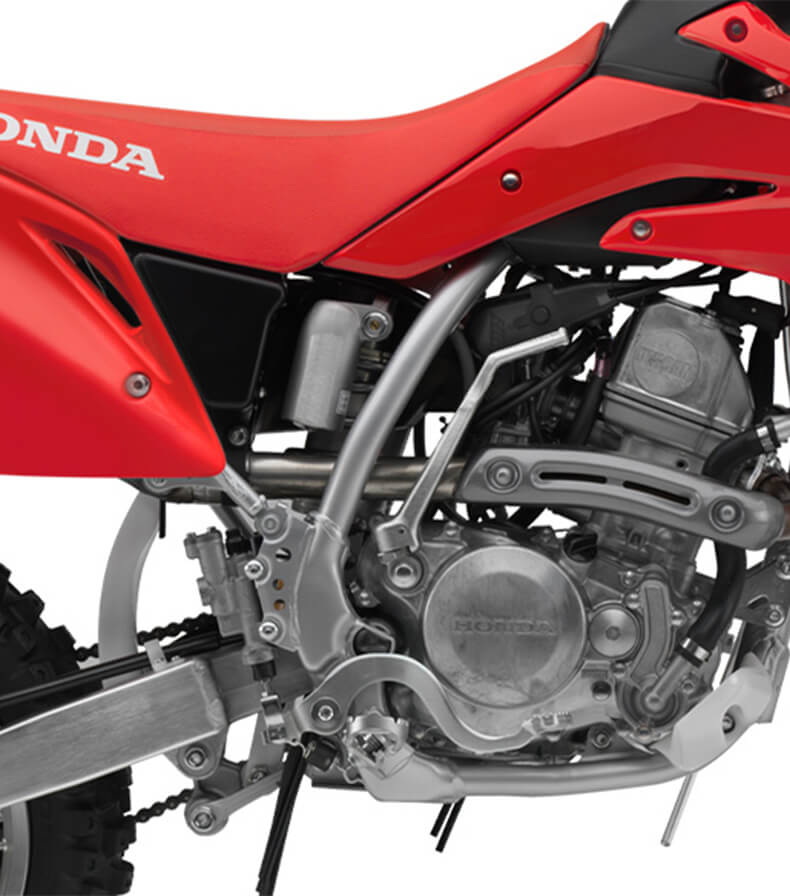

Track-designed chassis

A lightweight, high-tensile steel frame with large-diameter frame tubing and crossmember delivers excellent turning performance and straight-line tracking.

Racing glory starts here

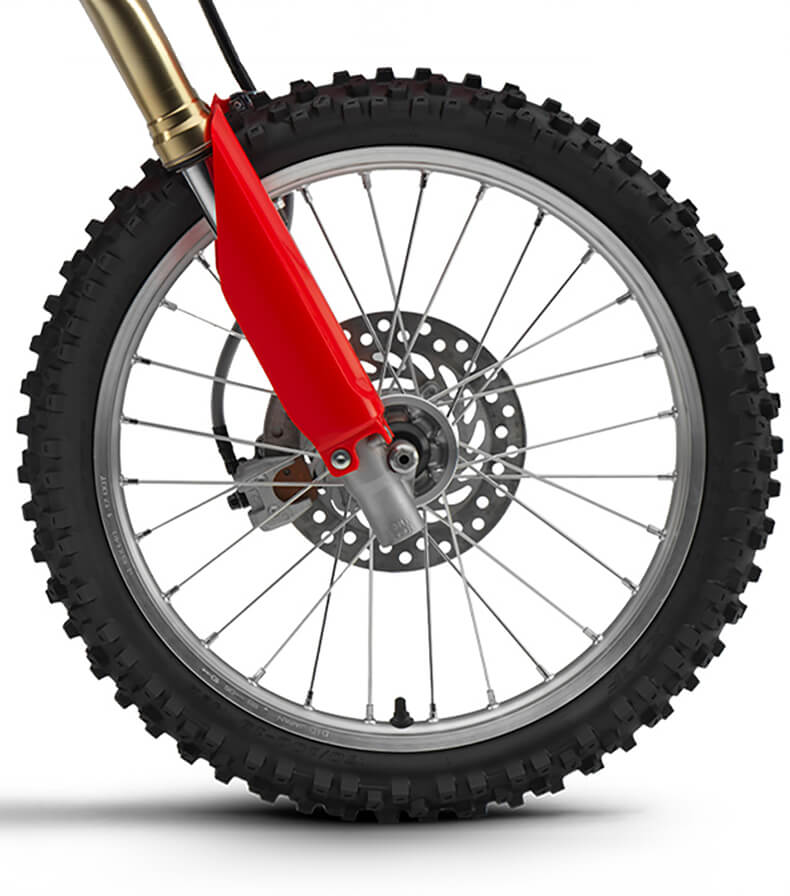

Front and rear disc brakes

Front and rear disc brakes provide powerful, precise stopping power.

Junior moto, major thrills

View all Features

Showa® front suspension

An adjustable 37mm leading-axle inverted Showa^® cartridge fork features specially tuned valving for small bumps and a friction-reducing design to improve compression and rebound control.
