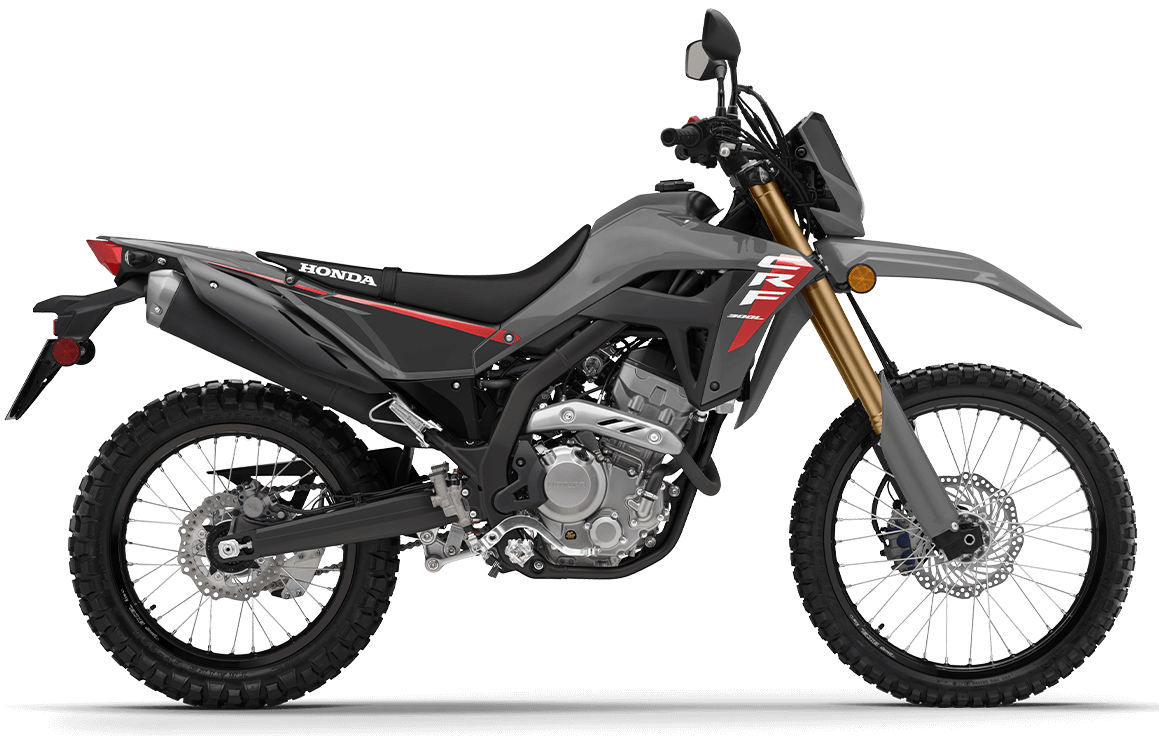

Swift Gray

Engine Type

286cc liquid-cooled single-cylinder four-stroke

Transmission

Six-speed manual

Front Suspension

43mm inverted fork; 9.3-inch travel

Rear Suspension

Pro-Link® single shock; 9.0-inch travel

Seat Height

32.7 inches

Warranty

Transferable, unlimited-mileage limited warranty. One year included.

Extended Warranty

Engine

Engine Type	286cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	76.0mm x 63.0mm
Compression Ratio	10.7:1
Valve Train	DOHC; four-valves per cylinder
Induction	Programmed Fuel Injection (PGM-FI); 38mm throttle body

Drive Train

Transmission	Six-speed manual
Final Drive	#520 chain; 14T/40T

Chassis Suspension Brakes

Front Suspension	43mm inverted fork; 9.3-inch travel
Rear Suspension	Pro-Link® single shock; 9.0-inch travel
Front Brake	Single 256mm disc with twin-piston caliper
Rear Brake	Single 220mm disc
Front Tire	80/100-21
Rear Tire	120/80-18

Dimensions

Rake	27.5°
Trail	4.3 inches
Wheelbase	56.7 inches
Seat Height	32.7 inches
Ground Clearance	9.6 inches
Curb Weight	311 pounds (Includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity	2.1 gallons, including 0.5-gallon reserve

Other

Available Colors	Swift Gray
Model ID	CRF300LDA

Factory Warranty Information

One Year Included	Transferable, unlimited mileage limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

Explore the unexplored

Lightweight legend

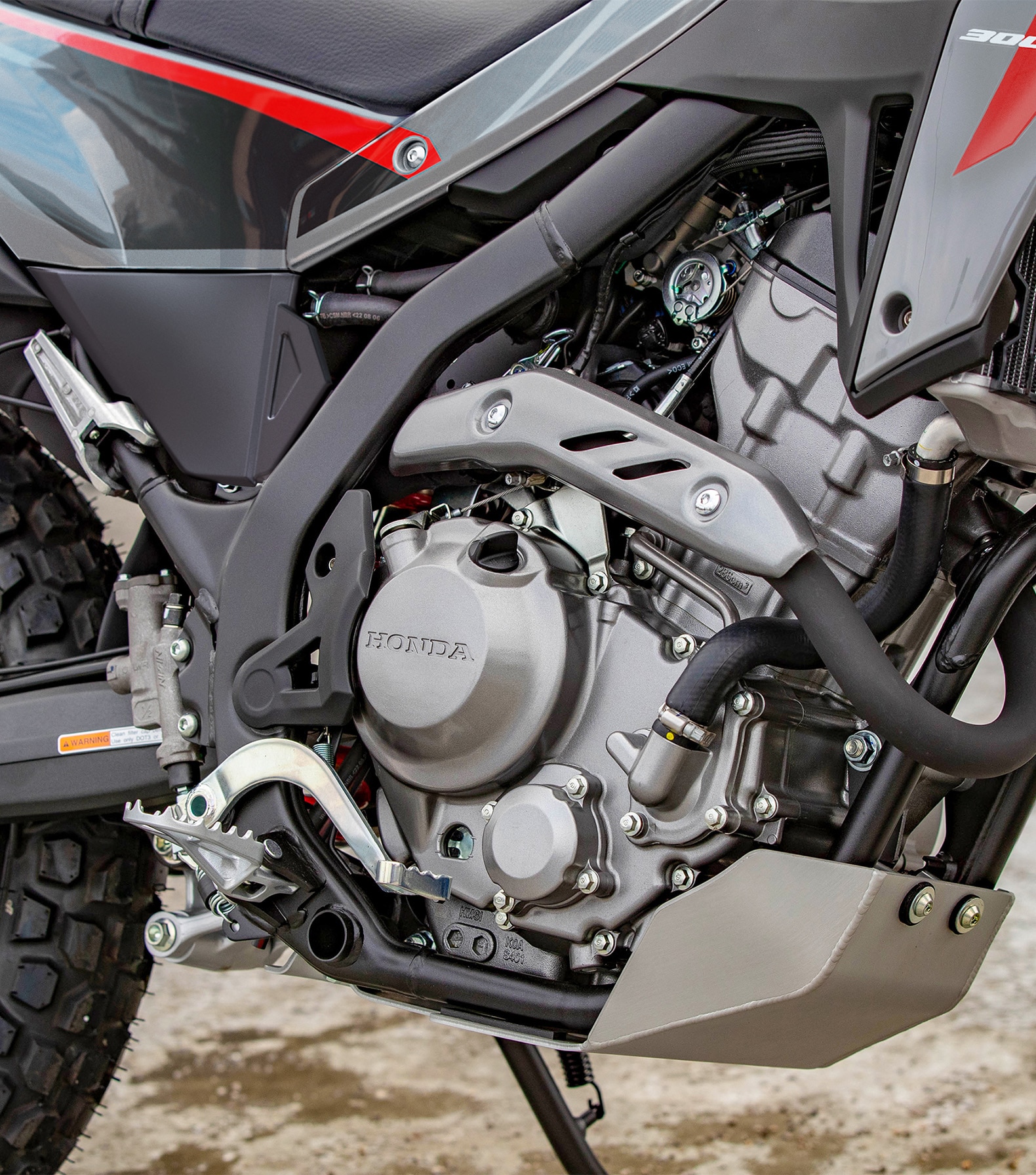

Single-cylinder engine

A single is the perfect choice for a bike like this. It's light, simple, and extremely fuel-efficient.

Lightweight legend

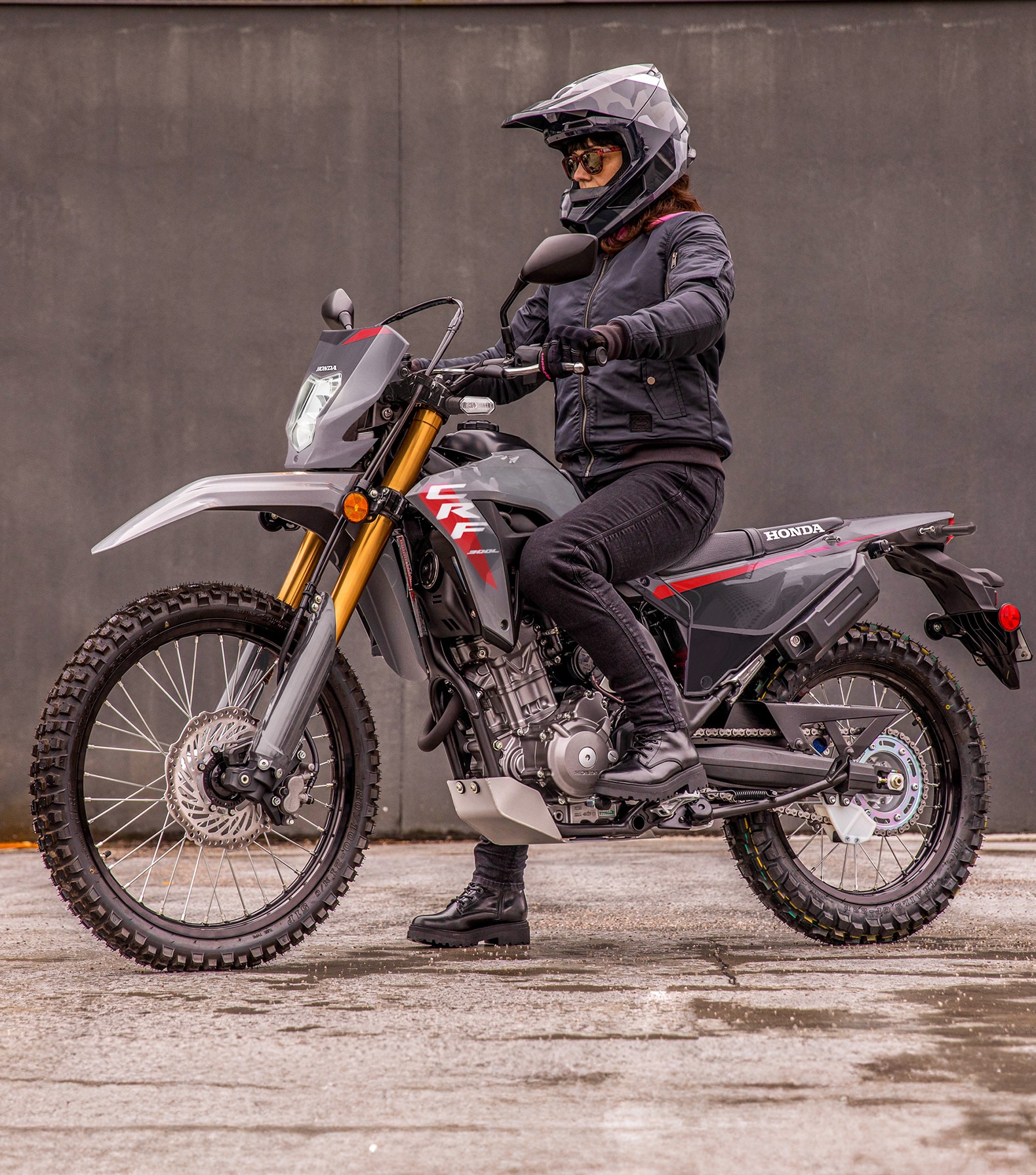

Lower seating position

With a seat height that's a full two inches lower than our standard CRF300L, this model is the perfect fit for shorter riders or anyone who wants to ride with more confidence in the city.

Lightweight legend

Engine counterbalancer

Thanks to the counterbalancer, this engine runs smoothly, combining the narrow width and power benefits of a single-cylinder motorcycle with the smoothness of a multi-cylinder model.

Lightweight legend

Comfortable seating

The long, motocross-style seat allows you to easily move forward, backward, left, and right, making it comfortable to navigate through different terrains.

Punch your ticket to adventure

View all Features

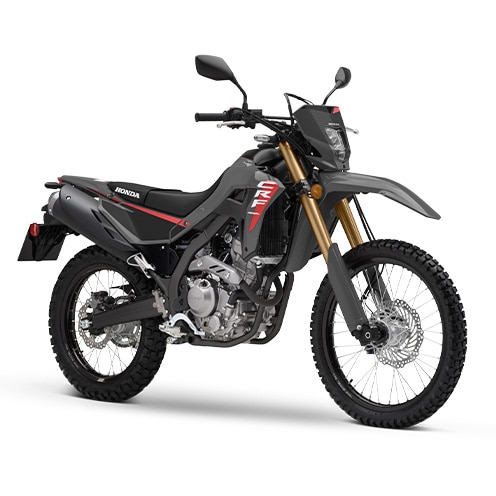

CRF450R-inspired bodywork

The design and styling of the bike is based on our motocross models. The bodywork elements have smooth transitions, making it easier for the rider to maneuver and improving functionality.

Fuel injection

Fuel injection ensures quick startup in cold weather, reduces emissions, and enhances both performance and fuel efficiency when compared to a carbureted bike.

Double-overhead-cam engine

Honda engines are known for their superior engineering, with the double-overhead-cam construction being highly efficient, low-maintenance, and free-revving.

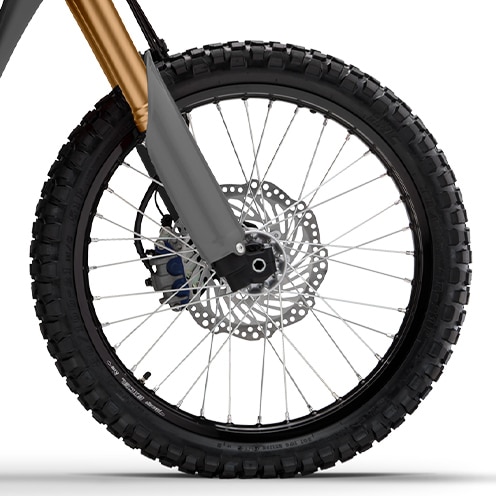

Disc brakes

With hydraulic disc brakes measuring 256mm in the front and 220mm in the rear, this bike provides excellent brake feel and stopping power, ensuring confidence on pavement and trails.

Ground clearance

The engine is mounted high in the frame, which allows for an impressive 9.6 inches of ground clearance.

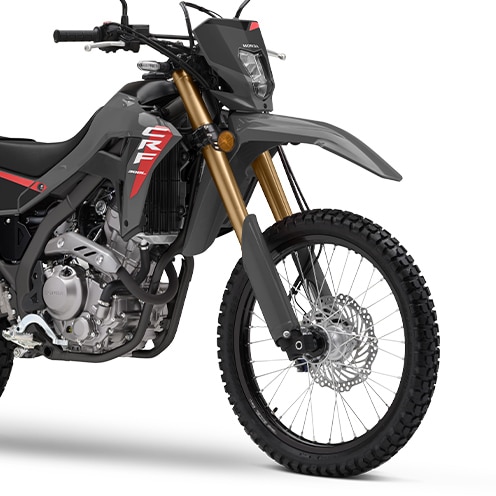

Inverted fork

An inverted Showa^® fork with large 43mm sliders adds strength and provides excellent handling on- and off-road.

Polished black rims

The polished surface of the black rims makes it easy to keep them clean and enhances their appearance.

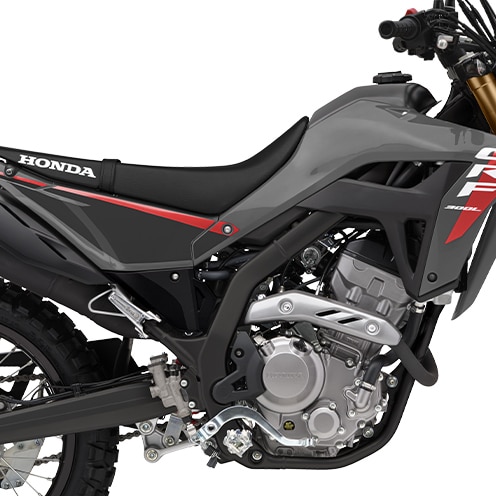

Strong steel frame

The steel frame is designed to handle rough pavement or off-road trails, and provides better feedback thanks to its finely tuned rigidity.

Cargo convenience

Special hooks make it easy to secure light cargo to the passenger seat with bungee cords. And there's a storage box on the left side for smaller items.
