White

Engine Type

149cc air-cooled single-cylinder four-stroke

Transmission

Five-speed manual

Front Suspension

31.0mm telescopic fork; 7.1-inch travel

Rear Suspension

Single-shock; 5.9-inch travel

Seat Height

32.8 inches

Warranty

Transferable, unlimited-mileage limited warranty. One year included.

HondaCare® Protection Plan Available

Engine

Engine Type	149cc air-cooled single-cylinder four-stroke
Bore And Stroke	57.3mm x 57.8mm
Valve Train	OHC; two valves per cylinder
Compression Ratio	9.5:1
Induction	22.0mm piston-valve carburetor

Drivetrain

Transmission	Five-speed manual
Final Drive	#428 chain; 17T/49T

Chassis Suspension Brakes

Front Suspension	31.0mm telescopic fork; 7.1-inch travel
Rear Suspension	Single-shock; 5.9-inch travel
Front Brake	Single 240.0mm disc
Rear Brake	110.0mm drum
Front Tire	90/90-19
Rear Tire	110/90-17

Dimensions

Rake	27.0°
Trail	4.1 inches
Wheelbase	53.5 inches
Seat Height	32.8 inches
Ground Clearance	9.6 inches
Curb Weight	282 pounds
Fuel Capacity	2.8 gallons, including 0.7-gallon reserve

Other

Available Colors	Gray, White
Model ID	XR150L

Factory Warranty Information

Duration	Transferable, one year included, limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

Explore more. Spend less.

From commutes to escapes

Four-stroke engine

It features a single-cylinder, four-stroke engine with the legendary toughness that XRs are known for, which provides excellent fuel efficiency and a wide powerband.

From commutes to escapes

Street-legal features

Although it is a great off-road bike, it is also designed for street use, with features like turn signals, a license-plate light, mirrors, a speedometer, and folding footpegs for a passenger.

From commutes to escapes

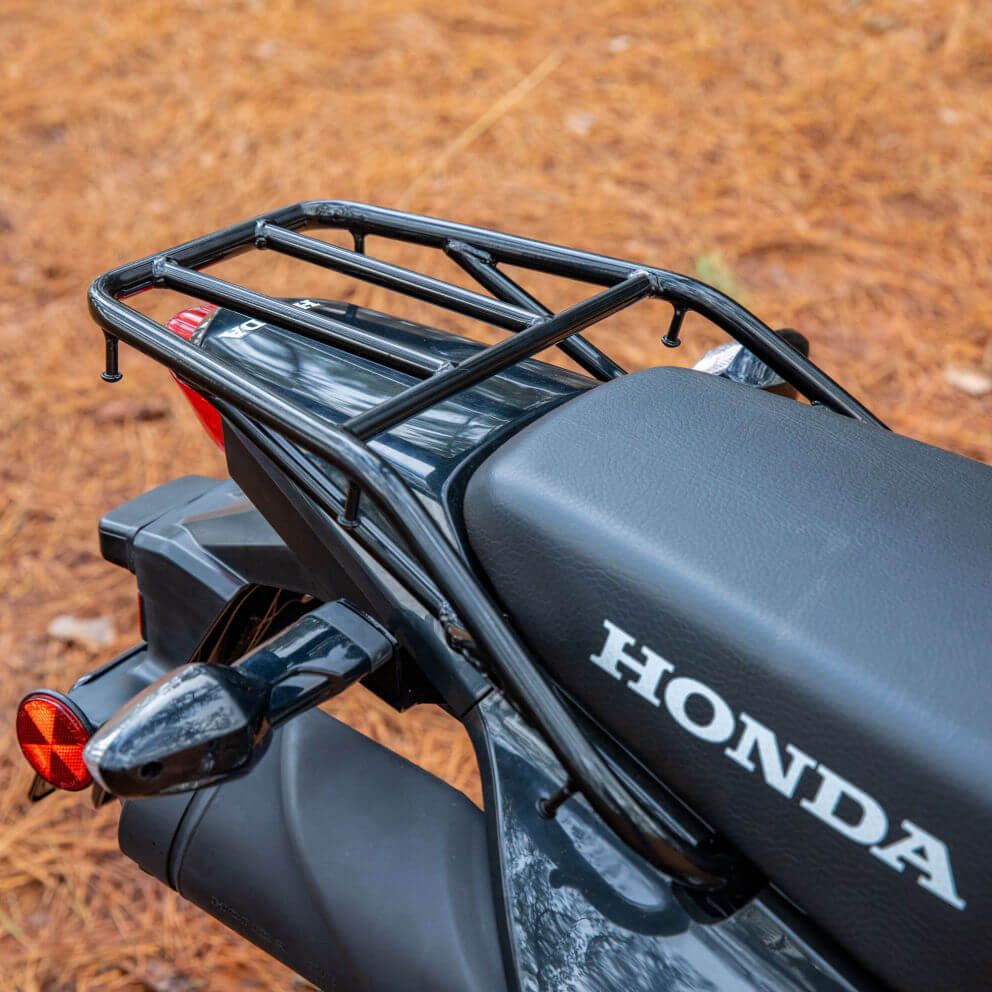

Standard rear carrier

A tubular-steel rear carrier is standard equipment, giving you a great platform to secure a small load.

From commutes to escapes

Long-travel front suspension

The bike's fork is perfectly balanced, offering just the right amount of suspension travel to absorb the bumps and rocks on a dirt road or trail. It's not so much that the seat height becomes too high, but enough to ensure a comfortable ride.

Ready for streets, born for trails

View all Features

Front disc brake

The front disc brake offers excellent stopping power. The drilled disc rotor is designed for improved wet-weather performance and reduced weight.

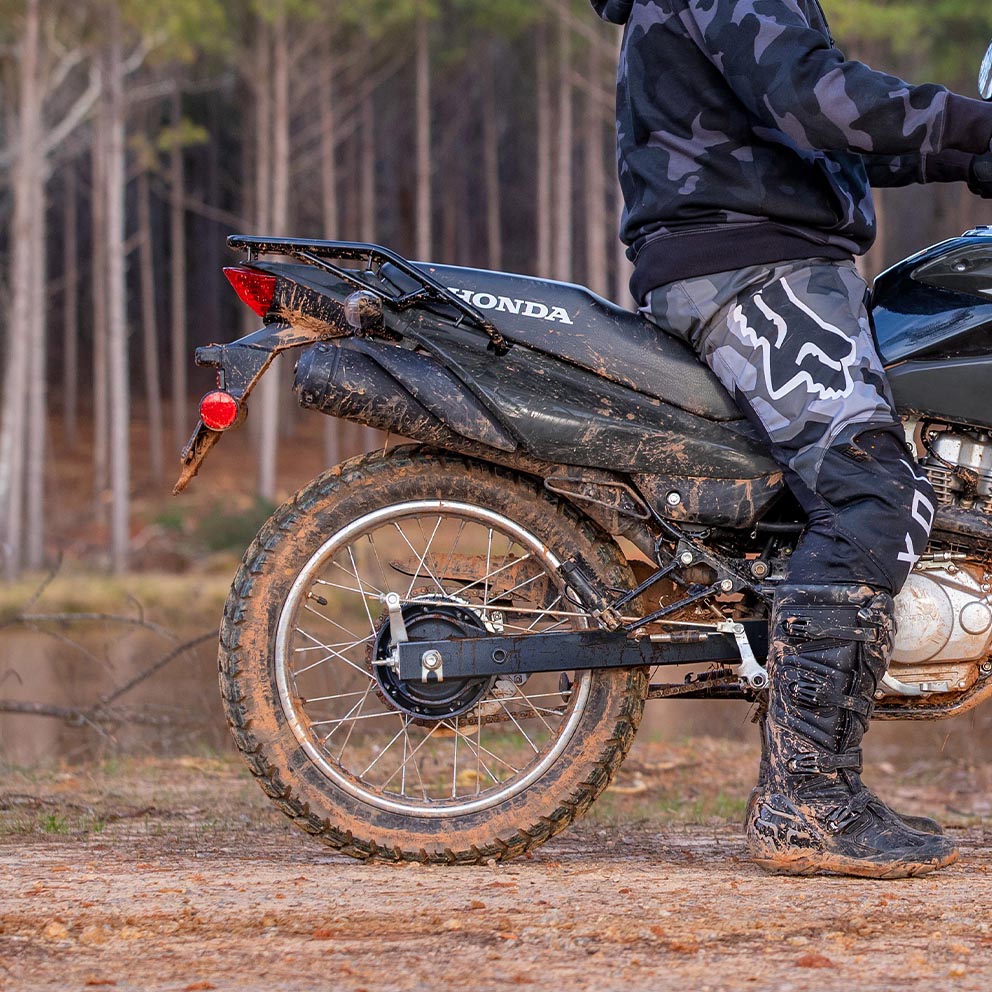

17-inch rear wheel

The 17-inch rear wheel provides better ride quality and superior sidewall protection compared to smaller wheels. It also offers a wide range of on- or off-road tire options.

19-inch front wheel

The 19-inch front wheel rolls better over uneven surfaces than a smaller wheel, giving you a wide choice of tires for different riding conditions.

Steel frame

Similar to its larger counterpart, the XR650L, this bike's steel frame is built to withstand the rigors of off-road travel.

Sealed battery

There are less maintenance issues even after an off-road tip-over; the sealed battery provides enough power for the electric starter and is protected from vibrations caused by off-road riding.

Standard rear carrier

A tubular-steel rear carrier is standard equipment, giving you a great platform to secure a small load.

Comfortable seat

The plush, roomy seat offers ample space and cushioning.

Accessories

With six different Honda Genuine Accessories available, including a skid plate, handguards, and cargo rack, you can customize your XR150L for ultimate durability and adventure-ready performance.
