XR650L
644cc air-cooled dry-sump single-cylinder four-stroke
Five-speed manual
43mm Showa® cartridge fork; 11.6-inch travel
Pro-Link® Showa® single-shock, 11.0-inch travel
37.0 inches
Transferable, unlimited-mileage limited warranty. One year included.
Engine
| Engine Type | 644cc air-cooled dry-sump single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 100.0mm x 82.0mm |
| Compression Ratio | 8.3:1 |
| Valve Train | SOHC; four-valve RFVC™ |
| Induction | 42.5mm diaphragm-type CV carburetor |
Drive Train
| Transmission | Five-speed manual |
|---|---|
| Final Drive | #520 O-ring-sealed chain; 15T/45T |
Chassis Suspension Brakes
| Front Suspension | 43mm Showa® cartridge fork; 11.6-inch travel |
|---|---|
| Rear Suspension | Pro-Link® Showa® single-shock, 11.0-inch travel |
| Front Brake | Single 256mm disc with twin-piston caliper |
| Rear Brake | Single 220mm disc |
| Front Tire | 3.00-21 |
| Rear Tire | 4.60-18 |
Dimensions
| Rake | 27.0° |
|---|---|
| Trail | 4.0 inches |
| Wheelbase | 57.3 inches |
| Seat Height | 37.0 inches |
| Curb Weight | 346 pounds (Includes all standard equipment, required fluids and a full tank of fuel.) |
| Fuel Capacity | 2.8 gallons, including 0.6-gallon reserve |
| Ground Clearance | 13.0 inches |
Other
| Available Colors | White |
|---|---|
| Model ID | XR650L |
| Emissions | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. |
Factory Warranty Information
| One Year Included | Transferable limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Ride without limits
Do-it-all dual-sport
Four-stroke engine
The single-cylinder, four-stroke engine provides excellent fuel efficiency and a wide power range. Even better, it requires very little maintenance.

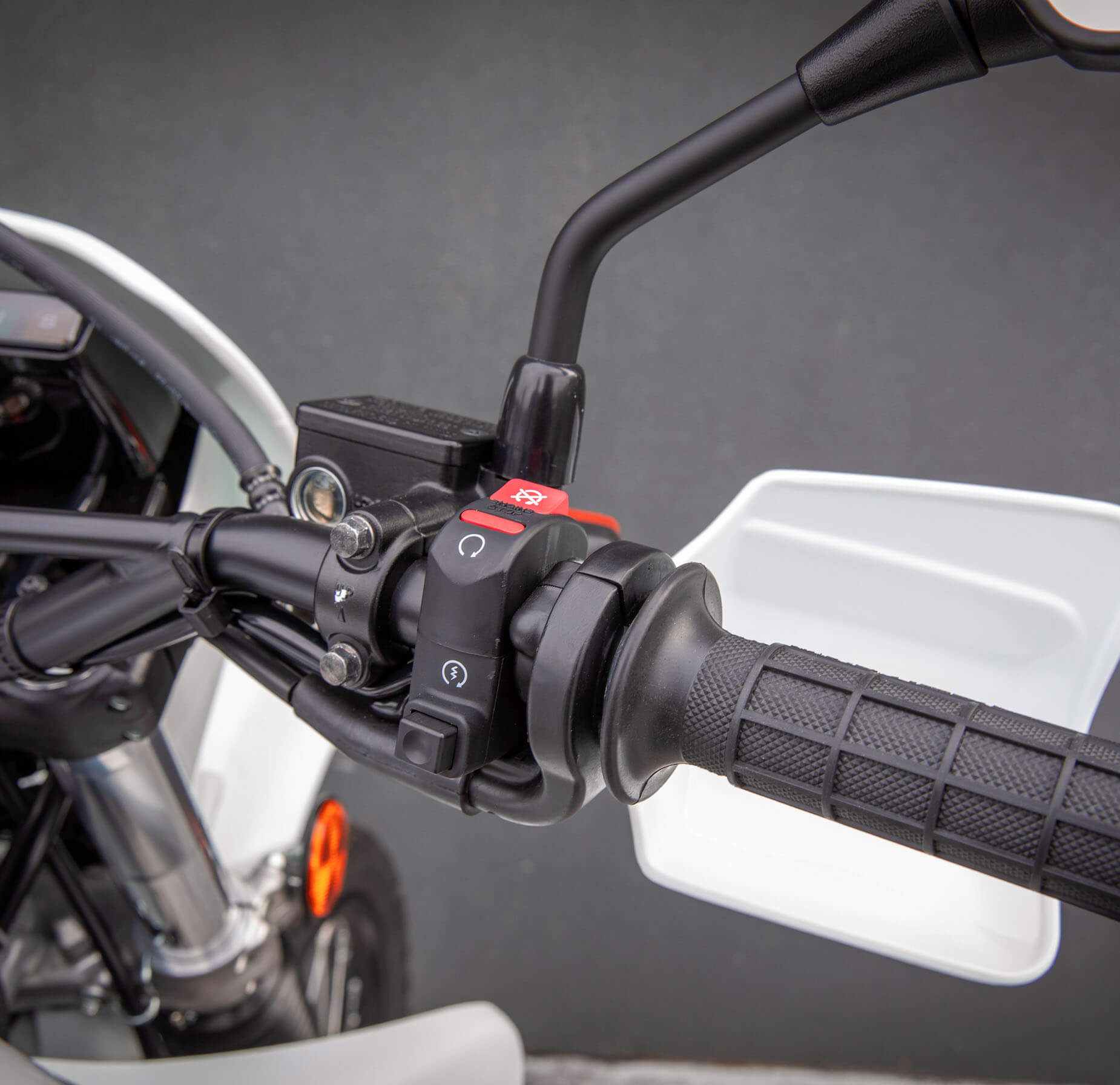

Electric starter
Adventure is just a button push away. The bike's electric starter eliminates the drama of restarting off-road and getting going on cold mornings.
Street-legal ability
It's fully equipped for street riding, with turn signals, a license plate light, mirrors, a speedometer, and more, plus a grab strap and footpegs for a passenger.
Sealed battery
There are no maintenance issues here, even after an off-road tipover. The sealed battery has ample cranking power for the electric starter and is well-protected from the vibrations of off-road riding.
Off-road tech. On-road performance.
Quick-release fasteners
Accessing the air filter, battery, and fuse box is easy with quick-release fasteners on the left side cover.
Black rims
To give the bike a clean look, we added black rims to the front and rear, along with black fork boots, seat, and tool bag.
Long-travel front suspension
The long-travel fork offers compression-damping adjustability, allowing you to fine-tune it for varying off-road conditions.
Pro-Link® rear suspension
Pro-Link® rear suspension provides a comfortable ride by offering soft initial rates for supple action over small bumps. Increasingly stiffer rates resist bottoming and maintain rear-wheel control over rougher surfaces.
Steel frame
The steel frame's backbone doubles as the engine's oil tank, saving weight and space, and is designed to withstand off-road riding.
Factory handguards
The handguards are designed to be off-road ready right out of the box and help protect against rocks, branches, thorns, brush, and rain.
