Engine Type

286cc liquid-cooled single-cylinder four-stroke

Transmission

Six-speed manual

Front Suspension

43mm inverted fork; 10.2-inch travel

Rear Suspension

Pro-Link® single shock; 10.2-inch travel

Seat Height

34.7 inches

Warranty

Transferable, unlimited-mileage limited warranty. One year included.

Extended Warranty

Engine

Engine Type	286cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	76mm x 63mm
Compression Ratio	10.7:1
Valve Train	DOHC; four-valve
Induction	PGM-FI, 38mm throttle body

Drive Train

Transmission	Six-speed manual
Final Drive	#520 chain; 14T/40T

Chassis Suspension Brakes

Front Suspension	43mm inverted fork; 10.2-inch travel
Rear Suspension	Pro-Link® single shock; 10.2-inch travel
Front Brake	Single 256mm disc with twin-piston caliper; ABS
Rear Brake	Single 220mm disc; ABS
Front Tire	IRC GP21 80/100-21
Rear Tire	IRC GP22 120/80-18

Dimensions

Rake	27°30'
Trail	4.3 inches
Wheelbase	57.2 inches
Seat Height	34.7 inches
Ground Clearance	11.2 inches
Curb Weight	311 pounds
Fuel Capacity	2.1 gallons, including 0.5-gallon reserve

Other

Available Colors	Red
Model ID	CRF300LA

Factory Warranty Information

Duration	Transferable, one year included, unlimited-mileage limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

Do-it-all sport

Adventure never stops

Liquid-cooled-single engine

A liquid-cooled single-cylinder engine is the perfect choice for a bike like this. It's simple, fuel-efficient, compact, and powerful.

2025-CRF300L-features-LED-lights-1580x1792

Adventure never stops

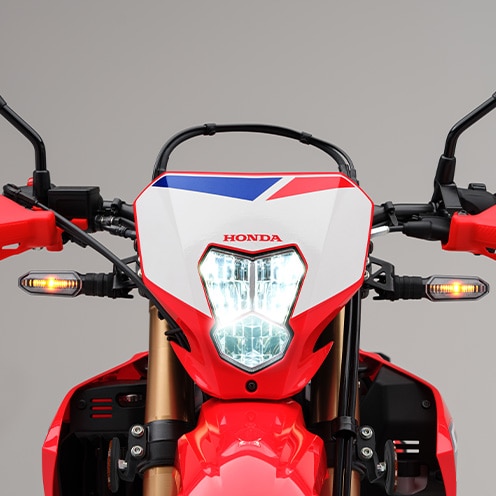

LED lighting

New for this year, the headlight and turn signals are now LED for increased visibility, giving it a sleeker, more modern look.

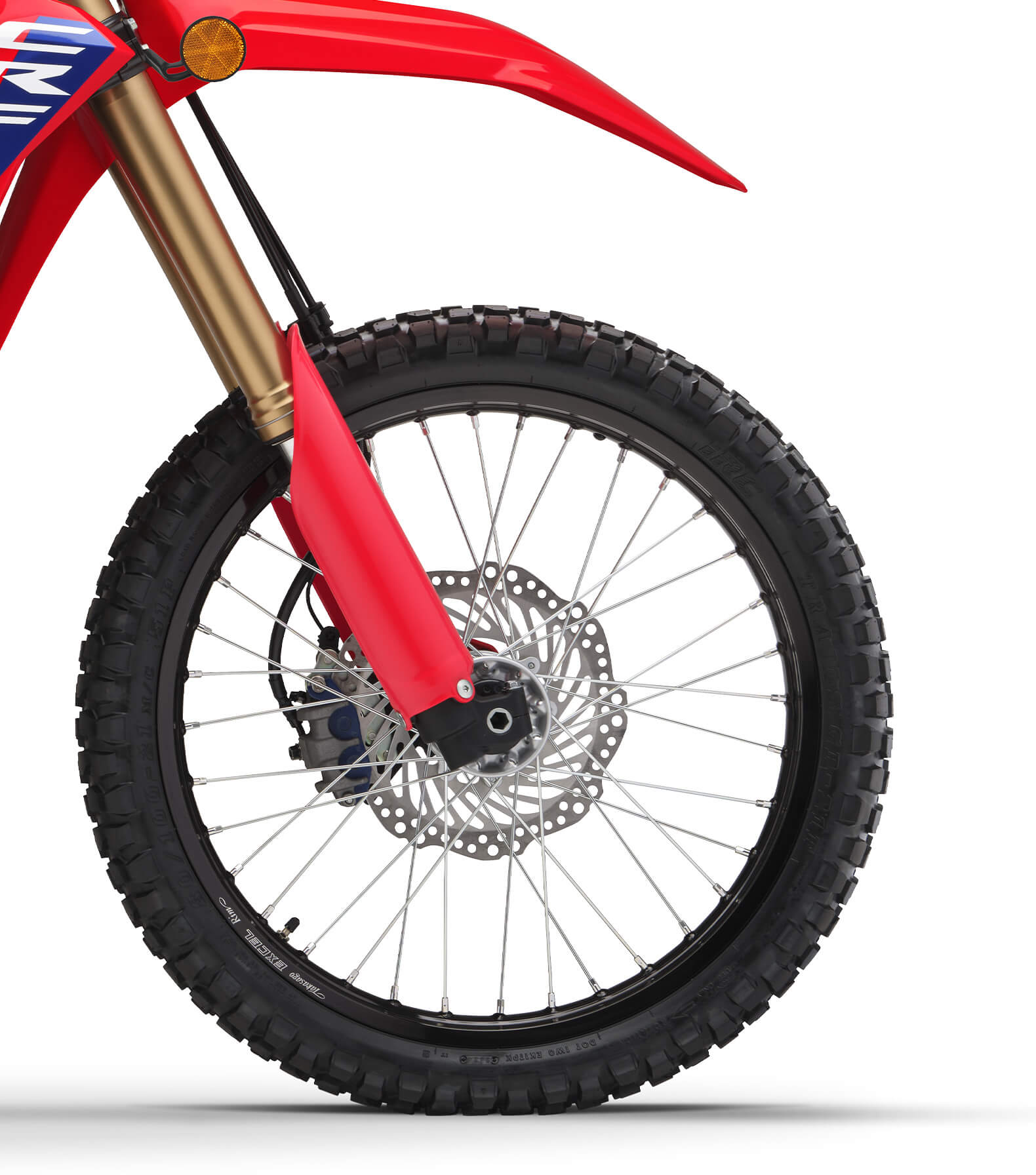

2025-CRF300L-features-ABS-braking-1580x1792

Adventure never stops

Anti-Lock Braking System

Our Anti-Lock Braking System (ABS) comes standard, designed to inspire increased confidence and control when stopping in all conditions. It can be turned off for added feel when off-road riding.

Adventure never stops

Revised suspension

You asked and we answered—in response to rider feedback, we stiffened the springs for more off-road versatility and reworked the internals to make the ride smoother.

Where off-road meets urban

View all Features

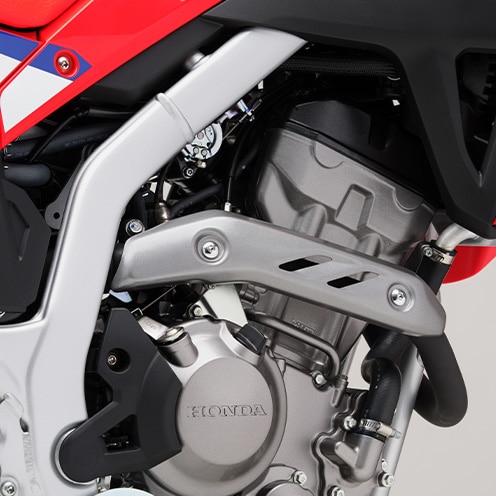

Fuel injection

Fuel injection ensures quick starts in cold weather, reduces emissions and enhances performance and fuel efficiency compared to a carbureted bike.

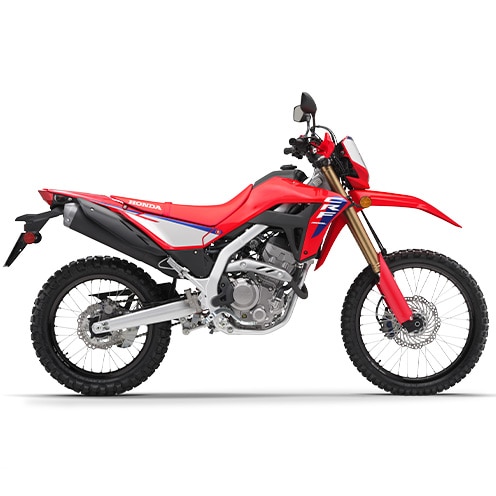

Wheel sizes

A 21-inch front and 18-inch rear wheel give you a wide selection of tire choices for everything from serious off-road trail riding to smooth on-road adventures.

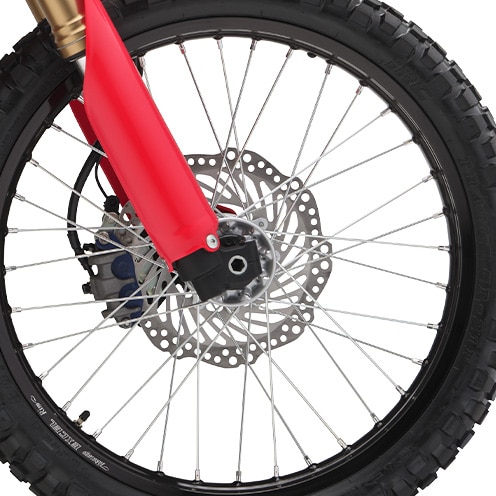

Disc brakes

Hydraulic disc brakes measuring 256mm in the front and 220mm in the rear deliver exceptional stopping power and brake feel.

Ground clearance

The engine is mounted as high in the frame as possible, allowing for an impressive 11.2 inches of ground clearance.

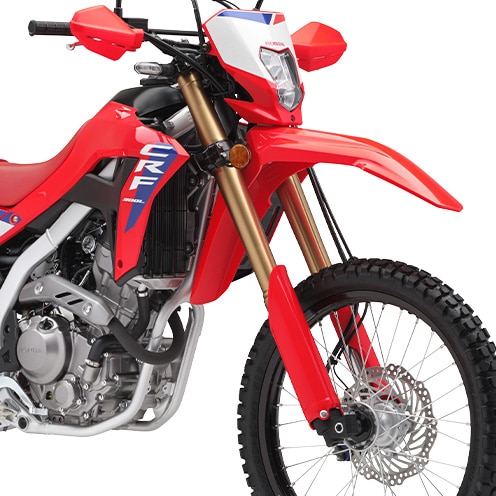

Inverted fork

An inverted Showa^® fork with large 43mm sliders adds strength and provides excellent handling on- and off-road.

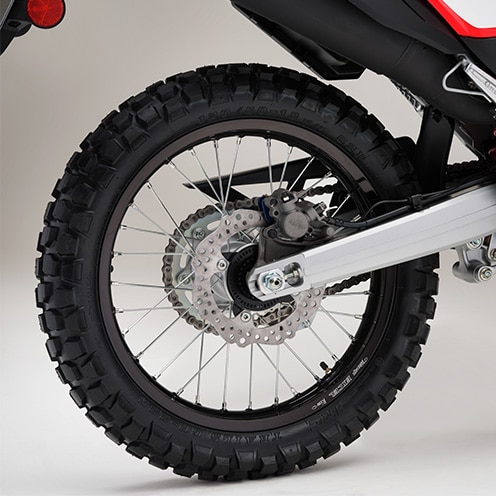

Pro-Link^® rear suspension

Our single-shock Pro-Link^® rear suspension helps deliver excellent comfort, traction, and handling, improving rider confidence.

Accessorized Model Shown

CRF/R-inspired bodywork

The bike's design and styling are based on our latest motocross models. The bodywork elements have smooth transitions, making it easier for the rider to maneuver and improving functionality.

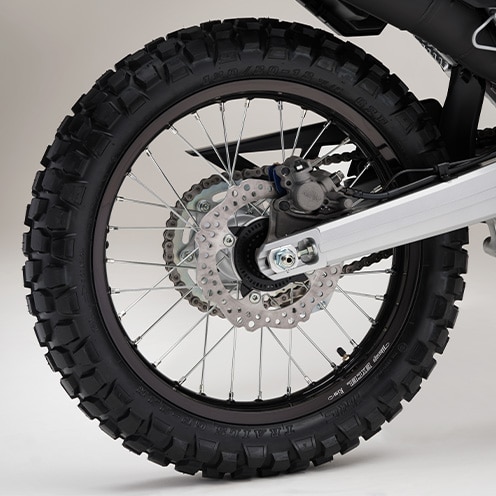

Polished black rims

The polished surface of the black rims makes it easy to keep them clean and enhances their appearance.

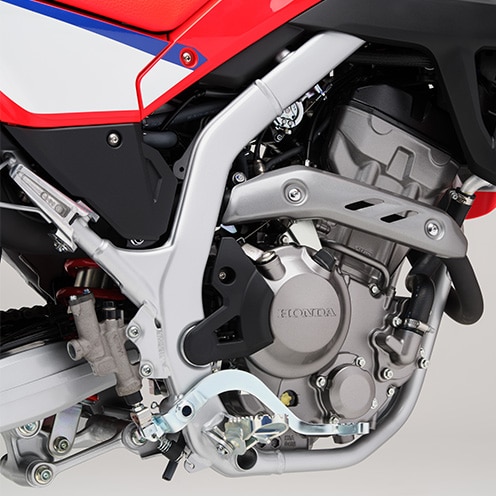

Strong steel frame

Thanks to its finely tuned rigidity, the steel frame is designed to be strong enough to handle rough pavement and off-road trails while providing ample rider feedback.

Accessorized Model Shown

Accessories

Enhance your CRF300L with 10 different genuine Honda accessories, including handguards, enduro footpegs and more, all designed to elevate your riding experience.
