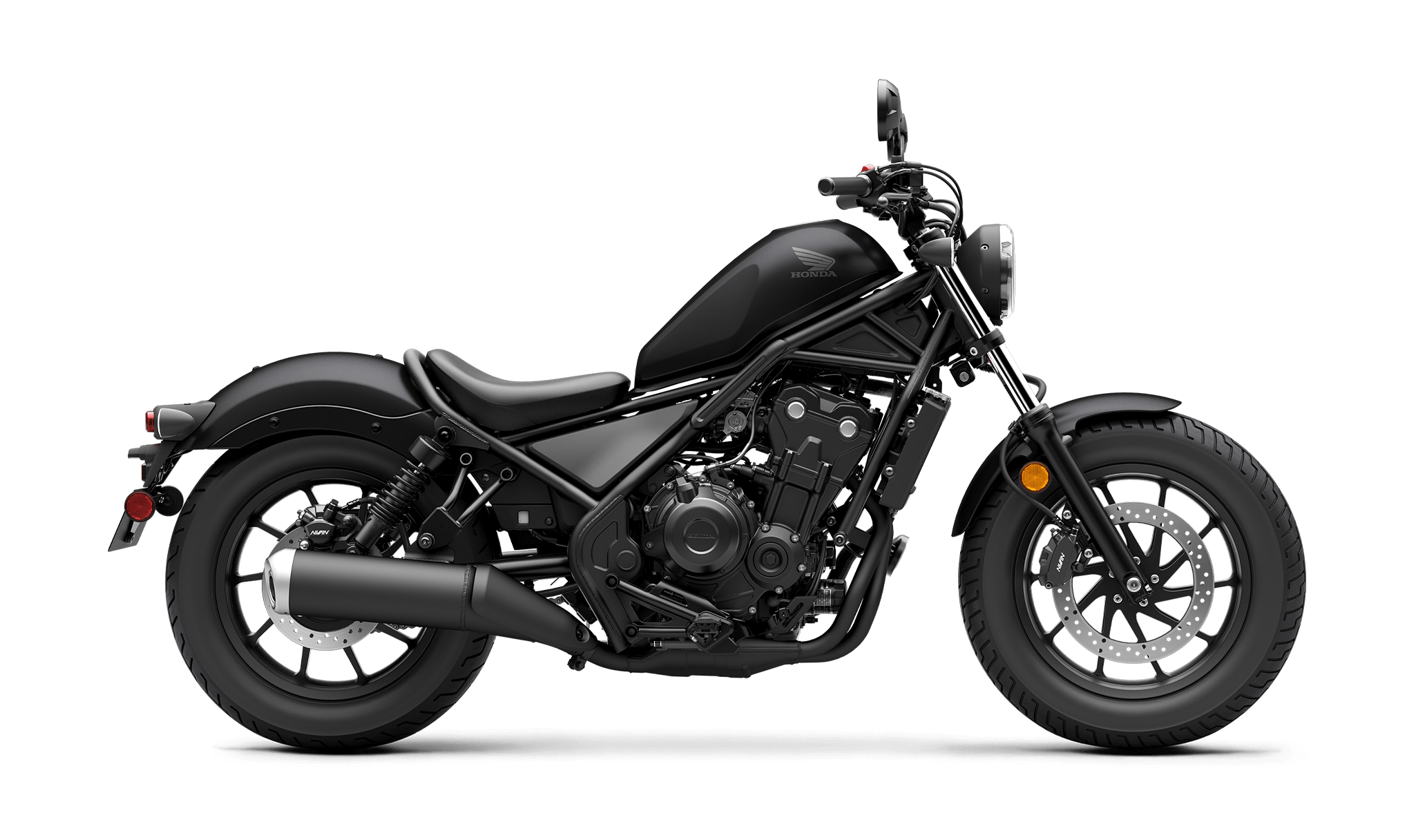

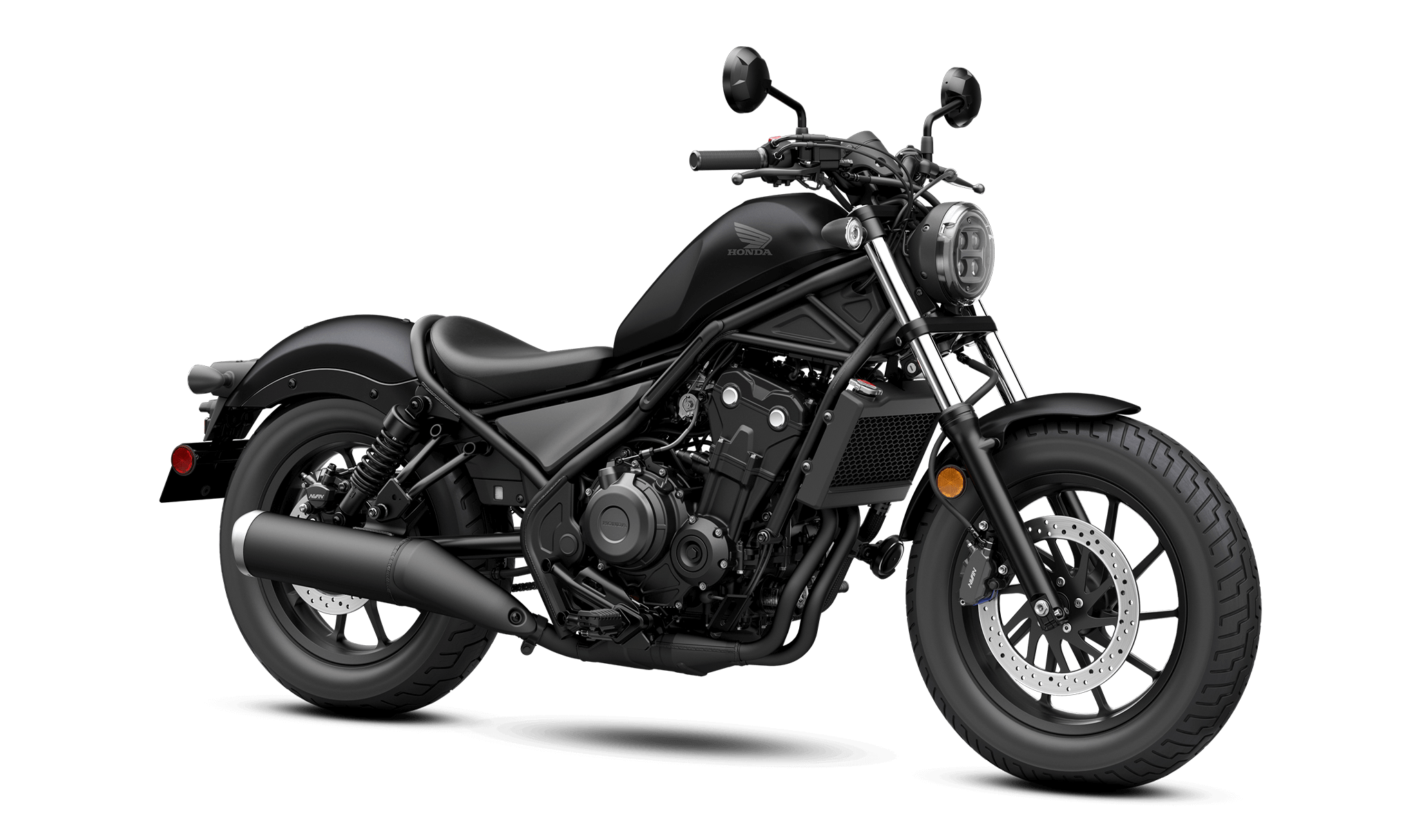

Matte Black Metallic

Get my Quote

Build Your Own Get my Quote

Engine Type

471cc liquid-cooled parallel-twin four-stroke

Transmission

Six-speed manual with slipper clutch

Front Suspension

41.0 mm fork; 5.5-inch travel

Rear Suspension

Dual shocks, 3.7-inch travel

Seat Height

27.2 inches

Warranty

Transferable, one year included, limited warranty

HondaCare® Protection Plan Available

Engine

Engine Type	471cc liquid-cooled parallel-twin four-stroke
Bore And Stroke	67.0 mm x 66.8 mm
Induction	Programmed Fuel Injection (PGM-FI); 34.0 mm throttle body
Valve Train	DOHC; four valves per cylinder
Compression Ratio	10.7:1

Drivetrain

Transmission	Six-speed manual with slipper clutch
Final Drive	O-ring-sealed chain; 15T/40T

Chassis Suspension Brakes

Front Suspension	41.0 mm fork; 5.5-inch travel
Rear Suspension	Dual shocks, 3.7-inch travel
Front Brake	Single 296.0 mm disc
Rear Brake	Single 240.0 mm disc
Front Tire	130/90-16
Rear Tire	150/80-16

Dimensions

Rake	28.0°
Trail	4.3 inches
Wheelbase	58.6 inches
Seat Height	27.2 inches
Curb Weight	408 pounds (Includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity	3.0 gallons

Other

Model ID	CMX500
Emissions	Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment.
Available Colors	Matte Black Metallic

Factory Warranty Information

Duration	Transferable, one year included, limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

Let your ride do the talking

Blacked-out style

The Rebel is ready for you to unleash your creativity. It's a canvas of self-expression that's impressive by day and a masterpiece at night.

Let your ride do the talking

Low seat height

In the realm of cruiser seat heights, lower reigns supreme. This bike flaunts one of the lowest at 27.2 inches for maximum rider comfort and easy flat-footing at lights or in parking lots.

Let your ride do the talking

Revised rear suspension

Equipped with nitrogen-filled remote reservoirs and custom spring rates, the rear shocks get redesigned internals for increased bottoming resistance, added comfort, and improved handling.

Let your ride do the talking

Sporty engine

Celebrated for its versatility, the narrow parallel-twin engine masters size reduction while delivering big low-rpm torque and thrilling high-rpm performance.

Old-school cool, new-school tech

View all Features

Wide fork

Beyond precise steering and a plush ride, the wide front fork commands attention and provide superior comfort and performance.

Cast aluminum wheels

Cast wheels front and rear are light, practical, and easy to clean, while the wide tires give the bike a retro-modern look that stands out from the crowd.

Slipper clutch

We've reduced clutch effort by nearly 30 percent. Born from Honda's racing pedigree, the perfected slipper clutch delivers a feather-light pull at the lever and steadfast lock-out when power meets the road.

Die-cast aluminum subframe

Honda designers made the motorcycle's rear subframe look great while still functional. The aluminum subframe/fender mounts provide a solid foundation for the optional/removable passenger seat.

Roomy rider triangle

This bike’s thoughtfully crafted riding position offers the ideal balance of relaxed cruiser comfort and dynamic sport engagement.

Fuel tank

One key element in motorcycle design is the fuel tank. The Rebel’s iconic teardrop shape is timeless but functional. It also pairs well with the bike’s great fuel efficiency to give you plenty of range.

Exceptional handling

We set high standards for how our bikes handle and feel, and the 500 is a perfect example. We’ve paid as much attention to how this bike corners as we have its knockout styling.

Restyled fenders

Durable color-matched fenders front and rear now come standard on the 500 line. They are designed for greater strength and a style that perfectly highlights the new color options.

Narrow width

We designed the Rebel line to be remarkably slim, particularly at the crucial tank/seat junction, ensuring effortless mounting and dismounting, plus confident footing when stopping.

Passenger seat and footpeg kit

With simple, bolt-on features like our removable seat rails, optional passenger seat and rear footpegs, you can easily configure your bike for solo journeys or two-up comfort.

All-LED lighting package

The entire Rebel lineup features an all-LED setup, providing brighter, lighter, and longer-lasting illumination.

Accessories

Twenty-two different genuine Honda accessories are available to make your Rebel 500 even more yours, from stylish add-ons to passenger seating to luggage options and more.
