Adventure Green

Engine Type

1312cc liquid-cooled 52-degree V-twin four-stroke

Transmission

Five-speed manual

Front Suspension

45mm fork; 5.1-inch travel

Rear Suspension

Single shock; 3.5-inch travel

Seat Height

26.9 inches

Warranty

Transferable, unlimited-mileage limited warranty. One year included.

Extended Warranty

Engine

Engine Type	1312cc liquid-cooled 52-degree V-twin four-stroke
Bore And Stroke	89.5mm x 104.3mm
Compression Ratio	9.2:1
Valve Train	SOHC; three valves per cylinder
Induction	PGM-FI, 38mm throttle body

Drive Train

Transmission	Five-speed manual
Final Drive	Shaft

Chassis Suspension Brakes

Front Suspension	45mm fork; 5.1-inch travel
Rear Suspension	Single shock; 3.5-inch travel
Front Brake	Single 336mm disc with twin-piston caliper; ABS
Rear Brake	Single 296mm disc with single-piston caliper; ABS
Front Tire	90/90-21
Rear Tire	200/50-18

Dimensions

Rake	32.0°
Trail	92mm (3.6 inches)
Wheelbase	71.0 inches
Seat Height	26.9 inches
Curb Weight	675 pounds (Includes all standard equipment, required fluids and a full tank of fuel.)
Fuel Capacity	3.4 gallons

Other

Model ID	VT1300CX
Emissions	Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment.
Available Colors	Adventure Green

Factory Warranty Information

One Year Included	Unlimited-mileage, limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

Art on wheels

Chopper styling

With its seamless teardrop fuel tank, ingenious single-shock rear suspension system, and aluminum swingarm, this bike redefines cutting-edge custom motorcycle design.

Art on wheels

V-Twin engine

An artfully crafted 1312cc, 52-degree V-Twin engine features a single-pin crankshaft and dual counter-balancers, generating abundant torque and epitomizing the distinctive big-twin experience.

Art on wheels

Low seat height

The super-low 26.9-inch seat height seamlessly integrates with the slender and elongated tank, embodying a harmonious union that elevates form and function.

Art on wheels

Shaft final drive

Thoughtfully woven into the overall design, the shaft drive adds a touch of refinement while also cutting down on the amount of required maintenance.

Turn heads, stir souls

View all Features

Fuel injection

The fuel-injection system means no-hassle startups on cold mornings or at high altitudes. It also improves engine response and helps deliver a smooth ride.

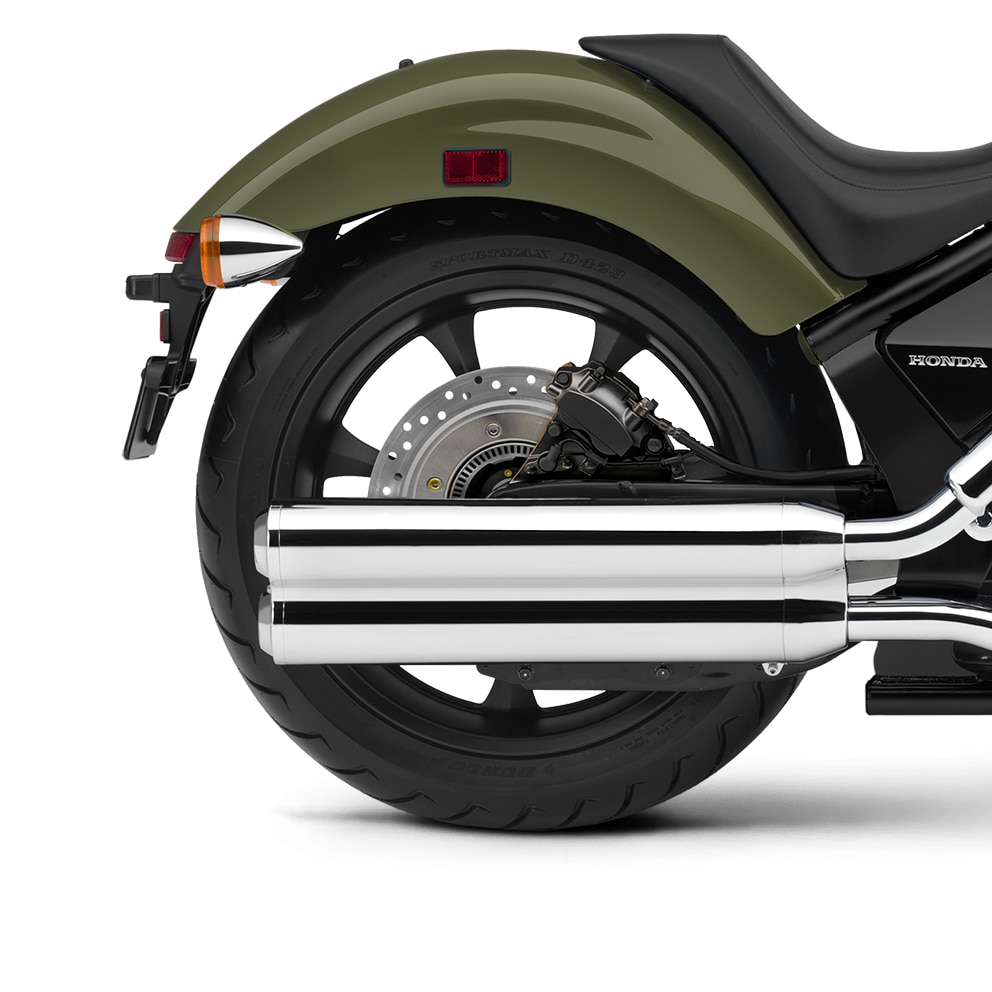

Chrome exhaust

A stylish 2-into-2 chrome exhaust flows from the V-Twin powerplant, resulting in a rumbling sound and exhilarating power pulse that defines the bike's character.

Standard ABS

Our Anti-Lock Braking System (ABS) is now standard for confident stopping power even on challenging road conditions.

Stretched frame

A high-tensile steel frame lies at the core of this beautiful machine's open, minimalist chopper styling. Not only does it look great, but it also fulfills a practical purpose, giving you a ride quality that's as smooth as it is responsive.
