Dax 125
124cc air-cooled single-cylinder four-stroke
Four-speed semi-automatic
31mm inverted fork; 4.3-inch travel
Twin shock; 4.7-inch travel
30.6 inches
236 pounds (Includes all standard equipment, required fluids and a full tank of fuel)
Engine
| Engine Type | 124cc air-cooled single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 50.0mm x 63.1mm |
| Compression Ratio | 10:1 |
| Valve Train | SOHC; two valves per cylinder |
| Induction | Programmed fuel injection (PGM-FI); 24mm throttle body |
Drive Train
| Transmission | Four-speed semi-automatic |
|---|---|
| Final Drive | #420 Chain; 15T/34T |
Chassis Suspension Brakes
| Front Suspension | 31mm inverted fork; 4.3-inch travel |
|---|---|
| Rear Suspension | Twin shock; 4.7-inch travel |
| Front Brake | Single 220mm hydraulic disc; ABS |
| Rear Brake | Single 190mm hydraulic disc |
| Front Tire | 120/70-12 |
| Rear Tire | 130/70-12 |
Dimensions
| Rake | 25.0° |
|---|---|
| Trail | 3.3 inches |
| Wheelbase | 47.2 inches |
| Seat Height | 30.6 inches |
| Curb Weight | 236 pounds (Includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 1.0 gallon |
| Miles Per Gallon | 106.7 MPG - *Honda fuel economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider weight, and other factors. |
Other
| Model ID | DAX125A |
|---|---|

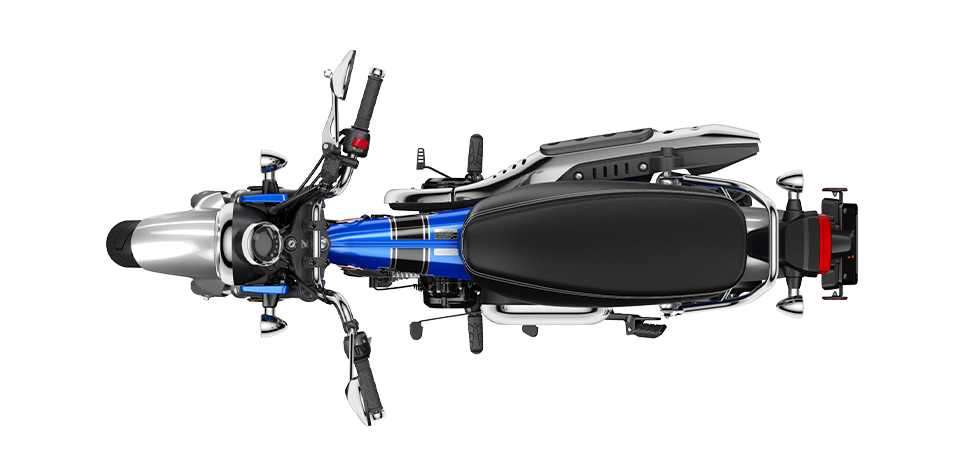

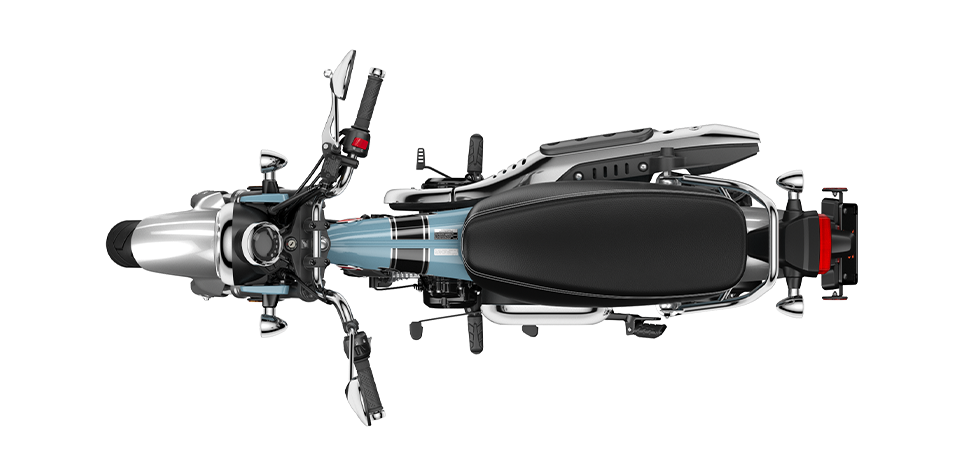

| Available Colors | Pearl Gray, Pearl Glittering Blue |
| Emissions | Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment. |
Factory Warranty Information
| One Year Included | Unlimited-mileage, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Funtastic!
124cc fuel-injected engine
The engine is the same basic design as in our super-popular Grom, and delivers outstanding performance and reliability.
Standard ABS
Wet pavement or loose road surfaces can be a braking challenge, but our front-wheel ABS is there to take all the drama out of stopping.

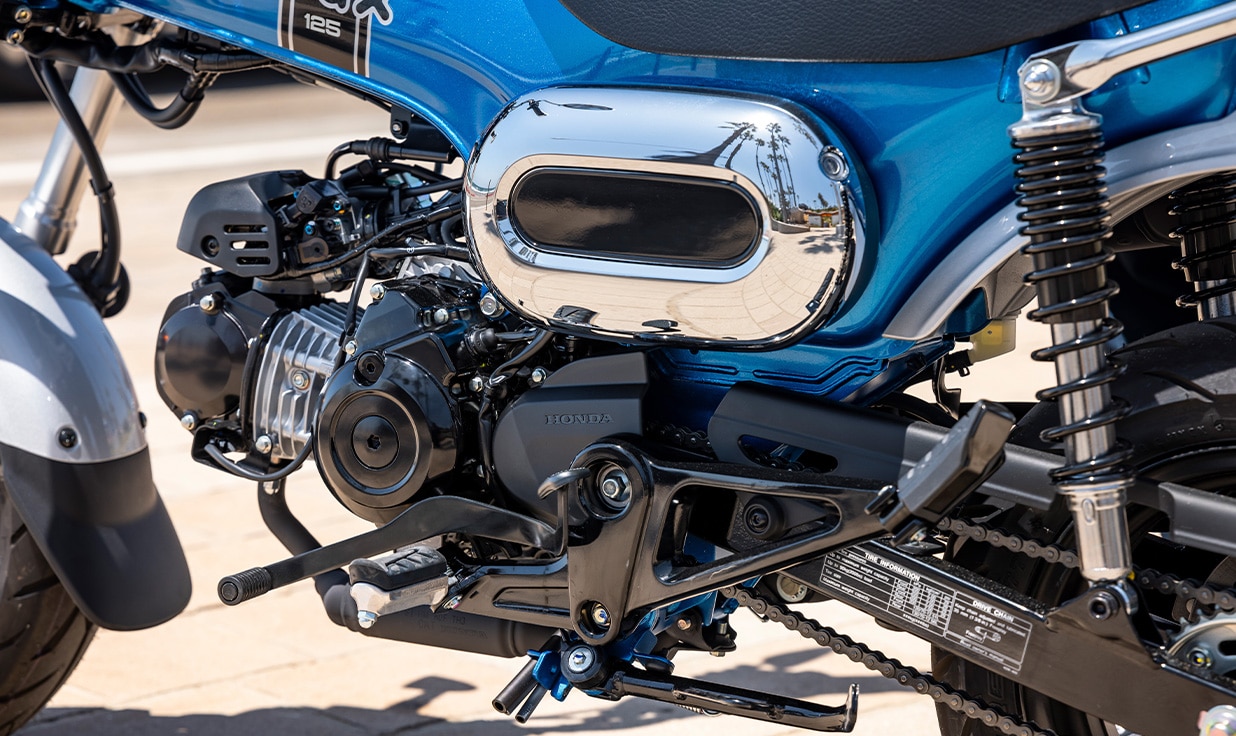

Semi-automatic transmission
The four-speed transmission has no clutch—all you do is push up or down on our heel-toe shift lever. It’s easy, fun, and gives you total control.
Low seat height
Whether flat-footing it into a parking space or just stopping at a traffic light, the low 30.6-inch seat and light weight are a big plus.Old-fashioned Fun
Flip-up seat

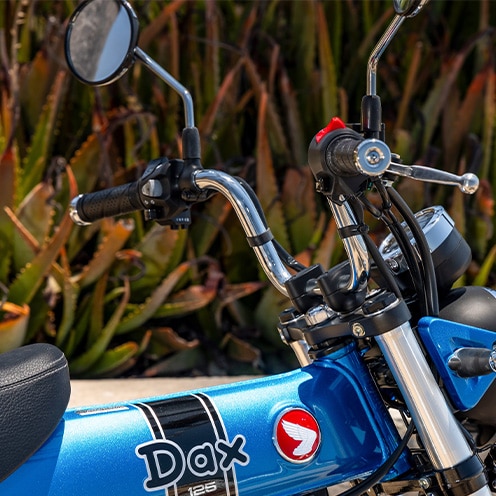

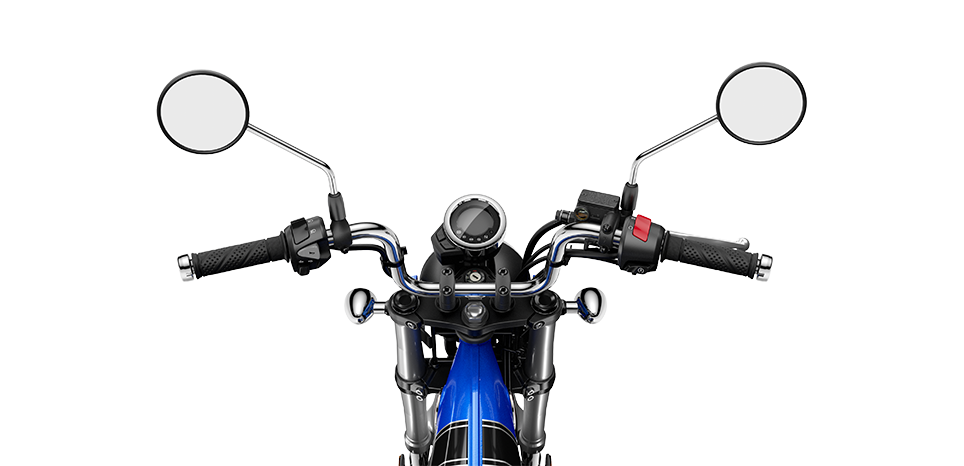

High-rise handlebar
Low seat height
Pressed-steel frame
