CB500F
471cc liquid-cooled parallel-twin four-stroke
Six-speed manual
41.0mm Showa® SFF-BP fork; 4.7-inch travel
Pro-Link® Showa® single shock; 4.7-inch travel
31.1 inches
Transferable, unlimited-mileage limited warranty. One year included.
Engine
| Engine Type | 471cc liquid-cooled parallel-twin four-stroke |
|---|---|
| Bore And Stroke | 67.0mm x 66.8mm |
| Compression Ratio | 10.7:1 |
| Valve Train | DOHC; four valves per cylinder |
| Induction | Programmed Fuel-Injection system (PGM-FI); 34.0mm throttle body |
Drivetrain
| Transmission | Six-speed manual |
|---|---|
| Final Drive | O-ring-sealed chain; 15T/41T |
Chassis Suspension Brakes
| Front Suspension | 41.0mm Showa® SFF-BP fork; 4.7-inch travel |
|---|---|
| Rear Suspension | Pro-Link® Showa® single shock; 4.7-inch travel |
| Front Brake | Dual 296.0mm discs with four-piston calipers; ABS |
| Rear Brake | Single 240.0mm disc; ABS |
| Front Tire | 120/70R-17 radial |
| Rear Tire | 160/60-17 radial |
Dimensions
| Rake | 25.5° |
|---|---|
| Trail | 4.0 inches |
| Wheelbase | 55.5 inches |
| Seat Height | 31.1 inches |
| Fuel Capacity | 4.5 gallons |
| Curb Weight | 414 pounds (Includes all standard equipment, required fluids and full tank of fuel-ready to ride.) |
Other
| Model ID | CB500FA |
|---|---|
| Emissions | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. |
| Available Colors | Matte Black Metallic |
Factory Warranty Information
| Duration | Transferable, one year included, unlimited-mileage limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Street smarts, fighter’s heart
DOHC twin-cylinder engine
The 471cc parallel-twin engine features a dual overhead cam design that’s versatile, approachable, and famously reliable. It has robust low-end torque and high-rpm horsepower.

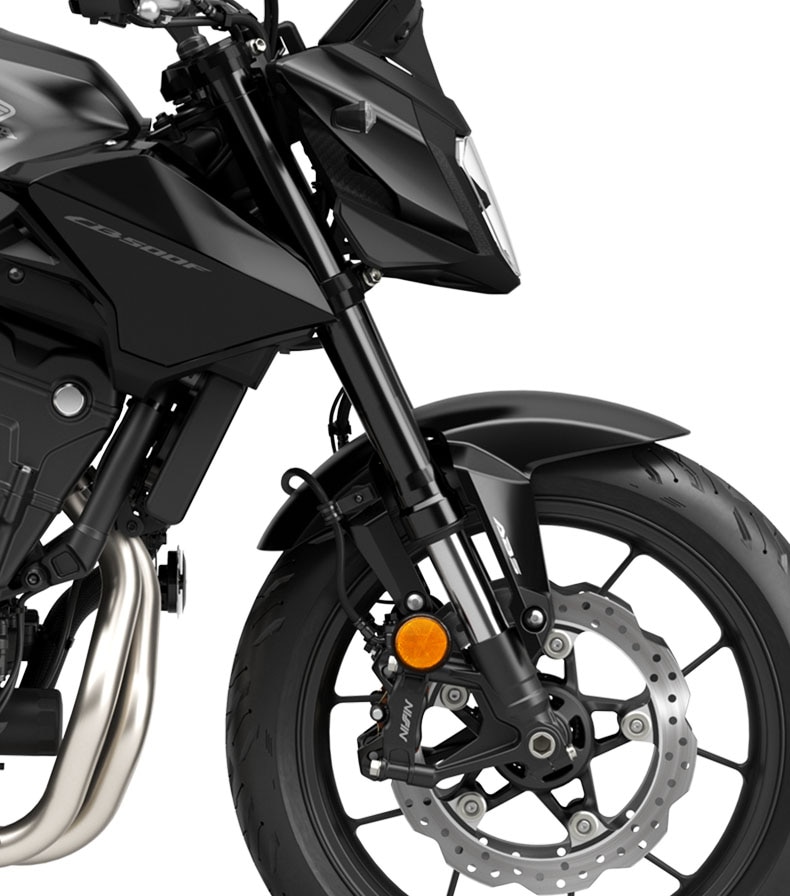

Showa® SFF-BP fork
A top-notch 41mm inverted Showa® Separate Function Fork—Big Piston (SFF-BP) front end provides the rigidity needed for precise steering and feedback.
Slipper clutch
The slipper clutch improves power delivery, reduces clutch-lever pull effort by 45 percent, and helps prevent rear-wheel hop during hard deceleration.

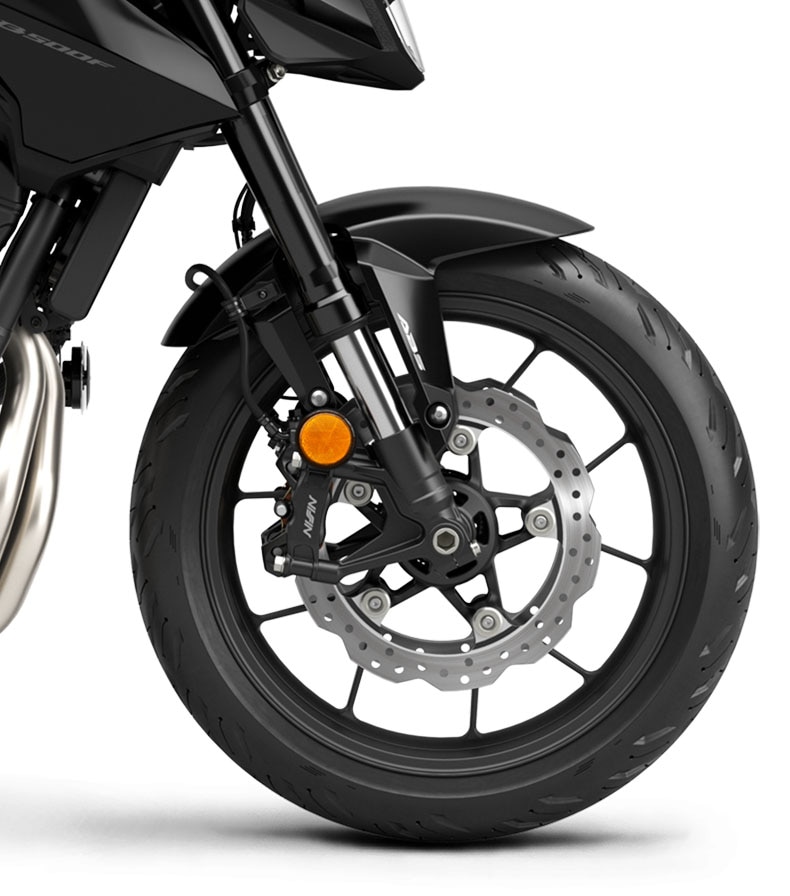

Anti-Lock Braking System (ABS)
Our Anti-Lock Braking System is standard, providing confident stopping power and added assurance in challenging conditions, such as wet roads or loose gravel.
Lightweight handling meets heavyweight performance
Compact exhaust
The exhaust system features twin outlets. It's a small detail, but it looks great, and the sound will bring a smile to your face every time you twist the throttle.
Programmed fuel injection
The PGM-FI system adjusts fuel levels based on parameters like temperature, elevation, throttle position, and riding style to increase power and torque from 3000-7000 RPM and improve throttle response.
Pro-Link® rear suspension
Our Pro-Link® rear suspension features tailored shock settings and 4.7 inches of travel, enhancing ride comfort and handling.

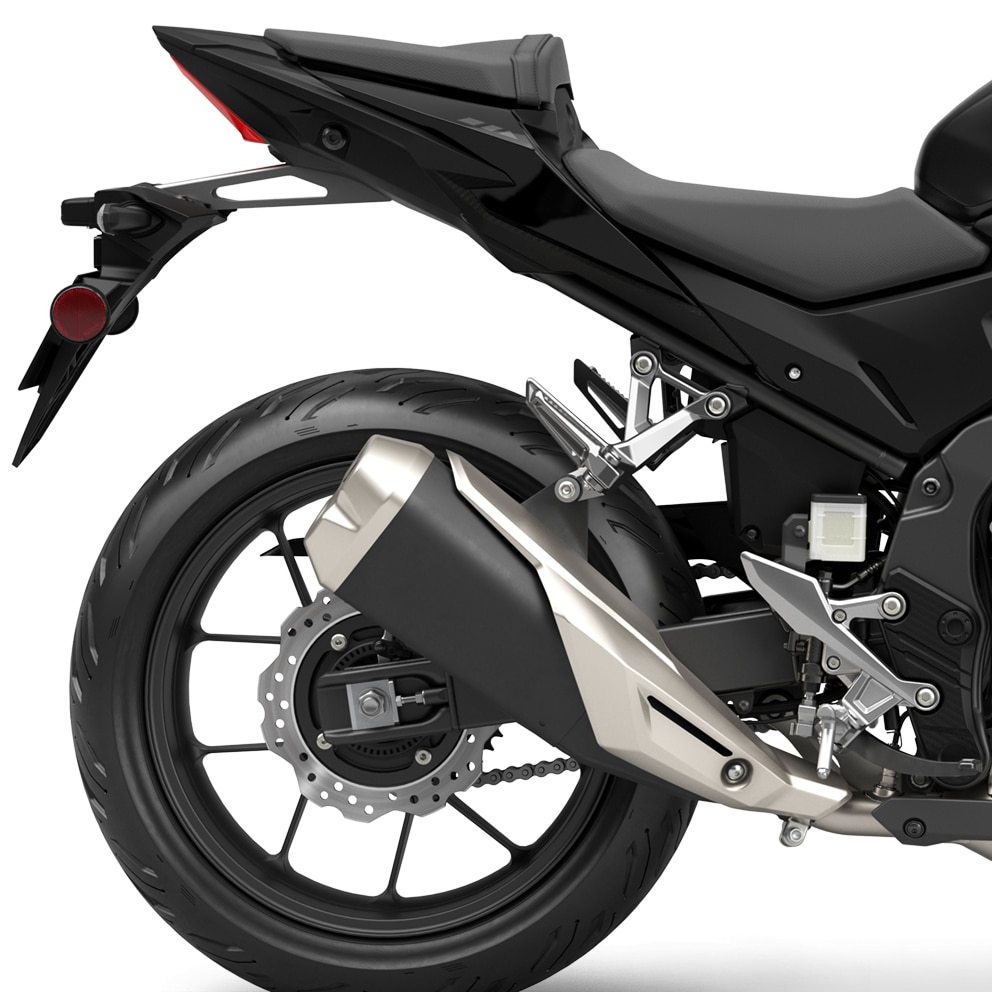

Lightweight swingarm
The swingarm, utilized across the entire Honda 500 lineup, is nearly two pounds lighter and stronger than the previous version. This is one reason for the exceptional handling.

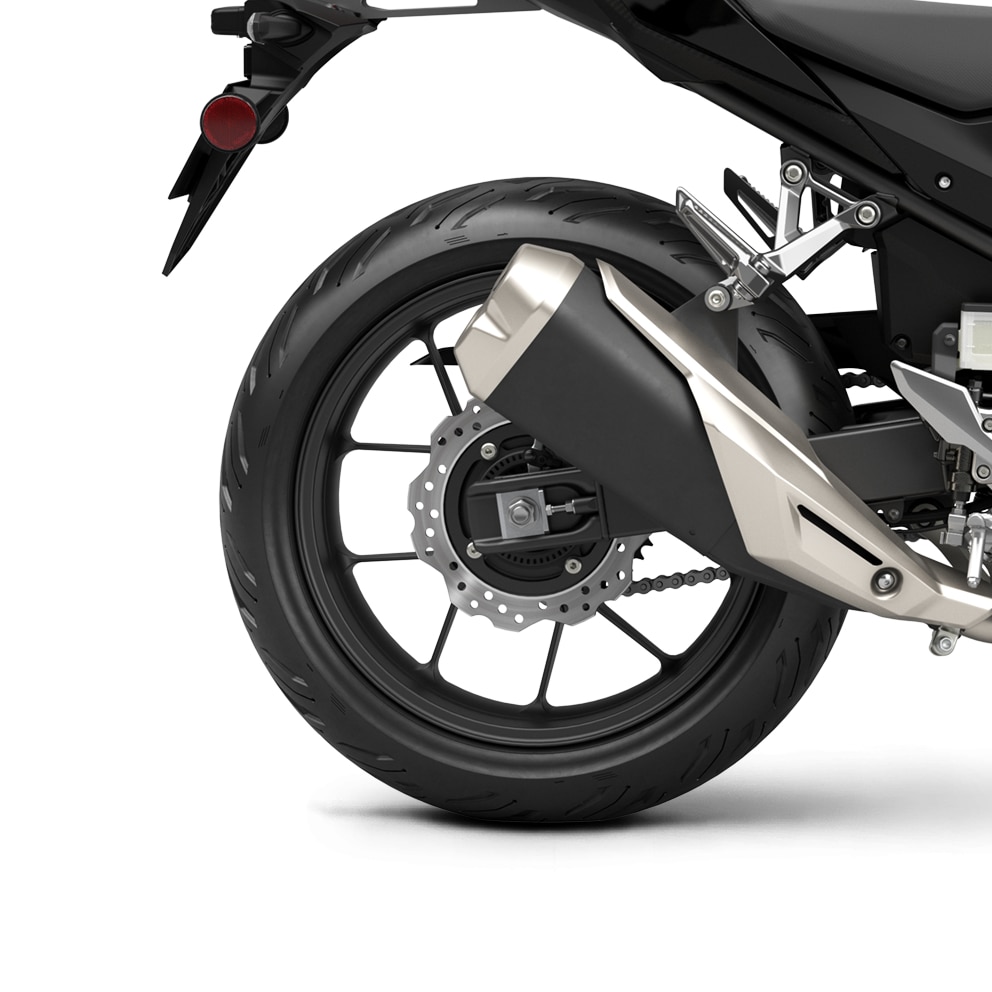

Cast wheels
Solid and stylish, the lightweight, multi-spoke, cast aluminum wheels are designed to improve handling by lessening rotating inertia and are sized to fit a wide variety of sticky street tires.

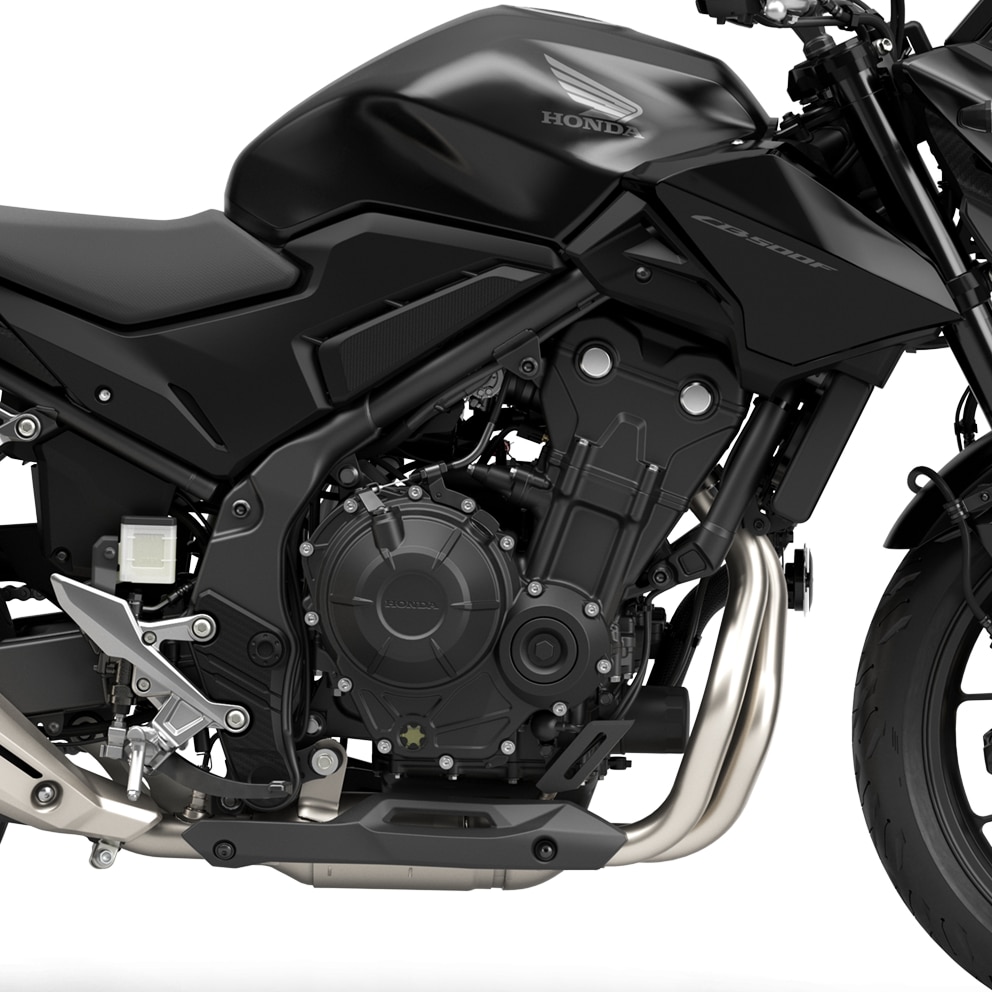

Smooth transmission
Our engineers profiled the shift dogs in the transmission to help you get smooth shifts every time. You’ll never see these parts, but you’ll feel their effects.

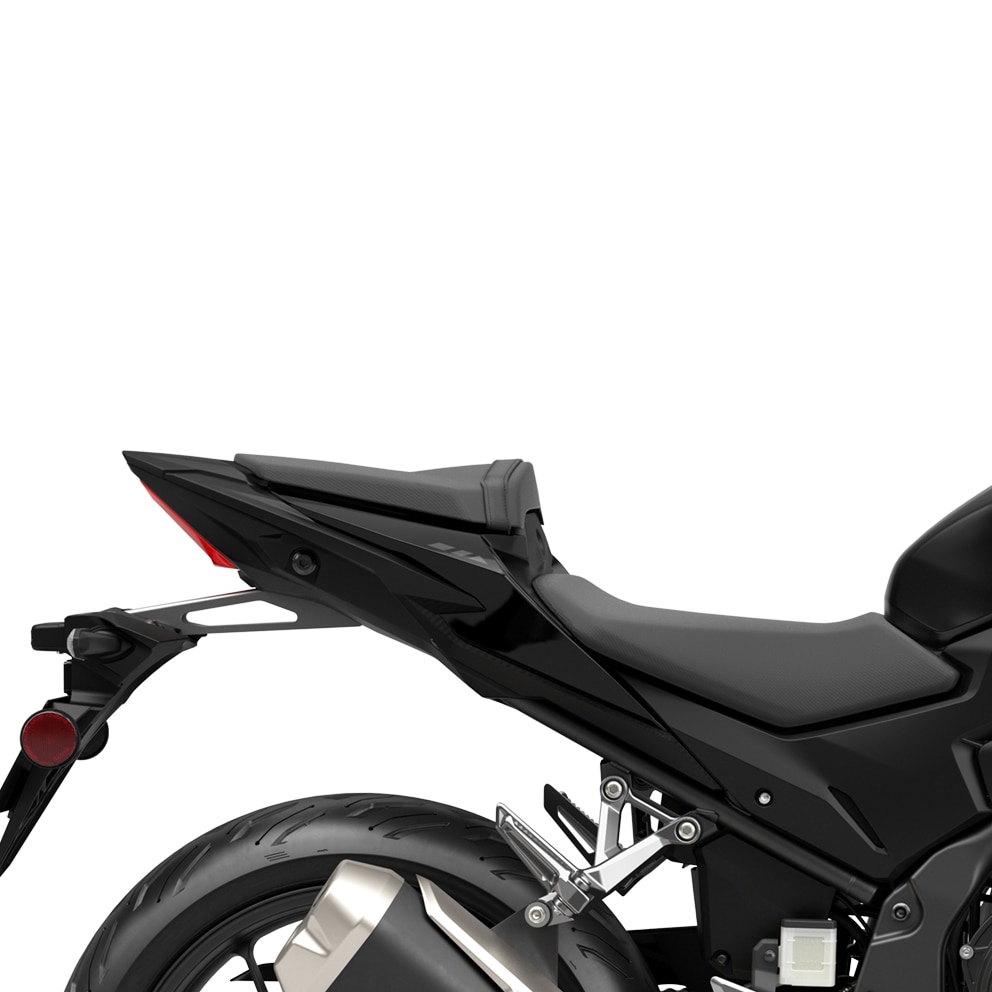

Passenger handholds
Sturdy passenger handholds offer security for your passengers or can be used as tie-down points for cargo items.
LED headlight
The dual-lens LED headlight gives the front end a modern, cutting-edge look while still projecting plenty of light on the road for visibility.
