PCX
157cc liquid-cooled single-cylinder four-stroke
Automatic V-Matic belt drive
31mm fork; 3.9-inch travel
Twin hydraulic shock absorbers; 3.7-inch travel
30.1 inches
Transferable, unlimited-mileage limited warranty. One year included.
Engine
| Engine Type | 157cc liquid-cooled single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 60.0mm x 55.5mm |
| Compression Ratio | 12.0:1 |
| Valve Train | SOHC; four valves per cylinder |
| Induction | Programmed Fuel-Injection system (PGM-FI); 28mm throttle body |
Drivetrain
| Transmission | Automatic V-Matic belt drive |
|---|
Chassis Suspension Brakes
| Front Suspension | 31mm fork; 3.9-inch travel |
|---|---|
| Rear Suspension | Twin hydraulic shock absorbers; 3.7-inch travel |
| Front Brake | Single 220mm disc; ABS |
| Rear Brake | 140mm drum |
| Front Tire | 110/70-14 |
| Rear Tire | 130/70-13 |
Dimensions
| Rake | 26.5° |
|---|---|
| Trail | 3.1 inches |
| Seat Height | 30.1 inches |
| Wheelbase | 51.7 inches |
| Curb Weight | 291 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 2.1 gallons |
Other
| Model ID | PCX160A |
|---|---|
| Available Colors | Pearl Gray |
Factory Warranty Information
| Duration | Transferable, one year included, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Effortless motion, endless possibilities
Rider comfort
The plush seating is as comfortable as it looks, while the stepped-up passenger section provides a great view for your co-pilot.
Underseat storage
Flip open the seat to reveal ample storage for a full-face helmet, laptop, or groceries. The main compartment is both lockable and weather-resistant.

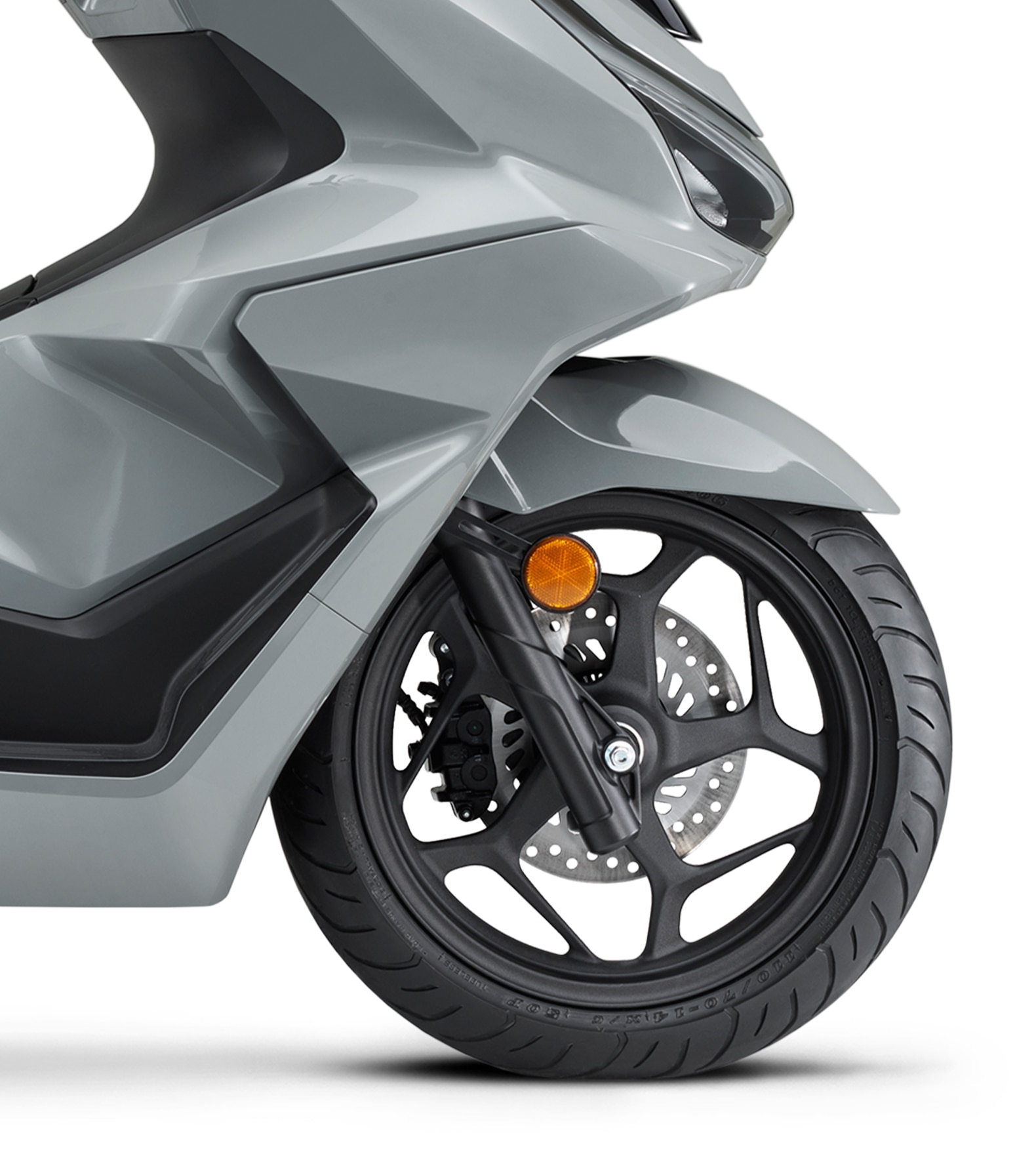

Front wheel ABS
Our front-wheel Anti-Lock Braking System (ABS) gives you added confidence and stopping power, even in unfavorable conditions.

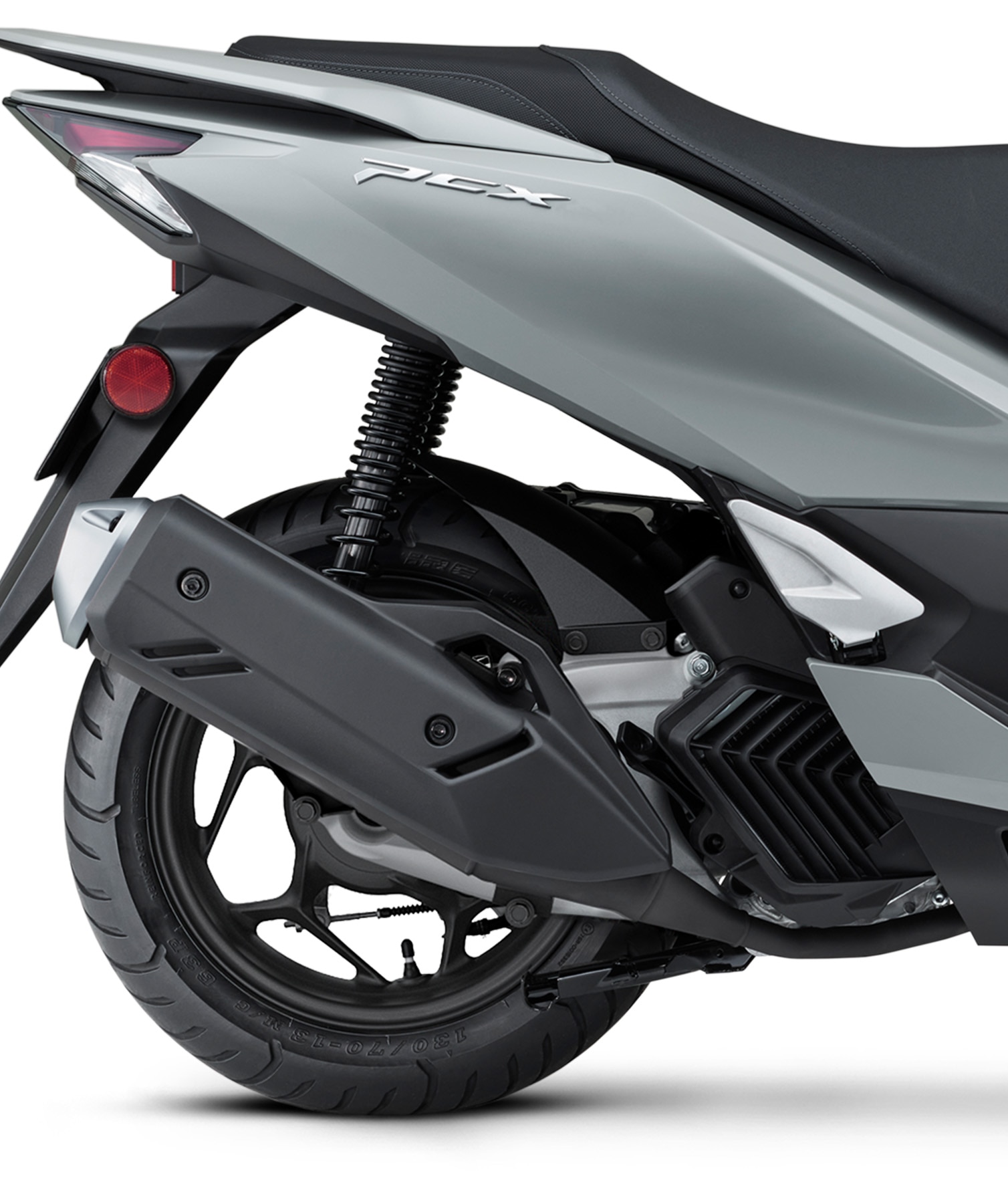

Four-valve eSP+ engine
The 157cc engine produces ample power for its size, featuring eSP+ technology that utilizes a four-valve design and a bore/stroke ratio that's engineered to reduce emissions and increase throttle response.
Small footprint. Big enjoyment.

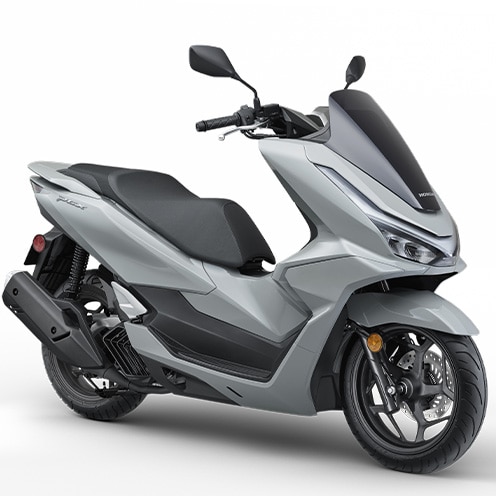

PGM Fuel-Injection
With liquid cooling and Programmed Fuel Injection (PGM-FI), you get incredible fuel efficiency and optimal performance in any traffic conditions.
Hydraulic cam-chain adjuster
The engine features an automatic hydraulic cam-chain adjustment, eliminating a routine maintenance point and making PCX ownership even easier.
Roller bearing crank
The crankshaft features special low-friction roller bearings that help the engine run smoothly and deliver great fuel efficiency.
Chassis
A duplex-cradle design frame, instead of the more common "underbone" style, gives it just the right combination of strength and flex to give you confidence-inspiring handling.
Electric start
Just turn the key and press the button—the fuel-injected engine starts right up, even in cold weather.

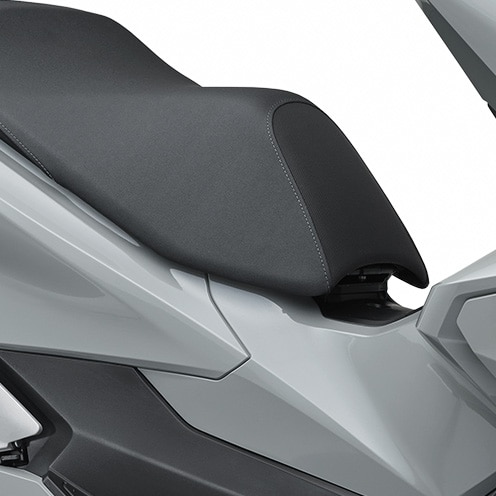

Fuel capacity
Amazing fuel efficiency and a large 2.1-gallon tank mean you can ride even further between fill-ups.
The "X" factor
There's the “X”-shaped taillight that uses multi-optics technology, emitting bright light with a captivating style for a touch of cool.
Accessories
Easy to park
For quick parking, use the sidestand. If space is limited, opt for the centerstand. While most scooters provide only one option, the PCX is equipped with both.

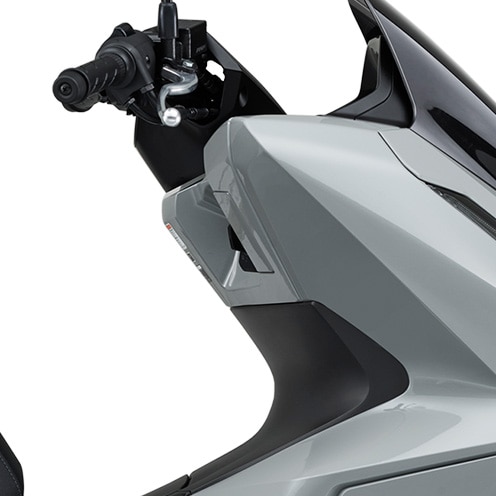

12-volt charging port
It's easy to keep your personal electronics charged up when you're on the go, thanks to the integral USB-type socket located in the fairing storage compartment.
