2024 Montesa Cota 4RT 260R
259cc liquid-cooled single-cylinder four-stroke
Close-ratio five-speed manual
39mm Showa® fork; 6.2-inch travel
Pro-Link® Showa® single shock; 6.7-inch travel
25.6 inches
170 pounds (includes all standard equipment, required fluids and a full tank of fuel)
Engine
| Engine Type | 259cc liquid-cooled single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 78.0mm x 54.2mm |
| Compression Ratio | 10.5:1 |
| Valve Train | SOHC, four valves per cylinder |
| Induction | Programmed Fuel Injection system (PGM-FI) |
Drivetrain
| Transmission | Close-ratio five-speed manual |
|---|---|
| Final Drive | #520 chain; 10T/41T |
Chassis Suspension Brakes
| Front Suspension | 39mm Showa® fork; 6.2-inch travel |
|---|---|
| Rear Suspension | Pro-Link® Showa® single shock; 6.7-inch travel |
| Front Brake | Single 185mm disc with four-piston caliper |
| Rear Brake | Single 150mm disc |
| Front Tire | Dunlop 80/100-21 |
| Rear Tire | Dunlop 120/100-R18 |
Dimensions
| Wheelbase | 52.0 inches |
|---|---|
| Rake | 23.0° |
| Trail | 2.4 inches |
| Seat Height | 25.6 inches |
| Curb Weight | 170 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 0.5 gallons |
| Ground Clearance | 13.2 inches |
Other
| Model ID | MRT260N |
|---|---|
| Available Colors | Red |
Trials masterpiece
Pro-level performance for all
PGM-FI engine
The bike has a fuel-injected power system that's easy to control for Trials riding. The 259cc Honda liquid-cooled four-stroke engine is tuned for low-rpm response and, thanks to a high-pressure fuel pump, provides ample power and torque across the rev range.

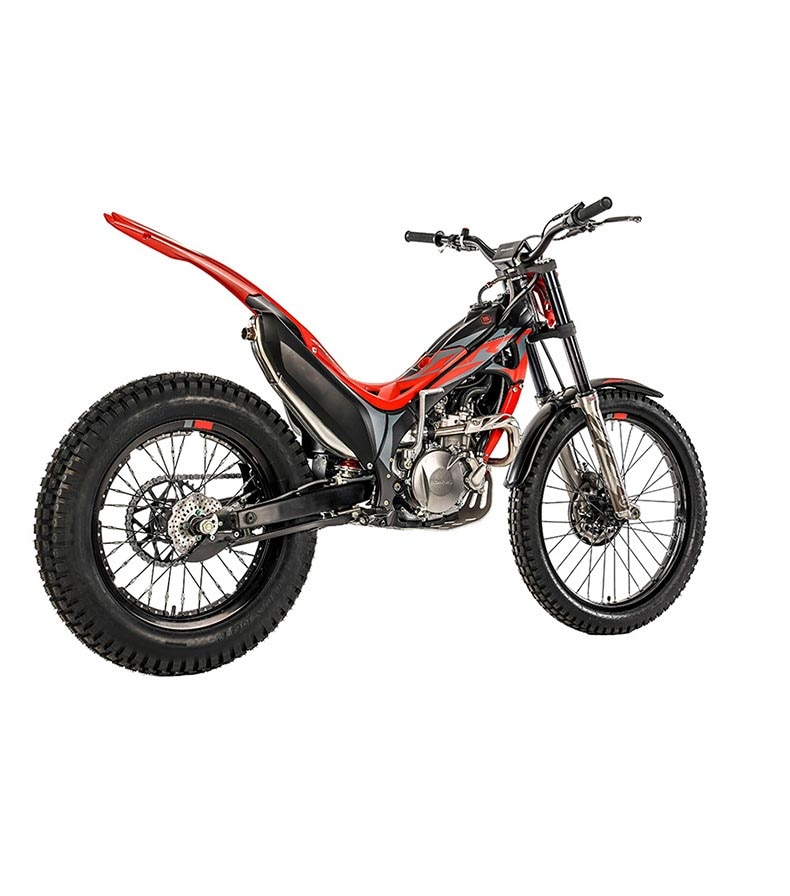

Chassis
An aluminum chassis with a stunning polished finish features impeccable manufacturing quality and a short rear brake pedal for more freedom of movement.
Premium suspension
An adjustable 39mm Showa® fork and Showa shock act in conjunction with the Pro-Link® rear suspension to provide precision handling and exceptional feel.

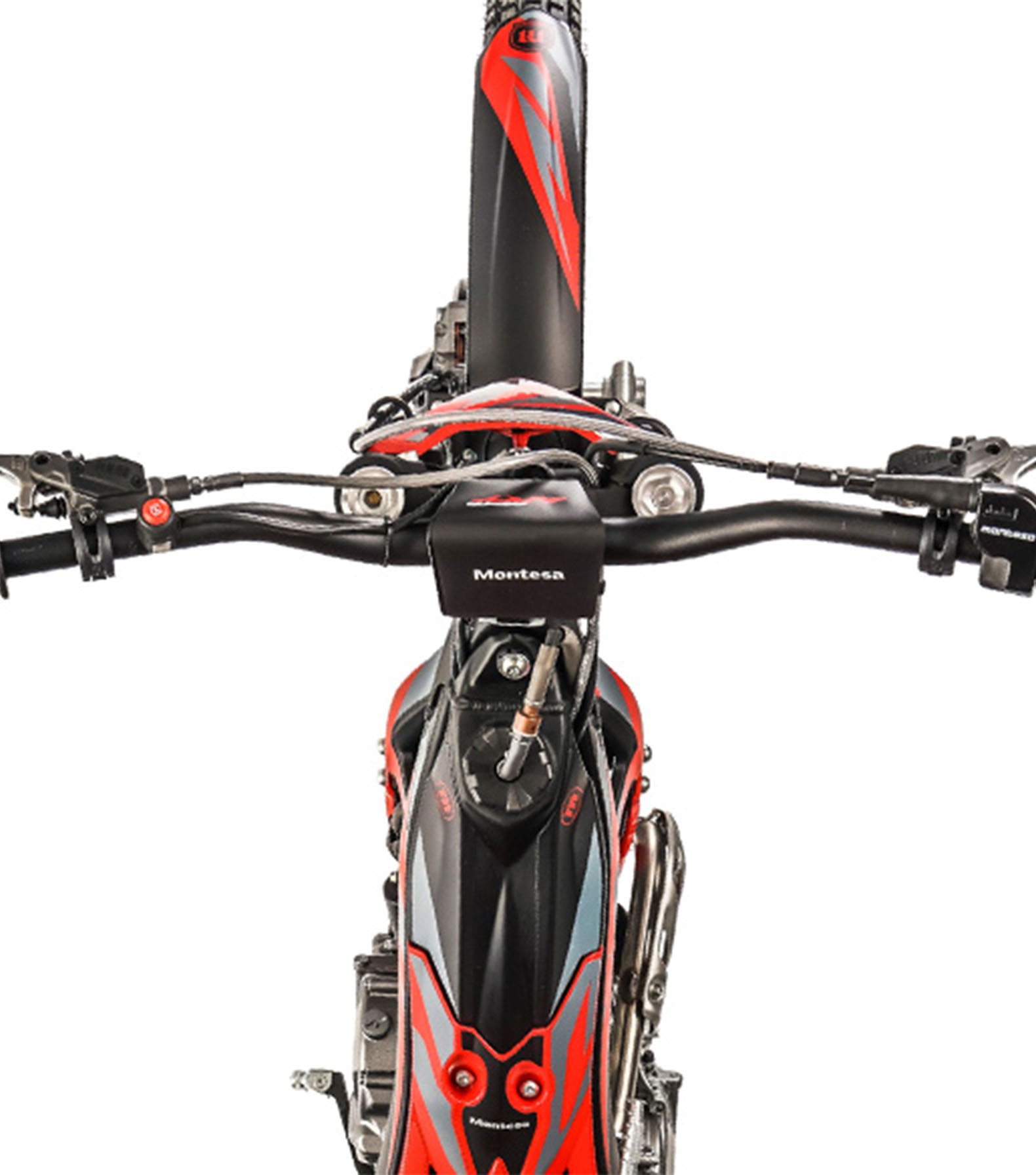

Dual-map ECU
A handlebar-mounted mode switch lets you choose between two maps/modes to change engine power delivery. The bike even includes special ECU mapping, improving engine response in low and middle rpm ranges.
Conquer with confidence

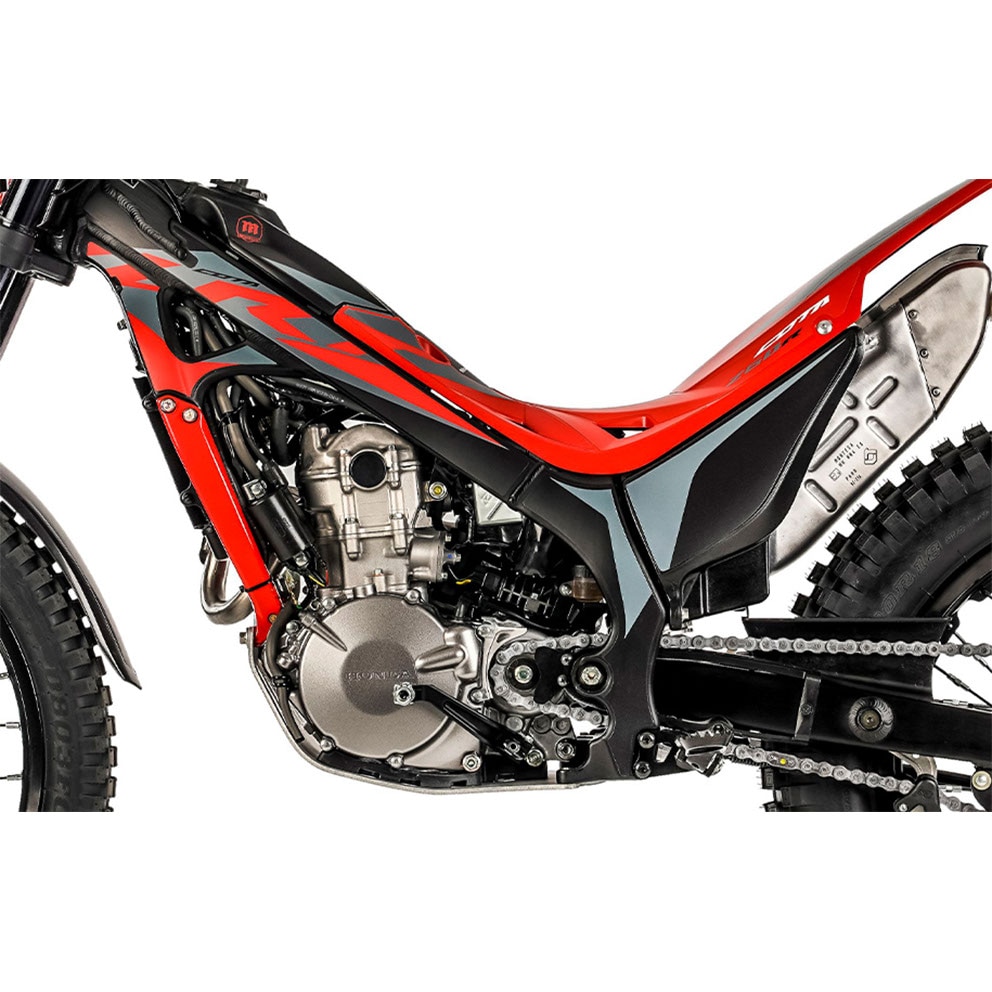

Advanced engineering
The 260R's Honda engine features a battery-less digital ignition system, a bank-angle sensor that turns off the ignition when the motorcycle is lying on the ground, and a magnetic kill switch.

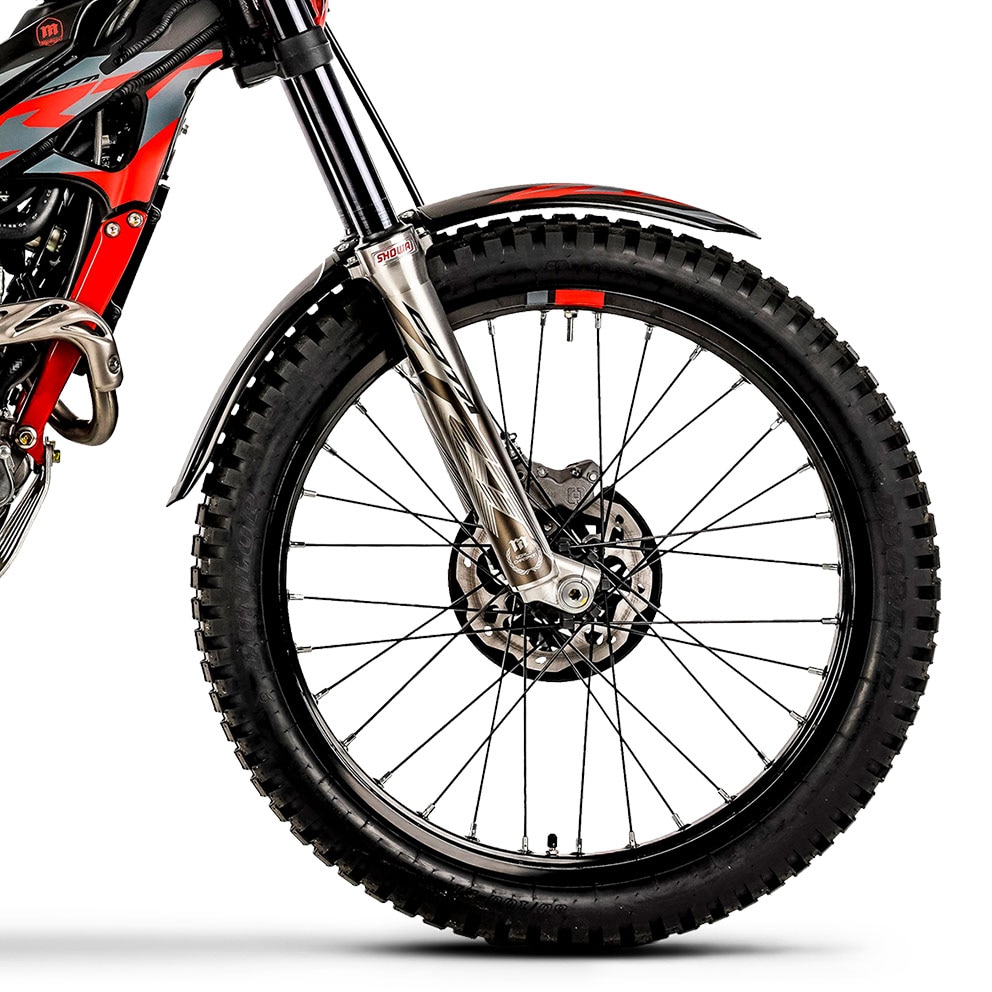

Brakes and wheels
The bike comes with a 4-piston monoblock front-brake caliper and 32-spoke wheels. The rear wheel features a central adjustment spokes system that reduces weight and allows tubeless rear tire installation.
Kickstart lever
A long kickstart lever helps ensure easy one-kick starts no matter where you are on the course.
