Engine Type

259cc liquid-cooled single-cylinder four-stroke

Transmission

Close-ratio five-speed

Front Suspension

39mm telescopic Showa® fork; 6.2-inch travel

Rear Suspension

Pro-Link® Showa® single shock; 6.7-inch travel

Seat Height

25.6 inches

Curb Weight

170 pounds (w/all fluids and fuel)

Engine

Engine Type	259cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	78.0mm x 54.2mm
Compression Ratio	10.5:1
Valve Train	SOHC, four-valves
Induction	Programmed Fuel Injection (PGM-FI)

Drive Train

Transmission	Close-ratio five-speed
Final Drive	#520 chain; 10T/41T

Chassis Suspension Brakes

Front Suspension	39mm telescopic Showa® fork; 6.2-inch travel
Rear Suspension	Pro-Link® Showa® single shock; 6.7-inch travel
Front Brake	Single 185mm hydraulic disc with 4-piston caliper and sintered metal pads
Rear Brake	Single 150mm hydraulic disc with 2-piston caliper and sintered metal pads
Front Tire	Dunlop 80/100-21
Rear Tire	Dunlop 120/100-R18

Dimensions

Wheelbase	52.0 inches
Rake	23.0°
Trail	2.4 inches
Seat Height	25.6 inches
Curb Weight	170 pounds (w/all fluids and fuel)
Fuel Capacity	0.5 gallons
Ground Clearance	13.2 inches

Other

Model ID	MRT260N
Available Colors	Red

Download Specs

Trials masterpiece

Pro-level performance for all

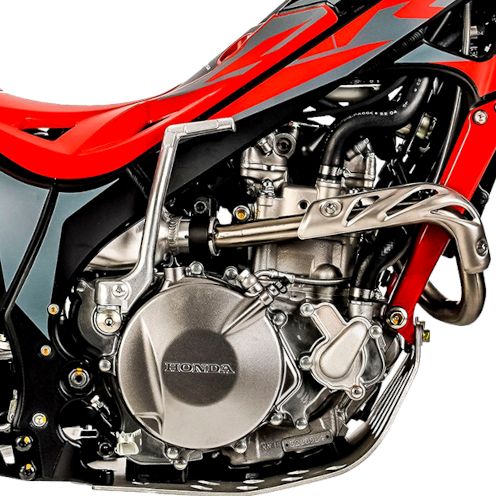

PGM-FI engine

The bike has a fuel-injected power system that's easy to control for Trials riding. The 259cc Honda liquid-cooled four-stroke engine is tuned for low-rpm response and, thanks to a high-pressure fuel pump, provides ample power and torque across the rev range.

Pro-level performance for all

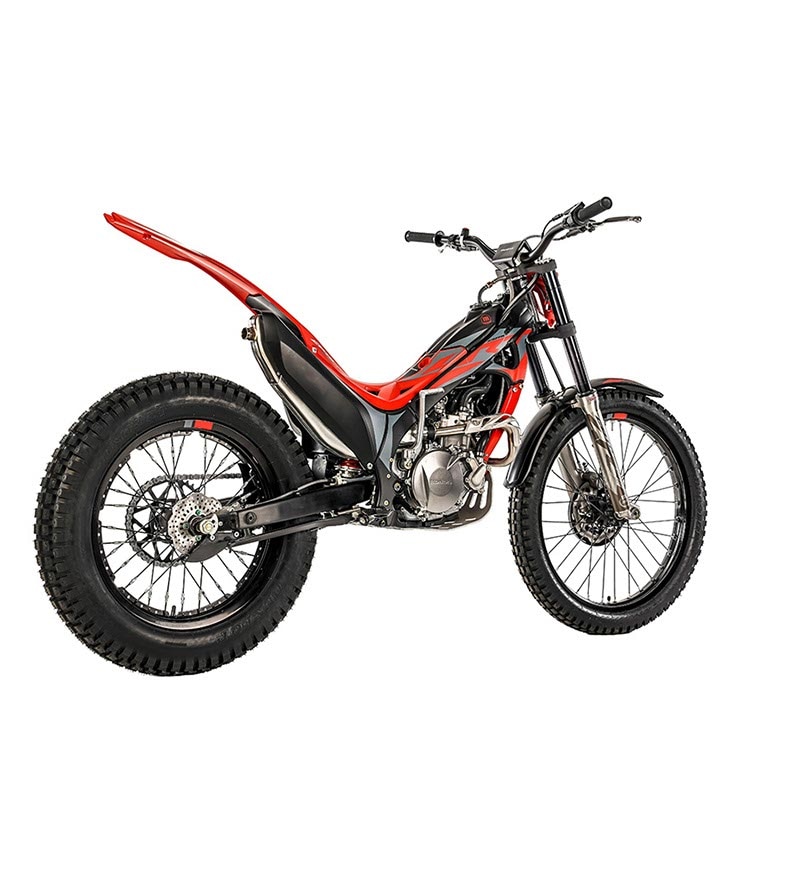

Chassis

An aluminum chassis with a stunning polished finish features impeccable manufacturing quality and a short rear brake pedal for more freedom of movement.

Pro-level performance for all

Premium suspension

An adjustable 39mm Showa^® fork and Showa shock act in conjunction with the Pro-Link^® rear suspension to provide precision handling and exceptional feel.

Pro-level performance for all

Dual-map ECU

A handlebar-mounted mode switch lets you choose between two maps/modes to change engine power delivery. The bike even includes special ECU mapping, improving engine response in low and middle rpm ranges.

Conquer with confidence

View all Features

European Model Shown

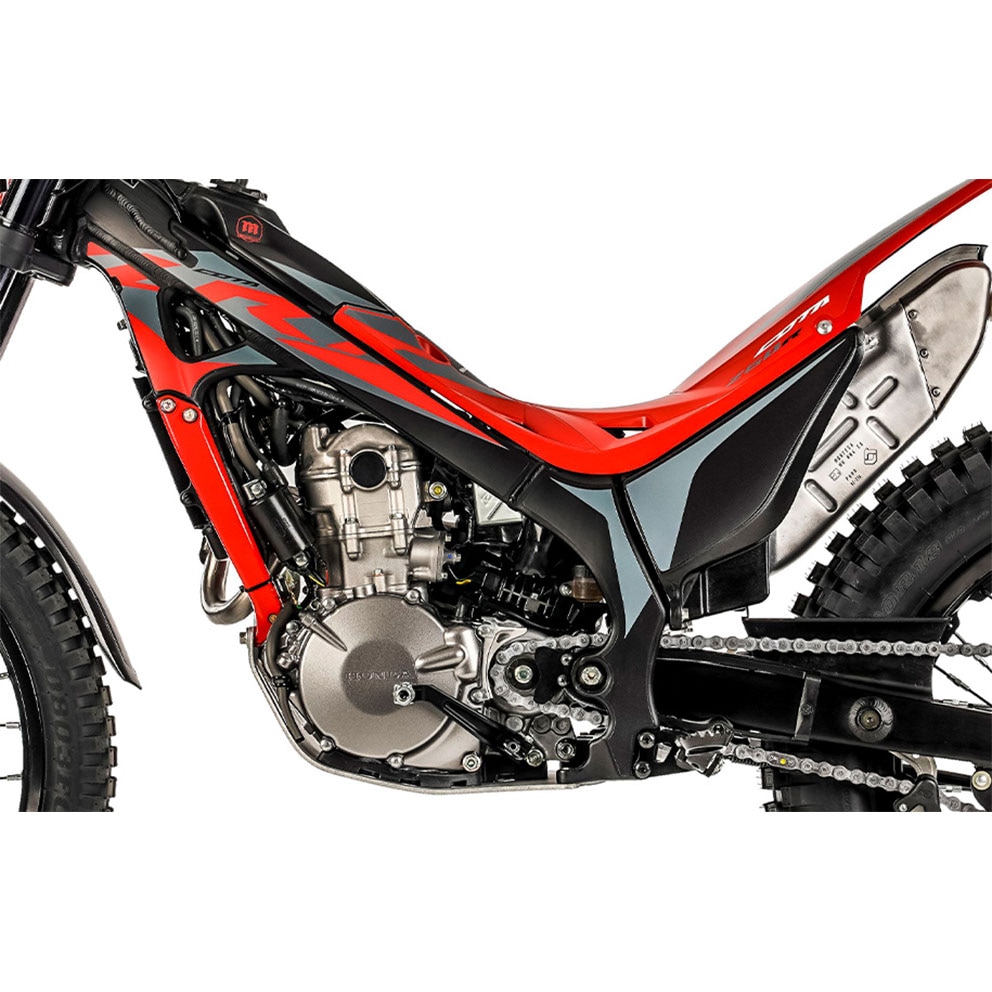

Advanced engineering

The 260R's Honda engine features a battery-less digital ignition system, a bank-angle sensor that turns off the ignition when the motorcycle is lying on the ground, and a magnetic kill switch.

European Model Shown

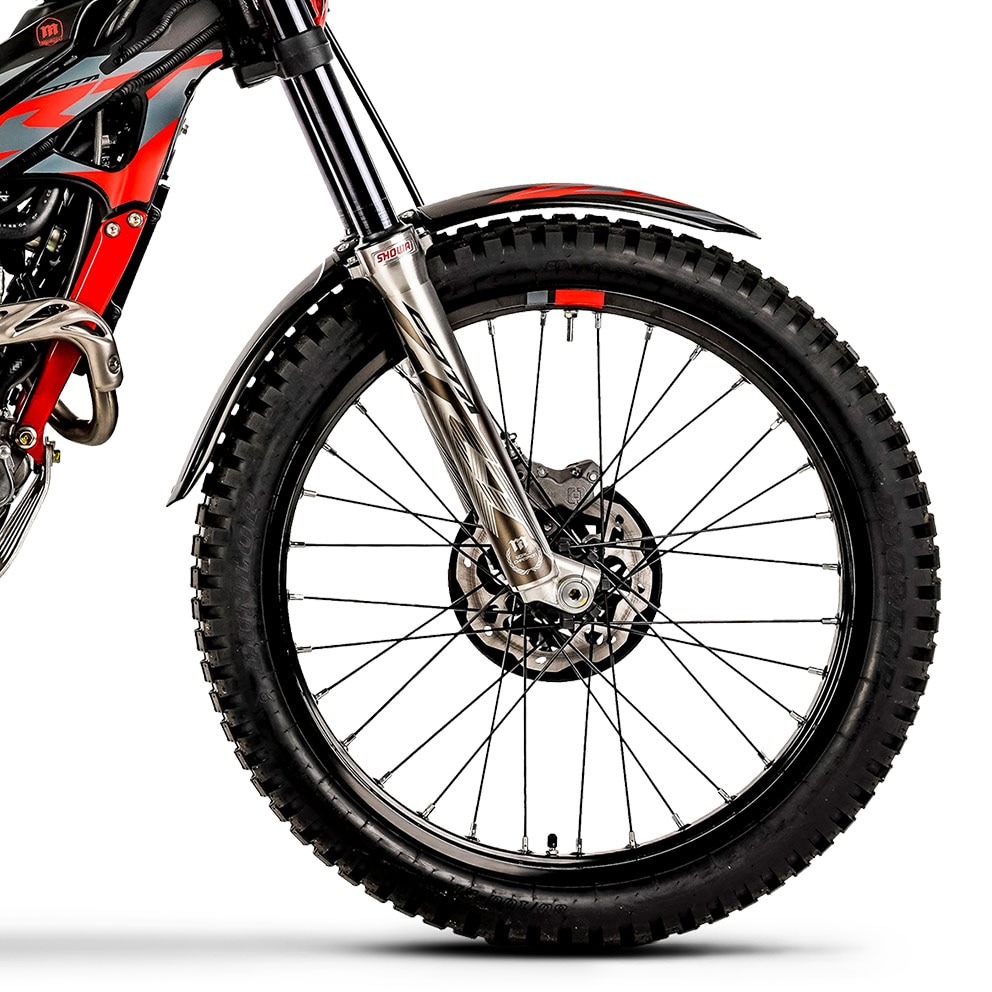

Brakes and wheels

The bike comes with a 4-piston monoblock front-brake caliper and 32-spoke wheels. The rear wheel features a central adjustment spokes system that reduces weight and allows tubeless rear tire installation.
