249cc liquid-cooled single-cylinder four-stroke
Five-speed
49.0mm leading-axle inverted Showa® fork; 12.2-inch travel
Pro-Link® Showa® single shock with spring preload, rebound- and compression-damping adjustability; 12.3-inch travel
37.7 inches
242 pounds (ready to ride)
Engine
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 79.0mm x 50.9mm |
| Compression Ratio | 13.9:1 |

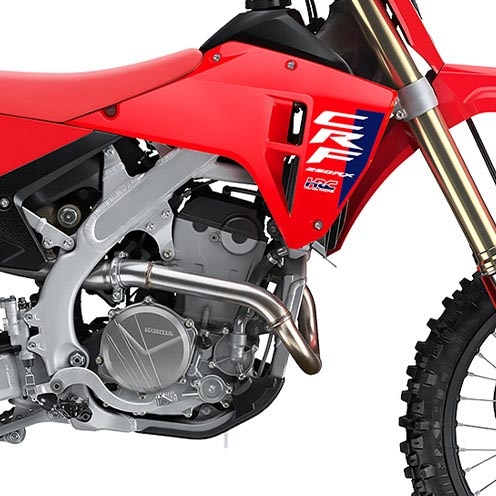

| Valve Train | DOHC; four valves per cylinder |
| Induction | Programmed Fuel-Injection system (PGM-FI); 44.0mm throttle body |
Drivetrain
| Transmission | Five-speed |
|---|---|
| Final Drive | #520 Chain; 13T/50T |
Chassis Suspension Brakes
| Front Suspension | 49.0mm leading-axle inverted Showa® fork; 12.2-inch travel |
|---|---|
| Rear Suspension | Pro-Link® Showa® single shock with spring preload, rebound- and compression-damping adjustability; 12.3-inch travel |
| Front Brake | Single 260.0mm disc |
| Rear Brake | Single 240.0mm disc |

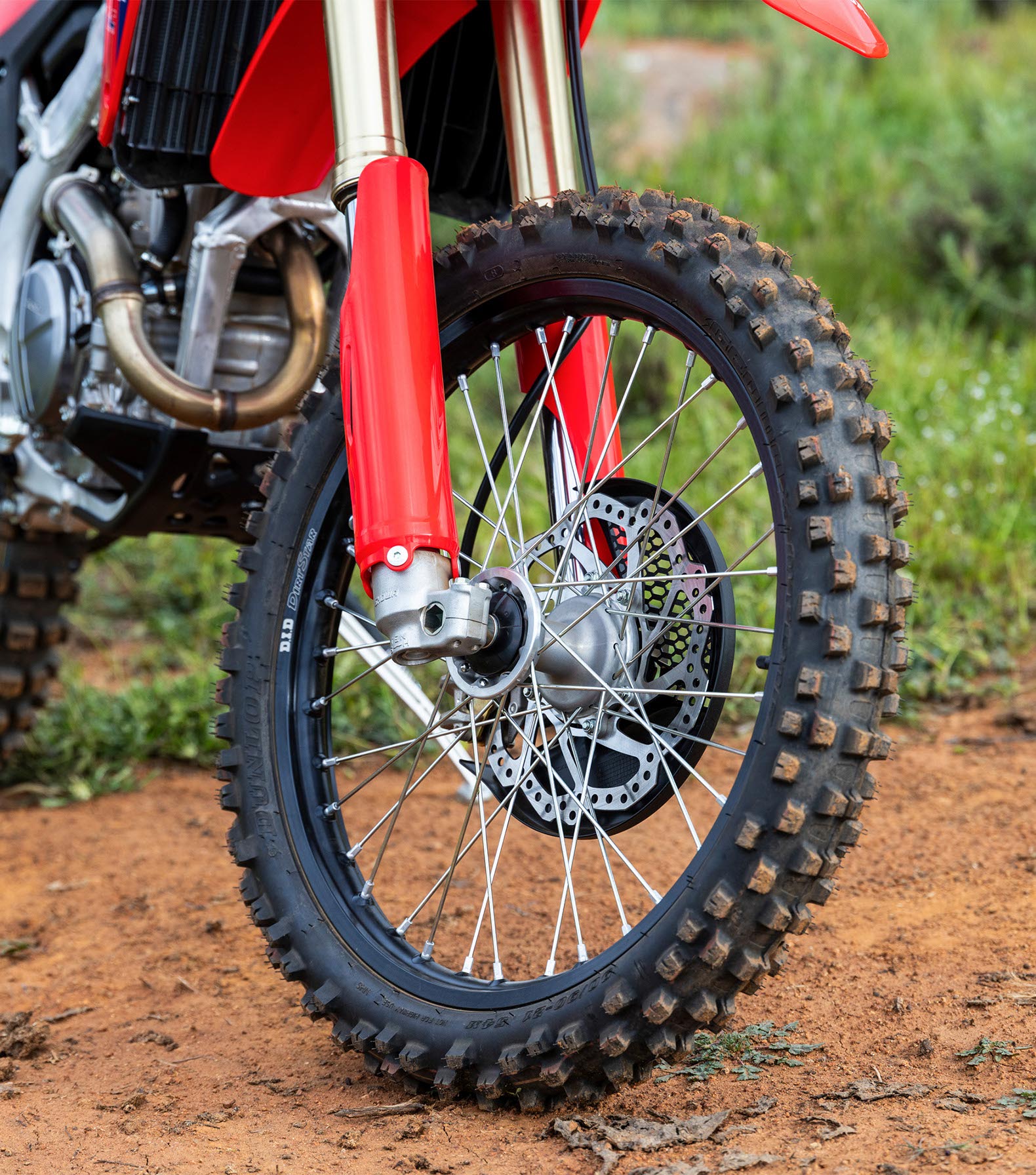

| Front Tire | Dunlop Geomax AT81; 90/90-21 |
| Rear Tire | Dunlop Geomax AT81; 110/100-18 |
Dimensions
| Rake | 27.5° |
|---|---|
| Trail | 4.5 inches |
| Wheelbase | 58.2 inches |
| Seat Height | 37.7 inches |
| Ground Clearance | 13.0 inches |
| Fuel Capacity | 2.1 gallons |
| Curb Weight | 242 pounds (ready to ride) |
Other
| Available Colors | Red |
|---|---|
| Model ID | CRF250RX |
