Engine Type

109cc air-cooled single-cylinder four-stroke

Transmission

Four-speed with automatic clutch

Front Suspension

31.0mm leading-axle fork; 4.3-inch travel

Rear Suspension

Single-shock; 3.8-inch travel

Seat Height

25.9 inches

Curb Weight

169 pounds (ready to ride)

Engine

Engine Type	109cc air-cooled single-cylinder four-stroke
Bore And Stroke	50.0mm x 55.6mm
Compression Ratio	9.0:1
Valve Train	SOHC; two valves per cylinder
Induction	Fuel-injection, 19mm throttle bore

Drive Train

Transmission	Four-speed with automatic clutch
Final Drive	#420 chain; 14T/38T

Chassis Suspension Brakes

Front Suspension	31.0mm leading-axle fork; 4.3-inch travel
Rear Suspension	Single-shock; 3.8-inch travel
Front Brake	95mm single-leading-shoe drum
Rear Brake	95mm single-leading-shoe drum
Front Tire	70/100-14
Rear Tire	80/100-12

Dimensions

Rake	25.4°
Trail	2.0 inches
Wheelbase	41.9 inches
Seat Height	25.9 inches
Ground Clearance	6.7 Inches
Curb Weight	169 pounds (ready to ride)
Fuel Capacity	1.0 gallon

Other

Model ID	CRF110FS
Available Colors	Red, White
Emissions	Meets California Air Resources Board (CARB) and EPA off-road emissions standards.

Factory Warranty Information

Six Months Included	Transferable, limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

Power up young riders

Kid ready, parent approved

Four-stroke engine

The Honda four-stroke single-cylinder engine provides smooth and reliable performance, making it ideal for a broad range of riders, including beginners.

Kid ready, parent approved

Ample suspension travel

This entry-level dirt bike offers ample suspension travel at the front and rear, ensuring a comfortable and smooth ride.

Kid ready, parent approved

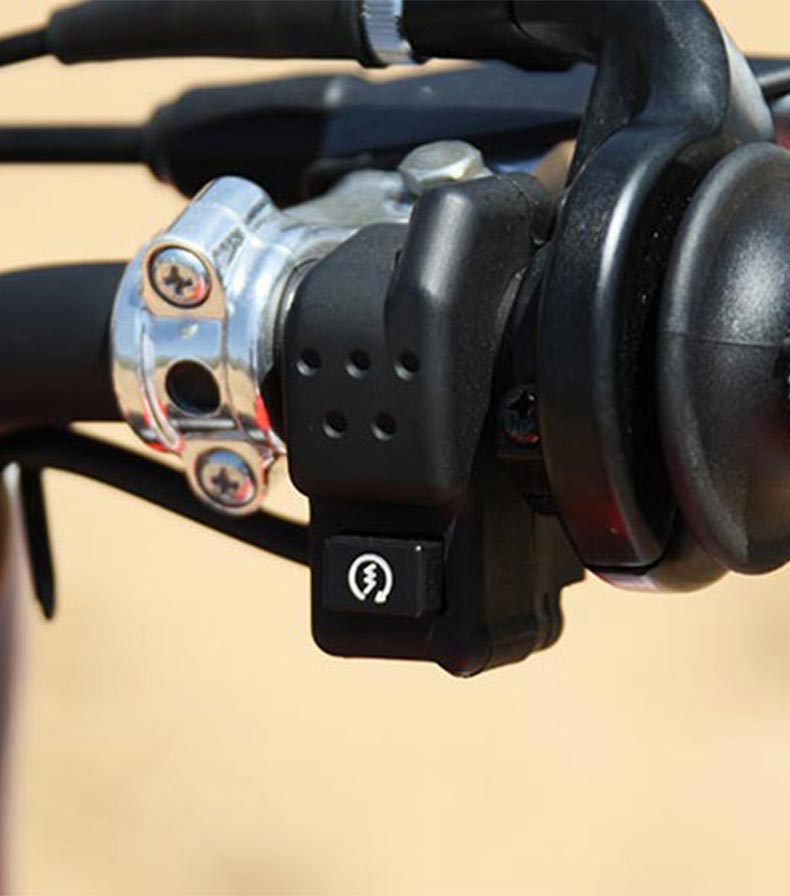

Electric starter

Push a button and go—that’s how easy it is to get going. Starting the engine after a tip-over is easy, and the push button prevents frustration in case of an accidental engine stop.

Kid ready, parent approved

Adjustable speed limiter

Turn a screw to set the top speed and match the power to the rider's skill level, preventing new riders from going too fast too soon.

Trailblazing for beginners

View all Features

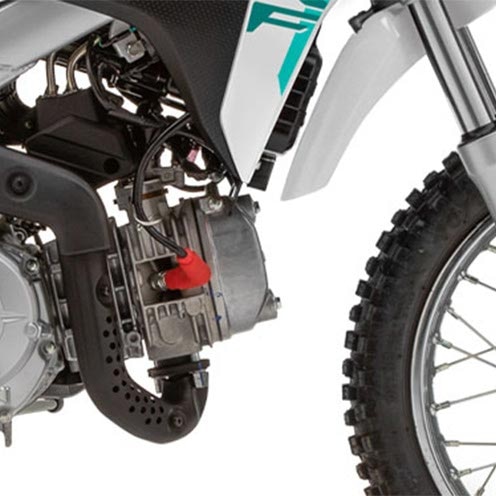

Clean-running engine

The engine runs cleanly by fitting the bike with fuel injection and meets California's stringent CARB emissions standards for off-road motorcycles.

Automatic clutch

For new riders, there is no clutch lever to master, so there's no chance of stalling. Simply shift with your foot, as the smooth transmission offers four gear ratios.

Prior Model Year Shown

Keyed ignition

You decide who rides and when because you hold the keys. Got your homework done? Good—let’s ride!

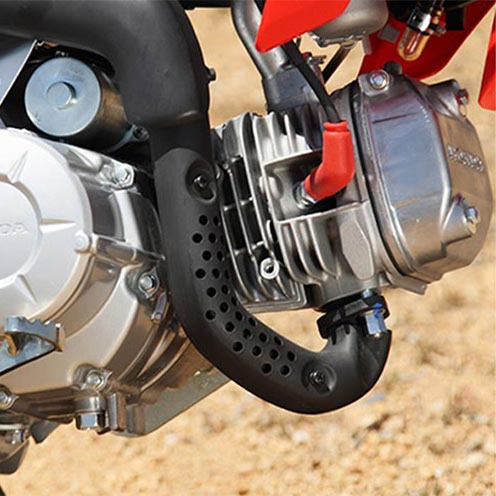

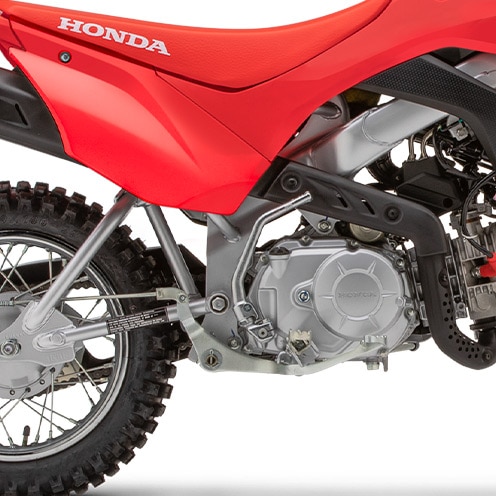

Backup kickstarter

Even if your bike has a dead battery, you still can get going with the kickstarter. It’s easy for you to use and helps ensure your fun day doesn’t stop.

Prior Model Year Shown

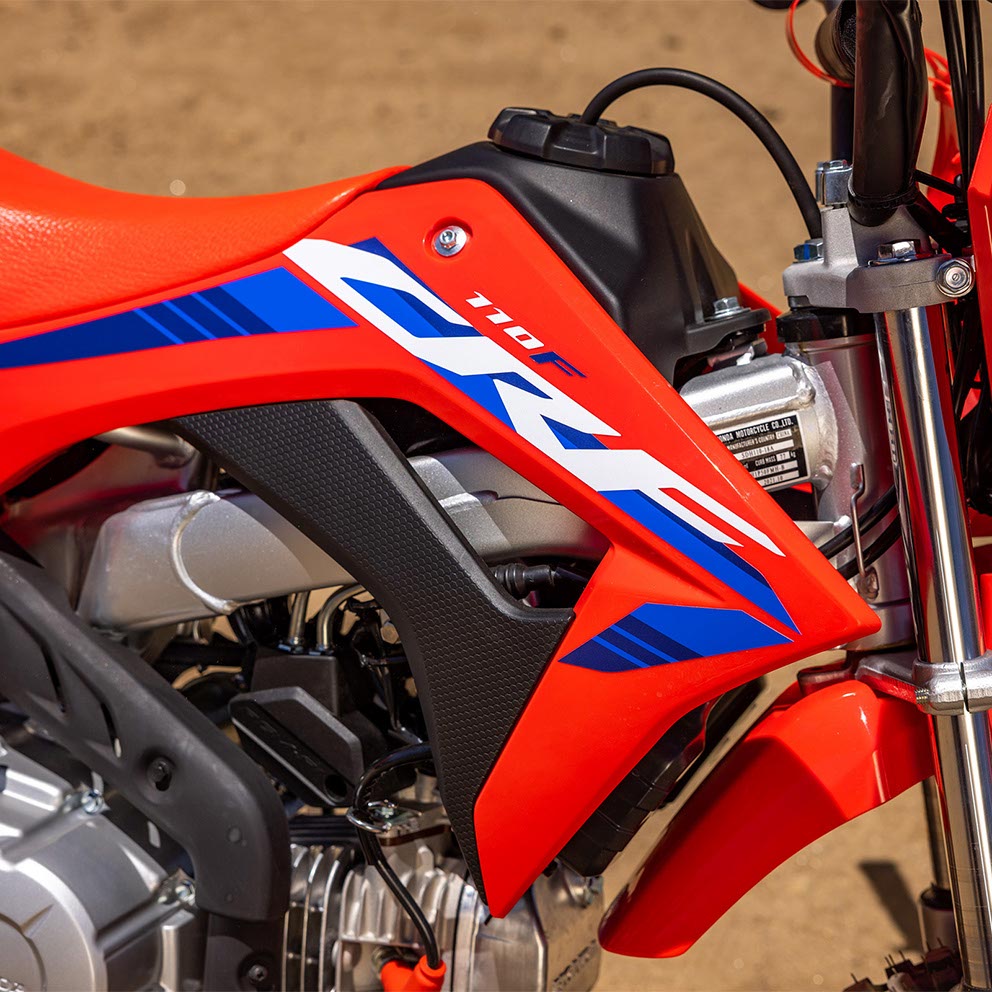

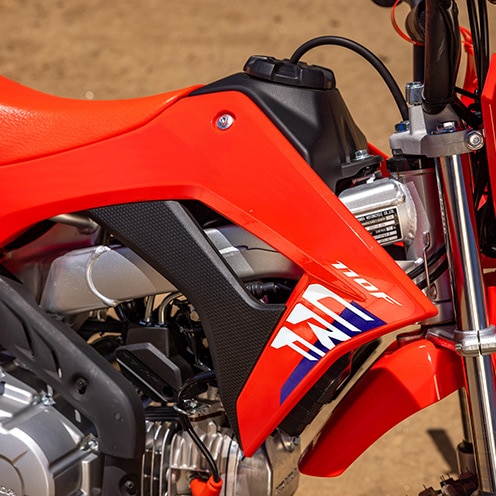

Tough bodywork

Riders can be harsh on equipment and taking a spill is a natural part of learning. Its plastic fenders, tank, and body parts resemble our larger CRF motocross bikes, and can easily withstand minor dings and scratches.
