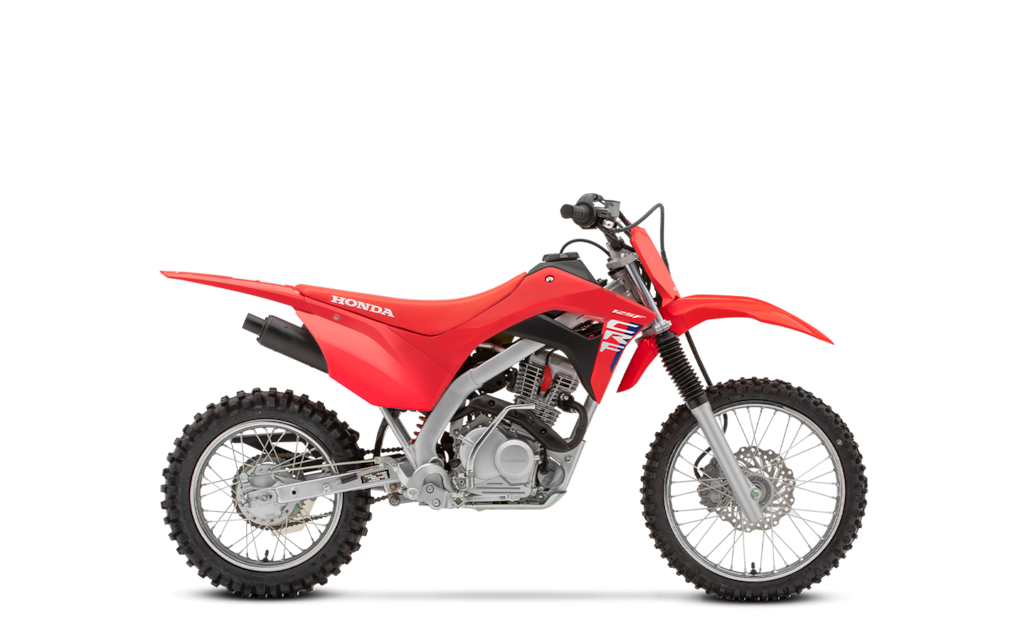

CRF125F - Big Wheel
125cc air-cooled single-cylinder four-stroke
Four-speed
31mm leading-axle fork; 6.7-inch travel
Pro-Link® single-shock; 6.6-inch travel
30.9 inches
199 pounds (ready to ride)
Engine
| Engine Type | 125cc air-cooled single-cylinder four-stroke |
|---|---|
| Bore and Stroke | 52.4mm x 57.9mm |
| Compression Ratio | 9.0:1 |
| Valve Train | SOHC; two-valve |
| Induction | Fuel-injection, 22mm throttle bore |
Drive Train
| Transmission | Four-speed |
|---|---|
| Final Drive | Chain; 13T/49T |
Chassis Suspension Brakes
| Front Suspension | 31mm leading-axle fork; 6.7-inch travel |
|---|---|
| Rear Suspension | Pro-Link® single-shock; 6.6-inch travel |
| Front Brake | Single 220mm disc |
| Rear Brake | 95mm single-leading-shoe drum |
| Front Tire | 70/100-19 |
| Rear Tire | 90/100-16 |
Dimensions
| Rake | 27.5° |
|---|---|
| Trail | 3.7 inches |
| Wheelbase | 49.4 inches |
| Seat Height | 30.9 inches |
| Ground Clearance | 10.3 inches |
| Curb Weight | 199 pounds (ready to ride) |
| Fuel Capacity | 1.0 gallon |
Other
| Model ID | CRF125FB |
|---|---|
| Available Colors | Red |
| Emissions | Meets California Air Resources Board (CARB) and EPA off-road emissions standards. |
Factory Warranty Information
| Six Months Included | Transferable, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Big wheel, big fun
Elevate your off-road game
Reliable engine
The four-stroke, single-cylinder engine has a broad powerband and offers dependable performance for beginners. Fuel injection enhances its efficiency.
Proven manual clutch
The heavy-duty traditional manual clutch is durable and helps promote smooth shifting.
Steel frame and swingarm
We designed these bikes with strong, twin-spar-type steel frames and swingarms that can handle the bumps and dings of off-road riding.

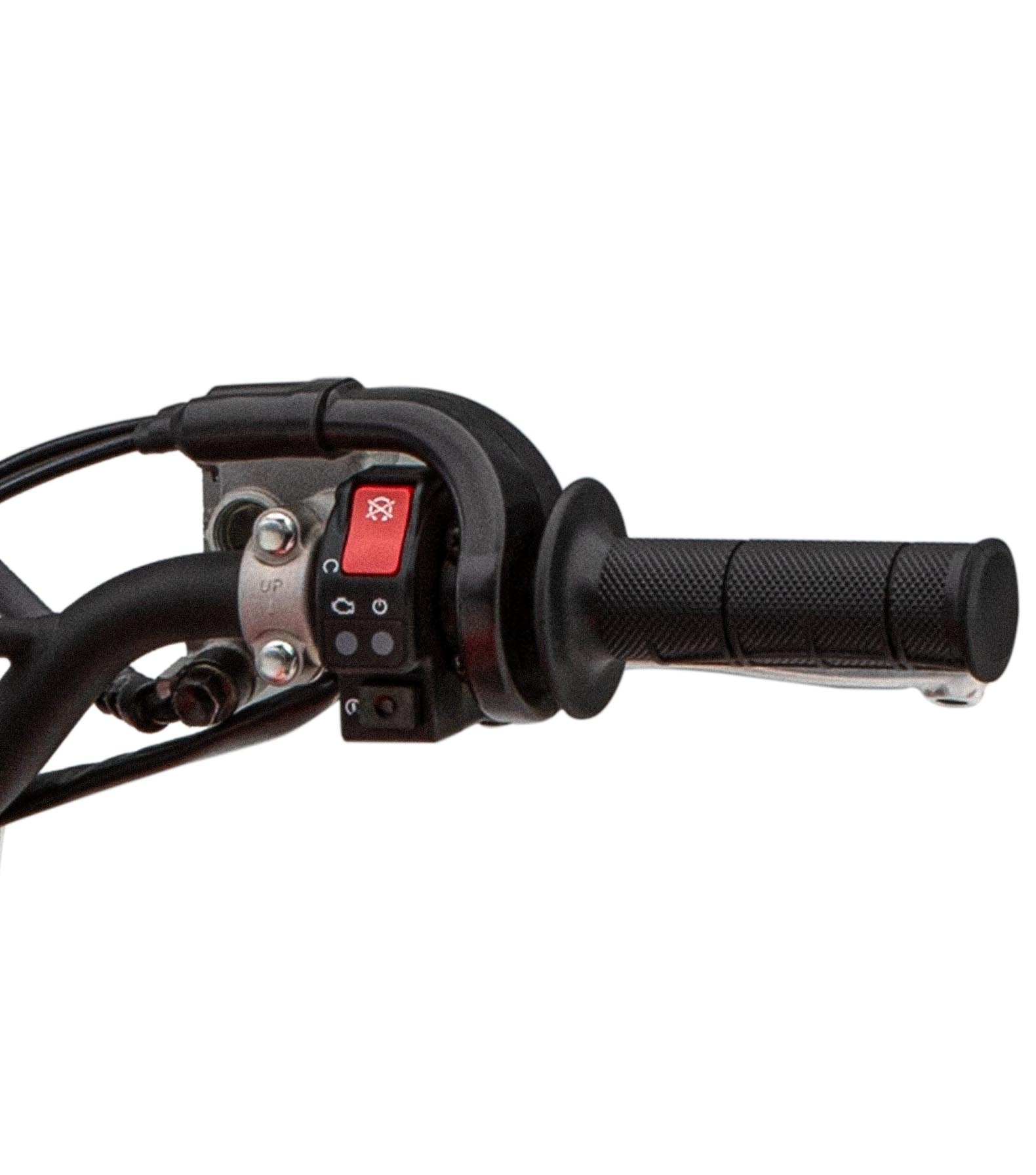

Electric starter
The push-button starter is designed to add minimal weight and make starting easier in all conditions.
Sized just right

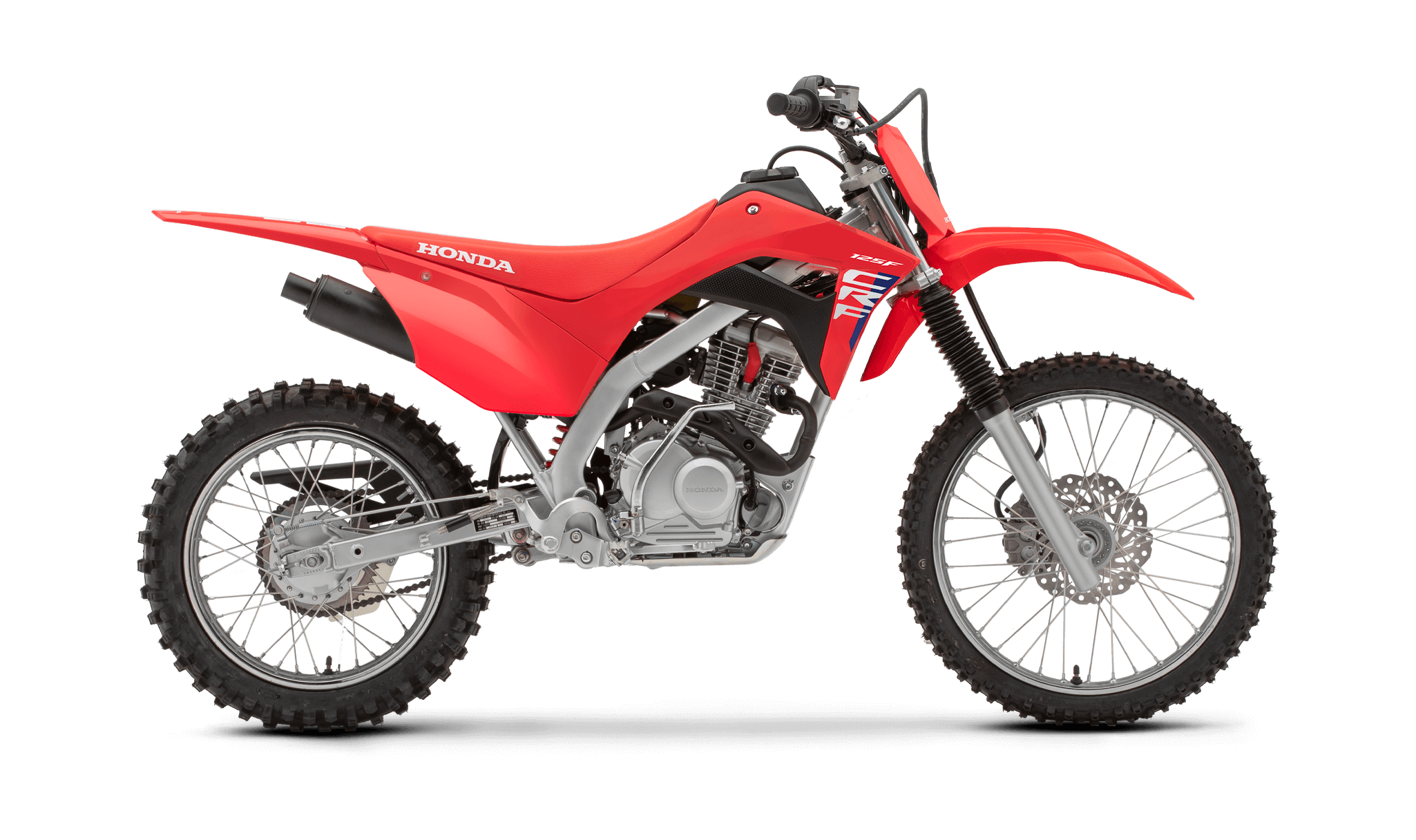

Big Wheel version available
Looking for something a little larger? Check out our Big Wheel trim—the same great bike but a better fit for taller riders with its larger wheels and higher seat height.
Fuel injection
Fuel injection means it starts right up, even in cold weather. Compared to a carbureted bike, it also helps reduce emissions and enhance performance and fuel efficiency.
Front disc brake
The front disc brake provides superior stopping power, and the front disc rotor is drilled for lightness and better wet-weather performance.
Four-speed transmission
The four-speed gearbox is identical to a full-sized off-road motorcycle, providing complete control.
Stylish and tough bodywork
This bike can handle the hard knocks of learning riders. The tough plastic fenders, tank, and other body parts are inspired by our CRF motocross bikes and engineered to shrug off minor dings.
Half-waffle grips
Just like the pros use, this bike gets half-waffle pattern grips. Might as well start off right!
