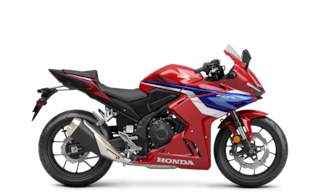

CBR500R
471cc liquid-cooled parallel-twin four-stroke
Six-speed manual
41mm inverted Showa® SFF-BP fork; 4.7-inch travel
Pro-Link® Showa® single shock; 4.7-inch travel
31.1 inches
Transferable, unlimited-mileage limited warranty. One year included.
Engine
| Engine Type | 471cc liquid-cooled parallel-twin four-stroke |
|---|---|
| Bore And Stroke | 67.0mm x 66.8mm |
| Compression Ratio | 10.7:1 |
| Valve Train | DOHC; four valves per cylinder |
| Induction | Programmed Fuel-Injection system (PGM-FI); 34mm throttle body |
Drivetrain
| Transmission | Six-speed manual |
|---|---|
| Final Drive | O-ring-sealed chain; 15T/41T |
Chassis Suspension Brakes
| Front Suspension | 41mm inverted Showa® SFF-BP fork; 4.7-inch travel |
|---|---|
| Rear Suspension | Pro-Link® Showa® single shock; 4.7-inch travel |
| Front Brake | Dual 296mm discs with four-piston calipers; ABS |
| Rear Brake | Single 240mm disc, ABS |
| Front Tire | 120/70R-17 |
| Rear Tire | 160/60-17 |
Dimensions
| Rake | 25.5° |
|---|---|
| Trail | 4.0 inches |
| Wheelbase | 55.5 inches |
| Seat Height | 31.1 inches |
| Curb Weight | 421 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 4.5 gallons |
Other
| Model ID | CBR500RA |
|---|---|
| Emissions | Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment. |
| Available Colors | Grand Prix Red |
Factory Warranty Information
| Duration | Transferable, one year included, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Freedom, fully faired
Street smarts
DOHC twin-cylinder engine
The 471cc parallel-twin engine features a dual overhead cam design, offering accessible performance throughout the rpm range, with strong low-end torque and high-rpm horsepower.
Supersport styling
The sleek fairing design extends beyond aesthetics, enhancing air management to maximize rider comfort, promote optimal cooling, and improve aerodynamic efficiency.
Anti-Lock Braking System (ABS)
Our Anti-Lock Braking System comes standard, providing assured stopping power and added confidence in challenging conditions, such as wet roads or loose gravel.
Showa® SFF-BP fork
The 41mm inverted Showa® Separate Function Fork—Big Piston (SFF-BP) front end enhances the bike's rigidity and provides more precise steering input and feedback.
Meet joy in every gear
Programmed fuel injection
Stainless steel exhaust
Disc brakes

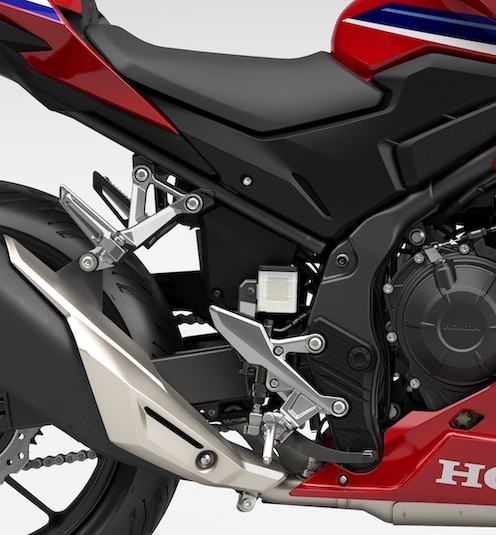

Pro-Link® rear suspension
Our Pro-Link® rear suspension features a nine-stage adjustable preload shock and 4.7 inches of travel, providing ample comfort and agile handling.
Steel-tube frame
Lightweight swingarm
The swingarm, used in the entire Honda 500 lineup, is both lightweight and strong, contributing to the bike’s exceptional handling.

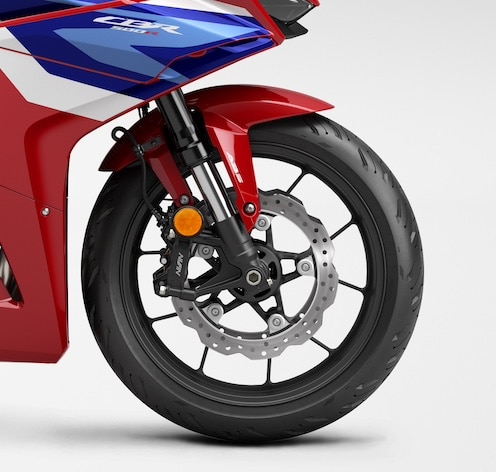

Cast wheels
Lightweight, multi-spoke cast aluminum wheels are designed to improve handling and accommodate various sticky street tires. Plus, they are easy to clean and simply look good.

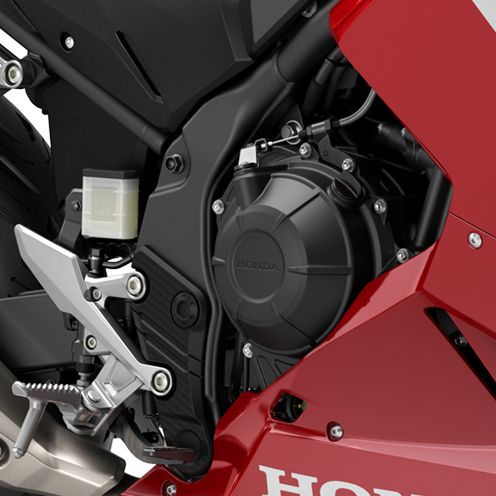

Slipper clutch
Smooth transmission
Our engineers profiled the shift dogs in the six-speed transmission to help you change gears with reduced effort every time. While you’ll likely never see these parts, their impact on your riding experience is unmistakable.

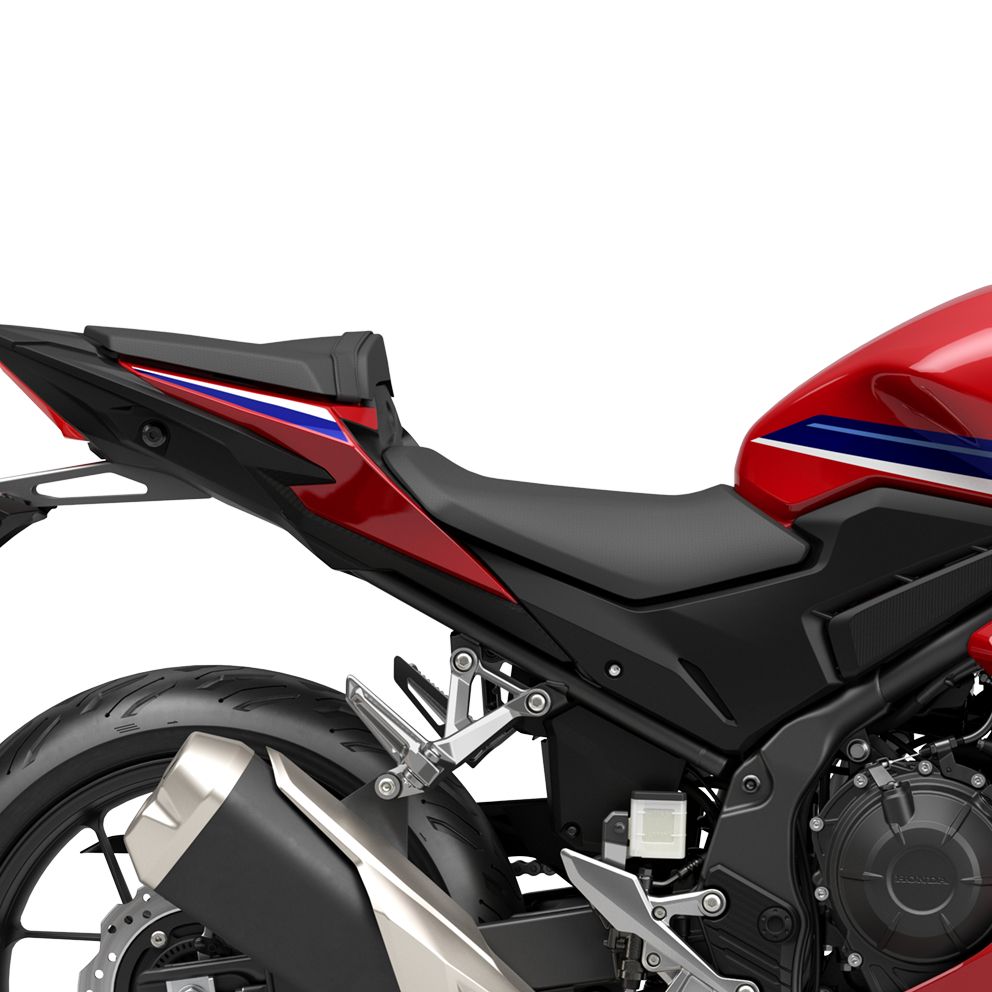

Dual-level seating
A two-piece seat with a dual-level design accommodates riders and passengers of various sizes, making it perfect for both urban streets and winding roads.
Accessories
Make your new CBR500R even more yours with a total of 6 different Honda accessories, including a tank pad and bag, heated grips, and a 12-volt accessory socket.
LED headlights
Compact, stylish LED headlights enable optimal engine intake placement, enhancing airflow and generating additional horsepower without compromising illumination.
Related trims and models

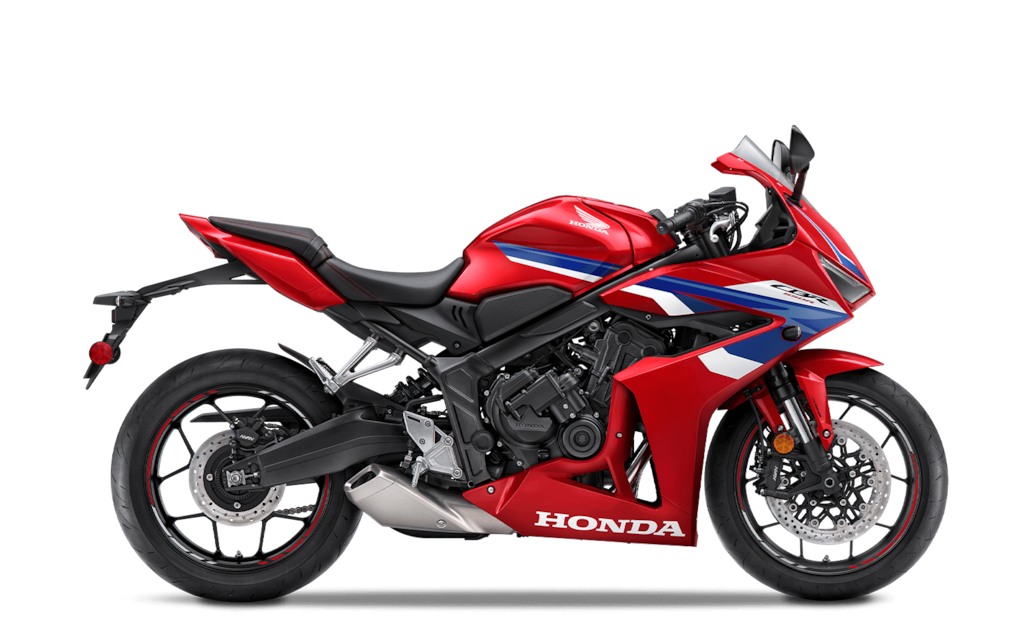

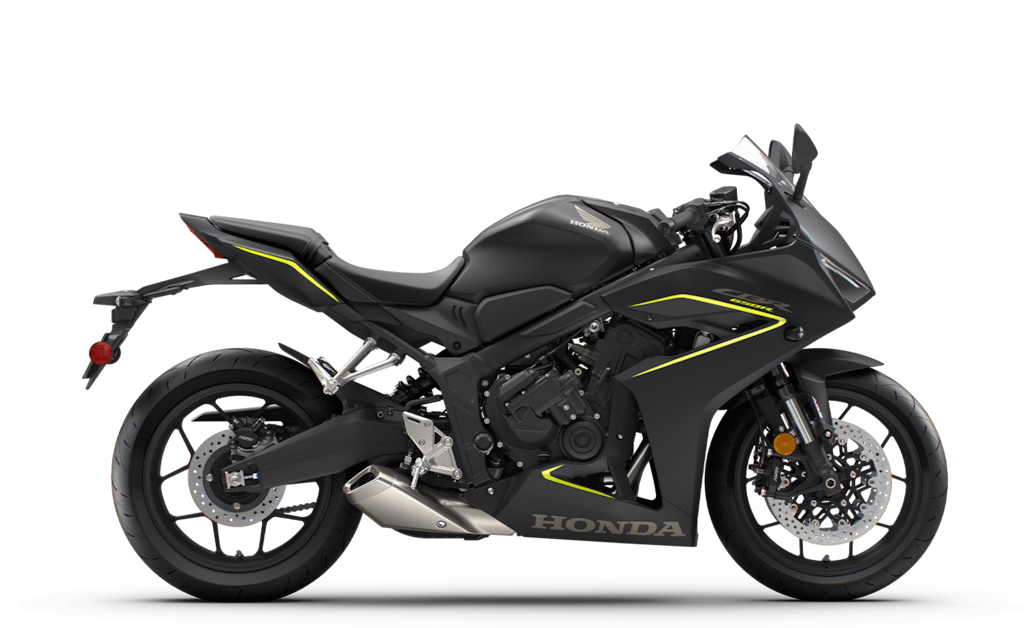

CBR650R E-Clutch
