Engine Type

149cc air-cooled single-cylinder four-stroke

Transmission

Five-speed manual

Front Suspension

31mm fork; 7.1-inch travel

Rear Suspension

Single-shock; 5.9-inch travel

Seat Height

32.8 inches

Warranty

Transferable, unlimited-mileage limited warranty. One year included.

HondaCare® Protection Plan Available

Engine

Engine Type	149cc air-cooled single-cylinder four-stroke
Bore And Stroke	57.3mm x 57.8mm
Valve Train	OHC; two valves per cylinder
Compression Ratio	9.5:1
Induction	22mm piston-valve carburetor

Drivetrain

Transmission	Five-speed manual
Final Drive	#428 chain; 17T/49T

Chassis Suspension Brakes

Front Suspension	31mm fork; 7.1-inch travel
Rear Suspension	Single-shock; 5.9-inch travel
Front Brake	Single 240mm disc
Rear Brake	110mm drum
Front Tire	90/90-19
Rear Tire	110/90-17

Dimensions

Rake	27.0°
Trail	4.0 inches
Wheelbase	53.5 inches
Seat Height	32.8 inches
Ground Clearance	9.6 inches
Curb Weight	282 pounds (includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity	2.8 gallons, including 0.9-gallon reserve

Other

Available Colors	Black, White
Model ID	XR150L

Factory Warranty Information

Duration	Transferable, one year included, limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

Find your inner explorer

Adventure in every mile

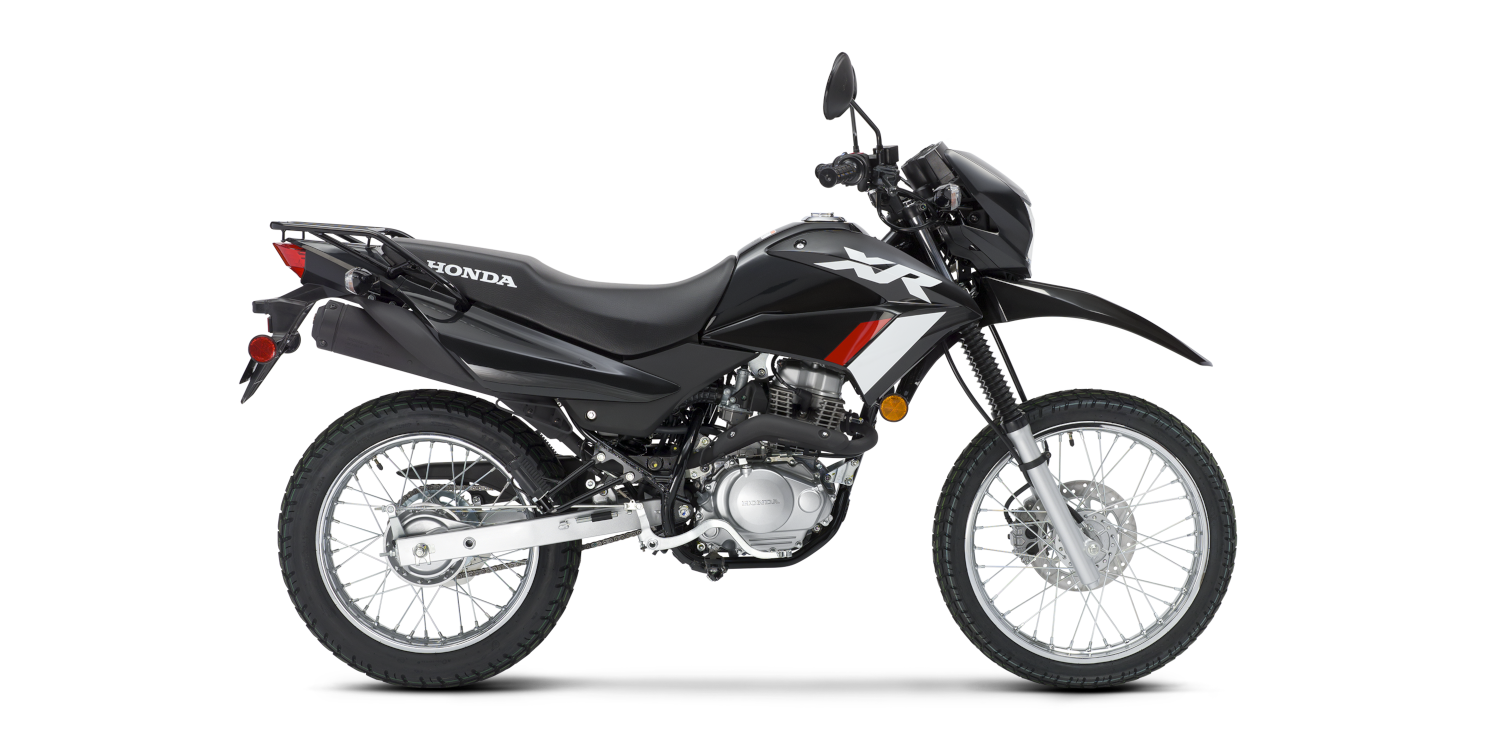

Four-stroke engine

It features a single-cylinder, four-stroke engine with the legendary toughness that XRs are known for, which provides excellent fuel efficiency and a wide powerband.

Adventure in every mile

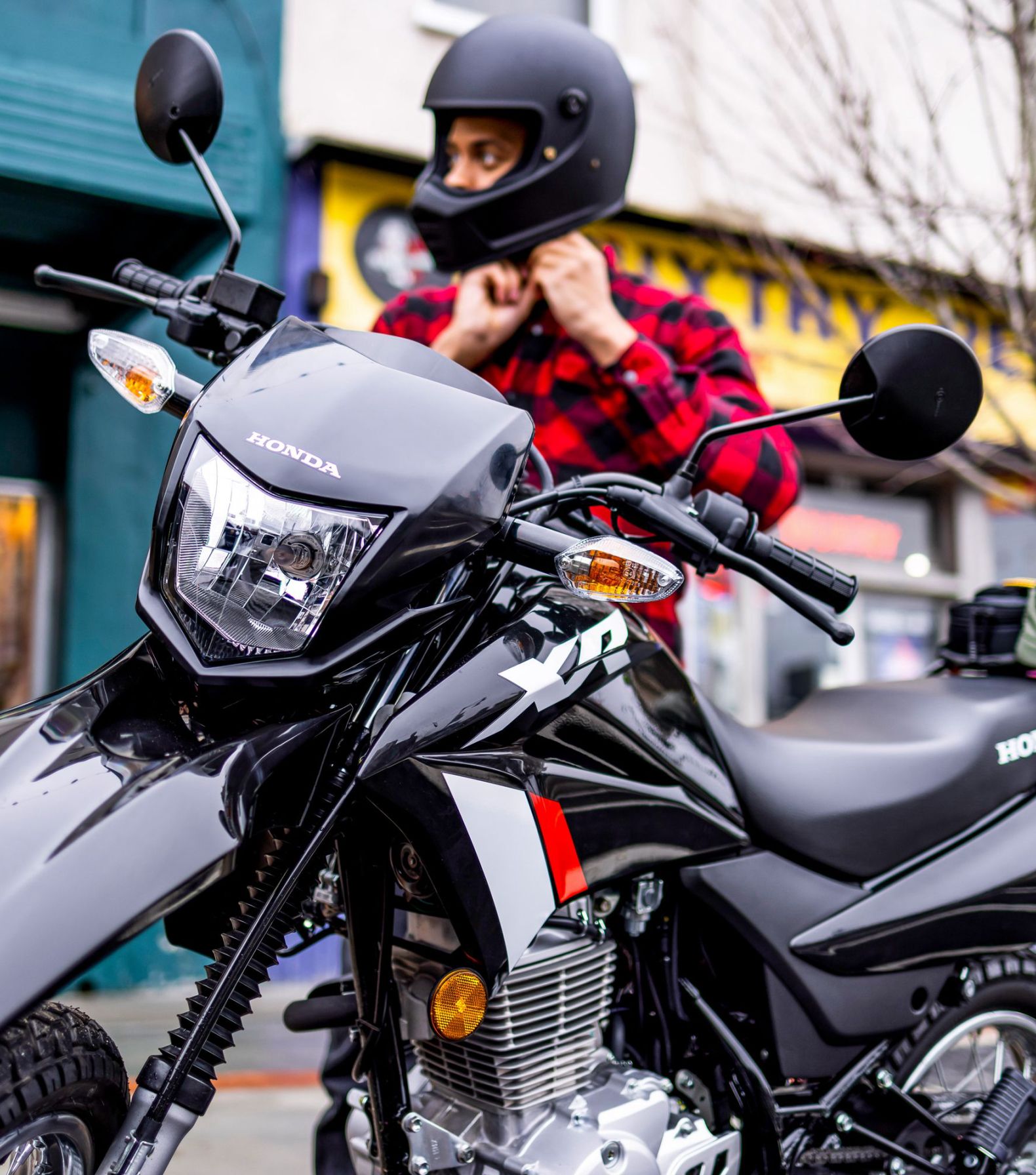

Street-legal features

Although it is a great off-road bike, it is also designed for street use, with features like turn signals, a license-plate light, mirrors, a speedometer, and folding footpegs for a passenger.

Adventure in every mile

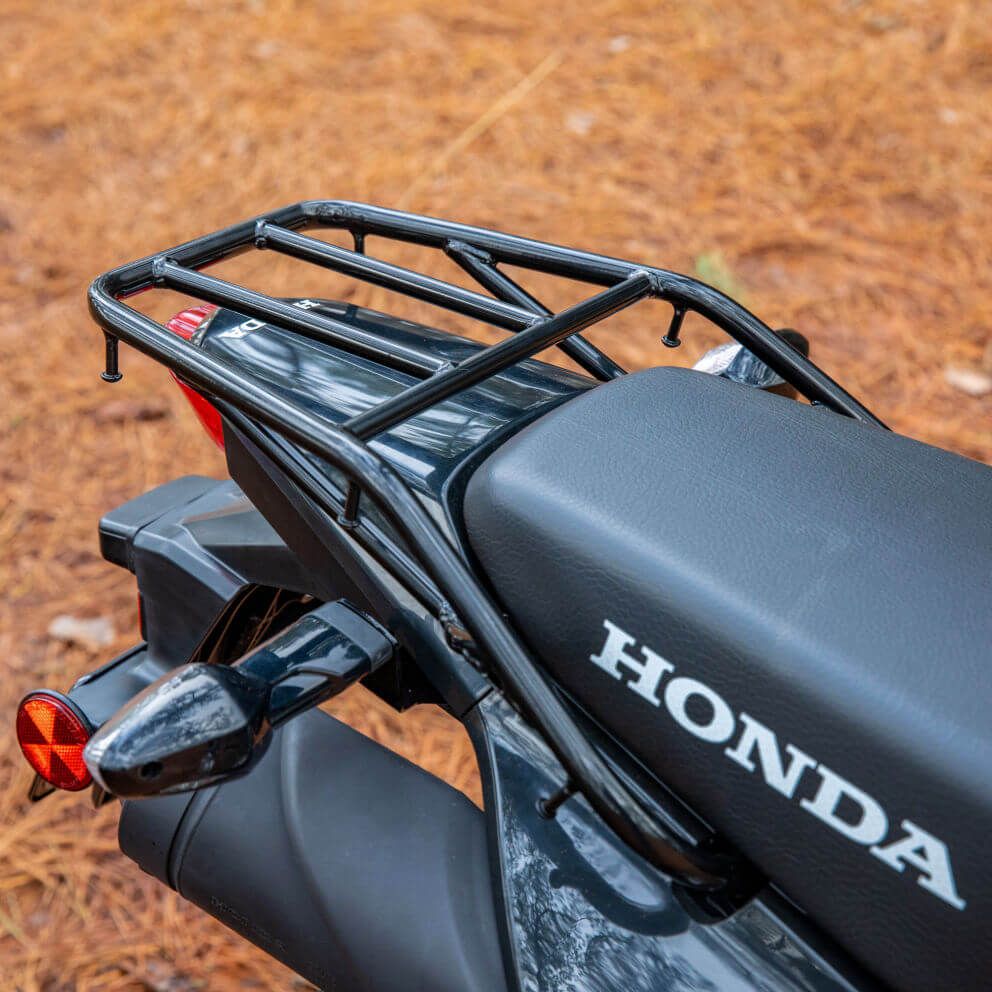

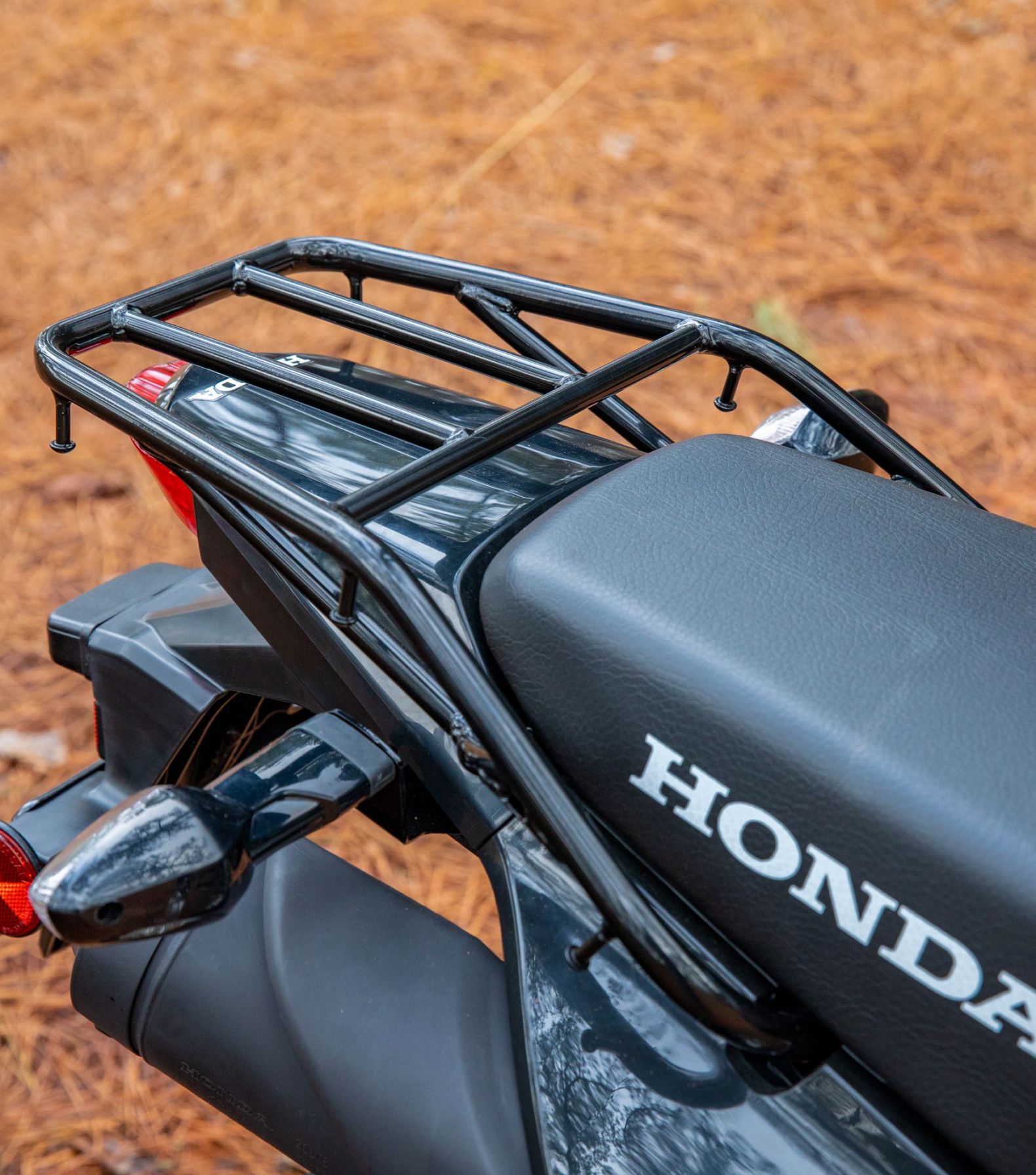

Standard rear carrier

A tubular-steel rear carrier is standard equipment, giving you a great platform to secure a small load.

Adventure in every mile

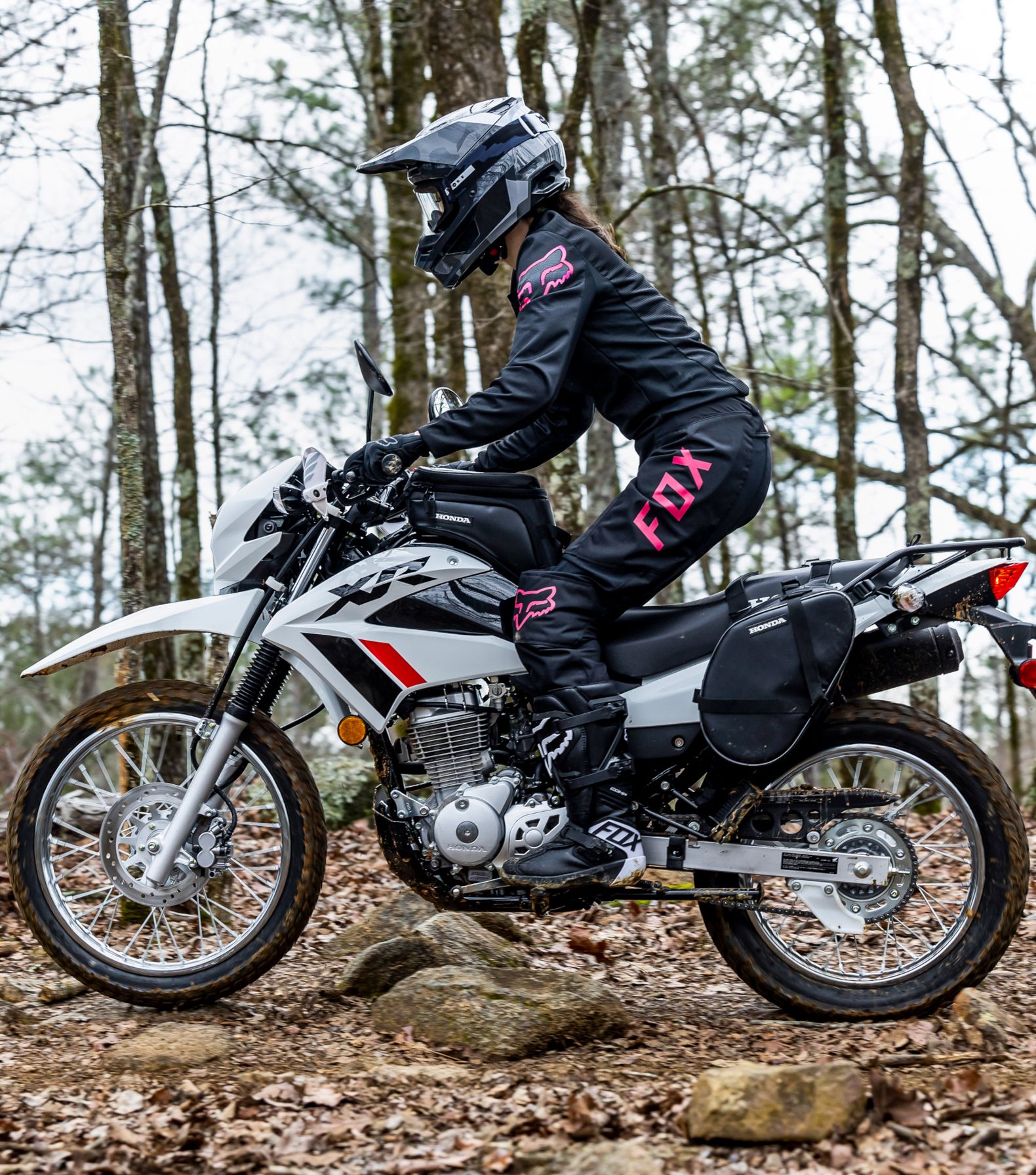

Long-travel front suspension

The bike's fork is perfectly balanced, offering just the right amount of suspension travel to absorb the bumps and rocks on a dirt road or trail. It's not too much that the seat height becomes too high, but enough to ensure a comfortable ride.

Embark on epic journeys

View all Features

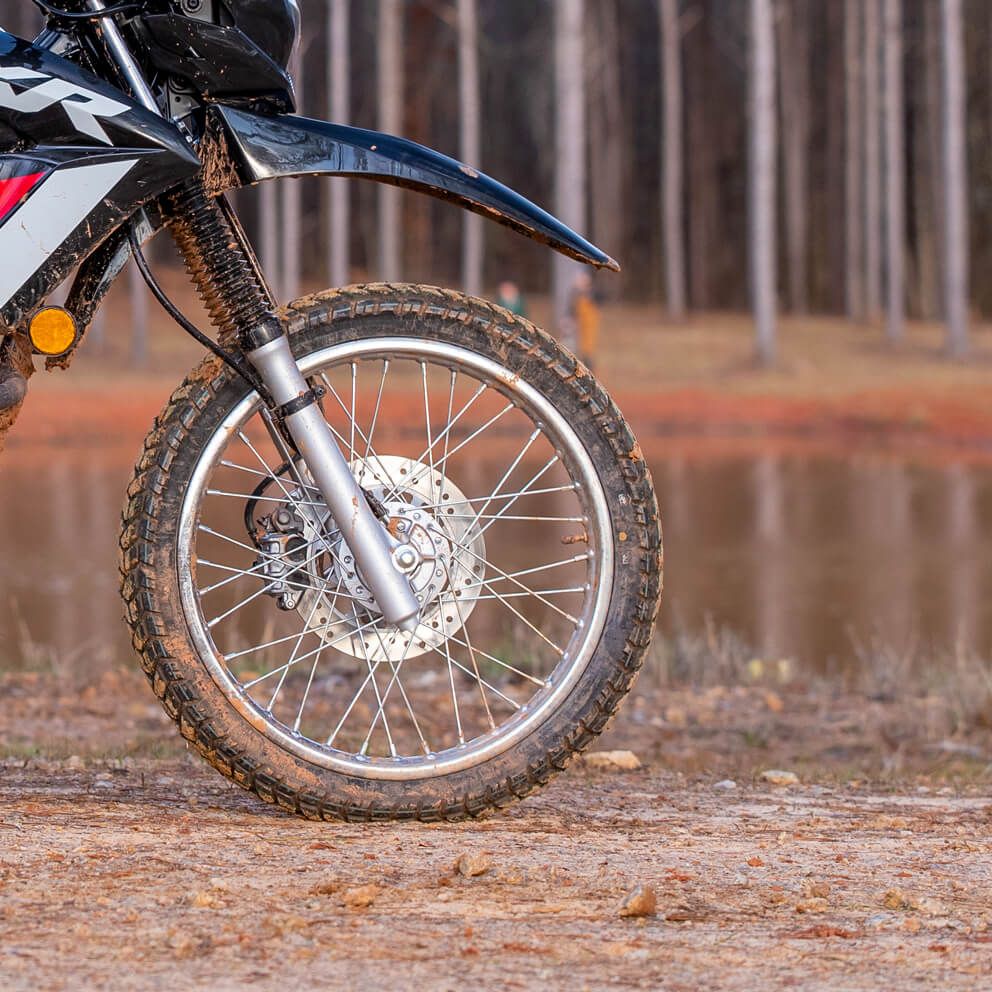

Front disc brake

The front disc brake offers excellent stopping power. The drilled disc rotor is designed for improved wet-weather performance and reduced weight.

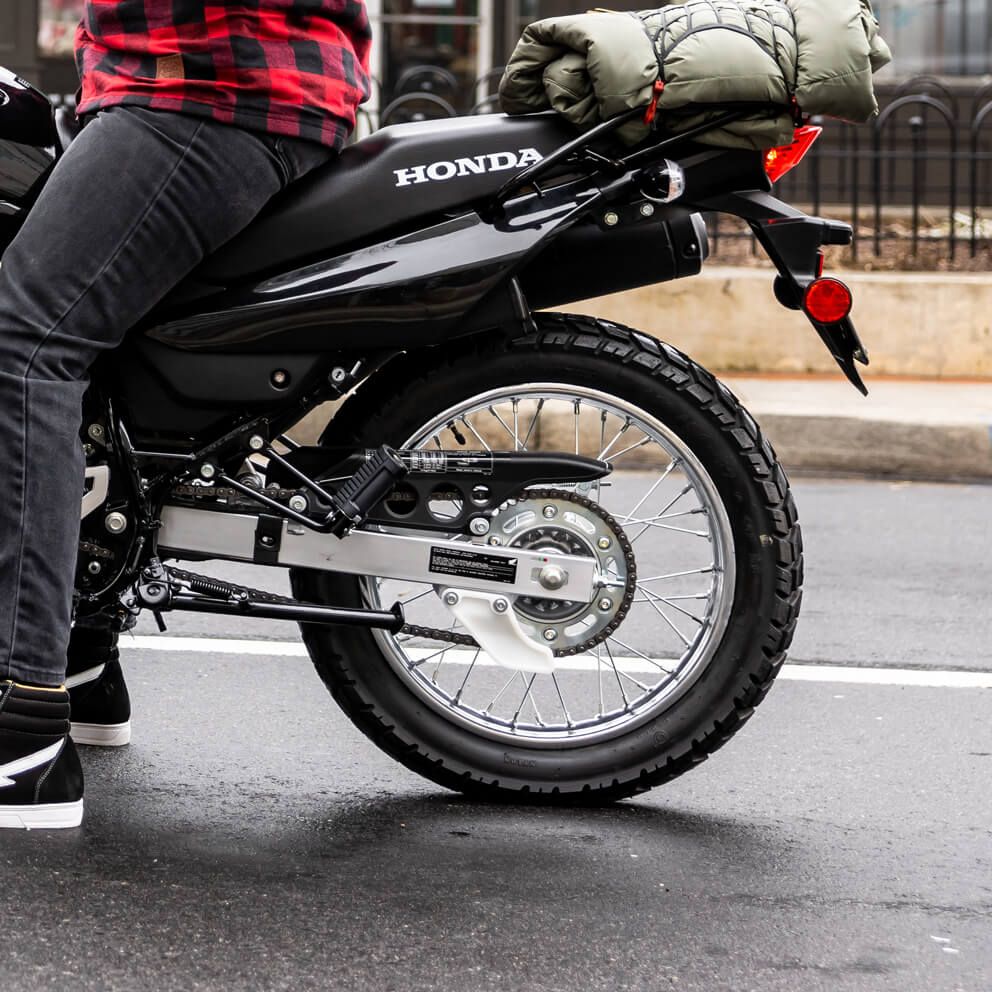

17-inch rear wheel

The 17-inch rear wheel provides better ride quality and superior sidewall protection against flats compared to smaller wheels. It also offers a wide range of on- or off-road tire options.

19-inch front wheel

The 19-inch front wheel rolls better over uneven surfaces than a smaller wheel, giving you a wide choice of tires for different riding conditions.

Steel frame

Similar to its larger counterpart, the XR650L, this bike's steel frame is built to withstand the rigors of off-road travel.

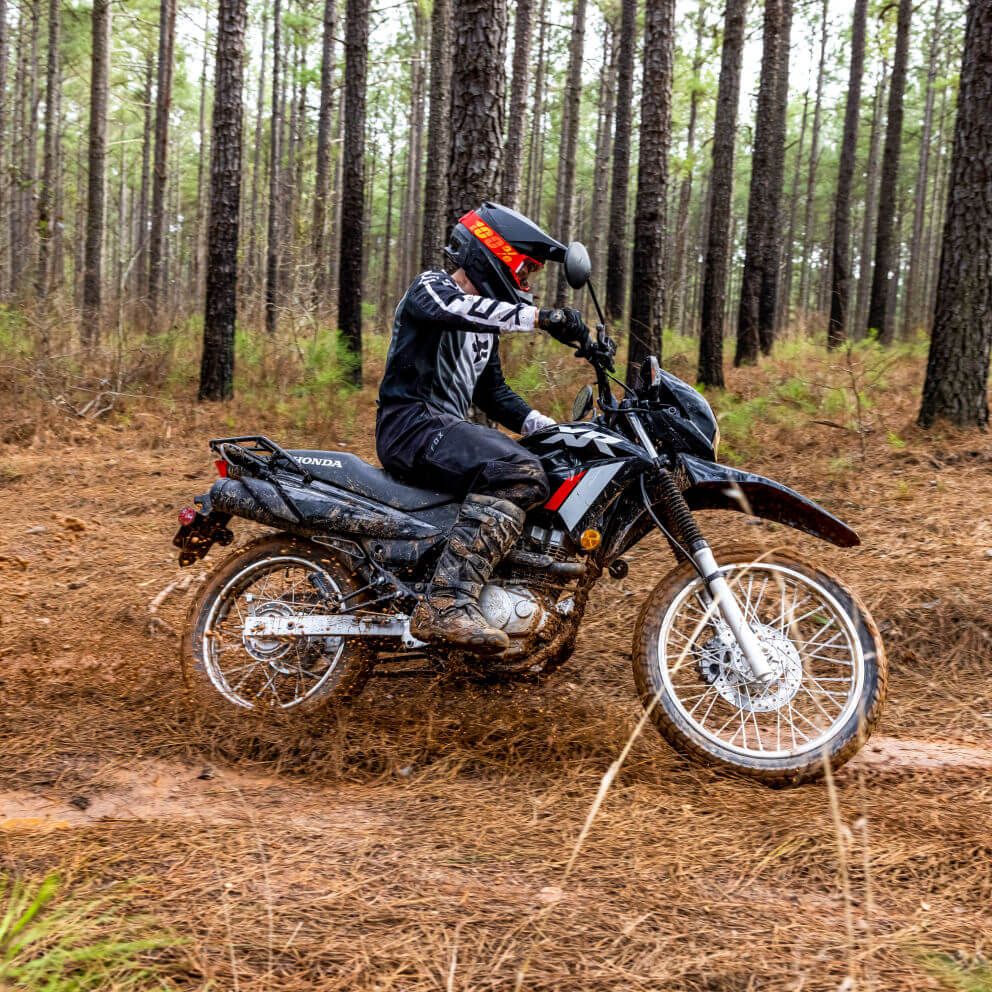

Sealed battery

There are no maintenance issues even after an off-road tip-over; the sealed battery provides enough power for the electric starter and is protected from vibrations caused by off-road riding.
