Engine Type
999cc liquid-cooled inline four-cylinder four-stroke
Transmission
Six-speed
Front Suspension
43mm Showa big piston fork; 4.7-inch travel
Rear Suspension
Unit Pro-Link® HMAS™ single shock; 5.4-inch travel
Seat Height
32.8 inches
Warranty
Transferable, unlimited-mileage limited warranty. One year included.
Engine
Engine Type | 999cc liquid-cooled inline four-cylinder four-stroke |
---|---|
Bore And Stroke | 76.0mm x 55.1mm |
Induction | Programmed Dual Stage Fuel Injection (PGM-DSFI); 48mm throttle bodies; Denso 12-hole injectors |
Valve Train | DOHC, 8 Valves per Cylinder |
Compression Ratio | 13:1 |
Drive Train
Transmission | Six-speed |
---|---|
Final Drive | #530 Chain; 16T/43T |
Chassis Suspension Brakes
Front Suspension | 43mm Showa big piston fork; 4.7-inch travel |
---|---|
Rear Suspension | Unit Pro-Link® HMAS™ single shock; 5.4-inch travel |

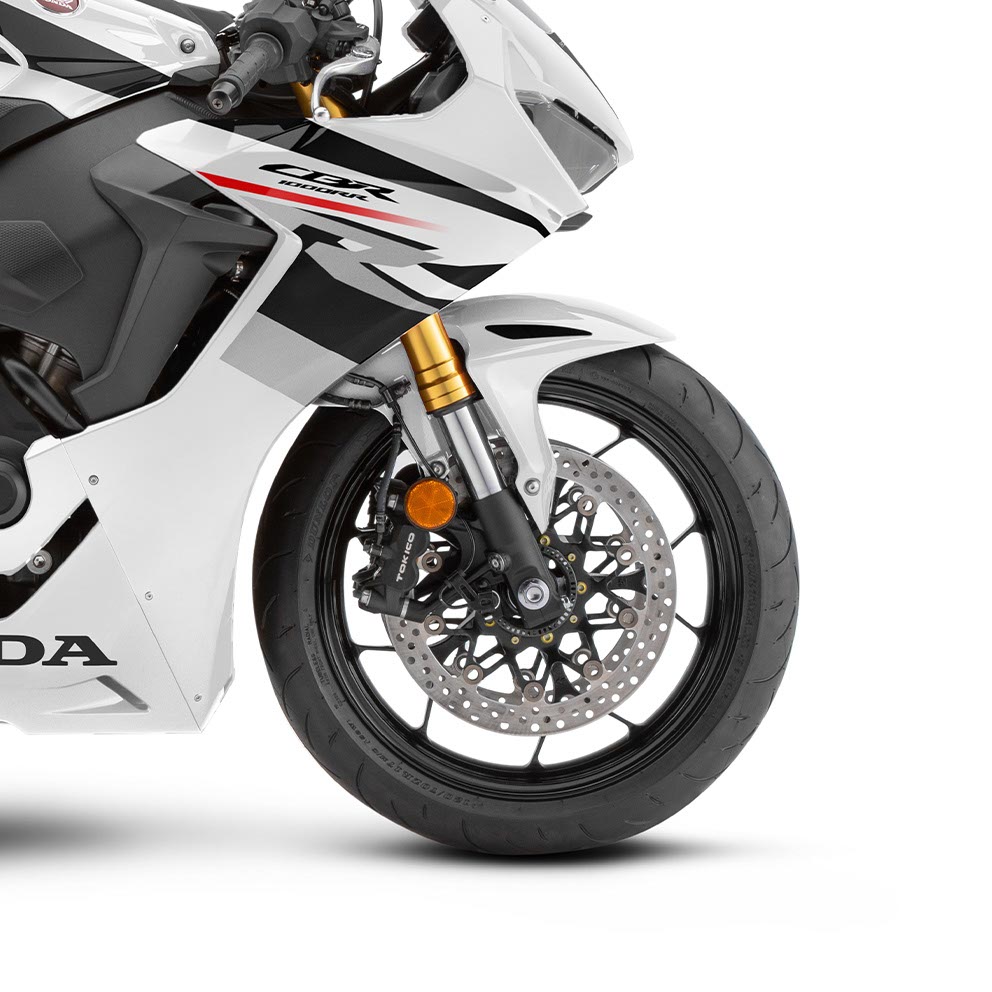

Front Brake | Dual radial-mounted full-floating 320mm discs with four-piston calipers; ABS |
Rear Brake | Single 220mm disc; ABS |
Front Tire | 120/70ZR-17 radial |
Rear Tire | 190/50Z-17 radial |
Dimensions
Rake | 23.0° |
---|---|
Trail | 3.8 inches |
Wheel Base | 55.3 inches |
Seat Height | 32.8 inches |
Curb Weight | 434 pounds (Includes all standard equipment, required fluids and full tank of fuel—ready to ride) |
Fuel Capacity | 4.3 gallons |
Other
Model ID | CBR1000RA |
---|---|
Emissions | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. |
Available Colors | Pearl White |
Factory Warranty Information
One Year Included | Transferable, unlimited-mileage limited warranty |
---|---|
Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
